NF-κB epigenetic attractor landscape drives breast cancer heterogeneity
Francisco Lopes, Bruno R. B. Pires, Alexandre A. B. Lima, Renata Binato, Eliana Abdelhay
TL;DR
This study explores how changes in the NF-κB gene affect breast cancer subtype diversity, contributing to treatment resistance and recurrence.
Contribution
The paper introduces a gene regulatory network model showing how NF-κB epigenetic variability drives transitions between breast cancer subtypes.
Findings
Stochastic fluctuations in NF-κB levels cause irreversible transitions between HER2+ and TNBC subtypes.
An unstable state in the model mediates transitions between subtypes, influenced by dynamic fluctuations.
Modifications to NF-κB availability alter the size of subtype basins and transition probabilities.
Abstract
Heterogeneity in breast cancer (BC) subtypes within a tumor contributes to therapy resistance and cancer recurrence. Subtype heterogeneity in tumors arises through a combination of stochastic genetic/epigenetic changes, phenotypic plasticity, and microenvironment-driven selection as the tumor evolves over time. Here, we sought to characterize how NF-κB epigenetic variability contributes to the progression of the HER2+ BC subtype. Initially, we used RNA to determine the expression levels of NF-κB, TWIST1, SIP1, and SLUG in two breast cancer (BC) cell lines, HCC-1954 and MDA-MB-231, classified as HER2+ and triple-negative breast cancer (TNBC) subtypes, respectively. Then, we built and calibrated a gene regulatory network (GRN) model that reproduces the transcriptional interactions between these genes. The model epigenetic landscape exhibits two attractor basins that reproduces the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —https://doi.org/10.13039/501100003593Conselho Nacional de Desenvolvimento Científico e Tecnológico
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNF-κB Signaling Pathways · Melanoma and MAPK Pathways · Cytokine Signaling Pathways and Interactions
Introduction
To understand how cell differentiation occurs rapidly during embryonic development, Waddington proposed his famous metaphor, which consists of the sequential events of cell differentiation compared to a ball rolling down a bifurcated valley^1^, Fig. 1A. Later, using the dynamic systems theory, Kauffman^2,3^ proposed the concept of cell types as attractors. According to this concept, all cell types, including cancer cells, correspond to different attractors in a multidimensional space. Transitions between different attractors are thought to be induced by biochemical stochastic fluctuations, with gene mutations potentially facilitating these transitions to cancer cells by lowering the barriers separating the attractors. Building on this foundation, Wang and collaborators^4^ have recently proposed a systematic approach to determine a probability landscape, leading to a quantitative characterization of Waddington’s epigenetic landscape, thus transforming it from a metaphor into a more quantifiable framework. Bhattacharya and collaborators^5^ proposed an alternative, simpler approach, where a quasi-potential surface is directly derived from the network ODE system. Additionally, computational strategies such as SCUBA (single-cell clustering using bifurcation analysis) have described lineage relationships between cells at various developmental stages by identifying bifurcation events that lead to the emergence of new attractor states during differentiation^6^. However, despite the conceptual elegance of Waddington’s landscape and Kauffman’s attractor model, they often lack precise molecular mechanisms underlying these processes and fail to fully explain the nature and timing of the fluctuations that induce transitions. More detailed molecular models are needed to bridge the gap between abstract landscapes and actual biological pathways.Fig. 1. Model for the activation of SLUG, SIP1, TWIST1, and NF-κB (subunits p50 and p65).A Waddington epigenetic landscape metaphor. B BC heterogeneity determined by scRNAseq^8^: proportion of HER2^+^ and ER^−^/HER2^−^ cells in two HER2^+^ and one TNBC classified patient. C Quantitative PCR (qPCR) analysis of NF-κB, TWIST1, SLUG, and SIP1 expression levels in HCC-1954 (HER2^+^) and MDA-MB-231 (TNBC) cell lines, ****, ***and * indicates E-4, E-3 and 2E-1 statistical significance, respectively. RNA levels were estimated from our qPCR data compared to the estimated number of RNA molecules in a mammalian cell (Supplementary Table 1). D Representation of model reactions: N0X or N1X indicates whether the regulatory region of a given gene X is empty or occupied by a NF-κB dimer, respectively. Gene X can be SLUG, SIP1, TWIST1, p50 or p65. Gene activation is described by a three-step reaction: a reversible reaction for NF-κB binding to the gene regulatory region (NFκB + N0X \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\leftrightarrow$$\end{document} N1X), and two irreversible reactions for RNA (N1X \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\to$$\end{document} N1X + XRNA) and protein synthesis (XRNA \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\to$$\end{document} XRNA + X). Constitutive synthesis and degradation of RNAs, and protein degradation are also assumed. Detailed reactions on Supplementary Fig. 1.
BC is commonly classified into three subtypes: luminal, characterized by high expression of estrogen receptors (ER) and often progesterone receptors (PR); HER2-positive (HER2^+^), marked by overexpression of the epidermal growth factor receptor 2 (HER2); and triple-negative breast cancer (TNBC), which lacks expression of ER, PR, and HER2^7^. Using single-cell RNAseq (scRNAseq) to classify cells from the same BC patient sample, Chung and collaborators^8^ found remarkable heterogeneity (Fig. 1B). Wu et al.^9^ also revealed significant heterogeneity in samples from luminal, HER2^+^ and basal (TNBC) patients using scRNAseq data as well.
The NF-κB family consists of five subunits (RelA/p65, NF-κB1/p50, NF-κB2/p52, c-Rel, and RelB) that form various homo- and heterodimers, with p65/p50 being the most prevalent^10^. In resting cells, NF-κB is bound and inhibited by IκB complexes, consisting of IκBα, IκBβ, and IκBε subunits. The activation of NF-κB signaling has been associated with numerous pathological conditions, including chronic inflammation^11^, heart^12^ and immune^13^ diseases, and various types of cancer^14–19^. In cancer cells, NF-κB signaling is involved in diverse mechanisms like cancer initiation, uncontrolled proliferation, metastasis, and therapy resistance^19^. At the transcriptional level, we have previously shown that NF-κB directly activates epithelial-mesenchymal transition (EMT) transcription factors SNAI2/SLUG, ZEB2/SIP1, and TWIST1, playing a critical role in EMT, which is a characteristic of HER2^+^ and TNBC cells^20^.
The regulatory interactions among NF-κB, TWIST1, SLUG, and SIP1 have also been documented in multiple cancer types. In bladder cancer, elevated expression of TWIST1 and SLUG is frequently observed in invasive tumors^21^. NF-κB is constitutively active in bladder tumors, promoting progression and EMT^22^, and its activation induces TWIST1 and SLUG expression during this process^23^. Similarly, in glioblastoma, the EMT transcription factors SLUG and TWIST are highly expressed in tumors exhibiting vascular proliferation^24^. SIP1 expression has also been associated with advanced stage and poor prognosis in several cancers, including pharyngeal squamous cell carcinoma^25^ and gastric cancer, where it drives invasion and peritoneal dissemination^26^. Collectively, these findings indicate that NF-κB and its downstream EMT transcription factors, TWIST1, SLUG, and SIP1, constitute a broader regulatory network active across diverse tumor contexts, supporting the view that the GRN proposed here reflects a general mechanism of plasticity rather than a TNBC-specific program.

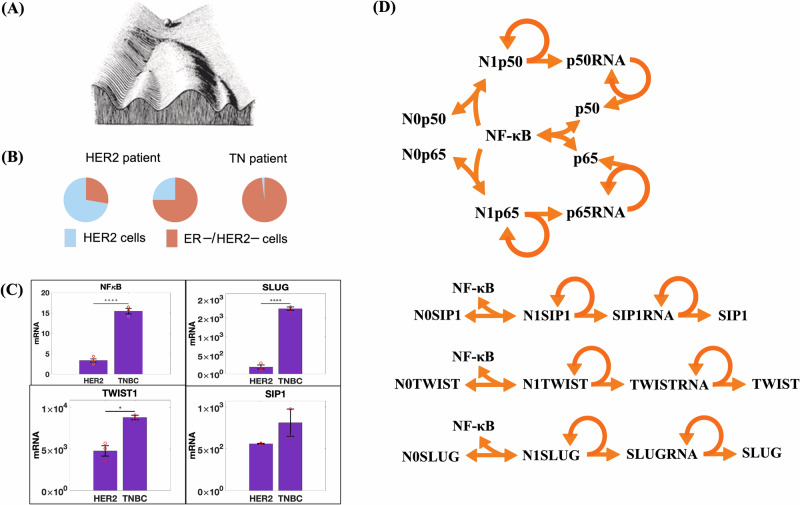

To investigate NF-κB role in BC progression, we built a gene regulatory network (GRN) model depicting NF-κB regulation of itself and the target genes TWIST1, SLUG, and SNAIL^20,27,28^. The model shows that the cell attractor landscape has two stable states, each exhibiting the gene expression levels we determined for HER2^+^ and TNBC breast cancer subtypes. Stochastic simulations induce spontaneous transitions from HER2^+^ to TNBC basins. No transition from TNBC to HER2^+^ was verified in any cell simulation, indicating a preferential direction of the transitions. This preferential direction is related to the size of both basins in the cell attractor landscape. Interestingly, the correlation between the p65 and p50 RNA in TNBC is lower than in HER2^+^, in accordance with Chung et al.^8^. This is related to the more symmetric shape of the TNBC epigenetic basin compared to that of the HER2^+^ subtype. It suggests that using correlation to describe gene interactions might be less effective in more severe subtypes. Single-cell simulations show that even identical cells exhibit the HER2^+^ to TNBC transition at different times. This indicates that stochasticity works at both protein/RNA concentrations and the tissue identity, playing a critical role in cell type heterogeneity in a tumor site.
Results
A GRN reproduces NF-κB dynamics in HER2+ and TNBC cells
To investigate the molecular mechanism underlying NF-κB role in BC progression, we performed RT-qPCR assays to characterize NF-κB expression levels, along with its EMT-related target genes TWIST1, SNAIL, and SLUG, in two well-established breast cancer cell lines representing the HER2^+^ and TNBC subtypes: HCC-1954 and MDA-MB-231, respectively (Fig. 1C). We then built a GRN model (Fig. 1D, Supplementary Fig. 1; Methods) in which the NF-κB heterodimer (p65:p50) activates the expression of TWIST1, SNAIL, SLUG^20^ as well as both NF-κB subunits p50 and p65, whose positive feedback has already been described in the literature^27,28^. According to chemical reaction network theory^29,30^, the model can exhibit two stable stationary states. To evaluate the model ability to replicate gene expression levels in both BC subtypes, we calibrated it using the RNA levels of NF-κB, TWIST1, SNAIL, and SLUG across both subtypes simultaneously. Due to the model bistable behavior, it successfully reproduces the expression levels of both subtypes with a single parameter set, where each subtype corresponds to a distinct stationary state (Fig. 2A).Fig. 2. The epigenetic attractor landscape shows an attractor associated with each BC subtype.A Model calibration to the estimated RNA molecule numbers of NF-κB subunits (p50, p65) and transcription factors (SLUG, SIP1, and TWIST). Orange bars represent the same data as shown in Fig. 1C, while purple bars depict the calibration of the GRN model. B Fine-tuning of model parameters to replicate the temporal dynamics of expression level recovery in HER2^+^ (upper panel) and TNBC (lower panel) cell subtypes after treatment with the NF-κB inhibitor DHMEQ. C The three stationary states in the p50-p65 phase space, with the purple line showing the trajectory of a single-cell simulation undergoing the HER2^+^ to TNBC transition. D–F Three different perspectives of the model attractor basins.

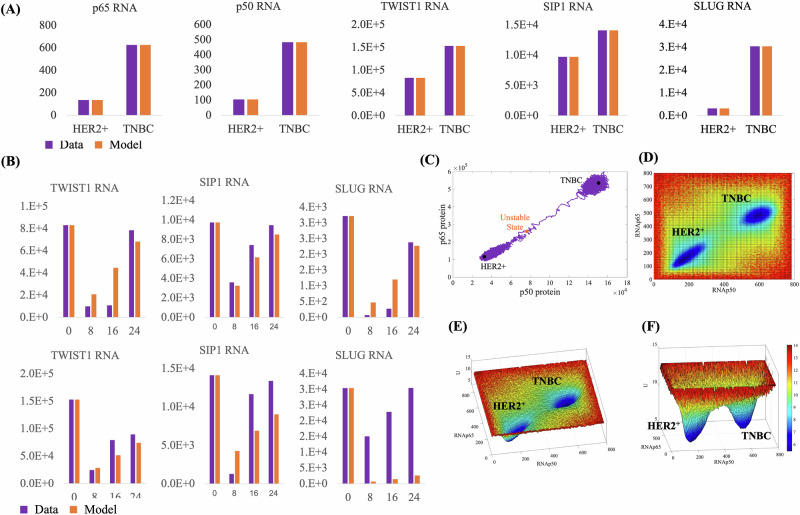

To assess the model ability to replicate the temporal dynamics of these genes, we measured the recovery time of their expression levels in both HER2^+^ and TNBC subtypes following treatment with the NF-κB inhibitor DHMEQ (Fig. 2B). The model parameters were then fine-tuned to reproduce this RNA recovery without compromising the calibration shown in Fig. 2A. The model successfully replicated recovery times comparable to those observed in both cell lines (Fig. 2B). The only exception is SLUG, where experimental recovery times differ between the HER2^+^ and TNBC subtypes. This suggests that additional genes may contribute to the faster SLUG recovery observed in TNBC. Notably, the experimentally determined high SLUG levels at 8 h in TNBC cells (purple bars) compared to HER2^+^ cells indicate the presence of other transcriptional regulators beyond NF-κB in TNBC. Since these factors are not included in the GRN model, this effect could not be reproduced.
The BC GRN exhibits an attractor landscape with two basins
To describe the model phase space, we solved the algebraic equations derived from the Ordinary Differential Equations (ODEs, Supplementary Fig. 2) finding three stationary states (Fig. 2C). Both black circle states have seven eigenvectors with negative eigenvalues and two with null eigenvalues. Between these stable states, there is one unstable one. We then built the epigenetic attractor landscape by performing 10 thousand stochastic simulations, starting at different uniformly-distributed positions in the p50*-*p65 RNA phase space (Fig. 2D–F). This surface exhibits two basins of attraction, each containing the stationary position of one of the BC cell subtypes. The TNBC basin is more symmetric than the HER2^+^ one, as shown in Fig. 2C. Also, the unstable position is closer to the HER2^+^ basins than to TNBC one. All these characteristics are discussed in depth in the following sections.
Stochastic fluctuations induce the HER2+ to TNBC transition
According to the Kauffman’s cancer attractors model^2,3^, stochastic fluctuations in gene expression drive the transition between attractor states, which are associated with different cell types. To test if our modeling corroborates Kauffman’s hypothesis, we plotted the trajectory of a 38-year single-cell stochastic simulation in the p50*-*p65 protein phase space (Fig. 2C). The simulation follows a trajectory that visits different positions around the equilibrium state in the HER2^+^ attractor (Fig. 2C, Supplementary Movie 1). These positions have a strong asymmetrical distribution, resembling the shape of the HER2^+^ basin and suggesting confinement within it (Fig. 2D). While confined to this basin, the trajectory is restricted to the region between the HER2^+^ stable and the central unstable state; however, if the trajectory passes through the position of the unstable state, it is strongly attracted towards the TNBC basin. Once there, the trajectory becomes more symmetrical than in the HER2^+^ basin, resembling the shape of the TNBC basin. We see that the stochastic trajectory is spontaneously moving from the HER2^+^ to the TNBC basis of attraction. This result corroborates the Kauffman’s cancer attractors hypothesis showing that, at the microscopic level, stochasticity in the concentrations of proteins and RNAs induces the transition between the attractor basins, which are associated with the HER2^+^ and TNBC subtypes.

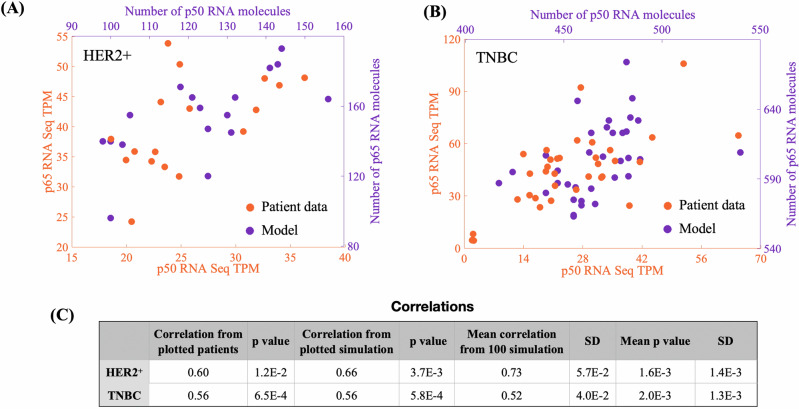

Given that the asymmetrical shape of the trajectory in both basins can be crucial for the correlation between positions in the phase space, we decided to compare the correlation between p50 and p65 RNA levels from our simulations with a cohort of basal and HER2^+^ non-treated Asian patients (n = 51^31,32^,). In Fig. 3A, B we show a set of simulations exhibiting Spearman correlation (Sc) of 0.66 (p = 3.7E−3) for HER2^+^ and 0.56 (p = 5.8E−4) for TNBC simulations, respectively. These results align with the data from non-treat patients^31^, that show Sc = 0.60 (p = 1.0E−2) for HER2^+^ and Sc = 0.56 (p = 6.5E−4) for TNBC (Fig. 3). They also align with Chung et al.^8^, who found lower cell-to-cell correlation in TNBC than in HER2^+^. To include an extra layer of validation, we used a scRNAseq databank built from 26 primary tumors encompassing 11 ER+, 5 HER2+ and 10 TNBCs^9^. In total, the databank has 130,246 total single cells. Using this cohort, we determined the correlation between RELA and NFkB1 expression levels from 24,489 tumor cells. The results confirm a lower correlation in TNBC (0.16, p value 1.1E−61, n = 10,836) compared to HER2^+^ (0.19, p value 1.0E−15, n = 1775). The correlation in ER+ was 0.084 (p value 6.0E−19, n = 11,878). This result corroborates with our result that the more symmetrical shape of TNBC basin results in lower correlation between RELA and NFkB1 expression levels.Fig. 3. Validation of GRN with data from untreated patient cohort^31,32^.Orange represents data, and purple represents model simulations. A Comparison of data from 17 HER2^+^ patients with 17 randomly selected single-cell stochastic simulations from a set of 120 simulations. B Comparison of data from 34 TNBC patients with 34 single-cell simulations, similar to (A). C Correlation measures for data in (A) and (B), alongside mean correlations from 100 randomly selected simulations (see Methods).
The unstable state mediates the HER2+ to TNBC transition

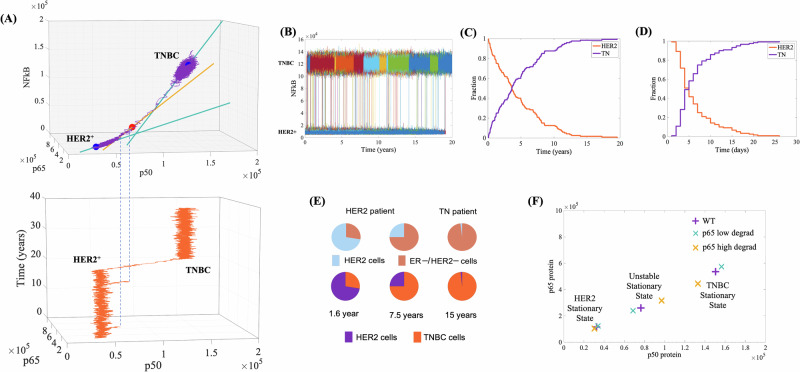

To understand what drives the cell dynamics to escape from the HER2^+^ toward the TNBC basis of attraction, we projected all seven eigenvectors with non-zero eigenvalues into the 3D p50*-p65-*NFκB phase space, Fig. 4A (upper panel) and Supplementary Fig. 3. The weaker eigenvectors are more susceptible to be overcome by stochastic fluctuations. This susceptibility is key in understanding the transition trajectory depicted in Fig. 2C.Fig. 4. The unstable state facilitates the transition from HER2^+^ to the TNBC subtype.A Upper panel: Projection of the weak eigenvectors within the p65-p50-NFκB phase-space. The purple line depicts a single-cell simulation trajectory. Lower panel: Temporal variation of p50 and p65 protein levels in the same simulation. B Spontaneous transitions from HER2^+^ to TNBC occurring at various time points over a 20-year period, collected from 120 single-cell stochastic simulations. These simulations show a 100% transition rate over 20 years (as shown in C). D Reducing p65 degradation by 2.5% significantly decreases the time required to reach 100% transitions to just 26 days. E Snapshots from different time points across the 120 simulations (shown in C) recapitulate the tumor heterogeneity reported by Chung et al.^8^. F p50-p65 phase-space displaying the model’s stable positions under conditions of reduced or increased p65 degradation (see Table 1 for details on the shifting measures).
Initially, the trajectory is restricted to the HER2^+^ attractor, where it started (Fig. 4A, Supplementary Movie 2). It then fluctuates along the green eigenvector (weak, eigenvalue = −6.0E−3) associated with the HER2^+^ stationary state. The lower panel in Fig. 4A shows a 3D plot of the time course from the same simulation. The dotted blue lines between both panels indicate that while the trajectory mainly fluctuates near the HER2^+^ stable position, it moves toward the orange (weak) eigenvector twice but falls short of reaching the unstable position (red sphere). Only on the third instance does the trajectory reach the unstable position, moving past it and into the TNBC basin of attraction.
This dynamic effectively utilizes the weak eigenvectors susceptibility to fluctuations. Although the red eigenvector (eigenvalue = +2.5E−3) tends to drive the trajectory away from the unstable red position, the fluctuations eventually prevail. Once past the unstable point, the trajectory follows the direction of the orange eigenvector, moving away from the red circle and towards the TNBC stable position. When the trajectory shifts from the orange to the green eigenvector (eigenvalue = −3.2E−3), it continues toward the TNBC position. Once there, it fluctuates around the TNBC stable position. Notably, none of an additional set of 120 simulations over 20 years, starting in the TNBC stable position, showed a transition back to the HER2^+^ basin.
Spontaneous transitions from HER2+ to TNBC generate tumor heterogeneity
To explore whether microscopic stochasticity contributes to macroscopic heterogeneity in cell collectives (tissues), we conducted 120 identical single-cell simulations over a 20-year model period, each starting from the central stationary state of the HER2^+^ subtype. Assuming no cell-to-cell signaling, all HER2^+^ cells eventually transitioned to the TNBC subtype (Fig. 4B, C), with each cell transitioning at random times and without reverting back. These results suggest that, within a tissue, stochastic fluctuations in gene expression can drive significant epigenetic variability among genetically identical cells. This epigenetic variability, caused by asynchronous transitions from the HER2^+^ to the TNBC subtype, results in the coexistence of different cell subtypes within the same tissue, a key feature of intratumoral heterogeneity.
To validate our results, we compared our 120 stochastic simulations with Chung et al.’s study^8^, which involved scRNAseq of 515 cells from 10 chemotherapy-naive BC patients and revealed significant intratumoral heterogeneity. In their classification of individual cells, they reported cases such as a sample from a HER2^+^ patient with approximately 16% or 45% of cells categorized as TNBC, and a TNBC patient with 1% of cells classified as HER2^+^ (Fig. 4E, upper panel). By compiling the number of cells that exhibited a transition from HER2^+^ to TNBC at 1.6, 7.15, and 15 years in the model timeframe, we successfully reproduced the relative proportions of cells in each subtype as observed in their study (Fig. 4E, lower panel).
To investigate copy number variations associated with the HER2^+^ to TNBC transition, we applied inferCNV to Wu et al. dataset^9^, focusing on chromosome 17, Supplementary Fig. 4. According to the most recent human genome annotation (GRCh38/hg38), the HER2 gene is located between positions 39,688,084 and 39,728,662 bp, corresponding to approximately 47.6% of the chromosome length. Notably, patients CID44991 (HER2^+^) and CID4515 (TNBC) exhibit a mixture of HER2^+^ and TNBC cells and display HER2 copy number gains within these populations, supporting the possibility of intermediate cellular states during the HER2^+^ to TNBC transition.
Mutations increase transition probabilities by changing basin sizes
Kauffman and collaborators^2,3^ have previously proposed that mutations lowering the epigenetic barrier facilitate transitions between adjacent attractors. Recently, Ren et al.^33^ demonstrated that changing FBXW2, a protein affecting p65 degradation, alters cell proliferation and drug resistance: reducing FBXW2 increases p65 and cell growth, while increasing FBXW2 decreases p65 and inhibits growth, also affecting paclitaxel resistance. In our study, we investigate the impact of these FBXW2 mutations by simulating changes in the degradation rate of the p65 protein. In HER2^+^ cells, decreasing p65 degradation by 2.5% raised its levels by 6.7%, while increasing degradation by 5.0% reduced p65 levels by 10.0% (Fig. 4F, Table 1). These changes in p65 degradation altered the HER2^+^ attractor basin size: reducing p65 degradation reduced the distance between the HER2^+^ stable and intermediate unstable state by 19.82%, while increasing it increased this distance by 47.16% (Fig. 4F, Table 1). Concurrently, the TNBC attractor basin size was inversely impacted by p65 degradation changes: a 2.5% decrease in p65 degradation increased the distance to the TNBC state by 21.22%, while a 5.0% increase reduced this distance by 53.35%.Table 1. Effects of mutations on the size of attractor basinsWild-typep65 degradation 2.5% lowerp65 degradation 5% higherSpecie (molecule number)HER2UnstableTNHER2UnstableTNHER2UnstableTNp5032491.37647215049133968.868630.715638230449.196943133008p65115566260132535271123303239395573457103958316153444084NFkB5893.3331221.91264296573.7925786.81407514968.1448103.692705,9RNAp50104.38245.66483.44109.12220.47502.3697.82311.42427.28RNAp65134.99303.86625.25140.43272.65653.11127.50387.76544.67p50 variation (%)4.55−10.253.91−6.2926.77−11.62p65 variation (%)6.69−7.977.13−10.0421.54−17.04NFkB variation (%)11.55−17.4111.33−15.7054.07−26.67RNAp50 variation (%)4.55−10.253.91−6.2926.77−11.62RNAp65 variation (%)4.03−10.274.46−5.5527.61−12.89HER2-to-instable distance151108.01121156.10222369.42TN-to-instable distance284921.54345395.01132917.36HER2-to-unstable distance variation (%)−19.8247.16TN-to-unstable distance variation (%)21.22−53.35The table presents the percentage variation in stationary concentrations of NF-κB and its subunits p50 and p65 due to changes in the p65 degradation rate. Additionally, it details the changes in distances from the HER2^+^ and TNBC stationary states to the unstable states.A comparison between wild-type and mutant stationary states.
The above-described effects in the size of the attractor basin suggest explanations for the effect of varying p65 degradation as reported by Ren et al.^33^. Specifically, the reduction in p65 degradation shrinks the HER2^+^ attractor basin, facilitating the transition to the state of higher p65 levels, increasing cell proliferation and contributing to tumor progression. Conversely, the model predicts that increased p65 degradation would expand this basin, reducing the likelihood of this transition and thereby decreasing cell proliferation.
To verify whether the above-described effects on the basin sizes influence transition probabilities, we carried out 120 stochastic simulations with p65 degradation reduced by 2.50%. All cells moved to a higher p65 level basin within 30 days, aligning with Ren et al.^33^. findings on enhanced cell proliferation; Reinforcing that mutations reducing the size of an attractor basin increase the probability of a cell departing from this attractor. On the other hand, a different series of 120 stochastic simulations with p65 degradation increased by 5.0%, shows no transition even over a span of 20 years. It indicates that mutations that increases the size of an attractor basin decreases the probability of a cell to departure from this attractor. In this case, reducing cell proliferation, in agreement with Ren et al.^33^. Taken together, these findings highlight the potential of p65 as a target for Targeted Protein Degradation, an emerging concept in drug discovery^34^.
Discussion
We propose a model that is sufficiently small to allow for a detailed analysis based on dynamic systems theory, yet large enough to encompass the key biological mechanisms behind the gene expression levels it intends to describe. In addition, we performed the model calibration in two independent steps. First, we calibrated the model against cell data at the stationary states, followed by a time-dependent calibration to reproduce the dynamics of the gene expression recovery levels. Interestingly, the model could not reproduce the dynamic behavior with the same accuracy as it did for the static states, indicating that the effect of additional regulators was missing. This outcome suggests that our model was not constructed with an unnecessary number of parameters, which could have resulted in overfitting.
Remarkably, such a small model could offer explanations not only for the in vitro data it was calibrated against but also for other in vitro experiments^33^ and patient-derived data^8,9,31^. This includes explaining the p65-p50 RNA correlation in HER2^+^ and TNBC, in both bulk and single-cell data. In fact, our modeling strategy mirrors the approach of a biologist who selects specific mechanisms to replicate in an in vitro assay, aiming to understand the broader in vivo, systemic behavior.
By showing how stochasticity at the molecular level leads to heterogeneity in cells and tissues, our work provides an explanation for recent findings about BC heterogeneity^8,9^. This result can potentially impact clinical research by contributing to BC classification, which plays a critical role in determining patient-specific treatment. This can also contribute toward personalized medicine.
By simulating variations in NF-κB dimer availability, our model serves as a platform for preliminary drug testing, particularly for strategies based on Targeted Protein Degradation. Additionally, the current version of the model is ready for diverse expansions. For instance, including target genes of TWIST, SIP1, and SLUG can enhance our understanding of their roles in EMT, contributing to BC metastasis.
The finding that stochastic fluctuations can induce cell-subtype transitions is particularly interesting. It not only proposes an explanation for tumor heterogeneity but also supports the epigenetic attractor landscape model proposed by Waddington and Kauffman, specifically the association between attractor basins and cellular subtypes. Moreover, our model introduces two enhancements to these well-established general models. First, the model proposes that the key factor influencing how mutations affect transition probability lies in the size of the attractor basins. This offers a valuable tool for understanding and predicting the conditions necessary to trigger or prevent these transitions, because the size of the basins can be estimated from the relative distance between the stable states. Second, the model provides a detailed description of how eigenvectors contribute to transitions between basins of attraction. It proposes a specific pathway for transitions between the subtypes of these basins and offers an explanation for their irreversible nature. This irreversibility arises from two key factors: the relative weakness of the eigenvectors positioned between the stable states and the distance between these states. The weakness of the eigenvectors allows fluctuations to override their directionality, while the distance between the states affects the likelihood of a fluctuation being strong enough to push the system across the unstable position and into another attractor basin. These insights not only enhance our understanding of tumor dynamics but also highlight potential therapeutic approaches. Developing strategies to prevent or slow these stochastic transitions could offer a way to reduce intratumoral heterogeneity and improve treatment outcomes.
The detection of HER2 copy number gains in a subset of TNBC cells is consistent with prior evidence that HER2-negative tumors can exhibit HER2-related molecular traits. Panis et al.^35^ demonstrated that ~16% of HER2-negative tumors expressed the HER2 intracellular domain (ICD) and, in some cases, showed HER2 gene amplification. Furthermore, transcriptomic profiling revealed that these HER2-negative, ICD-positive tumors occupy an intermediate molecular state between canonical HER2-positive and TNBC subtypes. When considered alongside our inferCNV results, these findings reinforce the concept that HER2-negative, ICD-positive tumors may represent a transitional phenotype within the HER2-driven continuum, highlighting the role of tumor cell plasticity during disease progression and therapy response.
HCC1954 cells exhibit a pseudo-tetraploid karyotype with widespread chromosomal rearrangements and significant duplications on chromosomes 8, 21, and 22. Conversely, MDA-MB-231 is near-triploid and lacks normal chromosomes 8 and 15. Since SLUG is located on chromosome 8, it is likely absent or translocated to an abnormal genomic locus in MDA-MB-231. Although these genomic differences, including chromosomal rearrangements and ploidy variations, could affect the behavior of individual genes such as SLUG, our approach was designed to capture regulatory interactions at the network level, which are expected to be robust to such alterations. Indeed, GRN dynamics emerge from overarching regulatory principles rather than specific copy number configurations. Furthermore, our extensive validation using independent patient-derived data shows that, despite being calibrated on cell lines with distinct genomic rearrangements, the model predictions align with patterns observed in a broader set of breast cancer tumors at the gene expression level. This supports the robustness of our model despite the particular genomic characteristics of the cell lines used for calibration.
Finally, this work highlights the advantages of an open-box model-building strategy. This approach utilizes relatively small models, which are well-characterized by dynamic systems theory, to accurately reproduce specific cellular processes. These smaller models can then be interconnected to create larger, more comprehensive models that capture the intricate interactions between various cellular processes. Successful examples of this strategy are already evident in the literature^36–39^, including its effective integration with successful black-box approaches^40^.
Methods
Cell culture and real-time reverse transcription polymerase chain reaction (RT-qPCR)
The human BC cell lines MDA-MB-231 and HCC-1954 were cultured as previously described^20^. Total RNA was isolated using TRIzol reagent (Thermo Fisher) according to the manufacturer’s instructions. Then, 2 μg of RNA were treated with the DNase Amplification Grade I Kit (Thermo Fisher) and reverse transcribed into cDNA using the Superscript-II kit (Thermo Fisher) following the manufacturer’s protocol. RT-qPCR was performed with SYBR Green Master Mix (Bio-Rad) in a Rotor-Gene Q (Qiagen) under previously reported conditions^20^. Each sample was examined in triplicate. ACTB and GAPDH were used as the reference genes for the RNA levels. Fold-expression was calculated according to the ΔΔCt method^41^.
Building the gene regulatory network
In our model, gene activation is described by a set of three-step reactions^42^: a reversible reaction where the transcription factor (TF) binds to the gene regulatory region, followed by two irreversible reactions for RNA and protein synthesis (Fig. 1D and Supplementary Fig. 1). This strategy is consistently applied to describe the transcriptional activation of all five genes: p65, p50, TWIST1, SLUG, and SIP1. The model is completed by generic source and decay reaction for all proteins and RNAs. We applied the law of mass action to derive a set of ODEs that describe the model dynamics (Supplementary Fig. 2). The cell RNA levels were estimated from our RT-qPCR data (Fig. 1C) compared to the estimated number of RNA molecules in a mammalian cell (Supplementary Table 1). To ensure model accuracy, we assumed that only two copies of each gene are present.
Bistability analysis and model calibration
To determine if our model exhibits bistability, we used the chemical reaction network Toolbox^29^, which provides a set of kinetic constants that guarantee bistability along with the corresponding steady states. We then calibrated the full model by fixing the kinetic parameters as determined in ref. ^43^, Supplementary Table 1. We utilized COPASI^44^, a software tool for simulating and analyzing biochemical networks, for both calibrations: for the stationary states (Fig. 2A) and for recovery time after treatment with the NF-κB inhibitor DHMEQ (Fig. 2B). To solve the model equations, we used the following parameters in COPASI: Relative Tolerance 1.0E−6, Absolute Tolerance 1.0E−12, and Maximum Internal Steps 1E5. The method used was ‘LSDODA’.
Model simulation and landscape surface
All simulations were performed using COPASI^44^. For the deterministic simulations, we employed the same methods and parameters as previously mentioned. For the stochastic simulations, we utilized tau-leaping, a variant of the Gillespie algorithm, setting epsilon (the interval during which multiple reactions can take place) to 1.0E−3 and the maximum internal steps to 100 million (1.0E+8). To construct the epigenetic attractor landscape, we modified the MATLAB code from reference^45^. In our adaptation, rather than randomly exploring positions in phase space, we performed one million 30-minute stochastic simulations using COPASI^44^. These simulations began from positions evenly distributed across the intervals (0, 1.8E+5) for p50 and (0, 6.0E+5) for p65. These simulations were then imported to the MATLAB code.
Validating Spearman correlation
We validated the correlations between p50 and p65 RNAs from our simulations using a cohort of 34 basal and 17 HER2^+^ untreated patients^31,32^. To ensure comparability, we randomly selected 34 basal and 17 HER2^+^ single-cell stochastic simulations from our set of 120. From each simulation, we randomly chose one pair of p50 and p65 RNA molecule numbers and calculated the correlation across the entire set. These pairs represent RNA levels from different cells at various moments. Figure 3A, B compare these correlations with those from the cohort, while the numerical values are presented in Fig. 3C. Each time this procedure is repeated, a different correlation may be found. To avoid bias, we repeated the strategy for measuring correlations 100 times, including only sets where the correlation p-value was less than 5.0E−3.
inferCNV analysis
Copy number variation (CNV) inference was performed using the inferCNV R package (https://github.com/broadinstitute/inferCNV/wiki). Raw gene expression counts from single-cell RNA-seq data were used as input^9^. Genes were ordered according to their position on the chromosome 17 based on the human genome reference (GRCh38/hg38). Cells were grouped by sample annotation, and a normal reference population was provided to establish baseline expression levels. The following steps were applied: Filtering: Lowly expressed genes and outlier cells were removed using default parameters. Normalization: Expression values were log-transformed and normalized. Smoothing: A sliding window approach was applied to smooth expression across neighboring genes. CNV Estimation: Relative expression was compared to the reference population to infer chromosomal copy number variations. The output included heatmaps of relative expression changes across chromosomes, identifying gains and losses in tumor cells.
