A genetic screen identifies the E3 ubiquitin ligase MPSR1 as a suppressor of early flowering of the sensitivity to red light reduced 1 mutant

TL;DR

This study finds that the E3 ubiquitin ligase MPSR1 suppresses early flowering in a mutant of Arabidopsis, working alongside SRR1 to control flowering time.

Contribution

The study identifies MPSR1 as a novel suppressor of early flowering in the srr1-1 mutant of Arabidopsis.

Findings

MPSR1 represses flowering independently of SRR1 but has a stronger effect in srr1-1 mutants.

SRR1 and MPSR1 physically interact in vivo, suggesting a functional relationship.

MPSR1 is regulated by the circadian clock and responds to photoperiodic conditions.

Abstract

The timing of floral transition is critical for plants to maximize reproductive success. In Arabidopsis thaliana, SENSITIVITY TO RED LIGHT REDUCED 1 (SRR1) delays the onset of flowering in non-favourable environmental conditions. Furthermore, SRR1 is required for the function of the circadian clock. In a genetic suppressor screen for mutants that alleviate early flowering of srr1-1 mutants, we identified ssm136 (suppressor of srr1-1 mutant 136) that represses srr1-1 early flowering in short photoperiods. Bulk segregant analysis and full-genome sequencing identified MISFOLDED PROTEIN SENSING RING E3 LIGASE 1 (MPSR1) as the causal gene. Outcrossing the mpsr1-ssm allele to wild-type showed that MPSR1 represses flowering independently of SRR1, but the effect is stronger in srr1-1, suggesting that MPSR1 and SRR1 act together in flowering time control. Co-immunoprecipitation showed that SRR1 and MPSR1 are able to physically interact in vivo. Expression analysis revealed that MPSR1 is regulated by the circadian clock but not required for maintaining the clock itself. Furthermore, MPSR1 expression is repressed by light and induced in short days, consistent with its role in floral repression under noninductive photoperiodic conditions.

The online version contains supplementary material available at 10.1038/s41598-025-26769-5.

Figures

Flowering time of *suppressor of srr1-1* (*ssm*) candidate mutants. (a) Summary of the flowering time of candidate *ssm* mutants in SDs at 16°C and re-screen of candidate *ssm* mutants in SDs at 16°C, 20°C and in LDs at 20°C. The number of leaves was counted for 10–12 plants each. *Ssm* mutants with delayed flowering also in LDs, partially rescuing the early flowering of *srr1-1* were classified as “*intermediate*” candidates (*ssm5*, *ssm15*, *ssm67* [*also designated hdf1*^*12*^], *ssm242*, and *ssm209*) The suppressive effect of s*sm90*,* ssm39*, and *ssm136* is SD-specific and they were cl

Identification of the causal mutation in *ssm136*. (a) SNP index for chromosome 1. Only candidates with a SNP index greater 0.9 were selected for further investigation. (b) Flowering time of the segregating *ssm136* x *srr1-1* BC1F2 population. Plants from *srr1-1*, *ssm136* and plants either homozygous (+/+), heterozygous (+/–) or wt (–/–) for the SNP in At1g26800 were grown in SDs (*n* = 10–12). (c) Flowering time of an independently segregating *ssm136* population. Col wt, *srr1-1*, *ssm136* #103 without SNP in At1g26800, *ssm136* #106 and *ssm136* #141 with SNP in At1g26800 were grown in S

Co-Immunoprecipitation of SRR1 and MPSR1. (a) Agrobacteria carrying 35S:SRR1-GFP and 35S:FLAG-MPSR1ΔRING were each infiltrated separately and co-infiltrated into *N. benthamiana* leaves and harvested after 2 days. Native protein extracts were subjected to IP with GFP-Trap beads. 1% of input (IN), 1% of supernatant (SN) and 66% of the beads (IP) were loaded onto SDS-gels and detected with an α-FLAG antibody to show coprecipitation of FLAG-MPSR1ΔRING. For detection of successful pulldown of SRR1-GFP on a separate gel, 1% of IN and SN and the remaining 33% of beads were loaded and the blot was de

Full text

Introduction

Proper timing of flowering is critical to balance sufficient vegetative development with maximized offspring and suitable seasonal conditions. For this, an intricate network of molecular signalling pathways has evolved in plants, to collect and interpret environmental and developmental signals, ensuring that flowering is initiated at the optimal time of the season and life cycle. Equally important is a layer of safeguards that prevents premature flowering in response to unfavourable conditions, both seasonal such as the light-dark cycle and temporary such as short-term abiotic or biotic stress. In the model plant Arabidopsis thaliana (Arabidopsis), it is well established that much of this regulation centres on the promotion or repression of the so-called “florigen” FLOWERING LOCUS T (FT)^1,2^.

The FT protein is synthesized in the leaves and subsequently moves through the vascular tissue to the shoot apex, where flowering is initiated. In the leaves, expression of FT is photoperiodically controlled via the CONSTANS (CO) protein, whose transcription is under circadian control via GIGANTEA (GI)^3,4^. Through light-coinciding interaction with FLAVIN BINDING, KELCH REPEAT, F-BOX1 (FKF1), FKF1 represses the activity of CDF transcription factors, which are repressors of CO and FT expression^5^. Thus, the CO transcript can accumulate, and CO protein is expressed in the afternoon in long days (LDs) and promotes FT expression by direct binding to its promoter.

In short days (SDs), flowering is repressed to avoid initiation of the reproductive process in non-favorable seasons. SENSITIVITY TO RED LIGHT REDUCED 1 (SRR1) ensures repression of flowering in non-inductive photoperiods in Arabidopsis. Accordingly, srr1-1 mutant plants have a reduced ability to sense changes in day length, leading to particularly early flowering in SDs. By promoting the expression of direct repressors of FT, including the CYCLING DOF FACTOR (CDF1), the TEMPRANILLO transcription factors and FLOWERING LOCUS C (FLC), SRR1 represses flowering in non-inductive conditions^6^. Furthermore, in the srr1-1 mutant genes regulated by the circadian clock as well as core clock genes including CIRCADIAN CLOCK ASSOCIATED 1 (CCA1) with a morning peak and TIMING OF CAB EXPRESSION 1 with an evening peak show short period oscillations with a reduced amplitude, whereas SRR1 itself is not rhythmically expressed^7^. Additionally, SRR1 is involved in red light signaling, acting downstream of the red light photoreceptor phyB. The SRR1 protein lacks known domains that would hint to its molecular function. Its homologs have however been suggested to play a role in flowering time control in crop species. In Brassica rapa it has been associated with expression of BrFT^8^. In Brassica napus,* BnaSRR1* has been pinpointed as a candidate gene responsible for the morphotypic split between annual and biannual forms^9^. More recently, strong sub-functionalization of different BnaSRR1 gene copies has been observed, suggesting an important role for Bna.SRR1 beyond flowering in this species^10^.

To better understand how SRR1 acts in the molecular network of flowering time control, we performed ethylmethanesulfonate (EMS) mutagenesis of srr1-1 plants and screened for novel mutants that alleviate the early-flowering phenotype. We previously described candidate suppressor mutants that promoted flowering in both SDs and LDs. By combining state-of-the-art whole genome re-sequencing and traditional mapping, we identified several candidates acting in the same genetic pathway as SRR1, among them HAD-FAMILY REGULATOR OF DEVELOPMENT AND FLOWERING 1 (HDF1). HDF1 is the first haloacid dehalogenase implicated in flowering time control in Arabidopsis and likely regulates FLC. The domain structure of HDF1 differs slightly from that of known consensus haloacid dehalogenases and thus its substrates remain to be identified^11^.

Among candidates that specifically acted in SDs, one of the affected genes mapped to a locus encoding an E3 ubiquitin ligase. Ubiquitin-mediated proteolysis is an important regulatory tool in many light-related signalling pathways^12^. In particular, this mechanism helps to overcome stresses such as extreme hot and cold temperatures, salinity, drought and infection of pathogenic microorganisms. These circumstances disturb cellular homeostasis, in which the plant makes use of the ubiquitin proteasome system (UPS) in order to maintain basal functions. E3 ubiquitin ligases play a pivotal role in the function of the UPS. E1 activating enzymes are responsible for the activation of ubiquitin, which is subsequently transferred to an E2 conjugating enzyme and finally to the substrate by a specific E3 ubiquitin ligase. The ubiquitinylated protein is finally targeted for degradation by the 26 S proteasome^13^.

E3 ligases are classified into HECT (HOMOLOGY TO E6-AP C-TERMINUS)-type, RING (REALLY INTERESTING NEW GENE)-type, U-box-type, and multi-complex E3 ligases, based on their functional domains^13^. RING-type E3 ligases possess a RING motif that coordinates two zinc ions, creating a docking place for E2 conjugating enzymes^14^. HIGH EXPRESSION OF OSMOTICALLY RESPONSIVE GENES 1 (HOS1) and CONSTITUTIVELY PHOTOMORPHOGENIC 1 (COP1), both RING E3 ligases, have been shown to play crucial roles in the plant’s response to stress and flowering. HOS1 is important in modulating responses to extreme cold^15^ while COP1 has been shown essential for etiolation by acting as a repressor of photomorphogenesis^16^. COP1 also works in concert with SUPPRESSOR OF PHYA-105 (SPA) proteins to mediate the degradation of CO and repress photoperiodic flowering^17^. hos1 mutants have an early-flowering phenotype, as if constitutively vernalized, which is consistent with low expression levels of FLC^18^. This, combined with HOS1 preventing increased CO levels in SDs and FT expression in early hours of the day, could be a link between controlling cold stress responses and flowering time^19^. The cross-signalling between other kinds of abiotic stress and the timing of flowering is however largely unexplored.

Here we show that our genetic screen of second-site suppressor mutants of srr1-1 resulted in the ssm136 mutant that partially rescued the early-flowering phenotype of srr1 and counteracted the increased level of the floral integrator gene FT in srr1. Mapping by sequencing revealed that the causal mutation localizes to a gene encoding MISFOLDED PROTEIN SENSING RING E3 LIGASE 1 (MPSR1). MPSR1, also known as SNIPER2, is involved in protein quality control under proteotoxic stress and targets nucleotide-binding leucine-rich repeat (NLR) immune receptors for degradation along with its homolog SNIPER1^20,21^. For the first time it is now implicated as a potential genetic interactor of SRR1, specifically affecting flowering time in SD conditions.

As SRR1 has an impact on the circadian clock but itself is not rhythmically expressed, we characterized the MPSR1 expression pattern throughout the day. Publicly available microarray data indicated that the MPSR1 transcript undergoes circadian oscillations. An MPSR1 promoter-LUCIFERASE reporter revealed that MPSR1 promoter activity is regulated by the circadian clock. Moreover, MPSR1 is induced in short photoperiods. As no defect in circadian rhythmicity was detected when tracking the LUCIFERASE reporter driven by the promoter of the circadian clock component CIRCADIAN CLOCK ASSOCIATED 1 in the mpsr1 mutant, MPSR1 is not essential to maintain the period of the circadian clock in contrast to what is observed for SRR1^7^.

Results

A srr1 suppressor screen identifies candidates with short day specific flowering

SRR1 is an important regulator of flowering time, indirectly repressing expression of FT under noninductive conditions^6^. As it has no known domains that would suggest a particular function for the protein, a second site suppressor screen was performed for novel genes regulating flowering in concert with SRR1. Flowering time was monitored in EMS-mutagenized srr1-1 loss-of-function mutants in SDs at 16°C where srr1-1 shows the strongest phenotype^6,22^.

Specifically, 1100 mutagenized seeds from 11 different batches treated with EMS were screened for candidates flowering with a higher number of leaves at bolting than srr1-1. In the initial round of screening, 12 suppressor of srr1-1 mutant (ssm) candidates were identified that bolted significantly later than srr1-1 and produced viable seeds for further experiments. The candidates were further classified in different rounds of screening that we have recently described in greater detail^11^. Three mutants, ssm90,* ssm39*, and ssm136 did not show any difference in leaf number at bolting compared to srr1-1 in LDs at 20°C, suggesting that the suppressive effect on flowering is SD-specific (Fig. 1a). Of these photoperiod-dependent suppressor mutants, ssm136 showed a reproducible SD-specific flowering phenotype in the re-screening process and displayed healthy growth in general, suggesting a low number of background mutations that may influence further analysis. Therefore, it was singled out for further characterization.

ssm136 shows a delay in flowering only under short day conditions

The ssm136 mutant flowered later than srr1-1 in the screen in SDs at 16°C. Plants in the M3 generation were tested for their flowering behavior in the same growth conditions to confirm the mutant phenotype. This revealed a delay in flowering represented by an increase of 15 leaves at time of bolting compared to srr1-1 (Fig. 1b). In SDs at 20°C a delay in flowering of similar proportion compared to srr1-1 was observed, although leaf numbers were lower for all genotypes, resulting in later flowering than srr1-1, but still earlier than the wt control plants (Fig. 1b). In LDs at 20°C, however, ssm136 plants bolted with a similar leaf number as srr1-1, suggesting that the locus mutated in ssm136 is of particular importance in SD conditions (Fig. 1c). In addition, the ssm136 plants flowered with a lower leaf number at 20°C compared to 16°C, as observed in Col wt plants. Thus, the ambient temperature response was maintained in SDs in ssm136.

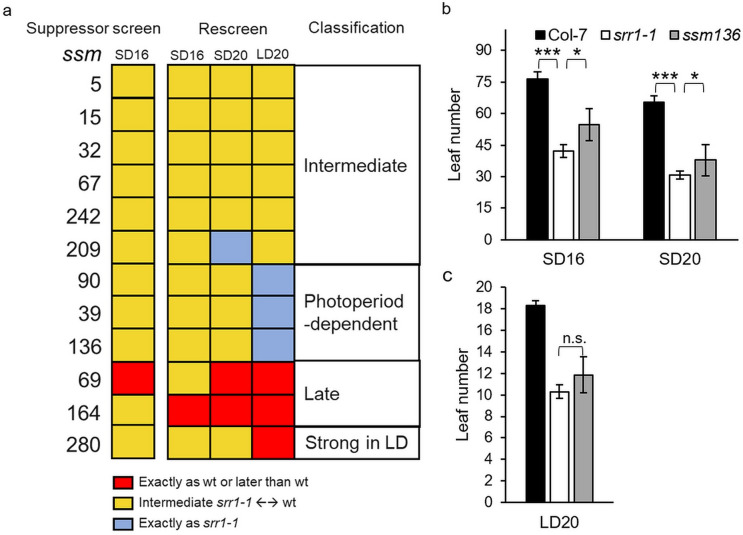

Fig. 1. Flowering time of suppressor of srr1-1 (ssm) candidate mutants. (a) Summary of the flowering time of candidate ssm mutants in SDs at 16°C and re-screen of candidate ssm mutants in SDs at 16°C, 20°C and in LDs at 20°C. The number of leaves was counted for 10–12 plants each. Ssm mutants with delayed flowering also in LDs, partially rescuing the early flowering of srr1-1 were classified as “intermediate” candidates (ssm5, ssm15, ssm67 [also designated hdf1^12^], ssm242, and ssm209) The suppressive effect of ssm90,* ssm39*, and ssm136 is SD-specific and they were classified as “photoperiod-dependent”. Ssm69 and ssm164 bolted with very high leaf numbers in both 20°C SD and LD conditions and were classified as “Late”. The ssm280 flowered much later than wt in LDs at 20°C, while displaying an intermediate phenotype in SDs. (b, c) Flowering time of ssm136, srr1-1 and Col-7 was measured in SDs at 16°C and 20°C (b) and in LDs at 20°C (c). The number of leaves was counted for 10–15 plants each and shown as mean ± SD. A Kruskal-Wallis test was performed to show statistical significance (*p < 0.05, ***p < 0.001, n.s. not significant).

A point mutation in E3 ubiquitin ligase MPSR1 is causal for the ssm136 phenotype

The identification of the causal locus of the ssm136 suppressor mutant was performed by a full genome re-sequencing approach using bulk segregant analysis^23^. F2 segregating plants of a backcross performed between srr1-1 and ssm136 (BC1F2) were grown in SDs at 16°C. To confidently select plants carrying the causal mutation, individuals with at least 25% more leaves at bolting than the srr1-1 control population were sampled for leaf material. Samples from 29 plants were pooled and total DNA was extracted. The DNA pool was subsequently sequenced, with a coverage of ca. 50-fold. Simultaneously, a pool of 10 srr1-1 plants in the Col-7 background was sampled and sequenced as a reference, since Col-7 is not identical to the Col-0 ecotype used as a reference genome^24^.

The sequencing revealed 12,478 single nucleotide polymorphisms (SNPs) between the TAIR10 Col-0 reference genome and ssm136 mutants. Of these, 1,496 SNPs were unique between srr1-1 and ssm136 (Supplementary Table S1 online). After intergenic SNPs were filtered out, a SNP Index was calculated for the remaining 596 SNPs and plotted according to the position on each chromosome (Supplementary Fig. S1 online). This revealed a clear peak of SNP enrichment on chromosome I (Fig. 2a). The three SNP candidates with the highest SNP Index (above 0.9) in this region were selected for further confirmation (Table 1). The presence of the SNPs in the population of plants that was used to create the sequencing pool was confirmed using specifically designed dCAPS markers (Supplementary Table S2 online).

Table 1ssm136 candidate loci with the highest SNP index.LocusSNP IndexPositionNucleotide changeTypeRegionAT1G2708019402953C895TNonsynonymous SNPExonicAT1G148300.955107921G1717ANonsynonymous SNPExonicAT1G268000.929285839G352ANonsynonymous SNPExonic

To elucidate which of the three SNPs was the causal mutation, a segregating ssm136 x srr1-1 BC1F2 population that was independent from the population of the sequencing pool was grown in SDs at 16°C. Subsequently, all plants in the population were tested for the presence of the different SNPs using the dCAPS markers. This was correlated with the flowering time of the individual plants. Only plants homozygous for the SNP located in At1g26800 flowered later than srr1-1 and with a similar leaf number at bolting as the ssm136 mutant, strongly suggesting that this was the causal mutation. Plants without the SNP or plants heterozygous for the SNP flowered with about the same leaf number as srr1-1. Taken together, the SNP segregates as a recessive trait, likely indicating a loss-of-function mutation (Fig. 2b). The At1g26800 SNP Index of 0.92 suggested the presence of a small proportion of non-mutated material in the sequencing pool, which could be explained by one plant in the pool not carrying this SNP (ssm136 #103), when tested with the specific dCAPS marker. This was taken advantage of as an internal control and seeds were harvested from this plant and two other independent members of the pool carrying the ssm136 mutation (ssm136 #106 and ssm136 #141). These were subsequently used for an additional flowering time experiment which revealed that ssm136 #103 without the SNP flowered as early as srr1-1, while ssm136 #106 and ssm136 #141 with the SNP had a significantly delayed flowering compared to srr1-1, further supporting that the presence of the SNP in At1g26800 is critical for the ssm136 phenotype (Fig. 2c). At1g26800 encodes MPSR1, a RING-type E3 ligase recently shown to be involved in protein quality control under proteotoxic stress^20^. Its RING domain is necessary for the E3 ligase activity. The G to A point mutation in ssm136, at base number 352 in the genomic sequence of MPSR1 leads to an E to K change in amino acid 118, within the well conserved RING domain of the protein (amino acids 113–154) (Fig. 2d). Introduction of a genomic copy including the promoter of MPSR1 (pMPSR1:MPSR1) into ssm136 complemented the late flowering phenotype, confirming that this was the causal locus (Fig. 2e).

To see whether the E to K change is unique or may naturally appear in other ecotypes, the MPSR1 amino acid sequence was examined using the 1001proteomes non-synonymous SNP browser^25^. However, the ssm136 E to K change is not present in any ecotype included in the database, suggesting that E118 is well conserved and critical for MPSR1 function.

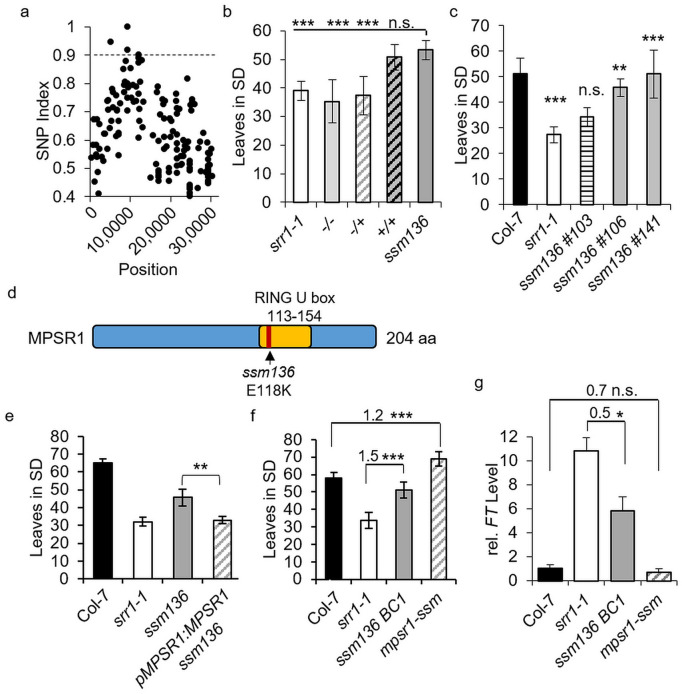

Fig. 2. Identification of the causal mutation in ssm136. (a) SNP index for chromosome 1. Only candidates with a SNP index greater 0.9 were selected for further investigation. (b) Flowering time of the segregating ssm136 x srr1-1 BC1F2 population. Plants from srr1-1, ssm136 and plants either homozygous (+/+), heterozygous (+/–) or wt (–/–) for the SNP in At1g26800 were grown in SDs (n = 10–12). (c) Flowering time of an independently segregating ssm136 population. Col wt, srr1-1, ssm136 #103 without SNP in At1g26800, ssm136 #106 and ssm136 #141 with SNP in At1g26800 were grown in SDs (n = 10–16). (d) Scheme of MPSR1 protein. The position of the E to K mutation caused by the SNP is indicated. (e) Flowering time of the ssm136 mutant complemented with genomic MPSR1 construct (n = 12–15). All flowering time experiments were performed in SDs and leaf number was scored upon bolting. Data is shown as mean ± SD. A Kruskal-Wallis test was performed to show statistical significance (**p < 0.01, ***p < 0.001, n.s. not significant). (f) Flowering time of the mpsr1-ssm mutant compared to ssm136. Col wt, srr1-1, ssm136 and mpsr1-ssm were grown in SDs. Leaf number was scored upon bolting from 15 plants each and is shown as mean ± SD. The ratio of delay between Col and mpsr1-ssm and srr1-1 and ssm136 was calculated and is given above the bar chart. (g) FT levels in Col-7 wt, srr1-1, ssm136 and mpsr1-ssm grown in SDs for 30 days. qRT-PCR data of 3 biological replicates normalized to PP2A.

MPSR1 plays a role in flowering time control

MPSR1 has recently been shown to function in protein quality control under proteotoxic stress and plant immune responses and MPSR1 overexpressing plants are late flowering^20,26^, but its precise role in control of flowering is hitherto unknown. To examine this, a mpsr1-ssm single mutant was created by outcrossing the srr1-1 allele and named as such due to its origin and in line with the terminology used for previously identified mpsr1 mutants^20^. A phenotypic comparison of mpsr1-ssm, ssm136, srr1-1 and Col-7 wt plants revealed that mpsr1-ssm resembles wt, although plants appear slightly smaller with rounded leaf blades. The ssm136 mutant reverts the dwarf phenotype of srr1-1 but still shows elongated petioles comparable to srr1-1. This indicates again that ssm136 is a partial suppressor of SRR1-dependent development (Supplementary Fig. S2 online).

The mpsr1-ssm mutant was then tested for flowering time in SDs, under which conditions ssm136 delays flowering in the srr1-1 background. This revealed a moderate, but statistically significant (Student’s t-test, p > 0.01) delay of flowering in the mpsr1-ssm plants compared to wt, showing that this mutant does have an independent effect on flowering, but that the effect is strongly enhanced when SRR1 is not present (Fig. 2f). In accordance to the flowering time phenotype, expression of the floral activator FT was slightly but not significantly decreased in mpsr1-ssm compared with Col-7 (Fig. 2g). Again, the effect was stronger in the srr1-1 background, where ssm136 significantly reduced the FT level to around 50% of the level observed in srr1-1.

To test whether the interplay between SRR1 and MPSR1 in flowering control was due to a direct interaction of SRR1 and the E3 ligase MPSR1, we performed co-immunoprecipitation (Co-IP) of transiently expressed SRR1-GFP and 3xFLAG-tagged MPSR1 (FLAG-MPSR1) in N. benthamiana. While a test expression showed that SRR1-GFP was readily expressed at high levels, no signal could be detected for FLAG-MPSR1, likely owing to self-ubiquitination and further proteasomal degradation. We therefore deleted the RING domain to omit E3 ligase activity (FLAG-MPSR1ΔRING) and found that this variant readily expresses in N. benthamiana (Supplementary Fig. S3 online). After co-infiltration of agrobacteria carrying SRR1-GFP or FLAG-MPSR1ΔRING, a pull-down with GFP Trap beads and a subsequent detection with the α-FLAG antibody showed that MPSR1ΔRING co-precipitates with SRR1-GFP, suggesting that both proteins physically interact and that the interaction does not require the RING domain (Fig. 3a). As a control we performed the reciprocal Co-IP, pulling down FLAG-MPSR1ΔRING with anti-FLAG beads. Immunoblot analysis with the α-GFP antibody revealed co-precipitation of SRR1-GFP (Fig. 3b). In contrast, a mock Co-IP with GFP alone and FLAG-MPSR1ΔRING detected no MPSR1ΔRING in the immunoprecipitated fraction, ruling out an unspecific interaction with the GFP moiety (Supplementary Fig. S4 online). Thus, SRR1 is able to interact in vivo with MPSR1ΔRING.

To further explore if MPSR1 might be an E3 ligase responsible for SRR1 ubiquitination and subsequent degradation, we performed an in vivo degradation assay. SRR1-GFP was expressed in N. benthamiana together with either FLAG-MPSR1 or FLAG-MPSR1ΔRING. After 1 day of co-expression, half of the plants were infiltrated with 50 µM of the proteasome inhibitor MG-132 while the other half served as mock control. Samples were harvested after an additional 12 h and the appearance of degradation products was monitored with the α-GFP antibody. All samples expressed the full-length SRR1-GFP and showed a degradation product with lower molecular weight (MW) around 40 kDa. No additional degradation products were detected in mock treated samples. However, in plants treated with MG-132, a prominent additional degradation product appeared at a MW of 35 kDa in the sample co-expressing FLAG-MPSR1 with SRR1-GFP. In the sample co-expressing FLAG-MPSR1ΔRING, this additional degradation product was absent (Fig. 3c). As observed before, no full-length FLAG-MPSR1 protein could be detected in mock treated plants while FLAG-MPSR1ΔRING was expressed at considerable levels. However, in MG-132 treated plants a weak band corresponding to full-length FLAG-MPSR1 appeared, indicating that MPSR1 auto-regulation via self-ubiquitination and subsequent degradation was at least partially inhibited and that formation of the 35 kDa degradation product depended on detectable amounts of full-length FLAG-MPSR1 in the presence of MG-132. This shows that MPSR1 is potentially able to target SRR1 for degradation through the 26 S proteasome.

As we initially infiltrated excess amounts of agrobacteria carrying SRR1-GFP to foster the detection of low abundant degradation products, we went on with a 5-fold lower dosage of SRR1-GFP to see whether MPSR1 was able to reduce the amount of SRR1-GFP protein or whether SRR1-GFP accumulates in MG-132 treated samples. However, we could not detect changes in SRR1-GFP levels upon FLAG-MPSR1 co-infiltration or MG-132 treatment. Instead, the level of SRR1-GFP remained relatively stable across the whole experiment with slight variations likely owing to the transient expression system. Notably, upon longer exposure of the blot, the 35 kDa degradation product again appeared upon co-expression of FLAG-MPSR1 with SRR1-GFP under MG-132 treatment (Supplementary Fig. S5a online). To test the specificity of the substrate, we performed the degradation assay with co-expression of MPSR1 and GFP only. No degradation products were detected in MG-132 treated samples (Supplementary Fig. S5b online). In conclusion, this shows that SRR1 is a potential substrate of MPSR1, though indirect regulation, e.g. through related E3 ligases present in the N. benthamiana system, cannot be fully ruled out.

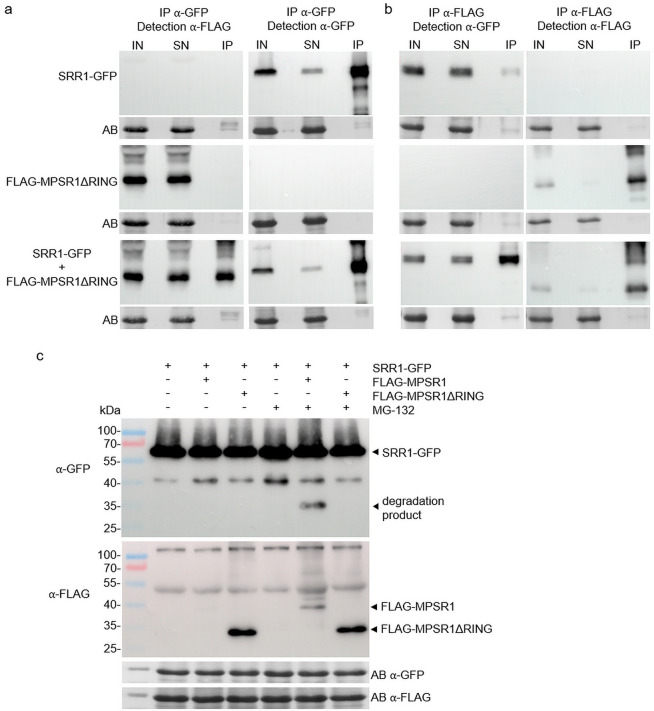

Fig. 3. Co-Immunoprecipitation of SRR1 and MPSR1. (a) Agrobacteria carrying 35S:SRR1-GFP and 35S:FLAG-MPSR1ΔRING were each infiltrated separately and co-infiltrated into N. benthamiana leaves and harvested after 2 days. Native protein extracts were subjected to IP with GFP-Trap beads. 1% of input (IN), 1% of supernatant (SN) and 66% of the beads (IP) were loaded onto SDS-gels and detected with an α-FLAG antibody to show coprecipitation of FLAG-MPSR1ΔRING. For detection of successful pulldown of SRR1-GFP on a separate gel, 1% of IN and SN and the remaining 33% of beads were loaded and the blot was detected with α-GFP antibody. (b) Reverse Co-IP of 35 S: FLAG-MPSR1ΔRING and 35 S: SRR1-GFP. FLAG-MPSR1ΔRING was immunoprecipitated with α-FLAG beads and co-precipitated SRR1-GFP was detected with the α-GFP antibody. To show successful pulldown of FLAG-MPSR1ΔRING, the same membrane was incubated with α-FLAG antibody after stripping of the α-GFP antibody. Amidoblack (AB) staining of the membranes served as loading control. The uncropped blots are shown in Supplementary Fig. S6 online. (c) In vivo degradation assay of SRR1-GFP. Agrobacteria carrying 35 S: FLAG-MPSR1 or 35 S: FLAG-MPSR1ΔRING and 35 S: SRR1-GFP were co-infiltrated into N. benthamiana leaves. After 1 day, half of the plants were infiltrated with 50 µM MG-132 in DMSO while the other half was infiltrated with DMSO alone as mock control. Leaves were harvested after 2 days. 30 µg of denaturing protein extracts were loaded on SDS-gels and detected with α-GFP and α-FLAG antibodies, respectively. Amidoblack (AB) staining of the membranes served as loading control. The uncropped blots are shown in Supplementary Fig. S7 online.

MPSR1 expression is under control of the circadian clock

Given that SSR1 influences circadian oscillations of core clock and clock output genes, we explored the potential involvement of MPSR1 in circadian clock function. First, we analysed MPSR1 transcript levels across three publicly available microarray datasets under constant white light (LL) conditions: LL_LDHC, LL12_LDHH, and LL23_LDHH (Fig. 4a)^27^. MPSR1 exhibits rhythmic expression under continuous light, with a peak between Zeitgeber time 6 (ZT6, 6 h after lights on) to ZT10 (correlation of 0.85 in LL_LDHC; 0.8 in LL12_LDHH; 0.91 in LL23_LDHH indicating rhythmicity).

To precisely monitor MPSR1 expression, we generated a transgenic line expressing the Luciferase gene under the control of MPSR1 promoter and measured the luminescence in a circadian time course. The reporter line was initially grown under 12 h light:12 h dark (12L:12D) conditions before being shifted to constant light (Fig. 4b). The expression pattern observed in this experiment was consistent with those seen in the microarray datasets (Fig. 4a). MPSR1 expression was rhythmic, with a relative amplitude error (RAE) of 0.31, a period of 24.05 h and a phase of ZT9.9, as calculated by the Biodare2 platform (biodare2.ed.ac.uk)^28,29^. This rhythmic expression pattern was also observed under constant red mono-spectral light condition (RAE = 0.24, period = 23.66, phase = 9.38) (Fig. 4c). The circadian clock dampens quickly in constant darkness, prompting us to test MPSR1 expression in constant darkness. We initially grew the plants in 8L:16D to entrain the clock before shifting them to continuous darkness (Fig. 4d). In 8L:16D, MPSR1 exhibited rhythmic expression, with a rapid induction after dusk. After the shift to continuous darkness, MPSR1 rhythmicity was dampened within 48 h, suggesting that its rhythmic activation relies on the circadian clock.

Next, we conducted a phase shift experiment by growing the plants in 8L:16D condition and advancing the phase of dawn by 8 h on day 10 (Fig. 4e). Circadian clock-regulated genes typically require time to re-entrain to a new dawn following a phase shift. On the first day after the phase shift, we observed a low amplitude and extended phase of MPSR1 expression pattern, but by the second day after the phase shift, MPSR1 expression had re-entrained, returning to its normal phase. Taken together, those results indicate that the circadian clock controls the expression of MPSR1, with a phase around the middle of the day.

MPSR1 is induced in short day growth conditions

The expression of MPSR1 is regulated by the circadian clock and MPSR1 is required for the impact of SRR1 on the transition to flowering in SDs. This led us to investigate MPSR1 expression under different photoperiod light regimes. We first monitored MPSR1 transcript levels under 8L:16D and 16L:8D conditions using microarrays datasets (Fig. 4f). By calculating the relative daily expression integral (rDEI = sum of 24-hour expression in 8L:16D / sum of 24-hour expression in 16L:8D), we found that MPSR1 expression was significantly higher in 8L:16D as compared to 16L:8D, with an rDEI_8L:16D/16L:8D_ value of 1.71^30^.

We then monitored expression of the MPSR1promoter::LUC transgenic reporter line. In 16L:8D, MPSR1 promoter activity phased towards the end of the light period, with a slight rise again after dusk (Fig. 4g), consistent with the pattern observed for MPSR1 expression in microarrays (Fig. 4f). In 8L:16D, MPSR1 promoter activity was low during the day but rapidly increased after dusk, followed by a gradual decrease throughout the night, suggesting that MPSR1 promoter activity is light-repressed (Fig. 4h). As it is difficult to compare amplitudes from plants grown in separate photoperiod conditions, we performed photoperiod flip experiments, switching from 8L:16D to 16L:8D and vice versa (Fig. 4i, j). Two main observations were noted in these experiments. First, the expression patterns adjusted immediately to the new light regime. Second, the amplitude of expression is clearly lower in 16L:8D than 8L:16D. Collectively, the microarray data and MPSR1promoter::LUC reporter assay suggest that MPSR1 expression is induced in SDs as compared to LDs.

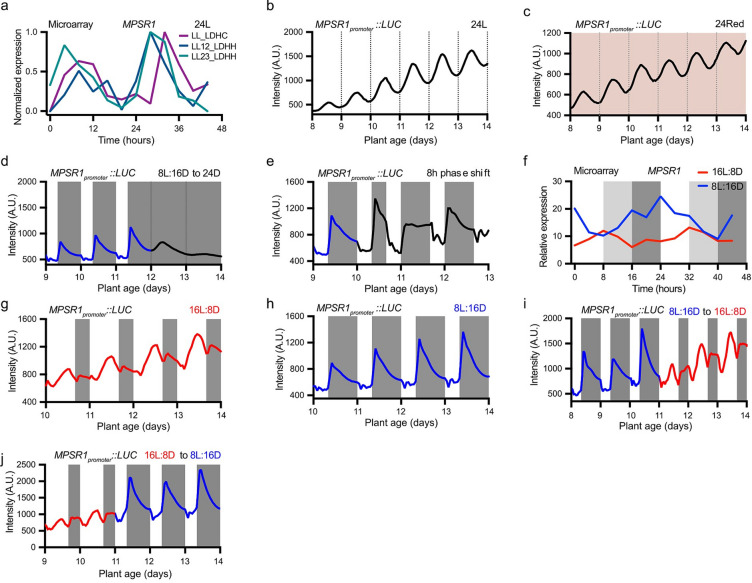

Fig. 4MPSR1 is highly induced in short days. (a) Normalized expression pattern of MPSR1 in continuous white light (24 L) from the three microarray datasets, LL_LDHC, LL12_LDHH, LL23_LDHH. (b–e) Traces of MPSR1promoter::LUC expression from plants grown in constant white light (24L) (b), constant red light (24Red) (c), 8L:16D to 24D (d), 8L:16D with 8 h dawn phase shift at day 10 (e). Grey shading represents dark periods. Lines represent the intensity of traces. (f) Expression of MPSR1 in 16L:8D and 8L:16D in microarray datasets. (g–j) Traces of MPSR1promoter::LUC expression from plants grown in 16L:8D (g), 8L:16D (h), 8L:16D and shifted to 8L:16D (i), 16L:8D and shifted to 8L:16D (j).

MPSR1 is not required for maintaining the period of the circadian clock

Circadian clock mutants often exhibit flowering time defects, like those seen in the mpsr1 mutant, as they cannot discriminate inductive long photoperiods from non-inductive short photoperiods. Because SRR1 affects flowering time and clock function, we sought to determine if MPSR1 can also affect clock function. To determine whether MPSR1 influences the circadian timing system, we introduced the CCA1promoter::LUC reporter to the mpsr1 mutant background (Fig. 5a, b) or to plants expressing the MPSR1 decoy (35S::MPSR1∆RING) (Fig. 5c, d), and monitored LUC activity under constant light conditions (24 L)^31,32^. We observed no difference in the period of CCA1 expression between the mpsr1 mutant and the wild type (Fig. 5a, b). This conclusion was further supported by the absence of period defects when overexpressing MPSR1ΔRING (35S::MPSR1∆R) in the CCA1promoter::LUC reporter line (Fig. 5c, d). These results suggest that MPSR1 is not essential for maintaining the period of the clock.

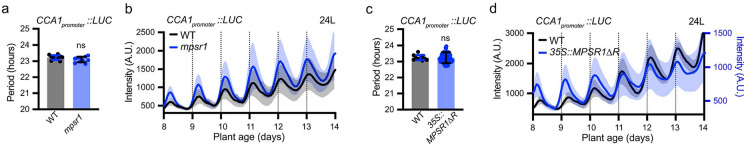

Fig. 5MPSR1 is not required for maintaining the period of the circadian clock. (a) Period of CCA1promoter::LUC in the wild type and mpsr1 mutant background. Error bars indicate SD (n = 10; ns, not significant (Welch’s t-test)). (b) Traces of CCA1promoter::LUC in the wild type and mpsr1 mutant background. Shadings indicate SD (n = 10). (c) Period of CCA1promoter::LUC in wild type and MPSR1 decoy (35S::MPSR1ΔR) transgenic lines. Wild type plants are identical to a and b. Error bars indicate SD (n = 10 in WT and n = 100 in MPSR1 decoy), ns, not significant (Welch’s t-test). (d) Traces of CCA1promoter::LUC in wild type and MPSR1 decoy (35S::MPSR1ΔR) transgenic lines. Shadings indicate SD (n = 10 in wild type and n = 100 in MPSR1 decoy).

Discussion

SRR1 has an important role in preventing premature flowering under noninductive conditions. Here, we performed a suppressor screen of the early-flowering srr1-1 mutant to find further molecular components acting in the same genetic pathways. This resulted in several mutant candidates that partially rescued the early-flowering phenotype of srr1-1. One of these candidates, ssm136 that was classified as photoperiod-dependent, was further characterized. The ssm136 mutant displayed a delayed flowering specifically under SD conditions (Fig. 1). Mapping-by-sequencing revealed that the causal mutation was located on chromosome 1 and its identity could be confirmed via dCAPS analysis and complementation, revealing that the mutated locus codes for the E3 ligase MPSR1. Further analysis showed that the resulting E to K nonsynonymous amino acid change leads to a delayed flowering also in lines where the srr1-1 mutation had been outcrossed. A previous study had shown that MPSR1/SNIPER2 and SNIPER1 act together on a broad set of sensor NLR immune receptors and overexpression of MPSR1/SNIPER2 affects flowering in LDs as well as leaf morphology^21^. Here, we show that the effect of mpsr-ssm136 on flowering is much stronger in the srr1-1 background, suggesting that SRR1 has a role in the regulation of flowering via MPSR1 (Fig. 2).

The induced mutation in ssm136 is located in the RING domain of the protein, and likely leads to changed efficiency of ubiquitination of target proteins. This would be in line with the observation of Kim et al. that an amino acid exchange in the RING domain eliminated E3 ligase activity and led to a stabilization of its protein targets^20,26^.

To test whether MPSR1 and SRR1 physically interact, we performed Co-IP in N. benthamiana. Interestingly, we could only detect transiently expressed MPSR1 when the RING domain was removed, suggesting that wild type MPSR1 undergoes self-ubiquitination followed by degradation. This is in line with an in vitro assay for MPSR1/SNIPER2 expressed in E. coli and its homolog SNIPER1^21^. Reciprocal Co-IP experiments with MPSR1ΔRING showed that SRR1 and MPSR1 directly interact, and that this interaction does not require the RING domain (Fig. 3). This is in line with reported findings that substrate specificity of E3 ligases is not established via the RING domain but instead requires highly diverse motifs recognizing a suite of features like degron sequences, posttranslational modifications or secondary metabolites^33^. A similar mechanism was observed in F-box type E3 ligases, where the F-box domain recruits the protein degradation machinery, while a separate protein-protein interaction domain specifically binds to the targets for degradation^34^. Therefore, SRR1 may either be directly targeted for degradation by MPSR1 or might act as an indirect factor that is not ubiquitinylated and guides MPSR1 to other flowering-related targets instead. Our in vivo degradation assay provides a first qualitative insight that SRR1 may indeed be a direct target of MPSR1, as we could detect a degradation product of SRR1-GFP upon co-expression with MPSR1 in the presence of the proteasome inhibitor MG-132 that was absent upon co-expression of SRR1-GFP and MPSR1ΔRING (Fig. 3c). No smaller degradation products were detected, suggesting that the observed 35 kDa product is either stable, or that the remaining protein is entirely degraded. However, abundance of total SRR1-GFP did not noticeably increase upon MG-132 treatment in samples with co-infiltrated FLAG-MPSR1, indicating that only a small portion of the SRR1-GFP substrate is prone to regulation. This would also be in line with the low amount of FLAG-MPSR1 found in this sample, owing to the rapid self-ubiquitination that might need dedicated conditions to inhibit proteasomal decay. Additionally, indirect effects through components of the N. benthamiana ubiquitination system may also be possible.

The MPSR1promoter::LUC reporter assay revealed that MPSR1 is light-repressed, rapidly induced after dusk, and gradually declines throughout the night in SDs (Fig. 4h). This expression pattern mirrors that of winter photoperiodic genes such as PHLOEM PROTEIN 2-A13 (PP2-A13)^30^, positioning MPSR1 as a potential new marker gene for winter photoperiodic genes. The expression of PP2-A13, along with other photoperiodic genes like MYO-INOSITOL 3-PHOSPHATE SYNTHASE 1, is regulated by the metabolic day length measurement (MDLM) system which relies on the circadian clock and photosynthesis to support rosette fresh weight accumulation in LD and SD conditions^35–37^. It remains to be determined whether the expression of MPSR1 is also regulated by the MDLM system. MDLM winter genes are regulated by photosynthesis and photosynthesis-derived sugars, possibly involving the AP2/EBF cis-element, which may be crucial for post-dusk phasing in SDs^36^. Future studies should explore whether MPSR1 is a MDLM winter gene. Such investigations would provide valuable insights into the functions of MPSR1 and expand our understanding of the MDLM system.

In summary, we identified the RING-type E3 ubiquitin ligase MPSR1 as a SD-induced regulator of flowering. The floral repressive effect of the mpsr1-ssm allele identified from our suppressor screen was stronger in srr1-1 than in wt, indicating that SRR1 might work to attenuate MPSR1 function. As we previously identified SRR1 as a focal point regulating several flowering pathways under non-inductive conditions^6^, exploring the MPSR1 substrates could be the next step to understand how SRR1 regulates flowering time.
