Enantiotopic-group-selective coupling for unified access to carbazole atropisomers as versatile chiral chromophores
Junqiang Wei, Zhuoer Wang, Pengyao Xing, Ye Zhu
TL;DR
A new method enables efficient synthesis of chiral carbazole atropisomers, opening up new possibilities for advanced optical and electronic devices.
Contribution
A unified strategy for enantioenriched synthesis of carbazole atropisomers with tailored π-functionalities and axial chirality.
Findings
Enantiotopic-group-selective coupling achieves axial chirality with >99:1 enantiomeric ratio.
Carbazole atropisomers show novel chiroptical functions including CPL and CP-TADF.
An electrostatic steering strategy enables remote atroposelectivity in extended π-systems.
Abstract
Chiral organic chromophores are foundational for advanced optical and electronic devices. Despite the widespread use of N-aryl carbazoles in visible-luminescent materials, chiroptical applications of their atropisomers have remained underdeveloped due to the synthetic challenge of achieving remote atroposelectivity necessitated by extended π-systems. Here, we present a unified strategy for the efficient synthesis of enantioenriched N–C and N–N carbazole atropisomers. By integrating 13C NMR-based ligand parameterization, we achieve enantiotopic-group-selective coupling reactions that simultaneously incorporate tailored π-functionalities and establish axial chirality (up to >99:1 er) using synthetic pathways established in carbazole chemistry. Through covalent modulation and noncovalent complexation, we investigate novel chiroptical functions of carbazole atropisomers, including circular…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —Singapore Ministry of Education (Academic research fund MOE-T2EP10222-0004)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAxial and Atropisomeric Chirality Synthesis · Synthesis and Properties of Aromatic Compounds · Molecular spectroscopy and chirality
Introduction
Chiral chromophores confer precise photon control via quantized circular polarization, underpinning advances in quantum computing, chemosensing, and optoelectronics^1^. Chiral organic chromophores built upon visible luminescent, nitrogen-centered stereogenic scaffolds have remained elusive. N-aryl carbazoles are prominent components in organic materials, conjugated polymers, metal–organic frameworks, and covalent organic frameworks, representing a vast class of synthetic chemicals ( > 1 million substructure entries in SciFinder)^2,3^. Establishing stereogenicity directly about the nitrogen core could represent a compelling strategy for designing novel chiral chromophores that inherit the excellent luminescence and conductivity of the privileged carbazole scaffold.
Despite the prevalence of atropisomerism^4–9^, N–C axially chiral N-aryl carbazoles have only been utilized in a few cases as chiral ligands^10–12^ and organocatalysts^11,12^, likely due to the lack of general asymmetric synthetic methods beyond the two reports targeting N-naphthyl mono−2-substituted carbazoles via asymmetric N-naphthylation (Fig. 1A)^11,12^. Given the dominance of cross-coupling in carbazole derivatization, we envisaged that enantiotopic-group-selective coupling^13–20^ of dihalocarbazole could offer a modular approach to establishing stereochemistry without changing the synthetic routes or restricting the types of functional groups introduced.Fig. 1. Synthetic strategy for axially chiral carbazoles.A Atropisomerism of N-aryl carbazoles and its applications. B Conventional steric biasing does not confer long-range stereochemical relay. C Huang, Wong & Yeung’s work on organocatalytic desymmetrization to 1-bromo N-aryl carbazoles. D This work: Catalytic remote desymmetrization offers modular access to carbazole atropisomers for chiroptical functions. Ar aryl, Bu butyl, CD circular dichroism, CPA chiral phosphoric acid, CPL circularly polarized luminescence, CT charge transfer, TADF thermally activated delayed fluorescence.

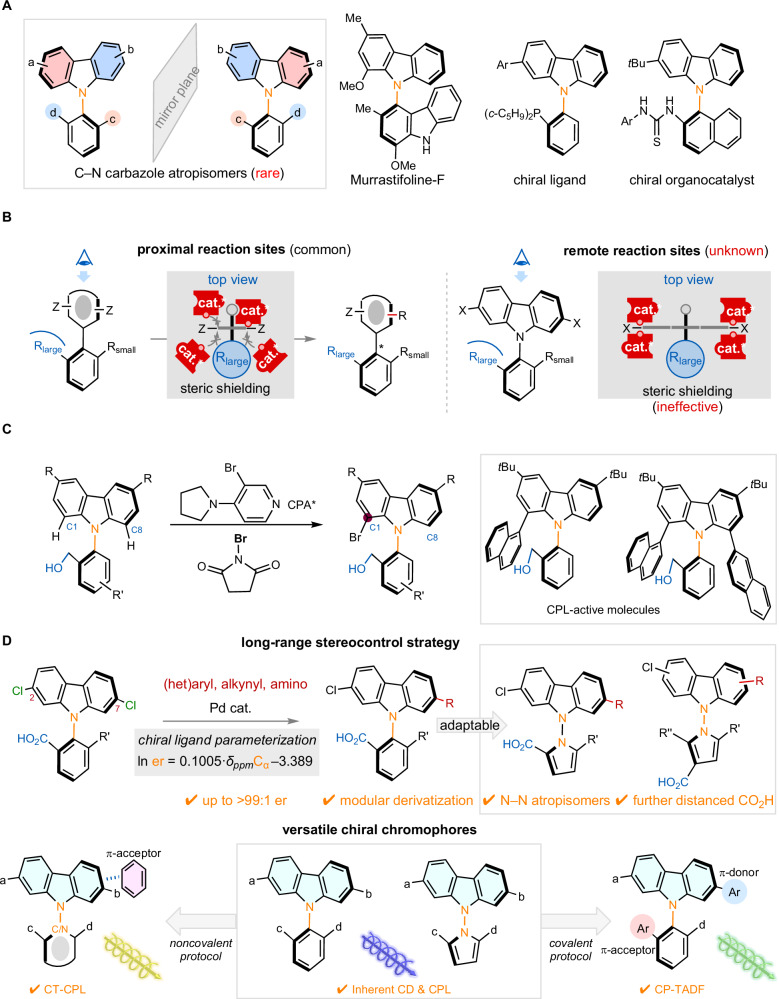

Catalytic desymmetrization of pro-stereogenic biaryls typically relies on the steric biasing by ortho substituents of the nonreacting arenes; therefore, the reaction sites are invariably close to the emergent chiral axes (Fig. 1B)^21–33^.To date, desymmetrizing cross-coupling of 2,6-di(pseudo)halo biaryls are limited to C–C atropisomers^34–37^. Notably, Miller^38^ and Akiyama^39^ achieved desymmetrizing C–O and C–C coupling of 2,6-diOH and 2,6-diMe biaryls, respectively. However, establishing axial chirality through reactions at remote enantiotopic sites has remained a substantial challenge due to diminished stereochemical effects of the further distanced prostereogenic axis. Specifically, steric biasing of the prochirality-determining substituents (R^1^ and R^2^) would become ineffective for the proposed desymmetrizing coupling of prochiral dihalocarbazole. Very recently, Huang, Wong, Yeung and coworkers reported organocatalytic asymmetric bromination at C1 of N-aryl carbazoles using chiral phosphoric acids (CPA) and a Lewis base (3-bromo-4-pyrrolylpyridine, Fig. 1C)^40^. Subsequent cross-coupling furnished novel molecules featuring two or three chiral axes that exhibited circularly polarized luminescence (CPL). Nevertheless, highly efficient synthetic methods to access N–C stereogenic carbazoles with differentiated 2,7-bis-substituents for exploiting of the chiroptical functions of this privileged scaffold remain unexplored.
Herein, we report a unified strategy for accessing axially chiral carbazoles (up to >99:1 er) that overcomes the challenges posed by remote reaction sites, even when the ortho groups are not sterically differentiated (Fig. 1D). Unexpectedly, we identified the relationship between atroposelectivity and distal ^13^C NMR chemical shifts through ligand parameterization. This strategy was adaptable to various scaffolds, including the previously unexplored atropisomerism of N-aryl phenoxazine and N-aryl dihydroacridine, as well as N–N stereogenic carbazoles—an untapped class of N–N stereogenic compounds^41–49^ that lacks enantioselective access^50^. The modular synthesis of N–C and N–N axially chiral carbazoles enabled versatile chiroptical functions, including circular dichroism (CD), circularly polarized luminescence (CPL), charge-transfer CPL (CT-CPL) and circularly polarized thermally activated delayed fluorescence (CP-TADF), thereby setting the foundation for applications in optical and optoelectronic materials.
Results
Catalyst development for remote atroposelectivity

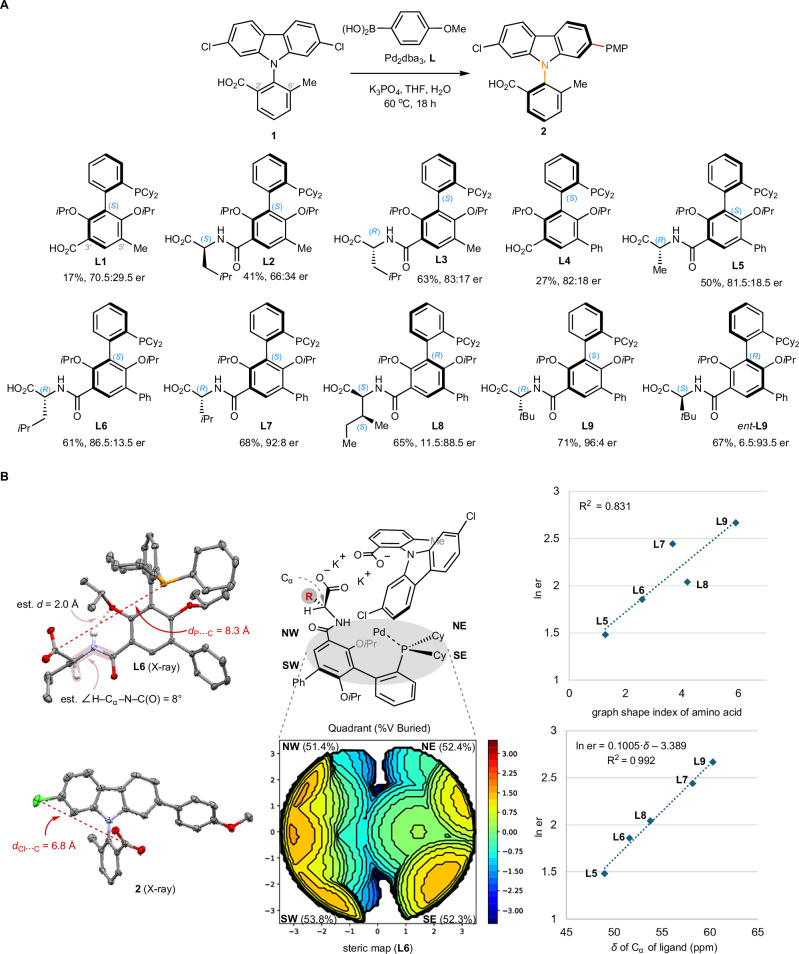

We initiated our study by investigating the Suzuki−Miyaura reaction of 2,7-dichlorocarbazole 1 (Fig. 2A). Using 3’-carboxyl L1 as chiral ligand, the reaction proceeded in 17% yield with 70.5:29.5 er. Gratifyingly, stereoinduction was modulated through incorporating an amino acid moiety in the ligand. While (Sa, S)-L2 was less effective (66:34 er), the reaction using diastereomeric (Sa, R)-L3 afforded 2 in 83:17 er. Replacing 5’-Me of L1 for 5’-Ph improved the stereoselectivity (L4, 82:18 er). Although introducing an alanine moiety did not make a noticeable difference (L5, 81.5:18.5 er), leucine-derived 5’-Ph ligand gave improved results (L6, 86.5:13.5 er).Fig. 2. Catalyst development and ligand parameterization.A Survey of phosphine ligands. B Stereoinduction model based on absolute configurations, steric property map of L6, and parameterization analysis for ligands. Reaction conditions: 1 (0.1 mmol), PMP-B(OH)2 (0.12 mmol), K_3_PO_4_ (0.5 mmol), Pd_2_dba_3_ (1.0 mmol%), Ligand (2.0 mmol%), THF (20 mL/mmol), H_2_O (1.4 mL/mmol), 60 ^o^C, 18 h. Enantiomeric ratio (er) was determined using HPLC–CSP. dba dibenzylideneacetone, Cy cyclohexyl, Me methyl, Ph phenyl, Pr propyl, PMP p-methoxyphenyl, THF tetrahydrofuran.
Encouraged by the results, we obtained the crystal structures of L6 and 2 to elucidate the stereocontrol (Fig. 2B). The distance between CO_2_H and Cl in 2 is 6.8 Å, and the distance between CO_2_H and phosphorus atom in L6 is 8.3 Å. It is unlikely that the catalyst differentiates the 2’-CO_2_H and 6’-Me of 1 (effective radii 1.62 Å and 1.80 Å, respectively^51^) through steric biasing because of their similar steric properties when compared with their distances from the Cl of 1 (6.8 Å). This was confirmed by the diminished 45:55 er of desymmetrizing reaction when CO_2_H of 1 was masked as an ethyl ester.
The chiral ligand’s distal carboxylate serves as a nonligating ionic group for substrate recognition in the absence of steric biasing. Based on the absolute configurations of the ligand and the product, we hypothesized a model for stereoinduction. The substrate-catalyst complex is preorganized by the distal ionic interactions between their anionic carboxylates via cation bridges^52,53^. The steric map^54^ of L6 indicates that the buried volumes of the four quadrants are very similar (V_buried_ 51.4% to 53.8%).
Therefore, the ligand possesses an electronically asymmetric yet sterically unbiased environment, a feature rarely shared by commonly used chiral catalysts. The crystal structure of L6 reveals hydrogen bonding interactions between 2’-OiPr and amide NH. In addition, the estimated torsion angle H–C_α_–N–C(O) is 8°, which is consistent with conformations of typical peptides. Compared with the CO_2_H, the side group (i.e., iBu) points away from the metal center. Such conformation is consistent with the experimental results that the diastereomeric (Sa, S)-L2 was less effective than (Sa, R)-L3. In an analogous conformation, the CO_2_H of L2 would be pointing toward the opposite side of the ligand scaffold when viewed from the phosphorus atom.
The tunability of the ligand’s amino acid moiety allowed us to improve the stereoselectivity to 96:4 er (L7 to L9, Fig. 2A). Intriguingly, side group R modulates the stereoselectivity, even though it points away from the phosphorus atom. The results contrast with our previous experience that altering the side group R was not influential^55^. Ligand parameterization^56–58^ allowed us to further elucidate their effects (Fig. 2B). After surveying common side chain parameters (Table S1 in Supplementary Information, SI), positive correlation between energetic term ln(er) and graph shape index—steric parameter of amino acids—was revealed (R^2^ = 0.831), but the trend does not hold for L7 and L8. By contrast, we found a strong linear correlation between ln(er) and the experimental ^13^C NMR chemical shift (δ ppm) of C_α_ of the ligands (R^2^ = 0.992). The results suggest that both the steric bulkiness and the electronic property of R influence the stereocontrol control.
Reaction development

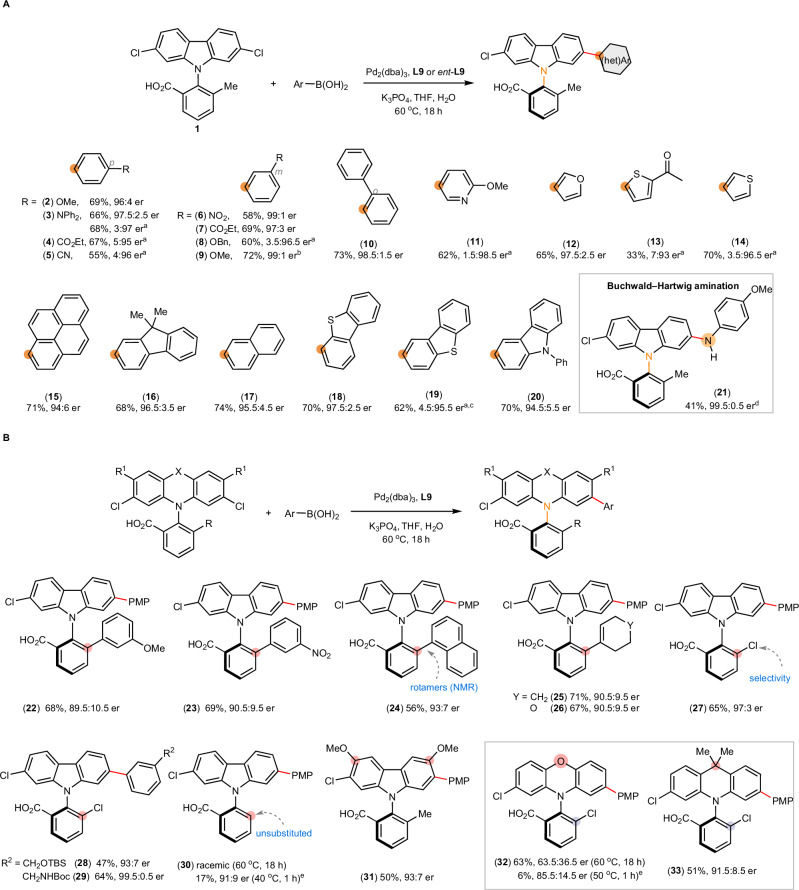

With the optimal catalyst in place, we explored the reaction scope. A spectrum of (hetero)aryl boronic acids and p-anisidine were successfully coupled in high stereoselectivity (up to 99:1 er) (Fig. 3A). Electron-donating (3, 8 and 9) and electron-withdrawing functional groups (4–7) at para (3–5), meta (6–9) and ortho (10) positions were well tolerated. The reaction was applied to heterocycles including pyridine (11), furan (12), thiophene (13 and 14), and extended π-systems commonly used in organic materials (15–20) including dibenzothiophene (18 and 19) and carbazole (20). In addition, Buchwald–Hartwig reaction proceeded in excellent stereoselectivity (21, 99.5:0.5 er), thereby further expanding the functionality of carbazole atropisomers.Fig. 3. Substrates scope of N-aryl carbazoles.A Scope of coupling partners for Suzuki−Miyaura coupling and Buchwald–Hartwig amination. B Scope of N-aryl carbazole scaffolds. Reaction conditions: dichlorocarbazole (0.25 mmol), arylboronic acid (0.35 mmol), Pd_2_(dba)3 (1.0 mol%), L9 (2.0 mol%), K_3_PO_4_ (1.25 mmol), THF (20 mL/mmol), H_2_O (0.4 mL/mmol), 60 °C, 18 h. Isolated yield as ethyl ester reported. The absolute configurations of products were assigned by analogy to 2. ^a^With ent-L9. ^b^1 mmol scale. ^c^Isolated as methyl ester. ^d^Buchwald–Hartwig amination was carried out with p-anisidine, K_3_PO_4_ (1.25 mmol), 1,4-dioxane (20 mL/mmol), 100 °C, 18 h. ^e^With Pd_2_(dba)3 (2.0 mol %), L9 (4.0 mol %), THF (2.5 mL/mmol). Bn benzyl; Boc tert-butyloxycarbonyl; Et ethyl; TBS tert-butyldimethylsilyl.
Desymmetrization of prochiral biaryls is typically effective for a specific set of ortho substituents that preserves the steric biasing by a given catalyst. Considering that ionic stereocontrol could potentially overcome such limitation through electronic differentiation, we probed the ionic catalyst’s adaptability to substrates bearing various ortho groups (Fig. 3B).
Although 2’-aryl substituted N-aryl carbazoles are widely used as organic materials ( > 146,000 substructure entries in SciFinder), their enantioenriched forms have remained unknown. Using the same catalyst optimized for model substrate 1, the stereocontrol was effective irrespective of the electronic property of the 6’-aryl (22 vs 23). In addition, incorporating a bulky 6’-(1-naphthyl) resulted in slow rotation along the C–C bond connecting the naphthyl, as revealed in the NMR spectra of 24. Such steric effect does not influence the asymmetric induction (93:7 er), demonstrating the advantages of substrate recognition through attractive ionic interactions compared with steric biasing.
Substrates bearing 6’-alkenyl groups including cyclohexenyl (25) and 3,6-dihydro-2H-pyranyl (26), and 6’-chloro group (27–29) underwent the stereoselective reactions with various functionalized aryl boronic acids (up to 99.5:0.5 er). When 6’ position is unsubstituted, racemic product was isolated (30). We suspected that the reduced rotational barrier about N–C axis led to racemization at 60 °C, even if the product was formed stereoselectively. Indeed, appreciably enantioenriched product (91:9 er) was isolated when the reaction was performed at 40 °C for 1 h. The er eroded to 66.5:33.5 at 40 °C for 20 h, and the product racemized rapidly at 60 °C. Moreover, incorporating MeO groups adjacent to the reaction sites had an insignificant impact on enantioselectivity (31, 93:7 er). The results corroborate the notion that the catalyst does not rely on a sterically congested chiral pocket to exert stereoinduction.
Despite broad applications of N-aryl phenoxazines and N-aryl dihydroacridines in organic materials, their atropisomerism have remained unexplored. Reactions of phenoxazine derivative yielded 32 in 63.5:36.5 er at 60 °C and in 85.5:14.5 er at 50 °C. Enantiopurity of 32 likely eroded under the reaction conditions, given its ethyl ester racemized slowly at room temperature. The conformational flexibility of phenoxazine likely result in low rotational barriers about N–C axis. By contrast, N-aryl 9,9-dimethyl-9,10-dihydroacridine 33 was synthesized in 91.5:8.5 er, demonstrating high conformational stability. In both cases, the chiral catalyst preserves effective stereocontrol despite changes in the substrate scaffolds.
Adaptability to N–N axial chirality

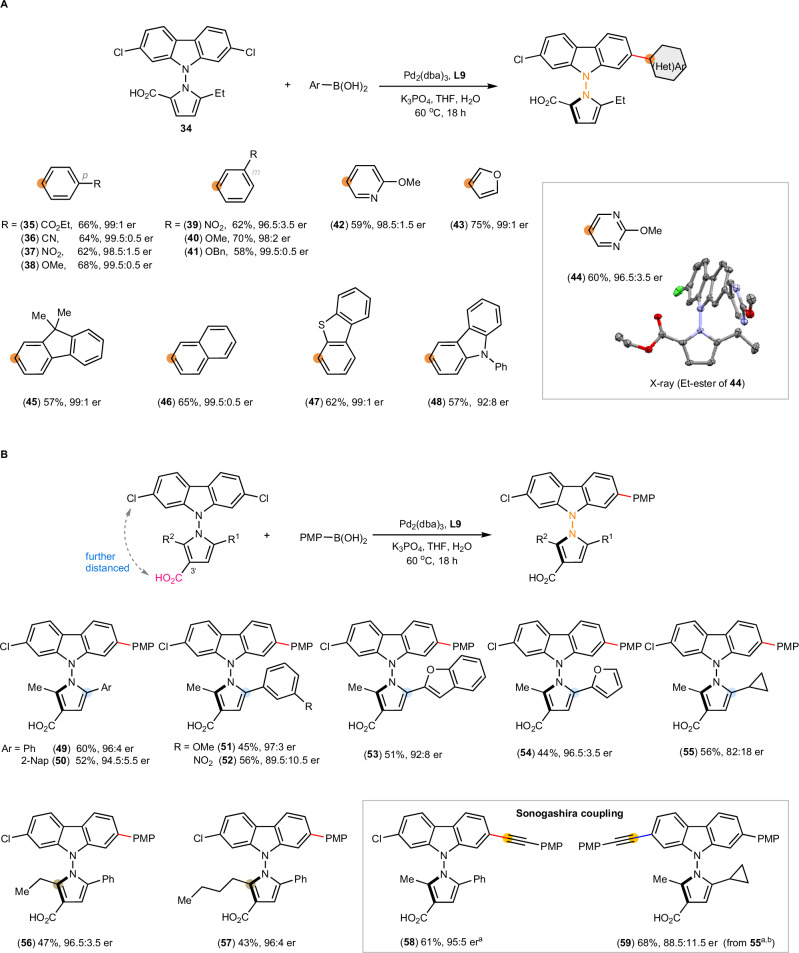

Aiming at a unified strategy, we probed the outcome of replacing N–C for N–N axes (Fig. 4A). N-pyrrol-1-yl-carbazole 34 coupled with a broad range of aryl boronic acids, affording the products in high stereoselectivity (35–48, 92:8–99.5:0.5 er). The absolute stereochemistry of 44 is consistent with that of N-aryl carbazole 2, corroborating the determinant role of carboxylates. Interestingly, the N–N axis and the carbazole moiety of 44 are not coplanar, contrasting with the coplanar N–C axis of 2.Fig. 4. Desymmetrization to access N–N stereogenic carbazoles.A Aryl boronic acids. B The adaptability to further distancing of carboxyl group. Reaction conditions: same as Fig. 3. The absolute configuration of 44 was assigned by X-ray crystallography. The absolute configurations of other products were assigned by analogy. ^a^Sonogashira coupling was carried out with 4-ethynylanisole. ^b^With ent-L9. Nap: naphthyl.
The chiral catalyst optimized for N–C substrate 1 was highly adaptable to N–N substrate 34. Non-directional ionic interactions tolerate changes in the spatial arrangements of Cl and CO_2_H. The results prompted us to test the catalyst’s adaptability by shifting CO_2_H to 3’-position of N-pyrrolyl moiety, further away from the N–N bond (Fig. 4B). The same catalyst remained effective in spite of the pronounced structural change (49, 96:4 er). The 3’-CO_2_H is stereo-determining: masking it as an ethyl ester led to formation of racemic 49 (51:49 er). The results also showed that simple steric biasing at ortho positions of N–N bond (Ph vs Me) is insufficient in directing the remote stereocontrol.
Diverse products (50–54) were obtained in 89.5:10.5–97:3 er using substrates bearing various (hetero)aryl groups at the 5-position of the pyrrolyl moiety. While modest er was obtained with a 5-cyclopropyl substituent (55, 82:18 er), 2-Et and 2-Bu did not impact the enantioselectivity (56, 96.5:3.5 er; 57, 96:4 er). Furthermore, Sonogashira coupling proceeded in 95:5 er (58). When 55 (82:18 er) was subjected to Sonogashira coupling using enantiomer of L9, bisfunctionalized product 59 was isolated in an improved 88.5:11.5 er. Plausibly, a kinetic resolution of 55 was operating.
Synthetic utilities

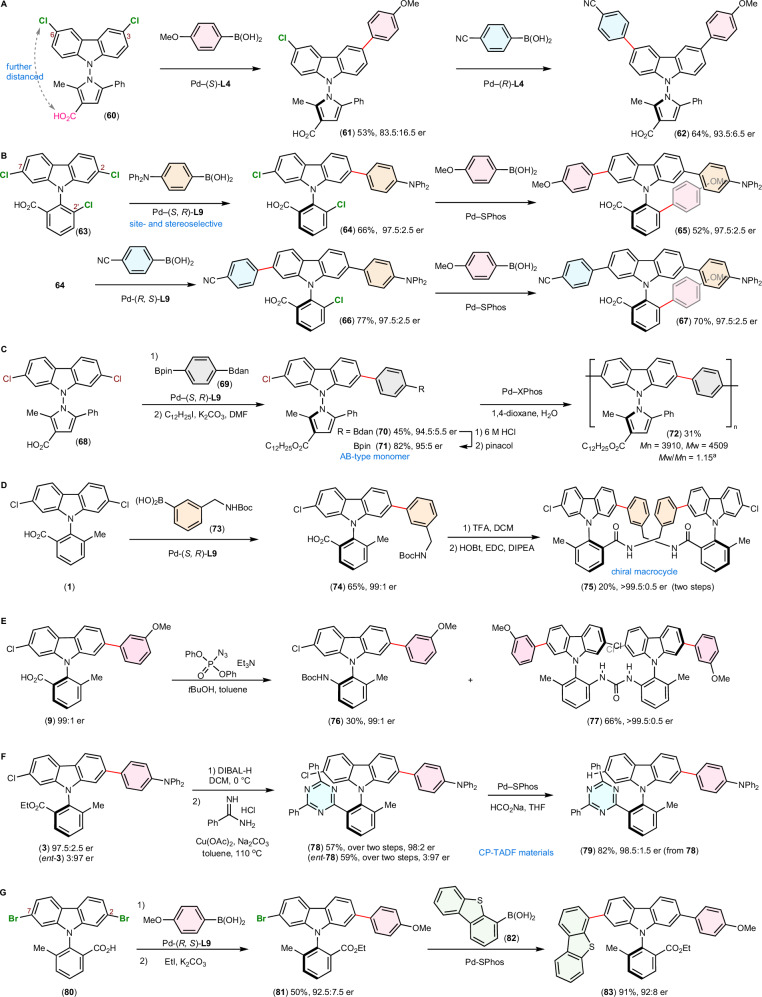

The new strategy enables modular access to functionalized N–C and N–N axially chiral carbazoles through sequential coupling (Fig. 5). To illustrate, 3,6-dichloro N-pyrrolyl carbazole 60 underwent Suzuki−Miyaura reaction in 83.5:16.5 er (61, Fig. 5A). This class of N–N axially chiral carbazoles exhibits excellent configurational stability. No erosion in enantiopurity was observed even after refluxing 42 and 61 in toluene for 24 hours. Subsequent reaction of 61 using the enantiomer of catalyst supported by (R)-L4 yielded product 62 in 93:5:6.5 er. The improvement in enantiopurity is attributed to a secondary kinetic resolution, which favors the major enantiomer of 61 during the second coupling reaction by inducing a configuration opposite to that of the initial step. Electronically differentiated arenes were incorporated at remote sites, and the stereochemistry of N–N axis was established concurrently. In contrast, 3,6-dichloro N-aryl carbazole underwent the desymmetrization reaction in only 69.5:30.5 er (see SI, SI-10).Fig. 5. Modular access to functionalized carbazole atropisomers.A Synthesis of 3,6-disubstituted carbazoles. B Sequential coupling of trichloro N-aryl-carbazole. C Tactic conjugated oligomer. D 24-Membered chiral macrocycle. E Curtius rearrangement to amino compounds. F Access to new CP-TADF materials. G Synthesis of 2,7-disubstituted carbazoles through desymmetrization of 2,7-dibromocarbazole 80. ^a^Mn, Mw, and PDI were determined by gel permeation chromatography (GPC). Ac: acetyl; dan: naphthalene-1,8-diaminato; DIBAL-H: diisobutylaluminum hydride; DIPEA: N,N-diisopropylethylamine; EDC: N-(3-dimethylaminopropyl)-N’-ethylcarbodiimide; HOBt: 1-hydroxybenzotriazole; pin: pinacolato; SPhos: 2-dicyclohexylphosphino-2’,6’-dimethoxybiphenyl; TFA: trifluoroacetic acid; XPhos: 2-dicyclohexylphosphino-2’,4’,6’-triisopropylbiphenyl.
Enantio- and site-selective coupling of trichloro-substituted 63 afforded 64 in 97.5:2.5 er (Fig. 5B). Subsequent coupling with excess aryl boronic acid using SPhos as ligand yielded 65 without change in the enantiopurity (97.5:2.5 er). However, complex product mixture was obtained when stoichiometric quantity of aryl boronic acid was used, presumably due to low selectivity between two remaining chloro groups of 64. This issue was overcome by employing the enantiomeric chiral ligand, which led to formation of 66 in 77% yield. The hetero-functionalized carbazole 67 (97.5:2.5 er) was successfully synthesized upon a final coupling. The sequential coupling approach provides an efficient synthetic method for enantioenriched monomers and tactic oligomers. AB-type monomer 71 (95:5 er) was prepared by coupling 68 to 4-B(dan) phenylboronic pinacol ester 69, and subsequent Pd-catalyzed polycondensation yielded tactic conjugated oligomer 72 (Fig. 5C).
The carboxyl group serves as a versatile handle for chemical derivatization. The coupling reaction using amine-substituted boronic acid 73 afforded 74 in 99:1 er. Upon N-deprotection, the resulting amine–carboxylic acid intermediate was subjected to amide coupling conditions. Because of the rigid N-aryl carbazole backbone, intramolecular lactamization was not observed, and a 24-membered macrocyclic dimer 75 featuring two N–C chiral axes was obtained with >99.5:0.5 er (Fig. 5D). Curtius rearrangement of acyl azide derived from 9 in tBuOH yielded Boc-protected amine 76 in high enantiopurity (99:1 er), along with a novel C2-symmetric chiral urea 77 (Fig. 5E). The DIBAL-H reduction of 3 and ent-3 to benzyl alcohols followed by subsequent oxidative condensation with benzimidamide afforded 1,3,5-triazine-substituted N-aryl carbazoles 78 (98:2 er) and ent-78 (3:97 er), respectively. Upon Pd-catalyzed proto-dehalogenation of 78, the des-chloro analog 79 (98.5:1.5 er) was successfully prepared (Fig. 5F).
Finally, desymmetrization reaction of 2,7-dibromocarbazole (80) proceeded in 92.5:7.5 er (81), affording 2,7-disubstituted N-aryl carbazoles 83 in 92:8 er after a subsequent cross-coupling with 82 (Fig. 5G). The results further demonstrates the applicability of the desymmetrization strategy.
Chiroptical properties
The modular synthesis of enantioenriched carbazoles provided an opportunity to evaluate carbazole atropisomers as potential chiral chromophores. We first studied their photophysical properties in diluted solution (see SI, Fig. S1–S3). They exhibit violet to blue emission (λPL = 354–425 nm) with nanosecond-scale lifetime. The N–N compounds emit at shorter wavelengths than the corresponding N–C compounds, introducing a distinct dimension to tuning fluorescence beyond modifications of the peripheral substituents. The absolute quantum yields range from moderate to high (Φ up to 82.4% for S-5), demonstrating their excellent photophysical properties as models for chiroptical functions.
We next investigated the ground-state chiroptical properties in solution. The circular dichroism (CD) spectra exhibits active Cotton effects (see SI, Fig. S4). The dissymmetry factors (gabs up to 5.36×10^-4^ for S-53) indicate a moderate degree of circular polarization, which is expected for typical chiral organic molecules.

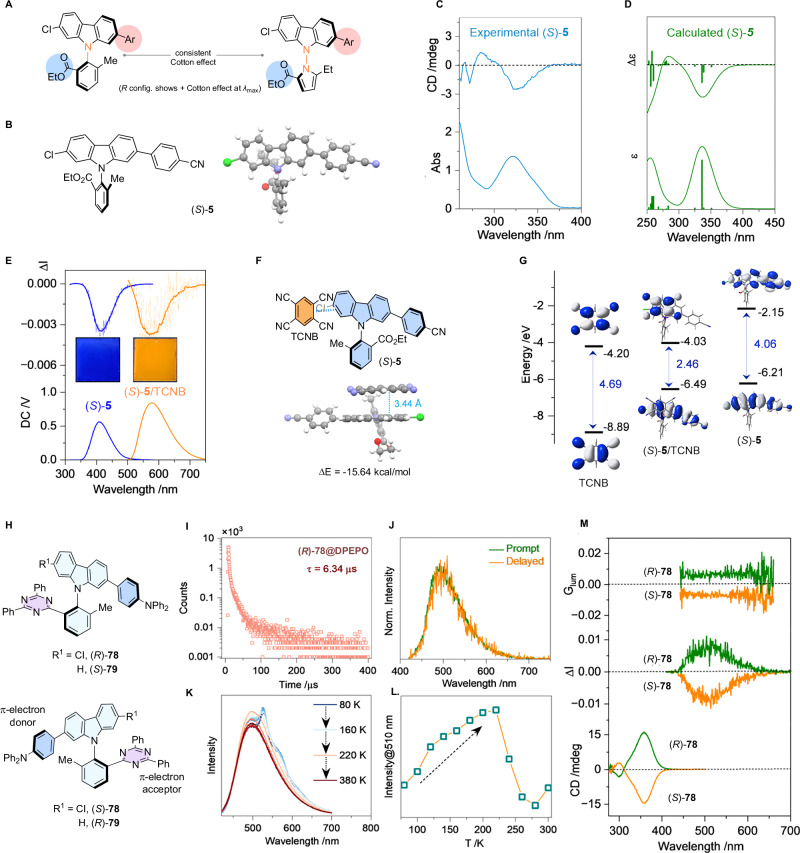

Furthermore, the Cotton effects are consistent between analogous N–C and N–N stereogenic carbazoles (i.e., positive Cotton effects observed for R-isomers at λmax, Fig. 6A and Table S2). The calculated CD spectra of S-4 and S-5 optimized using density functional theory (DFT) shows negative Cotton effects at the maximum absorbances, which aligns well with the experimental data (Fig. 6B–D and see SI, Fig. S5).Fig. 6. Circular dichroism (CD), circularly polarized luminescence (CPL), and circularly polarized thermally activated delayed fluorescence (CP-TADF) of axially chiral carbazoles.A Cotton effects are consistent between analogous N–C and N–N atropisomers. B DFT optimized structure of (S)-5 for CD calculation. C CD spectrum of (S)-5 in 1,2-dichloroethane (c = 0.2 mM). D Calculated electronic CD spectrum of (S)-5. E CPL spectra of (S)-5 without and with benzene-1,2,4,5-tetracarbonitrile (TCNB) in polymethyl methacrylate (PMMA) matrices (λex = 300 nm and 440 nm, respectively). Inserts: emissive photographs. F DFT-optimized complexation of (S)-5 and TCNB. G Frontier orbital of individual species and complex. H 78 and 79 for CP-TADF studies. I Delayed emission curve of (R)-78 in bis[2-(diphenylphosphino)phenyl] ether oxide (DPEPO) matrix. J Prompt and delayed emission spectra of (R)−78 (λex = 400 nm, delayed time = 0.1 ms). K Temperature-variable emission spectra of (R)−78 in DPEPO matrix. L Temperature-dependency of emission (λ = 510 nm). M CD, CPL and glum curves of (R)−78 (CD was measured in 1,2-dichloroethane, c = 0.2 mM, CPL was measured in DPEPO matrix). Also see Fig. S1–S10 for additional CD and CPL data of N–C and N–N carbazoles, and Fig. S11 and Fig. S12 for the of CP-TADF data of (R)−79 and (S)−79.
Chiral fluorescent molecules’ unique ability to emit left and right circularly polarized lights with different intensities have garnered increasing attention as photonic and electrooptical materials^59,60^. The luminescence and CD results motivated us to investigate the photoexcited chiral properties in thin-film state. By dispersing S-5 in polymethyl methacrylate (PMMA), we observed an r-CPL signal at the highest emission wavelength (410 nm) with a glum value of −0.004 (Fig. 6E). Importantly, compounds including N–C carbazole 4, N–C acridine 33, as well as N–N carbazoles with π-conjugated electron-deficient arene (35), electron-rich arene (38), and heteroarene (44) all exhibit CPL activities (see SI, Fig. S6 and Fig. S7). Scaffold-tuned maximum emission wavelengths were observed for N–N carbazoles (ca. 380 nm), N–C carbazoles (ca. 410 nm), and N–C acridine (518 nm).
Besides structural modifications, the electron-rich carbazole offers opportunity in achieving charge transfer-modulated chiroptical functions. To investigate this noncovalent strategy, we introduced tetracyanobenzene (TCNB) as an electron-acceptor. Fabricating S-5 and TCNB (1:1 molar ratio) in PMMA afforded orange luminescence (580 nm), and the CPL property was preserved with a similar glum value (Fig. 6E).
DFT optimization revealed the exquisite π–π stacking between carbazole of S-5 and TCNB (d = 3.44 Å, ΔE = -15.64 kcal/mol, Fig. 6F). The computed HOMO–LUMO energy gap narrows upon formation of the charge-transfer complex (2.46 eV vs. 4.06 eV), leading to bathochromic-shifted emissions for CT-CPL (Fig. 6G). The CT-CPL strategy is applicable to N–C carbazole 4, as well as N–N carbazoles coupled with π-conjugated electron-deficient arene (35) and electron-rich arene (38) (see SI, Fig. S8–S10).
Molecules that possess both TADF and CPL activities are particularly appealing for achieving highly efficient circularly polarized luminescence^61^. The potential of axially chiral carbazoles as functional luminescent materials was further illustrated by the CP-TADF activity of 78 and 79 (Fig. 6H). The through-space electron transfer between triazine and carbazole moieties could facilitate the intersystem crossing (ISC)^62^. Using bis[2-(diphenylphosphino)phenyl] ether oxide (DPEPO) as the host material, the emission curve of 78 exhibited a prolonged lifetime of 6.34 μs (Fig. 6I). The prompt and delayed emission spectra display identical shape and peak locations (Fig. 6J), indicating delayed fluorescence rather than phosphorescence^63^. The TADF activity was further evidenced by temperature-variable emission spectra from 80 K to 380 K (Fig. 6K). As the temperature increased from 80 K to 220 K, the emission of 78 increases, contrasting normal luminophores (Fig. 6L). The reversal ISC (RISC, T_1_ → S_1_) could be facilitated at elevated temperature, thereby improving the efficiency of TADF. Increasing the temperature further led to nonradiative transitions through skeleton motions, resulting in reduced RISC. The des-chloro analogs 79 also exhibited TADF phenomenon with similar luminescence properties (see SI, Fig. S11). DFT calculation of the excited states of 78 showed a narrow gap between S_1_ and T_1_ (ΔE_st_ = 0.23 eV), leading to accelerated ISC and RISC processes. Furthermore, strong Cotton effects were observed for 78 in solution, reflecting conformational rigidity of its molecular scaffold (Fig. 6M). When doped in DPEPO, R-78 and S-78 exhibited fine mirrored CPL signals, giving rise to l- and r-CPL respectively (500 nm, glum ± 0.008). Meanwhile, S-79 and R-79 exhibited l- and r-CPL respectively with comparable glum values (see SI, Fig. S11 and Fig. S12). The chiroptical handedness l- and r- is determined by the relative stereochemistry of the luminophores rather than the R/S configurations.
Discussion
In summary, we have developed a unified enantiotopic-group-selective strategy to access highly enantioenriched carbazole atropisomers and established their functions as chiral chromophores. We addressed the synthetic challenge of remote atroposelectivity through leveraging the fundamental phenomena of ionic interactions. The ionic catalyst system maintained effective stereocontrol while enabling the incorporation of diverse functionalities into a variety of N–C and N–N axially chiral scaffolds. The high substrate adaptability allowed for tailored synthesis of carbazole-, phenoxazine-, and dihydroacridine-derived atropisomers that are inaccessible through conventional methods. We found that establishing stereogenicity around the nitrogen atom of the carbazole core is an effective approach for conferring chiroptical functions. Cotton effects are consistent between N–C and N–N analogs, with the latter exhibiting blueshifted emissions. CPL activities could be modulated (380 nm to 580 nm) through structural diversification (e.g., CP-TADF) and noncovalent complexation (e.g., CT-CPL). Given the widespread applications of π-systems in organic materials and the importance of cross-coupling reactions in their functionalization, we anticipate that catalyst engineering will facilitate long-range stereoinduction in extended π-systems for function-oriented applications. Future studies on nitrogen-centered chiral chromophores will stimulate their applications in photonic and optoelectronic materials for future computing, sensing, and display technologies.
Methods
General
procedure for desymmetrizing Suzuki−Miyaura cross-coupling reaction
Under N_2_ atmosphere, Pd_2_(dba)3 (1.0 mol%) and L9 (2.0 mol%) were dissolved in THF (0.5 mL), and the resulting mixture was then stirred at room temperature for 20 min. The resulting solution was added to a reaction flask containing dichlorocarbazole 1 (0.25 mmol), arylboronic acid (0.35 mmol), K_3_PO_4_ (1.25 mmol), THF (4.5 mL) and H_2_O (0.10 mL). The reaction mixture was then sealed under N_2_ atmosphere and heated to 60 ^o^C while stirred using a magnetic stirring bar for 18 h. Upon reaction completion, the mixture was neutralized to pH 3–5 with 1.0 N aqueous solution of HCl and then extracted with ethyl acetate (4.0 mL) three times. The combined organic phase was washed with brine, dried over Na_2_SO_4,_ and concentrated in vacuo to give the crude product. The desired cross-coupling product was purified using flash column chromatography on silica gel. In cases that ester products were isolated, a Schlenk-tube was charged with the crude product of the cross-coupling reaction, followed by addition of N,N-Dimethylformamide (1.0 mL), EtI or MeI (0.5 mmol) and K_2_CO_3_ (1.0 mmol). The reaction mixture was then stirred overnight at room temperature. The resulting mixture was diluted with ethyl acetate (20 mL) and washed with water, brine, and dried over Na_2_SO_4_. The organic layer was concentrated in vacuo, and the desired product was purified using flash column chromatography on silica gel.
