Diffusion-weighted magnetic resonance spectroscopy with selective refocusing
Emile Berg, Renate Grüner, John Georg Seland
TL;DR
This study improves diffusion-weighted magnetic resonance spectroscopy by combining selective refocusing and spectral editing to reduce errors in measuring brain metabolites like GABA.
Contribution
The study introduces a modified dMEGA-PRESS sequence that reduces uncertainty in diffusion data for brain metabolites affected by J-modulations.
Findings
The dMEGA-PRESS sequence enabled reliable spectral editing and quantification of GABA in metabolite phantoms.
Selective refocusing and editing reduced uncertainty in diffusion data for GABA and Glutamate in phantoms and in vivo Glutamate/Glutamine data.
Reliable diffusion data for GABA could not be obtained from in vivo spectra due to spectral overlap challenges.
Abstract
To reduce errors from J-modulations and spectral overlap in dMRS of brain metabolites, this study combines the use of diffusion-weighted gradients with selective refocusing and spectral editing. Bipolar gradients were combined with spectral refocusing and editing in a dMEGA-PRESS sequence. Experimental parameters were optimised for spectral editing of GABA, with co-editing of Glutamate and Glutamine. The method was tested in metabolite phantom solutions, followed by pre-clinical experiments on rats. The dMEGA-PRESS sequence enabled reliable spectral editing and quantification of GABA. Selective refocusing and editing resulted in reduced uncertainty in the diffusion data for GABA and Glutamate in the metabolite phantoms, and also for the combined Glutamate/Glutamine diffusion data obtained in vivo. Reliable diffusion data for GABA was not possible to obtain from the in vivo spectra.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —University of Bergen (incl Haukeland University Hospital)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced MRI Techniques and Applications · Advanced Neuroimaging Techniques and Applications · Advanced NMR Techniques and Applications
Introduction
In biological tissue with differences in physical and chemical environments and geometrical restrictions, molecular displacements of water molecules are described using an apparent diffusion coefficient (ADC). Insight into micro-environmental and biochemical processes in the brain, in particular a mapping of tissue microstructures at the subvoxel level [1], can thus be obtained using diffusion-weighted magnetic resonance imaging (dMRI) [2].
When diffusion-weighting is combined with \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^1$$\end{document} H magnetic resonance spectroscopy (dMRS), ADC values of molecules other than water are measured [3–6], potentially providing valuable information about microstructure with a higher specificity compared to dMRI [7]. Principles and methodological considerations for optimised dMRS can be found in review and consensus articles [3, 4, 6, 7]. Reliable ADC values have mainly been obtained for brain metabolites with relatively intense singlet signals, such as N-acetyl aspartate (NAA), choline (Cho), and creatine (Cr) [8]. Other metabolites often suffer from low signal-to-noise ratio, strong spectral overlap, and are often significantly influenced by J-modulations, making dMRS more challenging, in particular at clinical field strengths \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(\le 3$$\end{document} T) [5, 9]. For metabolites with low abundance and strong spectral overlap very few reliable dMRS studies are available.
Consensus and recommendations for dMRS were recently presented [6]. Since diffusion-weighting based on regular spin echo (PRESS) and stimulated echo (STEAM) suffer from B \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$_1^+$$\end{document} inhomogeneities and chemical shift displacements, in particular at high magnetic field strengths, methods with adiabatic or semi-adiabatic rf-pulses, respectively LASER or sLASER (Localization by (semi) Adiabatic SElective Refocusing) have been established. In general, DW-STEAM or DW-sLASER are the recommended methods for clinical scanners, while for preclinical scanners with stronger gradients and higher specific absorption rate limits, the selection is larger, enabling use of DW-LASER, but also methods where the diffusion and localisation blocks are separated (SE-LASER or STE-LASER) [6].
The main strategy for low abundant metabolites with potential influence from J-modulations, is to keep the echo time as short as possible, making DW-STEAM preferable on clinical scanners, while STE-LASER is the recommendation on preclinical scanners [6]. Another more recent approach, for preclinical scanners at high magnetic fields, suggests to use DW-SPECIAL (diffusion-weighted-SPin ECho full Intensity Acquired Localized) [10], which incorporate adiabatic pulses but with shorter echo times compared to STE-LASER, reducing the influence from J-modulations. Two-dimensional diffusion-weighted J-resolved methods have also been reported, but this necessitates relatively long scanning times [9, 11].
The study presented in this paper takes advantage of spectral selective refocusing pulses, commonly applied in MRS editing techniques [12], to compensate for strong J-modulations of specific metabolite signals. This is achieved through a diffusion-weighted MEGA-PRESS (dMEGA-PRESS) sequence, where selective refocusing in MEGA-PRESS [13] is combined with bipolar diffusion gradients to achieve high b values [4], and enhance and potentially isolate less intense signals originating from specific metabolites influenced by J-modulations. We demonstrate how diffusion-weighted signals from GABA and glutamate/glutamine can be refocused, enhanced, and isolated using this approach. However, the suggested dMEGA-PRESS method is suitable for any metabolite that benefits from selective refocusing and spectral editing.
Notably, a diffusion-weighted MEGA-LASER method would be more robust with respect to B \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$_1^+$$\end{document} inhomogeneities and chemical shift displacements. However, on most pre-clinical scanners PRESS is readily available, while a LASER method would have to be implemented and optimised with respect to adiabatic pulses and time intervals. Therefore, as a ‘proof of principle’ approach PRESS was chosen as a fundamental building block. A diffusion-weighted MEGA-LASER method will however be pursued in future studies.
Theory

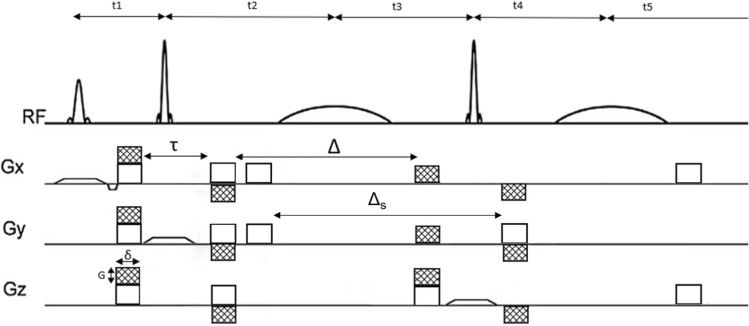

The dMEGA-PRESS sequence is presented in Fig. 1. Diffusion-weighting is introduced by superimposing bipolar gradients on the already existing spoiler gradients surrounding the slice selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} radiofrequency-pulses (RF-pulses) in the MEGA-PRESS encoding. All other parameters, including the timing of all RF-pulses, slice selective gradient pulses, and spoiler gradient pulses were applied according to the scheme presented in [13]. By superimposing the bipolar gradients on the spoiler gradients the other parameters, most importantly \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_1$$\end{document} – \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_5$$\end{document} in Fig. 1, can be kept the same as is a regular MEGA-PRESS sequence. Bipolar gradients also reduce the influence of cross terms between gradient pulses in the diffusion attenuation [4, 6, 7]. At the minimum intensity of the diffusion-weighted gradients, i.e. only spoiler gradient intensity, the sequence corresponds to a regular MEGA-PRESS. The indicated positive polarity of the spoiler gradients could potentially limit the maximum achievable intensity of the diffusion-weighted gradients. However, since the required strength of the spoiler gradients is very low, this influence can safely be ignored.
The b value was calculated analytically according to the approach given in [14] and outlined in [6], which results in
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} b = \gamma ^2 (2 \delta ) ^2 G ^2 \cdot (\Delta + \frac{1}{2} \tau +\frac{4}{3} \delta ), \end{aligned}$$\end{document}where G denotes the diffusion gradient amplitudes causing diffusion-weighting attenuation. The detailed calculation of this b value is shown in supplementary materials Fig. S1, which also includes direction-dependent cross terms between the diffusion-weighting gradients and the spoiler gradients surrounding the editing RF-pulses. The diffusion time, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_D =\Delta + \frac{1}{2} \tau +\frac{4}{3} \delta$$\end{document} . The attenuation caused solely by the spoiler gradients is constant throughout the experiment, and can therefore be treated as a constant offset, which is not included in the equation.Fig. 1. The dMEGA-PRESS pulse sequence designed for this study. The slice selective and spectral selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} RF-pulses together with slice selective gradient pulses and spoiler gradients (indicated respectively as open trapezoidal and rectangular shapes) are applied according to the scheme in [13], where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_2 = t_3 = t_4 = t_1 + t_5$$\end{document} . The two bipolar pairs of diffusion-weighting gradient pulses (shaded rectangular shapes) are superimposed to the spoiler gradients surrounding the slice selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} RF-pulses, and have a fixed duration of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta$$\end{document} , a varying intensity given by G, and a separation given by \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta$$\end{document} . Within each pair, the bipolar gradient pulses are separated by the time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau$$\end{document} . \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta _s$$\end{document} indicate the evolution time for the spatial-dependent cross term between the applied gradients and spoiler gradients. As indicated, the diffusion-weighted gradients can in principle be applied simultaneously in all orthogonal directions, however they were only applied along the z-axis in this study
Materials and methods
Implementing the dMEGA-PRESS pulse sequence
The dMEGA-PRESS pulse sequence was implemented on two different instruments. Initial in vitro experiments were performed on phantom solutions using a 11.7 T Bruker Ascend 500 MHz vertical wide bore spectrometer. These experiments were used to validate the performance of the pulse sequence, both when it comes to spectral selective refocusing and diffusion-weighting. The method was then implemented on a 7.0 T Bruker Pharmascan 70/16 horizontal small animal MRI scanner. Due to an abrupt out-phasing of the animal scanner, in vivo experiments were prioritised, with very limited time for systematic experiments on phantom solutions, which is therefore not included. In both in vitro and in vivo experiments the total echo time was kept constant at 68 ms, which is optimal for MEGA-PRESS editing of GABA. To achieve full refocusing the time delays in Fig. 1 were: t2 = t3 = t4 = t1 + t5 = TE/4 = 17 ms [13, 15]. The bandwidth of the 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} slice selective pulses were 3.5 kHz (7.0 ppm) and 2.5 kHz (8.3 ppm) respectively for 11.7 T and 7.0 T. Shinnar–LeRoux pulses with a duration of 10 ms and bandwidth of 170 Hz, corresponding respectively to 0.34 ppm and 0.56 ppm at 11.7 T and 7.0 T, were used for spectral selective refocusing. Spoiler gradients were rectangular pulses with a duration of 3 ms and with an amplitude of 62 mT/m. Other time intervals were: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta = 3$$\end{document} ms, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau = 1.5$$\end{document} ms, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta = 27$$\end{document} ms, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta _s = 31.5$$\end{document} ms. Due to the relatively large voxel size in the in vivo experiments the effects from anisotropy is expected to average out, and this, combined with the restriction of a 1 h time limit for animal scanning, diffusion gradients were applied only in the z-direction. Outer volume suppression was enabled using the built-in subroutines of the Paravision software. Local iterative shimming on the voxel was performed to the second-order, both in the in vitro and in vivo experiments. The shimming quality was determined by evaluating the peak of water or NAA at 2.0 ppm. Shimming gradients were adjusted until a full width at half maximum of less than 3 Hz for in vitro experiments and less than 12 Hz for in vivo experiments was achieved, ensuring optimal magnetic field homogeneity. A built-in algorithm was used for online evaluation of eddy currents, where a water reference scan was recorded before each single experiment for the purpose of eddy current correction.
In vitro phantom study
In vitro experiments were performed on aqueous solutions of selected metabolites. All solutions were prepared using distilled water where the pH was adjusted to 7.4 using a phosphate buffer. Each solution was added to a 10 mm NMR tube. To examine the spectral editing performance of the dMEGA-PRESS pulse sequence, experiments were performed on a solution containing only GABA (5.0 mM) and NAA (20.0 mM). The pulse sequence was then applied to a series of solutions with varying concentration of GABA (2.5, 4.2, 5.9, 7.9 and 10.3 mM), and where the concentrations of the other metabolites were kept constant (in mM): Glu: 12.5, Cho 3.0, Cr 10.0, NAA 12.5, Lac 5.0, and Ins 7.5. This series of solutions are referred to as ‘metabolite phantoms’. The reliability of the diffusion-weighting was tested on the metabolite phantom containing 5.9 mM GABA.
All in vitro experiments were conducted at 25 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} C on a 11.7 T Bruker Ascend 500 MHz vertical wide bore spectrometer equipped with a commercial Bruker MicWB40 micro imaging probe, using ParaVision 6.0.1 software (Bruker BioSpin, Billerica, MA, USA). The maximum available gradient strength was 1.4 T/m. For placement of the voxel, the Paravision multi-slice localiser was utilised. The shimming was done automatically based on an acquired \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$B_0$$\end{document} -map. Water suppression was manually adjusted for each sample using VAPOR. A \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$4\times 4\times 4~\text {mm}^3$$\end{document} voxel was placed in the middle of the 10 mm NMR tube. All spectra were acquired using a regular PRESS sequence or the dMEGA-PRESS sequence shown in Fig. 1, with respectively TE/TR = 16/3000 ms and TE/TR = 68/3000 ms. 4096 data points were acquired with 16 averages. Diffusion weighting was performed with a total of 9 b values in the range 0.01–4.19 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} . Two datasets were acquired for each b value, one ‘ON’ spectrum, where the spectral selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} RF-pulses were placed at 1.9 ppm, causing refocusing of the signals from GABA at 2.3 and 3.0 ppm (GABA-editing) [13], and the signals from Glu at 2.4 and 3.75 ppm (co-editing) [16]. In the ‘OFF’ spectrum, these pulses were placed at 7.5 ppm to acquire a spectrum without selective refocusing.
In vivo animal study

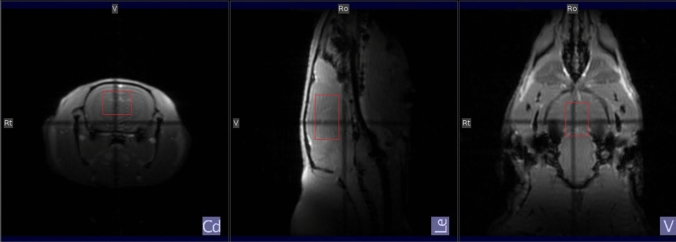

In vivo experiments were performed on adult Wistar rats (N = 10, 5 male and 5 female). Animal experiments were conducted according to ethical guidelines at University of Bergen. The animals were anaesthetised with isoflurane (2.5 vol% added to 1:2 oxygen:nitrogen). Respiration was monitored and a physiological temperature (37.0 ± 0.2 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} C) was maintained by a heater module (SA instruments Inc, NY, USA). After positioning the animal in the scanner, isoflurane was reduced to maintain a respiration level of 60–70 breaths min \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{-1}$$\end{document} (1.6–2.0 vol%). Two animals were excluded (one male, one female) due to problems with water suppression during scans. All animal experiments were performed on a 7.0 T Bruker Pharmascan 70/16 horizontal small animal MRI scanner with software ParaVision 6.0.1 (BrukerBioSpin, Billerica, MA, USA) and a 55 mm/23 mm tx/rx quad head coil (Bruker Corporation, Model No: MT0206). The maximum available gradient strength was 0.7 T/m. The animal was fixed using a standard Bruker animal cradle.Fig. 2. Placement of a \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$7\times 4\times 7~\text {mm}^3$$\end{document} voxel in the central region of a rat brain, based on the multi-slice localiser image
Localisation was performed based on a multi-slice localiser image with FOV = \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$50\times 50$$\end{document} mm \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^2$$\end{document} . An \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$8\times 5\times 8$$\end{document} mm \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^3$$\end{document} voxel was chosen for first, second, and third order shimming. The shimming was done automatically based on an acquired \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$B_0$$\end{document} -map. For localised \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^1$$\end{document} H spectroscopy a \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$7\times 4\times 7$$\end{document} mm \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^3$$\end{document} voxel, shown in Fig. 2, was placed in the middle of a heterogenous region of the brain, including mid brain, cortex, thalamus and hippocampus, averaging out regional concentrations and diffusion properties of metabolites [17]. As described above, local iterative shimming on the voxel was performed until a full width at half maximum for water and/or NAA of less than 12 Hz was achieved, which is within the recommended limit for animal MRS in the rodent brain [18]. The voxel was placed at a safe distance from the edges of the skull to avoid any susceptibility artefacts.
MR spectra were acquired using the dMEGA-PRESS sequence with TE/TR = 68 ms/3000 ms. 4096 data points were acquired with 32 averages. Water suppression was achieved using VAPOR, with manually optimised RF attenuations. ‘ON’ and ‘OFF’ diffusion-weighted spectra were acquired using the same settings for the spectral selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} RF-pulses as described for the in vitro experiments. Diffusion weighting was performed with a total of 5 b values in the range 0.03–4.38 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} , and the gradient pulses were applied along the z-direction in all experiments. A navigator was used for online frequency drift, which can be more pronounced when performing diffusion experiments.
Processing
Eddy current correction of in vitro and in vivo data were performed using ParaVision 6.0.1 software (Bruker BioSpin, Billerica, MA, USA), where the procedure is based on an accumulated signal from a water reference scan, resulting in a signal which is demodulated based on the temporal phase evolution of the strongest spectral component of this reference scan. Averaging, combination of spectra, and frequency drift correction, was performed online in ParaVision. Further processing was performed using an in-house script made in MatLab 2019b (MathWorks inc., Massachusetts), where the raw data were first combined and averaged after correcting for frequency drifts that might have occurred during the experiment. The data were then zero filled to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$2^{15}$$\end{document} to achieve a Hz/pt resolution that follows the standard in the GANNET pipeline [19] used in the subsequent processing. Global phase correction was performed using the ‘Automated phase Correction based on Minimization of Entropy’ (ACME) algorithm [20]. Phase correction was performed in two steps, first using the water peak, then using the chosen region of interest corresponding to the metabolite being investigated. This approach resulted in a more robust phase correction. Edited spectra, which enables isolation and quantification of molecules with refocused signals, were obtained for each b value by subtracting the ‘OFF’ from the ‘ON’ spectrum.
Spectral fitting and deconvolution [6] is often performed using a basis set representing linear combinations of individual metabolite spectra at a given experimental condition [21, 22]. A basis spectrum for a specific metabolite can be generated from separate experimental data or through simulations based on density matrix theory and input of experimental conditions [6]. When analysing edited spectra a simpler approach with lineshape peak fitting and integration of each individual signal is common, where the use of GANNET [19] on data from GABA-editing is an example. An analysis based on lineshape peak fitting and integration was applied in our study, where each individual peak of interest were curve fitted using in-house algorithms inspired by the GANNET pipeline [19] and LWFIT [23]. Signal intensities of the different metabolites at varying diffusion-weightings were then obtained from integration of the curve fitted peaks. This corresponds to a “no prior knowledge” approach to spectral analysis, allowing for larger flexibility compared to methods where the spectral data are fitted using basis sets obtained from simulations or separate experiments [23]. This approach allows for the use of the same analytical method for the ‘OFF’, ‘ON’ and edited diffusion-weighted data, enabling a direct and simple comparison of the improved quality of the obtained ADC values for specific metabolites. Fit errors for the spectral analysis of each metabolite was calculated according to the procedure used in GANNET pipeline [19].
Details regarding hardware, acquisition, data analysis, and data quality are given in Supporting Information, Table S1.
Results
In vitro

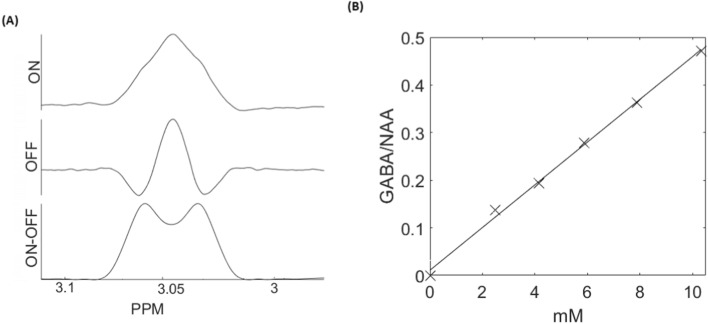

As shown in Fig. 3A, applying the dMEGA-PRESS sequence on the solution with GABA and NAA, results in the expected shapes of the ‘OFF’, ‘ON’ and edited (‘ON’–‘OFF’) spectra for the GABA peak at 3.0 ppm. The calibration curve obtained from a series of metabolite phantoms, presented in Fig. 3B, shows a linear response between concentration and relative intensity of the edited GABA signal, verifying the dMEGA-PRESS quantification capabilities. These data are obtained using an insignificant strength of the diffusion-weighting gradient pulses, i. e. a regular MEGA-PRESS.Fig. 3A Gaba editing in the GABA + NAA solution. Top: ‘OFF’-spectrum, middle: ‘ON’-spectrum, bottom: edited spectrum. B Calibration curve in a series of metabolite phantoms having varying GABA concentrations, with respect to the edited GABA signal at 3.0 pppm

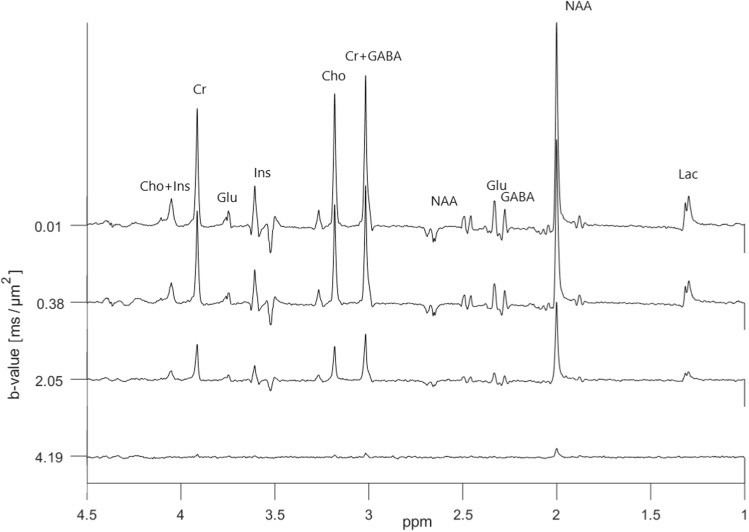

Diffusion-weighted ‘OFF’ spectra from the metabolite phantom having a GABA concentration of 5.9 mM are presented in Fig. 4. These data corresponds to spectra obtained using a regular DW-PRESS sequence with a relatively long echo time and potentially large J-modulations.Fig. 4. In vitro diffusion-weighted ‘OFF’ spectra acquired using the dMEGA-PRESS sequence in the metabolite phantom with a GABA concentration of 5.9 mM. A total of 9 b values were varied in the range 0.01–4.19 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} . A selection of four spectra is shown here for clarity. The spectral selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} pulses are set to 7.5 ppm

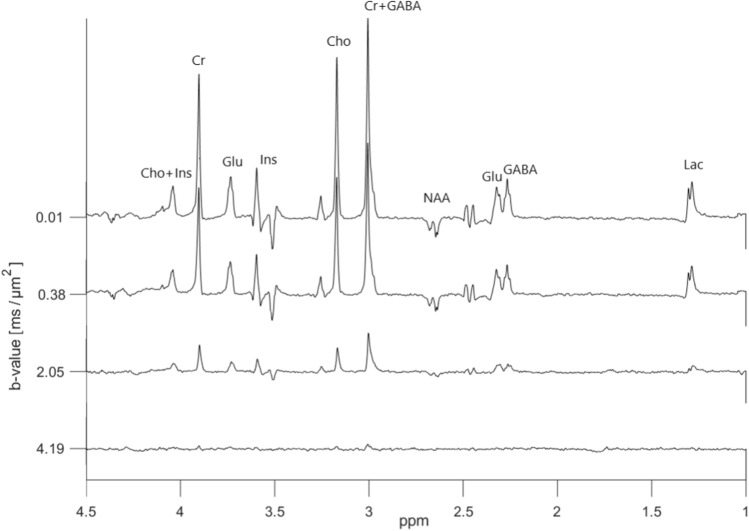

The corresponding ‘ON’ spectra from the same metabolite phantom, presented in Fig. 5, result in refocused peaks of GABA at 2.3 ppm and 3.0 ppm, and Glu at 2.4 and 3.75 ppm. The edited (‘ON’–‘OFF’) diffusion weighted spectra are shown in Fig. 6. The only signals of significance are those from GABA, Glu and NAA, as expected from a GABA-edited MEGA-PRESS experiment. In addition to the refocused and edited peak of GABA at 3.0 ppm, we have in the following analysis chosen to focus on the refocused and edited peak of Glu at 3.75 ppm since this is the peak with least spectral overlap.Fig. 5. In vitro diffusion-weighted ‘ON’ spectra acquired using the dMEGA-PRESS sequence in the metabolite phantom with a GABA concentration of 5.9 mM. A total of 9 b values were varied in the range 0.01–4.19 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} . A selection of four spectra is shown here for clarity. The spectral selective 180 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} pulses are set to 1.9 ppm
The diffusivity of water in an unsuppressed-water-experiment was calculated to be \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$2.30 \pm 0.02~\upmu \text {m}^2/\text {ms}$$\end{document} at 25 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$^{\circ }$$\end{document} C. The analysis based on lineshape peak fitting of selected signals resulted in a fit error (obtained from the GANNET pipeline) of less than 20% for all the peaks and in all spectra obtained with increasing b values. Selected logarithmic plots of diffusion-weighted signal intensities versus b values are presented in Fig. 7. A linear relationship is achieved for all the metabolite signals of interest. Notably, the attenuations for the GABA[edit] signal at 3.0 ppm, and also to some degree for the GABA[ON] signal at 2.3 ppm, are more noisy. ADC-values obtained from the linear regressions are presented in Table 1. Within the limits of uncertainties the ADC values for Cr, Cho, Ins, and Lac obtained from ‘OFF’ and ‘ON’ spectra are in good agreement, as expected from metabolites with signals not influenced by the editing pulses. ADC-values obtained from the GABA peak at 2.3 ppm in the ‘ON’ and edited spectra are in good agreement, however with higher uncertainties in the edited spectra. In comparison a slightly higher ADC-value is obtained from the edited GABA peak at 3.0 ppm. In general the uncertainties are higher in all the values obtained from the edited diffusion weighted spectra. Notably, the highest uncertainty can be found in the ADC value for the Glu peak at 3.75 ppm in the ‘OFF’ spectra due to the strong influence from J-modulation, while reliable values were obtained from this peak in the ‘ON’ and edited spectra where this peak is fully refocused.Fig. 6. In vitro diffusion-weighted edited spectra (‘ON’–‘OFF’) obtained from the spectra shown in Figs. 4 and 5Fig. 7. Plots of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ln(S_i/S_0)$$\end{document} versus b values for selected peaks in spectra obtained from the metabolite phantom, with linear regression to determine the ADC-value. All plots are derived from the ‘OFF’ spectra apart from GABA [ON], Glu [ON], and GABA [EDIT]
Table 1. Obtained ADC values of metabolites in the metabolite phantom at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$25\,^{\circ }$$\end{document} C (value ± SE) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$[\upmu \text {m}^2/\text {ms}]$$\end{document} OFFONEDITLac [1.4]0.86 ± 0.050.86 ± 0.05–NAA [2.0]0.68 ± 0.01–0.66 ± 0.02GABA [2.3]–0.83 ± 0.040.84 ± 0.07GABA [3.0]––0.88 ± 0.04Cr [3.0]0.83 ± 0.020.82 ± 0.02–Cho [3.2]0.99 ± 0.030.97 ± 0.03–Ins [3.6]0.80 ± 0.020.80 ± 0.02–Glu [3.75]0.7 ± 0.10.70 ± 0.010.68 ± 0.04The values and corresponding standard errors (SE) are obtained from the linear regressions visualised in Fig. 7. The numbers in brackets indicate the chemical shift of the signal used
In vivo
From the edited dMEGA-PRESS spectra with insignificant gradient strengths, using the GANNET pipeline [19], and referenced to an unsuppressed-water-experiment on the same subject, the mean concentration of GABA in the 8 test subjects was determined to be \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(2.5 \pm 0.4)$$\end{document} mM.

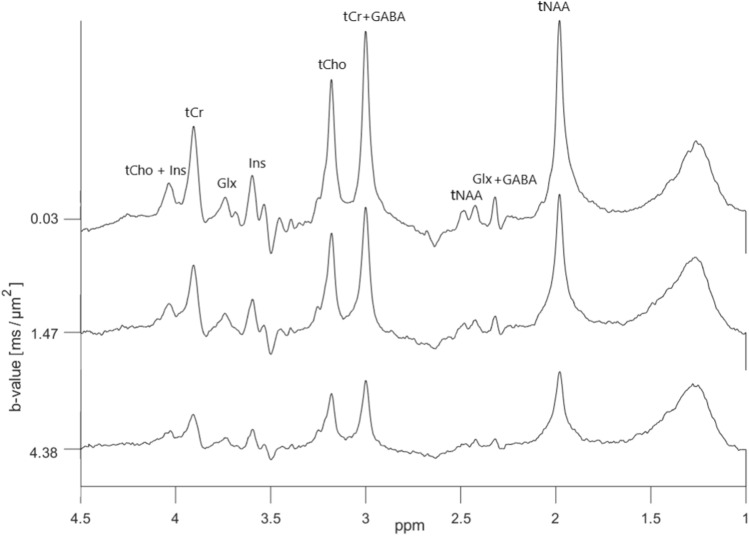

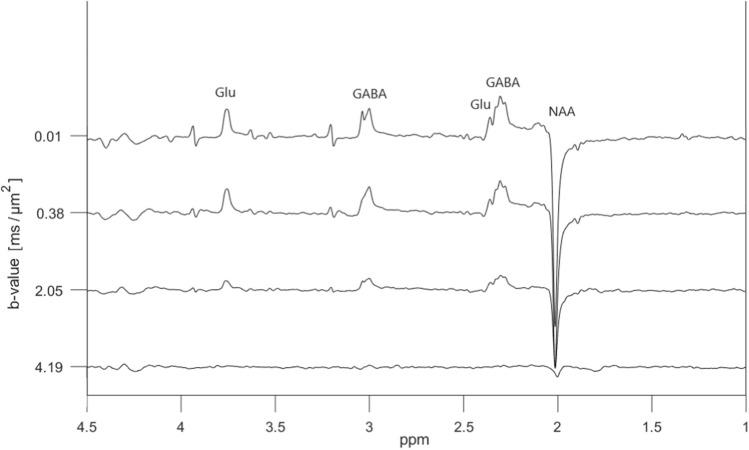

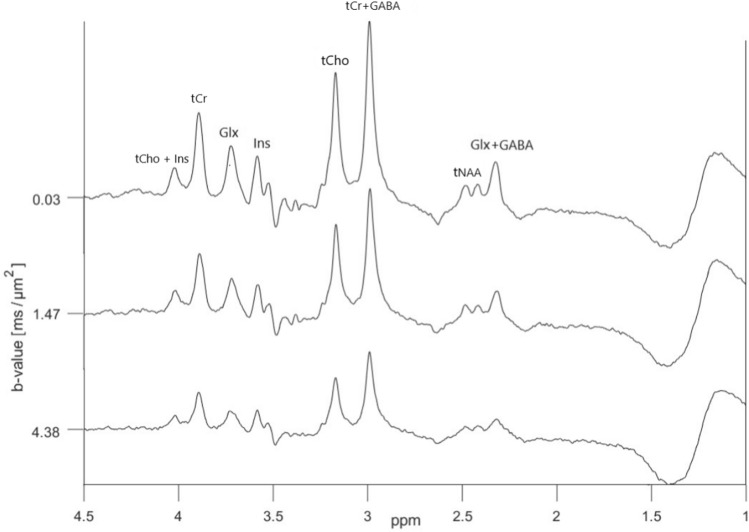

Diffusion-weighted ‘OFF’ spectra obtained in the central cortex in one of the subjects are shown in Fig. 8. The broad peak located around 1.3 ppm is due to lipid signals, which unfortunately were present in all spectra from all subjects, even though OVS with sufficient saturation bands was applied. Since our analysis is based on a simple lineshape peak fitting for individual peaks, the signals from glutamate and glutamine could not be deconvoluted, and are labelled as Glx. Notice the significant J-modulations and low intensity in overlapping peaks from GABA/Glx located at 2.3–2.4 ppm, and the peak from Glx located at 3.75 ppm. In the corresponding ‘ON’ spectra shown in Fig. 9 these signals are refocused and have more pronounced peaks. The edited (‘ON’–‘OFF’) diffusion-weighted spectra are shown in Fig. 10. The significant peaks are from GABA and Glx, but minor signals from tCr (3.9 ppm) and tCho (3.2 ppm) are also present. Also in the ‘ON’ spectra lipid signals were present around 1.3 ppm, and here with some significant phase distortions, resulting in non-eliminated and significant contributions from these signals in the edited spectra in this area.

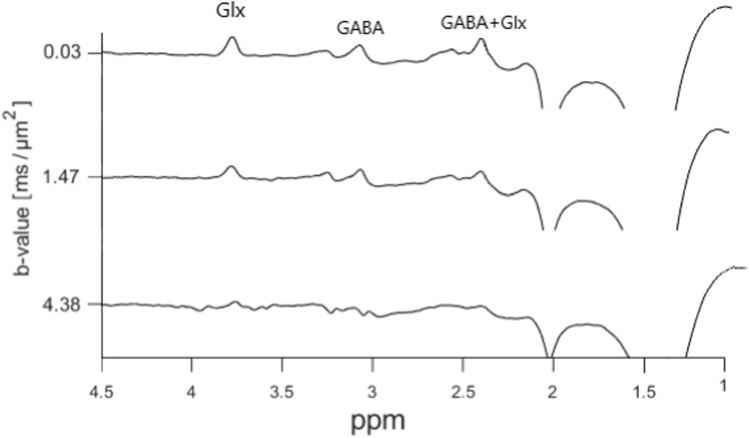

The analysis based on lineshape peak fitting of selected signals resulted in a fit error (obtained from the GANNET pipeline) of less than 20% for all the peaks and in all spectra obtained with increasing b values. Examples of results from the peak fitting are presented in Figures S2 and S3 in Supporting Information.

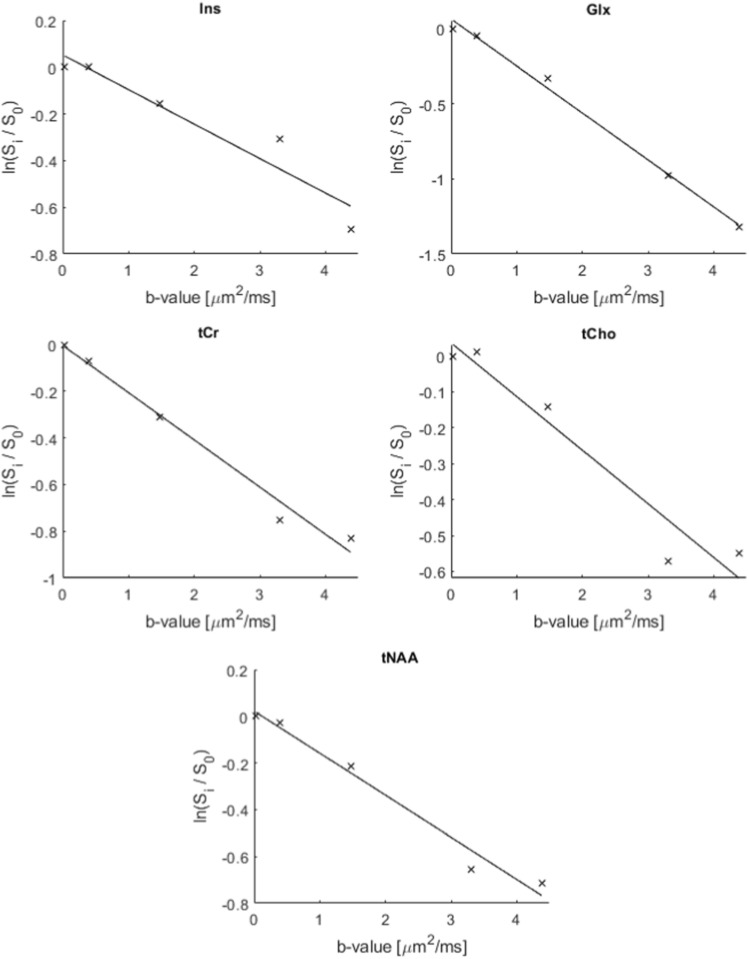

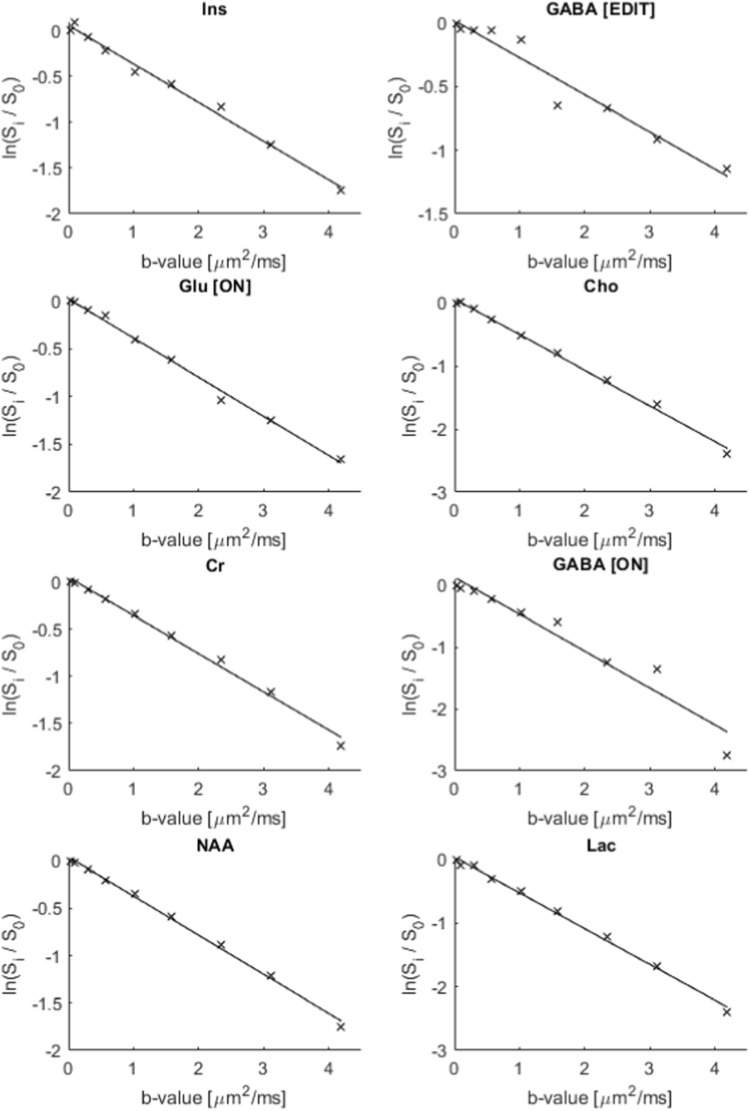

Logarithmic plots of diffusion-weighted signal intensities versus b values for selected peaks in one of the test subjects are presented in Fig. 11. Estimated ADC-values obtained from ‘OFF’, ‘ON’ and edited diffusion-weighted spectra are presented in Table 2. Based on the overlapping standard deviations there are no significant differences between the ADC-values of individual metabolites obtained from the different sets of spectra, even though the values for both tCho and Ins are higher in the ‘ON’ spectra compared to ‘OFF’ spectra. It was not possible to obtain reliable ADC values for GABA from edited spectra, nor from Glx in the ‘OFF’ spectra. However, as seen in the plots in Fig. 11 and the ADC values presented in Table 2, the data for Glx at 3.75 ppm in the refocused ‘ON’ and the edited spectra were of the same quality as for the other metabolites.Fig. 8. In vivo diffusion-weighted ‘OFF’ spectra obtained using the dMEGA-PRESS sequence in a rat brain with b values in the range 0.03-4.38 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} . For clarity, only 3 out of 5 spectra are shown. The spectra are obtained in a \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$7\times 4\times 7~\text {mm}^3$$\end{document} voxel, as indicated in Fig. 2Fig. 9. In vivo diffusion-weighted ‘ON’ spectra obtained using the dMEGA-PRESS sequence in a rat brain with b values in the range 0.03–4.38 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ms}/\upmu \text {m}^2$$\end{document} . For clarity, only 3 out of 5 spectra are shown. The spectra are obtained in a \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$7\times 4\times 7~\text {mm}^3$$\end{document} voxel, as indicated in Fig. 2Fig. 10. In vivo diffusion-weighted edited spectra obtained subtracting the ‘ON’ spectra in Fig. 9 from the ‘OFF’ spectra in Fig. 8Fig. 11. Plots of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ln(S_i/S_0)$$\end{document} versus b values for selected peaks in the spectra presented in Figs. 8, 9 and 10. The plots are from one subject, and does not represent the full dataset. All plots are derived from the ‘OFF’ spectra apart from Glx which is from the ‘ON’ spectra
