Structural optimization of the excavator boom under extreme working conditions using EDEM–ADAMS coupled simulation
Huawei Wu, Xiaolong Ding, Gui Liu, Xiaoyuan Zhu, Hualiang Wang, Carlos Alberto Cruz-Villar, Carlos Alberto Cruz-Villar, Carlos Alberto Cruz-Villar
TL;DR
This paper introduces a new method to optimize the structure of an excavator boom under extreme conditions using EDEM-ADAMS simulation, resulting in reduced weight and improved strength.
Contribution
A novel EDEM-ADAMS coupled simulation method is proposed for structural optimization under extreme working conditions.
Findings
The boom's mass was reduced by 14.32 kg (13.80%) after optimization.
Maximum stress and total deformation were reduced by 26.12% and 29.11%, respectively.
Compared to existing methods, equivalent stress and deformation were reduced by 18.76% and 22.27%.
Abstract
Aiming at the extreme loading conditions of an backhoe loader under dynamic and uncertain environments, this paper proposes a structural optimization method based on EDEM-ADAMS for a compact multi-functional excavating transporter device. The D-H coordinate kinematic analysis model of the backhoe loader is constructed, and the forward kinematic solution is obtained. Using the multi-body dynamics software ADAMS and enhanced discrete element software, a virtual prototype model and a discrete element material model are established. Through the coupled simulation method of EDEM-ADAMS, the load distribution of two working modes, forward digging and side digging, is analyzed, and the extreme working conditions of the boom are determined. Finally, topology optimization of the boom under extreme working conditions is performed to strengthen the local structure. The results show that after…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
Fig 10
Fig 11
Fig 12
Fig 13
Fig 14
Fig 15
Fig 16
Fig 17
Fig 18
Fig 19
Fig 20
Fig 21
Fig 22
Fig 23
Fig 24
Fig 25
Fig 26
Fig 27
Fig 28
Fig 29
Fig 30
Fig 31
Fig 32
Fig 33- —National Natural Science Foundation of China under Grant
- —http://dx.doi.org/10.13039/501100003819Natural Science Foundation of Hubei Province
- —http://dx.doi.org/10.13039/501100018570Special Project of Central Government for Local Science and Technology Development of Hubei Province
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHydraulic and Pneumatic Systems · Tunneling and Rock Mechanics · Mechanical Engineering Research and Applications
Ⅰ. Introduction
Hydraulic excavators serve as critical engineering machinery extensively deployed in mining, construction, agriculture, and infrastructure sectors [1]. Their excavation mechanisms operate in complex environments prone to failures, including deformation and fatigue fractures induced by alternating stresses in booms and bending stresses in sticks, wear-induced failures at connecting-pin articulations, and bucket damage from impact and abrasion [2,3].
To address these challenges, significant research has focused on excavation mechanism design. Feng Hao [4] et al. developed a dynamic excavator model, employing the Newmark algorithm in MATLAB for dynamic load computation with experimental validation. Yu [5] et al. established a parametric full-machine finite element model, simulating hydraulic cylinder behavior via multipoint constraint and linkage elements while proposing a numerical method for pin-joint analysis to optimize boom structures. Cao Yuanwen [6] et al. implemented ADAMS-based virtual prototyping for multifunctional quick couplers, enhancing design efficiency through simulation. Sun Haoran [7] et al. introduced a bucket lightweight design methodology correlating continuous and ultimate digging forces, developing APDL-based parametric models. Suryo H.S [8]. and Hadi S.S [9]. applied topology optimization and FEM to CAT 374D L-boom excavators and bucket teeth respectively, achieving mass reduction within allowable stress constraints. Zhao Zhengyu [10] et al. conducted Altair Inspire-driven topology optimization for excavator secondary arms under stiffness-strength constraints, validating redesigned components through 3D printing.
While these studies characterize kinematic behaviors through theoretical and simulation approaches, they oversimplify operational scenarios by neglecting granular material interactions, limiting simulation fidelity.
Recent advances in virtual prototyping facilitate coupled dynamics-discrete element modeling for excavator performance analysis. Bi Qiusi [11] et al. integrated ADAMS-EDEM to quantify digging resistance in shovel operations. Wang Tongjian [12] et al. reconstructed excavation states using RecurDyn-EDEM with field-data calibration. Wu Di [13] et al. validated ADAMS-EDEM excavation resistance predictions against strain-gauge measurements while analyzing soil parameter effects. Liu Chang [14] et al. extracted spatiotemporal bucket force distributions via DEM-MBD coupling.
DEM simulations demonstrate exceptional consistency with physical load measurements, validating model reliability while reducing experimental costs. Nevertheless, current research predominantly focuses on excavation resistance analysis, lacking systematic methodologies for: multi-condition load spectrum generation, critical service condition identification, and ultimate strength assessment.
This study bridges these gaps by establishing a kinematic-structural response framework to:
ⅰDevelop multi-scenario load modelingⅱPrecisely identify critical working conditionsⅲQuantify extreme load distributionsⅳPropose concurrent strength-stiffness optimization for structural enhancement.
Ⅱ. Kinematic analysis and dynamic modeling of excavation mechanism
A. Prototype development.
Traditional mechanical equipment has limited functionality, and narrow construction sites frequently cause multi-machine congestion that reduces efficiency. To address these issues, this paper designs a multifunctional small excavation-transportation machine and proposes an optimization method for extreme working conditions. This equipment (see Fig 1) can perform tasks including material shoveling, short-distance transportation, trench cleaning, and rescue operations, adapting to variable construction requirements. Its front excavation mechanism enables lateral operation through left and right slewing supports, while materials are transported by a rear scraper and conveyor belt system.

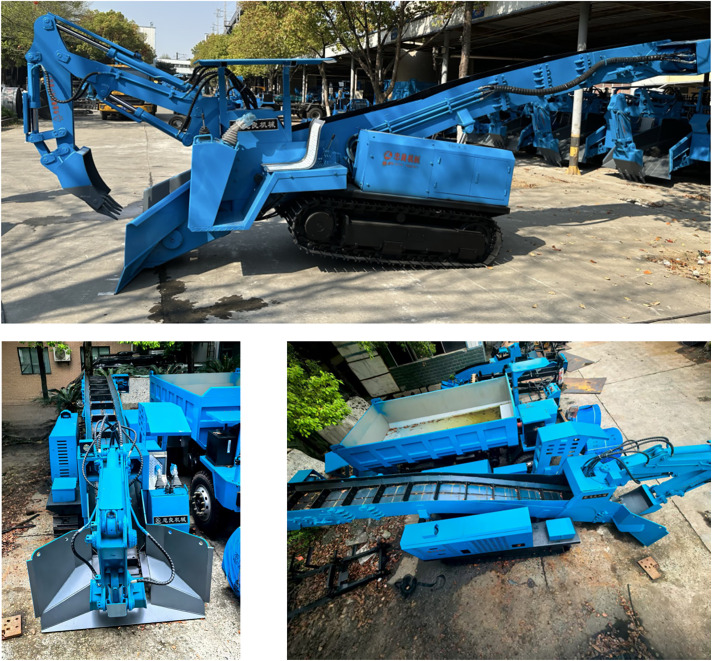

Structural assembly of the backhoe loader.(a) Side view. (b) Front view. (c) Top view.
B. Kinematic analysis of excavation mechanism.
The mechanical excavation mechanism comprises a boom, stick, and bucket, articulated to form a three-linkage mechanism operating exclusively in the vertical plane. The kinematic model is constructed using the D-H method, with D-H parameters defining coordinate systems and variables between linkages. Structural parameters (ai, αi, di) specify fixed inter-joint distances, while kinematic parameter θi describes joint motion states. With the boom rotation center at point O, linkage coordinate systems {O},{A},and {B} are established at articulation points O, A, and B respectively along the hinge axis. System {C} is defined at the bucket’s tail end C, as detailed in Fig 2.

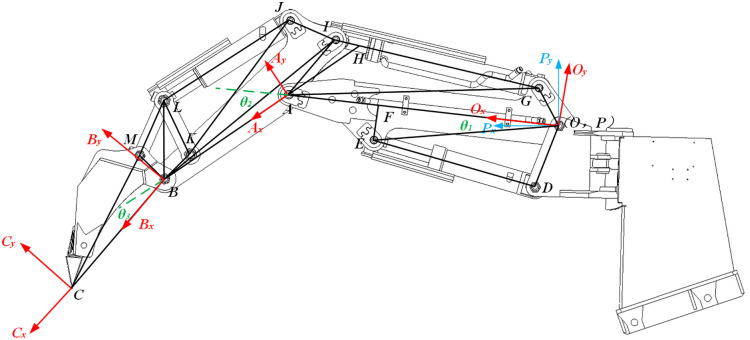

Linkage coordinates of backhoe loader.
The general transformation equation for the D-H coordinate linkage transformation matrix [15] is expressed as:
To construct the D-H homogeneous transformation matrix, the D-H parameters for each linkage must first be determined. The key parameters characterizing each linkage are the linkage length (aᵢ), defined as the distance along the common normal between adjacent joint axes, and the linkage twist (αᵢ), defined as the angle about the common normal between adjacent joint axes. The relative displacement between two adjacent linkages is defined by the linkage offset (dᵢ), the distance along the joint axis, and the joint angle (θᵢ), the angle about the joint axis. Analysis of these four parameters (aᵢ, αᵢ, dᵢ, θᵢ) allows the D-H parameter table to be established in Table 1, forming the foundation for constructing the kinematic model.
Table 1: D-H linkage parameter table.
Based on the established D-H parameter table, and considering that the pose variation of the backhoe loader is confined to the longitudinal plane, it follows that both αi-1 and di become zero. Accordingly, the D-H linkage matrix of the robotic arm can be simplified to obtain the following simplified expression:
Following the D-H method, the homogeneous transformation matrix from the base frame {P} to the bucket-end frame {C} is derived through the product of consecutive link transformation matrices:
By analyzing the operational posture of the cutting and backhoe loader, we calculate the hinge point coordinates and rotation angles θ₁, θ₂, θ₃. Combined with the linkage parameters, the absolute coordinates of all nodes on the robotic arm are then precisely determined.
C. Forward kinematics formulation.
The forward kinematics solution derives the pose parameters (position and orientation) from kinematic inputs, typically joint variables. For the backhoe loader this is achieved by establishing constraint equations governing the geometric relationships between adjacent links. Specifically, the stroke lengths of three hydraulic cylinders—corresponding to actuating links L₁,L₂,L₃—serve as inputs to solve the simultaneous equations for joint angles θ₁, θ₂, and θ₃.
ⅰ Forward kinematic computation for θ₁

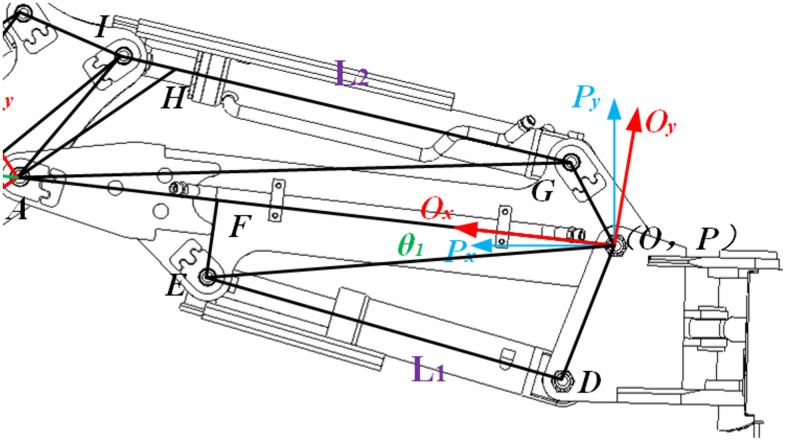

Fig 3 illustrates the hydraulic circuit of the boom cylinder system, where θ₁ denotes ∠FOPₓ. Within this circuit, OD, OE, OF, and EF represent fixed structural parameters, while DE corresponds to the hydraulic cylinder input variable L₁ (stroke length).
D-H linkage diagram of boom.
Applying the law of cosines to ∆DOE and ∆EOG yields, we derive:
This results in the fundamental relation:
ⅱ Forward kinematic computation for θ _ ** 2 ** _

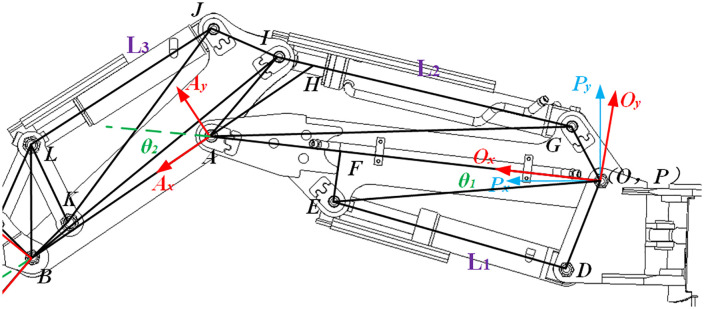

The bucket rod hydraulic cylinder circuit system is shown in Fig 4, and the required θ2 is ∠HAO. in the movable arm hydraulic circuit, OG, OA, AG, IA, IB, AB are known structural parameters, and IG is the hydraulic cylinder input L2.
Bucket arm D-H linkage diagram.
The collinearity of points H, A, and B implies that:
Therefore, applying the law of cosines to ∆BAI and ∆AGI yields, we derive:
Combining these governing relations yields and applying the law of cosines to ∆AOG, we derive:
ⅲ Forward kinematic computation for θ _ ** 3 ** _

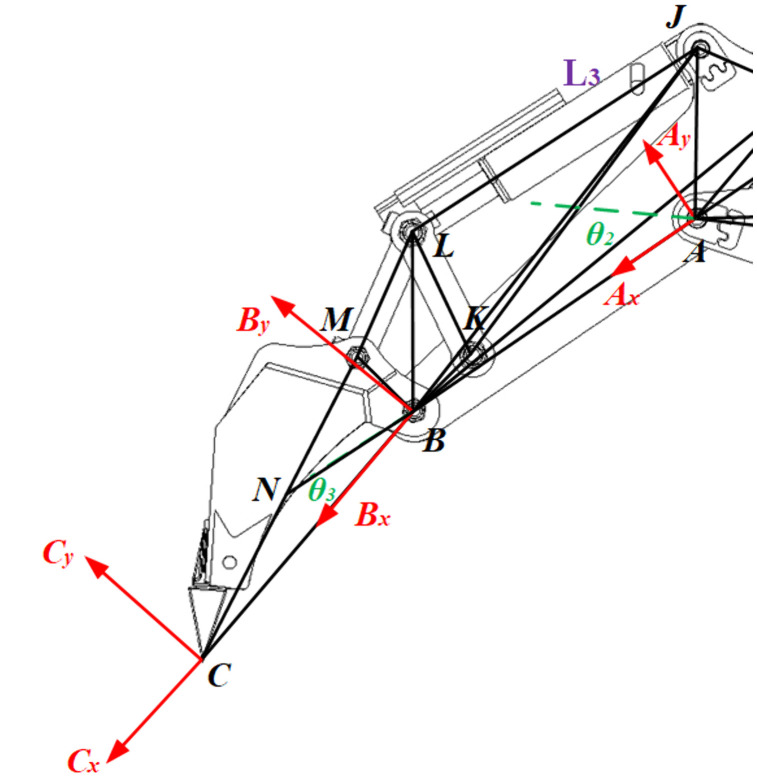

Fig 5 depicts the hydraulic circuit of the bucket cylinder system, where θ₂ is defined as ∠CBN. Within the bucket hydraulic circuit, JK, LK, JB, JA, BK, LM, BM, MC, and BC constitute fixed structural parameters, while LJ represents the hydraulic cylinder input variable L₃ (stroke length).
D-H linkage diagram of the bucket.
Applying the law of cosines to ∆LBJ yields:
Applying the law of cosines to ∆JBA yields:
Synthesizing the foregoing derivations, applying the law of cosines to ∆MBC, ∆LMB, ∆LJB yields, we conclude:
This study analyzes the kinematic relationships among joint variables, linkages, and hydraulic inputs within each circuit of the backhoe loader. By integrating structural parameters of the linkage mechanism with hydraulic inputs, the pose (position and orientation) of all nodal points within the maximum working range is determined. Based on the geometric specifications of the prototype design, the working stroke ranges for each hydraulic cylinder are specified in Table 2.
Table 2: Drive cylinder operating range.
The joint rotation angle must be calculated in conjunction with the fixed parameters of the links, these parameters are listed in Table 3.
Table 3: Fixed parameters for working device links.
During excavation and ripping operations of the backhoe loader, forward kinematics analysis with hydraulic stroke inputs yields the following joint angle ranges: θ₁: −13.02° to 37.13°; θ₂: 16.95° to 126.42°; θ₃: −34.14° to 55.45°.
D. Analytical determination of the workspace.
iMaximum digging depth
The maximum digging depth (D_max_) of the backhoe loader was computed via kinematic analysis subject to hydraulic system constraints. The configuration achieving D_max_ is shown in Fig 6.
Configuration at maximum digging depth.

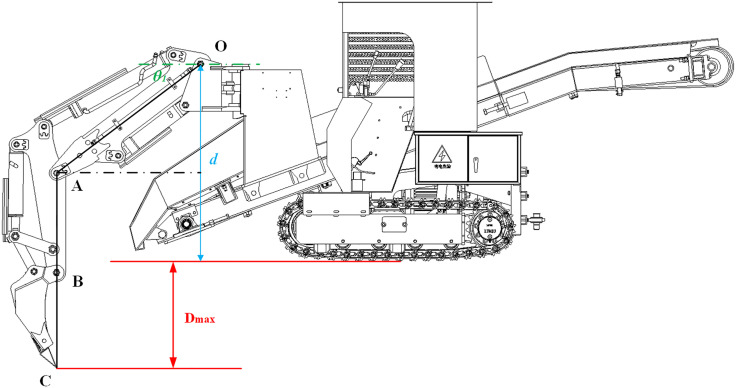

As shown in Fig 6, at the configuration corresponding to the maximum digging depth (Dmax), the working device is at its down-dig limit: the boom hydraulic cylinder is fully retracted and joint angle θ1 reaches its maximum value (counterclockwise positive). At this point, the stick cylinder aligns the stick parallel to the slewing-ring axis, and the bucket cylinder adjusts the tooth tip C to the position where points A, B, and C are collinear. This forms a geometric configuration where the stick-bucket assembly, pivoting at point C, remains parallel to the slewing ring axis.
Geometric considerations yield:
where h1 is the vertical distance from pivot O (at the boom–slewing ring connection) to the lower surface of the undercarriage crawler track.
Substituting the measured values h1 = 1224 mm and AC = 1296 mm, together with the known parameters OA = 1199.8 mm and θ1max = 37.13°, into Equation (17) yields Dmax = 796.23 mm.
ii Maximum digging height
The maximum digging height (Hmax) characterizes the highest position attainable by the excavation working device. The configuration achieving Hmax is shown in Fig 7.
Configuration at maximum digging height.

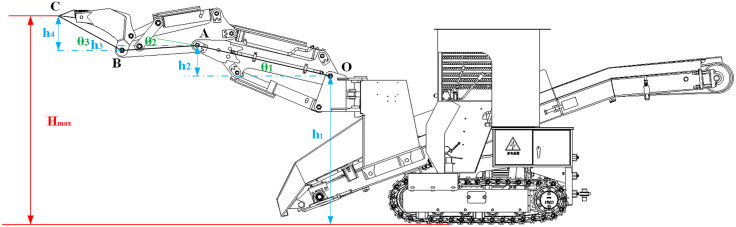

As shown in Fig 7, at the configuration corresponding to the maximum digging height (Hmax), the boom hydraulic cylinder is at full stroke and joint angle θ1 reaches its minimum value (counterclockwise positive). At the same time, the stick and bucket hydraulic cylinders are at their minimum strokes, with θ2 and θ3 simultaneously at their minimum values. From this pose, together with the geometric relations, we obtain:
Where h2 is the vertical (ground-normal) projection of the line segment connecting pivots O and A; h3 is the vertical (ground-normal) projection of the line segment connecting pivots A and B; and h4 is the vertical projection of the line segment connecting the stick–bucket pivot B and the bucket tooth tip C.
Based on kinematic analysis and structural parameters, substituting the known parameters h1 = 1224 mm, OA = 1199.8 mm, BA = 661.1 mm, CB = 634.9 mm, θ1min = −13.02°, θ2min = 16.95°, and θ3min = −34.14° into Equation (18) yields Hmax = 1805.31 mm.
iii Maximum digging radius
The maximum digging radius (Rmax) defines the excavator’s horizontal working envelope. The configuration achieving Rmax is shown in Fig 8.

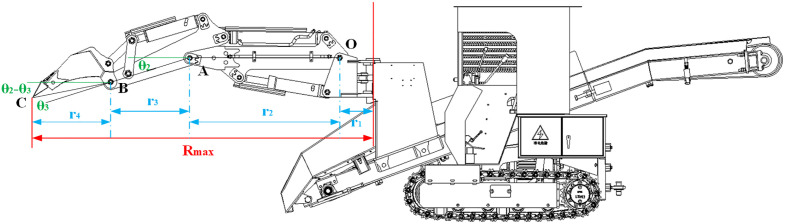

Configuration at maximum digging radius.
As shown in Fig 8, at the configuration corresponding to the maximum digging radius, the boom hydraulic cylinder orients the boom parallel to the slewing-ring base, while the stick and bucket hydraulic cylinders remain at their minimum strokes. In this configuration, θ2 reaches its minimum value and the bucket tooth tip is coincident with the slewing-ring base, yielding the maximum horizontal extension of the working device. From this pose and the geometric relations, we obtain:
where r1 is the perpendicular distance from pivot O to the slewing-ring rotation axis; r2 is the horizontal (plan-view) projection of OA (since the boom is parallel to the slewing-ring base, r2 = OA); r3 is the horizontal projection of AB; and r4 is the horizontal projection of BC.
Based on the preceding kinematic analysis and the working device’s geometric and structural parameters, the maximum digging radius (Rmax) was obtained. The key parameters are r1 = 265 mm, OA = 1199.8 mm, BA = 661.1 mm, CB = 634.9 mm, and θ2min = 16.95°. At this configuration, θ3 was measured as 6.02°. Substituting these values into Equation (18) yields Rmax = 2720.56 mm.
E. Multibody dynamics modeling in ADAMS.
During field operations, the working cycle comprises four phases: penetration, excavation, ripping, and conveying. This study focuses on the backhoe loader’s performance during the first three phases. Given the wide variability in material properties and associated force dynamics, traditional physical load testing proves time-intensive and costly. Virtual prototyping enables rapid acquisition of hinge joint load data, significantly enhancing efficiency while reducing experimental resource expenditure.
The geometric model was imported into ADAMS for multibody dynamics simulation, the prototype mechanism is driven by prescribed kinematic joints. During simulation, ADAMS evaluates the system’s degrees of freedom; redundant degrees of freedom or overconstraints degrade the accuracy of the dynamic solution. Therefore, such redundancies should be removed before conducting dynamic analyses.
To mitigate motion interference during initial assembly, joints with higher mobility (higher DOF) but equivalent functionality are assigned according to the kinematic relationships among the links. Redundant degrees of freedom and overconstraints are then identified using the ADAMS Model Check. Guided by the diagnostics, the flagged connections are replaced with lower-mobility joints to remove redundancies, and the procedure is iterated until the model passes validation. Essential kinematic joints were applied at critical hinge locations (Fig 9). The constraint topology is defined in Table 4.
Table 4: Reaming point movement constraint attribute of backhoe loader.

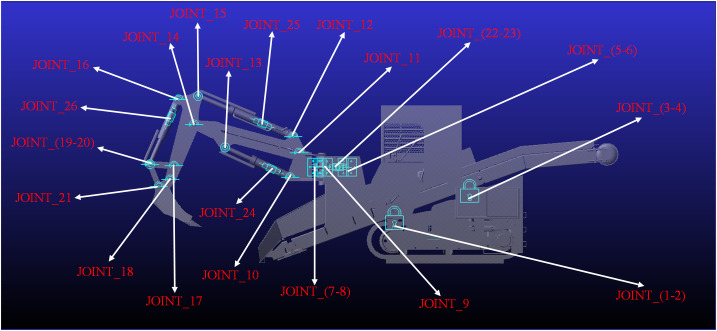

Constraint diagram of hinge point movement of backhoe loader.
The backhoe loader performs material excavation via three sets of hydraulic cylinders actuating the boom, dipper arm, and bucket, while the slewing support’s bilateral hydraulic systems enable steering operations. Based on the operating parameters of each cylinder listed in Table 2 and the planar working condition considered in this study, step drive functions are designed for the hydraulic cylinders. A rigid-body dynamics model is then constructed and validated, from which the no-load planar working range diagram was obtained (see Fig 10).

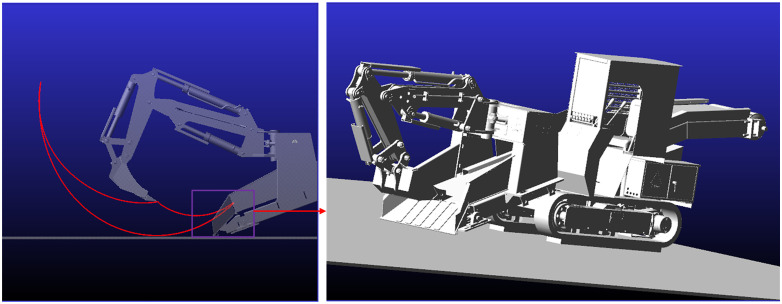

Working range diagram.The planar (X–Y) trajectory obtained from the bucket tooth-tip marker captures the time-varying motion characteristics of the tooth tip, as shown in Fig 11. (a) X-direction displacement of the bucket tooth tip. (b) Y-direction displacement of the bucket tooth tip.
In the global coordinate system, negative X-direction displacement of the bucket tooth tip denotes extension (Fig. 11(a)). The bucket reaches the maximum digging radius when the tooth-tip X displacement attains its minimum. In the simulation, the tooth-tip X displacement at t = 5.925s is 9507.9 mm, which corresponds to the configuration at the maximum digging radius.

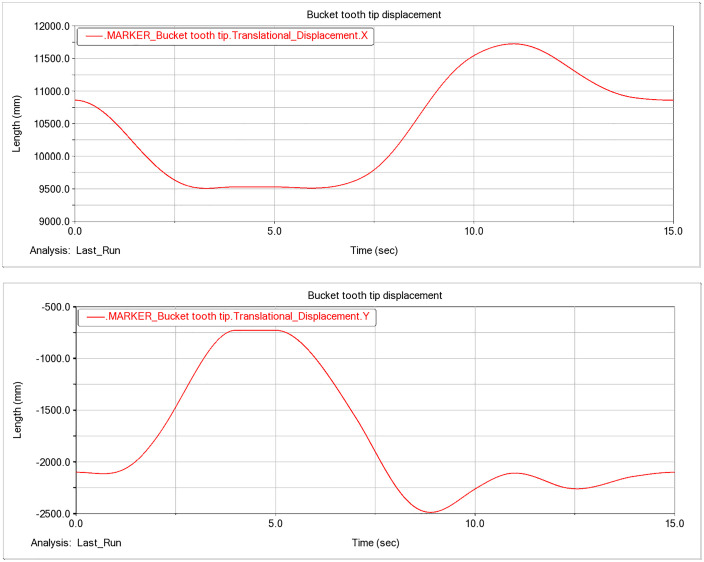

Displacement variation of the bucket tooth tip.
At JOINT_9 (the pivot between the slewing base and the gantry frame), a marker was placed to track displacement along the X axis, and the results are presented in Fig 12.

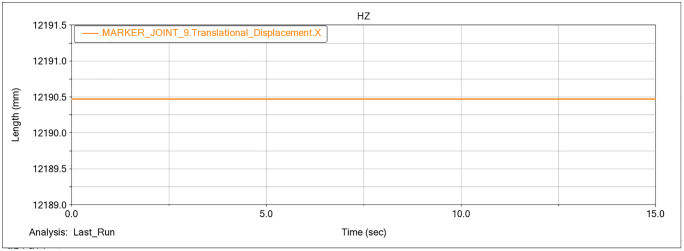

X.direction displacement time history of the marker at JOINT_9.
During operation, the marker at JOINT_9 remained stationary, so its X position was fixed at 12,190 mm. Using the previously defined criterion for the maximum digging radius, the X-axis separation between JOINT_9 and the bucket tooth tip was computed, yielding Rmax = 2682.1 mm under the forward digging condition.
As shown in Fig. 11(b), the bucket tooth-tip displacement along the Y axis is reported in the global frame, with extension defined as the + Y direction. The configuration of maximum digging height is attained when the tooth-tip displacement y(t) reaches its maximum. In the present simulation, at t = 3.99 s the tooth-tip Y displacement reaches an extremum of ymax = −728.1 mm.

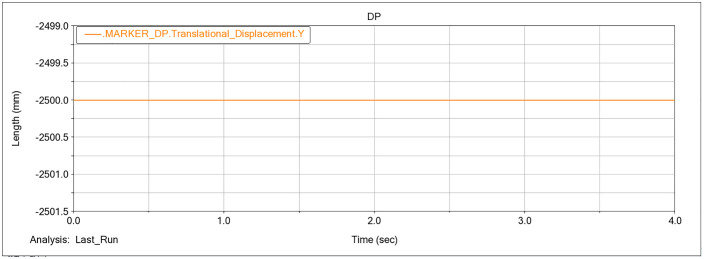

At the bottom of the undercarriage, a marker was placed to track Y-direction displacement, and the resulting time history is presented in Fig 13.
Y-direction displacement time history of the marker at the undercarriage bottom.
During operation, the reference marker at the undercarriage bottom remains stationary at y = −2500 mm in the global frame. According to the previously defined criterion for the maximum digging height, the Y-direction difference between the bucket tooth-tip position and this reference (Hmax = ymarker – ytooth) yields Hmax = 1771.9 mm under the forward-digging condition.
According to the ADAMS simulation results, under the forward-digging configuration on level ground (without reaching the maximum digging-depth posture), the obtained maximum digging height and maximum digging radius were compared with the operating parameters from the previous forward-kinematics analysis. The comparison results are shown in Table 5.
Table 5: Comparison of operating parameters.
Comparison between the kinematic analysis and ADAMS simulations yields relative errors of 1.41% for the maximum digging radius and 1.85% for the maximum digging height, confirming the accuracy of the prototype model and the reliability of the kinematic analysis.
F. Pose analysis based on hydraulic-cylinder parameters
Based on the dynamic analysis of the excavation condition in this study, the displacement and velocity time histories for the three hydraulic cylinders of the prototype are shown in Figs 14-16.

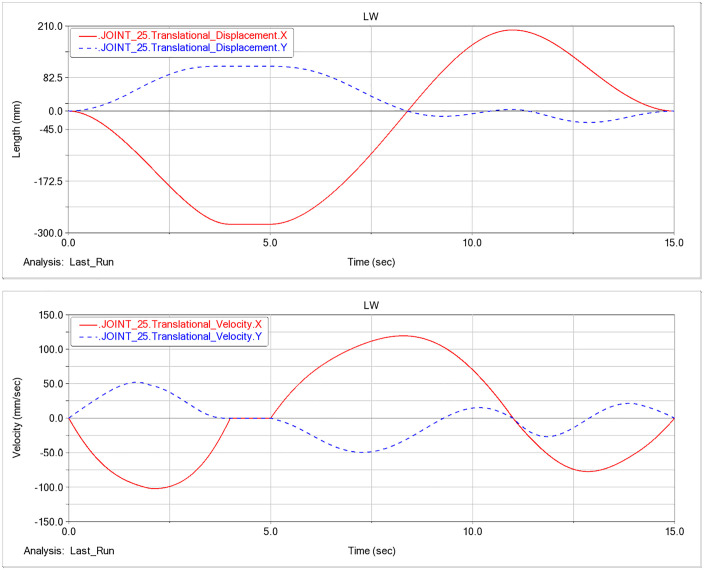

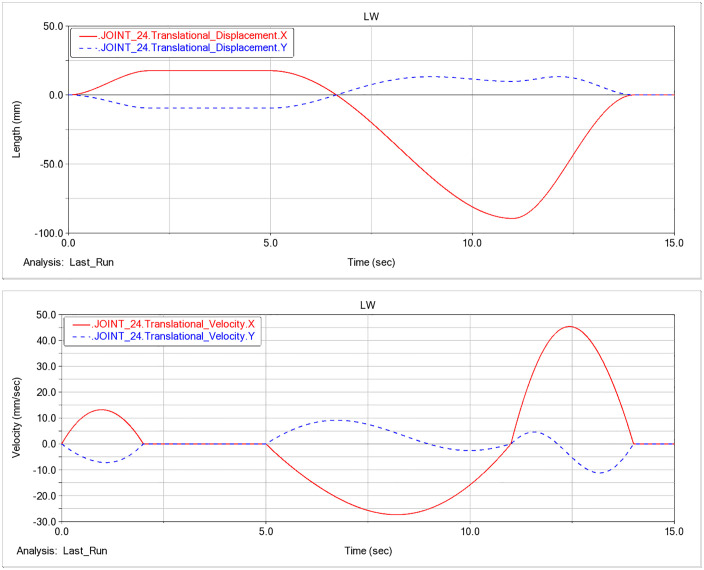

Displacement and velocity time histories of the boom hydraulic cylinder.(a) Displacement time history of the boom hydraulic cylinder. (b) Velocity time history of the boom hydraulic cylinder.
Analysis of the displacement and velocity time histories of hydraulic cylinder indicates that the boom hydraulic cylinder reaches full stroke and remains stationary (zero extension/retraction velocity) during 2–5 s, whereas the stick and bucket cylinders reach full stroke and stabilize during 4–5 s. Accordingly, 0–4 s corresponds to the working device lifting phase, and at t = 4 s the working device attains its maximum digging height; the corresponding configuration is shown in Fig. 17.
After t = 5 s, the working device enters the lowering phase. As shown in Fig 16(b), the bucket-cylinder velocity in the Y direction attains an extremum at t = 8.95 s, indicating completion of the lowering motion and transition to the configuration of maximum digging depth (Fig. 18). At this point, the operating mode shifts from digging to back-dragging and conveying, corroborating the depth limit and the associated change in the operating envelope.
Displacement and velocity time histories of the stick hydraulic cylinder. (a) Displacement time history of the stick hydraulic cylinder. (b) Velocity time history of the stick hydraulic cylinder.
As a joint examination of the velocity time histories for the boom, stick, and bucket cylinders (Fig. 14(b), Fig. 15(b), Fig. 16(b)) shows, at t = 10.975 s the three profiles intersect with a concurrent sign reversal, marking the transition from the back-dragging and conveying mode to the dumping/reset phase (Fig. 19).
Ⅲ. Development and operating condition analysis of an EDEM-coupled model
A. Model development in EDEM.
Validation against experimental data reported in the literature [16–17] showed small discrepancies between load spectra from discrete element method–multibody dynamics (DEM–MBD) simulations and measurements, and the simulated motion tracked the observed kinematics. The Enhanced Discrete Element Method (EDEM) was coupled with the multi-body dynamics simulation software ADAMS to effectively analyze the digging operation of the backhoe loader and to monitor in real time the contact forces between the bucket and the material, as well as the load variations at the hinge joints of the connecting rods. During the construction of the EDEM model, fundamental parameters for both the bulk particles and structural components—such as density, Poisson’s ratio, shear modulus, and Young’s modulus—must be defined. In this study, ore particles and Q235 structural steel, commonly used in engineering applications, were selected as representative materials in Table 6.
Table 6: Material intrinsic attribute parameters.
The contact parameters between materials—such as the static friction coefficient, rolling friction coefficient, and coefficient of restitution—must be determined, typically through physical or virtual experiments. According to Reference [18], the contact parameters between the backhoe loader and ore particles in the EDEM model are listed in Table 7.
Table 7: EDEM model contact parameters.
Simulating ore materials using a single particle type may result in significant deviations from real-world behavior. To enhance the accuracy of the material excavation simulation, a set of spherical particles with varying diameters was employed to generate a more diverse particle assembly. Based on the simplification of five representative material shapes, Reference [19] proposed five particle models—ellipsoidal, triangular pyramidal, cylindrical, cubic, and prismatic (see Fig 20)—which were used to complete the excavation simulation (see Fig 21). Given the diversity of particle morphologies in real operating conditions, cylindrical and ellipsoidal particles each constitute a relatively small fraction. Prior studies [20] report that the mass ratio of cylindrical particles to all other shapes is approximately 0.7:1, and the ratio of ellipsoidal particles to all other shapes is likewise approximately 0.7:1. In line with engineering practice that further down-weights slender morphologies, we therefore set each of these ratios to 0.65:1 in this study [21]. These five particle shapes were employed to construct the stockpile distribution model. Detailed information on the quantity and proportion of each particle type is provided in Table 8.
Table 8: The composition proportion of five types of particles.
B. Loading condition analysis for the backhoe loader.
A coupled EDEM–ADAMS simulation was conducted to evaluate two typical operating conditions: front digging and side digging. The corresponding digging resistance curves of the bucket under both scenarios are presented in Fig 22.

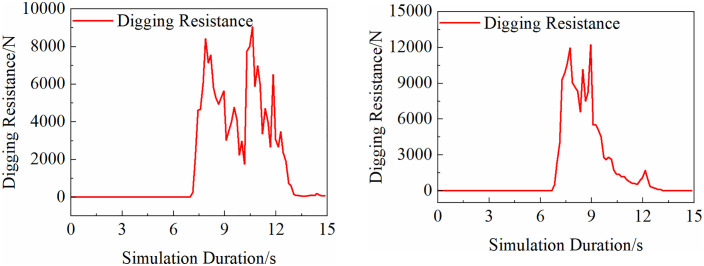

As shown in Fig 23, the peak digging resistance for both operation modes is concentrated during the excavation phase, accompanied by sudden fluctuations. These abrupt load changes subject the structural members of the backhoe loader to extreme working conditions, highlighting the need for structural optimization to ensure stable excavation performance.
To identify the critical working conditions and corresponding load information, the hinge point loads listed in Table 4 were extracted using the Adams post-processing module. In this study, the boom of the backhoe loader was selected as the analysis target, and the hinge load data under both operational scenarios are presented.
The simulation results indicate that, during the 15-second operation cycle, the hinge point loads under forward excavation exhibit two distinct peaks: one at 7.65 s (onset of digging) and another at 8.9 s (onset of material delivery), which correspond to the peak moments of the digging resistance observed in Fig 23(a).
In contrast, the hinge load distribution under lateral excavation is more dispersed. A comprehensive analysis in conjunction with the excavation resistance curve shown in Fig 23(b) reveals a localized peak at 7.96 s, occurring in the initial stage of excavation.

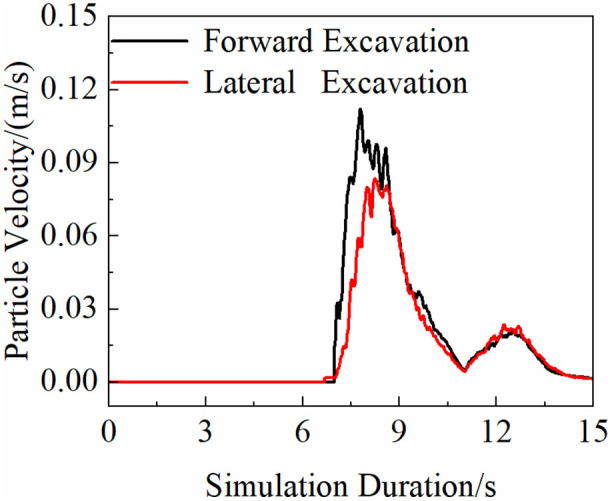

Fig 24 shows that the peak average velocity of material movement under forward excavation occurs at 7.7 s, covering both peak load phases at 7.65 s and 8.9 s. In contrast, the peak velocity under lateral excavation appears at 9 s, which aligns with its corresponding peak load phase.
Based on a comprehensive analysis of excavation resistance, hinge point loads, and material movement velocity, the critical working moments for forward excavation are identified as the initial excavation stage (7.65 s) and the onset of material delivery (8.9 s). For lateral excavation, the critical moment is determined to be the initial excavation stage (7.96 s). The corresponding system postures at these moments are illustrated in Fig 25.
C. Static analysis and identification of extreme working conditions for the boom.
Based on the EDEM–ADAMS co-simulation results, the force data for each hinge point of the boom under both operating modes were obtained, as summarized in Table 9.
Table 9: Force parameters of each hinge point in each working condition of boom.
Based on the stress data at the hinge points provided in the table, the model was imported into ANSYS for the following preprocessing and setup steps:
ⅰMaterial Property Definition.
Considering that the bucket is in direct contact with the ground and hard materials during operation and is subjected to high contact loads, Q235 structural steel was selected as the material. Its key mechanical properties are listed in Table 10.
Table 10: Q235 Material properties.
ⅱMeshing.
Regular tetrahedral elements were generated using ANSYS’s free meshing algorithm. To enhance simulation accuracy, a local mesh refinement was applied at the hinge regions with a cell size of 5 mm, while a 10 mm mesh size was used for the rest of the model.
ⅲLoad Setup.
Combining the operating postures at each time step in the EDEM-ADAMS coupled simulation with the hydraulic cylinder’s working range as shown in Table 1, the working posture of each linkage under the extreme loading condition was determined. Corresponding force parameters from Table 8 were applied to the model. Fixed constraints were also introduced, as illustrated in Fig 26.
After completing the above simulation setup, the equivalent stress contours and total deformation distributions of the boom under each working condition were obtained, as shown in Fig 27.
The results of the finite element analysis (FEA) reveal significant differences in the mechanical response of the boom under three sets of extreme loading conditions.
Notably, the forward excavation condition at t = 8.9 s represents the most critical scenario, exhibiting a peak equivalent stress of 131.42 MPa and a maximum deformation of 0.10777 mm. In contrast, the lateral excavation condition at t = 7.96 s yields the lowest mechanical response, with a peak equivalent stress of 104.13 MPa and a deformation of 0.072722 mm.

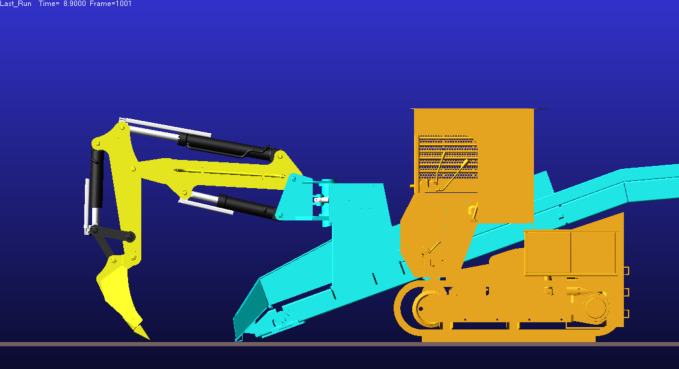

As shown in Fig 28, when the boom–gantry system is in the horizontal position, the boom cylinder and dipper (bucket rod) cylinder form a parallel kinematic pair, while the bucket cylinder maintains a vertical orientation. This kinematic configuration corresponds spatially to the maximum digging depth condition illustrated in Fig 18.
Based on this correspondence, it can be concluded that the initial stage of material delivery—corresponding to the maximum working depth posture—constitutes the most critical structural condition. At this moment, the bucket volumetric efficiency reaches its peak, and the corresponding velocity field distribution of material flow is shown in Fig 29.
Finite element analysis of the boom across three ultimate-load cases showed that, under the forward-excavation condition, both the equivalent stress and the total deformation peaked at 8.9 s.
Therefore, 8.9 s under forward excavation is identified as the critical working condition for the backhoe loader, and subsequent optimization of the boom design will focus on this time point.
Ⅳ. Design optimization of the boom and comparative validation
A. Design optimization of the boom.
To address the structural optimization requirements of the boom and bucket rod, this study employs topology optimization to achieve improved performance and lightweight design. Topology optimization reformulates the structural design task as a material distribution problem, and its mathematical formulation is as follows:
Where x is the design variable, f(x) is the objective function, and gᵢ*(x)* and hⱼ*(x)* are the constraint functions. Based on the improved SIMP (solid isotropic material with penalization) method [22], the objective function is formulated as:
Where xe is the density assigned to element e, and Ee is the Young’s modulus determined by xe, E0 is the stiffness of the solid materia, Emin is a very small stiffness assigned to void regions in order to prevent the stiffness matrix from becoming singular, and p is the penalization exponent (typically p = 3), U and F are the global displacement and force vectors, respectively, K is the global stiffness matrix, ue is the displacement vector of element e, k0 is the element stiffness matrix evaluated for unit Young’s modulus.
Based on the load conditions derived from static stress analysis, and under the premise of maintaining the integrity of key functional regions, the design objective for the excavation mechanism is to maximize stiffness and minimize deformation. The excavator working device is subjected to extreme, highly time-varying loads. To maintain a high safety factor in complex operating conditions, a conservative mechanism design was adopted on the basis of prior studies [23]. The boundary condition is defined as a mass retention ratio of 70%, and the connection hinge regions are designated as exclusion zones in the optimization.
Material is removed from non-load-bearing regions, and the final topology-optimized structure is obtained through the optimization algorithm, as shown in Fig 30.
Based on the topology optimization results and the equivalent stress distribution of the boom, the structure in the stress concentration regions was reinforced, while the redundant regions were redesigned for weight reduction. The optimized and reconstructed model is shown in Fig 31.

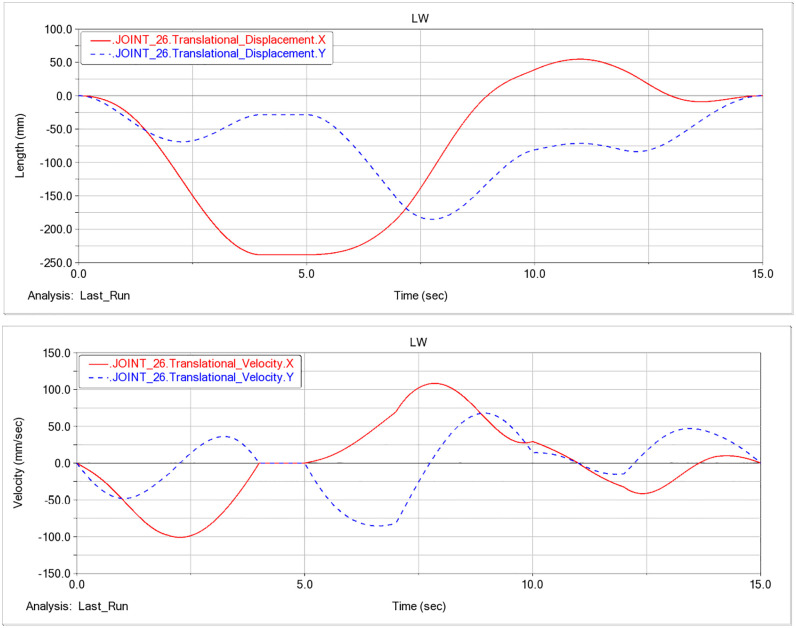

Displacement and velocity time histories of the bucket hydraulic cylinder.(a) Displacement time history of the bucket hydraulic cylinder. (b) Velocity time history of the bucket hydraulic cylinder.

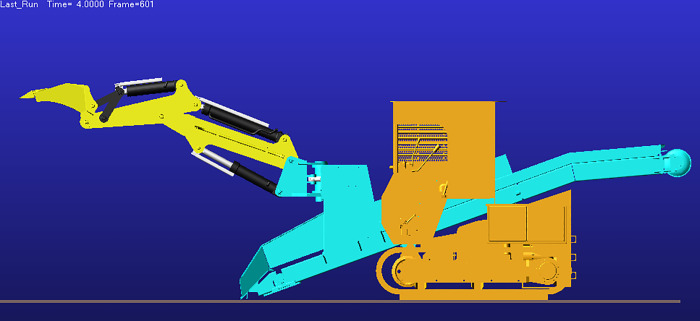

Configuration at maximum digging height.

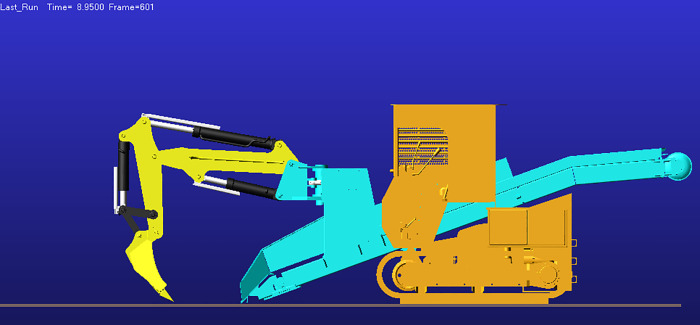

Configuration at maximum digging depth.

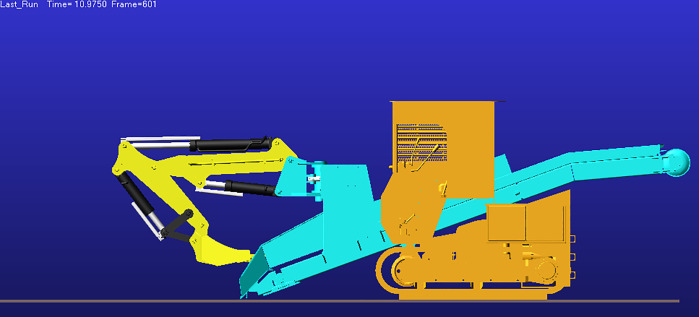

Configuration at the dumping/reset phase.

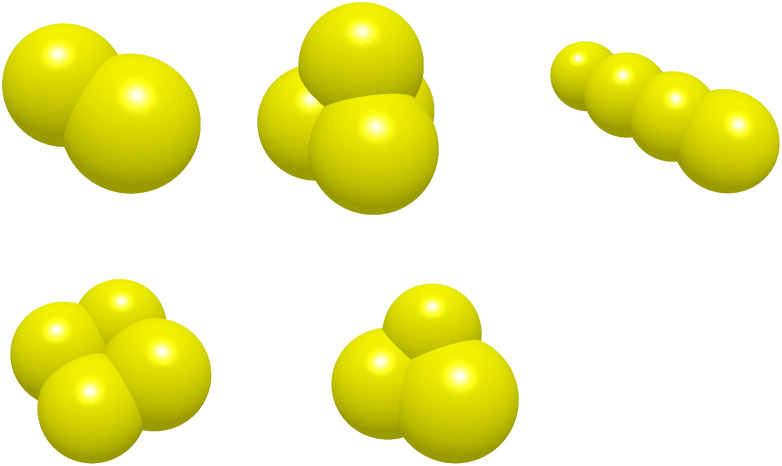

Modeling of particle unit.(a) Ellipsoidal (b) Triangular pyramid (c) Cylindrical(d) Cubic (e) Triangular prism.

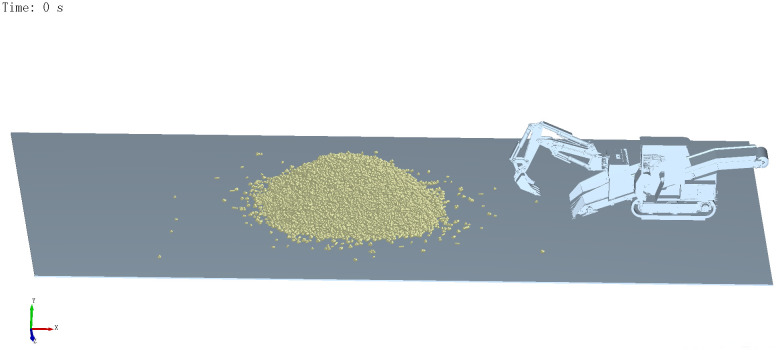

EDEM-ADAMS coupled modeling.
Excavation resistance diagram.(a) Digging resistance under forward excavation conditions. (b) Digging resistance under lateral excavation.

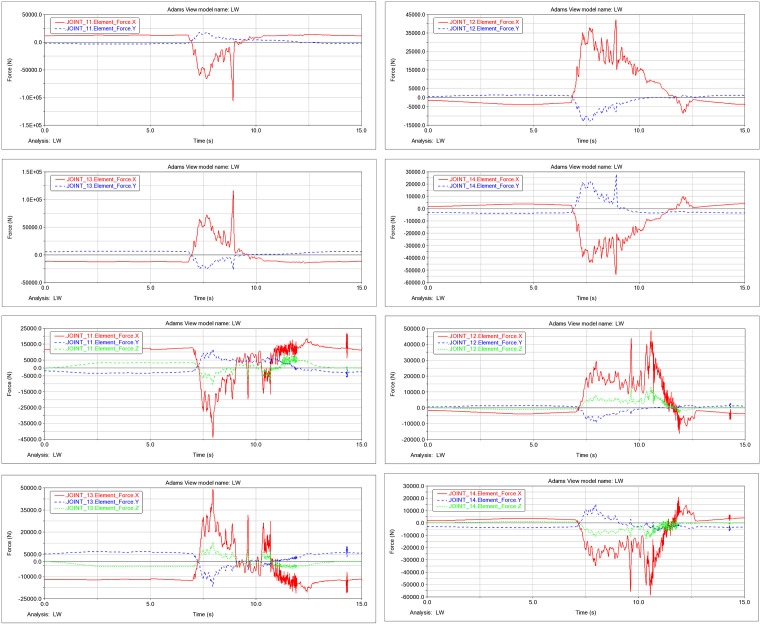

Stress curve of hinge point of boom under two working conditions.(a) Force Curve of JOINT_11 under Forward Excavation Conditions. (b) Force Curve of JOINT_12 under Forward Excavation Conditions. (c) Force Curve of JOINT_13 under Forward Excavation Conditions. (d) Force Curve of JOINT_14 under Forward Excavation Conditions. (e) Force Curve of JOINT_11 under Lateral Excavation Conditions. (f) Force Curve of JOINT_12 under Lateral Excavation Conditions. (g) Force Curve of JOINT_13 under Lateral Excavation Conditions. (h) Force Curve of JOINT_14 under Lateral Excavation Conditions.
Material movement speed.

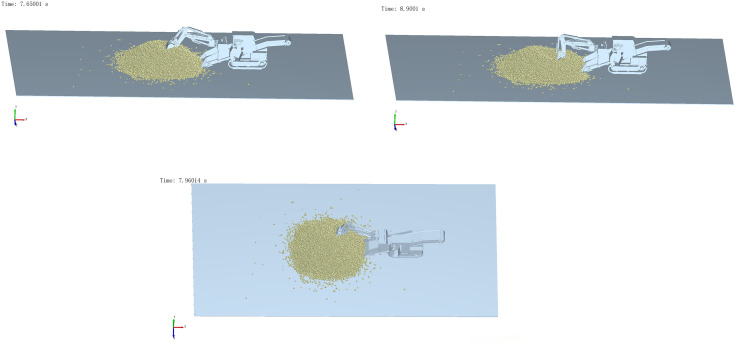

Peak working state of side excavation.(a) Working Posture of the Forward Excavation Mechanism at 7.65 s. (b) Working Posture of the Forward Excavation Mechanism at 8.9 s. (c) Working Posture of the Lateral Excavation Mechanism at 7.96 s.

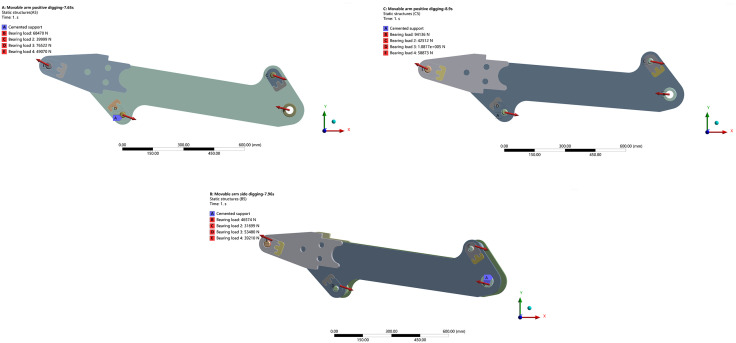

Boom load setting.(a) Load Application for Boom at 7.65 s under Forward Excavation. (b) Load Application for Boom at 8.9 s under Forward Excavation. (c) Load Application for the Boom at 7.96 s under Lateral Excavation.

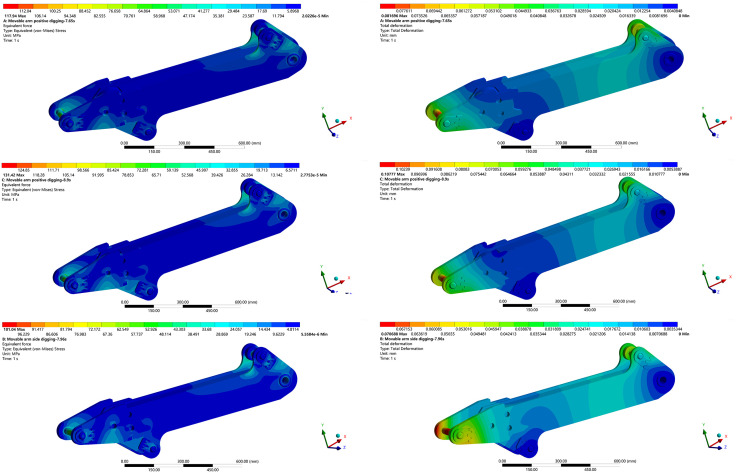

Finite element analysis cloud picture of each limit working condition of boom.(a) Equivalent Stress Contour of the Boom at 7.65 s under Forward Excavation. (b) Total Deformation Contour of the Boom at 7.65 s under Forward Excavation. (c) Equivalent Stress Contour of the Boom at 8.9 s under Forward Excavation. (d) Total Deformation Contour of the Boom at 8.9 s under Forward Excavation. (e) Equivalent Stress Contour of the Boom at 7.96 s under Lateral Excavation. (f) Total Deformation Contour of the Boom at 7.96 s under Lateral Excavation.
Attitude of boom in extreme working condition.

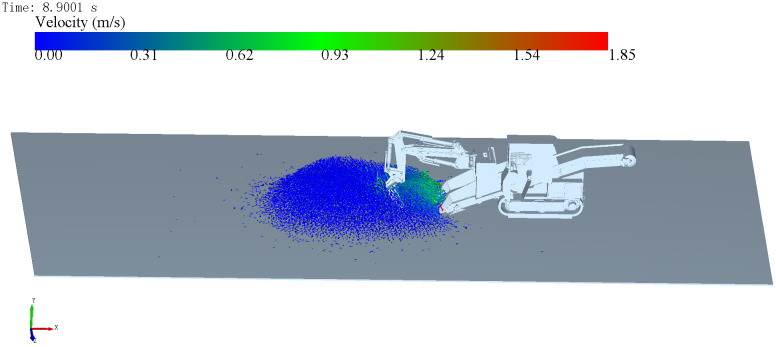

Direction and speed of material movement under extreme condition of boom.
Load image of boom topology optimization under extreme working conditions.
Topology optimization after the boom model diagram.
To verify the reliability of the optimized model, a static simulation analysis was conducted on the boom under the same excavation conditions, applying identical loading and boundary conditions. The analysis results are shown in Fig 32.
Optimization model static structure analysis diagram under extreme conditions.(a) Equivalent Stress Contour of the Optimized Boom. (b) Total Deformation Contour of the Optimized Boom.
Based on the topology optimization, the weight of the boom was reduced by 13.80%, and both the equivalent stress and total deformation decreased significantly. These improvements enhance the structural strength and stability, while achieving effective weight reduction. The comparative results before and after optimization are summarized in Table 11.
Table 11: Comparison of optimization results.
B. Comparative validation of optimization under different load spectra.
Different load-spectrum datasets affect the optimization results. In existing load-spectrum acquisition methods, mechanical analysis based on the thrust and torque equilibrium of the hydraulic cylinders is performed to obtain the bucket-tip force, which is then applied to an ADAMS multibody prototype model to derive load-spectrum data at critical hinge points for shape optimization.
In this study, an EDEM–ADAMS simulation is used to reproduce the actual material excavation process, obtain hinge-point load spectra under the most critical operating conditions, and perform optimization analysis of the boom. The results are compared with the structural optimization outcomes obtained using the existing load-spectrum acquisition method [24].
Finite-element analysis results for the boom under the most critical operating condition for the design optimized using the existing load-spectrum acquisition method, are shown in Fig 33.
Static structure analysis diagram of the existing method boom optimization model under extreme conditions.(a) Equivalent Stress Contour of the Boom Optimized by the Conventional Method. (b) Total Deformation Contour of the Boom Optimized by the Conventional Method.
As shown in Fig 33, under the shape optimization with existing load spectrum acquisition method, the boom exhibits an equivalent stress of 119.52 MPa and a total deformation of 0.098287 mm under the extreme working condition.
In contrast, the optimized model obtained using the proposed method achieves an equivalent stress of 97.10 MPa and a total deformation of 0.076402 mm, representing reductions of 18.76% and 22.27%, respectively.
These results demonstrate a significant improvement in the structural strength and safety of the boom under hazardous loading conditions.
Ⅴ. Conclusions.
In this study, a kinematic and structural optimization analysis was performed on a small-scale digging transportation device, with a focus on improving the boom’s performance under the most critical working condition.
ⅰConstruction of the Kinematic Model: The kinematic model of the backhoe excavator arm is simplified and established using the Denavit–Hartenberg (D-H) method. Forward kinematic analysis is conducted based on the D-H coordinate system and mechanical parameters, providing a foundation for subsequent dynamic analysis and evaluation of excavation working conditions.ⅱDynamic simulation and working condition identification: The ADAMS software was used to simulate the system dynamics and to validate the kinematic model through the resulting bucket workspace. Excavation resistance and hinge-point loads were obtained via EDEM-based excavation simulation, allowing identification of the most critical working condition. Static analysis indicated that the most dangerous condition occurs at 8.9 s during forward digging, corresponding to the deepest excavation phase and serving as the basis for structural optimization.ⅲStructural optimization: Through static analysis and topology optimization, the boom’s weight was reduced by 14.32 kg (13.80%), the maximum equivalent stress decreased by 26.12%, and the total deformation decreased by 29.11%. Compared with the model optimized by conventional methods, the proposed approach further reduced equivalent stress and deformation by 18.76% and 22.27%, respectively. These improvements not only achieved structural lightweighting but also significantly enhanced operational safety, providing a valuable reference for the design and optimization of future backhoe loader.
VI. Prospects
This study systematically analyzed the kinematic and dynamic characteristics of the backhoe loader’s working device and completed the identification of extreme operating conditions and the structural optimization design. Building on the present results, future work may proceed along the following directions:
ⅰMulti-field coupled simulation under complex conditions: Extend the scope to diverse geological conditions and operating environments. Employ refined coupled-simulation techniques to comprehensively evaluate the dynamic response of the working device under variable conditions.ⅱIntelligent real-time control: Integrate kinematics, dynamics, and real-time feedback to construct an intelligent operation model, enabling dynamic adjustment to operating conditions and path optimization to improve operational efficiency and environmental adaptability.
This research provides theoretical support for backhoe loader design optimization. Subsequent studies will deepen the current findings, drive technological innovation, and advance the intelligent and efficient development of construction machinery.
Supporting information
S1 FileMechanical data and finite element analysis (FEA) results under the conventional load-spectrum acquisition method.(ZIP)
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Xu GY, Guo EK, Feng ZM. Constrained multi-objective optimization design of powerful triangular hydraulic excavator. Journal of Central South University (Natural Science Edition). 2022;53(07):2519–32. doi: 10.11817/j.issn.1672-7207.2022.07.012 · doi ↗
- 2Wang BH, Xiang QY, Chen YX. Current status and prospects of fatigue reliability research on excavator structures. Journal of Chang’an University (Natural Science Edition). 2022;42(01):115–26. doi: 10.19721/j.cnki.1671-8879.2022.01.007 · doi ↗
- 3Cao LL, Wang LT, Wang Y. Fatigue life assessment of excavator working equipment based on equivalent structural stress method. Journal of South China University of Technology (Natural Science Edition). 2022;50(08):62–70. doi: 10.12141/j.issn.1000-565X.210689 · doi ↗
- 4Feng H, Du QG, Yu SD. Research on Dynamic Modeling of Hydraulic Excavator Excavation[J]. Vibration and Shock. 2019;38(13):242–8. doi: 10.13465/j.cnki.jvs.2019.13.034 · doi ↗
- 5Yu C, Bao Y, Li Q. Finite element analysis of excavator mechanical behavior and boom structure optimization. Measurement. 2021;173:108637. doi: 10.1016/j.measurement.2020.108637 · doi ↗
- 6Cao YW, Gan JS, Zeng B. Design and simulation analysis of multifunctional bucket structure for hydraulic excavator. Journal of Chongqing Jiaotong University (Natural Science Edition). 2021;40(08):159–64. doi: 10.3969-j.issn.1674-0696.2021.08.21
- 7Sun HR, Ren ZG, Liu JR. Lightweight design of excavator bucket under extreme excavation load. Machine Tool and Hydraulic. 2022;50(12):64–9. doi: 10.3969/j.issn.1001-3881.2022.12.013 · doi ↗
- 8Suryo SH, Harto H, Yunianto B. Optimization of Cat 374d L arm excavator structure topology design using finite element methods. Rot. 2020;22(2):79–86. doi: 10.14710/rotasi.22.2.79-86 · doi ↗
