Immunologic effects of locoregional therapies for unresectable hepatocellular carcinoma

TL;DR

This study explores how locoregional therapies affect the immune system in patients with unresectable liver cancer, finding early immune changes that may help guide future treatment combinations.

Contribution

The study provides new insights into the immune response dynamics following locoregional therapies, particularly highlighting differences between treatment types and their impact on immune cell profiles.

Findings

Most immune cell changes peaked one day after therapy and returned to baseline by two months.

cTACE induced a stronger inflammatory immune response compared to interstitial brachytherapy.

CD8+ T cells and CTLA-4 expression were notably upregulated after therapy, and immune profiling could distinguish responders from non-responders.

Abstract

The combination of locoregional therapies (LRT) with immune checkpoint inhibitors (ICIs) in unresectable hepatocellular carcinoma (HCC) is expected to enhance immune-mediated anti-tumor effects. Although clinical trials are underway, an unmet need exists to understand the immunological effects of LRT and how they evolve. This study aimed to longitudinally assess immune cell subpopulations and checkpoint expression after LRT.

This prospective, single-center study (DRKS00026994) enrolled 128 consecutive patients with unresectable HCC, who underwent conventional transarterial chemoembolization (cTACE), interstitial high-dose-rate brachytherapy (iBT), or a combination of cTACE and iBT (from July 2020 to September 2021). Peripheral blood samples were collected at baseline, 1 day after LRT, and 2 months after LRT. Immune cells were quantified using spectral flow cytometry. Immune cell subpopulations and checkpoint molecule expression were compared longitudinally and among treatment groups. Cluster analyses were used to explore immune profiles and their relationship with treatment response.

Changes in absolute immune cell counts were detected 1 day after LRT, which largely diminished by 2 months. Myeloid populations increased significantly, whereas most lymphoid cells decreased after LRT. However, relative proportions of anti-tumoral CD56diminished NK cells (Cohen’s D = 0.40, 95% CI 0.19–0.61, p <0.01), CD8+ T cells (Cohen’s D = 0.15, 95% CI -0.06 to 0.35, p = 0.01), and CTLA-4 expression on T cells (CD4+: Cohen’s D = 0.54, 95% CI 0.33–0.75, p <0.01; CD8+: Cohen’s D = 0.15, 95% CI 0.36–0.78, p <0.01) were upregulated at 1 day, particularly after cTACE. Cluster analysis distinguished responders from non-responders based on distinct immune profiles.

LRT induce an early pro-inflammatory immune response with increased myeloid, CTLA-4+ T cells, and cytotoxic lymphocytes, particularly after cTACE. These findings support the potential of immune profiling to guide personalized combination strategies with LRT and systemic immunotherapies.

Combining locoregional therapies (LRT) with immune checkpoint inhibitors (ICI) in unresectable hepatocellular carcinoma (HCC) aims to enhance immune-mediated anti-tumor effects. However, potential immunological targets remain unknown. Immune profiling could be facilitated as a tool to predict tumor response to LRT and may inform personalized treatment planning, selecting patients who may benefit from an additional ICI therapy. The study’s design may guide future investigations to identify the temporal dynamics of immune cell alterations following LRT to identify the appropriate time point to co-administer the ICI application.

DRKS00026994 (https://drks.de/search/de/trial/DRKS00026994).

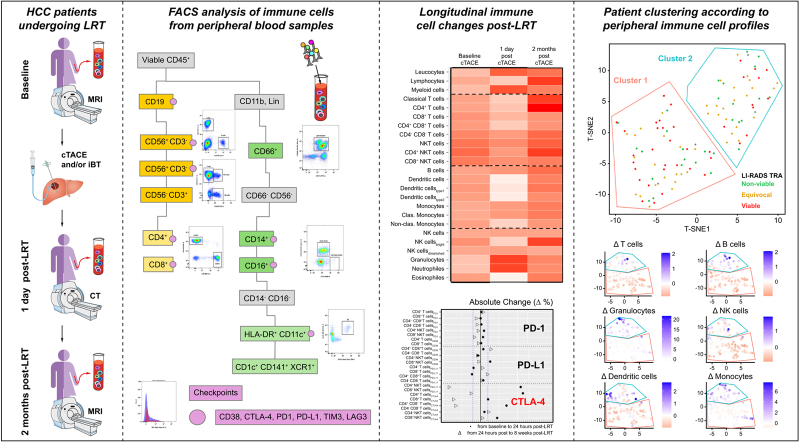

Image 1

•ImmuMITT addresses the unmet need to study the immunologic effects of locoregional therapies.•Most immune cell changes peaked at 1 day after therapy and diminished by 2 months.•Compared with interstitial brachytherapy, cTACE led to a stronger inflammatory immune response.•CD8+ T cells and CTLA-4 expression were notably upregulated after therapy.•Profiling of immune cell dynamics differentiated responders from non-responders.

ImmuMITT addresses the unmet need to study the immunologic effects of locoregional therapies.

Most immune cell changes peaked at 1 day after therapy and diminished by 2 months.

Compared with interstitial brachytherapy, cTACE led to a stronger inflammatory immune response.

CD8+ T cells and CTLA-4 expression were notably upregulated after therapy.

Profiling of immune cell dynamics differentiated responders from non-responders.

Figures

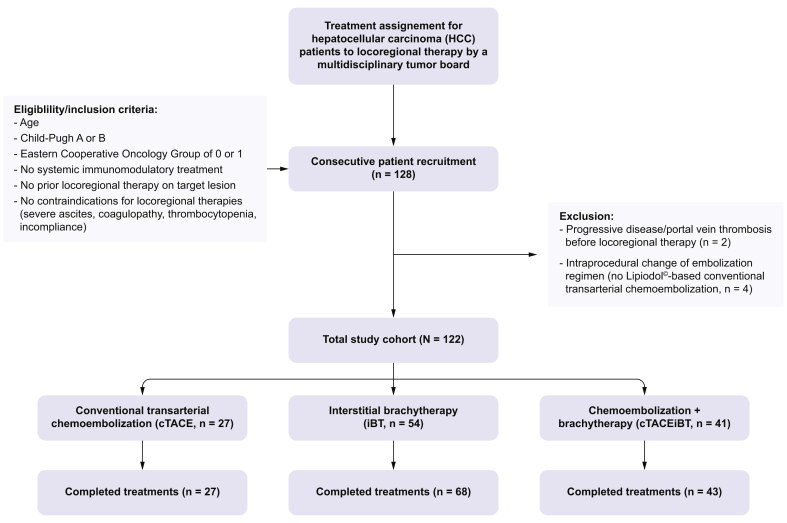

Study cohort flowchart.Fig. 1

Table 2Immune cell alterations from baseline to 1 day after LRT and treatment responses according to LI-RADS TRA v2017, based on immune clustering revealed by t-SNE analysis.Table 2Cluster 1 (n = 64)Cohen’s D (95% CI)Cluster 2 (n = 47)Cohen’s D (95% CI)Immune cell populationB cells-0.45 (-0.65 to -0.29)0.06 (-0.25 to 0.45)T cells-0.44 (-0.56 to -0.34)-0.03 (-0.17 to 0.22)NK cells-0.42 (-0.62 to -0.28)-0.05 (-0.24 to 0.29)Monocytes-0.18 (-0.48 to 0.30)0.91 (0.6 to 2.09)Granulocytes0.23 (-0.36 to 0.94)1.70 (0.30 to 4.73)cDCs-0.57 (-0.84 to -0.29)0.26 (-0.18 to 1.04)LI-RADS TRA v2017 6 months aft

Full text

Introduction

Hepatocellular carcinoma (HCC) is the most common primary liver cancer and the third leading cause of cancer-related death worldwide.1 In unresectable HCC, image-guided locoregional therapies (LRT) are guideline-approved first-line therapies in early- and intermediate-stage HCC, achieving good local tumor control with limited adverse events.2 Of these, conventional transarterial chemoembolization (cTACE) is considered the standard of care for intermediate-stage HCC (Barcelona Clinic Liver Cancer [BCLC] B), although there is substantial evidence for percutaneous ablation in early-stage HCC (BCLC A).3 In contrast to thermal ablation techniques, the therapeutic efficacy of interstitial CT-guided high-dose-rate brachytherapy (iBT) is not limited by tumor size or heat dissipation. Therefore, iBT can also be used to treat larger tumors in the vicinity of vessels or other thermosensitive structures.4^,^5 In addition, iBT can be combined with cTACE to treat hypervascularized, large HCC.6^,^7

HCC tumorigenesis is mainly driven by underlying chronic liver diseases, which are hypothesized to generate an immunosuppressive tumorigenic milieu, leading to the characteristic metachronous and multicentric occurrence of HCC.8 Novel systemic immunotherapies aim at lowering the barrier of immunosuppression while restoring the resources of the patients’ immune system to overcome cancer immune evasion.9 Among these therapies, immune checkpoint inhibitors (ICIs) are the most studied tools and have already been included in the first-line treatment of advanced-stage HCC (BCLC C) following the IMbrave-150 (atezolizumab/bevacizumab) and HIMALAYA trials (durvalumab/tremelimumab).10^,^11 However, the response to ICIs in HCC is inferior to that of other cancer entities and varies among patients, and therapy-limiting adverse events occur frequently, calling for further strategies to improve tumor susceptibility.

In this regard, ongoing phase III trials are investigating the synergistic potential of ablative and embolic LRT combined with systemic therapies to improve tumor response and patient survival in different disease stages.[12], [13], [14], [15] To date, available results from such trials are promising, demonstrating prolonged recurrence-free survival in patients with early HCC undergoing ablation or resection (IMbrave-050, NCT04102098, although not sustained in the long-term follow-up16), or intermediate-stage HCC undergoing cTACE (EMERALD-1 trial, NCT03778957) combined with systemic therapies.17^,^18 The underlying rationale for combining LRT with ICI is based on the hypothesis that LRT induce unregulated, unprogrammed immunogenic cell death. Consequently, cell debris, including tumor-associated antigens, is presented via antigen-presenting cells, which subsequently activate CD8^+^ T cell response.[19], [20], [21], [22], [23], [24] In addition, with increasing evidence supporting the importance of hydrophobicity in immune system activation, Lipiodol®-based cTACE may be a favorable modality for this endeavor.[25], [26], [27]

Although this commonly cited rationale is reasonable,28 the biophysiological mechanisms of LRT-induced immunological effects and their temporal dynamics are not yet well understood or characterized.29 An improved understanding of the systemic immune response induced by LRT may help exploit their potential as conditioning tools to convert immune-resistant tumor habitats toward a more susceptible tumor microenvironment that could be targeted with ICIs even in earlier disease stages.

Therefore, this study aims to longitudinally quantify the absolute cell counts and relative proportions of peripheral immune cell subpopulations and their functional status in patients with unresectable HCC following different ablative and embolic LRT, including cTACE, iBT, and cTACE/iBT.

Materials and methods

Study design and participants

Patients with a primary diagnosis of unresectable HCC and the multidisciplinary tumor board consensus recommendation for LRT were consecutively recruited at the Charité—University Medicine Berlin between July 29, 2020, and September 15, 2021, as part of this prospective, single-center, investigator-initiated observational clinical trial (DRKS00026994). LRT comprised cTACE or iBT or a combination of both in curative or palliative intent or for bridging to transplant. Moreover, eligible patients had to have preserved liver function (Child–Pugh A or B), an Eastern Cooperative Oncology Group of 0 or 1, no systemic treatment or prior LRT on the target lesion, and no contraindications for LRT, such as decompensated liver cirrhosis with ascites, coagulopathy, thrombocytopenia, and incompliance (Fig. 1). Cross-sectional, peri-interventional imaging, including MRI and CT, was obtained using standardized protocols as described below. Peripheral blood sampling for flow cytometry analysis was performed at baseline, 1 day after LRT, and 2 months after LRT, along with routine diagnostic blood sampling to avoid additional patient harm. For patients who received cTACE/iBT, blood samples were obtained 1 day after iBT.Fig. 1. Study cohort flowchart.Fig. 1

Study objectives

The primary endpoint of this study was to provide longitudinal immunological profiles of peripheral blood samples and the immune cells’ functional status at baseline, 1 day after LRT, and 2 months after LRT to characterize LRT-specific immune cell alterations following ablation and or embolization. Next, patients were stratified according to their type of treatment (iBT, cTACE, or cTACE/iBT) to compare the immunologic response among their different mechanisms. Secondary endpoints included the prediction of response to therapy using cluster analysis based on lymphoid and myeloid immune cell counts and their functional molecules, as well as the correlation of baseline immune profiles and immune cell alterations 1 day after LRT with clinical, disease, and laboratory parameters.

Immunostaining and FACS

The detailed staining protocol is described in the Supplementary material. Briefly, samples were analyzed using a Cytek® Aurora flow cytometer (Cytek Biosciences, Fremont, CA, USA). Unmixing and spillover correction were performed using SpectroFlo software (Cytek Biosciences). Data were analyzed using FCS Express V7 (De Novo Software, Pasadena, CA, USA) to assess CD45^+^ lymphoid and myeloid immune cell populations.30 The gating strategy is shown in Fig. S1 and described in the Supplementary material. Briefly, cells were grouped into three morphological subsets: (1) T cell responses, (2) antigen-presenting cells, and (3) inflammatory and phagocytic cells. Checkpoint molecules and exhaustion markers were assessed on these subpopulations (Fig. S2).

Multiplex cytokine and chemokine assay analyses

Serum samples from patients undergoing cTACE were collected at baseline and 1 day after cTACE and analyzed for pro- and anti-inflammatory cytokines and chemokines using V-PLEX assay plates from Meso Scale Discovery (MSD, Rockville, MD, USA). The target antigens were immobilized on individual carbon spots within the wells, where diluted serum samples were applied. After washing, the plates were processed using the MSD QuickPlex instrument, which generates electrical currents to induce chemiluminescent reactions. The emitted light is captured by the device’s camera and lens system, and a calibrator system adjusts the signals to calculate the minimum detectable concentrations based on international reference standards.

Completed and sequential treatment cycles

The standardized protocols of cTACE and iBT are described in the Supplementary material. A treatment cycle was considered completed when all target lesions defined at baseline were completely irradiated with the target dose of 20 Gy during iBT (both following iBT and cTACE/iBT) or when Lipiodol® was distributed within the whole tumor mass during cTACE. To achieve completed treatment cycles, some patients underwent sequential treatments to avoid adverse effects from tumor lysis or to reduce cumulative puncture risk when the patient had multifocal or large lesions at baseline that could not be addressed within one session. If a patient developed a new target lesion during follow-up that was not present at baseline, and LRT was recommended by the multidisciplinary tumor board and performed for these new lesions within the recruitment time frame, the respective independent treatment cycles were considered separate, recorded in the study cohort, and followed the same study protocol as previously described.

Imaging time points and image analysis

Baseline multiparametric MRI was acquired within 30 days before the first completed treatment cycle, and follow-up MRI scans were obtained at approximately 2 months after each completed cycle, then every 3 months for the first year, and then every 6 months for the following years. CT imaging without the use of contrast media was performed 1 day after cTACE for the assessment of Lipiodol® distribution and could be used for iBT planning in the cTACE/iBT group. Details on image acquisition and protocols are provided in the Supplementary material.

Tumor response was assessed after each completed treatment cycle at each available follow-up time point within the first year using the Response Evaluation Criteria In Solid Tumors (RECIST) 1.1, the modified (m)RECIST criteria, and the Liver Imaging and Data Reporting System (LI-RADS) Treatment Response Algorithm (TRA) v2017, in consensus by two radiologists with 3 and 8 years of experience in abdominal imaging, who did not allocate or perform LRT.[31], [32], [33] Patients with complete or partial response (RECIST or mRECIST) or LI-RADS TRA non-viable were considered responders. In contrast, the group of non-responders consisted of patients with stable or progressive disease (RECIST or mRECIST) or LI-RADS TRA viable and LI-RADS TRA equivocal. Images were viewed, and calculations were performed using Visage Picture Archiving and Communication Systems (PACS) client version 7 (Visage Imaging, EU HQ, Berlin, Germany).

Statistics

Sample size calculation

A statistical a priori sample size calculation was performed using GPower 3.1 (Heinrich-Heine-Universität, Düsseldorf, Germany). Effect sizes for alterations in T cells, B cells, NK cells, monocytes, granulocytes, and classical dendritic cells (cDCs) were estimated for each treatment group using data from 47 consecutively enrolled patients during active recruitment. Parameters for high probability (1 - β, 80% power) and detection of a significant change (α, 5%) were set, and minimum sample sizes were calculated for each of the three treatment groups. Among these, the most homogeneous values were observed in the population of B cells (effect sizes for patients following cTACE = 0.28, iBT = 0.14, and cTACE/iBT = 0.19), which was chosen as a reference parameter for the estimation of the overall cohort’s sample size. The minimum estimated sample size was the lowest in patients treated with transarterial chemoembolization (TACE), given that the largest effects were observed in this group in the preliminary analysis. Assuming a drop-off rate of 5%, the total sample size was 128 patients to be enrolled.

Statistical analysis

The evaluation was explorative and descriptive. Baseline characteristics were analyzed. For continuous variables, descriptive statistics included the mean, standard deviation, median, first and third quartiles, minimum, and maximum values. For categorical variables, statistics included absolute and relative frequencies. The focus of the study’s analysis was to estimate effect sizes. Because of the exploratory study design, p values (if calculated) do not enable confirmatory conclusions. Statistical analyses were performed using R software v4.3 (R Foundation for Statistical Analysis, Vienna, Austria).

LRT-specific effects on immune alterations

Cohen’s D effect sizes of immune cell alterations were calculated between baseline and 1 day after LRT, and between 1 day after LRT and 2 months after LRT. In addition, Cohen’s D effect sizes of the cytokine/chemokine alterations were calculated between baseline and 1 day after cTACE only. Heatmaps were generated to summarize longitudinal immune cell changes and compare them among treatment groups using the median of standardized rank-transformed parameters. Taking outliers and partially skewed data into account, all parameters were rank-transformed, ranging from 0 to 1.

Cluster analysis and effects of immune profiles on treatment response

Patients were stratified into treatment responders versus non-responders according to radiological response assessed at 6 months after LRT. T-distributed stochastic neighbor embedding (t-SNE) was used for dimensionality reduction. Hierarchical cluster analysis was performed to identify immune profiles. The choice of hyperparameters was based on previous publications.34 Different cluster analyses containing the cube root-transformed immune parameters were conducted using major baseline immune cell counts as well as the immune alterations of T cells, B cells, NK cells, monocytes, granulocytes, and cDCs, as well as PD1^+^, PDL-1^+^, and CTLA4^+^-expressing CD4^+^ and CD8^+^ T cells to account for the impact of the most relevant ICI targets.

Subsequently, the clusters adjusted by immune cell alterations were further analyzed for differences in general immune profiles as well as the distribution of clinical parameters and treatment response. In addition, within a two-way linear correlation matrix, Spearman’s correlation coefficient and linear regression analyses were performed to compare baseline immune parameters and dynamic immune alterations, respectively, with selected patients, disease, and laboratory parameters.

Results

Study cohort

A total of 128 consecutive patients were enrolled. Two patients experienced progressive disease and did not undergo LRT as planned. Four patients, who were originally scheduled to undergo cTACE, were excluded from the analysis because of a intraprocedural decision to perform TACE with degradable starch microspheres (DSM-TACE) instead. Ultimately, 122 consecutive enrolled patients receiving 183 separate treatments, including 138 completed treatment cycles for the treatment of 171 target lesions, were considered as the final study cohort. Characterizing completed treatment cycles, 27 patients were treated with cTACE, 54 patients were treated with iBT, and 41 with cTACE/iBT (Fig. 1). Specifically, 15 patients treated with cTACE (55.6%), three with iBT (5.6%), and seven with cTACE/iBT (17.1%) received sequential treatment cycles to achieve treatment completion. Meanwhile, 14 patients treated with iBT (25.9%) and two with cTACE/iBT (4.9%) received separate completed treatments targeting individual lesions that occurred metachronously during active study recruitment. Most patients had BCLC A disease when scheduled for ablation and TACE, as they were being bridged to transplantation. Patients, tumor, and disease characteristics are summarized in Table 1.Table 1. Baseline characteristics including patient, disease, and laboratory parameters.Table 1. DemographicsAllcTACEiBTcTACE/iBTPatient characteristicsPatients, n122275441Age (years), median [IQR]70.0 [64.3, 77.8]65.0 [57.5, 68.0]71.0 [67.3, 78.0]71.0 [65.0, 78.0]Male/female, % (n)78.7/21.3 (96/26)74.1/25.9 (20/7)87.0/13.0 (47/7)70.7/29.3 (29/12)Disease characteristicsCirrhosis (by imaging or histology), % (n)95.1 (116)92.6 (25)96.3 (52)95.1 (39)Etiology of cirrhosis, % (n) Hepatitis B12.1 (14)20.0 (5)9.6 (5)10.3 (4) Hepatitis C16.3 (19)12.0 (3)15.4 (8)20.5 (8) Alcoholic-associated liver disease41.4 (48)40.0 (10)44.2 (23)38.5 (15) MASLD18.1 (21)20.0 (5)21.2 (11)12.8 (5) Others12.1 (14)8.0 (2)9.6 (5)17.9 (7)CP class A, % (n)92.2 (107)61.1 (18)100.0 (52)94.9 (37) B, % (n)7.8 (9)38.9 (7)0.0 (0)5.1 (2) CP points, mean ± SD5.3 ± 0.75.8 ± 1.15.1 ± 0.35.3 ± 0.5 MELD score, mean ± SD9.7 ± 2.610.2 ± 2.89.8 ± 2.99.1 ± 2.2Target tumor characteristicsCompleted treatments, n138276843Lesions per patient, mean ± SD1.4 ± 0.61.4 ± 0.71.4 ± 0.61.3 ± 0.6Unifocal/multifocal, % (n)69.6/30.4 (96/42)74.1/25.9 (20/7)64.7/35.3 (44/24)74.4/25.6 (32/11)Index lesion size, median [IQR]25.2 [17.2, 35.8]22.9 [14.4, 30.0]25.1 [17.2, 35.7]28.0 [20.9, 51.3]Barcelona Clinic Liver Cancer stage, % (n) A90.6 (125)70.4 (19)100.0 (68)88.4 (38) B9.4 (13)29.6 (8)0.0 (0)11.6 (5)Laboratory parameters of liver functionAlbumin (g/L), mean ± SD39.4 ± 4.236.4 ± 3.040.1 ± 4.038.9 ± 4.4Bilirubin (mg/dl), median [IQR]0.75 [0.49, 1.13]1.04 [0.69, 1.56]0.70 [0.44, 0.95]0.76 [0.49, 1.17]ALT (U/L), median [IQR]33.0 [24.0, 52.0]40.0 [22.0, 63.0]33.0 [26.8, 48.8]29.0[ 21.0, 48.0]AST (U/L), median [IQR]45.0 [36.0, 60.0]54.0 [39.5, 84.5]44.5 [32.8, 42.3]45.0 [36.0, 66.0]γ-GT (U/L), median [IQR]125.0 [63.0, 268.0]89.0 [52.8, 218.3]112.0 [66.8, 298.5]142.0 [77.0, 217.0]AP (U/L), median [IQR]115.5 [85.3, 157.8]121.0 [88.5, 149.0]108.5 [79.0, 170.3]125.0 [88.0, 156.5]INR, median [IQR]1.23 [1.13, 1.32]1.22 [1.15, 1.31]1.10 [1.05, 1.18]1.11 [1.06, 1.17]γ-GT gamma-glutamyl transferase; ALT, alanine aminotransferase; AP, alkaline phosphatase; AST, aspartate aminotransferase; CP, Child–Pugh; cTACE, conventional transarterial chemoembolization; iBT interstitial brachytherapy; MASLD, metabolic dysfunction-associated steatotic liver disease; MELD, model for end-stage liver disease.

Immune cell subpopulations over time

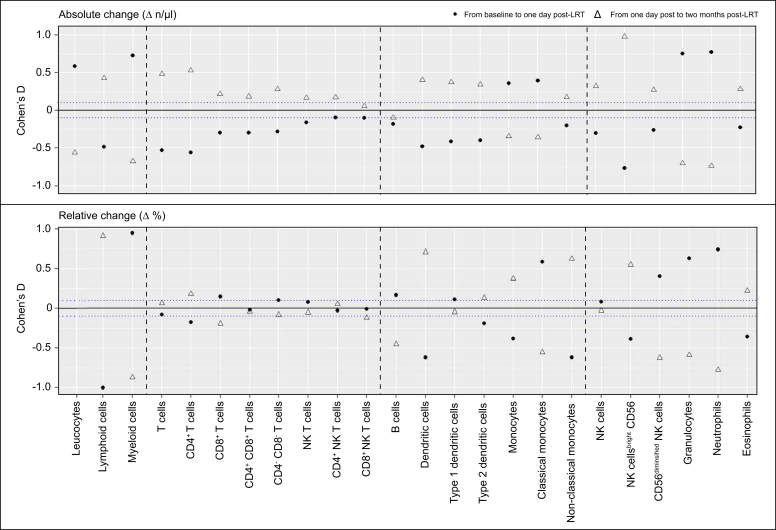

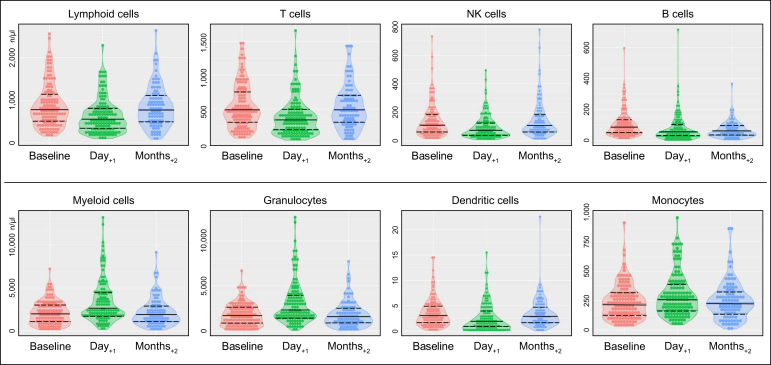

In the entire study cohort, the absolute lymphoid cell numbers decreased 1 day after LRT (Cohen’s D = -0.48, 95% CI -0.69 to -0.26, p <0.01) and increased again by 2 months (Cohen’s D = 0.43, 95% CI 0.19–0.44, p <0.01). In contrast, the myeloid cell counts largely increased 1 day after LRT (Cohen’s D = 0.73, 95% CI 0.51–0.95, p <0.01) and decreased by 2 months (Cohen’s D = -0.67, 95% CI -0.91 to -0.44, p <0.01). Overall, most cell counts at 2 months after LRT were comparable to those at baseline (Fig. 2).Fig. 2Changes in absolute cell counts of immune cell populations following LRT.Violin plots depict absolute cell counts of major lymphoid (top row) and myeloid cell populations (bottom row). Data are depicted at baseline, 1 day after LRT, and 2 months after LRT. Although lymphoid cell counts tended to decrease 1 day after LRT and increase again 2 months after LRT, myeloid cell counts showed the opposite pattern. Solid lines indicate the median, and dashed lines show the first and third quartiles. Absolute cell counts of all immune cell populations are listed in Table S1. LRT, locoregional therapies.Fig. 2

Specifically, regarding T cell response, the absolute counts of CD4^+^ T helper cells decreased the most 1 day after LRT (Cohen’s D = -0.56, 95% CI -0.77 to -0.34, p <0.01). Among antigen-presenting cells, classical monocytes increased the most 1 day after LRT (Cohen’s D = 0.39, 95% CI 0.17–0.61, p <0.01). Of all inflammatory and phagocytic cells, the absolute numbers of CD56^bright^ NK cells decreased the most 1 day after LRT (Cohen’s D = -0.77, 95% CI -0.99 to -0.54, p <0.01), whereas neutrophils increased the most in absolute numbers (Cohen’s D = 0.77, 95% CI 0.54–0.99, p <0.01).

With regard to the relative alterations of the major immune cell subpopulations, a relative increase in the proportions of CD8^+^ T effector cells (p = 0.01), classical monocytes (p <0.01), type 1 cDCs (p = 0.13), and CD56^diminished^ NK cells (p <0.01) was observed. In contrast, a relative decrease in the proportions of CD4^+^ T helper cells (p <0.01), non-classical monocytes (p <0.01), type 2 cDCs (p = 0.03), and CD56^bright^ NK cells (p <0.01) was observed 1 day after LRT (Fig. 3 and Table S1–S3).Fig. 3Longitudinal changes in immune cell populations following LRT.Dot plots reveal the absolute (top row) and relative (bottom row) changes in immune cell populations after LRT. A relative shift in T cell, NK-cell, conventional dendritic cell, and monocyte subpopulations was observed 1 day after LRT, indicating an antitumoral and pro-inflammatory response that reverted 2 months after LRT. Filled dots show alterations between baseline and 1 day after LRT, and empty triangles show alterations between 1 day and 2 months after LRT. The blue dotted line indicates the cohort’s median Cohen‘s D of ± 0.1. LRT, locoregional therapies.Fig. 3

Regarding the changes in cytokines and chemokines following cTACE, most humoral factors decreased 1 day after cTACE, including IL-13 (p = 0.03), IL-17 (p = 0.01), pro-inflammatory cytokines INFγ (p = 0.03) and TNFα (p = 0.11), chemokines MCP1 (p <0.01) and MIP1α (p <0.01), and the angiogenesis factor VEGF (p <0.01). Only IL-1β showed a significant increase (p <0.01; Fig. S3 and Table S5). In contrast, several humoral factors decreased 1 day after TACE, including IL-4, IL-5, IL-8, IL-17, IFNγ, TNFα, MIP1α, MCP1, VEGF, and βFGF. Among these, only IL-13 (p = 0.03), IL-17 (p = 0.01), MIP1α (p = 0.01), MCP1 (p <0.01), and IFNγ (p = 0.03) showed statistically significant reductions (Table S4).

Immune cell subpopulations over time stratified by type of LRT

Baseline standardized medians of both lymphoid and myeloid cell counts were lower in patients following cTACE compared with patients following iBT or cTACE/iBT. The largest alterations in standardized medians of immune cell counts were also observed 1 day and 2 months after cTACE. Specifically, the standardized medians of T cells, non-classical monocytes, cDCs, CD56^bright^ NK cells, and eosinophils showed a larger decrease, and classical monocytes and neutrophils showed a larger increase 1 day after LRT compared with patients following iBT or cTACE/iBT. In addition, by 2 months after LRT, significantly higher standardized medians were observed for CD4^+^ T helper cells, CD4^+^ NK-T cells, B cells, and CD56^bright^ NK cells after cTACE compared with patients following iBT or cTACE/iBT (Fig. 4).Fig. 4Longitudinal changes in immune cell populations stratified by LRT type.Heatmap showing standardized medians (0–1) of immune cell counts at baseline and at 1 day and 2 months after iBT, cTACE, and combined cTACE/iBT. At baseline, patients in the cTACE group showed generally lower immune cell counts compared with the other groups. The strongest immunological effects of LRT were observed after cTACE, with standardized medians of immune cell populations decreasing substantially 1 day after LRT, followed by a larger increase 2 months after LRT. cTACE, conventional transarterial chemoembolization; iBT, interstitial brachytherapy; LRT, locoregional therapies.Fig. 4

Functional immune cell markers over time

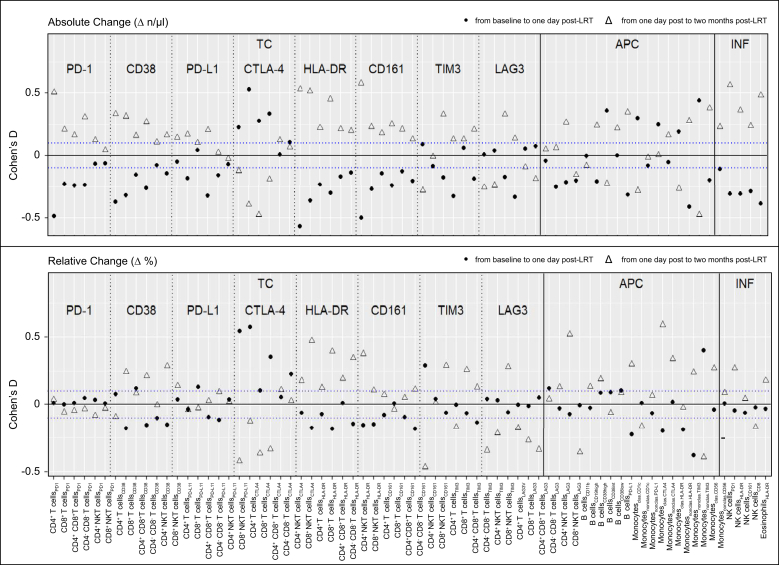

Similarly, the majority of activation markers expressing immune cells decreased 1 day after LRT. Only CTLA-4 expressing CD4^+^ and CD8^+^ T cells increased significantly in absolute numbers (Cohen’s D = 0.54, 95% CI 0.33–0.75, p <0.01) and relative numbers (Cohen’s D = 0.57, 95% CI 0.36–0.78, p <0.01). In addition, there was a distinct increase in classical monocytes expressing functional immune markers (e.g. CD1c, CTLA-4, HLA-DR, and TIM3). However, this increase was not confirmed in terms of the relative cell fractions. The absolute cell concentrations and effect sizes of the alterations at each time point are provided in Fig. 5 and Table S1–S3.Fig. 5Longitudinal changes in activation, exhaustion, and checkpoint molecules on immune cell populations following LRT.Dot plots reveal the absolute (top row) and relative (bottom row) alterations in checkpoints, activation, and exhaustion molecules after LRT. Although most cell counts and proportions decreased 1 day after LRT and increased again 2 months after LRT, opposite trends were observed for CTLA-4 and LAG3 expressions on T cells. Filled dots show alterations between baseline and 1 day after LRT, and empty triangles show the alterations between 1 day and 2 months after LRT. The blue dotted line shows the cohort’s median Cohen’s D of ± 0.1. LRT, locoregional therapies.Fig. 5

Functional immune cell markers over time stratified by type of LRT

Longitudinal changes in the expression of checkpoint, activation, and exhaustion molecules are provided in Fig. S4. Similarly, at baseline, patients following cTACE had comparable or lower standardized medians for each marker compared with patients following iBT and cTACE/iBT. However, 1 day after LRT, patients following cTACE demonstrated lower standardized medians of activation and exhaustion molecules on monocytes and B cells but higher CTLA-4 expression on both CD4^+^ and CD8^+^ T cells. In contrast, nearly no change was observed in CTLA-4 expression in patients following iBT. Moreover, following cTACE, higher standardized medians of PD-1^+^, CD38^+^, and HLA-DR^+^ T cells and functional molecules on B cells were observed 2 months after LRT compared with patients following iBT or cTACE/iBT.

Associations of immune cell profiles with treatment response

Higher and lower myeloid cell counts were found in responders at both 2 and 6months after LRT. In addition, in responders according to LI-RADS TRA v2017, lymphoid cells steadily increased from baseline, over 1 day to 2 months after LRT. In non-responders, lymphoid cells showed a bidirectional trend, first decreasing 1 day after LRT and then increasing 2 months after LRT. Conversely, in responders according to LI-RADS TRA, myeloid cells largely increased 1 day after LRT, whereas in non-responders, they steadily increased from baseline, over 1 day to 2 months after LRT. These findings were most evident in patients following cTACE (Fig. S5). Overall treatment response according to RECIST, mRECIST, and LI-RADS TRA v2017 criteria is summarized in Table S5.

Immune profile clustering analysis

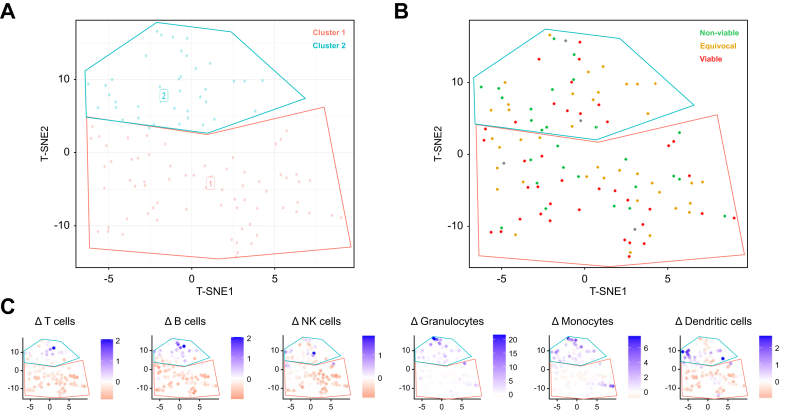

Overall, clustering analysis based on baseline immune cell counts revealed four clusters showing similar immunological profiles and no differences in treatment response at any follow-up interval. However, clustering analysis based on immune cell alterations revealed two more comprehensive clusters demonstrating different immunological profiles and differences in treatment response. The first cluster includes patients with a trend of decreasing T cell, B cell, NK-cell, monocyte, and cDC counts, whereas the second cluster included patients with no trends in lymphoid populations but largely increasing monocyte and granulocyte counts (Fig. 6). Regarding treatment response to LI-RADS TRA v2017, patients in the first cluster had higher rates of tumor viability at any follow-up interval (cluster 1 vs. cluster 2: first follow-up 43.5% vs. 24.4%, second follow-up 55.3% vs. 26.3%, and third follow-up 48.6% vs. 30.0%). In contrast, patients in the second cluster had higher rates of equivocal tumor response at any follow-up interval (cluster 1 vs. cluster 2: first follow-up 30.6% vs. 46.7%, second follow-up 12.8% vs. 36.8%, and third follow-up 13.5% vs. 16.7%) (Table 2). Probabilities for LI-RADS TRA non-viable did not differ between clusters and follow-up intervals. Additional cluster analysis, including the immune cell parameters of PD1^+^, PD-L1^+^, and CTLA4^+^-expressing CD4^+^ and CD8^+^ T cells, did not reveal any different trends (Fig. S6 and Table S6).Fig. 6Associations of immune cell dynamics with tumor response.(A) T-SNE clustering analysis based on immune cell alterations from baseline to 1 day after LRT revealed two clusters of patients with different immunological responses. (B) Patients in the first cluster showed higher rates of remaining tumor viability according to LI-RADS TRA v2017, whereas patients in the second cluster demonstrated more inflamed tumor response with higher rates of equivocal tumor response. (C) Patients in the first cluster showed decreasing populations of T cells, B cells, NK cells, monocytes, and conventional dendritic cells, whereas patients in the second cluster showed no trends in lymphoid populations but an increase in conventional dendritic cells, monocytes, and granulocytes. LI-RADS TRA, Liver Imaging and Data Reporting System Treatment Response Algorithm; LRT, locoregional therapies; t-SNE, T-distributed stochastic neighbor embedding.Fig. 6. Table 2Immune cell alterations from baseline to 1 day after LRT and treatment responses according to LI-RADS TRA v2017, based on immune clustering revealed by t-SNE analysis.Table 2. Cluster 1 (n = 64)Cohen’s D (95% CI)Cluster 2 (n = 47)Cohen’s D (95% CI)Immune cell populationB cells-0.45 (-0.65 to -0.29)0.06 (-0.25 to 0.45)T cells-0.44 (-0.56 to -0.34)-0.03 (-0.17 to 0.22)NK cells-0.42 (-0.62 to -0.28)-0.05 (-0.24 to 0.29)Monocytes-0.18 (-0.48 to 0.30)0.91 (0.6 to 2.09)Granulocytes0.23 (-0.36 to 0.94)1.70 (0.30 to 4.73)cDCs-0.57 (-0.84 to -0.29)0.26 (-0.18 to 1.04)**LI-RADS TRA v2017 6 months after LRT, n (%)**Non-viable15 (31.9)14 (36.8)Equivocal6 (12.8)14 (36.8)Viable26 (55.3)10 (26.3)cDC, classical dendritic cell; LI-RADS TRA, Liver Imaging and Data Reporting System Treatment Response Algorithm; LRT, locoregional therapies; t-SNE, T-distributed stochastic neighbor embedding.

Correlation of immune cell counts with patient, disease, and laboratory features

Spearman’s correlation matrix analysis revealed a stronger correlation between baseline lymphoid cell counts and patients, disease, and laboratory values than myeloid cell counts. Particularly, the Child–Pugh and MELD scores showed a negative correlation with T cell counts (Child–Pugh: r_s_ = -0.29; MELD score: r_s_ = -0.37) and B-cell counts (Child–Pugh: r_s_ = -0.18, MELD score: r_s_ = -0.25). In contrast, only cDCs showed a positive, conclusive correlation with the BCLC stage. Regarding laboratory parameters, positive correlations were found for immune cell counts with albumin and gamma-glutamyl transferase levels, whereas negative correlations were observed for most immune cell counts with C-reactive protein, bilirubin, urea, and creatinine (Fig. S7). Linear regression analysis revealed BCLC stages B and C (compared with BCLC stage A) as the strongest predictors of immune cell alterations, namely, decreased dendritic cells and increased granulocytes (Fig. S8).

Discussion

This prospective observational study analyzed immune cell dynamics in 122 patients with unresectable HCC undergoing 138 LRT. Longitudinal flow cytometry of peripheral blood revealed transient but distinct immunomodulatory effects after LRT, with significant changes observed 1 day after LRT that largely diminished by 2 months.

One day after LRT, a predominantly pro-inflammatory response was observed, characterized by increased myeloid cell counts and decreased lymphoid populations across all treatment modalities. In addition, immune checkpoint molecules were measured, as they are common targets of immunotherapies and are currently being exploited in ongoing clinical trials alongside LRT.28^,^35^,^36 In this context, cTACE induced a relative increase in CD8^+^ T cells and CTLA-4-expressing CD4^+^ and CD8^+^ T cells, suggesting early T cell activation followed by potential immune regulatory feedback.

Previous studies have investigated certain cell populations or cytokines as surrogates of a pro-inflammatory immune response in the context of LRT. Erinjeri et al.37 reported significant increases in IL-6 and IL-10 plasma levels after thermal ablation compared with baseline, which varied depending on the treatment modality and tumor type, respectively. IL-6 may mediate immune cell invasion by promoting the activation and recruitment of cytotoxic T cells.37

Cytokine analysis after TACE in the ImmuMITT cohort revealed elevated IL-1β and IL-6 (pro-inflammatory, neutrophil-recruiting), IL-2 (regulatory T cell [Treg]- and effector T cell-recruiting), and IL-10 (immunomodulatory), likely driven by anitgen prensenting cells (APC)-mediated processing of tumor-associated antigens released after embolization.15 In contrast, levels of IL-4, IL-5, IL-8, IL-17, INFγ, TNFα, MIP1α, MCP1, VEGF, and βFGF declined, with VEGF/βFGF reduction potentially indicating decreased pro-angiogenic signaling. Given that VEGF/FGF-mediated angiogenesis functions as a ‘vascular barrier’ impeding immune cell infiltration (angiogenic immune evasion), these findings suggest a shift in the tumor microenvironment favoring immune infiltration.38 VEGF also modulates immune function by inhibiting dendritic cell maturation, promoting Tregs, and enhancing myeloid-derived suppressor cells, further linking angiogenesis to immune regulation.17 cTACE triggers rapid necrosis through ischemia and chemotherapy-induced damage, promoting a robust inflammatory response.39^,^40

In contrast, iBT induces tumor cell death gradually via radiation, leading to mitotic catastrophe and apoptosis, followed by an early monocyte response without acute inflammation.41 Although radiation has been described as immunogenic, the delayed onset of its effects raises questions about the optimal timing for ICI combination. Additionally, apoptotic clearance by macrophages and dendritic cells may limit early inflammatory responses after iBT.42 Notably, cTACE alone induced stronger immune alterations than the cTACE/iBT combination, suggesting no additional immune benefit of combining embolization with brachytherapy.

CD8^+^ T cells, classical monocytes, type 1 cDCs, and CD56^diminished^ NK cells increased after LRT, reflecting an activated immune response. However, the simultaneous upregulation of CTLA-4 on CD4^+^ and CD8^+^ T cells 1 day after cTACE suggests a negative feedback mechanism to regulate excessive activation and prevent clonal overexpansion.43 Given the transient nature of these changes, initiating ICI therapy soon after LRT may optimize synergistic efficacy.

In contrast to T cell activation, checkpoint and exhaustion marker levels on B cells decreased. Because radiation can lead to lymphodepletion, the observed T cell decline after LRT may reflect their migration to lymph nodes for expansion before returning to the tumor site, a process supported by preclinical animal models.44^,^45 Although lymphocytopenia is generally associated with poor outcomes in patients with cancer receiving radiotherapy,46 studies on stereotactic body radiation therapy combined with ICI have shown increased CD8^+^ T cells after treatment.47 However, recent data suggest that CD8^+^ T cells may be less radiosensitive than B cells or CD4^+^ T cells, suggesting dose-dependent immunomodulation after radiotherapy.48 As iBT delivers significantly higher radiation doses than stereotactic body radiation therapy, results from this study are potentially challenging previous observations while acknowledging that the predefined time points may not fully capture gradual changes after iBT.

In this study, only a subset of immune parameters remained sustainably elevated in patients following cTACE. This subset included CD4^+^ helper T cells, NK-T cells, CD56^bright^ NK cells, and expression levels of PD-1, CD38, and HLA-DR on T cell populations. Although several studies have also shown increasing peripheral CD4^+^ T helper cells and Tregs and increasing PD-1 expression levels on Tregs after cTACE, it remains unclear whether these alterations represent an impaired response to residual tumor cells or an immunological state of surveillance and regulation.[49], [50], [51] Early evidence suggests a link between the upregulation of Tregs and the expression of inhibitory molecules such as PD-1 and CTLA-4 after cTACE, which may exert tumor-mediated immunosuppression.52 Moreover, hypoxia-induced VEGF signaling, which is upregulated after cTACE, may additionally impair T cell functionality and modulate increased checkpoint expression.53^,^54

Patients with higher baseline myeloid and lower lymphoid cell counts exhibited poorer responses to LRT, aligning with prior studies linking elevated monocytes and reduced lymphocytes to worse outcomes in HCC after iBT.55

Preprocedural monocyte levels are established predictors of poor prognosis following HCC resection and ablation owing to their role in tumor-associated macrophage differentiation, which suppresses anti-tumor immunity.56

In addition, lower baseline CD4^+^ and CD8^+^ T cell counts have been associated with worse tumor response and survival. Specifically, previous studies showed that high neutrophil- and platelet-to-leucocyte ratios at baseline and increased CD4^+^ CD25^+^ Treg counts after treatment were associated with poorer response to TACE.[57], [58], [59]

Interestingly, cluster analysis identified a subset of patients with an increasing myeloid response who demonstrated better tumor outcomes according to LI-RADS TRA v2017, contradicting the general assumption that higher myeloid levels predict poor prognosis. This finding underscores the importance of dynamic immune profiling over static baseline assessments in predicting treatment response.

As potential biases resulting from consecutive recruitment and heterogeneity of this cohort cannot be entirely excluded, linear (Supplementary material) and logistic regression (not included in this paper) were conducted to assess the influence of disease characteristics on immune profiles and dynamics. However, no strong correlations were identified between peripheral immune cell profiles and patient demographics, disease characteristics, or laboratory values, potentially because of high statistical uncertainty caused by an insufficient number of events. Notably, previous studies suggest that immune exhaustion differs between viral and non-viral cirrhosis.59 In this study, however, viral cirrhosis was associated with only a minor, statistically insignificant increase in granulocytes and monocytes compared with non-viral liver disease.

This study has several limitations. It was conducted as a single-center, real-world cohort, resulting in certain heterogeneities in tumor burden, liver function, and cirrhosis etiology. Treatment allocation followed multidisciplinary tumor board recommendations rather than randomization, introducing potential biases. Regression analyses, however, did not reveal strong correlations between immune profiles and patient or disease characteristics. Despite comprehensive flow cytometry and cytokine analyses, some immune cell subsets (e.g. Tregs, myeloid-derived suppressor cells, and circulating tumor cells) were not measured because of technical constraints. However, these immune cells and circulating tumor cells are rarely detectable in human peripheral blood samples and may require separate FACS protocols for staining intracellular antigens (e.g. FoxP3).60^,^61 Blood sampling was limited to baseline, 1 day after LRT, and 2 months after LRT, potentially missing delayed immune effects. Although incorporating thermal ablation techniques could have provided additional insights, particularly in the context of adjuvant trial discussions, ablation therapy was restricted to iBT, as it represents the institution’s standard-of-care ablation modality. Furthermore, although tissue biopsies were obtained, local immune responses were not analyzed in this study.

In conclusion, this study demonstrates that LRT induce systemic immune modulation in HCC, with early but transient inflammatory responses that vary by treatment type. The pronounced upregulation of CTLA-4-expressing T cells after cTACE suggests potential synergy with ICI therapy as explored in ongoing trials. Furthermore, despite the complexity of the findings, distinct immune response patterns correlated with treatment outcomes, highlighting the potential of immune profiling to guide personalized therapeutic strategies. Future research should focus on optimizing the timing of ICI administration and validating these findings in larger, longitudinal, multi-center cohorts.
