Ligament pre-tension determines outcome in sacroiliac joint in silicon modelling
Mark Heyland, Hendrik Schmidt, Friederike Schömig, Daven Maikath, Dominik Deppe, Matthias Pumberger, Georg N. Duda, Katharina Ziegeler, Philipp Damm
TL;DR
This study shows that ligament pre-tension has a bigger impact on sacroiliac joint stability and stress than body weight, and these effects vary between male and female joint geometries.
Contribution
The study demonstrates that ligament pre-tension influences sacroiliac joint mechanics more than body weight and that these effects are sex-specific.
Findings
Ligament pre-tension had a greater effect on stress and joint movement than body weight in finite element models of the sacroiliac joint.
Stresses and relative movement were higher in typical female joint geometries compared to typical male geometries under the same pre-tension.
Relative joint motion was more sensitive to parameter variations than stress in the models.
Abstract
Biomechanical analyses of the sacroiliac joint (SIJ) are limited. We hypothesize that influence of ligament pre-tension on strain and relative joint movement is morphologically sex-specific and more pronounced than effects of body weight. Finite element models were developed from CTs of a larger cohort (N = 818) for typical male (TMJ) and typical female joint (TFJ) geometries. For different loading scenarios, stresses were higher in TFJ than TMJ for same pre-tension, only considering sex-specific morphology. Loading in antero-posterior direction caused highest stresses and relative movement. Ligament pre-tension was most sensitive with mean sensitivity factor (change output [%]/change input [%]): 71.04/33.64 for translation, 43.09/4.02 for rotation, 2.11/ − 8.97 for stress for TFJ/TMJ respectively. Mean sensitivity factor of ligament stiffness was − 1.14/ − 1.06 for translation, − 0.90/…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7- —http://dx.doi.org/10.13039/501100001659German Research Foundation
- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
- —http://dx.doi.org/10.13039/100019016Assessment of SpondyloArthritis international Society
- —Rahel Hirsch programme of the Charité Universitätsmedizin Berlin
- —Charité - Universitätsmedizin Berlin (3093)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSpine and Intervertebral Disc Pathology · Musculoskeletal pain and rehabilitation · Shoulder Injury and Treatment
Introduction
Low back pain (LBP) is a major health care challenge as up to 80% of people experience LBP at least once during their lifetime. Even though the sacroiliac joint (SIJ) is reported to be the cause of up to 30% of LBP cases [3, 26], and although it is assumed that a dominant cause is mechanical in nature, biomechanical analyses are rare. Anatomically, the SIJ constitutes a major articulation that enables force transduction from the pelvis and lower extremities to the spine or reversed [28].
Mechanical disease of the SIJs may have different causes, but one possible explanation for a degenerative effect is a change in passive or active structures (e.g. joint morphology, ligaments and muscles) leading to variations in load magnitude and load direction, and thus locally increased joint movement or increased mechanical stresses. This may lead to chronic LBP with high patient burden. When ligamentous laxity is prevalent, i.e. ligaments are elastic due to low stiffness and do not exhibit significant pre-loads, especially the interosseous and posterior ligaments, then relative joint movement may occur under smaller loads, especially shear movements. However, also under larger loads, tissue strain could be altered. As the SIJ is stabilized by different muscles and ligaments [10, 11], joint motion is restricted but has been found to be increased in patients with degenerative spinal disorders [20, 21]. Contact zones in the SIJ that are most affected by degenerative changes have been postulated to undergo altered mechanical straining. Furthermore, it is assumed that ligament pre-tension changes joint loading. A study with fresh samples by Steinke et al. [24] assessed the properties of the sacrotuberous ligament in cadaver specimens and found substantial pre-load in the sacrotuberous ligament in situ. Ligament pre-load was so far not considered in most in silicon studies and currently does not represent a well-known factor of influence in computer models of the SIJ or lower spine. The exact pre-tension in ligaments is still unknown possibly due to the difficulty in non-invasively measuring these in vivo forces and the historical focus on other joints and large muscle forces. The effects of differences in pre-tension are not well-documented. Potentially, ligament pre-tension in the SIJ is clinically significant for understanding pain mechanisms, differentiating SIJ pain and eventually tailoring treatments to address instability or excessive tension, although in vivo assessment is currently limited and requires further research to guide diagnosis and therapy. Recognizing sex-specific differences in the impact of pre-tension may lead to more personalized approaches. While it has been established that pre-tension of (spinal) ligaments influences the kinematics of the finite element (FE) model [9], it has been suggested before that there still is a lack of knowledge of appropriate pre-tension levels for the different (spinal) ligaments [4]. However, the effects of pre-tension especially at the SIJs remains uncertain [13, 24].
This work is a foundational study exploring the feasibility and potential significance of considering ligament pre-tension and sex-specific morphology in SIJ modeling. This study therefore aimed to develop a finite element model of the SIJ to (1) understand how different input parameters change joint loading and (2) investigate the effect of ligament pre-tension on joint surface stress and relative motion. It was hypothesized that the influence of ligament pre-tension on stress and relative joint movement of the SIJ is morphologically sex-specific and the effect of changes in ligament pre-tension is more pronounced than that of load intensity in terms of body weight.
Methods

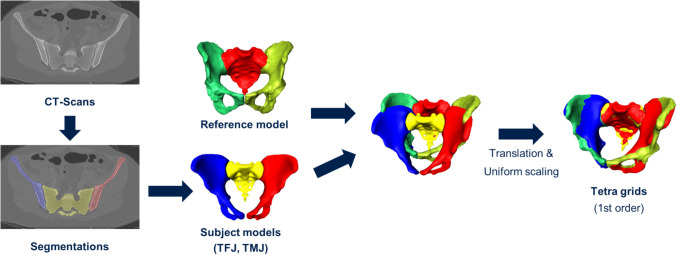

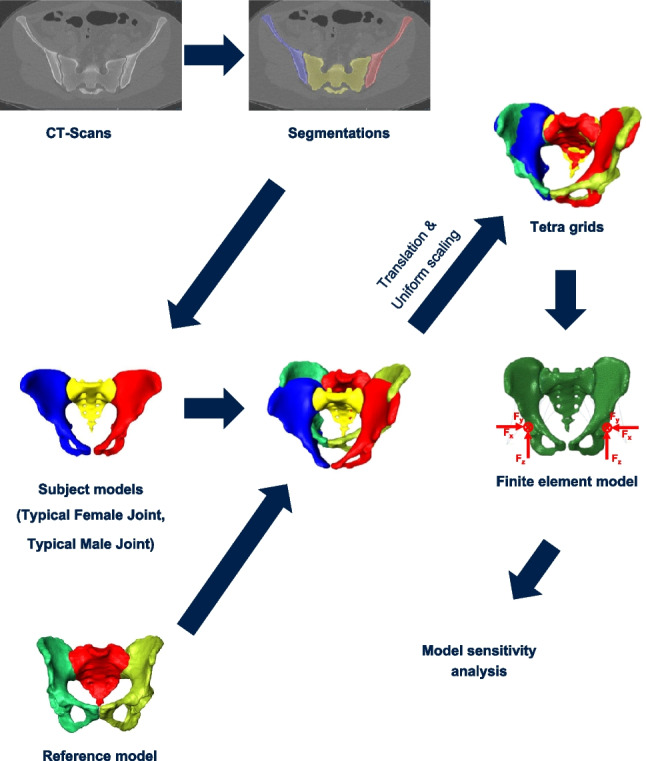

The retrospective evaluation of imaging data was part of a study that was approved by the local ethics committee (EA1/300/19). We retrospectively included 818 patients without known SIJ disease who had received computed tomography (CT) imaging of the pelvis with 0.5-mm sharp bone kernel reconstruction [31]. An experienced radiologist selected two typical joint morphologies based on their expert assessment of the most frequently observed morphological characteristics within the 818-patient cohort: one typical female joint (TFJ) and one typical male joint (TMJ). Both used geometries do not represent multiple individual patients but rather simulation variations using two representative geometries. With semi-automatic segmentation using the Amira Software (Zuse Institute Berlin & Thermo Fisher Scientific, 2021), the CT scans of the pre-selected patients were computed into usable geometric shapes that were also smoothened and meshed to 3D volumes of bone. Those tetrahedral grids were used for further FE analysis in Abaqus/CAE 2019 as FE pre-processor (Dassault Systèmes Simulia Corp., 2019). The grids of all CT scans were transformed into the same reference coordinate system, which was obtained from a reference model of a female patient with an instrumented hip implant [7] on the left side (H5L) (Fig. 1). No difference in loading between the sexes could be detected before relative to bodyweight, and therefore, the data from H5L were transferred to both sexes in order to standardize the influence of the load against the background of the joint morphology [1, 2, 6]. This reference model also provided the data for the loads that were applied to the models, as those joint loads were directly measured in vivo using an instrumented, telemetric implant (OrthoLoad, https://orthoload.com) [2, 8]. We specifically chose loads of only one specific patient and only one specific representative trial measurement during walking instead of averaged loads of multiple patients or multiple trials to ensure real physiological loading, as averaging may introduce unrealistic effects such as aliasing, which eliminates the individual loading patterns.Fig. 1. Model geometry (TFJ, TMJ) was derived through segmentation from CT scans. For consistency, all models were transformed into the reference model coordinate system and uniformly scaled to the reference model size
The rationale for selecting this specific patient was to utilize a realistic, in vivo measured loading scenario, avoiding potential issues associated with averaged or generic load profiles. This approach is a first step towards a musculoskeletal modeling system for specific male and female patients, but at this stage we wanted to investigate a first impression with a focus on ligament laxity. If averaging approaches are chosen, also for the joint geometries, it is important to also analyze the most distinct statistical variations, e.g. by using a principal component analysis, and not just analyze the averaged model. However, assigning associated loads to the individual geometries is not trivial and requires additional assumptions, for instance by using additional musculoskeletal models. There are a number of covariates and in a first step we are only interested in the relative biomechanical effects and associated sensitivities, but in a physiological set-up, we chose a different approach. We vary the covariate of morphological sex differences in two typical set-ups, which use scaled, distinct, but patient-specific geometries, and we uniformly scale those geometries to a known pelvis while preserving the typical SIJ morphology. Then, we apply the known specific, measured realistic loads that belong to same patient with the known pelvis geometry. This way, we ensure that the loads and geometries remain realistically paired, but we can test the relative effects of different joint morphologies and their biomechanical environment at the same time.
Material properties

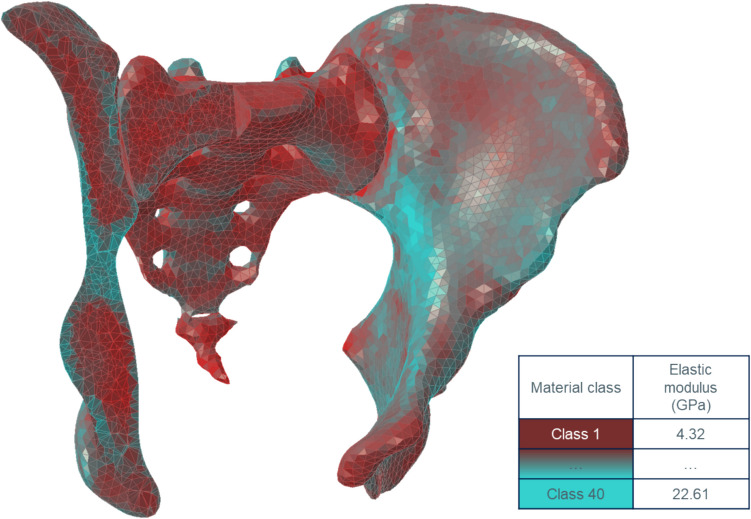

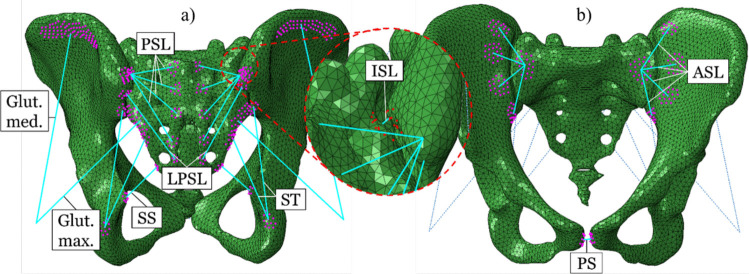

Bone material properties were modelled using isotropic, inhomogeneous bone elasticity (material mapping). Based on the CT intensity, a linear interpolation derived the local density. An exponential approximation of the elastic Young’s modulus with the following equation was used: E = 6.950ρ^1.49^ [18]. This yielded local elastic moduli between 4 and 23 GPa in 40 material classes (Fig. 2). Ligament and passive muscle properties were modelled based on literature values (Table 1, Fig. 3), with stiffness of ligaments from Shi et al. [23], and muscles from Phillips et al. [22]. Attachments were manually placed to best represent consistent landmarks [17]. Ligaments were defined as tension-only and pre-loaded springs. Steinke et al. [24] report sacrotuberous ligament stiffness in cadaver specimens with a mean ± standard deviation of 118 N ± 74 N; a mean of 65 N in females (N = 10, median age of 94 years) and a mean of 172 N in males (N = 10, median age of 77 years). Existing finite element (FE) studies of the SIJ did not explicitly model ligament pre-tension, but rather ligaments were modelled as tension-only 1D spring elements or 3D truss elements [23, 27, 29]. The pre-tension in this study was generated by shortening the original spring length, with the same pre-tension for TMJ/TFJ = 118 N [24], i.e. shortening to ~ 99.92% of the original ligament length. We deliberately modelled a consistent ligament pre-load for all cases as we wanted to assess the influence of ligament pre-tension on stress and relative joint movement of the SIJ with the covariate of sex-specific joint morphology, but we did not model a sex-specific or even patient-specific model here. This is in scope for future models.Fig. 2. Quarter-cut view of the model (TFJ) with color mapping of the elastic modulus. Cyan-colored elements have higher elastic modulus; red-colored elements have lower elastic modulus. Elastic modulus values range from 4315 to 22608 MPa (40 material classes)Table 1. Stiffness of the ligaments [23] and muscles [22]Ligament nameStiffness in N/mmAnterior sacroiliac ligament (ASL)700Interosseus sacroiliac ligament (ISL)2800Long posterior sacroiliac ligament (LPSL)1000Posterior sacroiliac ligament (PSL)400Sacrospinous ligament (SS)1400Sacrotuberous ligament (ST)1500Pubic symphysis (PS)(2*500) = 1000Gluteus maximus344Gluteus medius779Fig. 3Tension-only and pre-loaded springs representing the ligaments and muscles (in cyan color, while specific attachment points were highlighted in purple, in detail view of the interosseous sacroiliac ligament attachment points are in red), also see Table 1. To include the main sources of sacroiliac joint stabilization, the sacrotuberous ligament (ST), the sacrospinous ligament (SS), the interosseous sacroiliac ligament (ISL), the anterior sacroiliac ligament (ASL), the posterior sacroiliac ligament (PSL), the long posterior sacroiliac ligament (LPSL) and the pubic symphysis (PS) were modeled. The gluteus medius and maximus were modeled as passive springs as well since muscles also play an important role in joint stabilization (van Wingerden et al., 2004; Vleeming & Schuenke, 2019); a view from posteriorly; b view from anteriorly
Contact properties

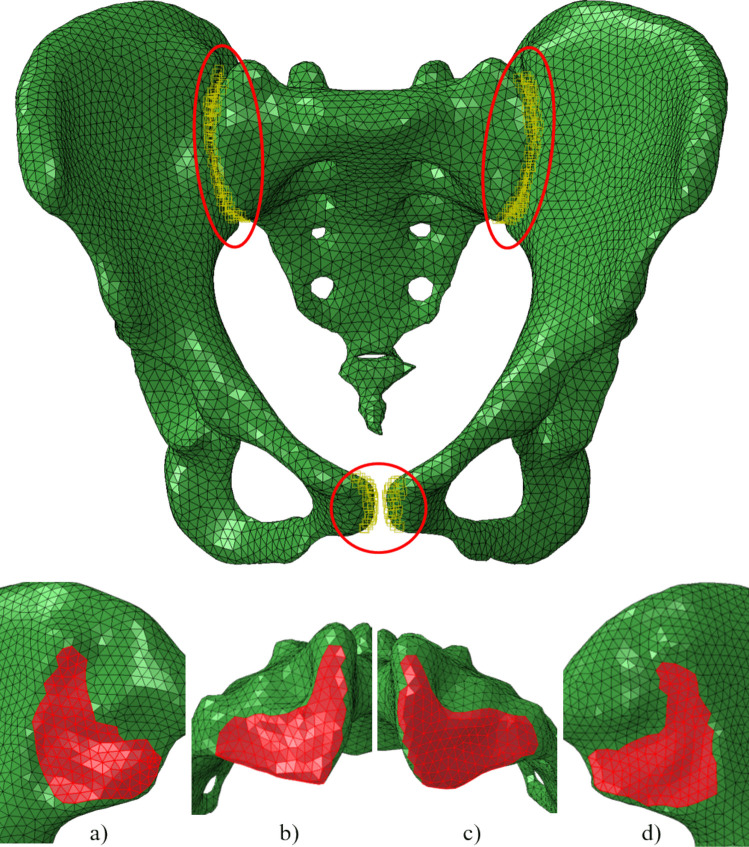

Contact was implemented to represent the behaviour of joint cartilage between the ileum and sacrum, but also at the pubic symphysis, with tangential behaviour: friction coefficient of 0.4 [17], and a normal behaviour with non-linear exponential pressure-overclosure contact. The point of zero pressure was set to be the cartilage thickness: 3 mm for the SIJ [16] and 4 mm for the pubic symphysis [15]. The point of zero clearance was set to be the elastic modulus of the cartilage as an approximation (SIJ = 54 MPa, pubic symphysis = 5 MPa [23]). The surfaces with contact definitions are shown in Fig. 4.Fig. 4. Top: Three contact pairs were identified in the models (specific contact regions were highlighted in red): the left SIJ, the right SIJ and the pubic symphysis. Bottom: Element surfaces representing the SIJ surfaces. a Ilium right. b Sacrum right. c Sacrum left. d Ilium left (typical female joint)
Loads and boundary conditions
The sacrum was held in place at the lumbosacral joint surface. The attachment point for the gluteal muscles was reduced to a single point. Due to the lack of data, this point was chosen to be at the intersection of the implant shaft axis and implant neck axis. This approximation was assumed to be adequate since the area of interest, the SIJ, is relatively far away from the gluteal muscles’ attachment points. The point was mirrored onto the other side as well as the attachment point for the gluteal muscles. Those displacement constraints at the top of the sacrum and muscle attachment points were fixed in space.

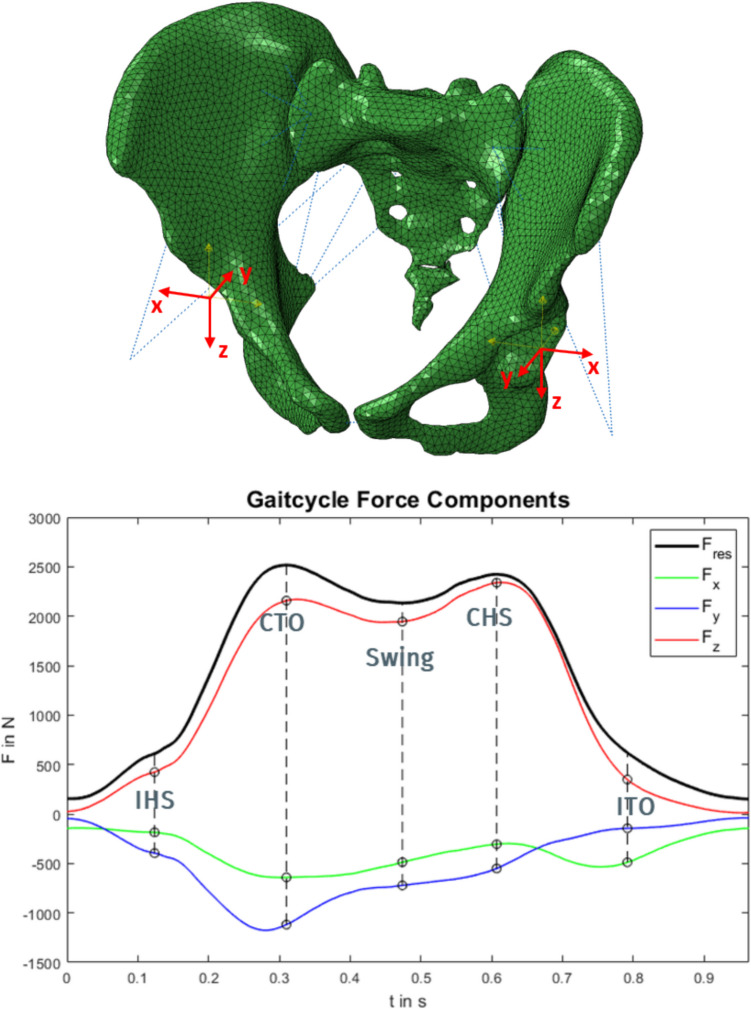

The loads were taken from our in vivo database. Patient H5L was selected while walking (TrialNr: H5L_050412_1_75). Two loading approaches were chosen (Table 2). Firstly, a generic approach applying the extreme load components that were measured during gait [8] in each direction separately (uniaxial loading x-, y-, or z-direction), either on both sides symmetrically or only one side asymmetrically. The rationale for this lies in the fact that we expected to see the largest effects on stress with the largest loads, but we wanted to separate the load components to see effects of loading directions on joint compression and shear. This results in six different loading scenarios. Additionally, we applied combinations of those extreme loads symmetrically [symmetric xyz] on both sides or asymmetrically [unilateral xyz] only on one side, i.e. 2 additional loading scenarios with the following load levels, Fx = 600 N, Fy = 1200 N, Fz = 2400 N (Fig. 5). Secondly, combined loads during gait were applied in five consecutive gait cycle phases in a quasi-static analysis. The five phases chosen for static simulation were IHS: ipsilateral heel strike, CTO: contralateral toe off, swing phase, CHS: contralateral heel strike and ITO: ipsilateral toe off (Fig. 5). Table 2. Overview of loading approaches and scenariosLoading approachLoading componentsSymmetryAxis directionLoadShort nameGeneric loadingUniaxiallyAsymmetricalMedio-lateral (x-direction in Fig. 4)Fx = 600 NUnilaterally asymmetricalUnilateral xUniaxiallyAsymmetricalAntero-posterior (y-direction in Fig. 4)Fy = 1200 NUnilaterally asymmetricalUnilateral yUniaxiallyAsymmetricalCranial-caudal (z-direction in Fig. 4)Fz = 2400Unilaterally asymmetricalUnilateral zUniaxiallySymmetricalMedio-lateral (x-direction in Fig. 4)Fx = 600 NBilaterally symmetricalSymmetric xUniaxiallySymmetricalAntero-posterior (y-direction in Fig. 4)Fy = 1200 NBilaterally symmetricalSymmetric yUniaxiallySymmetricalCranial-caudal (z-direction in Fig. 4)Fz = 2400Bilaterally symmetricalSymmetric zCombinedAsymmetricalCombined loadingFx = 600 N,Fy = 1200 N,Fz = 2400Unilaterally asymmetricalUnilateral xyzCombinedSymmetricalCombined loadingFx = 600 N,Fy = 1200 N,Fz = 2400BilaterallysymmetricalSymmetric xyzGait loadsCombinedAsymmetricalCombined loadingThe specific force values for the whole gait cycle are published and can here downloaded here: Orthoload database case H5L (https://orthoload.com)Gait loadingFig. 5Top: Local coordinate systems in the hip origins (typical female joint). Bottom: Gait cycle force curve with components in the x-, y- and z-directions of the local coordinate system of the left acetabulum. Maximum absolute values are marked with a circle at the specific phases of ipsilateral heel strike (IHS), the contralateral toe off (CTO), the swing phase on the contralateral side, the contralateral heel strike (CHS) and the ipsilateral toe off (ITO)
Sensitivity analysis
The sensitivity analysis here assesses the robustness in the joint stability and how much it can be allocated to different sources of uncertainty in the model inputs. Sensitivity was assessed as change in output parameter (von Mises stress in MPa, stress change in %; movement as relative joint translation in mm and rotation in degree, movement change in %) relative to change in input values, i.e. s = Δoutput/Δinput. Input values were ligament reference length (varied 0.998 to 1), ligament stiffness (varied 0.6 to 1.4) and load intensity (patient body weight, varied from 0.6 to 1.4). A negative sensitivity indicated that the output value was decreasing with larger input value, e.g. joint relative translation (as model output) decreases with higher ligament stiffness (as varied model input).
Mesh convergence study
Two finer grids for the TFJ have been calculated to assess the convergence of the simulation results: a medium (46,873 nodes, 215,058 elements C3D4) and a fine (123,753 nodes, 609,142 elements C3D4) grid. The original grid is called coarse grid (18,162 nodes, 75,837 elements C3D4). The effects of the mesh refinement were evaluated based on the loading scenario symmetric xyz (Table 2), which was the loading scenario with the highest average stresses, strains and relative joint movements.
Differences in relative movement were below 10% in all grids; differences in stress were below 13% in all grids. For calculation, the medium grid took 3.5 × longer duration than the coarse grid, while the fine grid took 11.4 × longer duration than the coarse grid. The coarse mesh was chosen based on the large advantage in computational time savings.
Results
Joint loading and relative movement

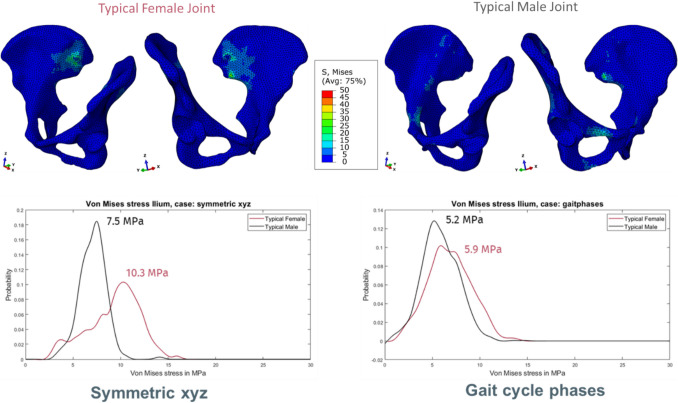

In our approach with uniformly scaled bone sizes and loads as well as the same ligament properties, the TFJ generally shows higher stresses compared with the TMJ (Table 3, Fig. 6). In detail, the TFJ was subjected to higher von Mises stresses than the TMJ, but the differences are more pronounced in the generic loading with isolated, uniaxial load components with the most frequent stress for TFJ = 10.3 MPa versus TMJ = 7.5 MPa, while in the more physiological case with combined loading, the most frequent stress was 5.9 MPa for TFJ versus 5.2 MPa for the TMJ. Table 3. Mean von Mises stress values in MPa for generic symmetric load scenarios, asymmetric load scenarios and gait cycle phasesJoint variantMean stress in surface …Symmetric xyzSymmetric xSymmetric ySymmetric zTypical female jointIlium left9.7 ± 2.95.6 ± 1.47.6 ± 4.011.0 ± 3.1Ilium right8.9 ± 2.55.8 ± 1.78.8 ± 4.19.5 ± 2.6Typical male jointIlium left6.8 ± 1.34.2 ± 1.28.8 ± 3.98.0 ± 1.5Ilium right7.4 ± 1.54.4 ± 1.48.7 ± 3.98.8 ± 2.1Joint variantMean stress in surface …Asymmetric xyzAsymmetric xAsymmetric yAsymmetric zTypical female jointIlium left8.1 ± 2.28.2 ± 2.06.7 ± 2.79.7 ± 2.5Ilium right4.9 ± 1.41.8 ± 0.75.7 ± 1.55.0 ± 1.5Typical male jointIlium left6.8 ± 1.55.7 ± 1.66.8 ± 2.78.3 ± 1.5Ilium right4.2 ± 1.32.8 ± 0.75.5 ± 1.44.8 ± 1.3Gait cycle phaseJoint variantMean stress in surface …IHSCTOSwingCHSITOTypical joint femaleIlium left5.97.07.89.17.7Ilium right8.37.14.64.76.2Typical joint maleIlium left3.95.36.77.85.5Ilium right8.06.34.14.76.0Averaged 99th percentile, mean and median von Mises stress values across all generic load scenarios and gait cycle phases. Values in MPavon Mises stress (all loads)Joint variant99 th percentilemeanmedianTypical female joint11.6 ± 3.77.1 ± 2.07.4 ± 2.2Typical male joint9.5 ± 3.26.2 ± 1.76.3 ± 1.7Fig. 6Top: Visualized von Mises stress distribution in the SIJ variants TFJ and TMJ (load scenario symmetric xyz). Legend ranges from 0 up to 50 MPa. At the bottom: von Mises stress distribution for load scenario symmetric xyz (left) and all gait phases (right) for both SIJ variants TFJ and TMJ
