Open-source sub-nanometer stabilization system for super-resolution fluorescence microscopy

TL;DR

This paper introduces an open-source system that stabilizes microscope samples with sub-nanometer precision, enabling clearer imaging of biological structures.

Contribution

The novel contribution is an open-source, adaptable stabilization system that achieves sub-nm precision for extended periods in super-resolution microscopy.

Findings

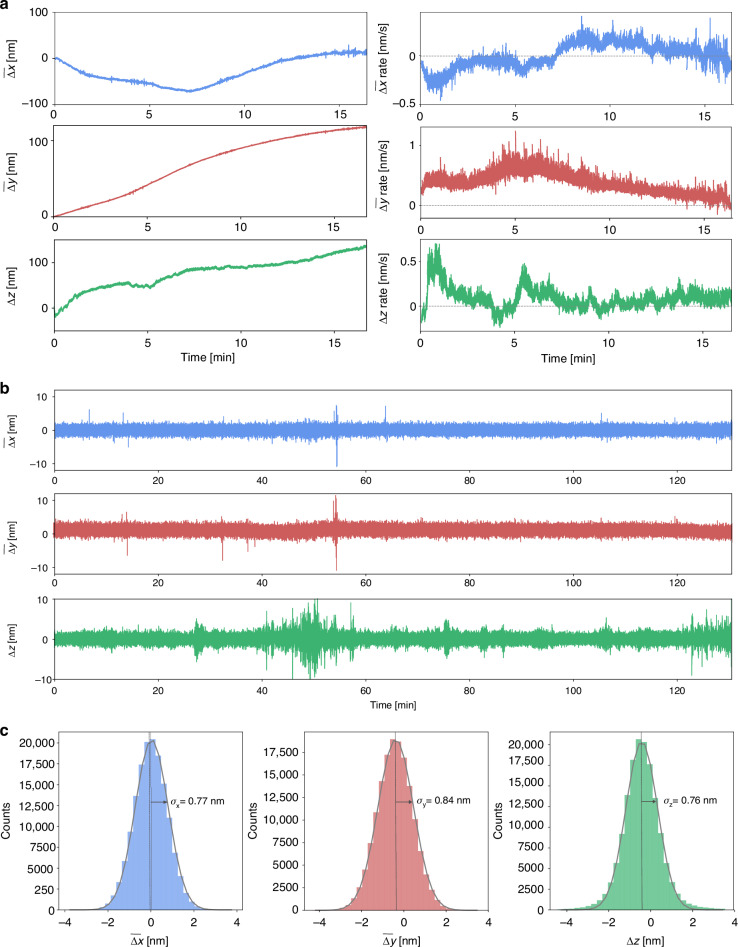

The system achieves sub-nm precision for hours, enabling nanoscale imaging.

It reaches the theoretical Cramér-Rao Bound and resolves ~10 nm distances in DNA origami structures.

Abstract

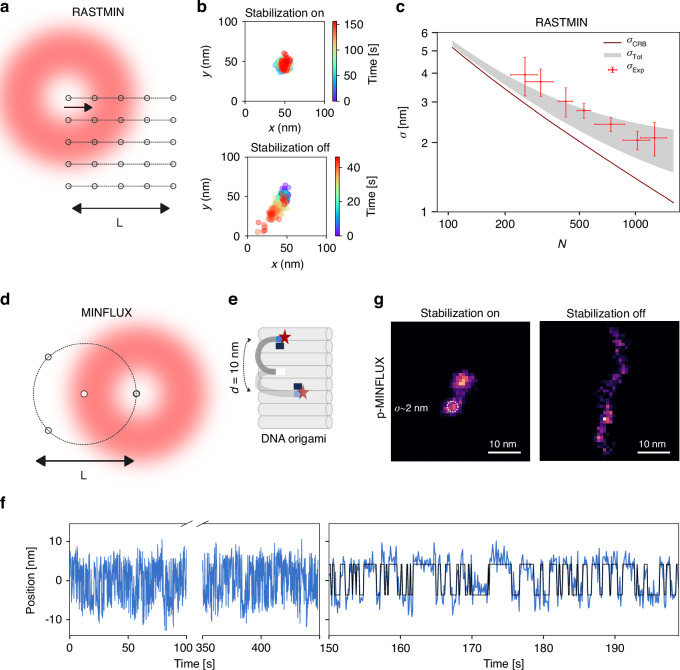

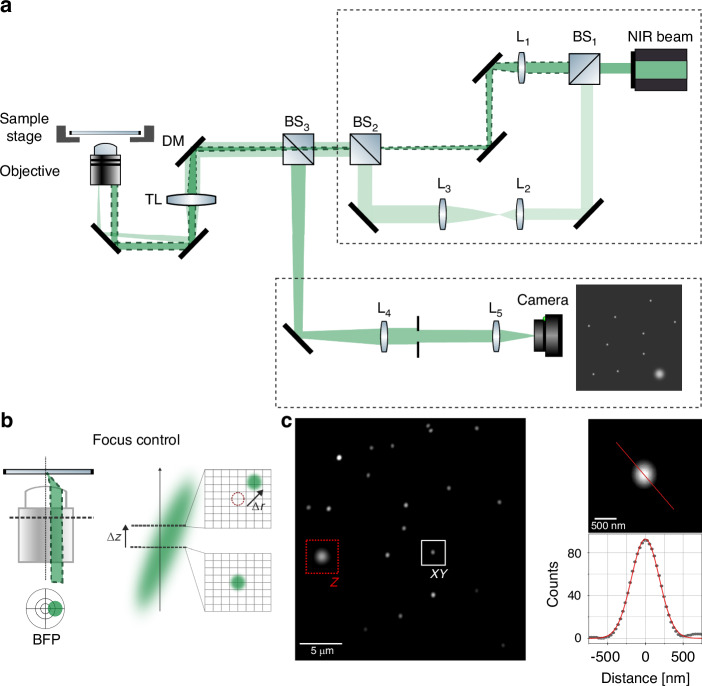

Recent advances in fluorescence nanoscopy have pushed resolution to the 1–10 nm range, enabling the direct visualization of individual molecules even in crowded biological environments. Achieving this level of precision requires rigorous sample drift control. Techniques such as MINFLUX and RASTMIN, which rely on keeping the sample fixed within an excitation pattern, demand active drift correction to achieve their theoretical nanometer-scale resolution limits. Here, we present an active stabilization system for super-resolution microscopy that delivers sub-nm precision for hours. Featuring a simple optical design, the system can be added as a separate module to any fluorescence microscope. We also provide an open-source control software including a user-friendly graphical interface readily adaptable to different setups. We demonstrate the adaptability and performance of the stabilization system with p-MINFLUX and RASTMIN measurements performed in two different setups, reaching the theoretical Cramér-Rao Bound and resolving ~10 nm distances within DNA origami structures.
