Chirality inversion in cholesteric phases of bent-shaped liquid crystal dimers with chiral dopants
Yuki Arakawa, Junji Watanabe
TL;DR
This paper shows that adding chiral dopants to bent-shaped liquid crystal dimers can cause helical pitch divergence and chirality inversion in cholesteric phases.
Contribution
The study reveals chirality inversion and helical pitch divergence in cholesteric phases of bent-shaped LC dimers with chiral dopants.
Findings
Chirality inversion was observed in cholesteric phases of bent-shaped LC dimers with chiral dopants at specific concentrations.
Helical pitch divergence and reforming with opposite chirality occurred near phase transition temperatures.
The effect was specific to ester-linked dimers and not observed in other types of dimers.
Abstract
Incorporating molecular chirality into liquid crystals (LCs) yields nanoscale one-handed helical structures. The helical pitch of a cholesteric (Ch) phase (i.e., a chiral nematic phase) is typically slightly temperature-dependent, and the sense of helical rotation (i.e., chirality) rarely inverts. This study reports helical pitch divergence and chirality inversion in the Ch phase of bent-shaped LC dimers added with a chiral dopant (CD). We prepared four chiral LC mixtures containing equal proportions of two ester-linked 4-(trans-4-pentylcyclohexyl)phenyl-based bent-shaped LC dimers with odd-numbered spacers, each doped with 0.25, 0.50, 1.0, or 2.0 wt% of an isosorbide-based CD, ISO-(6OBA)2. All mixtures exhibited enantiotropic chiral twist-bend nematic and Ch phases near room temperature. Polarized optical microscopy revealed that in the Ch phases of the dimer mixtures with 0.25, 0.50,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

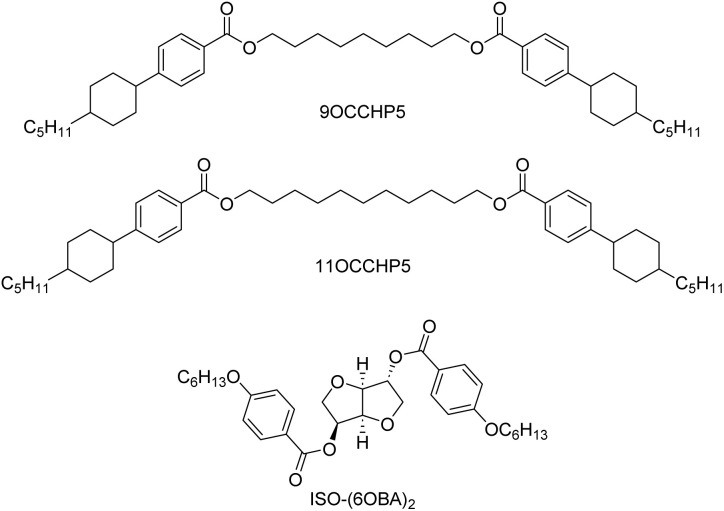

Figure 1

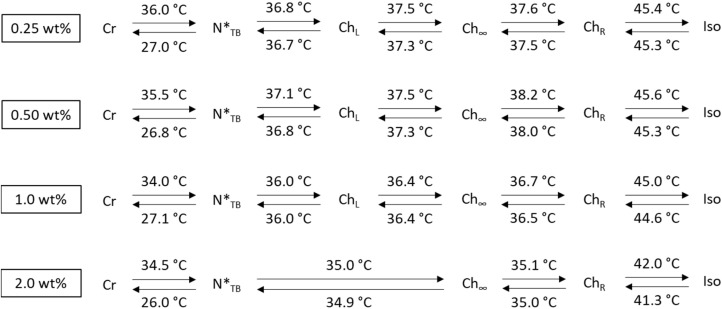

Figure 2

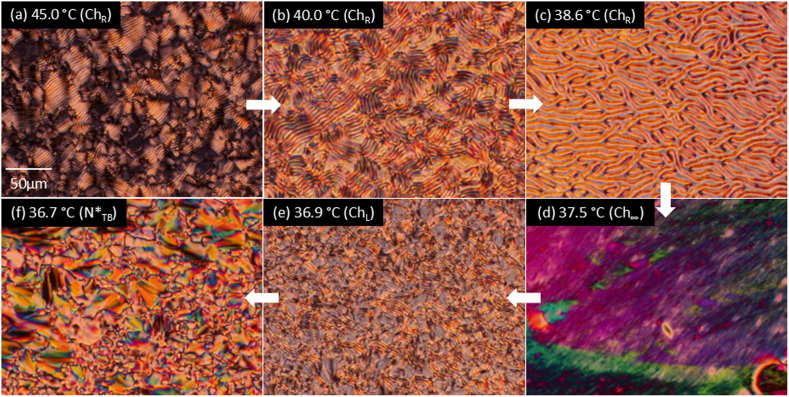

Figure 3

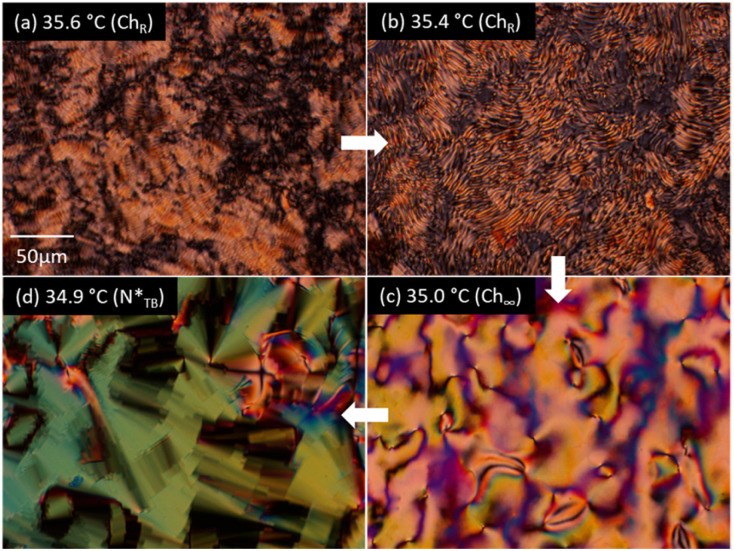

Figure 4

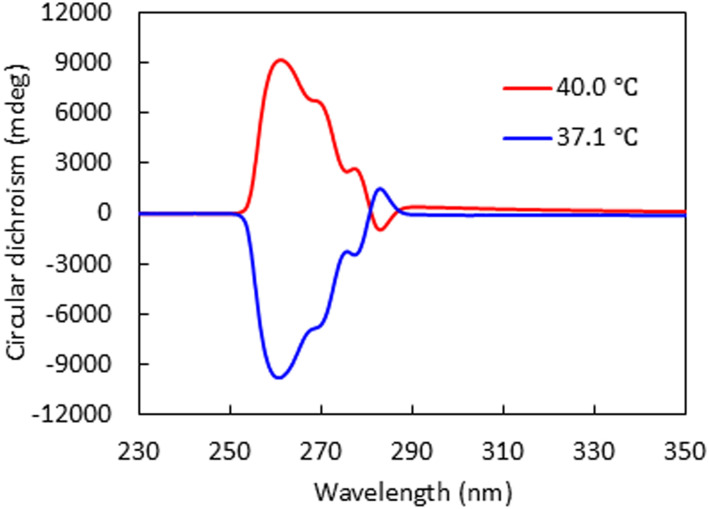

Figure 5

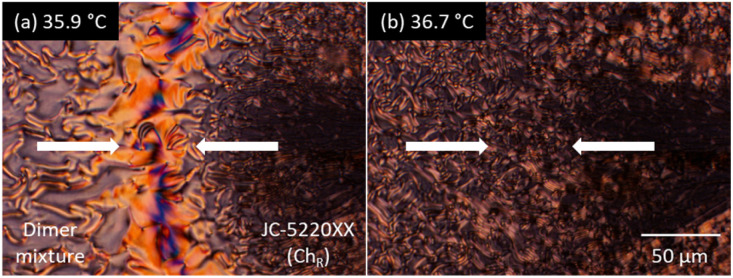

Figure 6

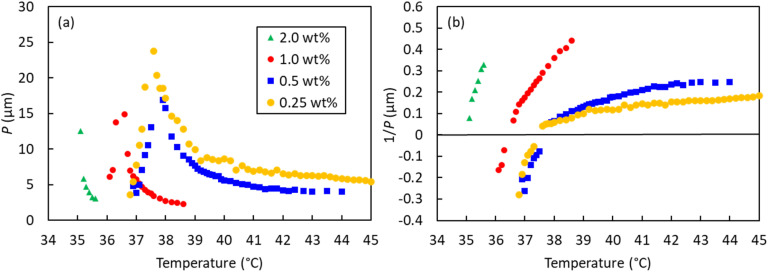

Figure 7

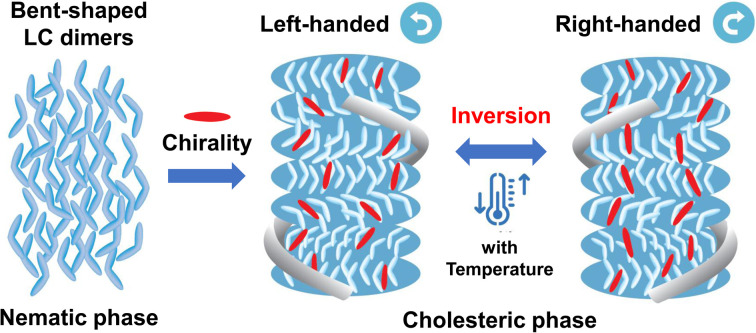

Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20Peer Reviews
