Enhancing automatic diagnosis of thyroid nodules from ultrasound scans leveraging deep learning models

TL;DR

This paper explores using deep learning to improve thyroid nodule classification from ultrasound scans, achieving high accuracy with ResNet50.

Contribution

The study demonstrates the effectiveness of transfer learning CNNs, particularly ResNet50, for reliable thyroid nodule classification.

Findings

ResNet50 achieved 96.90% accuracy in classifying thyroid nodules.

Data augmentation and class balancing improved model generalization.

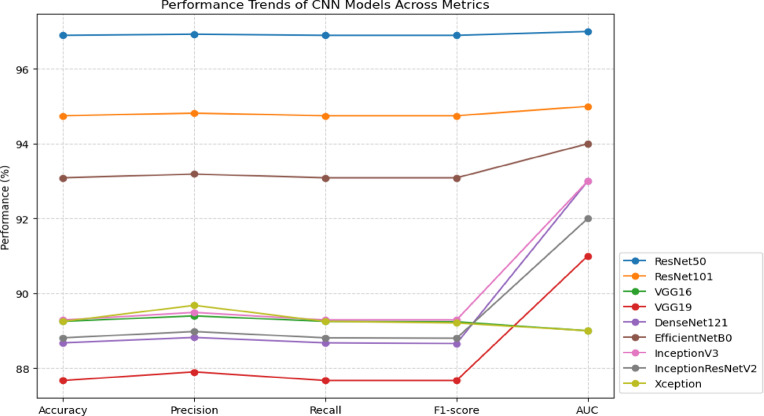

Nine pre-trained CNNs were evaluated, with ResNet50 and ResNet101 showing top performance.

Abstract

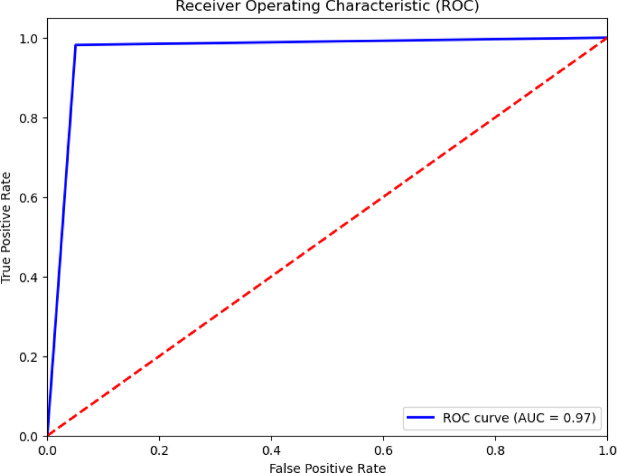

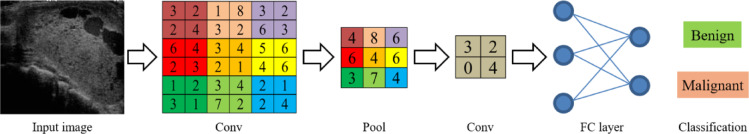

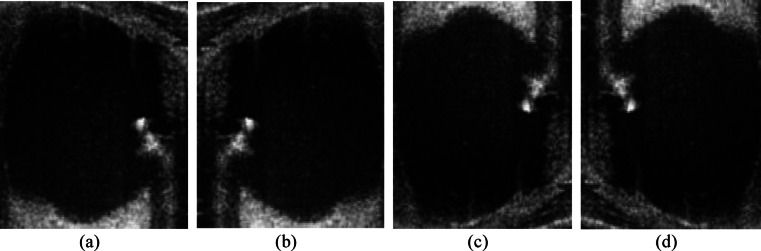

The thyroid gland is prone to various diseases, including thyroid nodules. Ultrasound is the primary diagnostic tool, but classification accuracy is often limited by radiologist expertise. Integrating Artificial Intelligence, particularly Deep Learning, offers the potential to enhance diagnostic reliability. This study investigates whether transfer-learning Convolutional Neural Networks (CNNs) can reliably classify TNs using a publicly available, biopsy-verified ultrasound dataset of 483 images (197 benign, 286 malignant). Nine pre-trained CNNs (ResNet50, ResNet101, VGG16, VGG19, DenseNet121, EfficientNetB0, InceptionV3, InceptionResNetV2, and Xception) were evaluated with transfer learning, data augmentation, class balancing, and tenfold cross-validation. ResNet50 achieved the best performance (accuracy 96.90%, Area Under the Receiver Operating Characteristic Curve (AUC) 0.97, precision 96.93%, recall 96.90%, F1-score 96.90%), followed by ResNet101 (94.75% accuracy, AUC 0.95) and EfficientNetB0 (93.09% accuracy, AUC 0.94). Other models achieved accuracies between 87–90% with AUC values of 0.89–0.93. Augmentation and balancing strategies effectively reduced class bias and improved generalization across all models. These findings highlight the superiority of ResNet50 while underscoring the broader potential of CNN-based transfer learning as a reliable decision-support approach for thyroid nodule classification.
