An Opto‐Bio‐Hydrodynamic Platform for Instructing Cardiac Left‐Right Asymmetry Development
Haifeng Qin, Xiaoshuai Liu, Yufeng Lin, Guangyi Yang, Haojiang Ren, Mingyuan Cao, Zhenheng Jiao, Baojun Li, Xianchuang Zheng
TL;DR
A new platform uses light to control ciliary motion and guide heart asymmetry development, offering potential for treating congenital heart defects.
Contribution
A non-invasive, light-based platform for spatiotemporally controlling ciliary motion during cardiac development is introduced.
Findings
Optical trapping with 1064-nm light modulates motile cilia motion in real time.
Optically regulated ciliary synchronization enhances recirculating flow and rescues cardiogenesis abnormalities.
The platform links ciliary dynamics, flow-mediated signaling, and organ asymmetry development.
Abstract
The spatiotemporal regulation of ciliary dynamics within the left‐right organizer (LRO) governs cardiac laterality establishment through biomechanical signaling gradients. While targeted restoration of aberrant ciliary motion can theoretically rescue left‐right patterning defects, existing manipulation strategies lack the non‐invasiveness, micron‐scale precision, and spatiotemporal programmability required for developmental interventions. Here, a multifunctional Opto‐Bio‐Hydrodynamic platform is presented to modulate ciliary motion with the programmable near‐infrared light for instructing cardiac left‐right asymmetry development in a spatiotemporally controlled manner. By the real‐time modulation of a 1064‐nm light beam, a direct optical trapping is demonstrated for the motile cilia, while uniform synchronization of ciliary beating is achieved through indirect optical regulation.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —National Natural Science Foundation of China10.13039/501100001809
- —Guangdong Basic and Applied Basic Research Foundation10.13039/501100021171
- —Major Talent Program of Guangdong Province
- —Open Fund of Guangdong Provincial Key Laboratory of Nanophotonic Manipulation
- —Guangdong S&T Program
- —Science and Technology Program of Guangzhou
- —Tertiary Education Scientific Research Project of Guangzhou Municipal Education Bureau
- —Fundamental Research Funds for the Central Universities10.13039/501100012226
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCongenital heart defects research · Micro and Nano Robotics · Photoreceptor and optogenetics research
Introduction
1
In healthy humans, visceral organs exhibit a conserved left‐right asymmetric spatial pattern,^[^ 1, 2, 3, 4 ^]^ i.e., the heart is positioned on the left thoracic cavity rather than right, which facilitates both functional specialization, such as systemic‐pulmonary circulatory separation, and spatial optimization of intrathoracic organs. However, ≈0.01% of the population manifests the situs inversus with a complete mirror‐image organ reversal where the heart resides in the right hemithorax.^[^ 5, 6, 7, 8 ^]^ Crucially, such cases usually present with concurrent congenital cardiac defects and multiorgan malformations,^[^ 9, 10 ^]^ exhibiting high mortality rates within the first postnatal year.^[^ 11, 12 ^]^ Therefore, considerable research interests have been focused on elucidating the spatiotemporal regulation of cardiac laterality establishment, with the aim of enabling early intervention in aberrant developmental processes and potentially guiding cardiogenesis toward typical left‐sided morphogenesis.^[^ 4, 13, 14 ^]^
Notably, the spatial pattern of organ distribution is critically dependent on the transient left‐right organizer (LRO) during embryogenesis, in which endogenous cilia generate directional extracellular fluid flow through coordinated beating patterns, thereby establishing biomechanical signaling gradients by the dynamic enrichment of signaling proteins.^[^ 15, 16, 17, 18, 19 ^]^ Based on continuous beating, motile cilia drive leftward fluid flow to facilitate asymmetric accumulation of signaling molecules on the left, followed by the dynamic activation of downstream gene cascades.^[^ 20, 21, 22, 23 ^]^ Concurrently, immotile cilia can transduce fluid shear stress via the Pkd2 channel, as well as convert mechanical cues into biochemical instructions that determine the specific positioning of organ primordia.^[^ 18, 24, 25, 26 ^]^ Inspired by this mechanism, targeted restoration of dysregulated ciliary motility through spatiotemporally precise modulation can mitigate aberrant cardiogenesis, thereby reorganizing disordered left‐right axis patterning and reducing the incidence of congenital anomalies such as cardiac heterotaxia and visceral situs inversus.^[^ 14, 27, 28, 29 ^]^
To realize this purpose, innovative intervention modalities have been developed for spatiotemporal control of ciliary activity, including the pharmacological modulation via small molecules,^[^ 16 ^]^ biomechanical stimulation,^[^ 30 ^]^ acoustic tweezer manipulation,^[^ 31 ^]^ and magnetically actuated systems.^[^ 32 ^]^ Although enabling effective control of ciliary dynamics, existing approaches lack the combined advantages of noninvasive operation, micrometer‐scale precision, and flexible programmability required for developmental bioengineering. Optical tweezers, emerging as a fascinating micromanipulation strategy, have revolutionized the research paradigm ranging from single cell,^[^ 33, 34, 35, 36 ^]^ subcellular architecture,^[^ 37, 38, 39 ^]^ even to biomacromolecules,^[^ 40, 41, 42 ^]^ which should be ascribed to their contactless ability, micron positioning resolution, and programmable flexibility. In this study, we demonstrate a programmable Opto‐Bio‐Hydrodynamic platform to conduct the precise modulation of cardiac left‐right asymmetric development by manipulating ciliary motion with programmable near‐infrared light. Under the action of optical gradient force, the target cilia can experience a stable trapping by a tightly focused laser beam. Meanwhile, the introduced laser beam enables systemic modulation across all cilia within LRO, which can be explained by the photothermal activation of calcium channels in hair cells with the intercellular signaling cascades. Consequently, a coordinated rotational pattern will trigger an enhanced recirculating flow, under which the abnormal left‐right asymmetric development can be rescued in a fully controlled manner. This reported technique not only holds promise to uncover universal principles underlying organ asymmetry development, but also provides a theoretical basis and research strategy for early intervention in congenital heart diseases, visceral heterotaxy, and related disorders.
Results
2
Schematic Illustration and Material Characterization
2.1
Figure 1a indicates the schematic illustration of the Opto‐Bio‐Hydrodynamic platform for instructing left‐right asymmetry development by manipulating the ciliary motion with near‐infrared light. The cilia are located in the Kupffer's vesicle (KV), also known as LRO, and grow above the hair cells with an autonomous rotation, i.e., clockwise or anticlockwise. Under the actuation of cilia rotation, the biofluid within LRO starts to flow, whose velocity and direction are strongly dependent on the specific rotation modes of cilia. On this basis, a desired microflow field can be expected by modulating the cilia motion with a light beam, which can be divided into two strategies, including the direct optical trapping and indirect optical regulation. For the direct optical trapping, when the light beam is directed to irradiate on the distal tip of target cilium (Figure 1aI), momentum transfer via light‐matter interactions generates optical forces comprising two components: optical scattering force (F s) and optical gradient force (F g), whose direction was aligned with laser propagation and directed toward the beam focus, respectively. Concurrently, the ciliary tip will move toward the optical axis under the action of F g, after which F g will compete with F s, and a stable trapping could be achieved with the force balance in favor of F g. On the other hand, the light beam can also be focused on the non‐ciliary position while being directly exerted on the hair cells. Consequently, the absorption‐induced heat enables a powerful simulation on the membrane potential, which will spread quickly across the surrounding hair cells due to the tight intercellular connections,^[^ 43, 44 ^]^ leading to a synchronous modulation of the cilia within LRO. This indirect optical regulation can sculpt the microflow field in a real‐time and programmable manner (Figure 1aII). Subsequently, the sculpted microflow will trigger a significant increase in calcium activity and modulate the expression of asymmetric genes,^[^ 16, 17 ^]^ thereby enabling a successful instruction of left‐right asymmetry for cardiac development, such as leftward‐jogging, middle‐jogging, and rightward‐jogging phenotypes (Figure 1aIII). To enable the multifunctional manipulation and long‐term characterization of cilia motion, a scanning optical tweezer system (SOTs) was introduced, which was constructed around the inverted fluorescence microscope (Figure 1b). The incident laser beam, at a wavelength of 1064 nm, interacted with the acoustic‐optic deflector (AOD) to achieve spatiotemporal modulation of beam focus while with a maximum switching rate of 100 KHz.

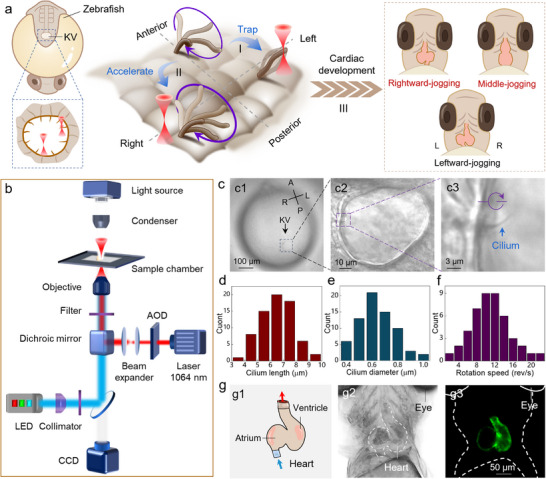

Schematic illustration and material characterization. a) Design rationale of instructing left‐right asymmetry development through cilia modulation in vivo. b) Schematic illustration of experimental setup. c) Optical microscopic images of zebrafish embryo (c1), LRO (c2), and cilium (c3). d–f) Quantitative analysis of the length (d), diameter (e), and rotational speed (f) of cilia within LRO. g) Schematic diagram (g2), bright‐field (g2) and fluorescence image (g3) of zebrafish heart (5 dpf).
In this study, the zebrafish were chosen as the animal model due to their excellent optical transparency,^[^ 45, 46 ^]^ abundant transgenic lines,^[^ 47 ^]^ and rapid development during early embryogenesis.^[^ 46 ^]^ More importantly, they share 70% homologous genes with humans,^[^ 48 ^]^ which makes them an ideal candidate to explore the cardiac left‐right development under light stimulation. The LRO started to form at the dorsal node of the zebrafish embryo at 8 h post‐fertilization (hpf). As indicated in Figure 1c1, the LRO at 8 somite‐stage (ss) exhibited an ellipse shape with its long axis and short axis ≈75 and 55 µm, respectively (Figure 1c2; Figure S1, Supporting Information). Notably, the LRO undergoes dynamic size changes during embryonic development and reaches maximum dimensions at ≈10 ss, subsequently regressing until it completely disappears during later developmental phases (Figure S2, Supporting Information). Meanwhile, one cilium was clearly observed at the periphery of the LRO, which exhibited an autonomous rotation along the clockwise direction (indicated by the navy arrow in Figure 1c3). Notably, there were tens of cilia in the LRO, whose average length and diameter were 6.5 µm (Figure 1d) and 600 nm (Figure 1e), respectively. In addition to the periphery, the cilia were also observed on the dorsal roof and ventral floor of the LRO (Figure S3, Supporting Information), which exhibits a uniform distribution throughout the LRO. Moreover, their rotation speed ω ranged from 2 to 22 rev s^−1^ with an average value of 12 rev s^−1^ (Figure 1f). In addition, the rotation speed varied across different orientations within LRO. For instance, the cilia in the anterior region exhibited a faster rotation than those in the posterior region, while the left‐side cilia rotated faster than those in the right‐side counterparts (Figure S4, Supporting Information). In addition to cilia, the heart of the zebrafish embryo was also characterized. As indicated in Figure 1g, for the zebrafish at 5 days post‐fertilization (dpf), the heart exhibited a clear atrial‐ventricular differentiation with a normal leftward jogging (Figure 1g). Notably, the zebrafish heart experienced a rapid development with significant morphological change during early embryogenesis, i.e., from an S‐shaped curved heart tube to significant atrioventricular differentiation within the period of 2 to 7 dpf (Figure S5, Supporting Information).
Direct Optical Manipulation of Cilia
2.2
To validate the manipulation flexibility of optical tweezers on ciliary systems, a stable trapping was conducted first for the motile cilia within LRO. As indicated in Figure 2a1, one cilium was rotating in the clockwise direction with a speed of 2.5 rev/s. After four optical potential wells (OPWs) were exerted on the cilium at t = 30 s, it stopped rotating and then remained stationary with its orientation along the predesigned direction (Figure 2a2). By removing OPWs at t = 50 s, the rotation was restored immediately (Figure 2a3), and the cilium could be trapped again by introducing laser beams at t = 98 s (Figure 2a4; Figure S6, Supporting Information). Moreover, the high spatiotemporal precision of optical manipulation enables the selective trapping of individual cilia, without affecting surrounding cilia (Figure S7 and Movie S1, Supporting Information). Furthermore, the trapping stability η was calculated, which was defined as η = (*l_free_−l_trap_ *)/*l_free_ *, where *l_free_
- and *l_trap_
- were the ciliary rotational amplitude under free oscillation and optical trapping, respectively. As indicated in Figure 2b, the trapping stability was increased with laser power (P) due to the enhanced optical force (region I). Once the laser power reached 150 mW, the cilium achieved a stable trapping, after which the trapping stability η remained nearly constant (region II). In addition to laser power, the trap stability η was also depended on the number and position of optical traps. As indicated in Figure 2c, the trapping stability increased from 14% to 83% as the number of OPWs increased from 1 to 4. Besides, a more stable trapping was achieved by exerting the optical trap at the head position than the middle or tail end, which should contribute to a larger optical force torque (Figure 2d). Crucially, the laser power required for stable trapping depended on cilia rotation speed in LRO (Figure S8, Supporting Information), likely because rapid rotation necessitates stronger optical forces to decelerate cilia for desired immobilization.

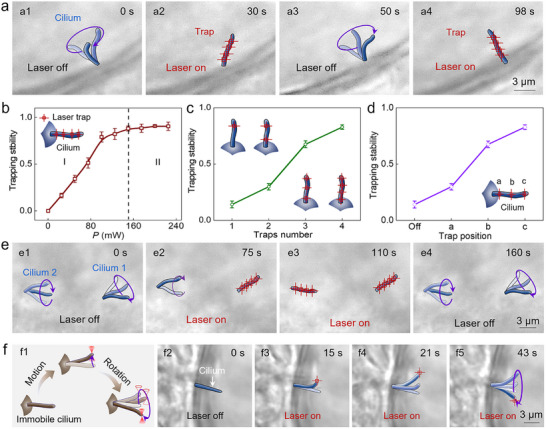

Direct optical manipulation of cilia. a) Optical microscopic image for trapping one motile cilium. b–d) The calculated trapping stability as a function of the laser power (b), optical traps (c), and the exerted position (d). e) Optical microscopic image for simultaneous trapping of two cilia. f) Optical microscopic image for manipulating the immotile cilia.

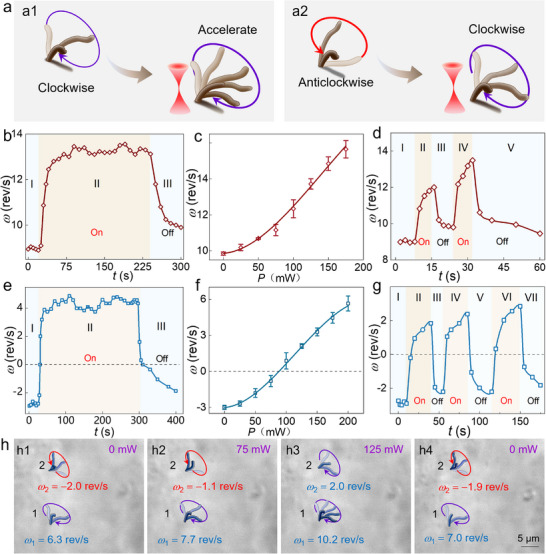

Indirect optical regulation of cilia. a) Schematic diagram of regulating ciliary rotation for the cilia rotating in the clockwise (a1) and anticlockwise direction (a2). b,c) The calculated ω as a function of time t (b) and laser power P (c) for the cilia rotating in the clockwise direction. d) The calculated ω during periodic optical modulation for the cilia rotating in the clockwise direction. e,f) The calculated ω as a function of time t (e) and laser power P (f) for the cilia rotating in the anticlockwise direction. g) The calculated ω during periodic optical modulation for the cilia rotating in the anticlockwise direction. h) Simultaneous modulation of two cilia which were rotating in opposite direction.

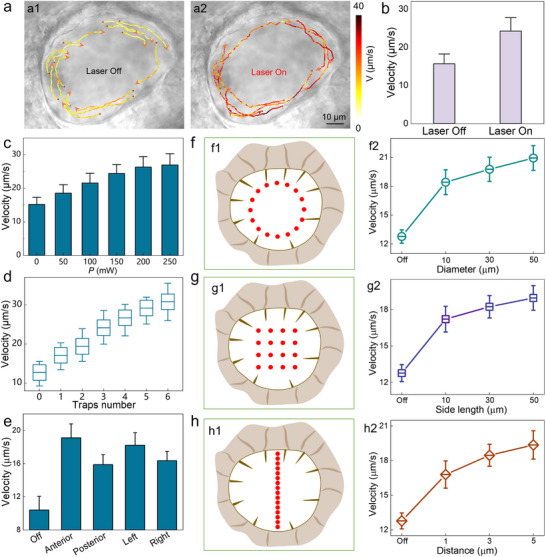

Programmable sculpting of recirculating microflow within LRO. a) The calculated particle motion trajectory to interpret microflow velocity before (a1) and after (a2) laser activation. b) Quantitative analysis of microflow velocity before and after laser activation. c–e) The calculated velocity of recirculating microflow as a function of laser power P (c), trap number (d), and irradiation region (e). f–h) Quantitative analysis of microflow modulation under the stimulation of three geometrically configured beam patterns, including circular (f), rectangular (g), and linear (h) arrays.
By introducing more OPWs, multiple cilia could be trapped simultaneously. As indicated in Figure 2e1, two cilia were rotating in the clockwise direction with a speed of 5.0 and 3.5 rev s^−1^, respectively. After introducing four OPWs at t = 75 s (P = 150 mW), cilium 1 was trapped stably while cilium 2 kept the clockwise rotation (Figure 2e2). Subsequently, four OPWs were exerted on the cilium 2 one by one, under which the rotation amplitude gradually decreased and a stable trapping was eventually reached at t = 110 s (Figure 2e3). By removing the laser beam, the two cilia were recovered to the clockwise rotation again (Figure 2e4). The detailed rotational velocities were further characterized to interpret the above experiment process in a quantitative manner (Figure S9, Supporting Information). In addition to the motile cilia, there were some immotile cilia within LRO that could not rotate in the autonomous state. However, they could experience controlled rotational motion upon photonic force application (Figure 2f1). As indicated in Figure 2f2, one cilium was growing in the LRO and remained stationary without the desired rotation. After one OPW was exerted on its end, the cilium was trapped immediately and then exhibited a synchronous motion with OPW (Figure 2f3‐f5). In this way, the desired rotation of the immotile cilium was achieved with a controlled velocity and direction (Movie S2, Supporting Information). Thus, under the action of programmable optical force, both motile and immotile cilia could be manipulated in a flexible manner.

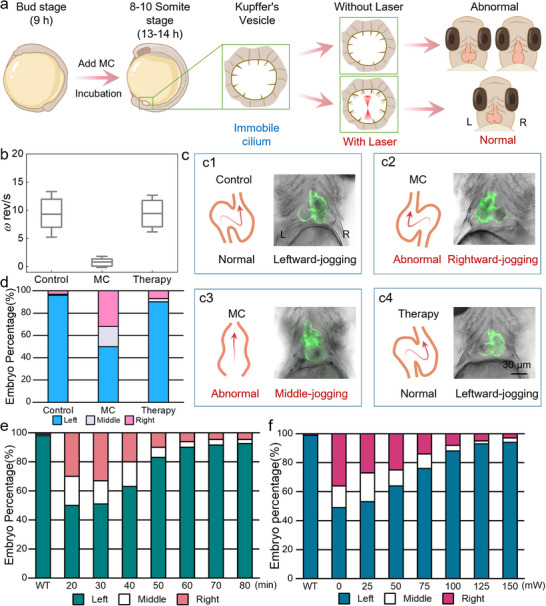

Instructing cardiac left‐right asymmetry development by the Opto‐Bio‐Hydrodynamic platform. a) Experimental design for instructing cardiac development by manipulating cilia within LRO. b) The ciliary rotational speed before and after optical manipulation. c) Schematic diagram and microscopic images of different cardiac jogging directions. d) The cardiac jogging direction before and after laser regulation. e‐f) Quantitative characterization of cardiac development regulatory performance on the modulation duration (e), laser power (f).
