Improved detection of spinal cord lesions using an axial T2-weighted TSE sequence with full spinal cord coverage compared to sagittal T2-weighted TSE and STIR sequences in multiple sclerosis: a prospective study
Christian Thaler, Vincent Geest, Lukas Meyer, Charlotte Schubert, Christoph Heesen, Jens Fiehler, Susanne Gellißen
TL;DR
A new MRI technique detects more spinal cord lesions in multiple sclerosis patients compared to traditional methods.
Contribution
The axial T2w-TSE sequence with full spinal cord coverage shows superior lesion detection and inter-rater reliability in MS.
Findings
Axial T2w-TSE detected significantly more lesions than sagittal T2w-TSE and STIR sequences.
Axial T2w-TSE showed high inter-rater reliability (κ = 0.71) comparable to sagittal T2w-TSE.
Lesions detected in axial T2w-TSE were often not visible in other sequences upon re-evaluation.
Abstract
This study aimed to compare the detection rates and inter-rater agreements of the sagittal T2w-TSE and sagittal short tau inversion recovery (STIR) sequence versus the axial T2w-TSE sequence with full spinal cord coverage in identifying spinal cord lesions in patients with suspected demyelinating diseases and diagnosed multiple sclerosis (MS). 104 patients were prospectively enrolled in this study and underwent MRI, including a sagittal T2w-TSE and STIR sequence, as well as an axial T2w-TSE sequence with full spinal cord coverage. Two experienced neuroradiologists, blinded to clinical parameters, independently evaluated the scans in separate sessions. After blinded readings, raters re-evaluated all sequences to assess if lesions could be retrospectively identified in other sequences. Spinal cord lesions were found in 81 patients. The highest inter-rater reliability was observed for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

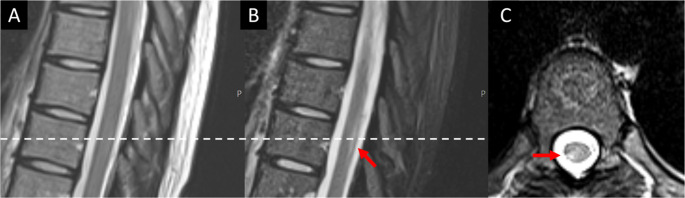

Figure 1

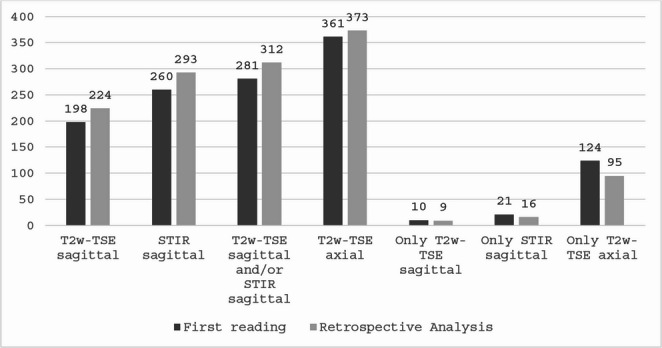

Figure 2
Figure 3- —Universitätsklinikum Hamburg-Eppendorf (UKE) (5411)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMultiple Sclerosis Research Studies · Ultrasound Imaging and Elastography · Peripheral Neuropathies and Disorders
Introduction
Multiple sclerosis (MS) is a chronic neuroinflammatory disease of the central nervous system, affecting over 2.8 million people worldwide [1]. To diagnose MS and evaluate its disease progression, magnetic resonance imaging (MRI) is an essential tool to detect inflammatory lesions in the central nervous system (CNS) disseminated in time and space. For the dissemination in space spinal cord lesions were incorporated into the McDonald Diagnostic Criteria for MS in 2005 and have since remained a key component until the latest version (2017 revised McDonald criteria) [2]. This is comprehensible given that up to 85% of all patients with clinically diagnosed MS reveal spinal cord lesions on MR imaging [3, 4]. Spinal cord lesions are not only important to fulfill the diagnostic criteria but have also been recognized as a risk factor for quicker progression to definite MS in patients with clinical isolated syndrome (CIS) and as a stronger predictor of future disability compared to brain MRI measures [5–7]. Hence, it is of utmost importance to reliably detect spinal lesions in patients with suspected demyelinating diseases.
In a 2021 published consensus statement by the Magnetic Resonance Imaging in Multiple Sclerosis (MAGNIMS), Consortium of Multiple Sclerosis Centres (CMSC), and North American Imaging in Multiple Sclerosis Cooperative (NAIMS) on the use of MRI in MS patients, a standardized protocol was recommended for the detection of spinal cord lesions [8]. This protocol should include at least two of the following three sagittal sequences: T2-weighted (T2w) spin echo with moderately long echo times, proton density-weighted echo, or short tau inversion recovery (STIR). An axial acquired T2w sequence was only considered optional. In the updated recommendations from 2024 an axial T2w sequence with coverage of the cervical spinal cord has been added [9]. This is a point of critical debate since axial T2w sequences with full spinal cord coverage have shown superior detection rates compared with sagittal scans but are also supposed to be time consuming [4, 10].
The aim of this study was to compare the detection rates and inter-rater agreement between sagittal and axial acquired scans in the detection of spinal cord lesions in suspected demyelinating disease or disease monitoring of MS patients. We hypothesized that axial T2w sequences with full spinal cord coverage have higher lesion detections rate than sagittal acquired scans with comparable inter-rater reliability.
Methods
The study was approved by the local Ethical Committee following the guidelines of the Declaration of Helsinki and patients provided written informed consent. 104 patients were consecutively enrolled in this prospective study between December 2022 to March 2023. All patients were referred to our department from the MS day hospital and received an MRI of the spinal cord. Inclusion criteria were as follows: age 18–70 years; diagnosed MS according to the 2017 revised McDonald criteria [3], clinical symptoms or brain imaging findings suspicious of a demyelinating disease; absence of neurologic conditions other than a chronic demyelinating disease. Detailed information about our study population is given in Table 1.Table 1. Patients’ characteristics. For age and disease duration the mean and standard deviation, for EDSS the median and interquartile range is displayed. Miscellaneous including patients with clinical or imaging findings suspicious of chronic demyelinating disease, such as clinically/radiologically isolated syndrome (CIS/RIS), transverse myelitis or optic neuritis. RRMS = relapsing remitting multiple sclerosis,* SPMS = secondary progressive multiple sclerosis*,* PPMS = primary progressive multiple sclerosis*,* NMOSD = neuromyelitis Optica spectrum disorder*Sex77 female, 24 maleAge35.7 (± 10.4) yearsDiagnosis54 RRMS, 3 SPMS, 13 PPMS, 3 NMOSD, 28 MiscellaneousDisease/Symptom duration5.8 (± 7.2) yearsEDSS2 (1–3)
MR imaging protocol
All scans were performed on a 3 Tesla MR scanner (Magnetom Skyra, Siemens Medical Systems, Erlangen, Germany) and the MRI protocol included a sagittal T2w turbo spin-echo sequence (TSE) (Repetition Time (TR) = 3800 ms; Time of Echo (TE) = 95 ms; pixel size = 0.781 × 0.781 mm; Field of View (FOV) = 300 × 300 mm; slice thickness = 3 mm; no section gap; acquisition time = 3 min and 56 s), a sagittal short tau inversion recovery sequence (STIR) (TR = 3000 ms; TE = 48 ms; Inversion Time (TI) = 220 ms; pixel size = 0.781 × 0.781 mm; FOV = 300 × 300 mm; slice thickness = 3 mm; no section gap; acquisition time = 5 min and 36 s) and a axial T2w-TSE (TR = 6240 ms; TE = 111 ms; pixel size = 0.625 × 0.625 mm; FOV = 200 × 200 mm; slice thickness = 3.5 mm; 50 sections without a section gap; acquisition time = 5 min and 15 s for 2 slabs or 6 min and 46 s for 3 slabs with full spinal cord coverage (including the tip of the odontoid process and the conus medullaris)).
Lesion Detection
Lesion detection was performed by two board certified neuroradiologists with respectively 18 and 10 years of experience in MS imaging diagnostics and evaluation. Image evaluation was performed on a medical workstation on calibrated, high-resolution monitors.
The raters evaluated each sequence separately, blinded to the patients’ characteristics and rating results of the other sequences. In a first reading, the sagittal T2w-TSE images were presented to the raters and MS lesions were detected and marked by each rater. In a second reading, the sagittal STIR images and in a third reading the axial T2w-TSE images were presented to the raters. There was a two-week gap between each reading. The raters were unaware of the patient’s identity and all clinical and imaging details, particularly the results and images from the other corresponding scans. After completion of the blinded readings, the images were re-evaluated by each rater including all sequences and results of the previous blinded reading to assess whether the lesions could be identified retrospectively in the other sequences.
The location in the axial plane (midline or lateral), and position (cervical or thoracic), as well as craniocaudal extension and axial diameter were documented for each lesion.
Statistical analysis
IBM SPSS 27.0. (IBM Corp., Armonk, NY, USA) was used for statistical analysis. Cohens’s Kappa was calculated to determine the inter-rater agreement and magnitude guidelines were applied according to Landis and Koch [11].
For further analysis, only lesions identified by both raters were included. Descriptive statistics are presented as frequencies for categorical variables and compared with Fisher’s Exact test, mean (standard deviation [SD]) for continuous normally distributed variables and compared with the unpaired t-test.
Results
Patient demographics
104 patients were enrolled in this study. Three patients had to be excluded due to excessive motions artifacts. No spinal lesions were detected by any rater in 20 of these patients and 81 patients had at least one lesion detected by either of the raters. Patients’ characteristics are displayed in Table 1.
Inter-rater Reliability
Overall, Rater 1 (CT) detected 433 lesions and Rater 2 (SG) detected 446 lesions. The detection rates of each rater and for each sequence are displayed in Table 2. Lesion detection in the sagittal T2w-TSE images offered the highest inter-rater reliability (κ = 0.73, p < 0.001), followed by the axial T2w-TSE (κ = 0.71, p < 0.001) and lastly the sagittal STIR images (κ = 0.65, p < 0.001). A substantial agreement was found for lesions, that were detected in at least two sequences by each rater (κ = 0.76, p < 0.001). Also, we found a substantial agreement for lesions that were detected in the sagittal as well as in the axial T2w-TSE (κ = 0.69, p < 0.001) by each rater, but only a moderate agreement for lesion that were detected in the sagittal T2w-TSE as well as in the sagittal STIR images (κ = 0.61, p < 0.001).Table 2. Number of detected lesions by each rater in each sequence after the first blinded reading and corresponding κ values indicating the inter-rater agreementR1R2κ (95%-CI)T2w-TSE sag2622530.73 (0.66–0.79)STIR sag3253380.65 (0.58–0.73)T2w-TSE ax4013880.71 (0.63–0.79)Lesion in any 2 sequences3193180.76 (0.70–0.82)Lesions in T2w-TSE sag and STIR2443070.61 (0.54–0.68)Lesions in T2w-TSE sag and ax2482270.69 (0.63–0.76)Total lesions detected433446n/a
Lesion evaluation
For further analysis, only lesions that were detected by both raters, regardless of the sequence, were included. Overall, 408 lesion were detected by both raters in 73 patients (73/81). The median number of lesions identified per person was 5 (IQR 2–7). 220 lesions were detected in the cervical and 188 in the thoracic spinal cord. In the first reading, a significantly higher number of lesions were detected in the axial T2w-TSE images (n = 361) than in the STIR (n = 293, p < 0.001) and sagittal T2w-TSE images (n = 224, p < 0.001). In a second reading with all sequences available for the raters, 12 lesions could be retrospectively detected in the axial T2w-TSE, 26 lesions in the sagittal T2w-TSE and 33 lesions in the sagittal STIR images (see Fig. 1). After including retrospectively detected lesions, the detection rates of axial T2w-TSE images were still significantly higher than those of the other two individual sequences (both p < 0.001) but also compared to the combined detection rate of the T2w-TSE sagittal and STIR sequence (p < 0.001). Even after including only lesions that were at least 3 mm in their long axis, detection rates of axial T2w-TSE images (n = 329) were still significant higher compared to sagittal STIR (n = 273) and T2w-TSE (n = 212) images (both p < 0.001) (Fig. 2).Fig. 1. Graph displaying the total number of lesions detected in the corresponding sequence (sagittal T2w-TSE, STIR, and axial T2w-TSE), and the lesion number marked on the corresponding scans only without corresponding correlates in the other planeFig. 2Example of a lesion that was detected by both raters on the axial T2w-TSE images (C) and only retrospectively on the STIR images (B). The lesion could not be identified on the sagittal T2-TSE images (A). Of note, there was slight patient movement between the acquisition of the sagittal T2w-TSE and STIR sequence, explaining the slightly deviating depiction of the spinal cord. The white dotted line implicates the level of the axial image
From the 124 lesions that were only detected in the T2w-TSE axial images in the first reading, 29 lesions could be retrospectively detected in either the sagittal T2w-TSE or STIR images. In contrast, from the 21 lesions that were only detected in the STIR images in the first reading, 5 lesions could be retrospectively detected in either the sagittal or axial T2w-TSE images. Figure 3 gives an example of a retrospectively detected lesion.Fig. 3. Example of two smaller spinal cord lesions (red arrows) with an axial diameter of 2 mm each and located laterally in the cervical spinal cord, that were not detected in the sagittal T2w-TSE (A) or STIR (B) but only in the axial T2w-TSE (C) images
After retrospective analysis 43 patients showed lesions that were detected in the axial T2w-TSE images but no other sequence. Two of these patients displayed only lesions visible on axial images and no lesions were detected on sagittal scans.
Lesion characteristics

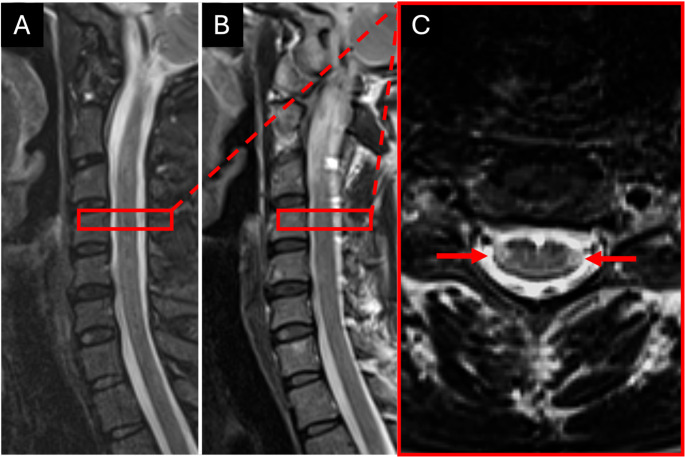

After retrospective analysis of all sequences, 95 lesions remained that were only seen by both raters in the axial T2w-TSE images but no other sequence. An example is given in Fig. 3. Compared to lesions that were also detected in the sagittal T2w-TSE or STIR images, these lesions were significantly smaller in their axial diameter and craniocaudal extension and were located more laterally in the spinal cord (see Table 3).Table 3. Characteristics of lesions that were only detected in the axial T2w-TSE images compared to lesions that were also detected inn either the sagittal T2w-TSE or STIR images. Boldface type indicates statistically significant valuesOnly detected in axial T2w-TSE (n = 95)Also seen in sagittal T2w-TSE or STIR (n = 313)p valueAxial diameter (mm)3.26 (1.03)4.16 (1.37)< 0.001Craniocaudal extension (mm)6.78 (3.1)9.48 (4.13)< 0.001Location in axial plane46 (48.4%) lateral, 49 (51.6%) central114 (36.4%) lateral, 199 (63.6%) central0.03Position (cervical vs. thoracic)46 (48.4%) cervical, 49 (51.6%) thoracic174 (55.6%) cervical, 139 (44.4%) thoracic0.13
