Influence of fracture morphology and working length on shear motion and construct stiffness in osteosynthesis constructs
Marianne Hollensteiner, Mischa Mühling, Philipp Blum, Sabrina Sandriesser, Dirk Baumeister, Markus Greinwald, Julian Fürmetz, Peter Augat
TL;DR
This study compares how different fracture models affect bone fixation stability, showing that realistic fractures behave differently from simplified models.
Contribution
The study reveals biomechanical differences between osteotomized and realistic fracture models and their implications for fixation strategies.
Findings
Osteotomized fractures showed higher axial stiffness compared to realistic fractures.
Realistic fractures without a gap had better torsional stability than osteotomized ones.
Working length significantly reduced both axial and torsional stiffness across all configurations.
Abstract
Construct stability is a key factor in fracture healing and is influenced by fracture morphology, working length, and fixation strategy. While osteotomized fracture models are widely used for biomechanical testing, their relevance to real, interdigitated fracture patterns remains unclear. This study compared the axial stiffness, torsional stiffness, and interfragmentary shear motion of synthetic distal femur models with osteotomized and realistic fractures. All constructs were tested under axial and torsional loading while progressively reducing the number of diaphyseal screws from five to two, thereby increasing the working length. Realistic fractures with a gap were analyzed in both an “open” state (prior to contact) and a “contact” state (after fragment contact. Shear displacements were quantified as resultant vectors derived from 3D motion tracking. Fracture morphology and screw…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —Paracelsus Medical University
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBone fractures and treatments · Bone health and osteoporosis research · Facial Trauma and Fracture Management
Introduction
The biomechanical stability of osteosynthesis constructs is a critical determinant of fracture healing success. It directly influences the clinical outcome by ensuring sufficient stabilization to prevent implant failure, while also accommodating the biological processes necessary for bone repair. Among the key factors governing construct stability, the working length of osteosynthesis plates plays a pivotal role. Defined as the distance between the two screws closest to either side of the fracture, working length determines the stiffness, strain distribution, and fatigue resistance of the plate under load [1]. Shorter working lengths are characterized by increased stiffness, reduced plate strain, and enhanced construct stability [2, 3], minimizing the risk of implant failure. Conversely, longer working lengths allow for controlled flexibility, which can be beneficial in promoting secondary bone healing through callus formation in specific clinical scenarios [3, 4]. A critical determinant of fracture healing is the shear motion of fracture fragments, which is influenced by the working length [5]. Excessive shear motion can destabilize the fracture site, disrupting the biological environment necessary for healing. In contrast, controlled micromotion, within physiological limits, can stimulate callus formation and facilitate secondary bone healing [6, 7].
Despite the substantial body of research investigating these mechanical relationships in osteotomized fractures with planar surfaces [8–10], there is a relative paucity of data on the effects of working length on real fractures with irregular, interdigitated surfaces. Osteotomized models are widely used in biomechanical research due to their simplicity and reproducibility [11, 12]. These models, created by controlled cuts, produce flat, smooth fracture surfaces that allow consistent and repeatable testing conditions. However, these idealized fractures differ fundamentally from the interdigitated, irregular morphology of realistic fractures commonly encountered in clinical practice. Realistic fractures often provide inherent stability through fragment interlocking, which can reduce the mechanical demands on the osteosynthesis plate [13]. Moreover, the size of fracture gap significantly influences load distribution, strain, and micromotion [14, 15]. Open gaps increase reliance on the plate as the primary load-bearing element, raising the risk of implant fatigue and failure. Conversely, closed gaps enable load-sharing between bone and plate, reducing plate strain and enhancing stability [1, 3].
The interplay between axial and torsional loads further complicates the mechanical behavior of these constructs under dynamic physiological conditions, such as walking. Axial loads arising from weight-bearing interact with torsional moments generated during rotational movements, producing complex loading scenarios that challenge construct stability. In vivo telemetric implant measurements by Bergmann and colleagues demonstrated that such combined axial and torsional loads occur physiologically in the femur [16]. While static loading tests have provided valuable insights, the interaction between real fracture morphologies and combined loading conditions requires further investigation [17, 18]. Understanding how fracture morphology, gap size, and working length interact under these conditions is crucial for optimizing osteosynthesis strategies in clinical practice. These parameters collectively determine construct stiffness, interfragmentary motion, and the risk of secondary displacement, which in turn influence the mechanical environment for bone healing [19, 20]. Insufficient stability may lead to loss of reduction or implant failure, whereas excessive stiffness can impair callus formation and delay union [20]. By systematically analyzing these factors under physiologically relevant load scenarios, biomechanical studies can provide evidence-based recommendations for implant selection, working length configuration, and the need for additional fixation [21, 22].
This study addresses the existing knowledge gaps, specifically the lack of research on the biomechanical effects of working length and fracture gap size in realistic fractures with interdigitated morphology compared to osteotomized fractures with planar surfaces. While numerous studies have analyzed the mechanical properties of osteosynthesis constructs in idealized, osteotomized models, there is a lack of data on the stability and load distribution in realistic fractures with irregular fragment structures. Additionally, it remains insufficiently explored how different working lengths and fracture gap sizes influence interfragmentary motion and overall construct stiffness under varying loading conditions, particularly under axial and torsional loads. Therefore, this study specifically investigates the impact of these parameters on the biomechanical performance of both fracture types across varying loading scenarios. Although axial and torsional loading alone cannot replicate the full complexity of physiological joint loading, these simplified modes were selected as standardized conditions that allow systematic comparison between osteotomized and realistic fracture morphologies. This approach isolates the effect of fracture surface geometry and working length on construct mechanics, thereby complementing the more comprehensive but less controlled loading scenarios used in cadaveric models.
It is hypothesized that the morphology of fracture surfaces substantially influences construct mechanics beyond the effect of screw configuration alone. Specifically, we expected that realistic, interdigitated fracture surfaces would exhibit direction-dependent stabilization, leading to reduced interfragmentary motion and increased torsional stiffness compared to osteotomized fractures with planar surfaces. The realistic fracture model employed here reflects a patient-derived interdigitated morphology without comminution; other realistic fracture types, such as multi-fragmentary patterns, may demonstrate very different, less stable behaviors.
Materials and methods
Specimens
Synthetic distal femora models composed of polyurethane-based bone surrogates were used in this study; they included a cortical shell and an internal trabecular structure with a medullary canal, which have been morphologically and mechanically validated against human reference femora [23, 24]. Realistic fractures were derived from patient-specific CT scans, while osteotomized fractures were created using an oscillating saw to produce uniform and reproducible flat fracture surfaces. To reproduce these realistic fractures, patient CT data were segmented and converted into 3D-printed models of the fractured distal femur. From these, silicone molds were manufactured and subsequently filled with validated fluid polyurethane-based bone materials [23, 24], allowing a faithful replication of the interdigitated fracture morphology. This procedure ensured reproducibility across specimens while preserving the complexity of a patient-specific fracture pattern [25]. The mold-based manufacturing protocol ensured that the patient-derived interdigitated fracture morphology was reproduced consistently across all specimens, with sub-millimeter variation between samples [23, 24]. Osteotomies were performed using a custom 3D-printed cutting guide with a fixed saw slot on the identical synthetic femur geometry, ensuring a repeatable cut position and orientation. The fracture line was positioned 6 cm proximal to the intercondylar notch. The realistic fracture geometry (AO/OTA 33-A3) corresponds to the patient-derived model used in an earlier publication; for the present study, a new batch of specimens was produced using the same validated manufacturing protocol [25]. In contrast to the earlier work—which maintained a fixed diaphyseal screw configuration and included combined cyclic axial and torsional loading—the current protocol systematically varies working length by sequentially reducing shaft screws from five to two under isolated axial and torsional ramps. Four experimental groups (Fig. 1) were established: an osteotomized fracture with a 5 mm gap (OG), an osteotomized fracture with a closed gap (OC), a real fracture with a 5 mm gap (RG) and a real fracture with a closed gap (RC) [25].
All specimens (n = 8 per group) were stabilized with anatomically pre-contoured 7-hole distal femur locking compression plates (LCP DF, titanium alloy, DePuy Synthes Inc., Paoli, PA, USA). Fixation was performed by an experienced trauma surgeon according to the manufacturer’s surgical technique. Distally, 5 mm self-tapping locking screws of varying lengths (DePuy Synthes, Paoli, PA, USA) were inserted in holes A, C, D, E, F, and G. In the diaphyseal segment, screws of the same type and diameter were placed in holes 2 to 6. Working length was subsequently varied by sequential removal of shaft screws as described below.
To investigate the effect of working length, the five screws in the femoral shaft of the plate were sequentially removed, starting distally and progressing proximally, until only 2 screws were left. After each adjustment, mechanical tests were repeated on the same specimen to isolate the influence of working length.

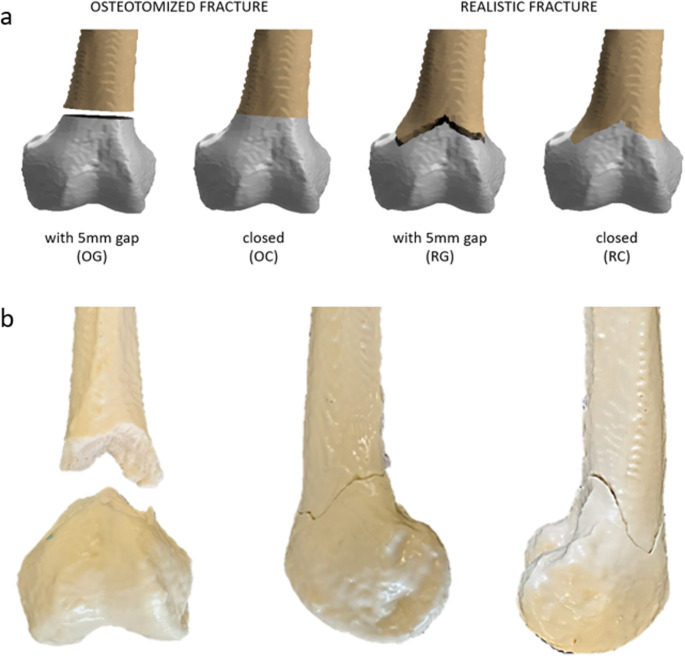

Fig. 1a: Illustration of the four femur groups: OG (osteotomized femur with a 5 mm gap), OC (osteotomized femur without a gap), RG (realistically fractured femur with a 5 mm gap), and RC (realistically fractured femur without a gap). b: Synthetic femur model with a realistic, interdigitated fracture morphology shown from anterior, lateral, and medial perspectives highlighting the complex geometry of the fracture surface
Mechanical testing
The distal and proximal bone segments were embedded in fast-curing resin (GP010, Gößl & Pfaff GmbH, Karlskron, Germany). To allow free implant movement during testing, screws and plates were covered with modeling clay (Noris Staedtler Mars GmbH & Co. Kg, Nürnberg, Germany). The distal femur was embedded at a physiological 6° valgus angle [26, 27] and secured in cardan joints proximally and distally [28] (LTM Z010, ZwickRoell GmbH & Co. KG, Ulm, Germany, Fig.2).
Axial loading was performed at a ramp rate of 0.2 mm/s until 1500 N, and torsional loading was performed at 0.15°/s up to ± 4 Nm limiting the load within the linear elastic region [25]. During torsional loading, no axial preload or displacement was applied. The specimens were kept in physiological position, and the axial axis was fixed so that pure torsional loading was introduced without any additional axial force. Positive rotation corresponds to internal rotation of the femur, while negative rotation corresponds to external rotation. The axial and torsional stiffness of each construct was calculated from slopes of the load-deformation and angle-torque curves, respectively [25].

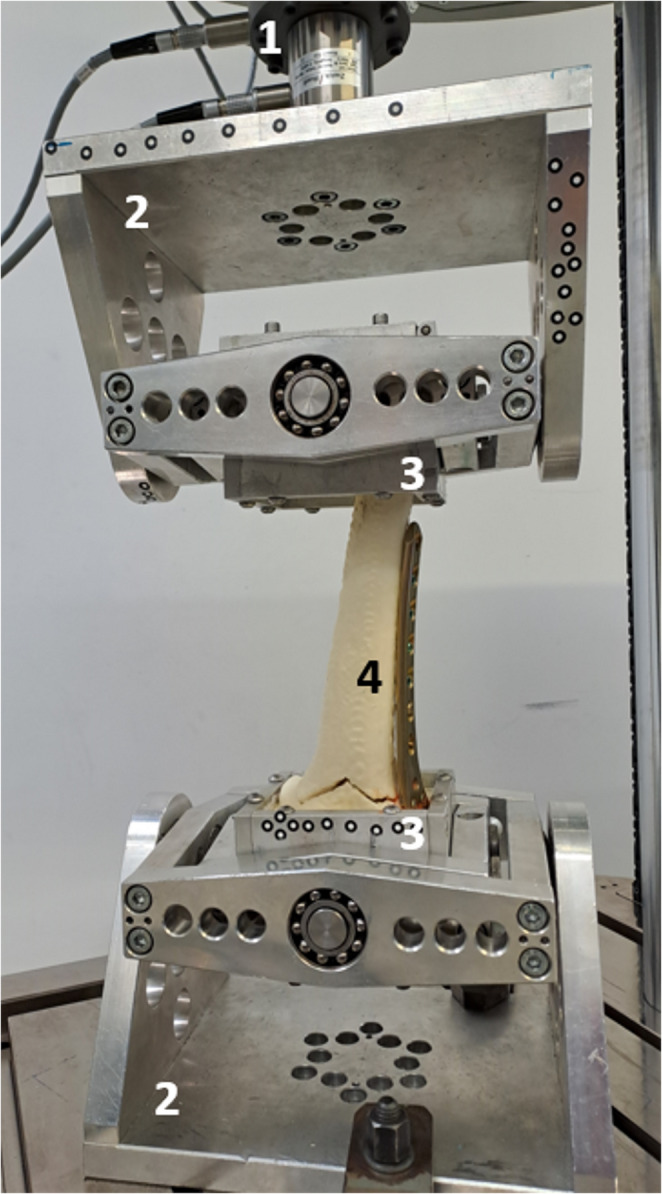

Fig. 2. Test setup (1: force/torque actuator with load cell, 2: cardan joints, 3: embedding pots, 4: bone surrogate equipped with locking plate)
Interfragmentary motion analysis
Interfragmentary motions were evaluated using a 3D optical motion capture system (ARAMIS Professional 6 M, Zeiss GOM metrology GmbH, Braunschweig, Germany). Shear motion under axial and torsional loading were assessed using adhesive optical markers placed medially, directly adjacent to the fracture gap on both fragments. For each construct, local coordinate systems were established at anatomically corresponding points on either side of the fracture gap at the most medial location on the shaft (see adhesive marker points in Fig. 3). The amount of shear was analyzed as a vector quantity describing the relative displacement between the superior marker point in the axial plane with respect to the inferior marker point.
Data analysis
Statistical analyses were performed using IBM SPSS Statistics version 26 (IBM Corp., Armonk, NY, USA). A mixed-design analysis of variance (ANOVA) was conducted to assess the effects of screw number and fracture type on axial and torsional stiffness. Mauchly’s test was used to assess the assumption of sphericity. In the event of a violation, the Greenhouse-Geisser correction was applied. Effect sizes were reported using partial eta squared (η²ₚ). The significance level was set at α = 0.05. No post-hoc analyses were conducted, as the primary focus was on overall main effects and interaction patterns.
Results
Axial construct stiffness
In two groups—OG and RG—two distinct phases were observed during axial loading. Initially, a 5 mm fracture gap was present and with increasing axial load, the gap closed and the bone fragments came into contact. Loading induced a bending of the plate and angular displacement across the fracture gap, resulting in initial fragment contact on the medial cortex, due to the lateral placement of the osteosynthesis plate. Consequently, while medial bone contact occurred, the 5 mm fracture gap on the lateral (plate) side was maintained. This transition was clearly identifiable in the force-displacement curves by a visible inflection point and a change in slope (Fig. 3). As a result, stiffness was evaluated separately for the “open” phase (before medial fragment contact, OGopen) and the “contact” phase (after medial fragment contact, OGcontact).

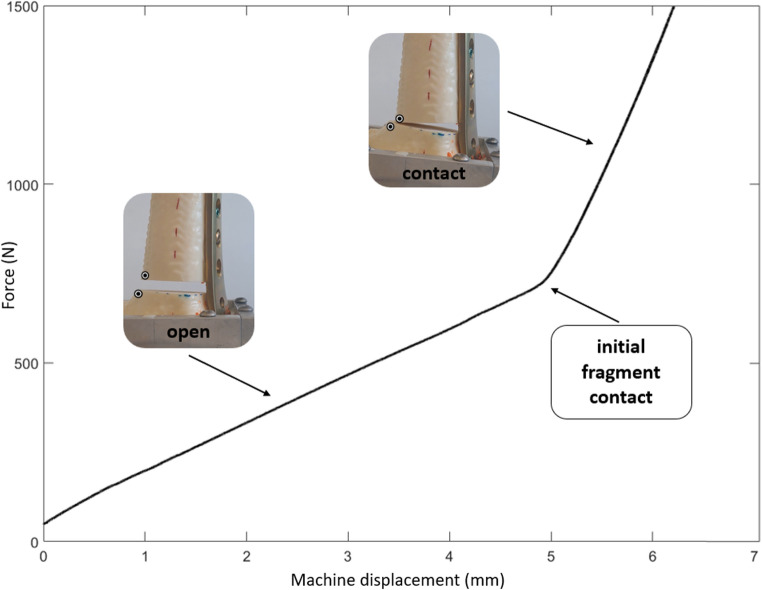

Fig. 3. Force-displacement curve and construct states during axial loading. Inflection point indicates initial medial fragment contact. Images show OG constructs in the “open” and “contact” phases. Adhesive markers indicate shear displacement measurement point on the medial cortex. A comparable two-phase behavior (open/contact) was likewise observed in torque– rotation curves under torsional loading
Axial stiffness varied across the different groups and was influenced by fracture morphology, the presence of a gap, and the increase of working length due to progressive reduction of screws in the femoral shaft (Fig. 4).
In OG before gap closure (OGopen), increasing the working length decreased stiffness from 146 N/mm to 122 N/mm (−16%). After fracture closure (OGcontact), stiffness increased significantly to 663 N/mm with five screws before decreasing to 584 N/mm with two screws (12%). OC exhibited the highest stiffness values, starting at 997 N/mm with five screws and decreasing to 785 N/mm with two screws (−21%).
In RG before gap closure (RGopen), stiffness was initially 142 N/mm and dropped to 108 N/mm (−24%) with 2 screws. After fracture closure (RGcontact), stiffness increased to 573 N/mm with five screws, then declined to 435 N/mm with two screws (24%). RC showed higher initial stiffness than RG-groups, with 792 N/mm at five screws, reducing to 621 N/mm with two screws (−22%).

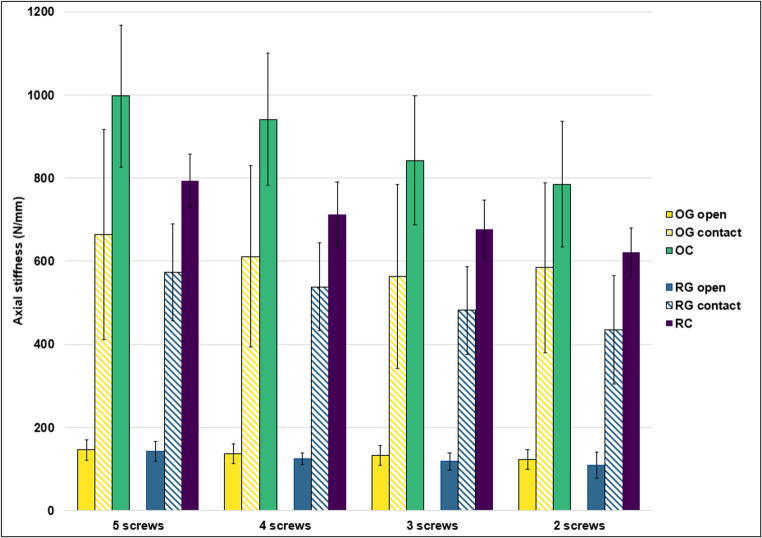

Fig. 4. Mean axial stiffness of osteosynthesis constructs under axial loading, categorized by fracture types (OG, OC, RG, RC) and working lengths of the osteosynthesis plate (determined by screw configurations ranging from 2 to 5 screws). Constructions with a gap are further divided into stiffness before fracture closure (open) and after fracture closure (contact). Whiskers indicate standard deviations
To visualize the overall reduction in axial stiffness with decreasing screw number, the percentage change from the five-screw condition was calculated for each fracture construct and summarized across all constructs at each screw level. Figure 5 displays the distribution of stiffness reduction values for 4, 3, and 2 screws, highlighting the progressive decrease in stiffness as screw count decreases, along with increasing variability across constructs.

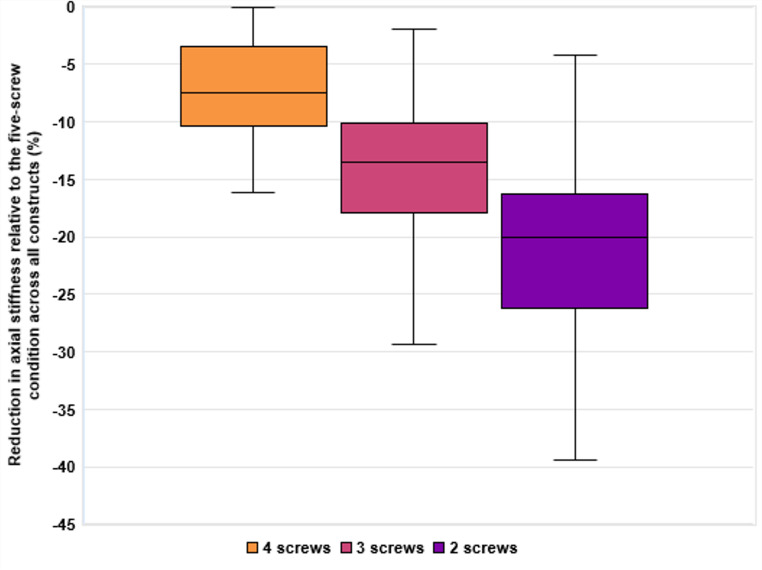

Fig. 5. Reduction in axial stiffness relative to the five-screw condition across all constructs. Values are shown as mean percentage change (%), with 100% corresponding to the stiffness measured in each construct at full diaphyseal fixation (five screws). Boxes represent the interquartile range (25th to 75th percentile), with the median indicated by a horizontal line. Whiskers extend to the minimum and maximum values within 1.5 times the interquartile range
To statistically assess the effects of construct type and screw number on axial stiffness, a mixed-design ANOVA was conducted. Mauchly’s test of sphericity was significant (W = 0.214, χ²(5) = 41.20, p < 0.001) indicating that the assumption of sphericity was violated. Therefore, results were reported using the Greenhouse-Geisser correction.
There was a significant main effect of fracture type (F(5, 42) = 32.36, p < 0.001, η²ₚ = 0.852) indicating overall differences in axial stiffness among the six fracture groups, regardless of screw number. Further, there was a significant main effect of screw number on axial stiffness, (F(1.61, 44.94) = 95.36, p < 0.001, η²ₚ = 0.773) indicating a strong effect: as the number of screws decreased, axial stiffness significantly declined. Additionally, there was a significant interaction between screw number and fracture type (F(8.03, 44.94) = 7.94, p < 0.001, η²ₚ = 0.587) suggesting that the effect of screw number on axial stiffness varied across the different fracture types.
Torsional construct stiffness
Torsional stiffness varied across the groups and was influenced by fracture morphology, the presence of a gap, and the number of screws (Fig. 6). Similar to the axial loading tests in the OG and RG groups, where increasing load resulted in fracture gap closure and fragment contact, a comparable phenomenon was observed during torsional loading in the RG group (real fracture with gap). As external rotation progressed, the fracture fragments gradually came into contact. This transition was clearly reflected in the torque-rotation curves by a distinct increase in slope, indicating a higher torsional stiffness once contact was established. Therefore, torsional stiffness in the RG group was evaluated separately for the “open” phase (prior to fragment contact) and the “contact” phase (after contact had occurred). This contact-related increase in stiffness was not observed in the internal rotation direction, likely due to the asymmetrical orientation of the fracture lines in the realistic fracture model. The steeper configuration of the fracture surfaces in one direction promoted interlocking under external rotation, while in the internal direction the fragments remained unconstrained throughout the loading cycle.
In OG, the increase in working length decreased external rotation stiffness from 3.05 Nm/° to 1.88 Nm/° - (38%), while internal rotation stiffness declined from 2.84 Nm/° to 1.72 Nm/° (− 39%). In OC the increase in working length decreased external rotation stiffness from 3.75 Nm/° to 1.84 Nm/° (− 51%) and internal rotation stiffness from 3.32 Nm/° to 1.84 Nm/° (− 45%).
In RG, external rotation stiffness was evaluated separately for the open and contact phases. In the open phase (RGopen), stiffness decreased from 3.01 Nm/° to 1.80 Nm/° (−40%), while in the contact phase (RGcontact), it declined from 4.74 Nm/° to 3.37 Nm/° (−29%). Internal rotation stiffness decreased from 2.83 Nm/° to 1.69 Nm/° (−40%). RC exhibited the highest torsional stiffness, with external rotation dropping from 7.40 Nm/° to 4.71 Nm/° (−36%) and internal rotation from 5.84 Nm/° to 3.06 Nm/° (−48%).

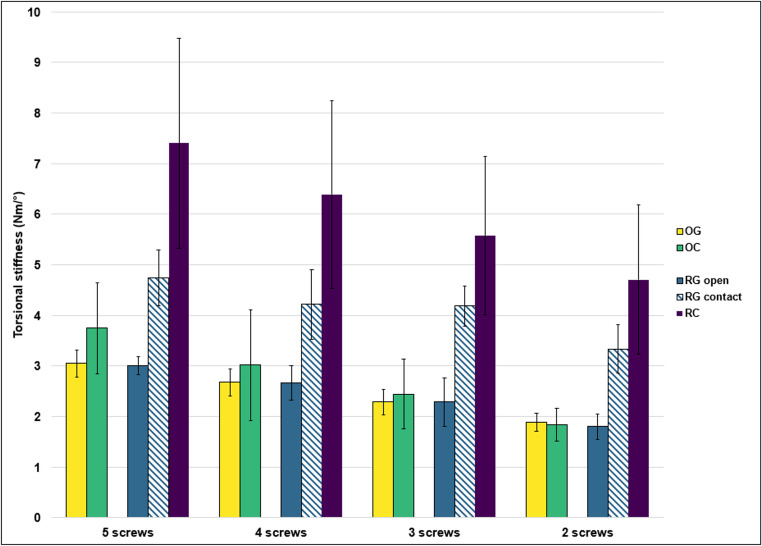

Fig. 6. Mean external torsional stiffness of osteosynthesis constructs under torsional loading, categorized by fracture types (OG, CC, RG, RC) and working lengths of the osteosynthesis plate (determined by screw configurations ranging from 2 to 5 screws). Realistic fracture with gap (RG) was further divided into stiffness before fracture closure (open) and after fracture closure (contact). Whiskers represent standard deviations

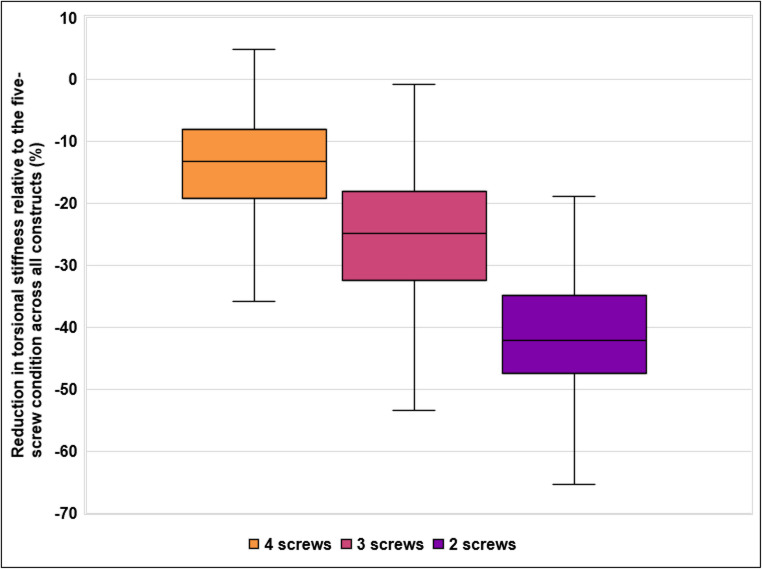

Fig. 7. Reduction in torsional stiffness relative to the five-screw condition across all constructs. Values are shown as mean percentage change (%), with 100% corresponding to the stiffness measured in each construct at full diaphyseal fixation (five screws). Boxes represent the interquartile range (25th to 75th percentile), with the median indicated by a horizontal line. Whiskers extend to the minimum and maximum values within 1.5 times the interquartile range
To visualize the overall reduction in torsional stiffness with decreasing screw number, the percentage change from the five-screw condition was calculated for each construct and summarized across all constructs at each screw level. Figure 7 displays the distribution of torsional stiffness reduction for 4, 3, and 2 screws, showing a progressive decline in torsional stiffness across constructs with fewer screws.
These observed differences in torsional stiffness were statistically confirmed by repeated-measures analysis of variance. Mauchly’s test of sphericity was violated for the factor screw number (W = 0.065, χ²(5) = 53.77, p < 0.001). Therefore, Greenhouse-Geisser corrections were applied where appropriate.
There was a significant main effect of the fracture construct (F(3, 21) = 22.46, p < 0.001, η²ₚ = 0.762) indicating that torsional stiffness differed significantly between constructs. A significant main effect of screw number was observed (F(1.24, 26.04) = 8.01, p = 0.006, η²ₚ = 0.276) as well as a significant screw - fracture construct interaction (F(3.72, 26.04) = 11.27, p < 0.001, η²ₚ = 0.617) suggesting that the effect of screw reduction varied across constructs.
Shear motion
Under axial loading, the direction and magnitude of resultant shear vectors varied with construct type and screw configuration (Fig. 8). OC showed consistently small vectors, shifting from medial-posterior to lateral-anterior with reduced screw number. RC vectors remained posterior-lateral with minimal change in magnitude, reflecting constant stability due to fragment interlocking and absence of a gap. Constructs with fracture gaps (OG and RG) displayed larger and more variable shear displacements. OG shifted from medial-posterior to posterior with fewer screws. In the RG group, increasing working length was associated with a progression of shear vectors from anterolateral to posterolateral directions, accompanied by a rise in magnitude. This pattern indicates sliding along the anatomically realistic fracture surface, suggesting that specific fracture geometries may promote shear displacement between fragments.

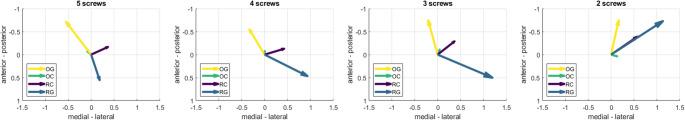

Fig. 8. Resultant shear vectors under axial loading for all constructs across screw configurations. Vector direction and length represent the orientation and magnitude (in mm) of medial shear displacement
Under torsional loading, shear vector orientation was consistent across constructs (Fig. 9). External rotation produced medially-posterior displacement, while internal rotation resulted in lateral-anterior pointing vectors. RC showed the lowest shear displacement due to fracture interlocking, followed by OC. RG and OG had greater vector magnitudes, with RG showing the highest displacement from four screws onward.

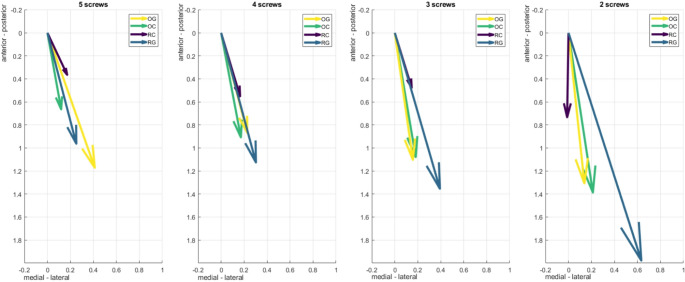

Fig. 9. Resultant shear vectors under torsional loading for all constructs and screw configurations. Vector direction and length represent orientation and magnitude (in mm) of shear displacement during internal rotation
