Simulated Moving Bed Process for CO2 Capture from Humid Postcombustion Flue Gases Using MUF-16
Akriti Sarswat, Yoseph A. Guta, Mario Zorrilla-Valtierra, Anthony Cochran, Suhyun Kim, David S. Sholl, Ryan P. Lively
TL;DR
A new simulated moving bed process using MUF-16 captures CO2 from humid flue gas efficiently without needing extra drying steps.
Contribution
A modified SMB process using MUF-16 for CO2 capture from humid flue gas is proposed, eliminating the need for a separate desiccant bed.
Findings
MUF-16 shows high CO2 selectivity over N2 and no CO2-water competition at relevant humidities.
The proposed SMB design uses feed N2 as a desorbent for water, simplifying the process.
Single-column experiments confirm MUF-16's suitability for CO2 separation in the SMB setup.
Abstract
Simulated moving bed (SMB) designs are increasingly being adapted for the separation of multicomponent gaseous mixtures. In this work, we develop a modified SMB process for capturing CO2 from humid postcombustion flue gas using MUF-16 (MUF = Massey University Framework). MUF-16 shows excellent selectivity for CO2 over N2, moderate heats of adsorption for CO2 and H2O, and no competitive sorption of CO2 over water at relative humidities relevant to postcombustion capture. We utilize these characteristics to propose a continuous process that uses N2 from the feed as the desorbent for the water, eliminating the need for a separate desiccant bed and allowing for localized heating during desorption for H2O-saturated MOF beds. Single-component isotherms, single-column breakthrough experiments, and SO2 stability tests suggest the excellent suitability of MUF-16 to this separation via the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

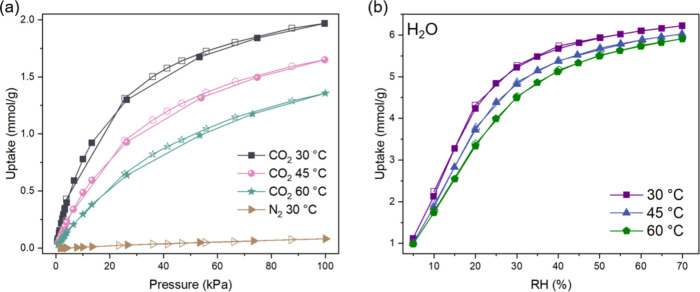

Figure 1

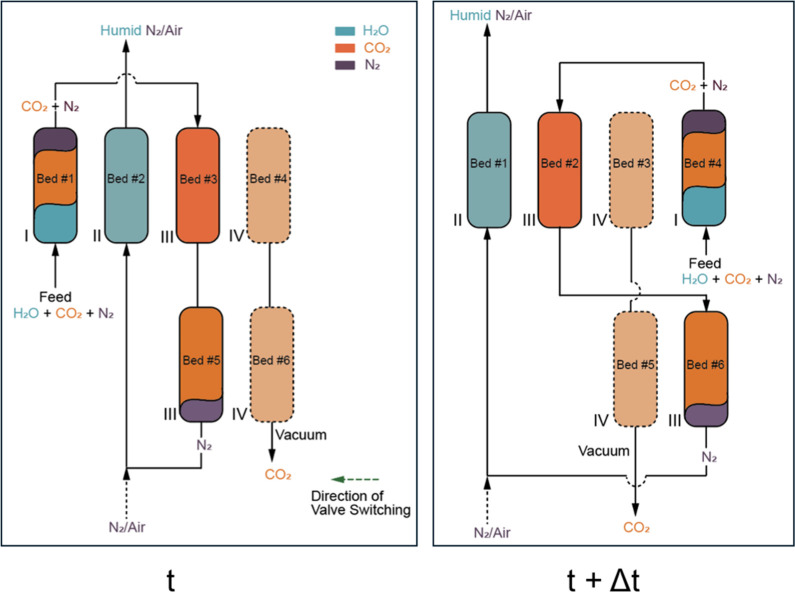

Figure 2

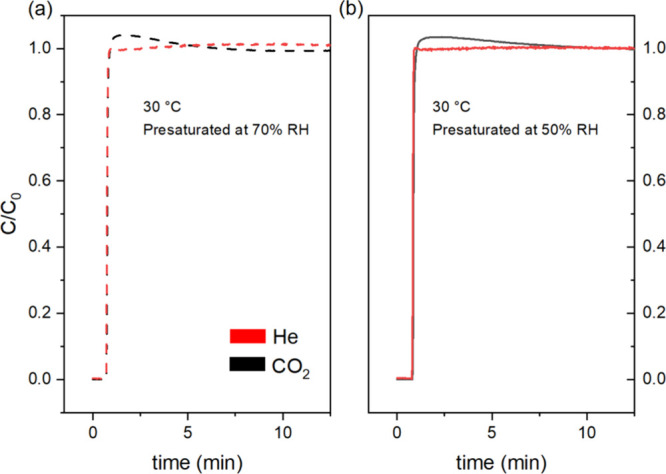

Figure 3

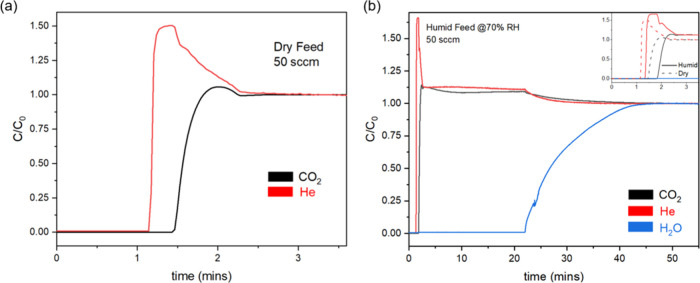

Figure 4

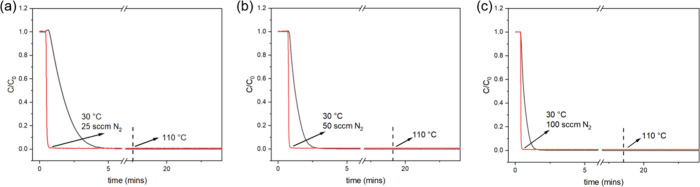

Figure 5

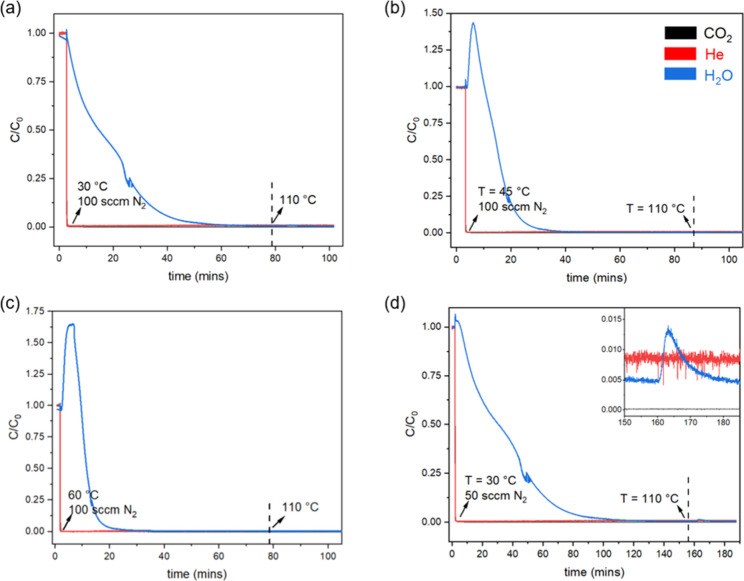

Figure 6

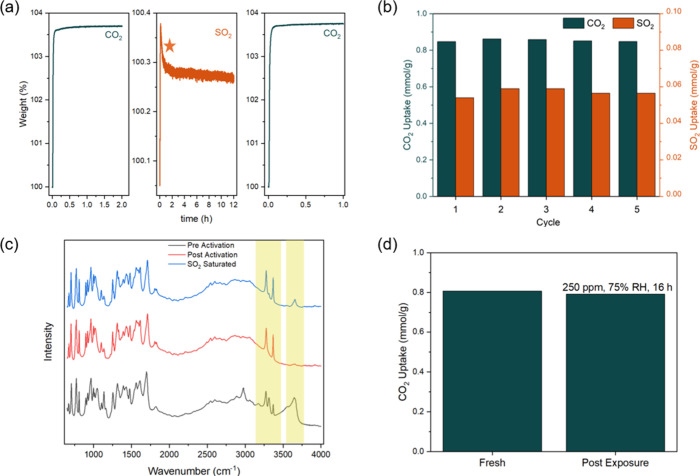

Figure 7

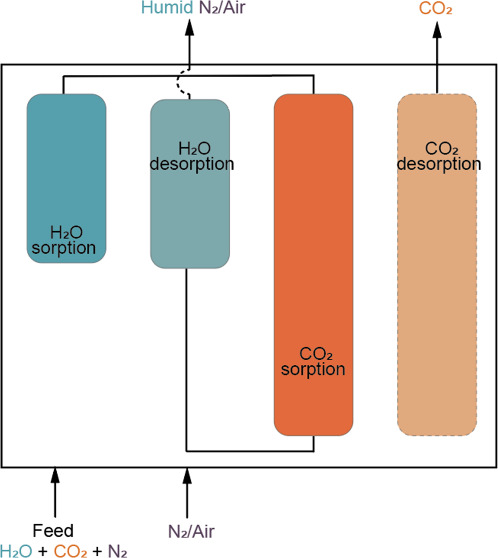

Figure 8
Figure 9
Figure 10Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCarbon Dioxide Capture Technologies · Industrial Gas Emission Control · Adsorption and Cooling Systems
