Electronic equivalent of a mechanical impact oscillator
Volodymyr Denysenko, Marek Balcerzak, Artur Dabrowski
TL;DR
Researchers designed an electronic circuit that mimics the behavior of a mechanical impact oscillator with elastic collisions.
Contribution
A novel electronic circuit is introduced that replicates the dynamics of a mechanical discontinuous impact oscillator.
Findings
The governing equations of the circuit were derived to match the mechanical system's behavior.
Simulations showed strong agreement between the electronic and mechanical models in both single and coupled configurations.
Abstract
This study proposes a novel electronic circuit design that accurately replicates the dynamics of a mechanical discontinuous impact oscillator characterized by hard elastic impacts. The governing equations of the circuit are systematically derived to establish its equivalence with the mechanical system. Numerical simulations are conducted for both single and coupled configurations, demonstrating a high degree of agreement between the electronic and mechanical models. The online version contains supplementary material available at 10.1038/s41598-025-23489-8.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

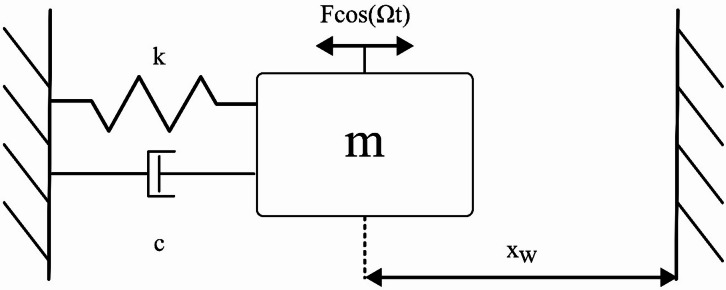

Figure 1

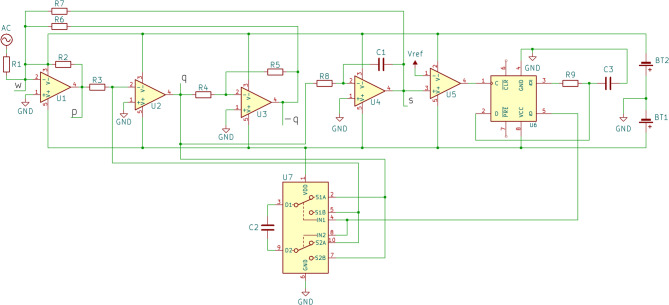

Figure 2

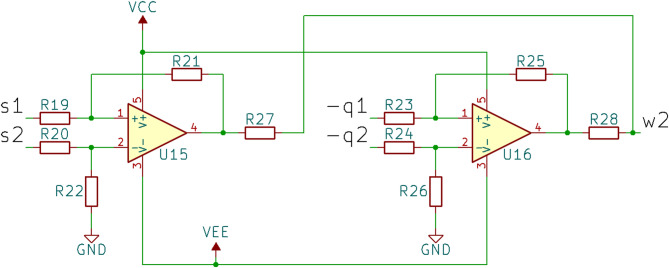

Figure 3

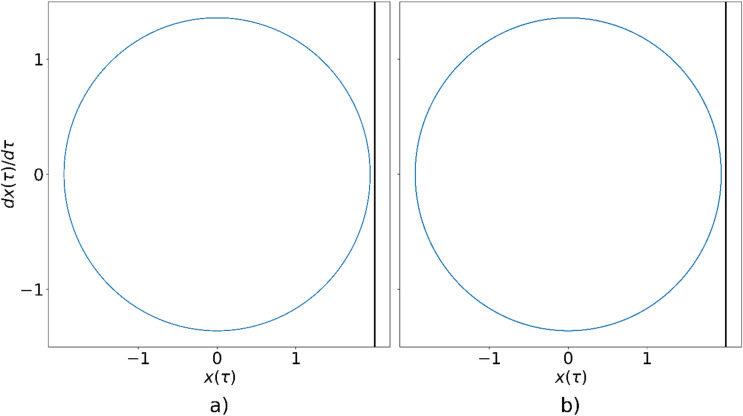

Figure 4

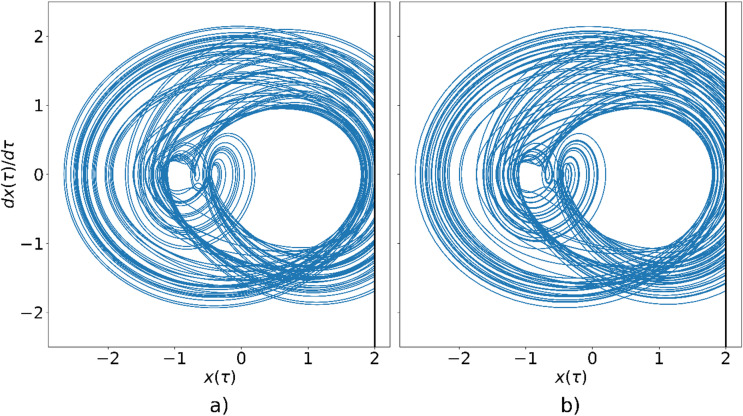

Figure 5

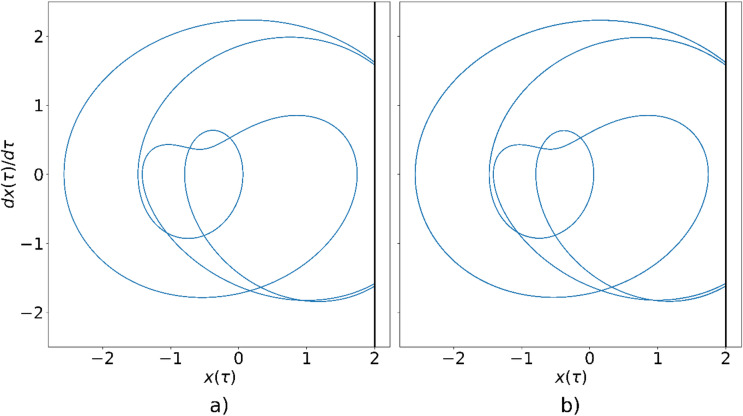

Figure 6

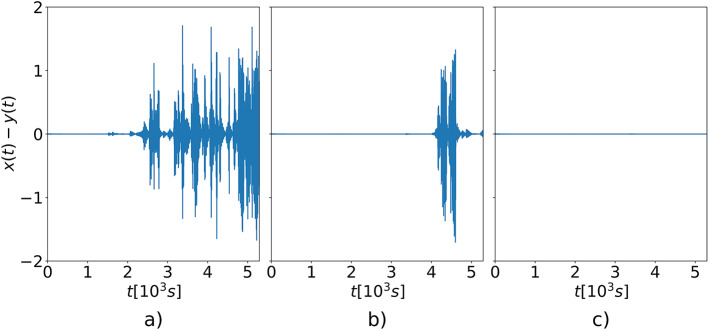

Figure 7Peer Reviews
