Comparison of biomechanical behavior between flat head screw and tapered head screw in internal-hex implant-abutment connection

TL;DR

This study compares the performance of flat and tapered head screws in dental implants, finding that tapered heads perform better biomechanically.

Contribution

The study introduces a novel comparison of flat and tapered screw head configurations in implant-abutment connections using mechanical and finite element analysis.

Findings

Flat head screws showed significantly lower removal torque values compared to tapered head screws.

Flat head screws exhibited greater stress concentration and more wear after mechanical cycling.

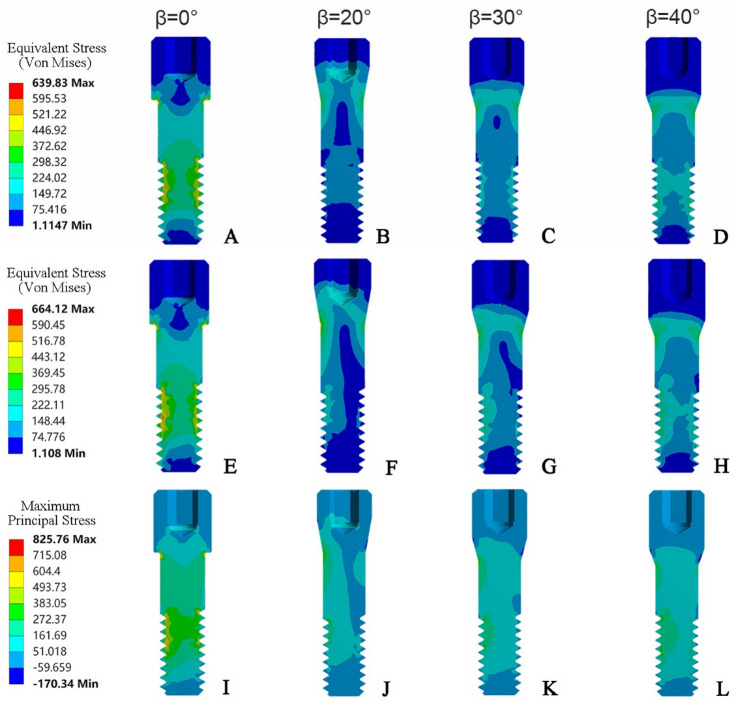

FEA results showed higher stress and torsion in flat head screws compared to tapered ones.

Abstract

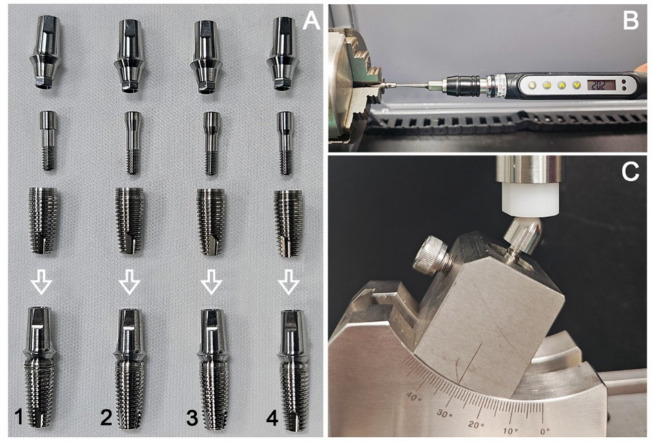

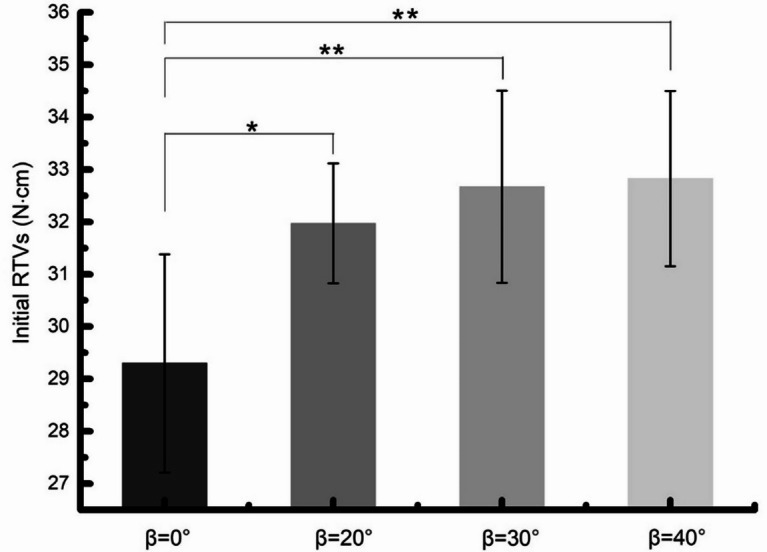

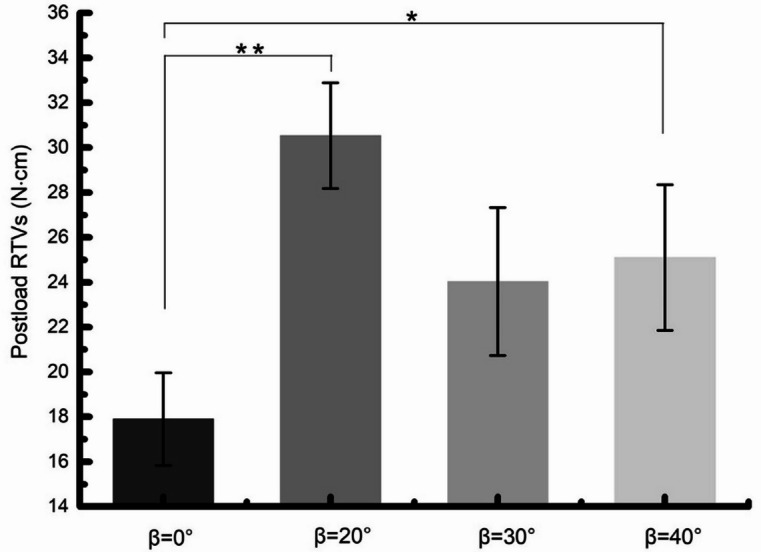

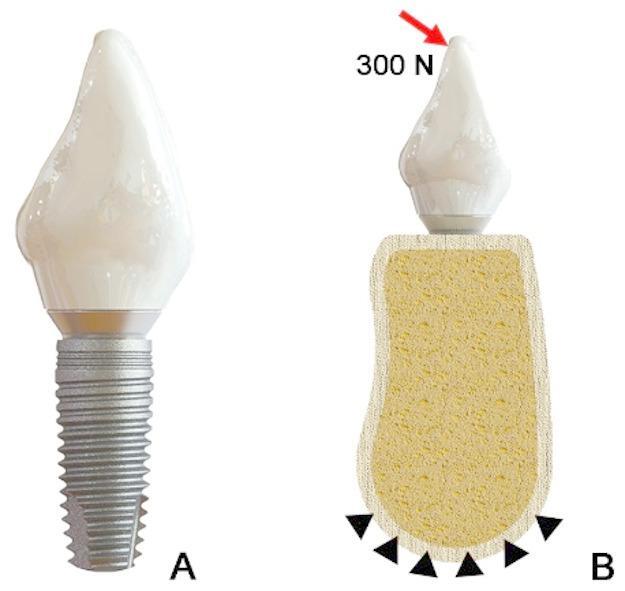

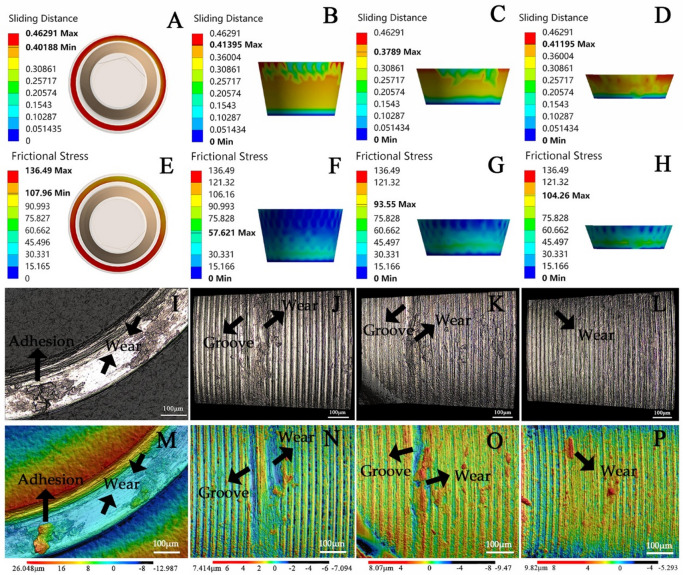

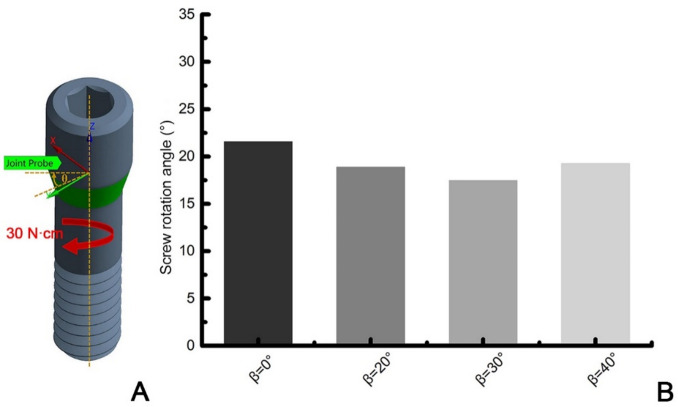

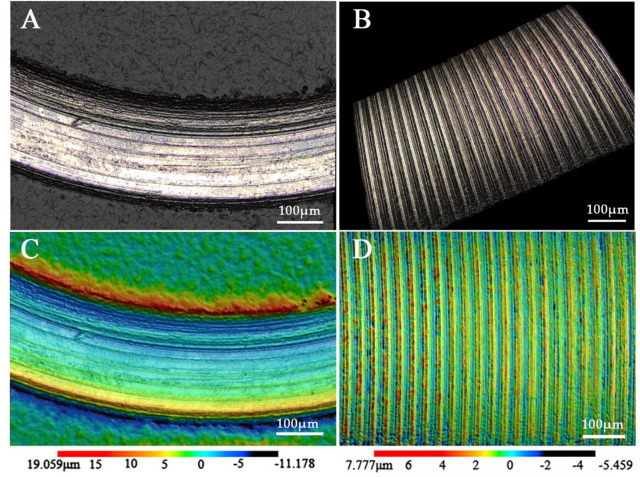

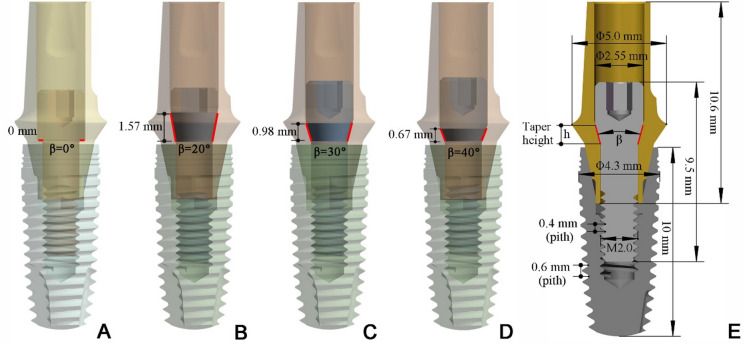

This investigation aimed to evaluate the screw head configuration on its biomechanical performance. Forty-eight screws specimens with four different screw head conical surface opening angle (β) were divided in four groups (n = 12): flat screw head (FHS) with β = 0°, and tapered screw head (THS) with β = 20°, 30°, and 40°. A preload torque of 35 N·cm was applied to fasten the implant-abutment assembly. The initial removal torque values (RTVs) of half the samples in each group were measured. The remaining specimens were then subjected to fatigue tests and the postload RTVs were measured. Furthermore, four 3D prosthesis models were established for FE analysis. The results suggested that the initial and postload RTVs of FHS groups were significantly lower than THS groups (P < .05). After mechanical cycling, the original regular raised texture features on screw head surface in FHS group were almost removed and transferred, while linear grooves appeared near the bottom of the screw head cone in THS group. The FEA results indicated that the highest stress magnitude and maximum torsion angle of the screws occurred in the FHS group. In contrast, the flat-head screw exhibited larger torque loss, greater stress concentration and more severe friction and wear.
