Array-Patterned Anisotropic Conductive Films for High Precision Circuit Interconnection

TL;DR

Researchers developed a new type of conductive film with precisely arranged particles to improve high-precision circuit bonding.

Contribution

The study introduces array-patterned anisotropic conductive films with aligned particles for better bonding accuracy.

Findings

Array-patterned ACFs achieved a 6.6 μm particle spacing in adhesive films.

The new ACFs successfully bonded circuits with 40 μm spacing and showed improved reliability.

The ACFs outperformed traditional ACFs in precision and reliability under harsh conditions.

Abstract

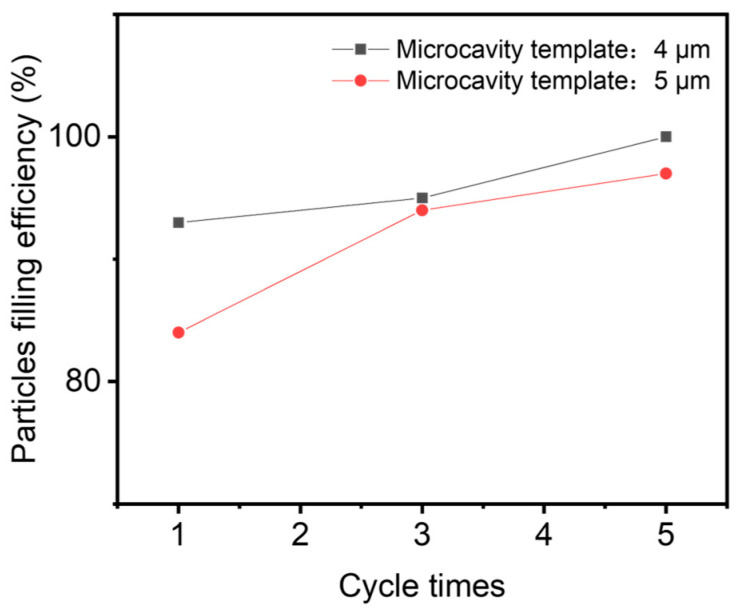

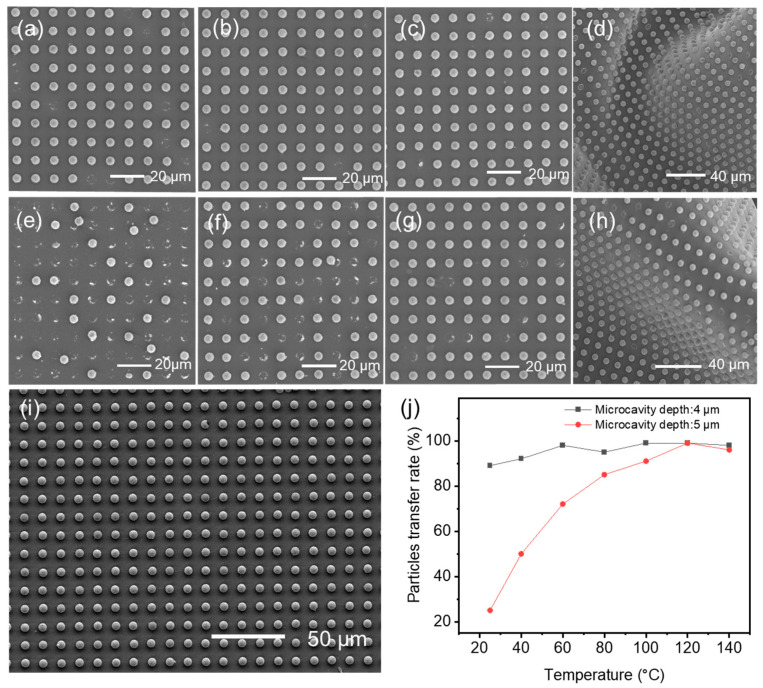

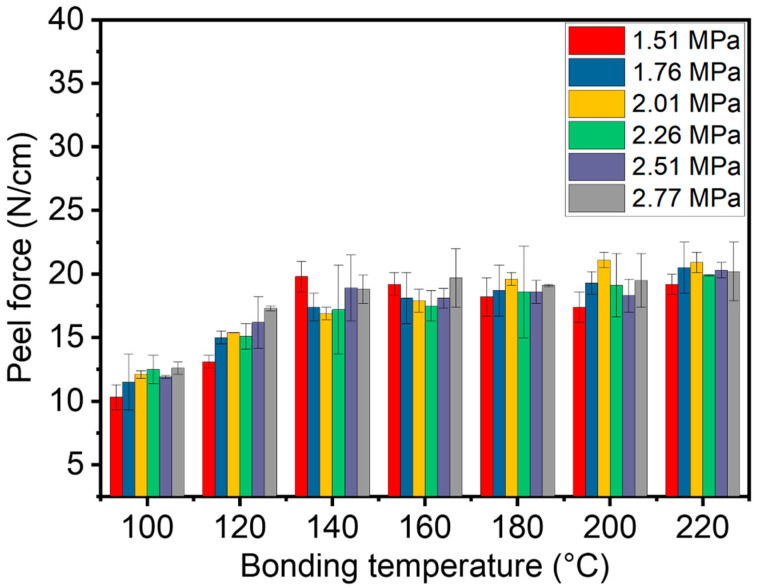

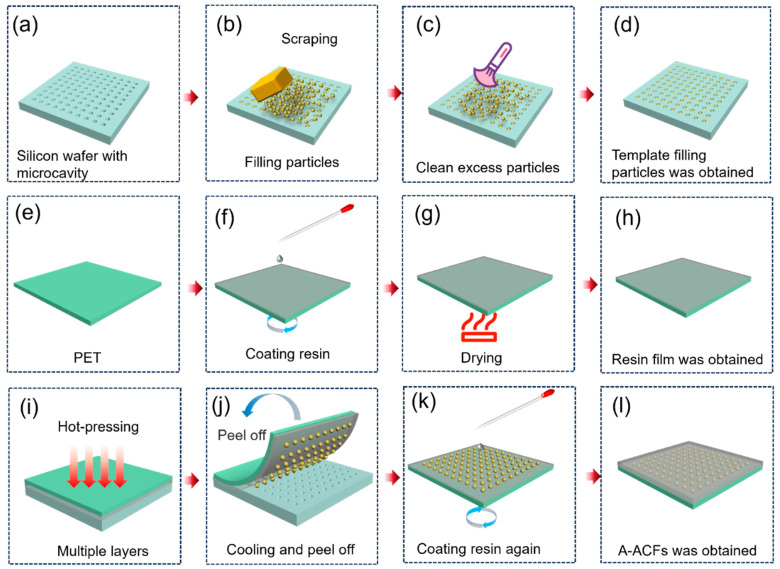

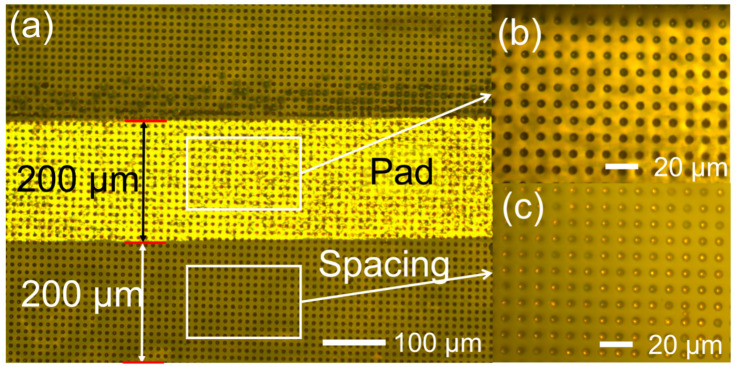

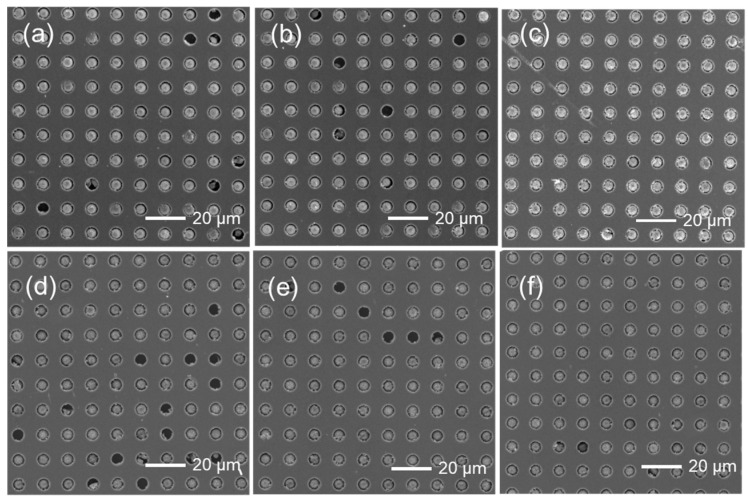

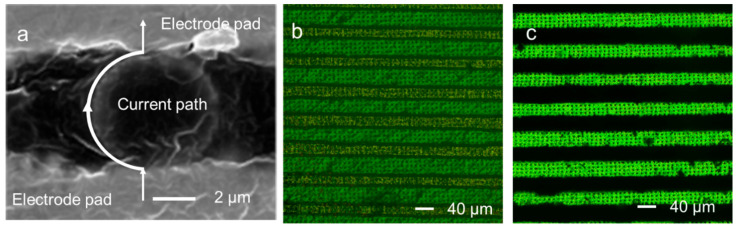

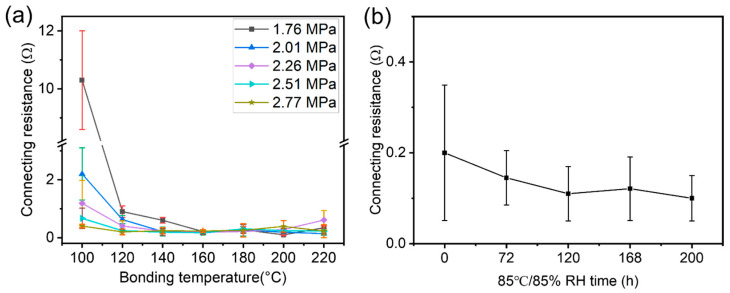

Anisotropic conductive films (ACFs) are widely used for circuit interconnection due to their easy use, low temperature bonding, higher precision than soldering and eco-friendliness. However, current ACFs are generally prepared by randomly distributing conductive particles into suitable resins. The ACFs prepared by this approach have risks to result in shortcut when applied for high precision bonding (<100 μm). In order to alleviate this problem, we designed and prepared a new kind of ACFs with conducting particles well aligned in adhesive film, which is named as array-patterned ACFs (A-ACFs). A template with 12 μm periodic microcavities was prepared and used to load 5.4 μm silver-coated polystyrene particles. Through a series of process optimizations including particles-filling cycles and particles-transferring-pressure/temperature into the used polyurethane (PU) adhesive, well-aligned particles with a spacing of 6.6 μm in the PU film was obtained. Such prepared A-ACFs were used to bond two flexible printed circuits (FPC) not only with a spacing of 200 μm (FPC-200) but also with 40 μm (FPC-40). The bonding conditions including temperature and pressure for the FPC-200 connections were investigated in detail. The connecting resistance, insulation resistance, peeling force, and the particles’ morphologies between the bonded FPCs were investigated. The reliability of the two bonded FPCs were tested under 85 °C and 85% relative humidity. Results showed that the new kinds of A-ACFs are suitable for achieving high precision circuits bonding and show better accuracy than those of traditional ACFs (T-ACFs). Thus, this study might have new insight for designing A-ACFs and great potential for applications in high-precision devices.
