A Switched-Line True Time Delay Unit for Wideband Phased Arrays Using Packaged RF MEMS Switches
David W. K. Thomas, Kai Wu, Y. Jay Guo
TL;DR
This paper introduces a new RF MEMS-based time delay unit for wideband phased arrays, using off-the-shelf components and standard PCB processes.
Contribution
A practical, scalable RF MEMS-based TDU using commercial components and standard PCB fabrication is demonstrated for the first time.
Findings
The TDU operates from 0.4 to 6 GHz with a delay range of 0–413 ps and an average insertion loss of 1.5 dB.
The design achieves a delay error below 18.4 ps and a figure of merit of 152.8 ps/dB.
A refined switch/termination model aligns simulations with measurements, validating the design.
Abstract
The growing demand for wideband electronically scanned arrays (ESAs) in next-generation radar, satellite, and 5G/6G systems has renewed interest in true time delay units (TDUs) to overcome the limitations of phase-based beamforming. In parallel, recent advances in the commercial availability and reliability of packaged RF MEMS switches have enabled practical hardware implementations once considered infeasible. This paper presents the design, fabrication, and experimental validation of a broadband, 4-bit switched-line TDU using only off-the-shelf components and standard PCB processes. The unit operates from 0.4 to 6 GHz, with a total delay range of 0–413 ps, achieving an average insertion loss of 1.5 dB and delay error below 18.4 ps, resulting in a figure of merit (FOM) of 152.8 ps/dB. Measured results are reported alongside a refined switch/termination model that aligns simulations with…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

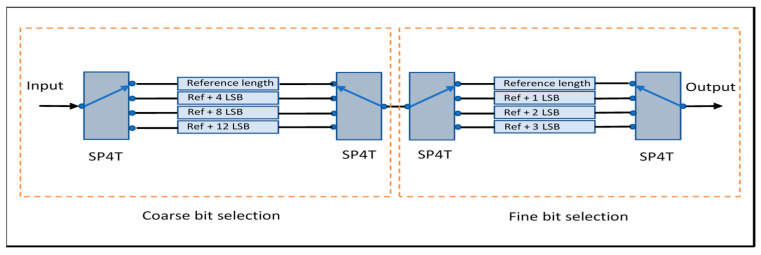

Figure 1

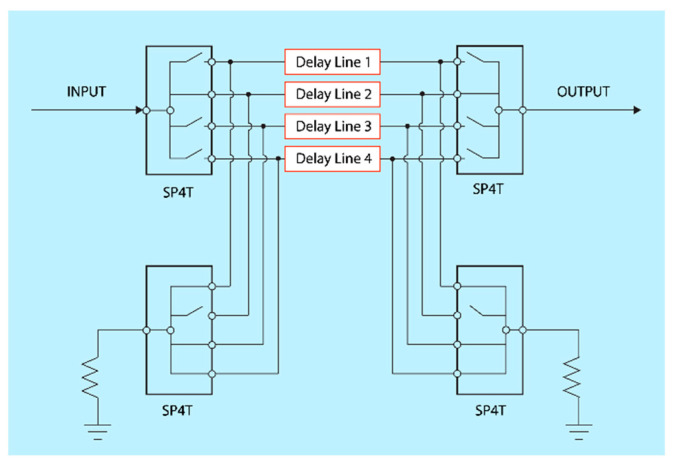

Figure 2

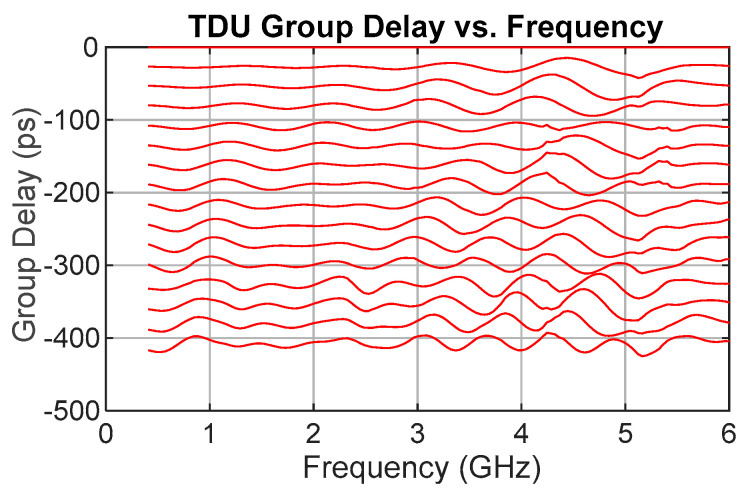

Figure 3
Figure 4

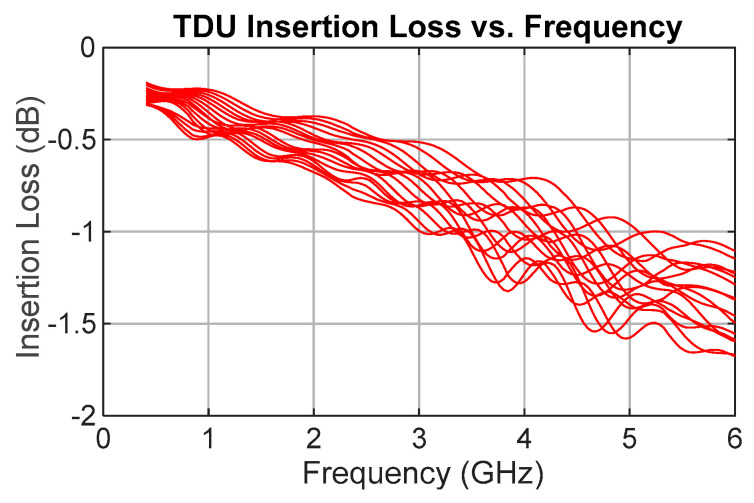

Figure 5

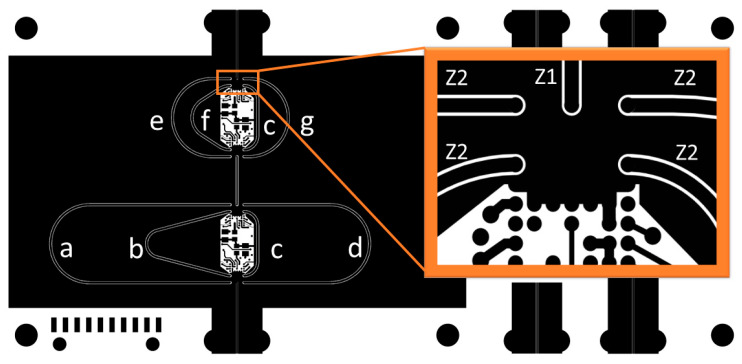

Figure 6

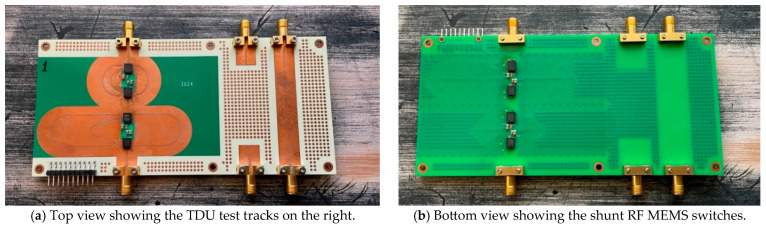

Figure 7

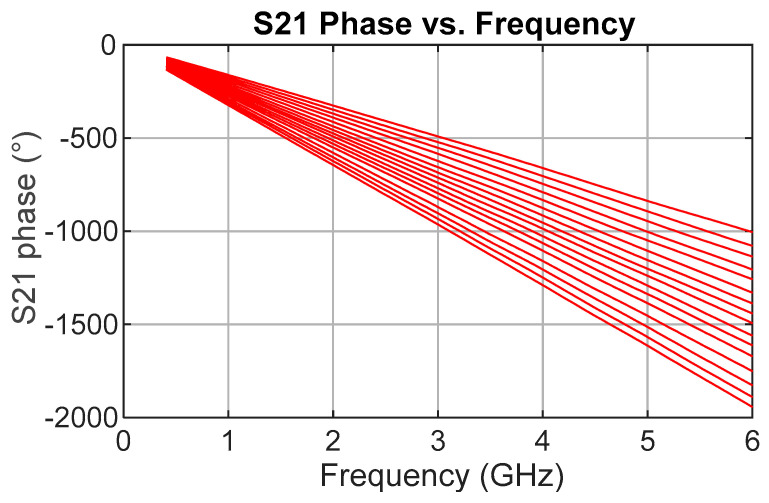

Figure 8

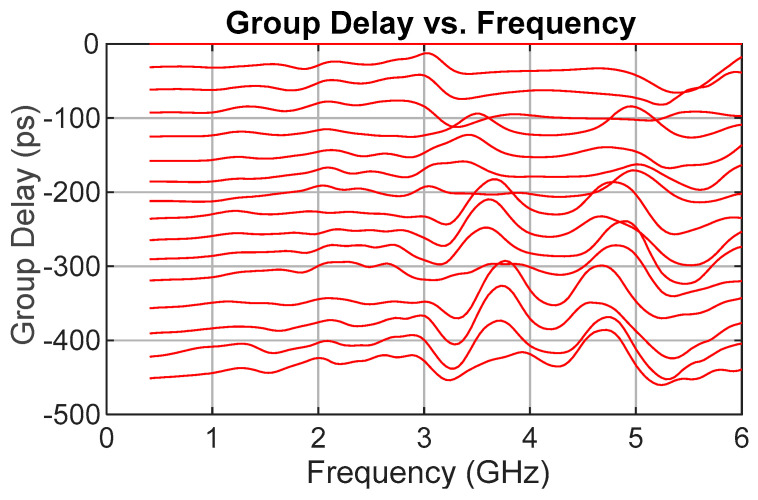

Figure 9

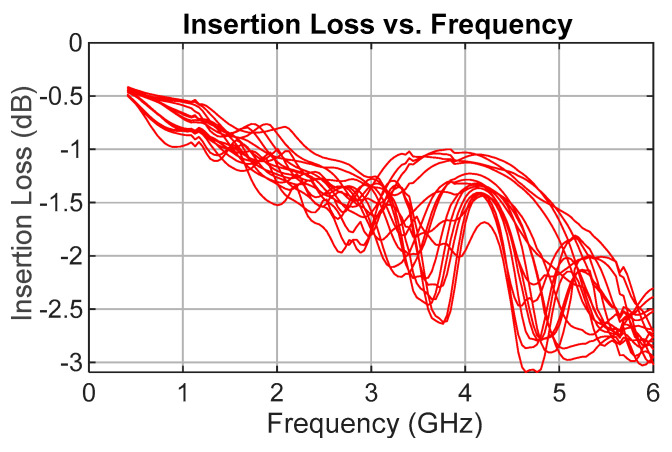

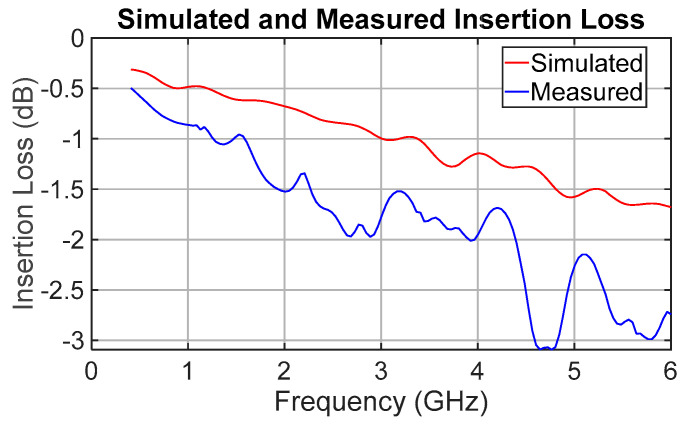

Figure 10

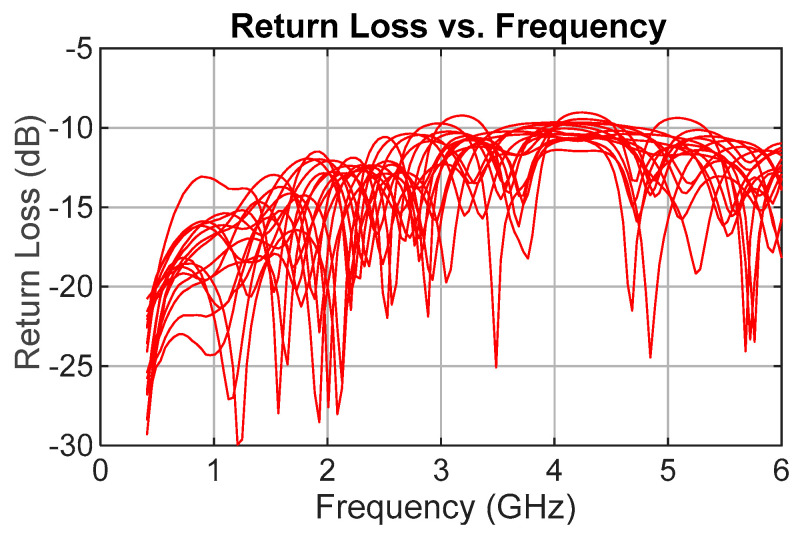

Figure 11

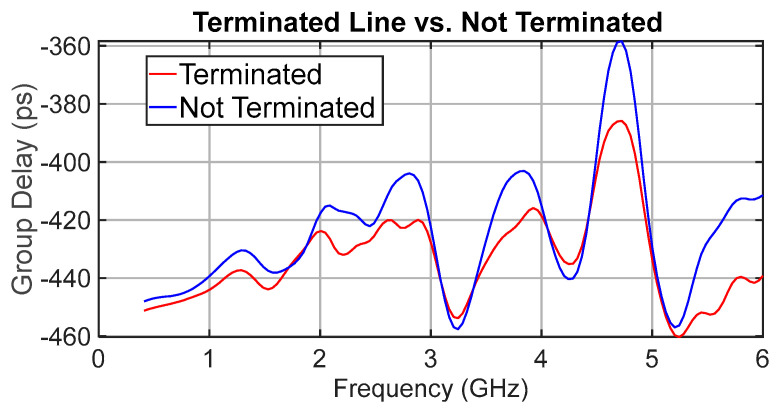

Figure 12

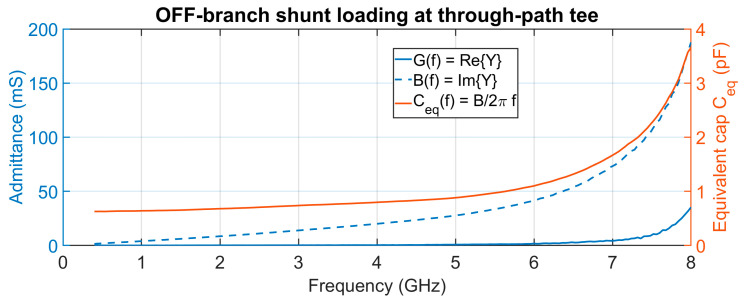

Figure 13

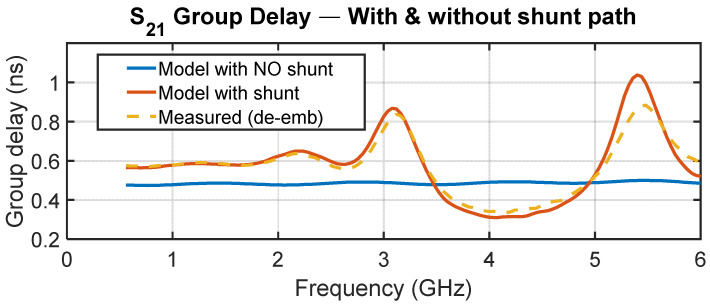

Figure 14Peer Reviews
