Non-Invasive Regional Neurochemical Profiling of Zebrafish Brain Using Localized Magnetic Resonance Spectroscopy at 28.2 T

TL;DR

This study uses ultra-high-field MRI to non-invasively analyze the brain chemistry of zebrafish with high precision, enabling detailed insights into regional neurochemical differences.

Contribution

The study pioneers the use of 28.2 T localized 1H MRS for high-resolution neurochemical profiling in zebrafish brains.

Findings

High-resolution metabolite spectra were obtained from zebrafish brain regions as small as 125 nL.

Major brain metabolites like lactate, glutamate, and GABA were identified and quantified with remarkable clarity.

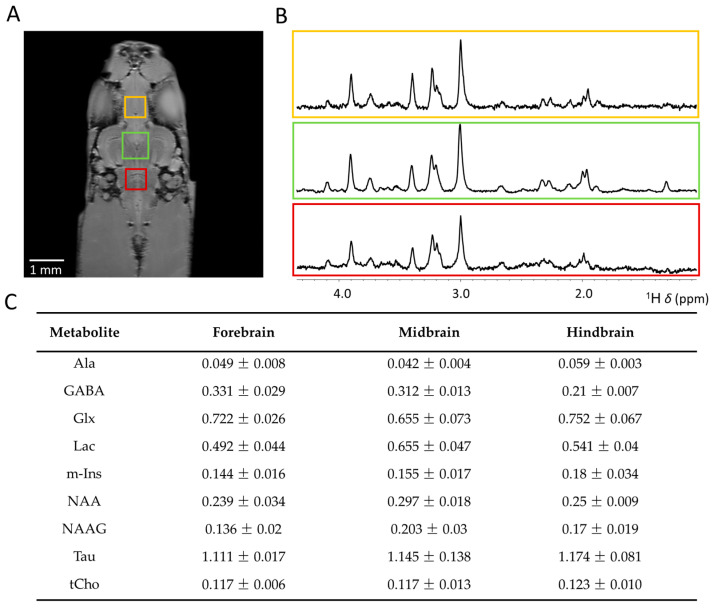

Distinct neurochemical profiles were observed across the forebrain, midbrain, and hindbrain.

Abstract

Localized 1H magnetic resonance spectroscopy (MRS) is a powerful tool in pre-clinical and clinical neurological research, offering non-invasive insight into neurochemical composition in localized brain regions. Zebrafish (Danio rerio) are increasingly being utilized as models in neurological disorder research, providing valuable insights into disease mechanisms. However, the small size of the zebrafish brain and limited MRS sensitivity at low magnetic fields hinder comprehensive neurochemical analysis of localized brain regions. Here, we investigate the potential of ultra-high-field (UHF) MR systems, particularly 28.2 T, for this purpose. This present study pioneers the application of localized 1H spectroscopy in zebrafish brain at 28.2 T. Point resolved spectroscopy (PRESS) sequence parameters were optimized to reduce the impact of chemical shift displacement error and to enable molecular level information from distinct brain regions. Optimized parameters included gradient strength, excitation frequency, echo time, and voxel volume specifically targeting the 0–4.5 ppm chemical shift regions. Exceptionally high-resolution cerebral metabolite spectra were successfully acquired from localized regions of the zebrafish brain in voxels as small as 125 nL, allowing for the identification and quantification of major brain metabolites with remarkable spectral clarity, including lactate, myo-inositol, creatine, alanine, glutamate, glutamine, choline (phosphocholine + glycerol-phospho-choline), taurine, aspartate, N-acetylaspartyl-glutamate (NAAG), N-acetylaspartate (NAA), and γ-aminobutyric acid (GABA). The unprecedented spatial resolution achieved in a small model organism enabled detailed comparisons of the neurochemical composition across distinct zebrafish brain regions, including the forebrain, midbrain, and hindbrain. This level of precision opens exciting new opportunities to investigate how specific diseases in zebrafish models influence the neurochemical composition of specific brain areas.

Figures
