Influence of Pure Aluminum and 7075 Aluminum Alloy Powder Interlayers on the Microstructural and Mechanical Properties of Diffusion-Bonded 7B04 Aluminum Alloy Joints
Ning Wang, Chunbo Li, Lansheng Xie, Minghe Chen
TL;DR
Using aluminum and 7075 alloy powder interlayers improves the bonding quality and strength of aluminum alloy joints at lower temperatures.
Contribution
Demonstrates that powder interlayers enhance diffusion bonding of 7B04 aluminum alloy joints with reduced temperature and improved mechanical properties.
Findings
Using 45 μm and 75 μm 7075 powders increased lap shear strength compared to 5 μm 7075 powder.

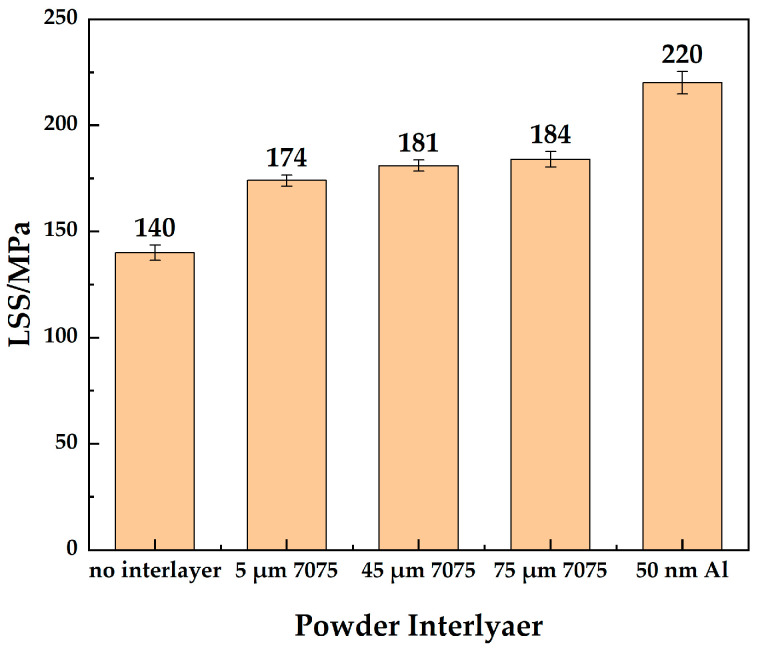

A 50 nm Al powder interlayer achieved a maximum lap shear strength of 220 MPa.
Mixed Al/7075 powder interlayers reduced voids at the joint interface, improving strength.
Abstract
Diffusion bonding (DB) of aluminum alloys faces significant technical challenges, requiring thorough surface preparation and precise control of process parameters. To enhance the joint quality of 7B04 aluminum alloy sheets, pure aluminum (Al) and 7075 aluminum alloy powders were used as interlayers. In the DB experiments, nano-sized Al powder and micro-sized 7075 powders with different particle sizes served as interlayer materials. Compared to DB without an interlayer, using powder interlayers substantially reduced the bonding temperature while improving overall joint performance, with deformation kept below 6%. The lap shear strength (LSS) of the bonded 7B04 joints was significantly higher when 45 μm and 75 μm 7075 powders were used, compared to the 5 μm 7075 powder. The joint with a 50 nm Al powder interlayer achieved a maximum LSS of up to 220 MPa and exhibited considerably higher…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

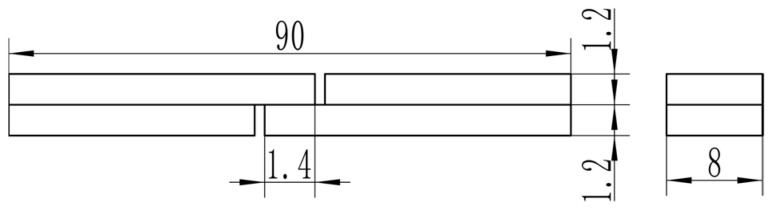

Figure 1

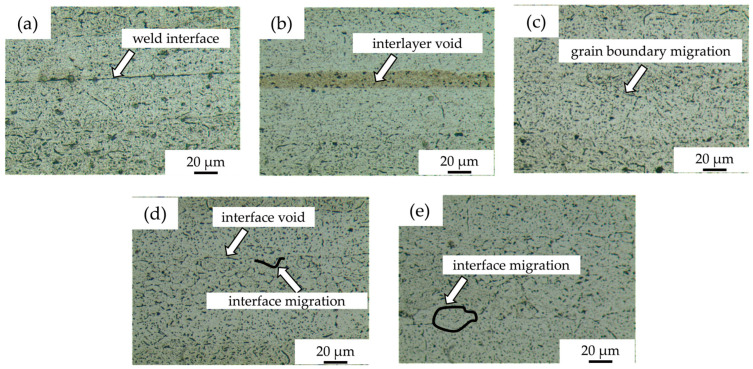

Figure 2

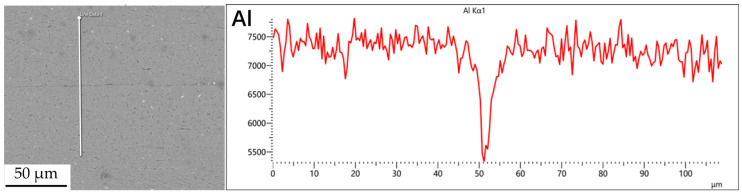

Figure 3

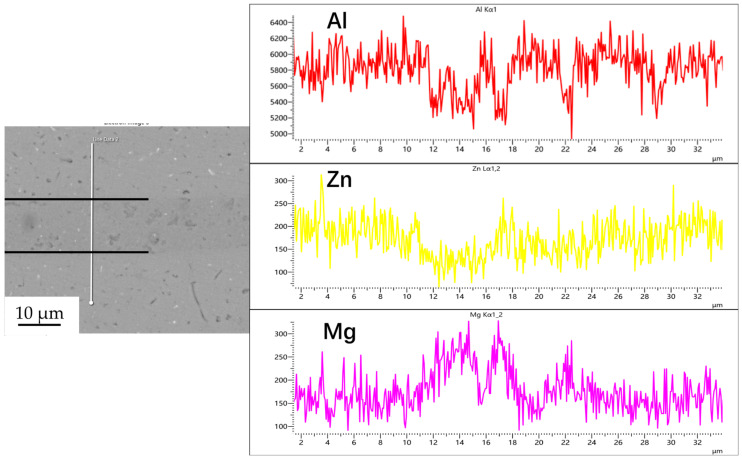

Figure 4

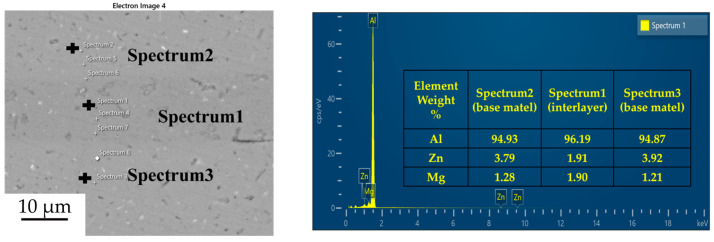

Figure 5

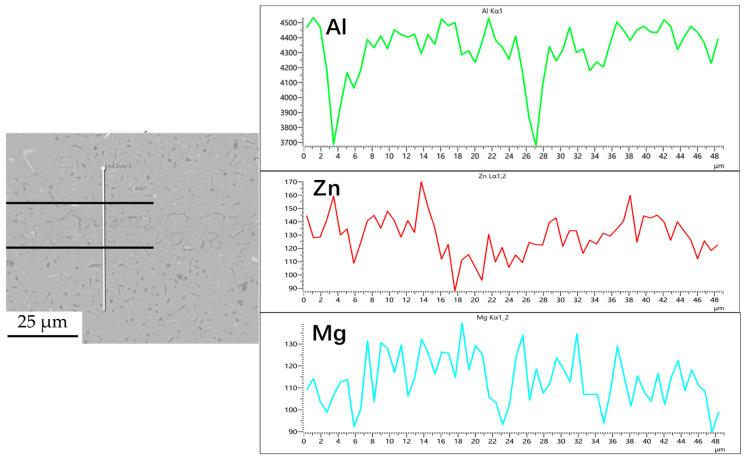

Figure 6

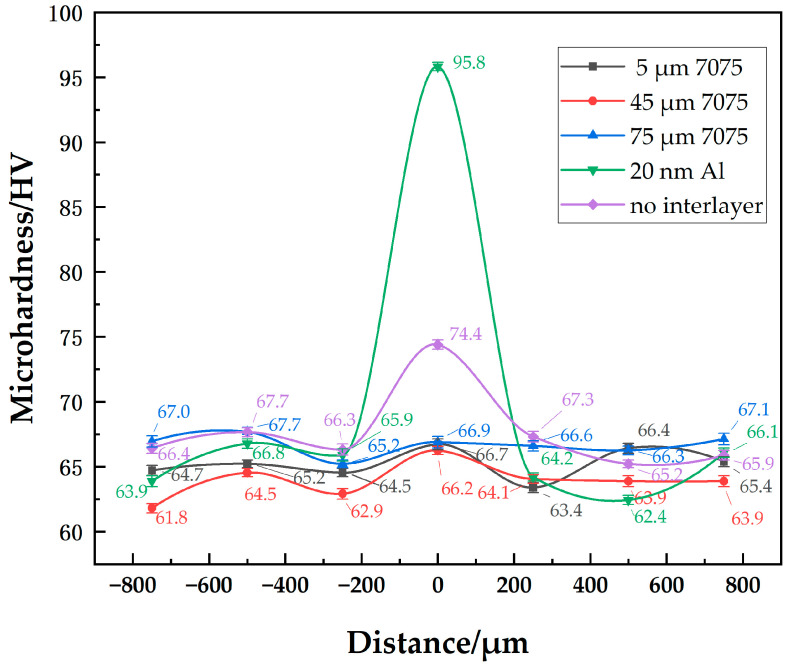

Figure 7
Figure 8
Figure 9

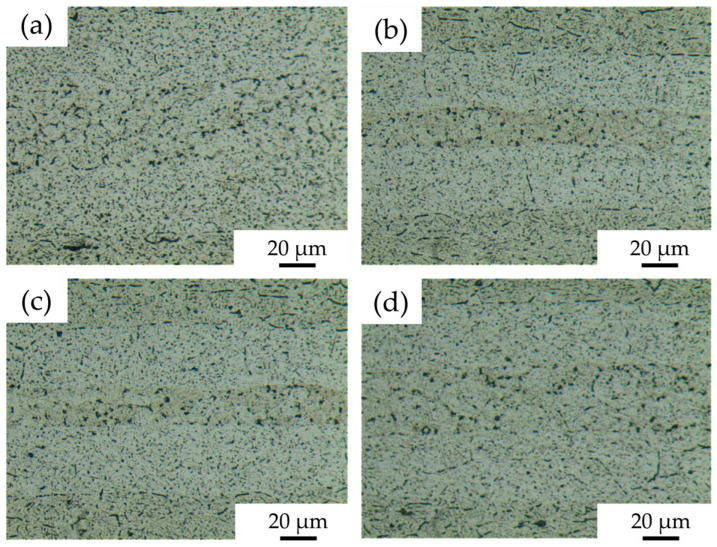

Figure 10

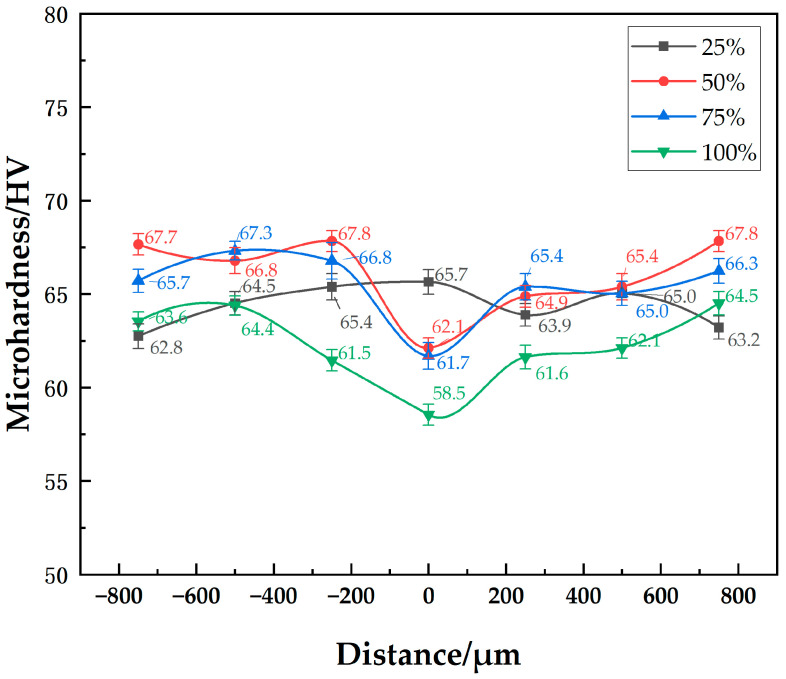

Figure 11

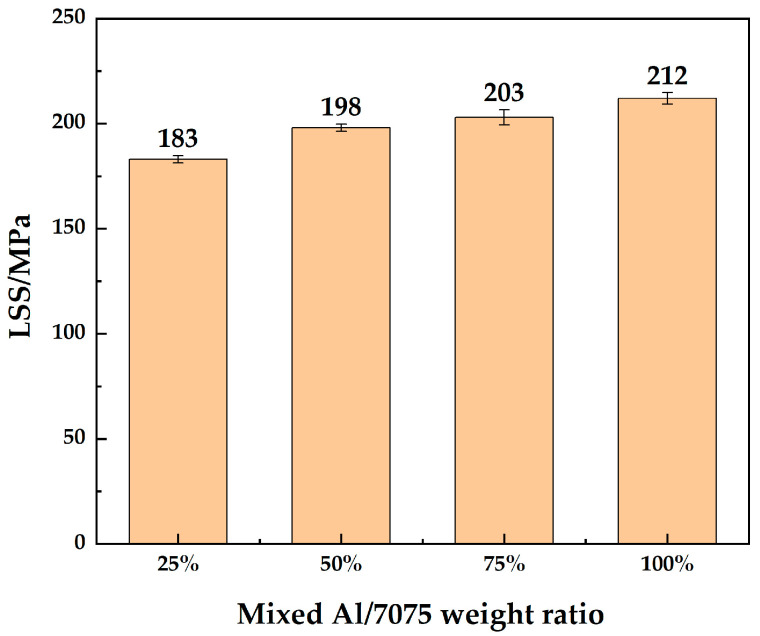

Figure 12
Figure 13

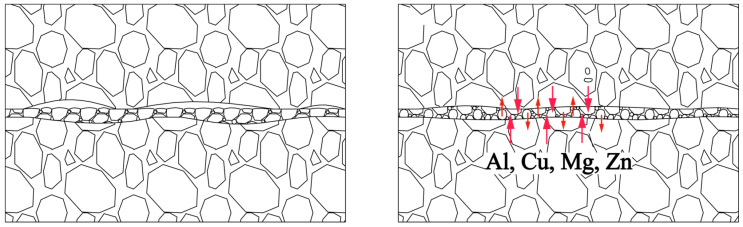

Figure 14

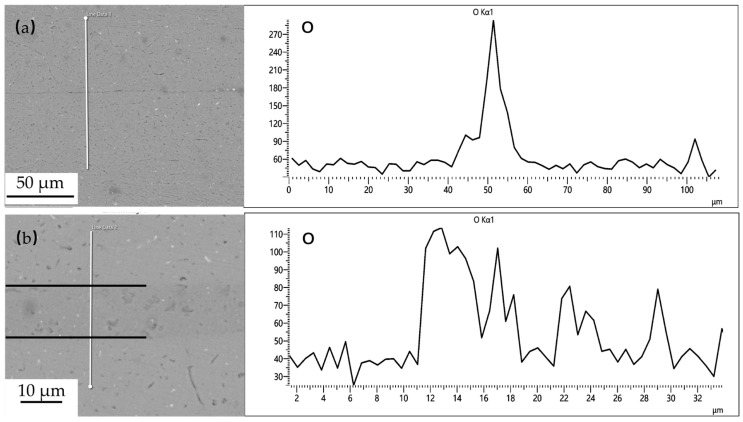

Figure 15Peer Reviews
