Influence of Artificial Aging of ZnAlCu Alloys on Microstructure and Compressive Yield Strength
Angelika Kiefel, Alexander Bezold, Christoph Broeckmann
TL;DR
This study examines how artificial aging affects the compressive strength and microstructure of ZnAlCu alloys, important for applications like plain bearings.
Contribution
The paper provides new insights into the compressive yield strength behavior of ZnAlCu alloys under artificial aging conditions.
Findings

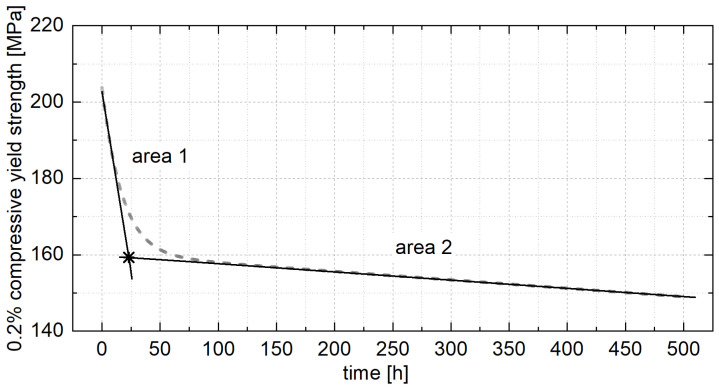

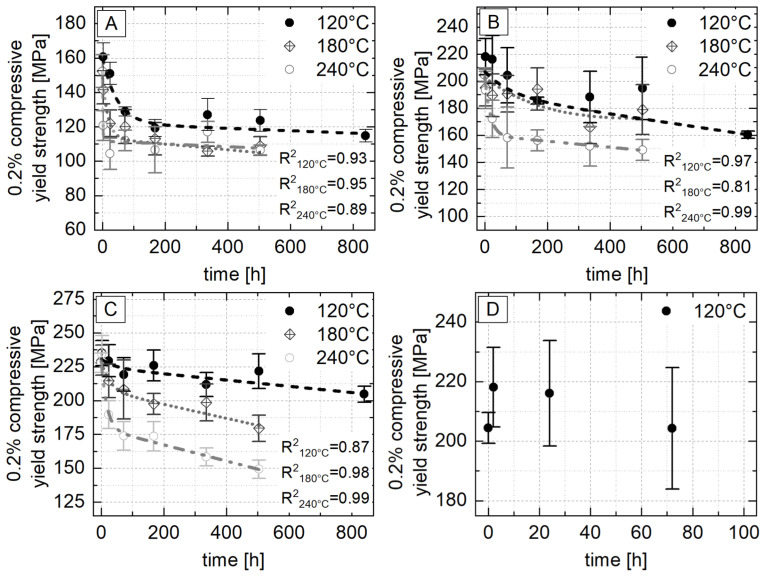

Compressive yield strength decreases initially during aging and stabilizes after a certain period.
Shrinkage followed by swelling was observed in ZnAl11Cu0.7 during aging.

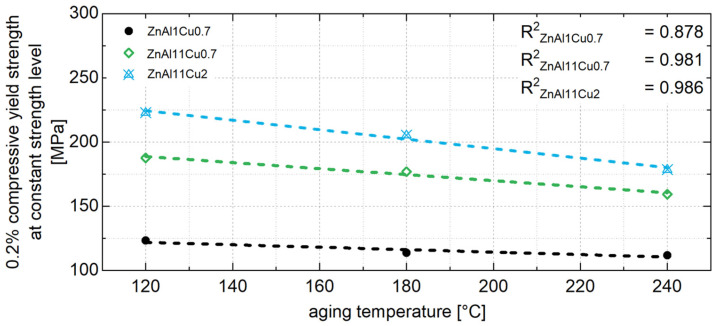

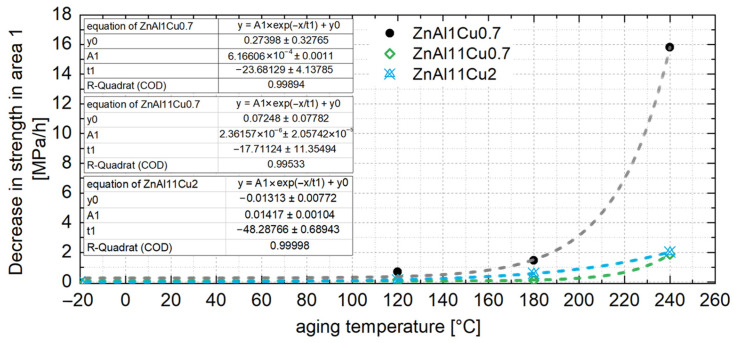

A method to determine stable strength levels and required aging times for specific temperatures is proposed.
Abstract

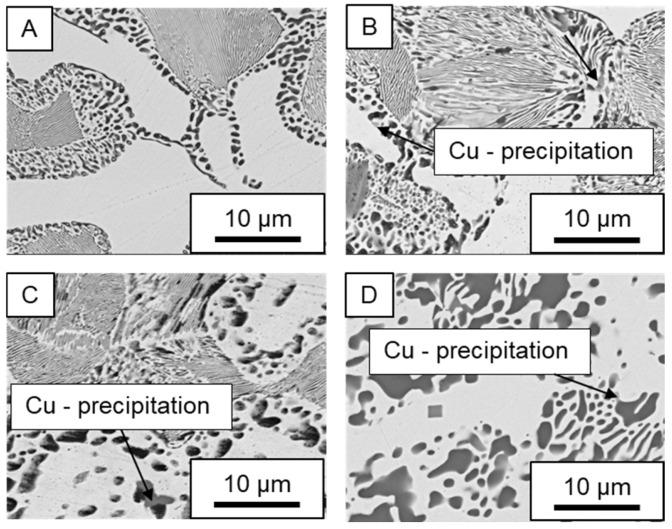

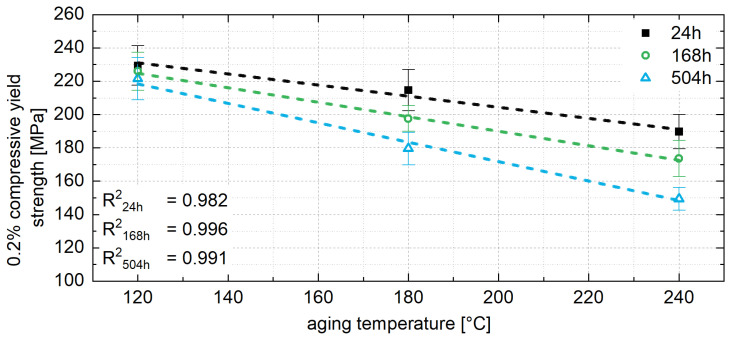

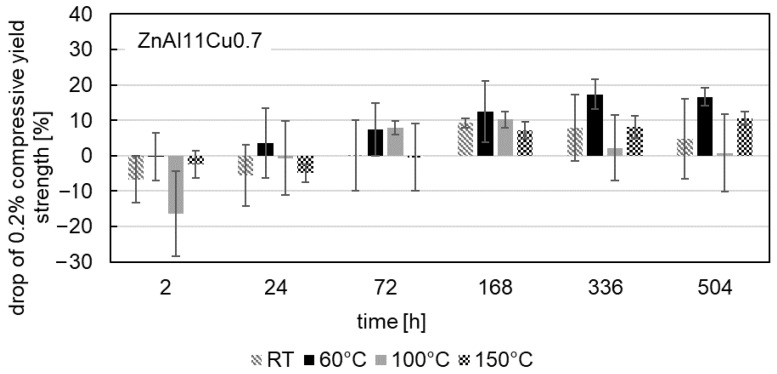

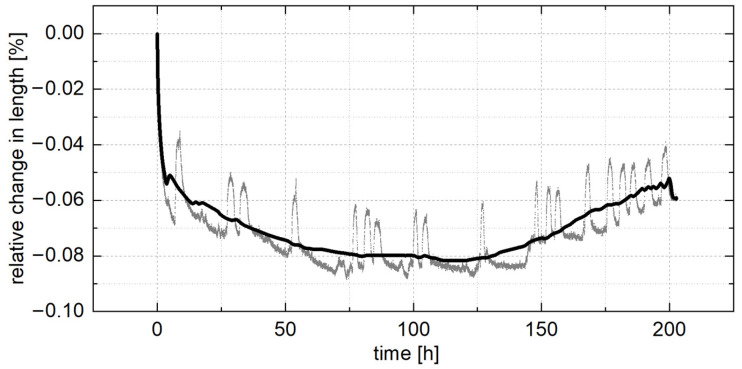

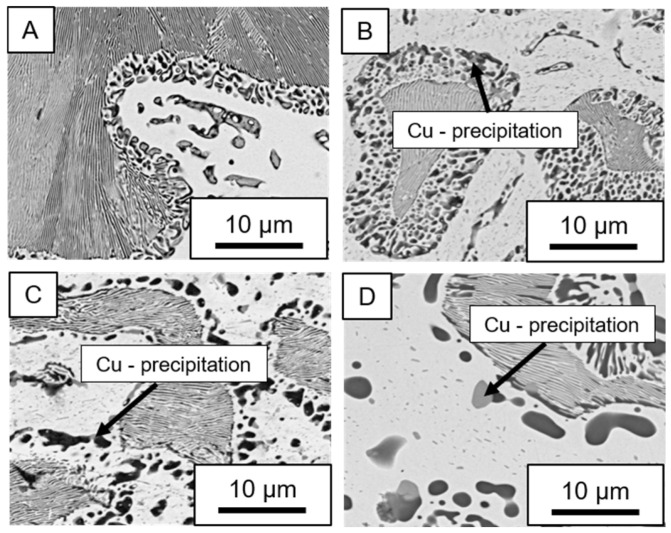

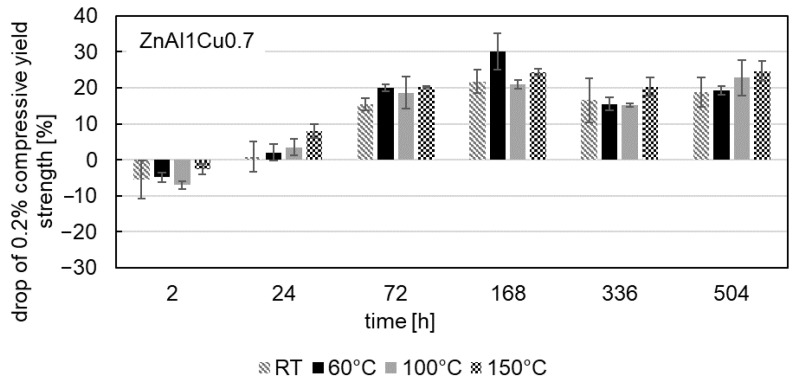

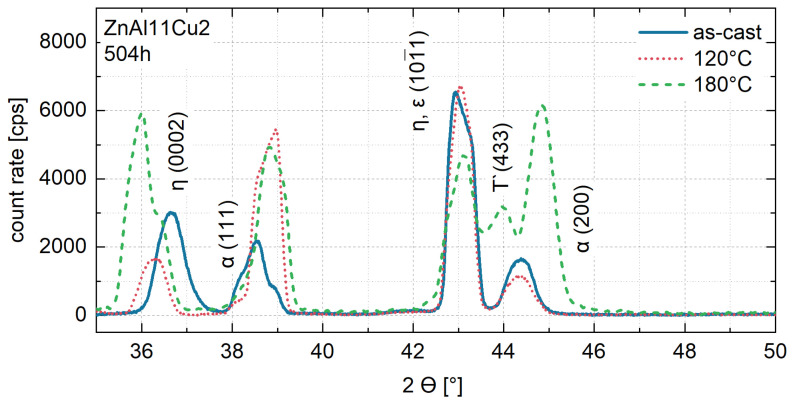

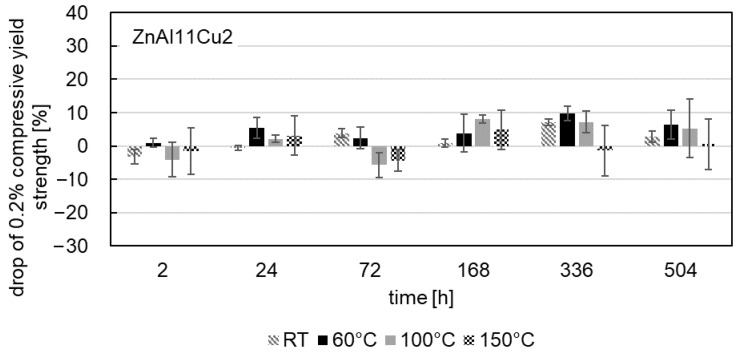

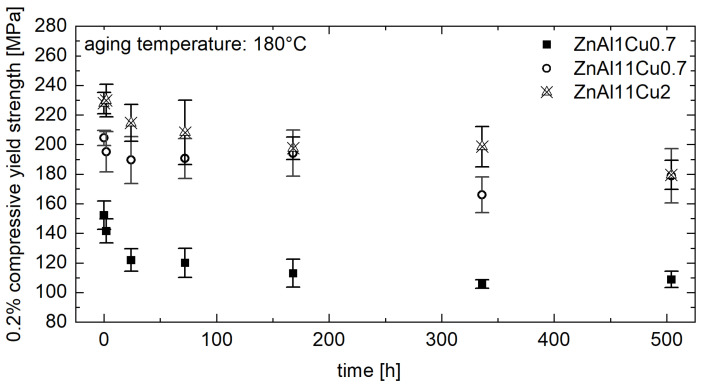

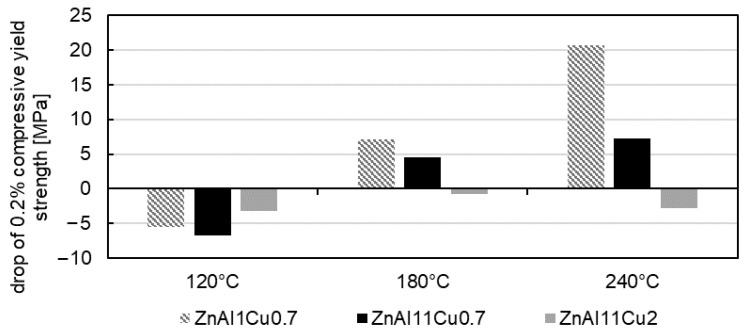

So far, the influence of aging on the mechanical properties of ZnAlCu alloys has primarily been investigated under tensile load. Since some applications, such as plain bearings, are subjected to compressive loads, the results presented in the literature do not fully encompass all areas of application. Therefore, this publication focuses on the influence of artificial aging on the 0.2% compressive yield strength. Samples from ZnAl1Cu0.7, ZnAl11Cu0.7 and ZnAl11Cu2 were aged at different aging temperatures for up to 840 h. After different aging periods, compressive tests as well as microstructure investigations with SEM and XRD were carried out. Furthermore, the dimensional stability of ZnAl11Cu0.7 was investigated in a quenching dilatometer. Shrinkage of up to 0.08%, followed by swelling, was determined. Compressive tests revealed a decrease in the 0.2% compressive yield strength across…
