Multiscale Damage and Failure Behavior of Drainage Asphalt Mixture Under Multifactor
Xiong Tao, Tao Bai, Jianwei Fan, Haiwei Shen, Hao Cheng
TL;DR
This study explores how drainage asphalt mixtures break down under various stresses using multiple scales of analysis.
Contribution
The paper introduces a multiscale approach combining macro, meso, and micro simulations to analyze asphalt mixture failure.
Findings
Fatigue models based on indirect tensile modulus curves are effective for different asphalt mixtures.
Hydrodynamic pressure above 0.3 MPa significantly promotes damage and crack growth.
Van der Waals forces dominate interface adhesion, while acidic/alkaline aggregates reduce it via hydrogen bonding with water.
Abstract
Macroscopic fatigue tests, mesoscopic finite element simulations, and microscopic molecular dynamics simulations were composed to study the damage and failure of drainage asphalt mixtures in multiscale. The applicability of the fatigue models fit by strain, stress, and the linear fitting slope of the indirect tensile modulus curves were compared. The mesoscopic damage and failure distribution and evolution characteristics were studied, considering the single or coupling effect of traffic loading, hydrodynamic pressure, mortar aging, and interfacial attenuation. The microscopic molecular mechanism of the interface adhesion failure between the aggregate and mortar under water-containing conditions was analyzed. Results show that the fatigue model based on the linear fitting slopes of the indirect tensile modulus curves has significant applicability for drainage asphalt mixtures with…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

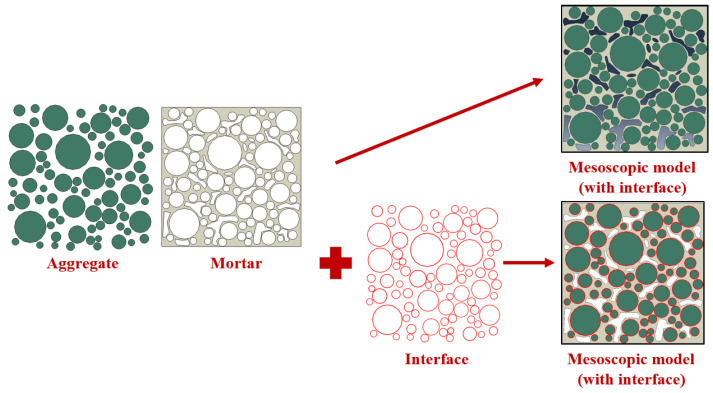

Figure 1

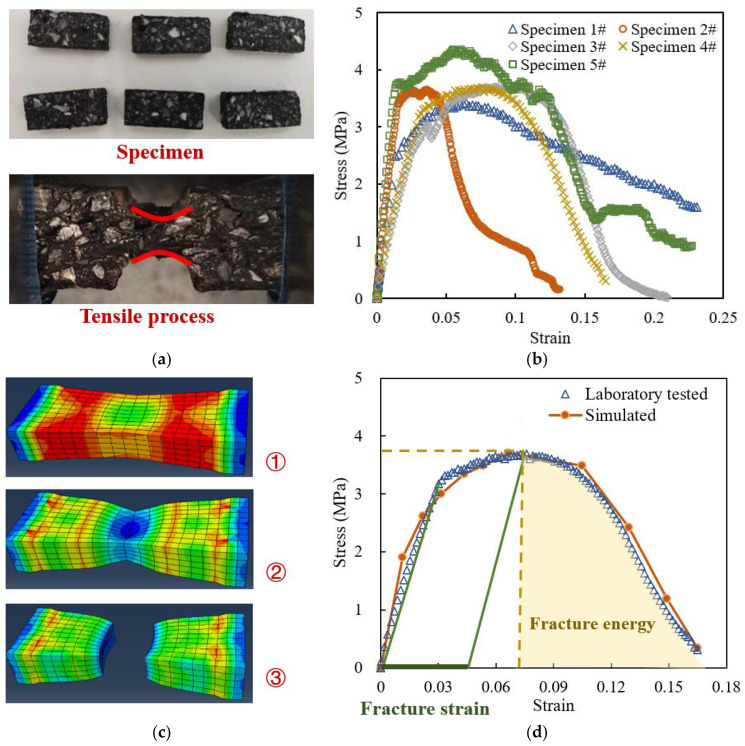

Figure 2

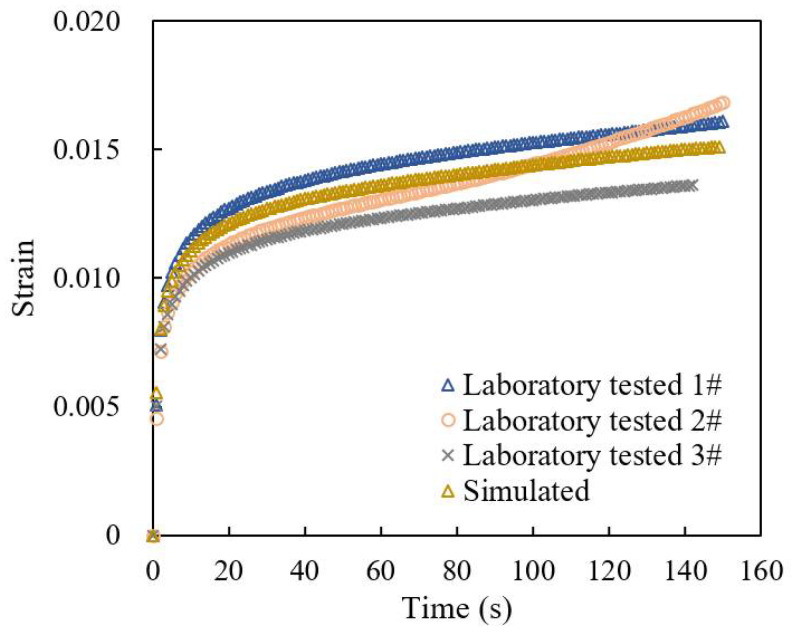

Figure 3

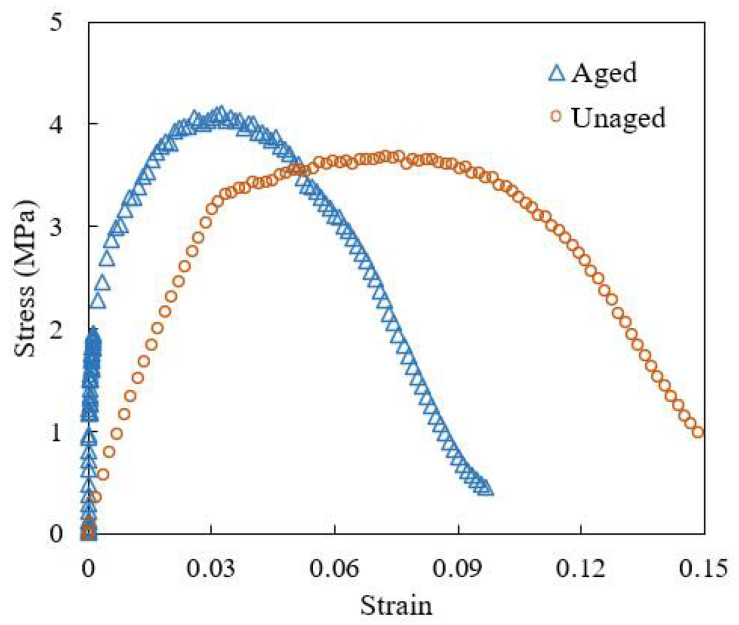

Figure 4

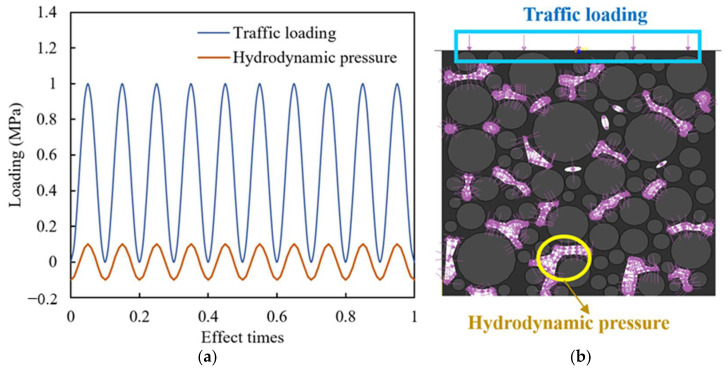

Figure 5

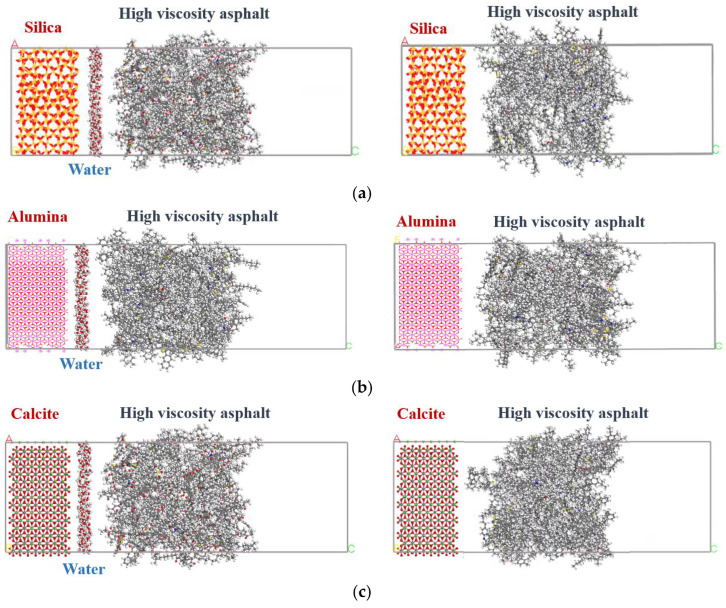

Figure 6

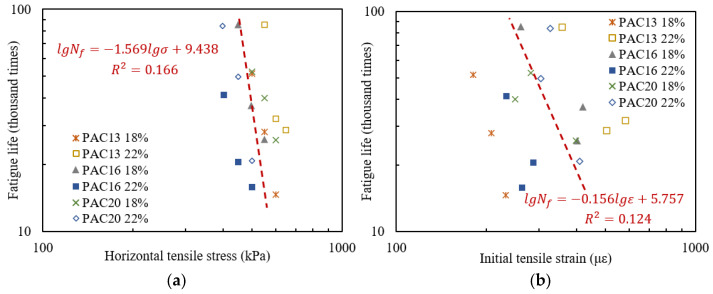

Figure 7

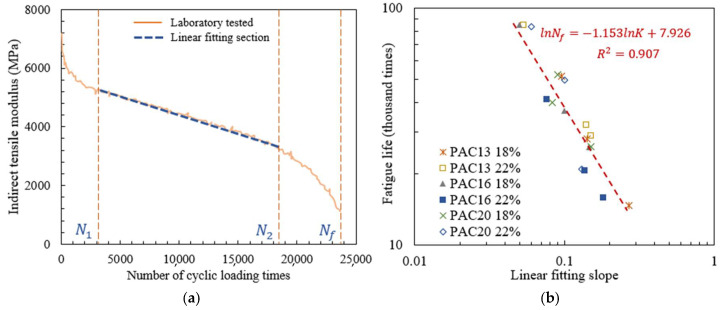

Figure 8

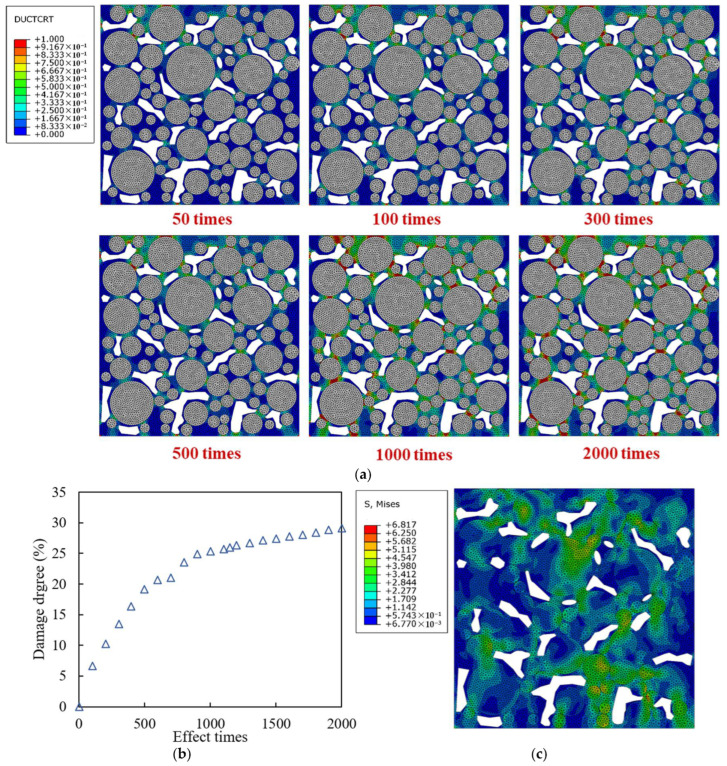

Figure 9

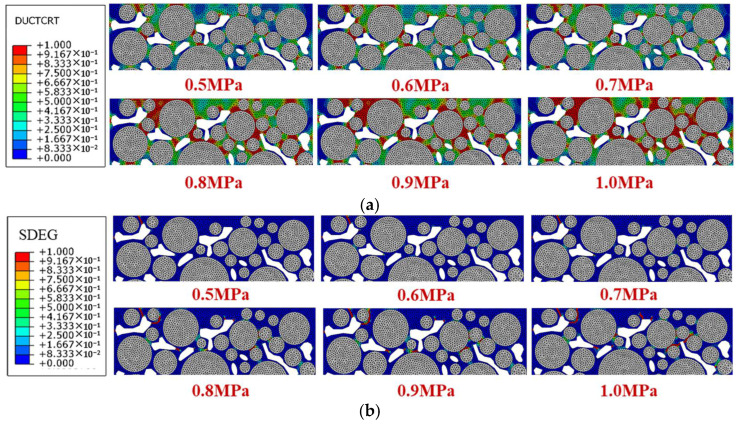

Figure 10

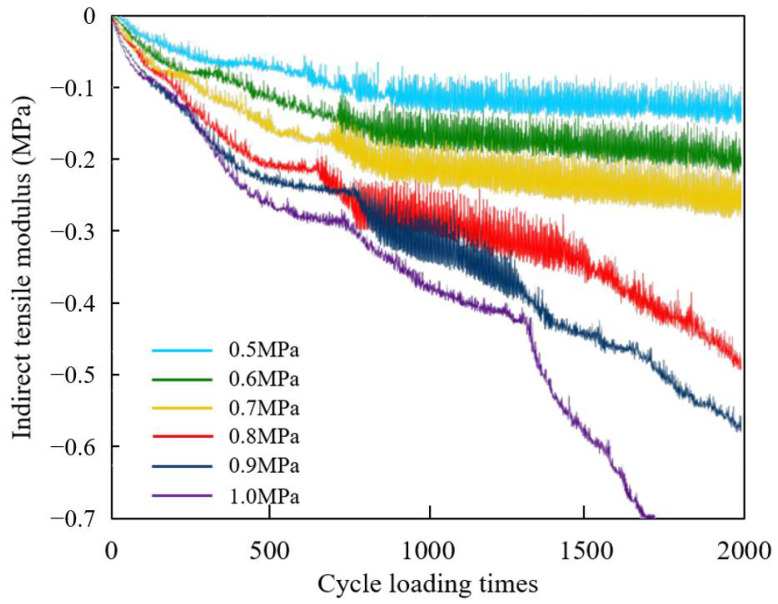

Figure 11

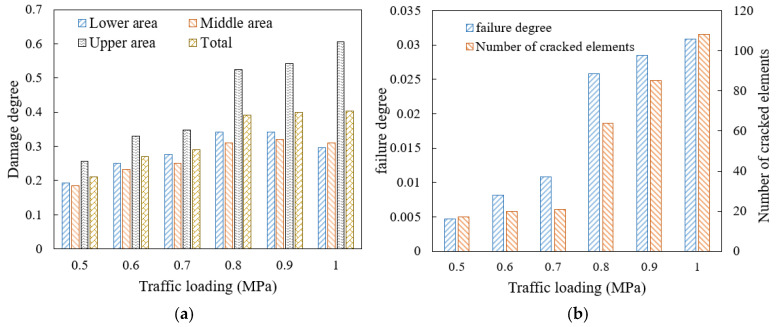

Figure 12

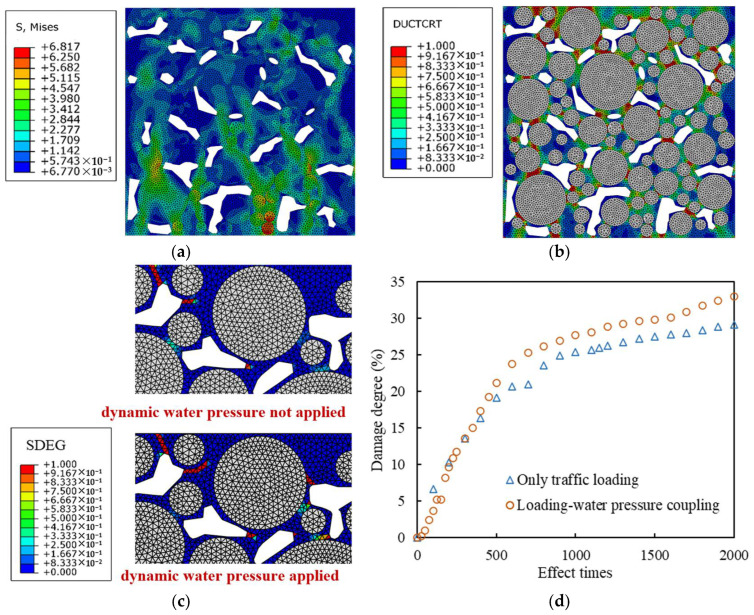

Figure 13

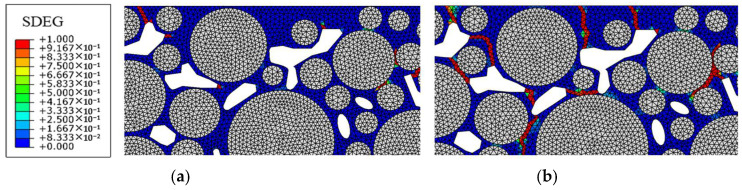

Figure 14

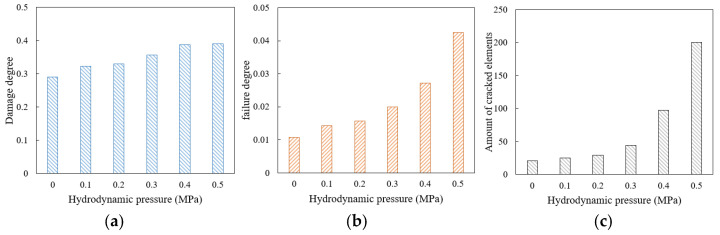

Figure 15

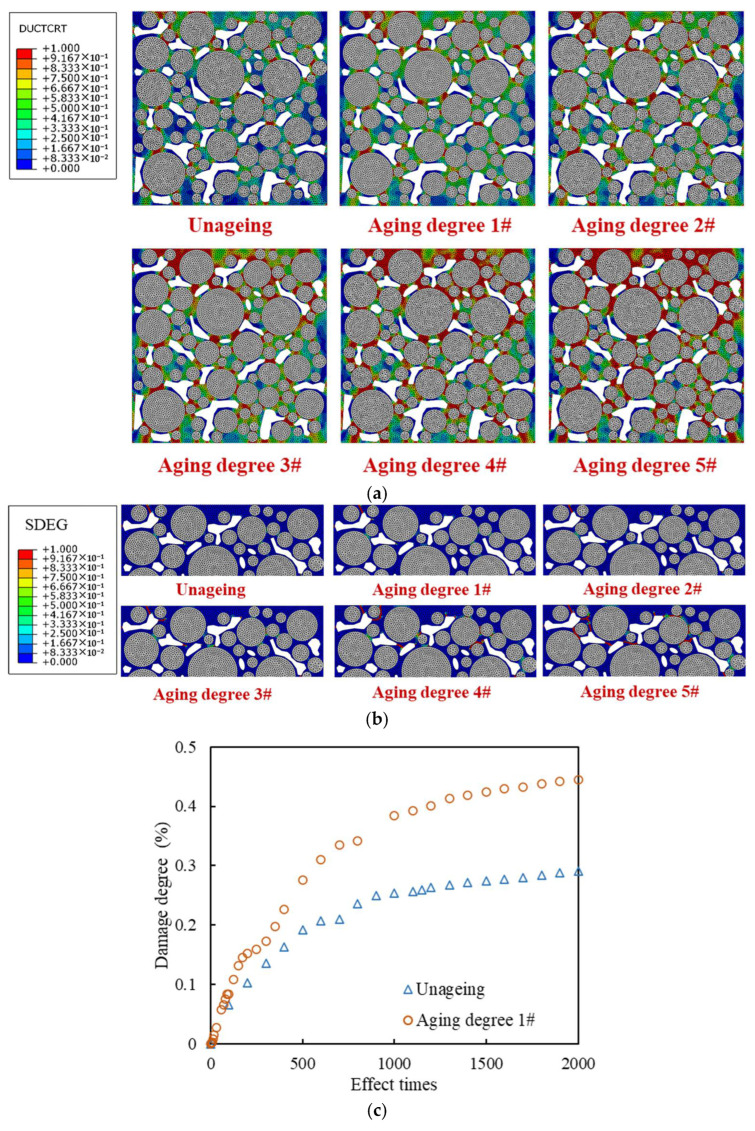

Figure 16

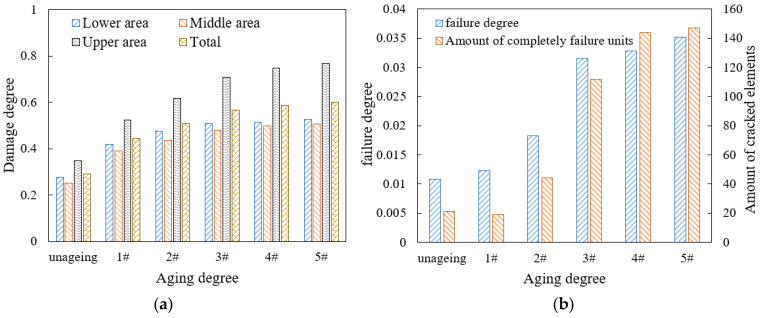

Figure 17

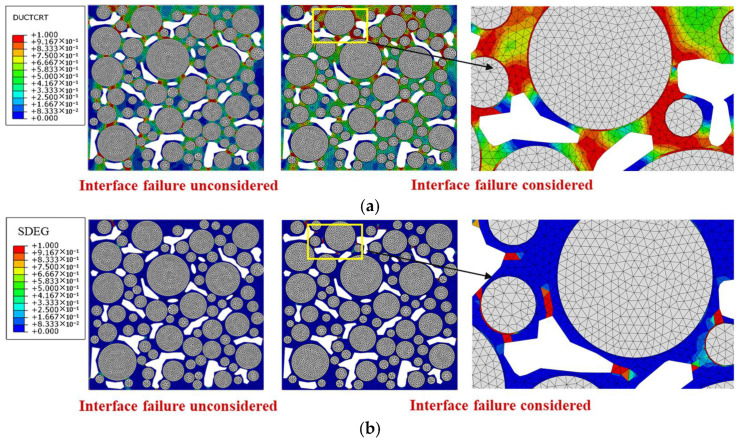

Figure 18

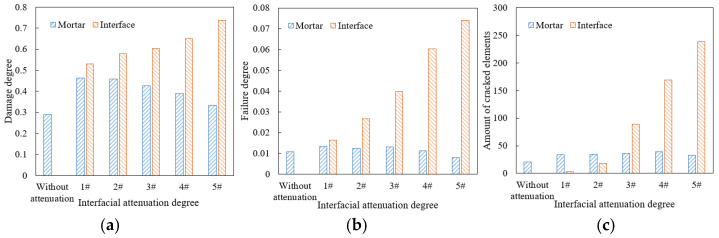

Figure 19

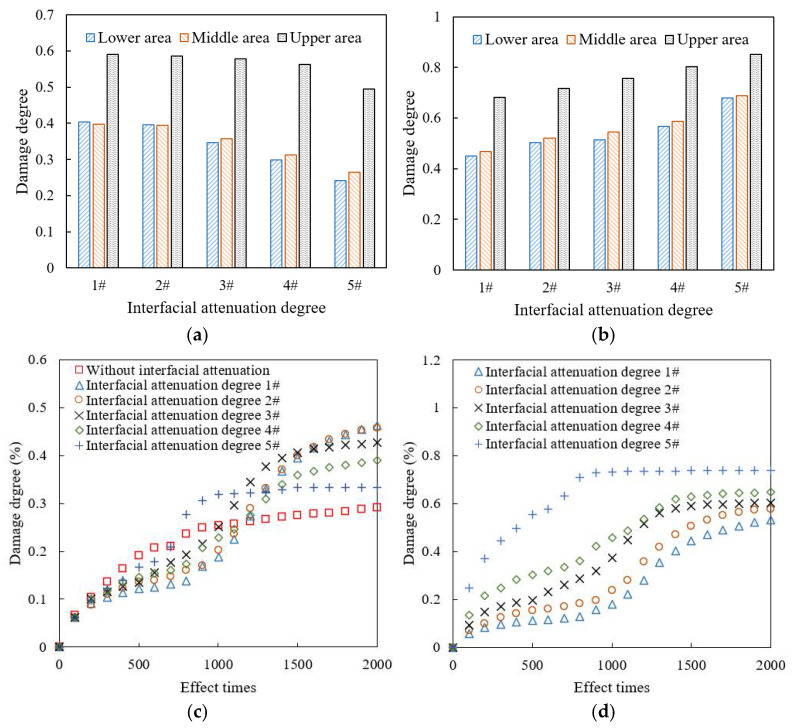

Figure 20

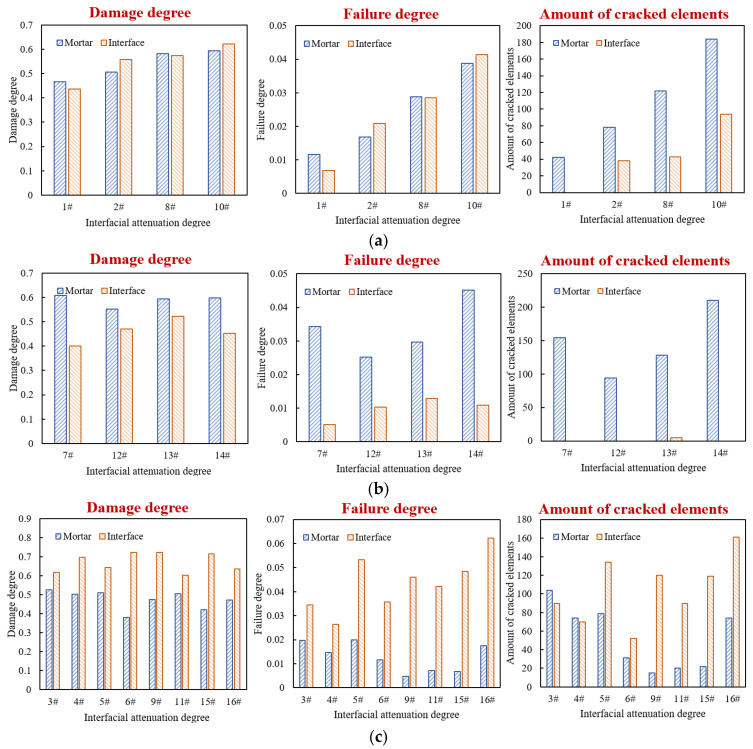

Figure 21

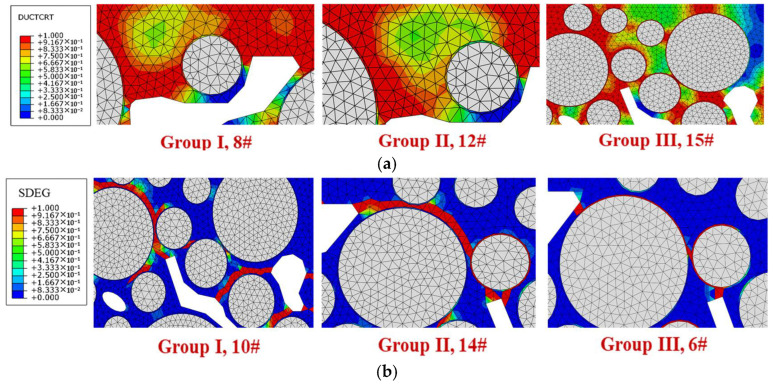

Figure 22

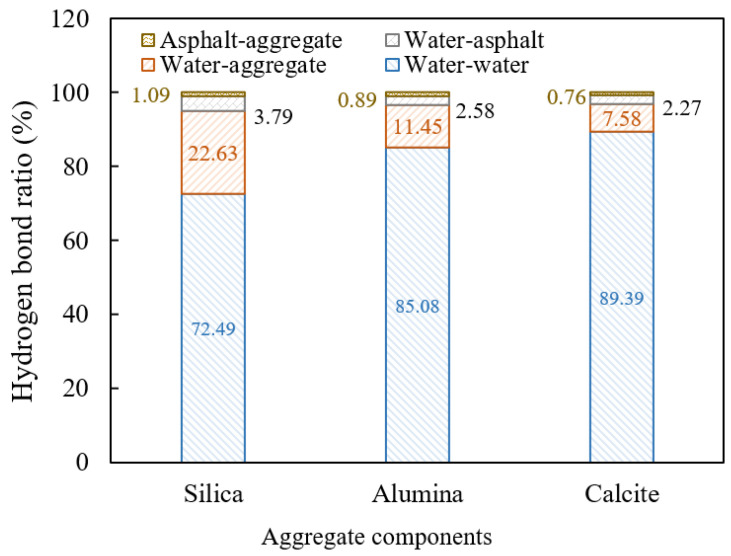

Figure 23

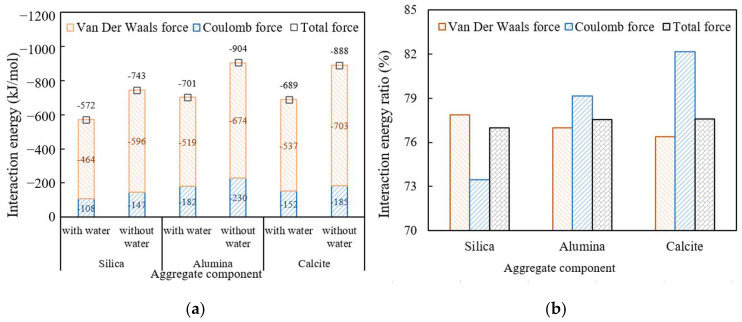

Figure 24Peer Reviews
