A Digitization Framework for Belt Rotation Monitoring in Pipe Conveyor Applications
Leonardo dos Santos e Santos, Paulo Roberto Campos Flexa Ribeiro Filho, Emanuel Negrão Macêdo
TL;DR
This paper introduces a digital framework for monitoring belt rotation in pipe conveyors to improve their stability and sustainability.
Contribution
A belt-independent, multiparameter measurement system using IoT devices for real-time belt rotation monitoring in pipe conveyors.
Findings
The system achieved suitable precision for overlap angle, pipe diameter, and overlap length measurements.
A controller-responder wireless network of ESP32 devices was implemented to address data scarcity in belt rotation monitoring.
The framework shows potential for industrial deployment with acceptable real-time performance.
Abstract
Pipe conveyors provide an environmentally friendly alternative to open-troughed bulk solids conveyance, particularly for long or complex routing applications. However, the sustainability of this technology is compromised by unstable operations. Complex routing, operational variations, and environmental factors create uneven contact forces, triggering belt rotation. This is a critical failure mode that requires continuous monitoring throughout the conveyor’s lifecycle. Insufficient failure data represents a typical challenge for this application. This study hypothesized technological principles that constitute the minimum requirements for enabling the scaling of industrial applications of belt rotation monitoring. Enabling technologies were adopted to foster innovation, and a physical prototype was implemented to address data scarcity for this failure mode. Using a controller-responder…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

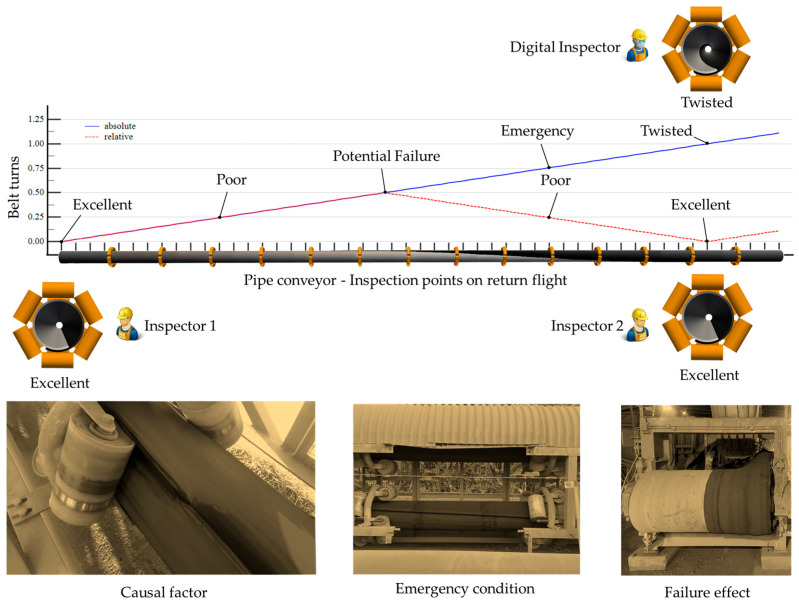

Figure 1

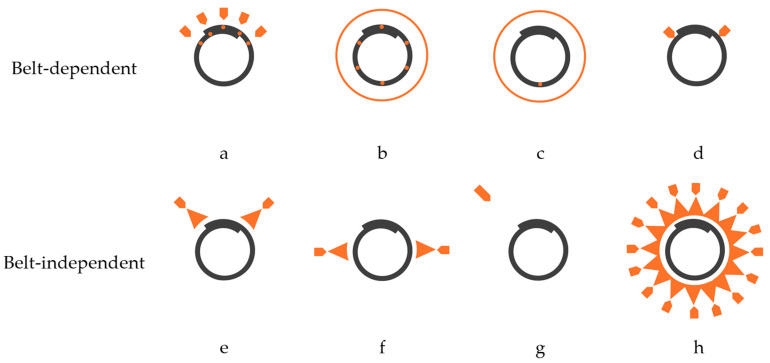

Figure 2

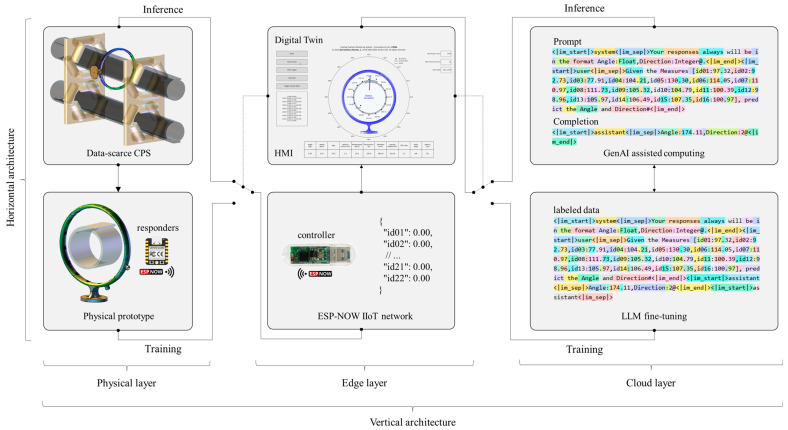

Figure 3

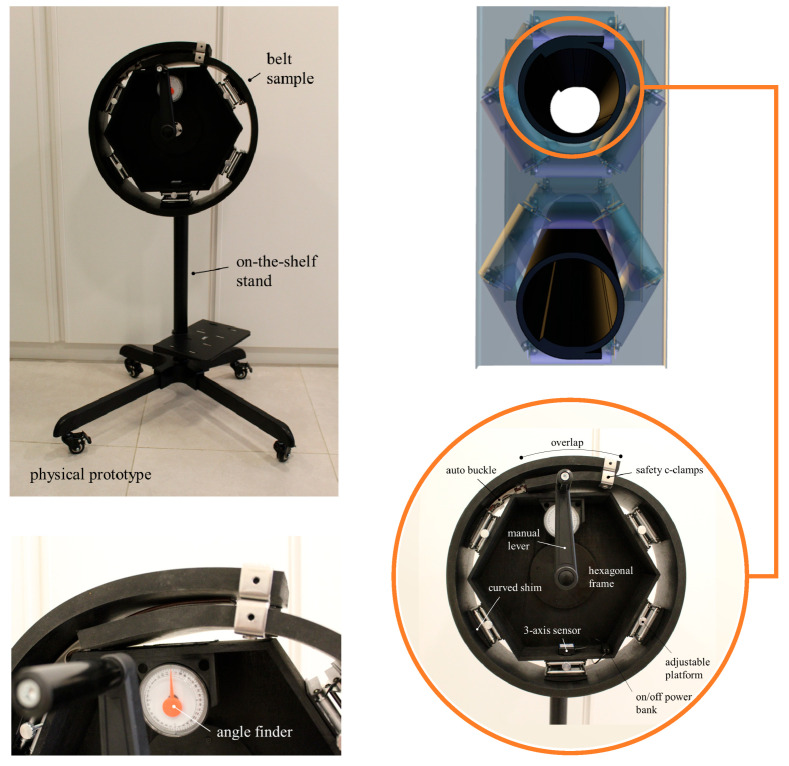

Figure 4

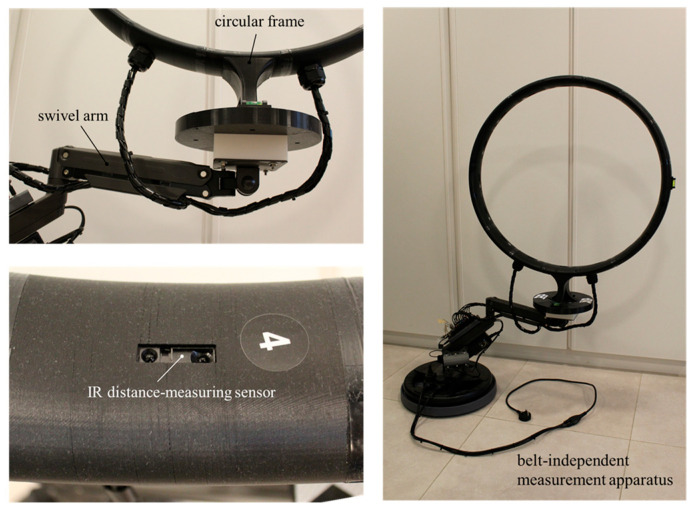

Figure 5

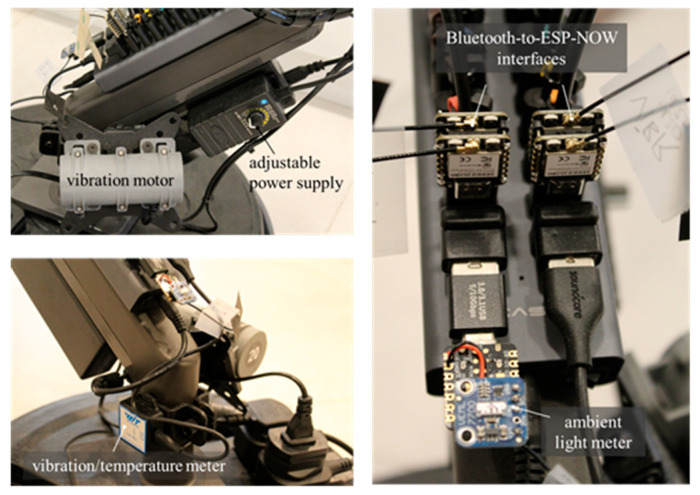

Figure 6

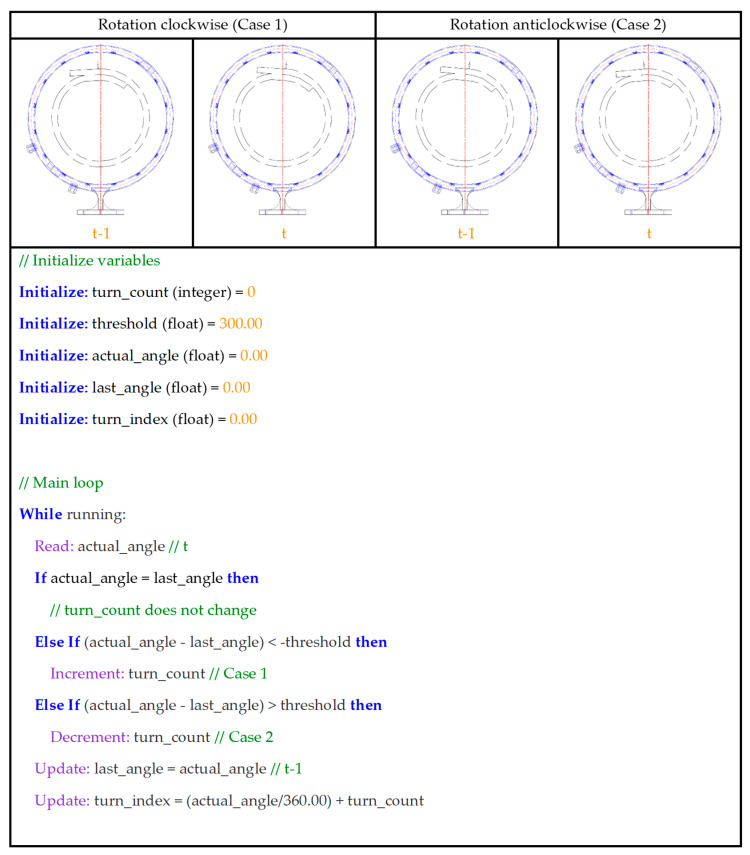

Figure 7

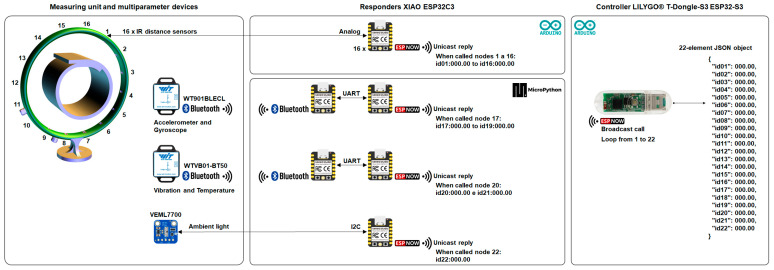

Figure 8

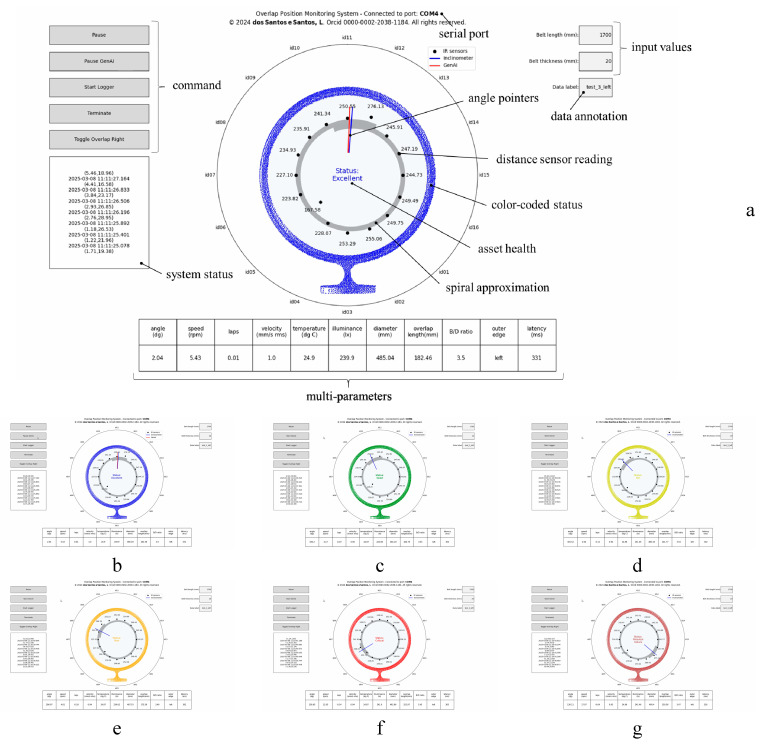

Figure 9

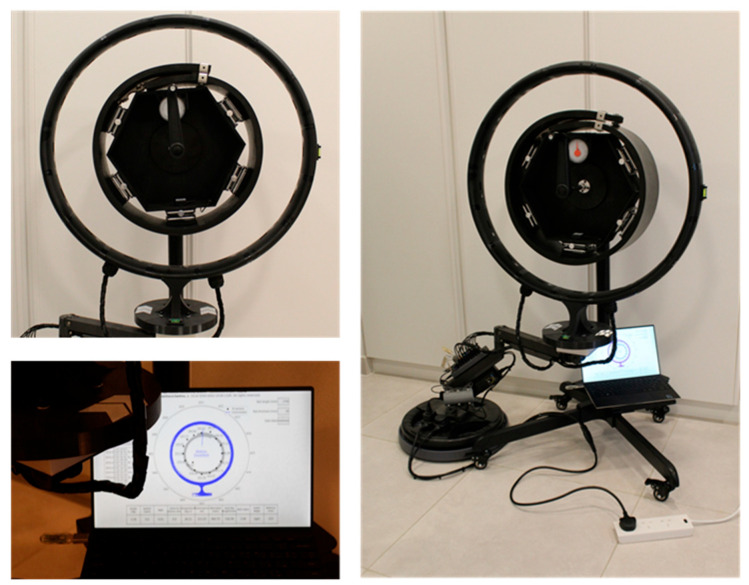

Figure 10

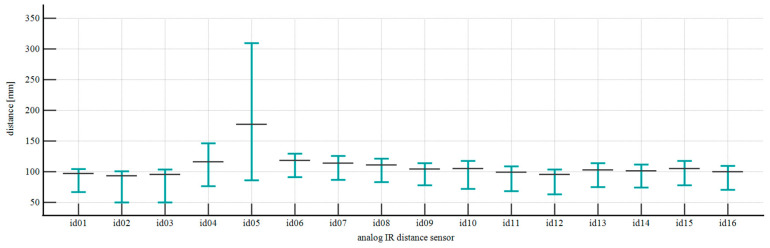

Figure 11

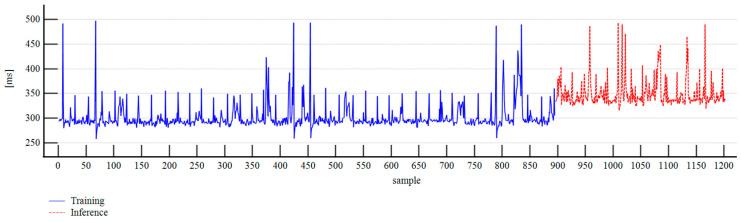

Figure 12

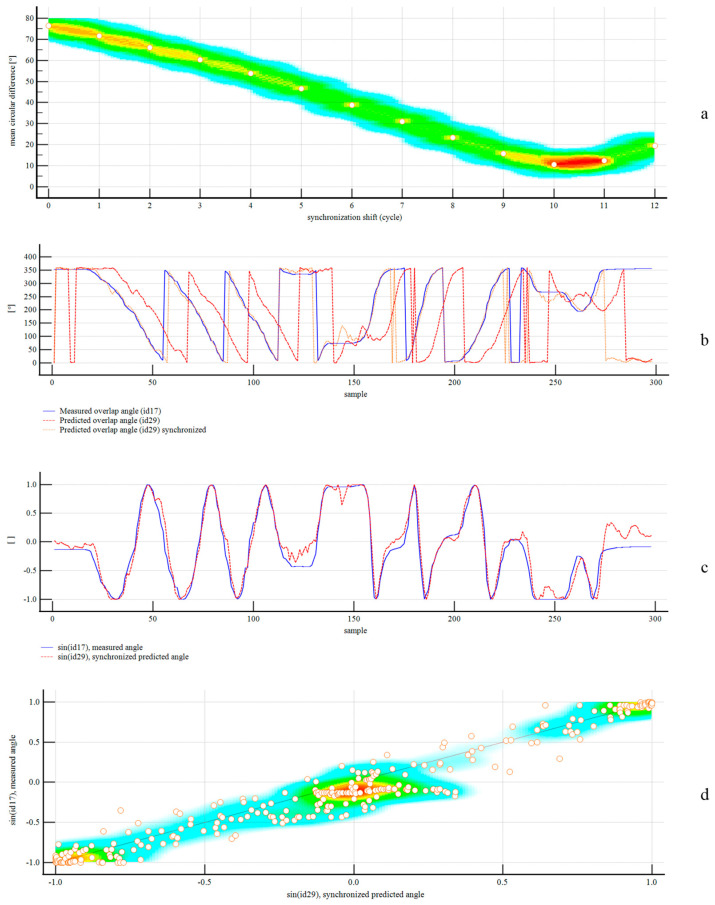

Figure 13

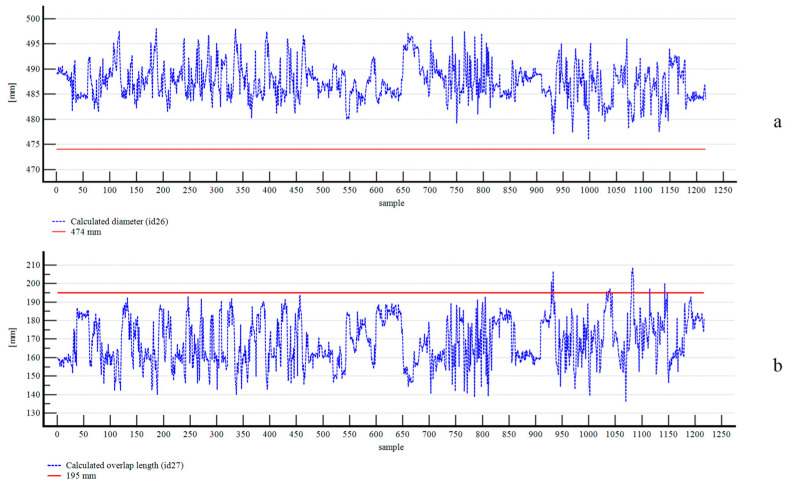

Figure 14

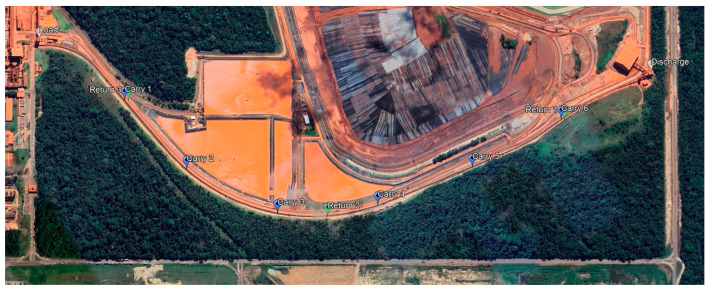

Figure 15Peer Reviews
