Real-Time Rail Electrification Systems Monitoring: A Review of Technologies

TL;DR

This paper reviews current monitoring systems for rail electrification, highlighting limitations and opportunities for improving real-time performance and reducing maintenance.

Contribution

A comprehensive review of condition monitoring systems for pantograph–catenary interfaces, identifying gaps and future trends.

Findings

Current pantograph–catenary monitoring systems have limitations in real-time performance tracking.

Railway incidents due to overhead contact line failures cause significant delays, averaging 2500 hours per year.

Condition monitoring technologies can reduce maintenance frequency and extend asset life-cycles.

Abstract

What are the main findings?

Identify the current limitations of pantograph–catenary monitoring systems;

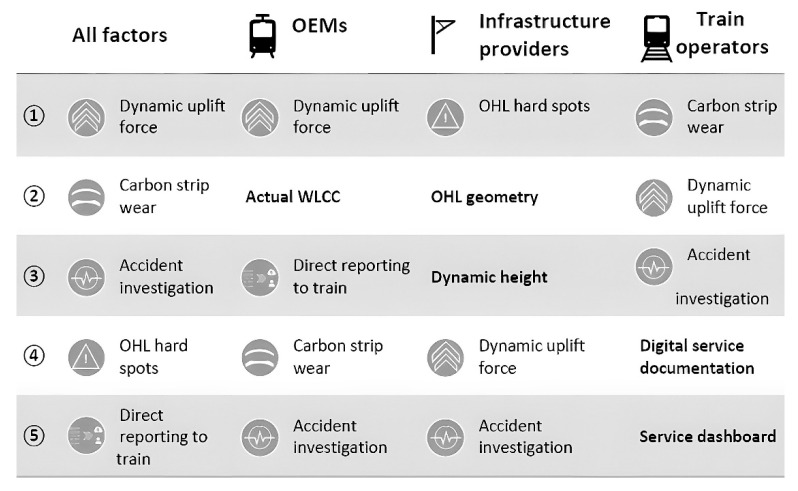

Realise the industry’s needs in terms of monitoring systems for rail electrification assets;

Real-time knowledge of current collection performance during train service.

What are the implications of the main findings?

Open perspectives for the development of novel technologies to monitor current collection performance;

Reduce the frequency of maintenance interventions and extend the life-cycle of railway assets.

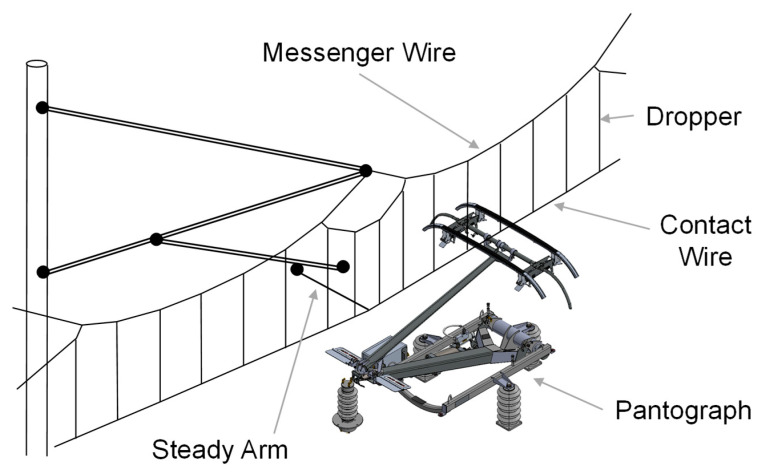

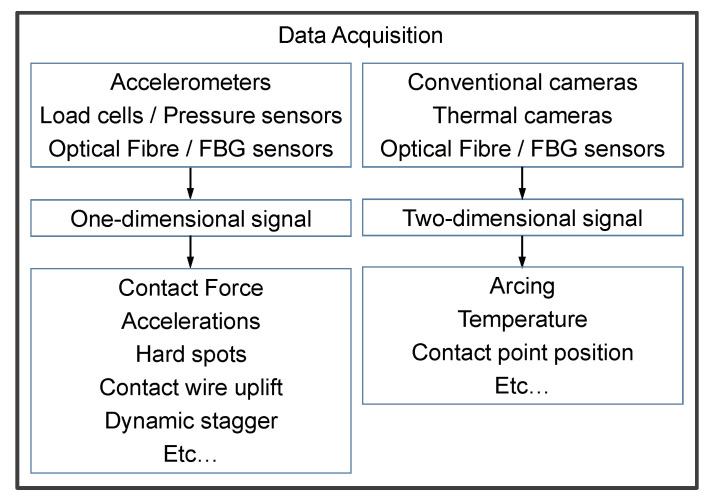

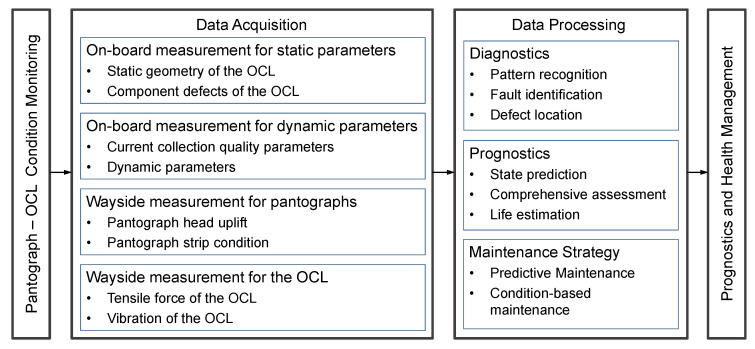

Most electrified railway networks are powered through a pantograph–overhead contact line (OCL) interface to ensure safe and reliable operation. The OCL is one of the most vulnerable components of the train traction power system as it is subjected to multiple impacts from the pantographs and to unpredictable environmental conditions. Wear, mounting imperfections, contact incidents, weather conditions, and inadequate maintenance lead to increased degradation of the pantograph–OCL current collection performance, causing degradation on contacting elements and assets failure. Incidents involving the pantograph–OCL system are significant sources of traffic disruption and train delays, e.g., Network Rail statistics show that, on average, delays due to OCL failures are 2500 h per year. In recent years, maintenance strategies have evolved significantly with improvements in technology and the increased interest in using real-time and historical data in decision support. This has led to an expansion in sensing systems for structures, vehicles, and machinery. The railway industry is currently investing in condition monitoring (CM) technologies in order to achieve lower failure rates and increase the availability, reliability, and safety of the railway service. This work presents a comprehensive review of the current CM systems for the pantograph–OCL, including their advantages and disadvantages, and outlines future trends in this area.
