Polymer Flooding in Space-Constrained Reservoirs: Technical and Economic Assessment of Liquid vs. Powder Polymers
Muhammad Tahir, Rafael E. Hincapie, Dominic Marx, Dominik Steineder, Amir Farzaneh, Torsten Clemens, Nikola Baric, Elham Ghodsi, Riyaz Kharrat
TL;DR
This study compares liquid and powder polymers for oil recovery in tight Austrian reservoirs, finding powder polymers more effective and cost-efficient in the long term.
Contribution
The study introduces a comparative technical and economic assessment of liquid and powder polymers in space-constrained, low-permeability reservoirs.
Findings
Powder polymers showed better injectivity and mechanical stability in low-permeability reservoirs compared to liquid polymers.
Economic analysis revealed powder polymers are more cost-effective over a 10-year period despite higher initial costs for liquid polymers.
Incremental oil recovery of up to 8% was observed with powder polymers at higher viscosity slugs.
Abstract
This study evaluates the technical and economic feasibility of liquid polymer emulsions as substitutes for powder polymers in polymer flooding applications, particularly in space-constrained, low-permeability reservoirs in Austria. Rheological tests determined that target viscosities of 20 mPa·s at 20 °C and a shear rate of 7.94 s−1 were achieved using concentrations of 1200 ppm for liquid polymer 1 (LP1), 2250 ppm for liquid polymer 2 (LP2), and 1200–1400 ppm for powder polymers. Injectivity tests revealed that liquid polymers encountered challenges in 60 mD and 300 mD core plugs, with pressure stabilization not achieved at injection rates of 1–2.5 ft/day. Powder polymers demonstrated stable injectivity, with powder polymer 1 (PP1) showing an optimal performance at 10 ft/day and a low residual resistance factor (RRF). Two-phase core floods using PP1 and powder polymer 2 (PP2) at 1…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

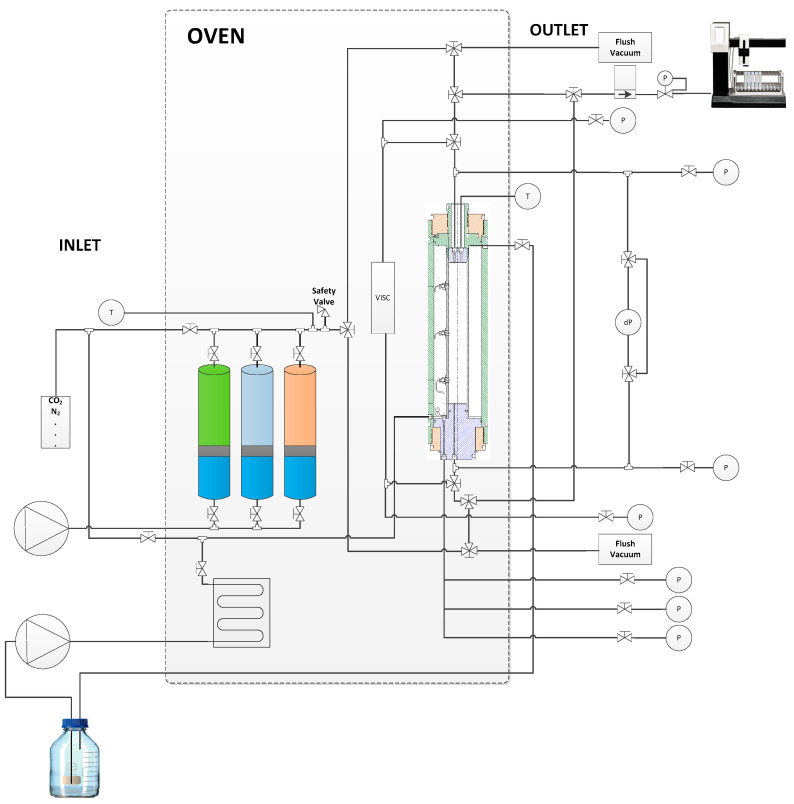

Figure 1
Figure 2

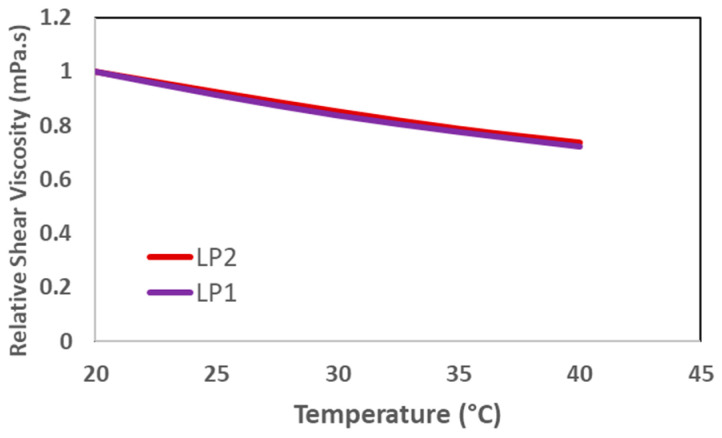

Figure 3

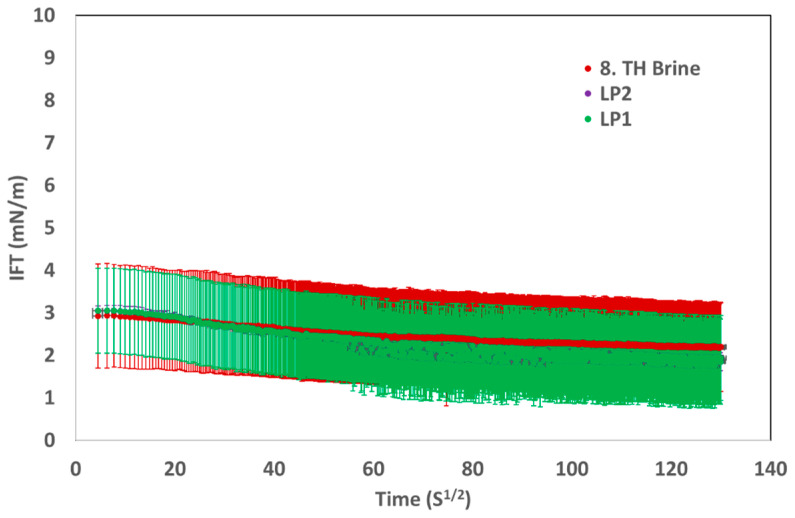

Figure 4

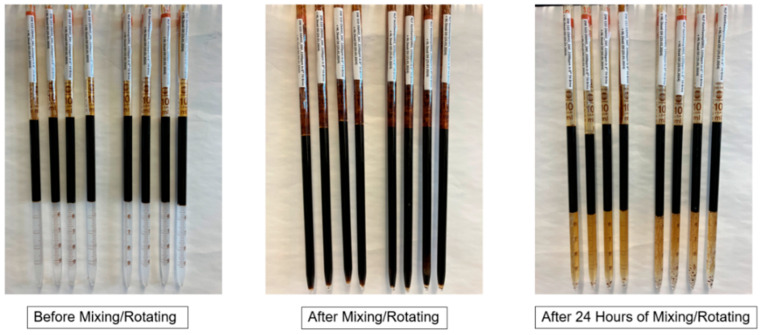

Figure 5

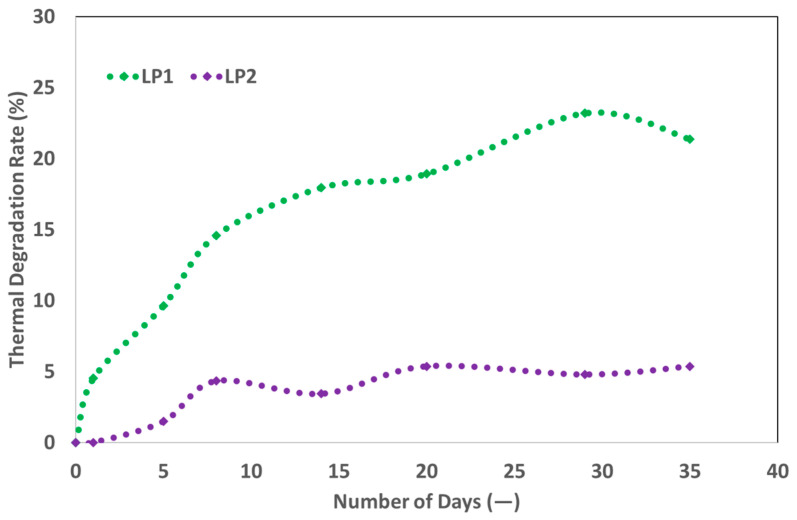

Figure 6

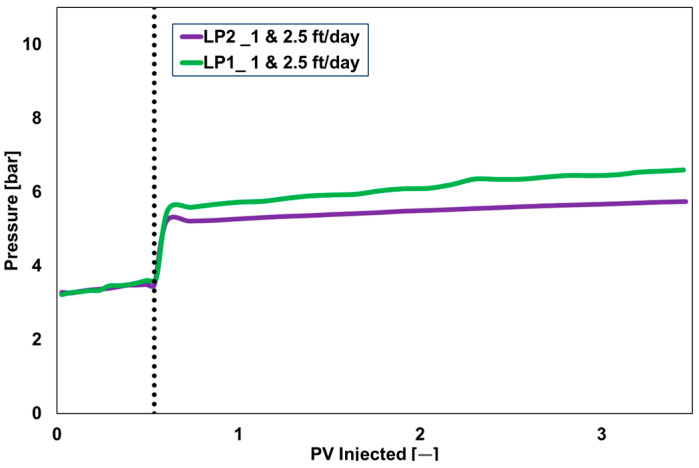

Figure 7
Figure 8

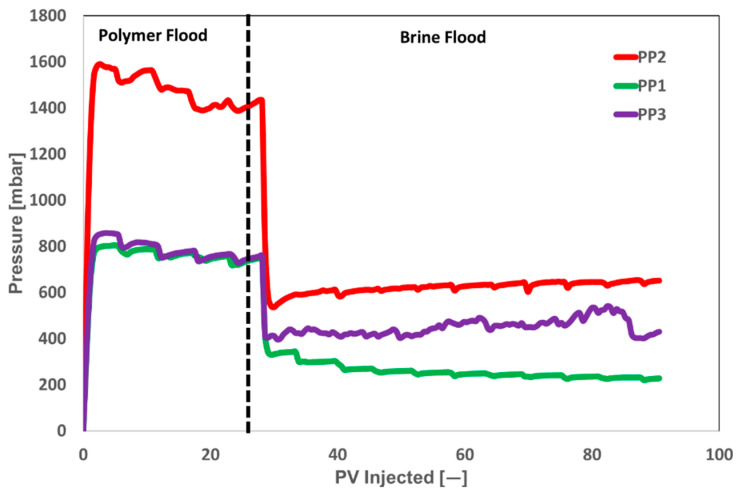

Figure 9

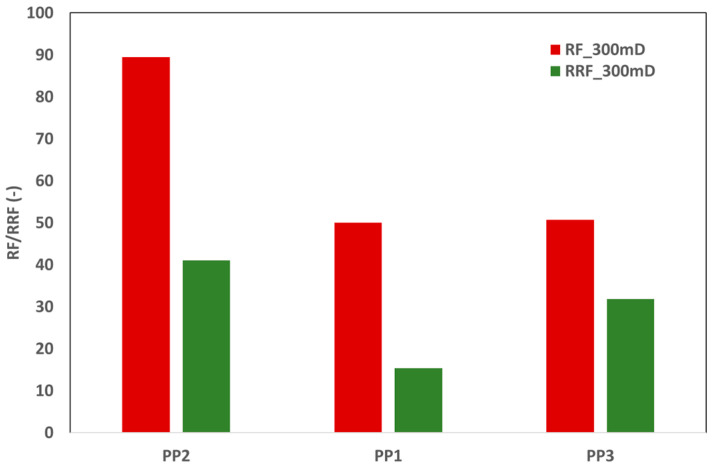

Figure 10

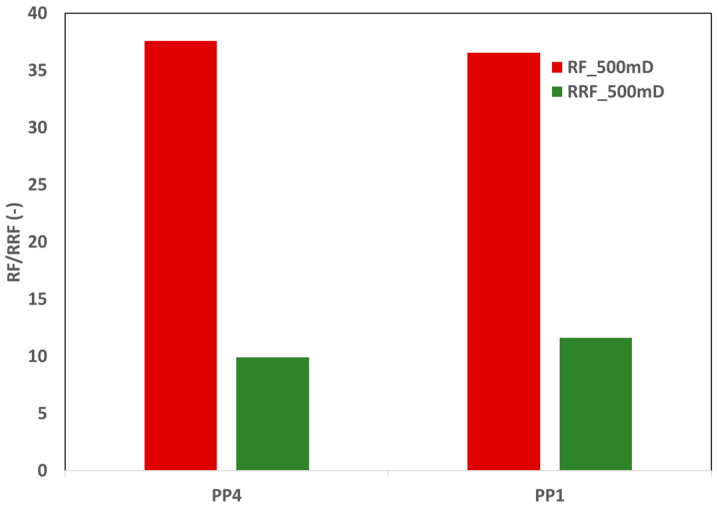

Figure 11

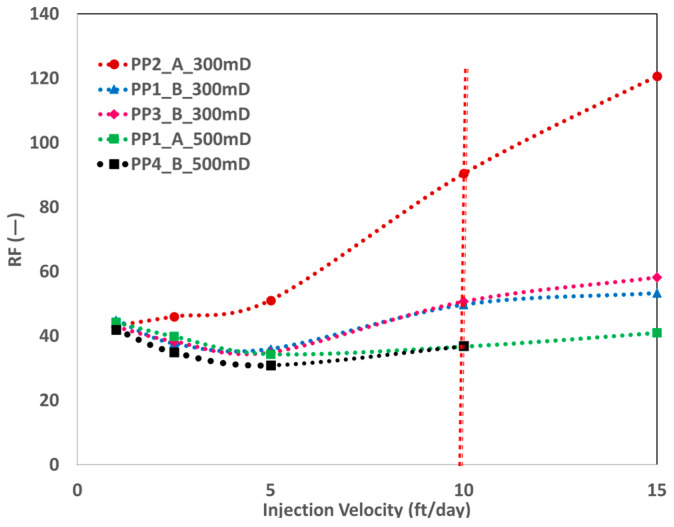

Figure 12

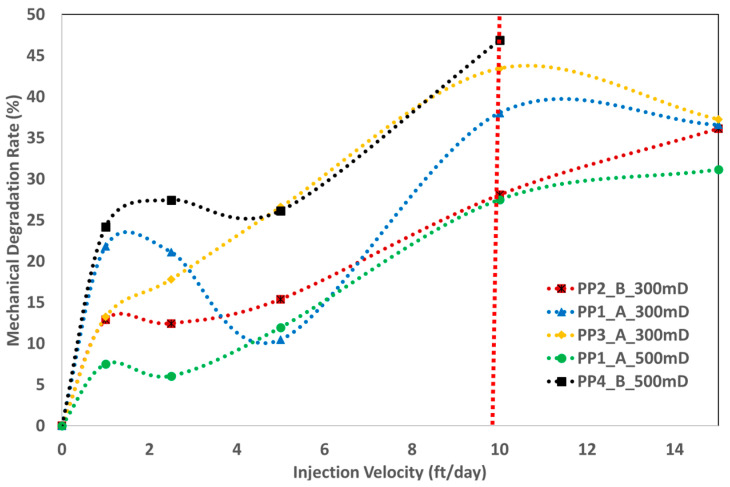

Figure 13
Figure 14

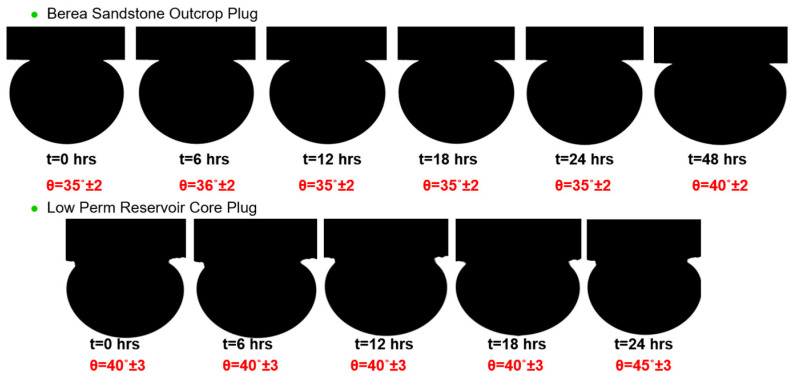

Figure 15

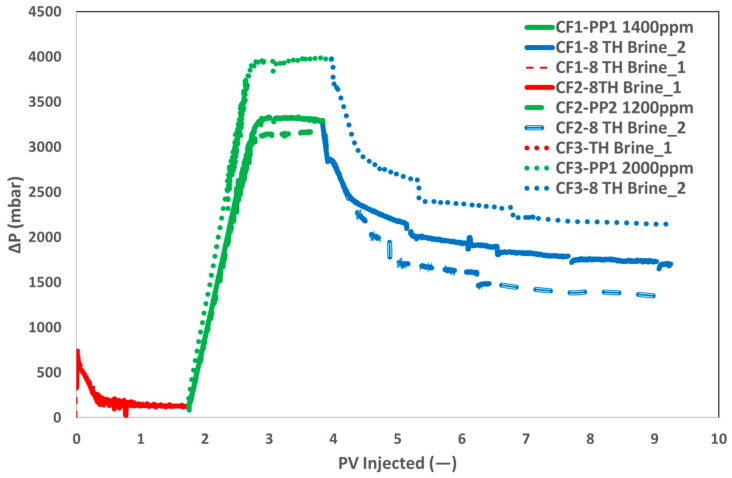

Figure 16

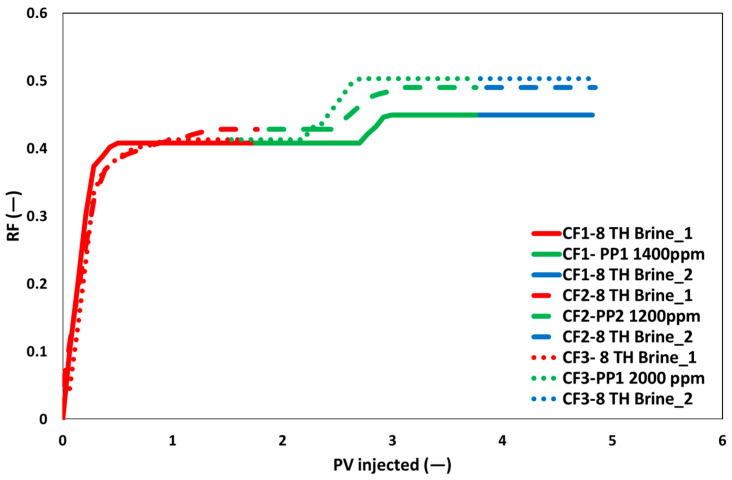

Figure 17

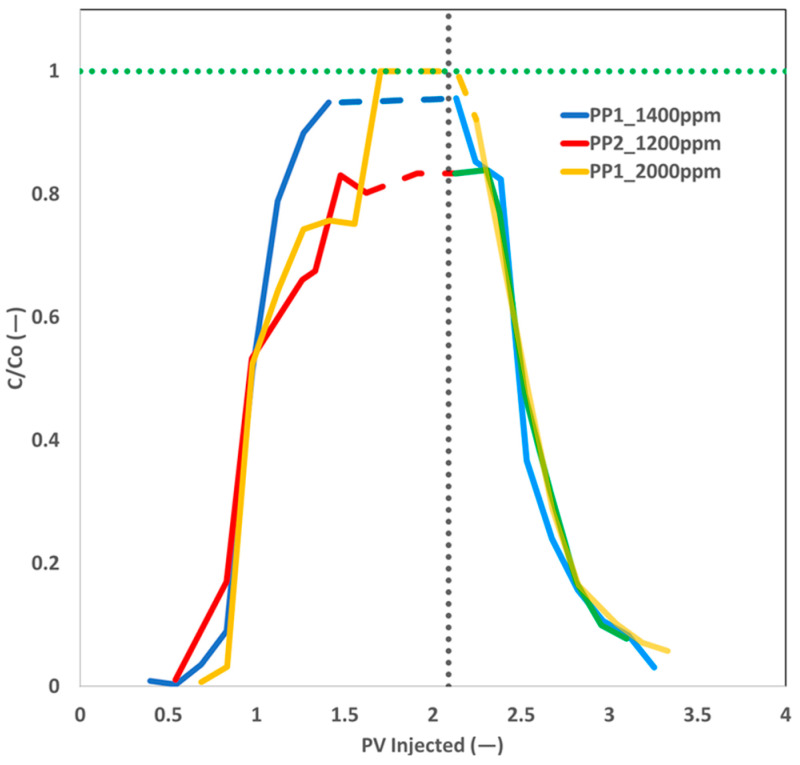

Figure 18

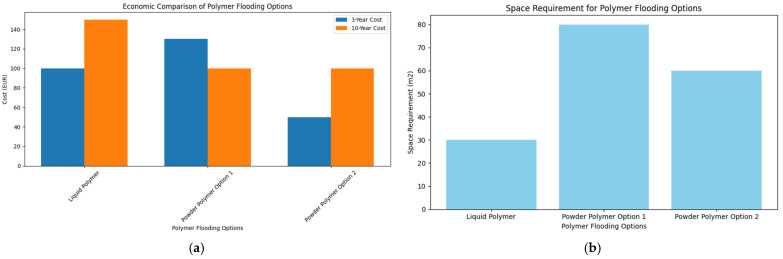

Figure 19Peer Reviews
