A Multi-Objective Optimization Method for Cylindrical Surface Ultrasonic Array Parameters Based on BPNN and NSGA-II
Xin Zeng, Xueshen Cao, Jiaheng Zhao, Yuyu Dai, Chao Li, Hao Chen
TL;DR
This paper introduces a new method to optimize the design of cylindrical ultrasonic arrays for better resolution and performance.
Contribution
A novel multi-objective optimization strategy combining BPNN and NSGA-II for cylindrical ultrasonic array design.
Findings
The method generates Pareto-optimal solutions for main-lobe width, side-lobe intensity, and sound-pressure uniformity.
Simulation results show improved resolution and regular dynamic aperture behavior at millimeter-level precision.
The approach provides practical insights for engineering cylindrical ultrasonic array designs.
Abstract
Key detection performance metrics, particularly resolution, are largely determined by the design parameters of ultrasonic arrays. The structural design of the transducer strongly influences critical indicators, including side lobe levels, beam directivity, and focal spot size. To improve parameter selection, this study proposes a multi-objective optimization strategy specifically tailored for cylindrical surface ultrasonic transducers. The geometric parameters of the array and the variables influencing resolution performance are mapped in a nonlinear manner. The NSGA-II algorithm is employed to perform extremum seeking optimization on a trained BPNN, generating a Pareto-optimal solution set by specifying main-lobe width, side-lobe intensity, and sound-pressure uniformity as optimization objectives. For validation, the geometric configurations derived from this solution set are applied…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

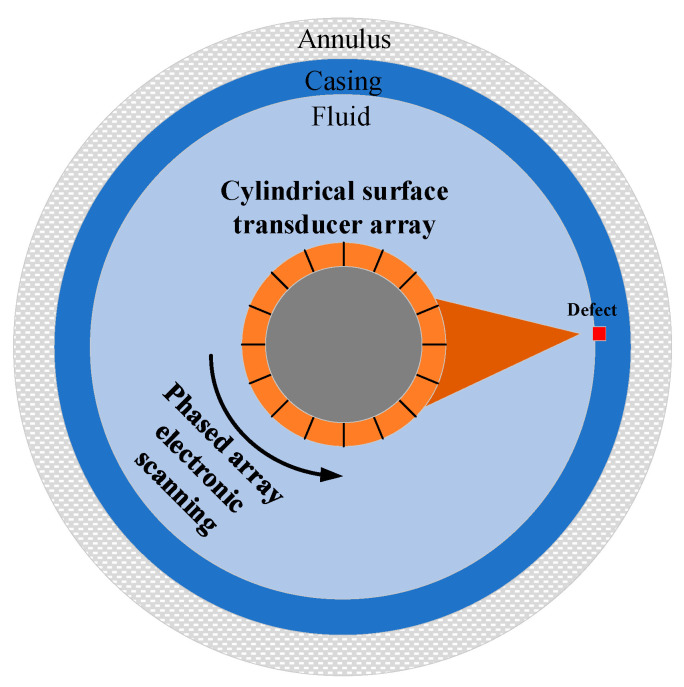

Figure 1

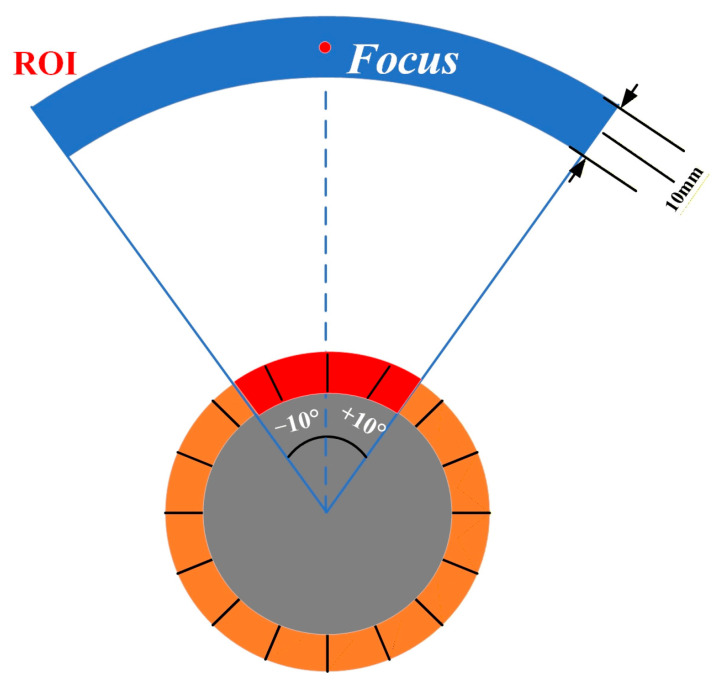

Figure 2

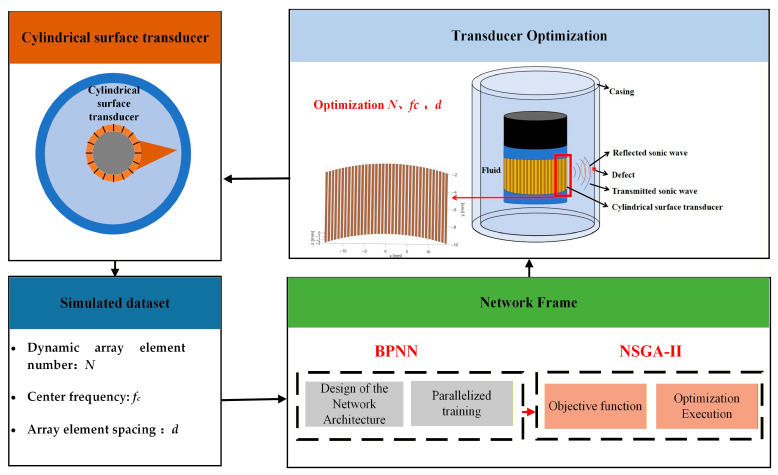

Figure 3

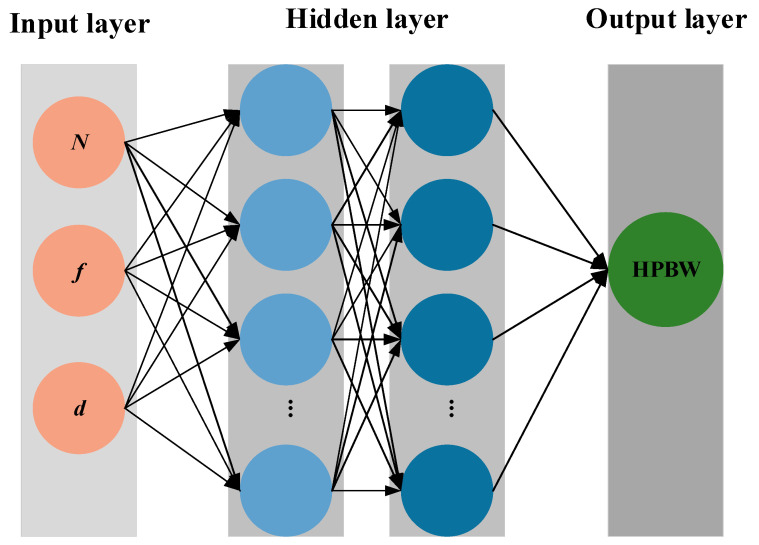

Figure 4

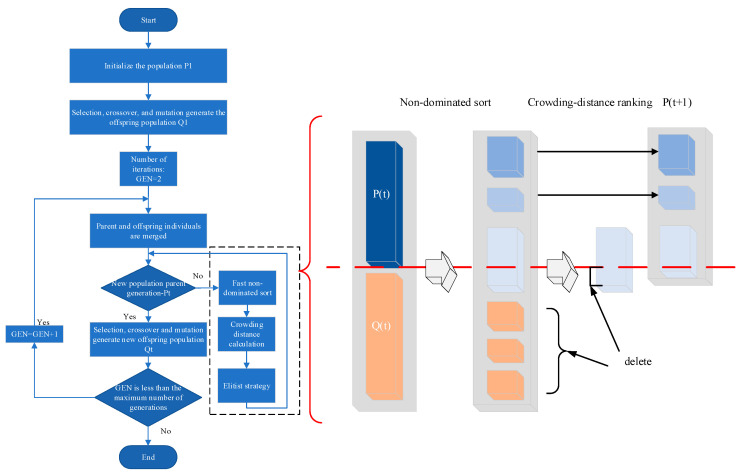

Figure 5

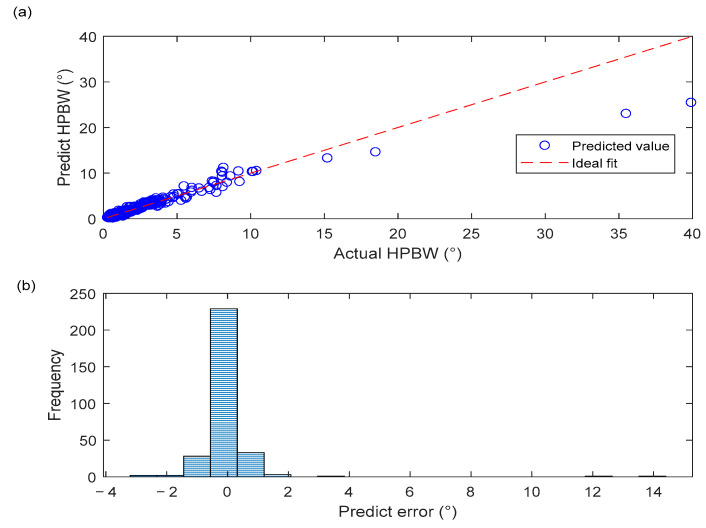

Figure 6

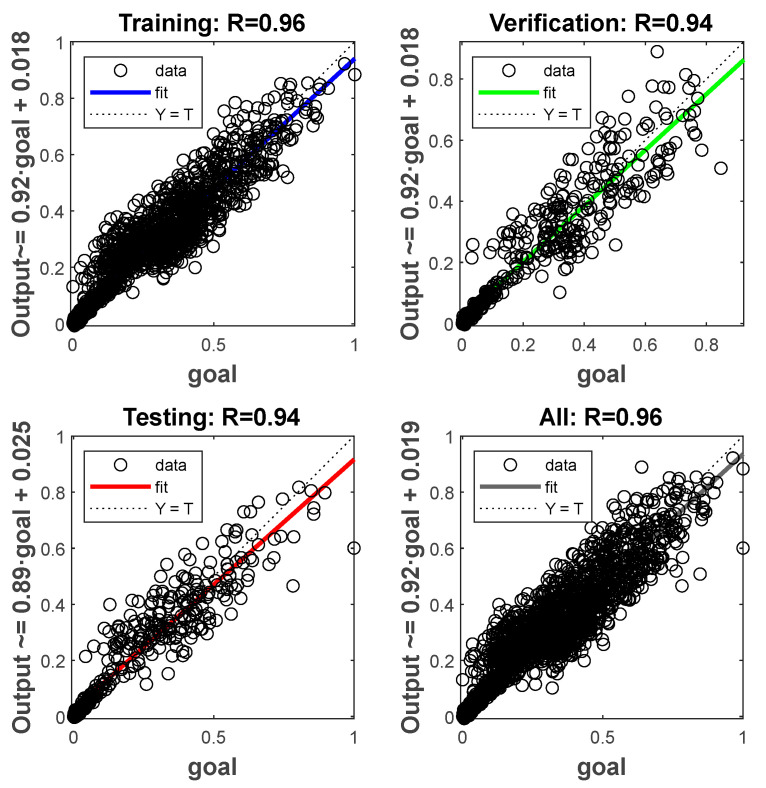

Figure 7

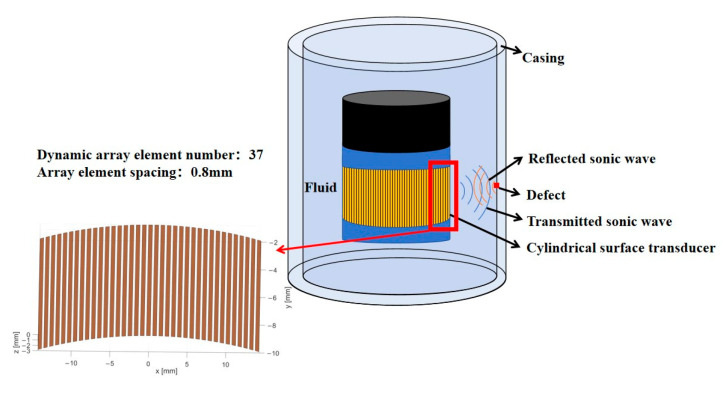

Figure 8

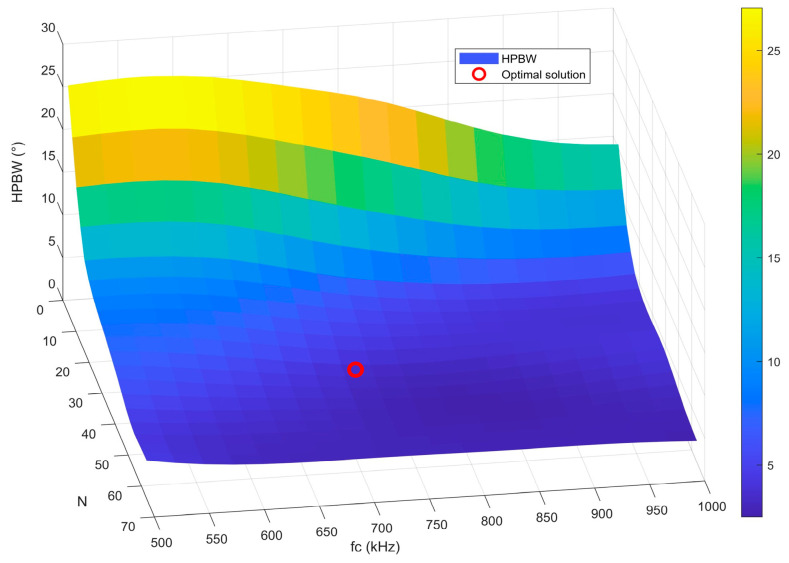

Figure 9

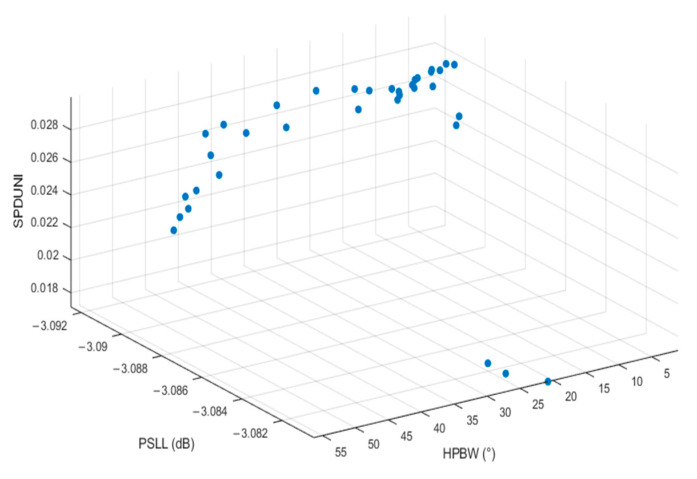

Figure 10

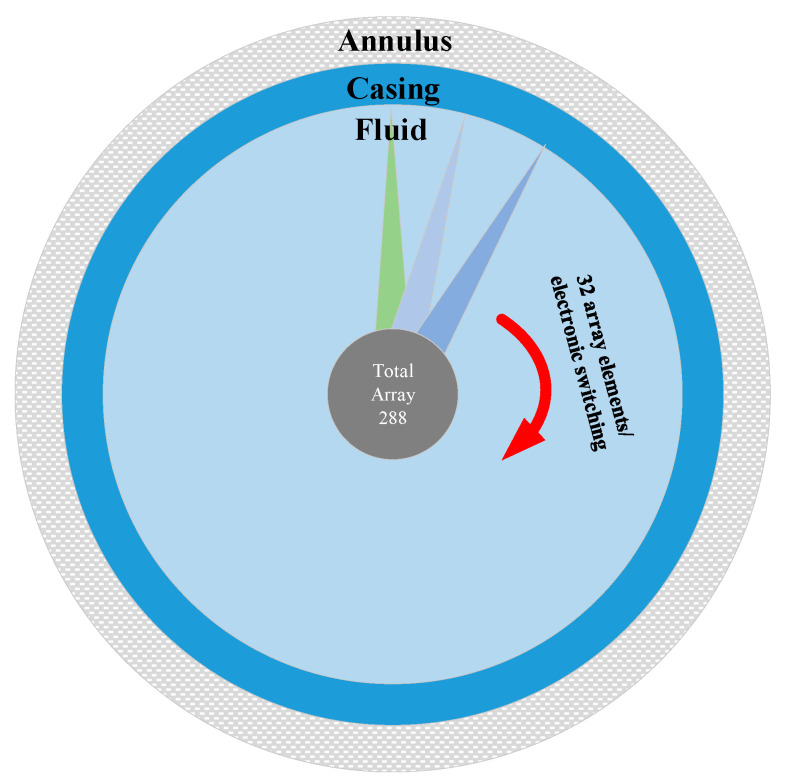

Figure 11

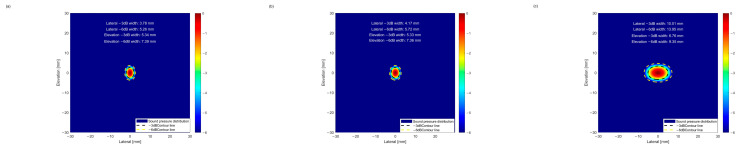

Figure 12

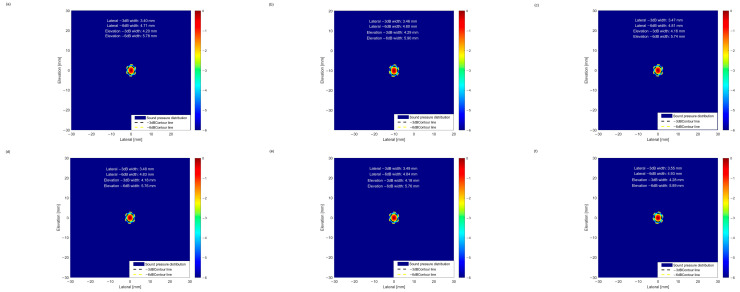

Figure 13

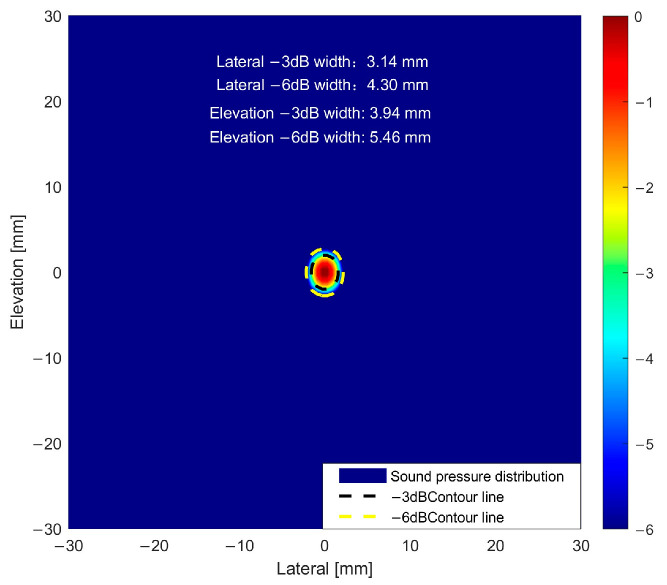

Figure 14

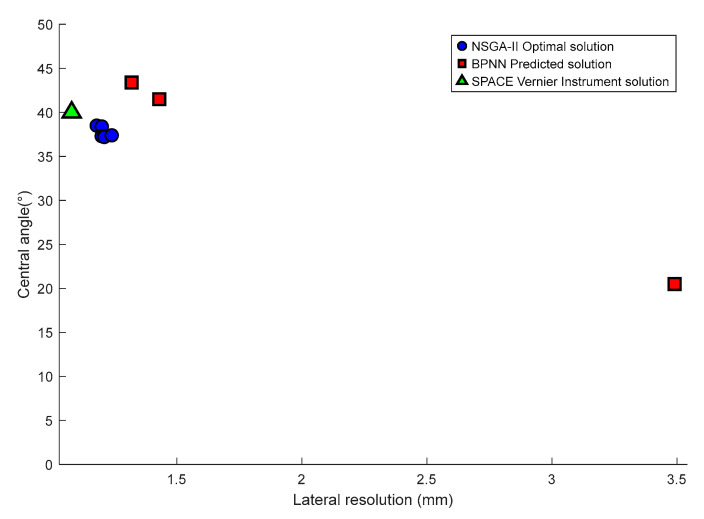

Figure 15Peer Reviews
