Prestrain-Enabled Stretchable and Conductive Aerogel Fibers

TL;DR

This paper introduces a new method to create stretchable and conductive aerogel fibers for use in wearable electronics.

Contribution

The novel prestrain-enabled coaxial architecture allows brittle aerogels to become stretchable while maintaining conductivity.

Findings

TPE-wrapped aerogel fibers can stretch up to 250% while retaining electrical function.

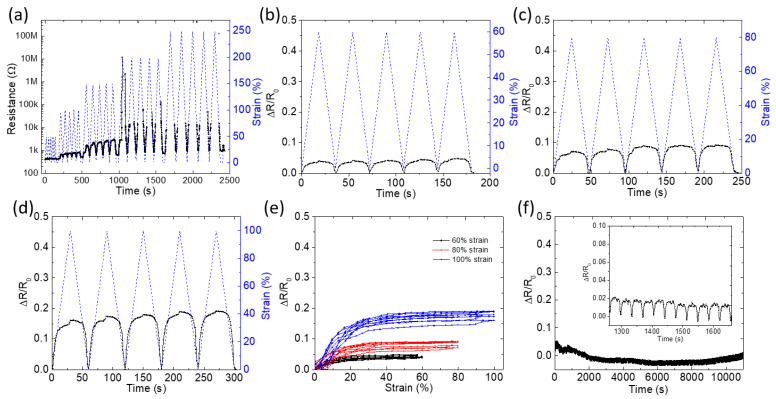

Resistance changes are minimal and stable at low strains (<60%) and fully recoverable at higher strains.

Abstract

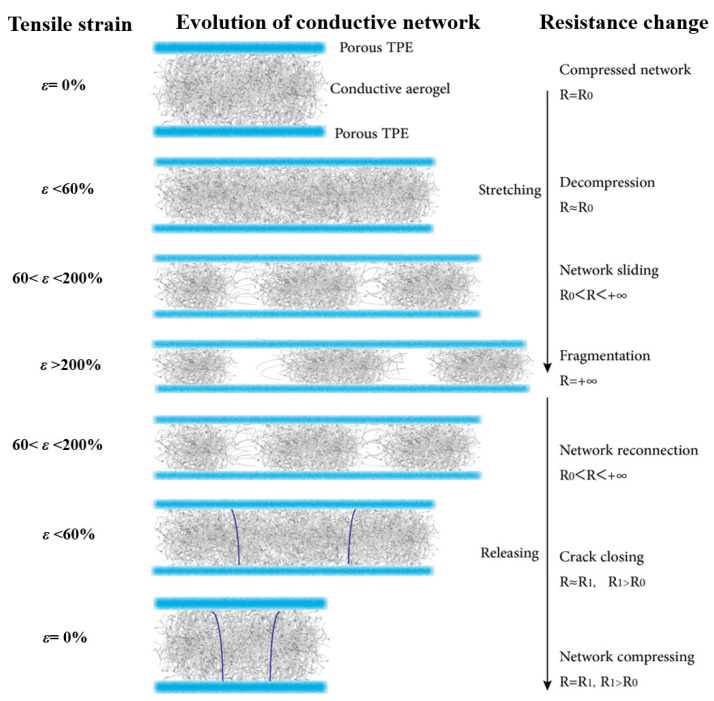

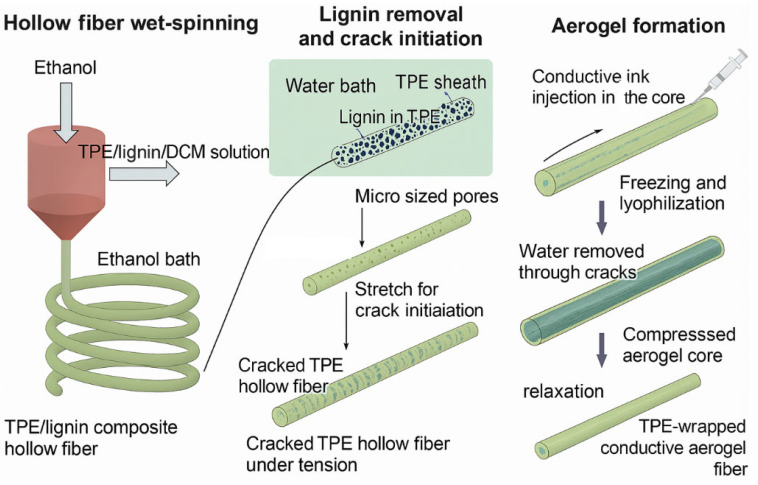

Aerogels combine ultralow density with high surface area, yet their brittle, open networks preclude tensile deformation and hinder integration into wearable electronics. Here we introduce a prestrain-enabled coaxial architecture that converts a brittle conductive aerogel into a highly stretchable fiber. A porous thermoplastic elastomer (TPE) hollow sheath is wet-spun using a sacrificial lignin template to ensure solvent exchange and robust encapsulation. Conductive polymer-based precursor dispersions are infused into prestretched TPE tubes, frozen, and lyophilized; releasing the prestretch then programs a buckled aerogel core that unfolds during elongation without catastrophic fracture. The resulting TPE-wrapped aerogel fibers exhibit reversible elongation up to 250% while retaining electrical function. At low strains (<60%), resistance changes are small and stable (ΔR/R0 < 0.04); at larger strains the response remains monotonic and fully recoverable, enabling broad-range sensing. The mechanism is captured by a strain-dependent percolation model in which elastic decompression, contact sliding, and controlled fragmentation/reconnection of the aerogel network govern the signal. This generalizable strategy decouples elasticity from conductivity, establishing a scalable route to ultralight, encapsulated, and skin-compatible aerogel fibers for smart textiles and deformable electronics.

Figures
