The Impact of Operating Ratio on the Static and Fatigue Life of Forward-Acting Rupture Discs
Haitao Wang, Zhenxi Liu, Honglie Xuan, Hongxin Zhang, Hui Xu, Shan Chen, Jianliang Yu
TL;DR
This study examines how operating ratio affects the lifespan of rupture discs under different conditions, offering a framework for predicting their replacement intervals.
Contribution
A predictive framework for rupture disc life based on operating ratio and material behavior under various conditions is proposed.
Findings
Life decreases as operating ratio increases for both materials and all test conditions.
Inconel 600 shows longer life than 316 L stainless steel at matched operating ratios.
Failure analysis reveals progressive plastic deformation and thinning leading to reduced bursting pressure.
Abstract

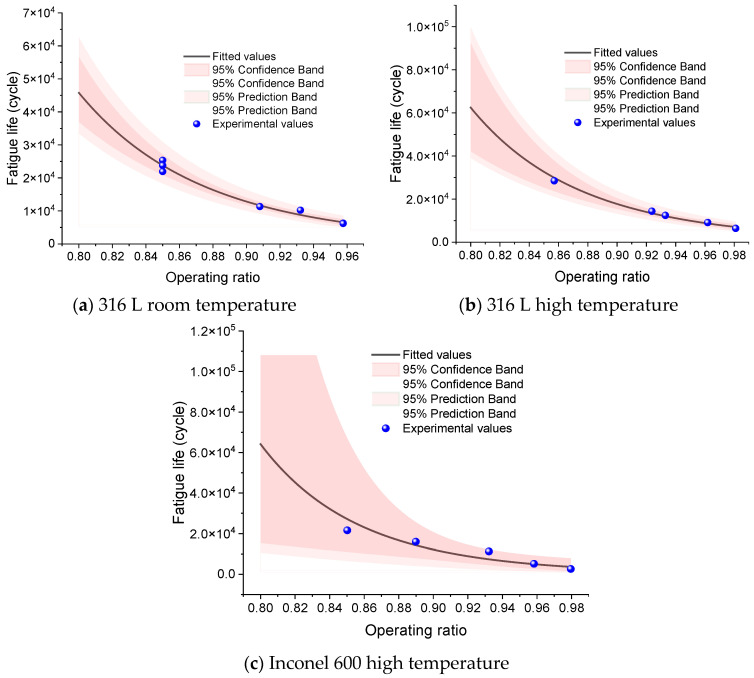

Rupture discs are critical safety devices for pressure vessels, yet defining replacement intervals for discs that have not ruptured remains challenging due to limited quantitative life-prediction methods. This study investigates forward-acting rupture discs made of 316 L stainless steel and Inconel 600 under three test conditions: low pressure at room temperature, low pressure at elevated temperature, and ultra-high pressure at elevated temperature. Static hold life and fatigue life were measured over a range of operating ratios R = Pw/Pb. To model life–ratio relationships while avoiding far-reaching extrapolation, static life was fitted with a log-normal accelerated-life (AFT) model and fatigue life with a Basquin relation following ASTM E739, reporting 95% prediction bands. Predictions were restricted to validated domains (static: R ≥ 0.86) and truncated at five times the groupwise…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

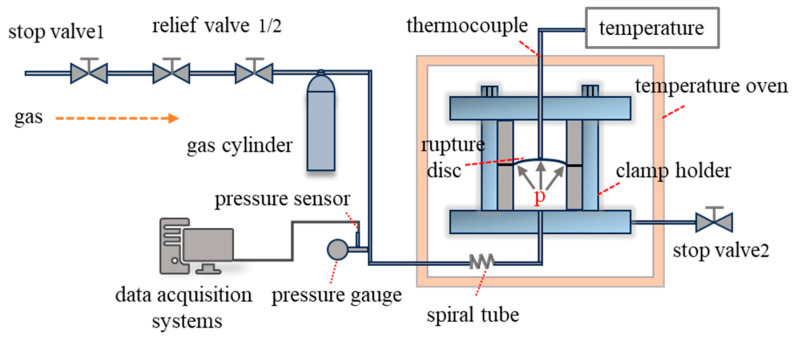

Figure 3

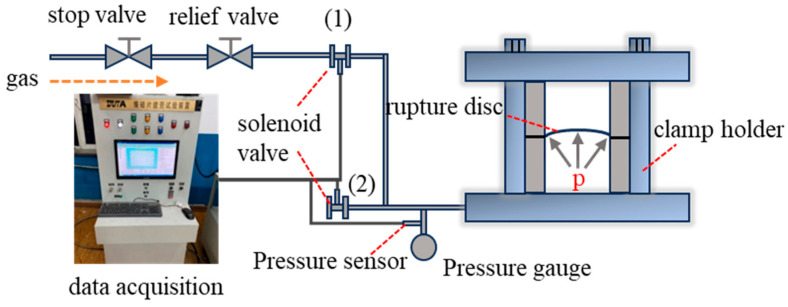

Figure 4
Figure 5

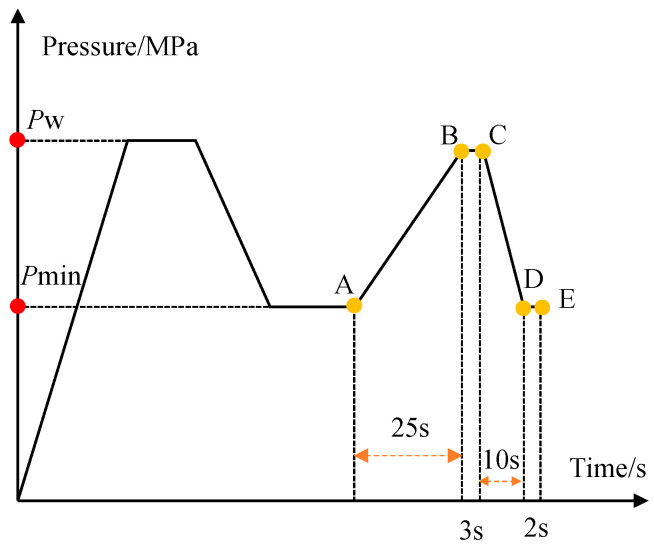

Figure 6
Figure 7
Figure 8
Figure 9

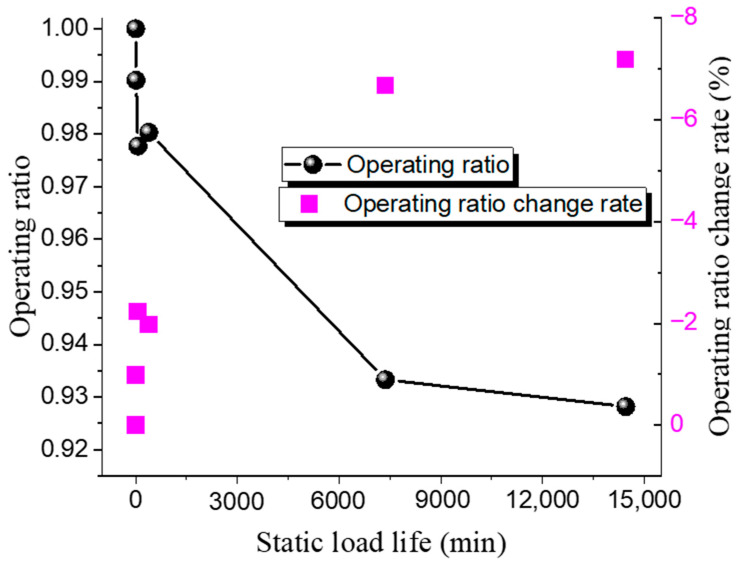

Figure 10

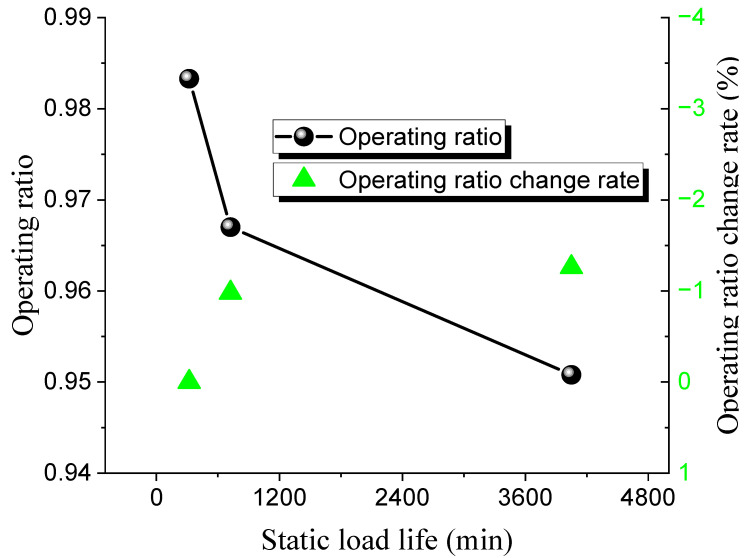

Figure 11

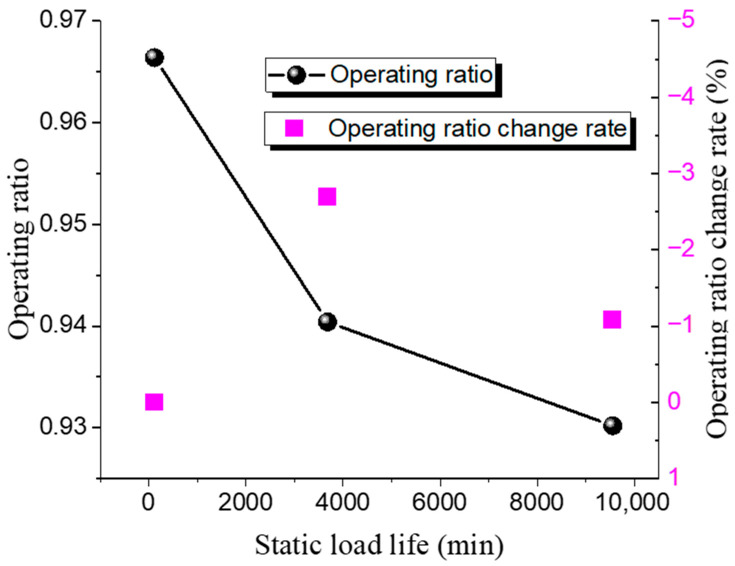

Figure 12
Figure 13

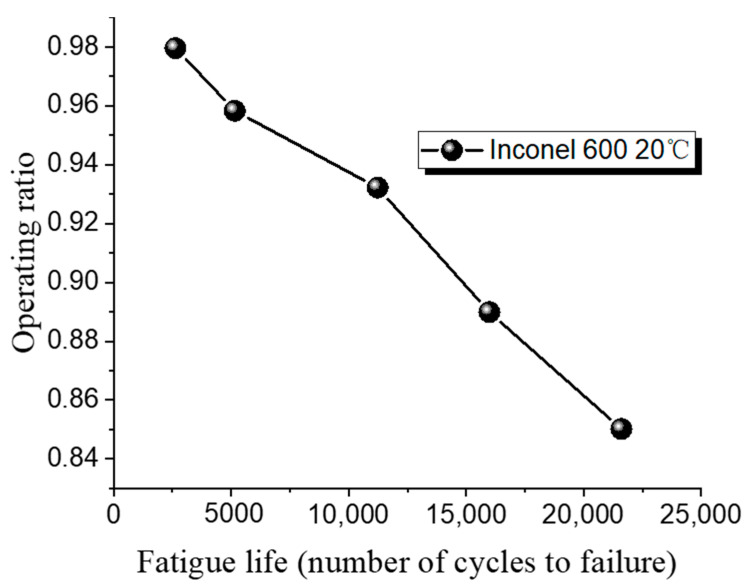

Figure 14

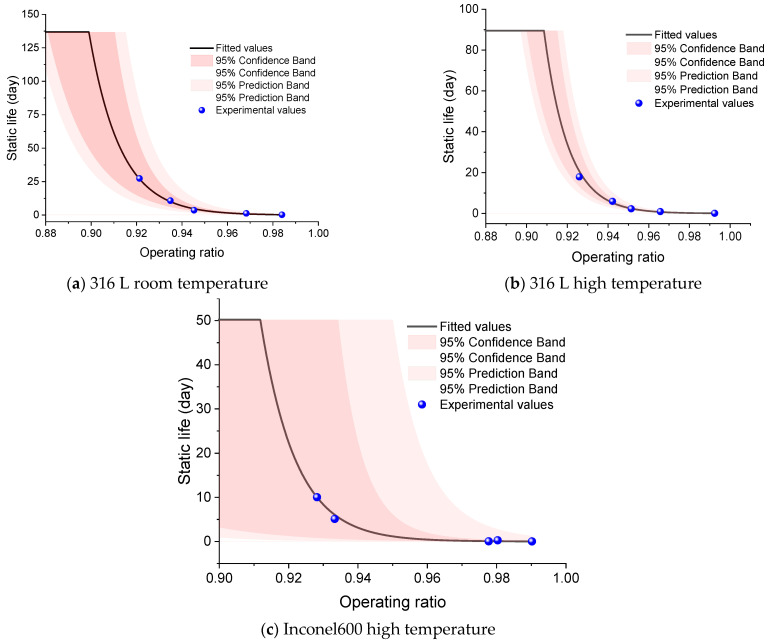

Figure 15
