The genome sequence of the lesser black-backed gull, Larus fuscus Linnaeus, 1758
Rosa Lopez Colom, Michelle F. O’Brien, Yang Liu, Marcelo de Bello AbdilzadehCioffi, Fernando Souza, Francisco de Menezes Cavalcante Sassi
TL;DR
This paper provides the genome sequence of the lesser black-backed gull, including a detailed assembly of its chromosomes and mitochondrial DNA.
Contribution
The study presents a high-quality genome assembly for the lesser black-backed gull, including chromosomal pseudomolecules and the mitochondrial genome.
Findings
The genome assembly spans 1,324.30 megabases and is scaffolded into 32 chromosomal pseudomolecules.
The mitochondrial genome is 16.75 kilobases in length and has been fully assembled.
The Z sex chromosome is included in the chromosomal scaffolding.
Abstract
We present a genome assembly from an individual female Larus fuscus (the lesser black-backed gull; Chordata; Aves; Charadriiformes; Laridae). The genome sequence spans 1,324.30 megabases. Most of the assembly is scaffolded into 32 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled and is 16.75 kilobases in length.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Project information | |||
|---|---|---|---|
|
| Larus fuscus (lesser black-backed gull) | ||
|
| PRJEB71570 | ||
|
|
| ||
|
| SAMEA112468039 | ||
|
| 8915 | ||
| Specimen information | |||
|
|
|
|
|
|
| bLarFus1 | SAMEA112468094 | muscle |
|
| bLarFus1 | SAMEA112468094 | muscle |
|
| bLarFus1 | SAMEA112468096 | muscle |
| Sequencing information | |||
|
|
|
|
|
|
| ERR12512742 | 4.98e+08 | 75.18 |
|
| ERR12408797 | 3.14e+06 | 21.77 |
|
| ERR12408796 | 1.88e+06 | 17.73 |
|
| ERR12736858 | 2.48e+06 | 18.14 |
|
| ERR12512743 | 5.12e+07 | 7.73 |
| Genome assembly | ||
|---|---|---|
| Assembly name | bLarFus1.1 | |
| Assembly accession | GCA_963932225.1 | |
|
|
| |
| Span (Mb) | 1,324.30 | |
| Number of contigs | 1,904 | |
| Contig N50 length (Mb) | 3.6 | |
| Number of scaffolds | 1,366 | |
| Scaffold N50 length (Mb) | 86.5 | |
| Longest scaffold (Mb) | 218.47 | |
| Assembly metrics
|
| |
| Consensus quality (QV) | 59.2 |
|
|
| 100.0% |
|
| BUSCO
| C:97.5%[S:97.2%,D:0.3%],
|
|
| Percentage of assembly
| 90.38% |
|
| Sex chromosomes | Z |
|
| Organelles | Mitochondrial genome:
|
|
| INSDC
| Name | Length
| GC% |
|---|---|---|---|
| 1 | 218.47 | 41.5 | |
| 2 | 167.92 | 41.0 | |
| 3 | 128.68 | 41.5 | |
| 4 | 94.81 | 42.5 | |
| 5 | 83.13 | 41.0 | |
| 6 | 73.36 | 43.0 | |
| 7 | 58.1 | 43.5 | |
| 8 | 55.73 | 44.0 | |
| 9 | 49.4 | 44.0 | |
| 10 | 25.19 | 44.5 | |
| 11 | 22.05 | 45.5 | |
| 12 | 17.98 | 47.0 | |
| 13 | 17.47 | 46.5 | |
| 14 | 14.96 | 48.0 | |
| 15 | 13.69 | 49.0 | |
| 16 | 10.09 | 48.5 | |
| 17 | 9.36 | 50.5 | |
| 18 | 8.79 | 52.5 | |
| 19 | 8.7 | 51.5 | |
| 20 | 7.91 | 53.0 | |
| 21 | 6.75 | 54.5 | |
| 22 | 6.57 | 50.5 | |
| 23 | 4.26 | 58.0 | |
| 24 | 3.3 | 59.0 | |
| 25 | 1.07 | 59.0 | |
| 26 | 0.84 | 63.0 | |
| 27 | 0.51 | 65.0 | |
| 28 | 0.48 | 62.0 | |
| 29 | 0.42 | 56.5 | |
| 30 | 0.29 | 67.0 | |
| 31 | 0.17 | 61.0 | |
| Z | 86.5 | 41.0 | |
| MT | 0.02 | 45.0 |
| Software tool | Version | Source |
|---|---|---|
| BEDTools | 2.30.0 |
|
| BLAST | 2.14.0 |
|
| BlobToolKit | 4.3.7 |
|
| BUSCO | 5.4.3 and 5.5.0 |
|
| bwa-mem2 | 2.2.1 |
|
| Cooler | 0.8.11 |
|
| DIAMOND | 2.1.8 |
|
| fasta_windows | 0.2.4 |
|
| FastK | 427104ea91c78c3b8b8b49f1a7d6bbeaa869ba1c |
|
| Gfastats | 1.3.6 |
|
| GoaT CLI | 0.2.5 |
|
| Hifiasm | 0.19.8-r603 |
|
| HiGlass | 44086069ee7d4d3f6f3f0012569789ec138f42b84
|
|
| Merqury.FK | d00d98157618f4e8d1a9190026b19b471055b22e |
|
| MitoHiFi | 3 |
|
| MultiQC | 1.14, 1.17, and 1.18 |
|
| NCBI Datasets | 15.12.0 |
|
| Nextflow | 23.04.0-5857 |
|
| PretextView | 0.2 |
|
| purge_dups | 1.2.5 |
|
| samtools | 1.16.1, 1.17, and 1.18 |
|
| sanger-tol/ascc | - |
|
| sanger-tol/
| 0.10.0 |
|
| sanger-tol/
| 1.1.1 |
|
| sanger-tol/
| 1.2.1 |
|
| Seqtk | 1.3 |
|
| Singularity | 3.9.0 |
|
| TreeVal | 1.0.0 |
|
| YaHS | 1.2a.2 |
|
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGenomics and Phylogenetic Studies · Genetic diversity and population structure · Identification and Quantification in Food
Species taxonomy
Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Deuterostomia; Chordata; Craniata; Vertebrata; Gnathostomata; Teleostomi; Euteleostomi; Sarcopterygii; Dipnotetrapodomorpha; Tetrapoda; Amniota; Sauropsida; Sauria; Archelosauria; Archosauria; Dinosauria; Saurischia; Theropoda; Coelurosauria; Aves; Neognathae; Charadriiformes; Laridae; Larus; Larus fuscus Linnaeus, 1758 (NCBI:txid8915).
Background
The lesser black-backed gull (LBBG), Larus fuscus, resembles the herring gull ( Larus argentatus) except is slightly smaller and slimmer. It reaches a length of 52 to 67 cm, has yellow legs and a yellow bill with a red mark, and a darker slate-coloured back that extends across the wings, which end in even darker tips often marked with a white primary spot. The average weight ranges from 650 g to 1000 g. These gulls typically have a lifespan of 10 to 15 years ( Holden et al., 2014; Hume, 2014).
As with many Laridae species, there are differences between their summer and winter moults. In winter, they lose their brightness; their limbs and bill take on a duller yellow pigment, their heads transition from homogenous white to densely streaked grey, and their wings also show a duller hue of grey (Hume, 2014).
There are several recognised subspecies of the LBBG, each with slight variations in plumage and size. These subspecies include Larus fuscus fuscus, Larus fuscus graellsii, and Larus fuscus intermedius, among others ( Collinson et al., 2008). These different subspecies can be found from Iceland to western and northern Siberia throughout the year. However, during autumn and winter, breeding populations disperse across Europe, with many migrating south along the Mediterranean coast and into northern Africa. Breeding grounds for lesser black-backed gulls commonly include lowland coastal areas, but they can also be found nesting on the rooftops of buildings in semi-urban inland regions ( Hume, 2014).
The diversity within the species provides an interesting study in evolutionary adaptation and variation. The LBBGs are known to hybridise with other gull species ( Liebers et al., 2004). Genomic analysis can help clarify the extent and impact of hybridisation and understand the genetic exchange between species. This is important for both species identification and conservation management.
Under the IUCN Red List, LBBGs are considered a species of 'Least Concern'; however, their conservation status in the UK is amber due to significant population decline ( British Trust for Ornithology, 2015). Threats contributing to the decline of this species include habitat loss, pollution, a reduced food supply, fewer available nesting sites inland, and illegal killing ( OSPAR Assessment Portal, 2020).
Genome sequence report
The genome of an adult female Larus fuscus ( Figure 1) was sequenced using Pacific Biosciences single-molecule HiFi long reads, generating a total of 18.14 Gb (gigabases) from 2.48 million reads, providing approximately 30-fold coverage. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data, which produced 75.18 Gbp from 497.87 million reads, yielding an approximate coverage of 57-fold. Specimen and sequencing information is summarised in Table 1.
Photograph of Lesser Black-backed Gull Larus fuscus.
Table 1.: Specimen and sequencing data for Larus fuscus.
Manual assembly curation corrected 44 missing joins or mis-joins, reducing the scaffold number by 1.94%. The final assembly has a total length of 1,324.30 Mb in 1,366 sequence scaffolds with a scaffold N50 of 86.5 Mb ( Table 2), and 537 gaps. The total count of gaps in the scaffolds is 537. The snail plot in Figure 2 provides a summary of the assembly statistics, while the distribution of assembly scaffolds on GC proportion and coverage is shown in Figure 3. The cumulative assembly plot in Figure 4 shows curves for subsets of scaffolds assigned to different phyla. Most (90.38%) of the assembly sequence was assigned to 32 chromosomal-level scaffolds, representing 31 autosomes and the Z sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 5; Table 3). The Z chromosome was identified based on alignment with Gallus gallus (GCF_016699485.2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.
Table 2.: Genome assembly data for Larus fuscus, bLarFus1.1.

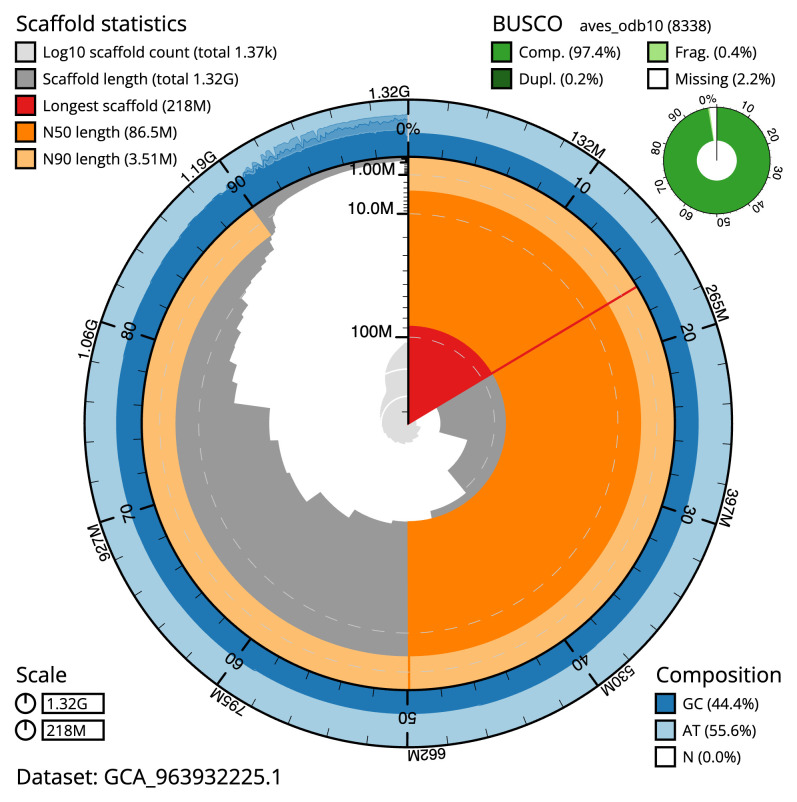

Genome assembly of Larus fuscus, bLarFus1.1: metrics. The BlobToolKit snail plot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 1,324,286,540 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (218,474,787 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (86,500,895 and 3,505,000 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the aves_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Larus_fuscus/dataset/GCA_963932225.1/snail.

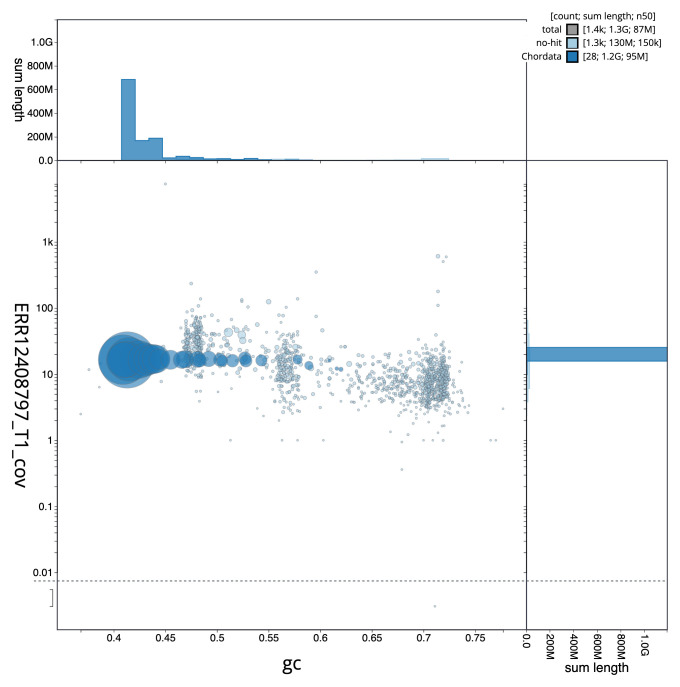

Genome assembly of Larus fuscus, bLarFus1.1: BlobToolKit GC-coverage plot. Sequences are coloured by phylum.Circles are sized in proportion to sequence length. Histograms show the distribution of sequence length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Larus_fuscus/dataset/GCA_963932225.1/blob.

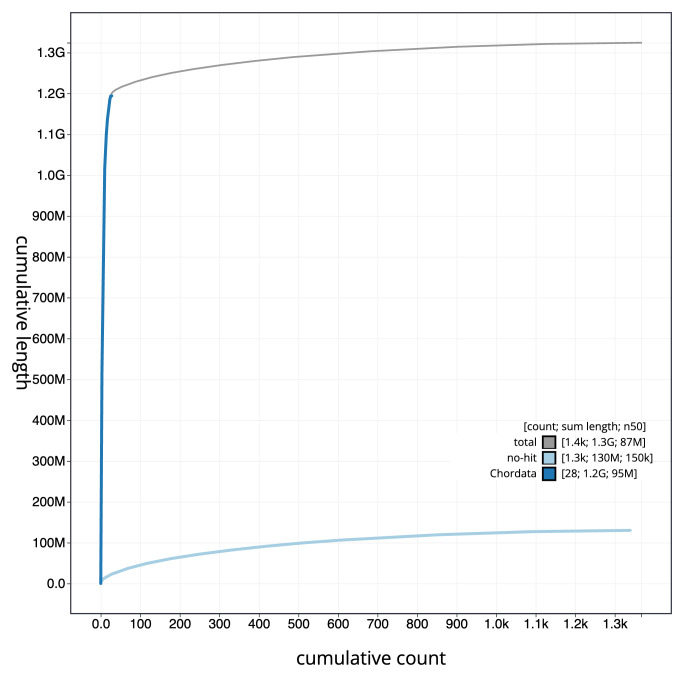

Genome assembly of Larus fuscus bLarFus1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all sequences. Coloured lines show cumulative lengths of sequences assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/Larus_fuscus/dataset/GCA_963932225.1/cumulative.

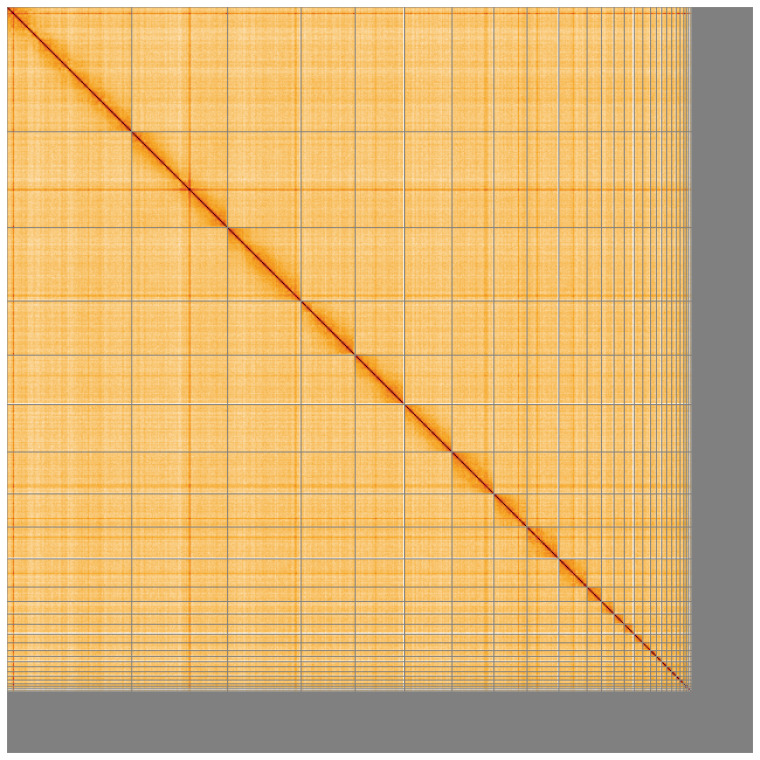

Genome assembly of Larus fuscus bLarFus1.1: Hi-C contact map of the bLarFus1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=CQjcZyANQcysUbst203I9w.
Table 3.: Chromosomal pseudomolecules in the genome assembly of Larus fuscus, bLarFus1.
The estimated Quality Value (QV) of the final assembly is 59.2 with k-mer completeness of 100.0%, and the assembly has a BUSCO v5.4.3 completeness of 97.5% (single = 97.2%, duplicated = 0.3%), using the vertebrata_odb10 reference set ( n = 8,338).
Metadata for specimens, BOLD barcode results, spectra estimates, sequencing runs, contaminants and pre-curation assembly statistics are given at https://links.tol.sanger.ac.uk/species/8915.
Methods
Sample acquisition and nucleic acid extraction
Several small samples of pectoral muscle were collected from a deceased lesser black-backed gull, Larus fuscus, specimen ID NHMUK014561644 (ToLID bLarFus1). This Laridae species was collected in Carmarthenshire in 2021 as part of a disease surveillance programme carried out by WWT, in contribution to the Great Britain Wildlife Health Partnership, and stored at –20°C prior to sampling. The specimen was a female and post-mortem examination revealed a shot pellet as the primary cause of death. The specimen was collected and identified by Rosa Lopez Colom (Wildfowl & Wetlands Trust).
The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory includes a sequence of core procedures: sample preparation; sample homogenisation, DNA extraction, fragmentation, and clean-up. In sample preparation, the bLarFus1 sample was weighed and dissected on dry ice ( Jay et al., 2023).
For sample homogenisation, muscle tissue was cryogenically disrupted using the Covaris cryoPREP ^®^ Automated Dry Pulverizer ( Narváez-Gómez et al., 2023). HMW DNA was extracted using the Manual MagAttract v2 protocol ( Strickland et al., 2023b). DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30 ( Todorovic et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation ( Strickland et al., 2023a): in brief, the method employs AMPure PB beads to eliminate shorter fragments and concentrate the DNA. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
RNA was extracted from muscle tissue of bLarFus1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol ( do Amaral et al., 2023). The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.
Protocols developed by the WSI Tree of Life laboratory are publicly available on protocols.io ( Denton et al., 2023).
Sequencing
Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences Sequel IIe (HiFi) and Illumina NovaSeq 6000 (RNA-Seq) instruments. Hi-C data were also generated from muscle tissue of bLarFus1 using the Arima-HiC v2 kit. The Hi-C sequencing was performed using paired-end sequencing with a read length of 150 bp on the Illumina NovaSeq 6000 instrument.
Genome assembly, curation and evaluation
** Assembly **
HiFi reads were assembled using the ‘sanger-tol/genomeassembly’ pipeline ( Krasheninnikova et al., 2024). Original assembly of HiFi reads is performed using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed with purge_dups ( Guan et al., 2020). Hi-C reads are further mapped with bwa-mem2 ( Vasimuddin et al., 2019) to the primary contigs, which are further scaffolded using the provided Hi-C data ( Rao et al., 2014) in YaHS ( Zhou et al., 2023) using the --break option. Scaffolded assemblies are evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).
The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
** Assembly curation **
The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants (ASCC) pipeline (article in preparation). Flat files and maps used in curation were generated in TreeVal ( Pointon et al., 2023). Manual curation was primarily conducted using PretextView ( Harry, 2022), with additional insights provided by JBrowse2 ( Diesh et al., 2023) and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Any identified contamination, missed joins, and mis-joins were corrected, and duplicate sequences were tagged and removed. The sex chromosome was identified by synteny. An AGP file was generated from the curated Pretext map to describe the order, orientation, and gaps between contigs. The TPF file was then created using the AGP file and the original fasta and TPF files. Chromosomes on the resolved map were painted, and the curated data was processed to produce the final assembly using the multi_join.py script. The entire process is documented at https://gitlab.com/wtsi-grit/rapid-curation (article in preparation).
** Evaluation of the final assembly **
The final assembly was post-processed and evaluated with the three Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a), “sanger-tol/genomenote” ( Surana et al., 2023b), and “sanger-tol/blobtoolkit” ( Muffato et al., 2024). The pipeline sanger-tol/readmapping aligns the Hi-C reads with bwa-mem2 ( Vasimuddin et al., 2019) and combines the alignment files with SAMtools ( Danecek et al., 2021). The sanger-tol/genomenote pipeline transforms the Hi-C alignments into a contact map with BEDTools ( Quinlan & Hall, 2010) and the Cooler tool suite ( Abdennur & Mirny, 2020), which is then visualised with HiGlass ( Kerpedjiev et al., 2018). It also provides statistics about the assembly with the NCBI datasets ( Sayers et al., 2024) report, computes k-mer completeness and QV consensus quality values with FastK and MERQURY.FK, and a completeness assessment with BUSCO ( Manni et al., 2021).
The sanger-tol/blobtoolkit pipeline is a Nextflow port of the previous Snakemake Blobtoolkit pipeline ( Challis et al., 2020). It aligns the PacBio reads with SAMtools and minimap2 ( Li, 2018) and generates coverage tracks for regions of fixed size. In parallel, it queries the GoaT database ( Challis et al., 2023) to identify all matching BUSCO lineages to run BUSCO ( Manni et al., 2021). For the three domain-level BUSCO lineage, the pipeline aligns the BUSCO genes to the Uniprot Reference Proteomes database ( Bateman et al., 2023) with DIAMOND ( Buchfink et al., 2021) blastp. The genome is also split into chunks according to the density of the BUSCO genes from the closest taxonomically lineage, and each chunk is aligned to the Uniprot Reference Proteomes database with DIAMOND blastx. Genome sequences that have no hit are then chunked with seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). All those outputs are combined with the blobtools suite into a blobdir for visualisation.
The genome assembly and evaluation pipelines were developed using the nf-core tooling ( Ewels et al., 2020), use MultiQC ( Ewels et al., 2016), and make extensive use of the Conda package manager, the Bioconda initiative ( Grüning et al., 2018), the Biocontainers infrastructure ( da Veiga Leprevost et al., 2017), and the Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017) containerisation solutions.
Table 4 contains a list of relevant software tool versions and sources.
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.
Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
• Ethical review of provenance and sourcing of the material
• Legality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Abdennur N Mirny LA : Cooler: scalable storage for Hi-C data and other genomically labeled arrays. Bioinformatics. 2020;36(1):311–316. 10.1093/bioinformatics/btz 540 31290943 PMC 8205516 · doi ↗ · pubmed ↗
- 2Allio R Schomaker-Bastos A Romiguier J : Mito Finder: efficient automated large-scale extraction of mitogenomic data in target enrichment phylogenomics. Mol Ecol Resour. 2020;20(4):892–905. 10.1111/1755-0998.13160 32243090 PMC 7497042 · doi ↗ · pubmed ↗
- 3Altschul SF Gish W Miller W : Basic Local Alignment Search Tool. J Mol Biol. 1990;215(3):403–410. 10.1016/S 0022-2836(05)80360-2 2231712 · doi ↗ · pubmed ↗
- 4Bateman A Martin MJ Orchard S : Uni Prot: the universal protein knowledgebase in 2023. Nucleic Acids Res. 2023;51(D 1):D 523–D 531. 10.1093/nar/gkac 1052 36408920 PMC 9825514 · doi ↗ · pubmed ↗
- 5Bernt M Donath A Jühling F : MITOS: improved de novo metazoan mitochondrial genome annotation. Mol Phylogenet Evol. 2013;69(2):313–319. 10.1016/j.ympev.2012.08.023 22982435 · doi ↗ · pubmed ↗
- 6British Trust for Ornithology: Lesser Black-backed gull. BTO - British Trust for Ornithology. 2015. Reference Source
- 7Buchfink B Reuter K Drost HG : Sensitive protein alignments at Tree-of-Life scale using DIAMOND. Nat Methods. 2021;18(4):366–368. 10.1038/s 41592-021-01101-x 33828273 PMC 8026399 · doi ↗ · pubmed ↗
- 8Challis R Kumar S Sotero-Caio C : Genomes on a Tree (Goa T): a versatile, scalable search engine for genomic and sequencing project metadata across the eukaryotic Tree of Life [version 1; peer review: 2 approved]. Wellcome Open Res. 2023;8:24. 10.12688/wellcomeopenres.18658.1 36864925 PMC 9971660 · doi ↗ · pubmed ↗
