Concavities of the margins of focal bone lesions on MRI: a retrospective study of 586 cases
Abdulrazak Kalaaji, Anthony De Leeuw, Simon Henry, Nathalie Boutry, Sammy Badr, Anne Cotten
TL;DR
This study found that concave margins on MRI scans of bone lesions are more common in benign tumors like fibrous dysplasia and osteonecrosis.
Contribution
The study introduces concave margins as a potential imaging marker for distinguishing benign from malignant bone lesions.
Findings
Benign lesions and tumors showed significantly more concave margins than malignant ones.
Osteonecrosis and fibrous dysplasia frequently exhibited two or more concave margins.
Concave margins suggest a non-aggressive nature of focal bone lesions.
Abstract
Except for a few specific lesions, the analysis of the margins of focal bone lesions with MRI has been largely overlooked in the literature. We observed that some lesions exhibited concave margins, suggesting a non-aggressive nature. This study aimed to determine whether concave borders are more frequently present in certain types of focal lesions of the long bones on MRI, particularly in benign lesions. MRI examinations of 586 focal intraosseous lesions of the long bones were retrospectively reviewed. Each lesion margin was independently classified by two musculoskeletal radiologists as concave, non-concave, or cortical. The number of concave margins was analyzed according to the lesion type and its classification as tumoral (benign or malignant) or non-tumoral. The study group included 15 different types of lesions (75.1% tumors, 24.9% non-tumoral lesions). The number of concave…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

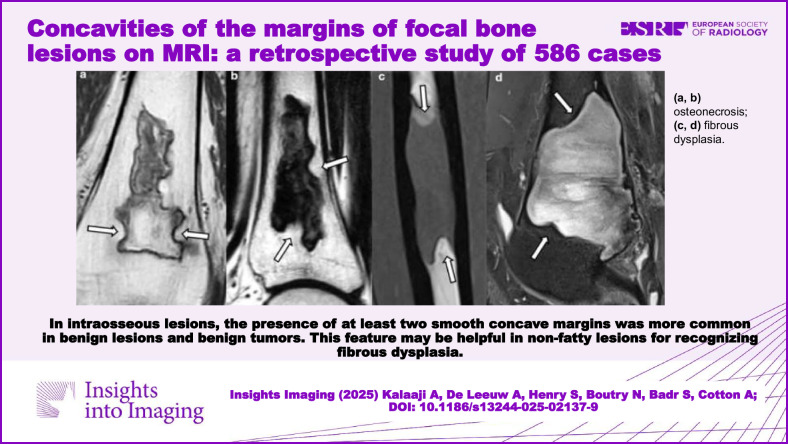

Figure 7Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBone Tumor Diagnosis and Treatments · Bone and Joint Diseases · Bone health and treatments
Introduction
Focal bone lesions are frequently encountered in clinical practice. They present a wide differential diagnosis that includes primary and secondary bone tumors as well as non-tumoral bone lesions. The analysis of these lesions involves both non-radiological features (such as age, medical history, clinical symptoms, and biological markers) and radiological features (including location, size, number of lesions, margins, matrix, adjacent trabecular, cortical, and medullary bone, periosteal reaction, and adjacent soft tissue involvement) [1–4]. One of the primary challenges for radiologists is to identify “do not touch lesions” and, for other lesions, to assess their aggressiveness and, if possible, propose a diagnosis.
The analysis of lesion margins is essential for assessing aggressiveness. This feature is well-described radiographically in the Lodwick-Madewell classification [5]. However, the shape of the lesion, particularly its margins, remains underexplored in the literature, except for specific lesions, such as lobulated margins in cartilaginous tumors [6–8].
In our practice, we observed that certain intraosseous lesions in long bones, when assessed with magnetic resonance imaging (MRI), exhibit focal or extensive concave inward margins. This feature should argue against an expansile or aggressive process, which typically presents convex margins. To the best of our knowledge, this feature has not been previously studied in the literature. Consequently, its prevalence, its association with specific lesion types—particularly benign ones—and its potential usefulness in clinical practice remain unknown. We hypothesized that this novel marker could improve radiological assessment of bone lesions. Therefore, this study aimed to determine whether concave margins are more commonly associated with specific types of focal bone lesions, particularly benign ones.
Materials and methods
Study group
This retrospective observational study was conducted at the University Hospital of Lille in conformity with ethical regulations and with approval from the Institution’s Data protection officer (DEC23-145). MRI reports generated in our department from January 2015 to December 2021 were reviewed using an electronic keyword search (Illuminate, Softek). The eligibility criteria for recruitment were (1) focal bone lesions located within the long bones of the appendicular skeleton and (2) MRI examination with at least two orthogonal planes and a maximum slice thickness of 4 millimeters. All MRI examinations were performed using either a 1.5-T or 3-T full-body scanner (Ingenia 1.5 T and Ingenia 3 T; Philips Medical Systems). Images were accessible in the hospital’s picture archiving and communication system (IntelliSpace PACS; Philips Healthcare). Electronic medical records, including demographic and clinical data, were available for each patient.
The total number of eligible lesions was 1076. Of these, 490 were excluded for the following reasons: (1) uncertain diagnosis from pathological, bacteriological, imaging, and/or follow-up data (118 lesions); (2) aggressive osteolysis of the cortex and/or pathological fracture, which impeded margin analysis (131 lesions), (3) history of lesion treatment or presence of implanted material (41 lesions); (4) small lesion size, less than 1 centimeter, preventing accurate margin analysis (133 lesions); and (5) suboptimal MRI quality due to protocol issues, artifacts, or patient movements (128 lesions).
Our final cohort included 586 lesions, each reliably diagnosed by one of four methods: (1) histology (127 lesions) or bacteriology (24 lesions) obtained via core biopsy needle or surgical resection; (2) typical “do not touch” bone lesion appearance, in accordance with established criteria (203 lesions) [9–17]; (3) multidisciplinary consensus, or interpretation by a senior musculoskeletal radiologist (A.C.), combined with at least 2 years of imaging follow-up (232 lesions).
MRI analysis
Forty MRI examinations from the dataset were initially used for the training. Subsequently, MRI examinations were independently analyzed by two musculoskeletal radiologists with one (A.K.) and more than 20 years (A.C.) of experience in musculoskeletal radiology, respectively. The scans were randomized, and the readers were blinded to the final diagnosis. For intra-observer agreement, the less experienced radiologist reassessed 118 of the 586 lesions three months later.
The following MRI features were recorded for each lesion: the affected long bone; its epiphyseal, metaphyseal, and/or diaphyseal location; the lesion’s size along its long axis; and the type of margin for each of its borders (anterior, posterior, medial, lateral, proximal, and distal).

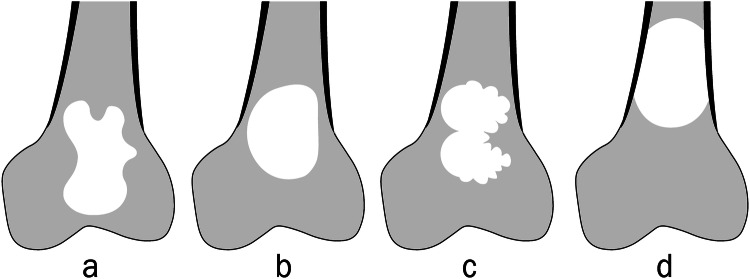

Each margin was classified and defined as follows (Fig. 1): (1) concave: at least one focal concavity or a complete concave margin, defined by a smooth and regular inward-curved contour; (2) not concave: the absence of concavity in the lesion margin, as defined above. This group included convex or linear borders, and pseudo-concavities such as small or large indentations bordered by two convex borders; and (3) cortical: when the lesion margin was predominantly in contact with the cortex, preventing a reliable analysis of the margin.Fig. 1. Four examples of bone lesions with (a) lateral, medial and distal concave margins (white arrows), (b) convex (black arrows) and linear margins, (c) pseudo-concavities with a large indentation on the lateral border bordered by two convex borders (star), and pseudo-concavities created by small indentations on the rest of the borders, and (d) cortical medial and lateral margins
Statistical analysis
The Kruskal–Wallis test was used to determine if there was a statistically significant difference in the number of concave margins per lesion among the groups studied, followed by a post hoc multiple pairwise comparison analysis using the Dunn test with Bonferroni correction. The Wilcoxon–Mann–Whitney test was conducted to assess significant differences in the number of concave margins per lesion between non-tumoral and tumoral lesions, between benign lesions (non-tumoral and benign tumoral lesions) and intermediate/malignant tumors, and between benign tumors and intermediate/malignant tumors. ROC curve analysis was performed to evaluate the discriminatory ability of concave margins for certain types of lesions. Interobserver and intra-observer agreement for the number of concave margins was assessed using weighted Cohen’s kappa values, with kappa values interpreted as follows: 0–0.20 as slight; 0.21–0.40 as fair; 0.41–0.60 as moderate; 0.61–0.80 as substantial; and 0.81–1.00 as almost perfect agreement [18]. Quantitative Gaussian variables were expressed as mean and standard deviation (SD), while non-Gaussian quantitative variables were expressed as median, first quartile, and third quartile (Q1, Q3). The normality of data distribution was assessed graphically and using the Shapiro–Wilk test. p-values and Bonferroni-corrected p-values were considered significant at the 5% level. Statistical analyses were performed using R version 4.3.1 (R; R Foundation for Statistical Computing, Vienna, Austria).
Results
The study group consisted of 586 lesions observed in 494 patients, with a median age of 46 years (range: 14 months to 86 years). Among these lesions, 296 (50.5%) were observed in males and 290 (49.5%) in females. These lesions were unique in 441 patients (89.3%), while 33 patients (6.7%) had two lesions, and 20 patients (4%) had between 3 to 7 lesions. The femur was the most frequently affected long bone, and the metaphysis was the most commonly involved region of the bone (Table 1). The study group included 440 (75.1%) tumors, of which 314 (53.6%) were benign and 126 (21.5%) were intermediate or malignant tumors, and 146 (24.9%) non-tumoral lesions (Table 2). The median lesion size was 3 cm (range: 1–44 cm).Table 1. Bones affected by the lesions and localization in the bonesLong bone involved Femur331 (56.5%) Tibia138 (23.5%) Fibula18 (3.1%) Humerus92 (15.7%) Ulna3 (0.5%) Radius4 (0.7%)Localization in the long bone Epiphysis47 (8%) Metaphysis194 (33.1%) Diaphysis119 (20.3%) Epiphysis and metaphysis59 (10.1%) Metaphysis and diaphysis151 (25.8%) Epiphysis, metaphysis and diaphysis16 (2.7%)Table 2. List of lesions included in the studyTypeNumber of lesionsTumoral benign lesionsEnchondromaN = 132Non-ossifying fibromaN = 79Fibrous dysplasiaN = 58Unicameral bone cystN = 23Aneurysmal bone cystN = 10ChondroblastomaN = 7Tumoral intermediate and malignant lesionsMyeloma/plasmacytomaN = 53MetastasisN = 34ACT and chondrosarcomaN = 24Giant-cell tumorN = 12Langerhans cell histiocytosisN = 8Non-tumoral lesionsOsteonecrosisN = 71Mucoid cystN = 42AbscessN = 24Brown tumorn = 9ACT atypical cartilaginous tumor
Analysis
With each lesion having 6 borders, a total of 3516 borders were evaluated. The number of concave margins per lesion was significantly different between the lesion groups (p < 0.001). The effect size was large (η^2^ = 0.74). The number of concave margins per lesion, categorized by the nature of the lesion, is shown in Table 3. The percentage of concave margins per lesion, according to the type of lesion, is illustrated in the Electronic Supplementary Material section (Supplementary Fig. 1).Table 3. Number of concave margins per lesion according to lesion typeNumber of concave margins per lesion0At least 1At least 2At least 3At least 4At least 56Tumoral benign lesionsEnchondroma (n = 132)132 (100%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Non-ossifying fibroma (n = 79)76 (96.2%)3 (3.8%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Fibrous dysplasia (n = 58)20 (34.5%)38 (65.5%)26 (44.8%)9 (15.5%)4 (6.9%)2 (3.4%)0 (0%)Unicameral bone cyst (n = 23)19 (82.6%)4 (17.4%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Aneurysmal bone cyst (n = 10)7 (70%)3 (30%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Chondroblastoma (n = 7)4 (57.1%)3 (42.9%)1 (14.3%)0 (0%)0 (0%)0 (0%)0 (0%)Tumoral intermediate and malignant lesionsMyeloma/plasmacytoma (n = 53)52 (98.1%)1 (1.9%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Metastasis (n = 34)30 (88.2%)4 (11.8%)1 (2.9%)0 (0%)0 (0%)0 (0%)0 (0%)ACT/chondrosarcoma (n = 24)23 (95.8%)1 (4.2%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Giant-cell tumor (n = 12)12 (100%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Langerhans cell histiocytosis (n = 8)6 (75%)2 (25%)1 (12.5%)1 (12.5%)0 (0%)0 (0%)0 (0%)Non-tumoral lesionsOsteonecrosis (n = 71)0 (0%)71 (100%)71 (100%)71 (100%)67 (94.4%)54 (76.1%)34 (47.9%)Mucoid cyst (n = 42)42 (100%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Abscess (n = 24)18 (75%)6 (25%)5 (20.8%)2 (8.3%)2 (8.3%)1 (4.2%)0 (0%)Brown tumor (n = 9)9 (100%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)0 (0%)Percentage in bracketACT atypical cartilaginous tumor
A boxplot illustrating the number of concave margins for each lesion group is shown in Fig. 2. The post hoc analysis showed the following:
- The number of concave margins per lesion was significantly different between osteonecrosis from systemic origin and the other lesion groups (pcorrected < 0.01).
- The number of concave margins per lesion was significantly different between fibrous dysplasia on one side and the rest of the lesion groups, except for abscesses, chondroblastomas, Langerhans cell histiocytosis, and aneurysmal bone cyst (pcorrected < 0.01).

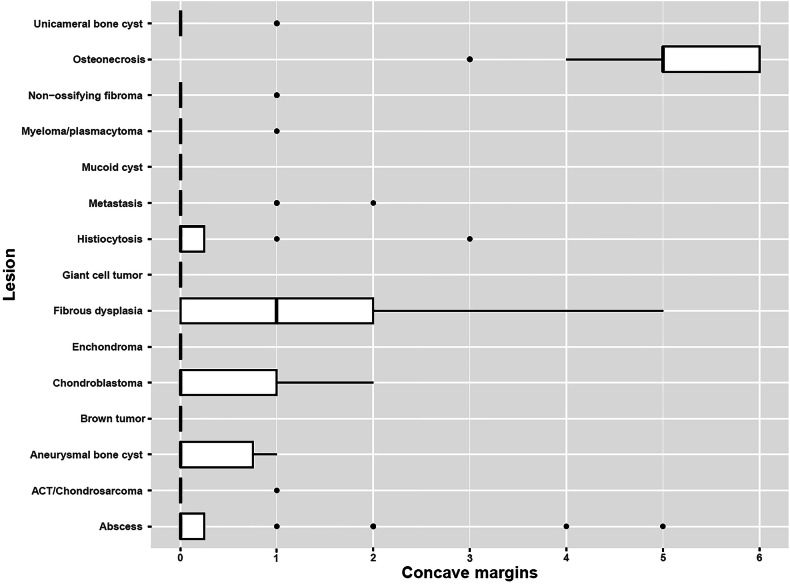

- There was no significant difference in the number of concave margins per lesion between the remaining pairs (pcorrected > 0.05). Fig. 2. Box plot of the groups according to the number of concave margins in each lesion group. ACT, atypical cartilaginous tumor

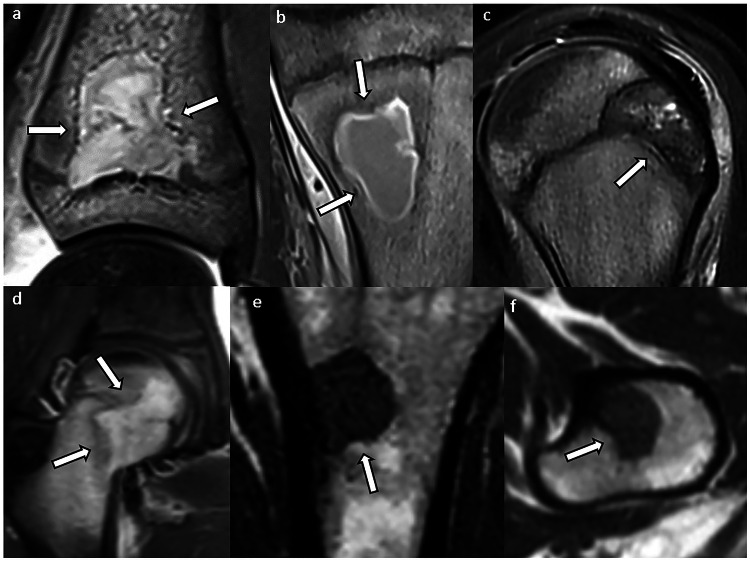

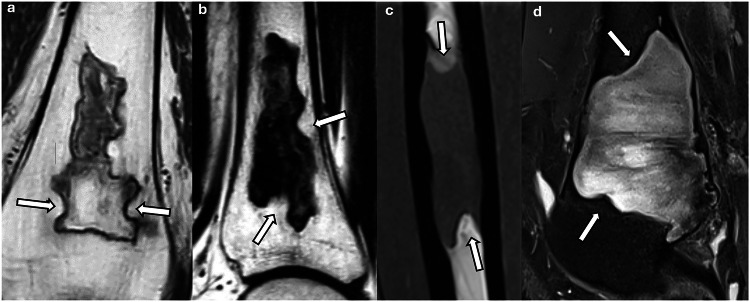

All 71 osteonecrosis lesions had at least two concave margins, followed by 26 fibrous dysplasia lesions (44.8%), five bone abscesses (20.8%), one chondroblastoma (14.3%), one Langerhans cell histiocytosis (12.5%), and one metastasis (2.9%) (Figs. 3 and 4). No enchondroma, chondrosarcoma, myeloma and plasmacytoma, non-ossifying fibroma, aneurysmal bone cyst, unicameral bone cyst, mucoid cyst, giant-cell tumor, or brown tumor had more than one concave margin.Fig. 3. Lesions with at least two concave borders (arrows): a, b osteonecrosis; c, d fibrous dysplasiaFig. 4Lesions with concave borders (arrows): (a, b) intraosseous abscess, (c) chondroblastoma, (d) Langerhans cell histiocytosis, and (e, f) metastasis (same patient). In a and c, one concave border follows the shape of the growth plate
ROC curves

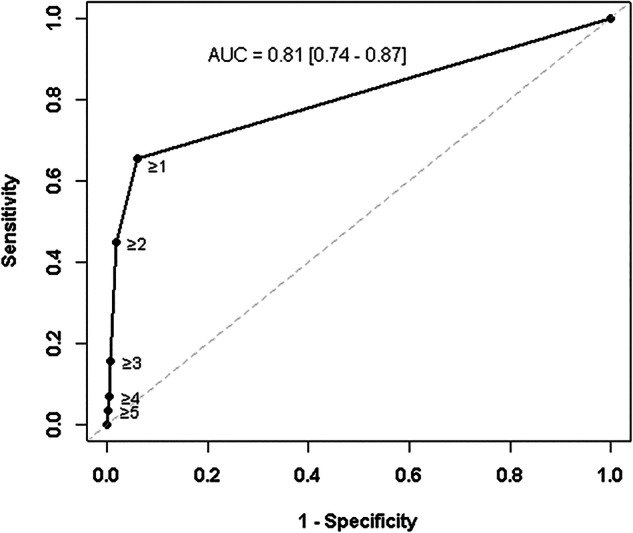

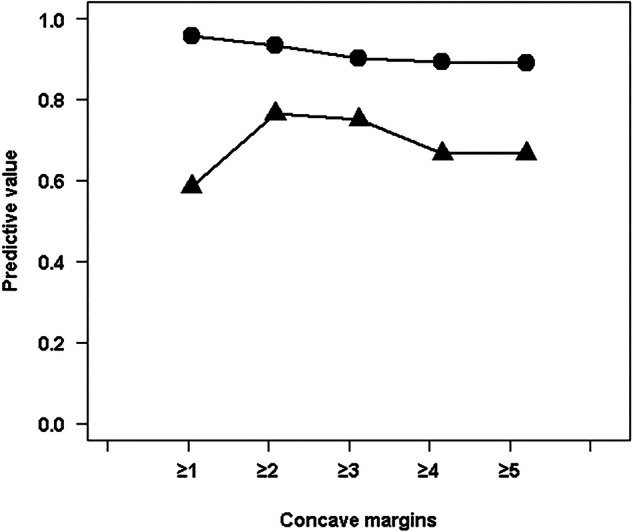

ROC curve analysis was performed to assess the ability of the concave margins to discriminate between fibrous dysplasia and other bone lesions (Fig. 5). Osteonecrosis was excluded from this analysis. The AUC was 0.81 [0.74–0.87]. Predictive values were calculated (Fig. 6). The presence of two or more concave margins yielded a positive predictive value (PPV) of 0.76 when osteonecrosis was excluded.Fig. 5ROC curve assessing the ability of a concave margin presence to detect fibrous dysplasia. Each closed circle corresponds to concave margin number per lesion. The gray line is the chance line. The area under the curve (AUC) [95% confidence interval] is also indicatedFig. 6Positive (closed triangles) and negative (closed circles) predictive values of concave margin for the detection of fibrous dysplasia, as a function of the minimal concave margin number
