Assessing the effectiveness of low-enthalpy geothermal energy for greenhouse temperature regulation towards enhancing desert agriculture

TL;DR

This paper explores using geothermal systems to regulate greenhouse temperatures in deserts, enabling better agriculture in harsh climates.

Contribution

A data-driven methodology for EAHE design in data-scarce arid regions, validated through thermal simulations.

Findings

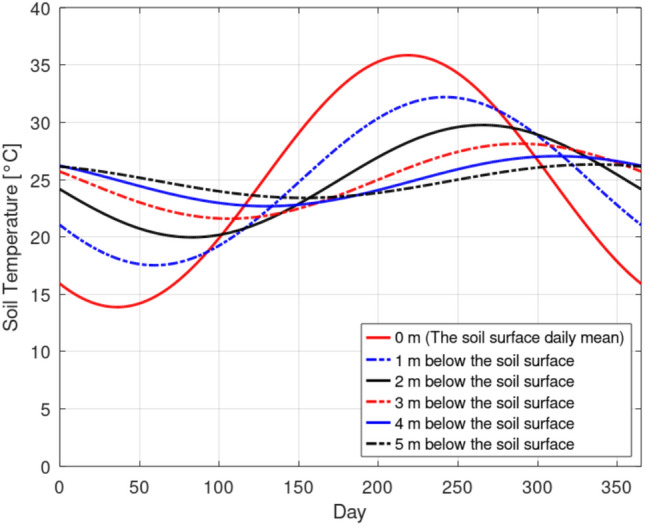

Subsurface soil provides stable thermal conditions for year-round greenhouse climate control.

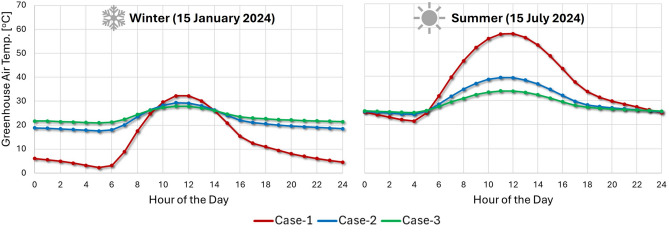

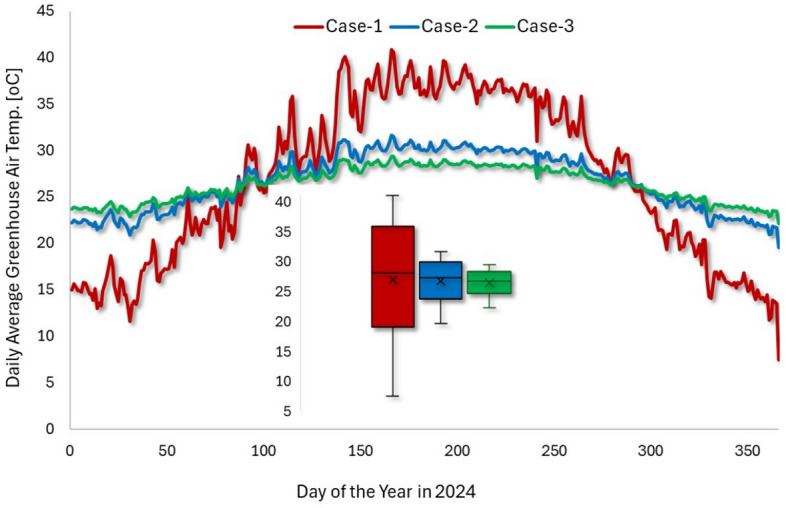

EAHE system can maintain optimal temperatures below 35°C in summer and above 20°C in winter.

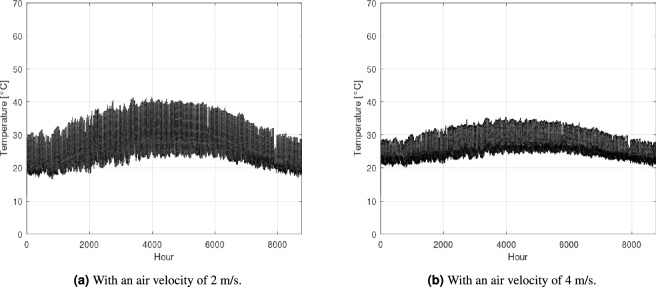

Optimized airflow enhances EAHE performance for both heating and cooling in extreme climates.

Abstract

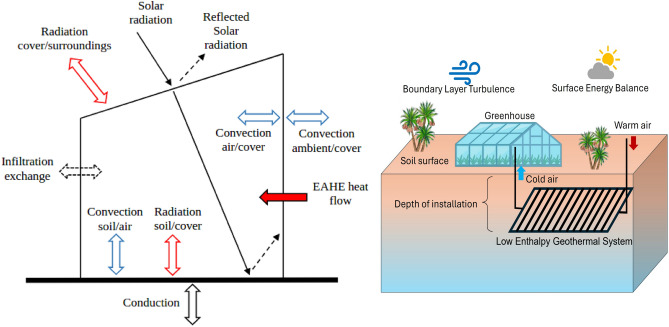

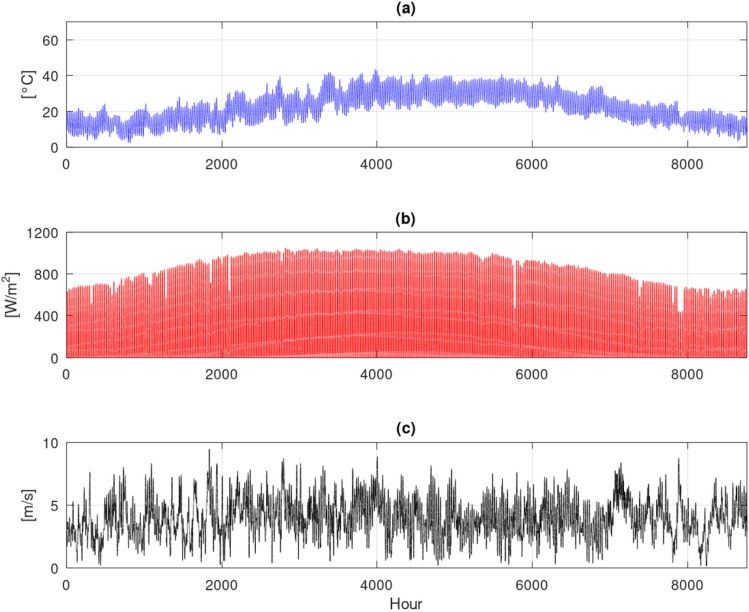

This study investigates the viability and potential of the Earth-Air Heat Exchanger (EAHE) low-enthalpy geothermal system for greenhouse climate control in arid regions, specifically addressing the prevalent challenge of limited meteorological data. Our approach integrates ERA5-Land data with a subsurface soil temperature model, enabling accurate EAHE design and performance prediction in data-scarce environments like Bahariya Oasis, Egypt. The research confirmed the significant thermal stability of the subsurface soil, establishing its potential as a consistent heat source/sink. Initial simulations highlighted effective winter heating but revealed a need for enhanced summer cooling. We demonstrated that optimizing the EAHE system by increasing airflow successfully maintained greenhouse temperatures within near-optimal ranges (below 35\documentclass[12pt]{minimal}
\usepackage{amsmath}
\usepackage{wasysym}
\usepackage{amsfonts}
\usepackage{amssymb}
\usepackage{amsbsy}
\usepackage{mathrsfs}
\usepackage{upgreek}
\setlength{\oddsidemargin}{-69pt}
\begin{document}$$\,{}^{\circ }$$\end{document}C in summer, above 20\documentclass[12pt]{minimal}
\usepackage{amsmath}
\usepackage{wasysym}
\usepackage{amsfonts}
\usepackage{amssymb}
\usepackage{amsbsy}
\usepackage{mathrsfs}
\usepackage{upgreek}
\setlength{\oddsidemargin}{-69pt}
\begin{document}$$\,{}^{\circ }$$\end{document}C in winter) throughout the year. This achievement validates EAHE’s effectiveness for dual heating and cooling in extreme climates. This work provides a robust, data-driven methodology for designing and implementing sustainable, climate-controlled greenhouses in challenging arid zones.

Figures
