A concurrent bioceramic colloid design for dental crowns additive manufacturing by vat photopolymerization
Adel Osama, Noha Fouda, Mohamed T. Eraky
TL;DR
This paper introduces a new method for 3D printing dental crowns using bioceramic colloids, reducing waste and cost compared to traditional subtractive methods.
Contribution
The novel approach reuses waste bioceramic powder from subtractive manufacturing to create a hybrid ceramic colloid for additive manufacturing.
Findings

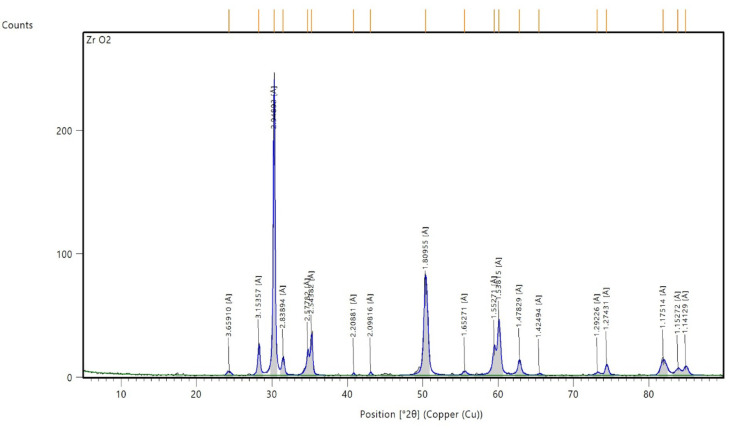

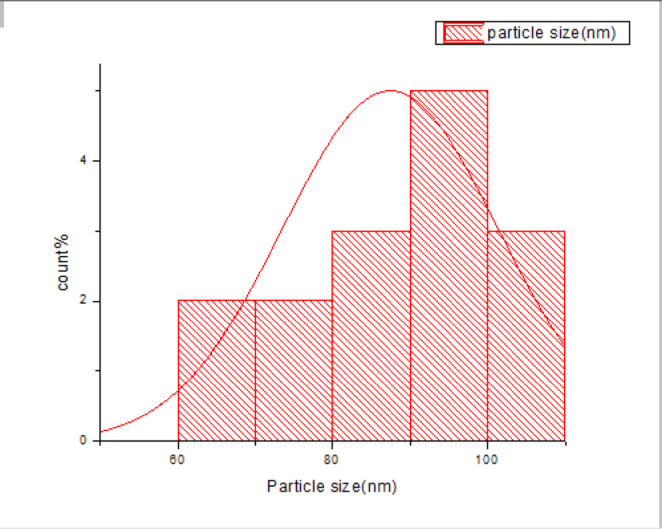

The characterized powder has an average particle size of 91 nm and a tetragonal crystalline structure.
Optimum ceramic colloid is achieved at 1% wt of ceramic powder and a layer thickness of 25 microns.
Additively manufactured parts show good homogeneity and lower cost than subtractive methods.
Abstract

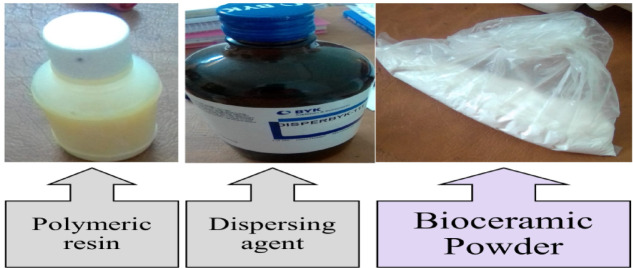

The subtractive manufacturing of bioceramic dental crowns is standard in the dental sector. Still, it is accompanied by many demerits such as raw material waste, tool wear, high cost, and difficulty in handling complex geometry. Researchers direct their efforts toward additive manufacturing due to its capability to produce products with complex geometry and low material waste. This research aims to develop a concurrent engineering approach based on waste minimization of bioceramic powder extracted from subtractive manufacturing and reuse it as a raw material mixed with a polymer resin and a dispersing agent under an indirect mixing strategy to form a hybrid ceramic colloid for bioceramic additive manufacturing. Our approach consists of six stages: raw powder characterization in which particle size, material compositions, crystalline structure, and unit cell dimensions are determined;…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

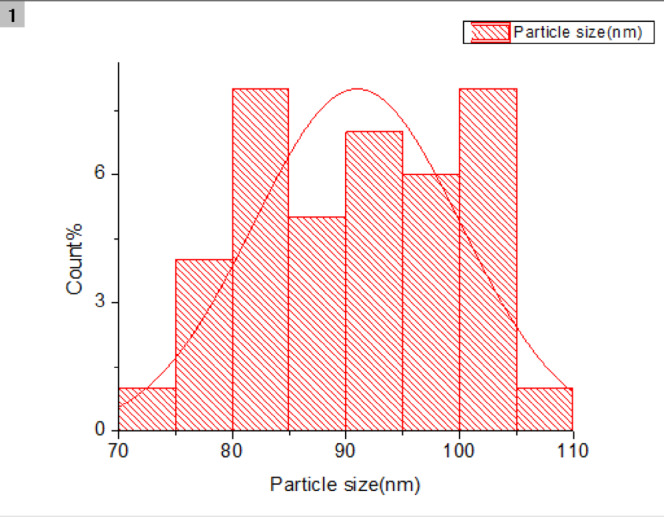

Figure 10
Figure 11

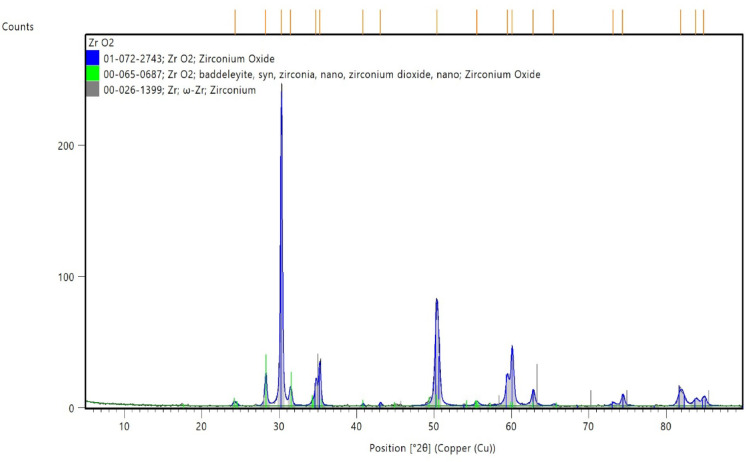

Figure 12
Figure 13
Figure 14
Figure 15
Figure 16

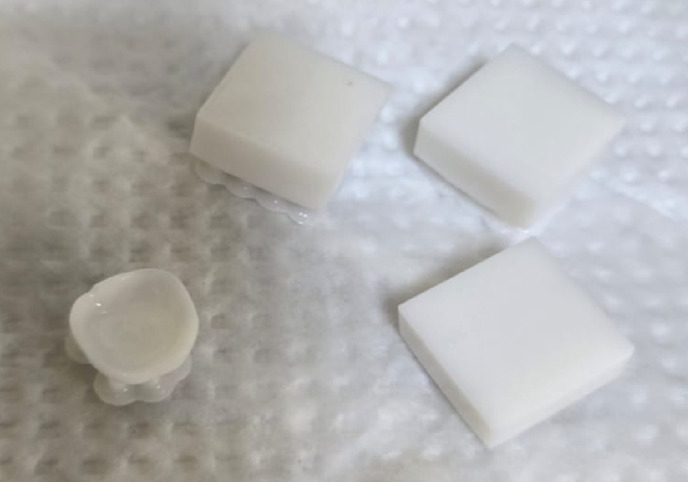

Figure 17

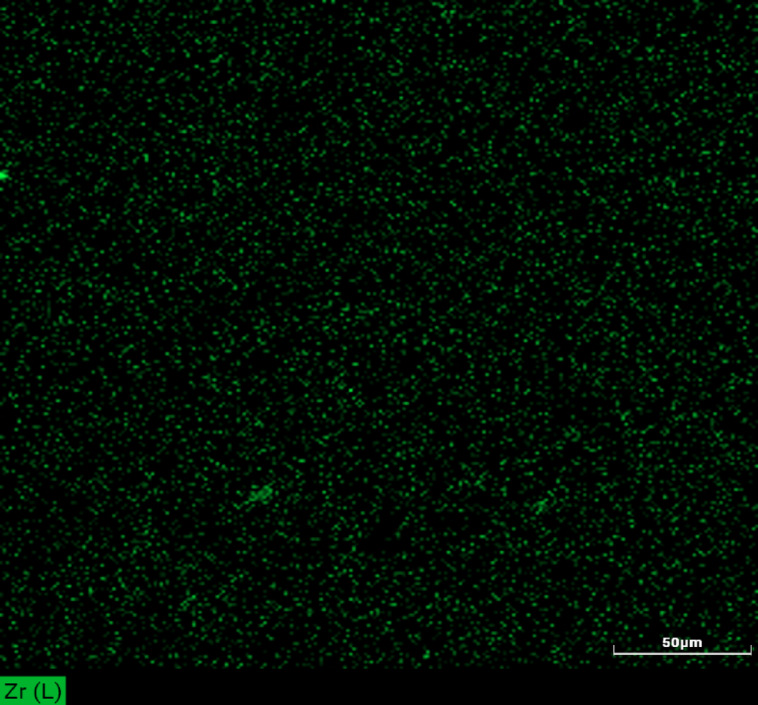

Figure 18
Figure 19

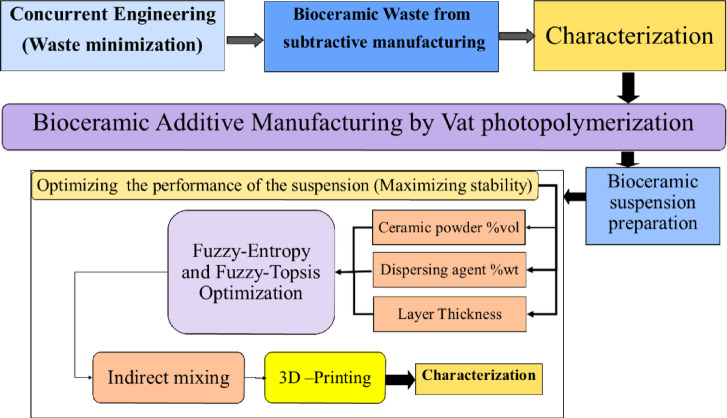

Figure 1
Figure 20
Figure 2
Figure 3
Figure 4
Figure 5

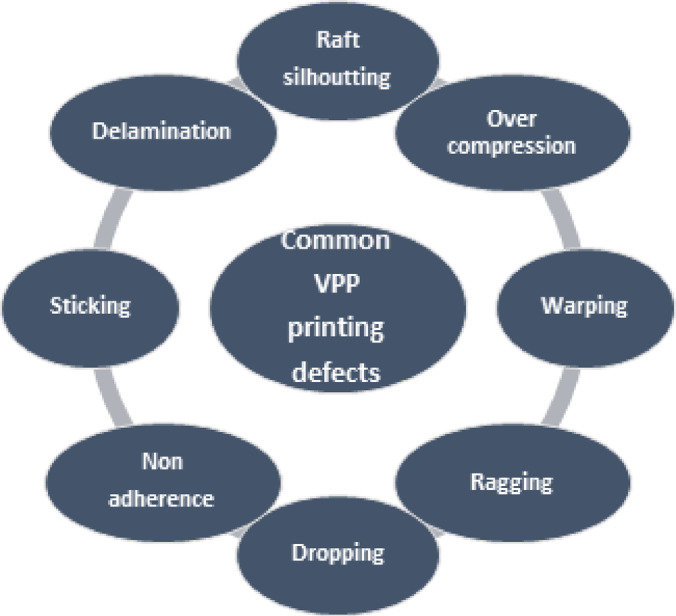

Figure 6

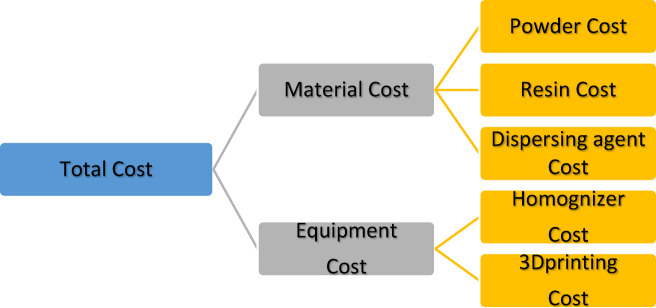

Figure 7
Figure 8

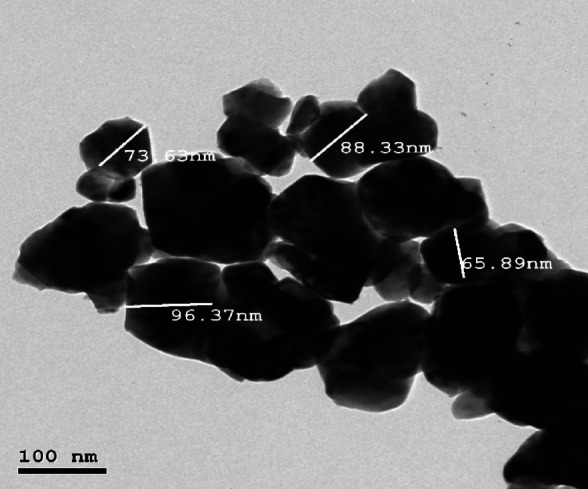

Figure 9Peer Reviews
