Experimental Analysis of Micro-Tribomechanical and Thermal Oxidation Properties of Ceramic-Reinforced Copper-Graphite Composites
Esad Kaya, Pelin Çağım Tokat Bi̇rgi̇n, Hediye Aydin
TL;DR
This study examines how adding SiC and graphite to copper affects the material's structure, wear resistance, and oxidation properties.
Contribution
The paper introduces a novel analysis of how SiC and graphite reinforcement affects the thermal and mechanical properties of copper composites.
Findings
Composites showed increased structural hardness and wear resistance with SiC and graphite reinforcement.
Bare SiC significantly improved oxidation resistance compared to pure copper.
Graphite-SiC composites performed better at lower temperatures, while lean SiC composites excelled at higher temperatures.
Abstract
Using the powder metallurgy process, this study focused on the impact of varying concentrations of SiC and graphite additions on microstructural, tribomechanical, and thermophysical properties. The resulting composites had a high relative density (>90%). The reinforcement particles exhibited a homogeneous distribution in the copper matrix. No compound developed between the reinforcing and copper phases. There was good interfacial bonding between the graphite and SiC structures. The composites’ overall structural hardness increased by 1.04 to 1.25 times. From 1.13 to 1.40 times, the empirical elasticity modulus increased. With SiC and graphite reinforcement, wear resistance was increased 10-fold to 12-fold for the wear tests. Lean graphite reduced friction by around 2.4 times. The samples that were chosen based on their tribomechanical characteristics underwent oxidation testing. The…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

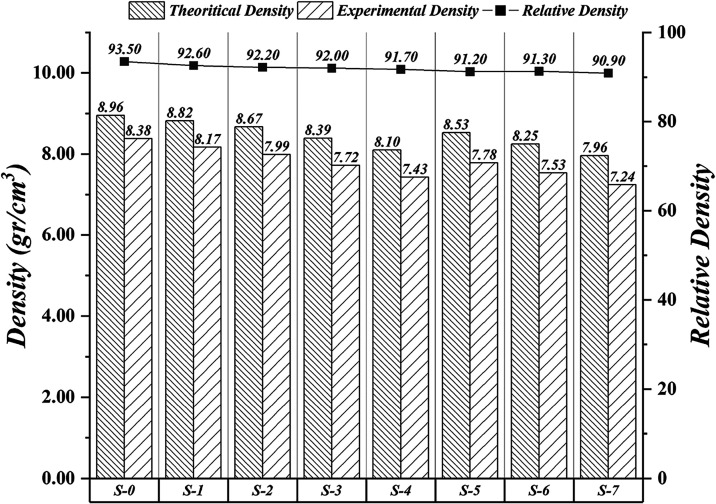

Figure 1

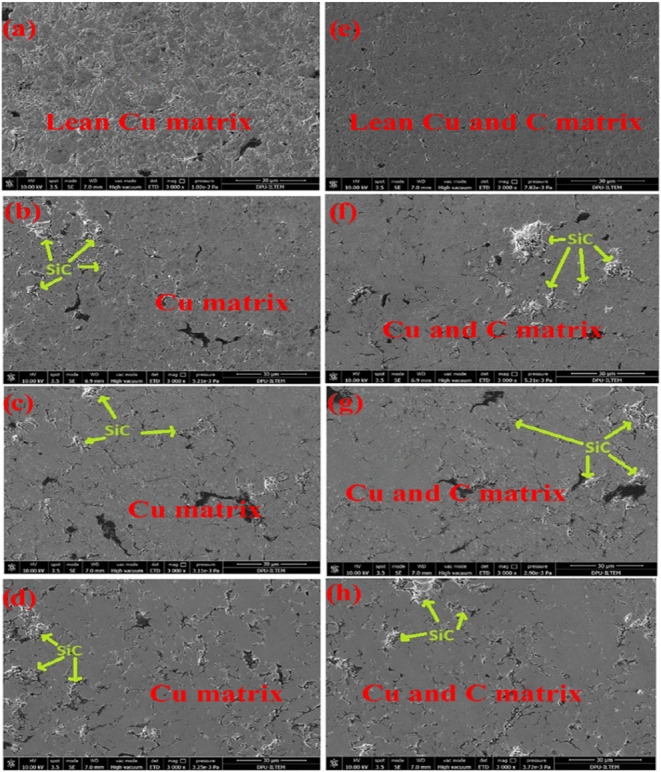

Figure 2

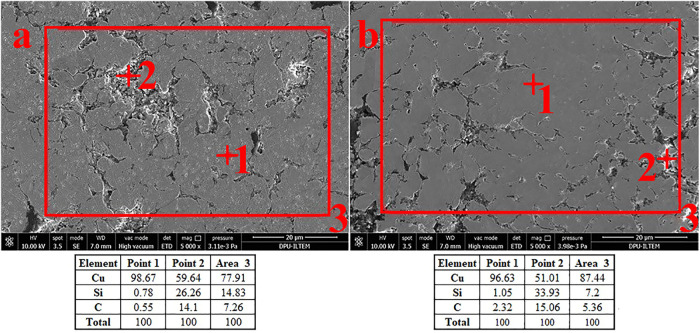

Figure 3

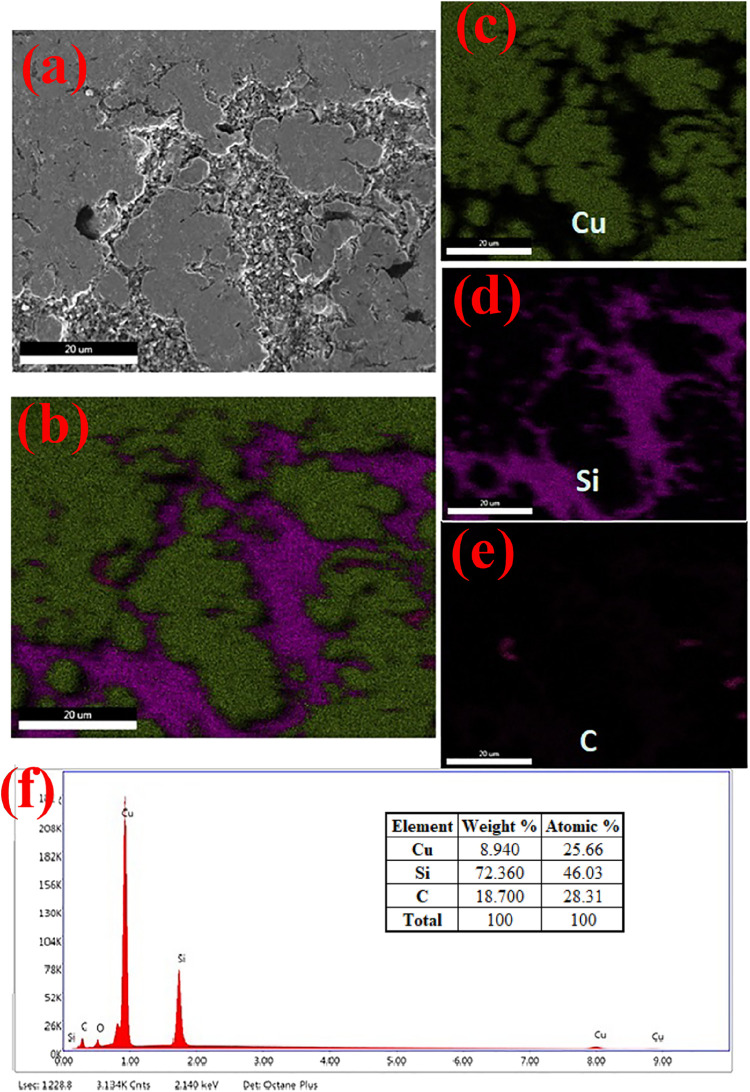

Figure 4

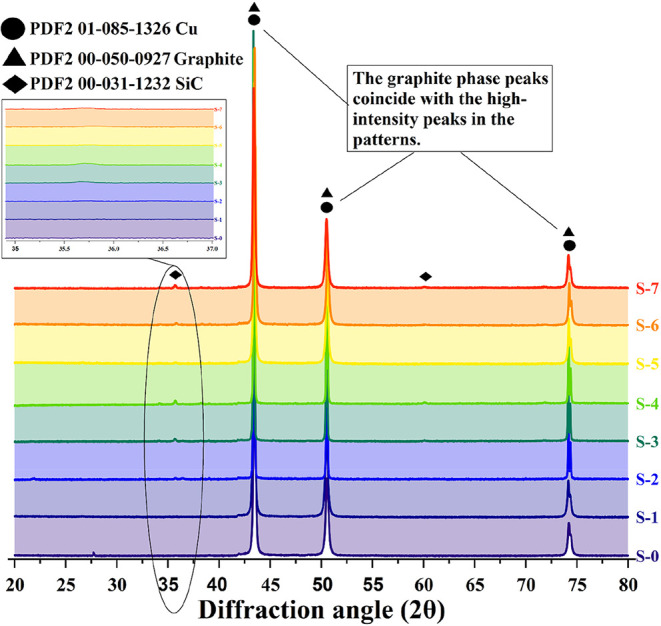

Figure 5

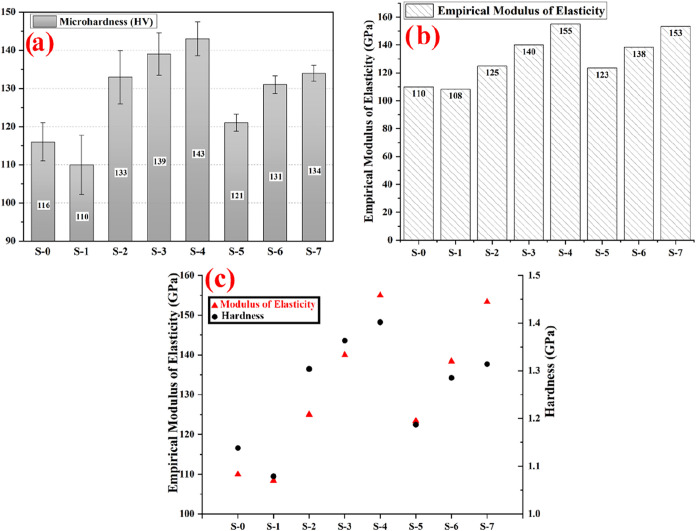

Figure 6

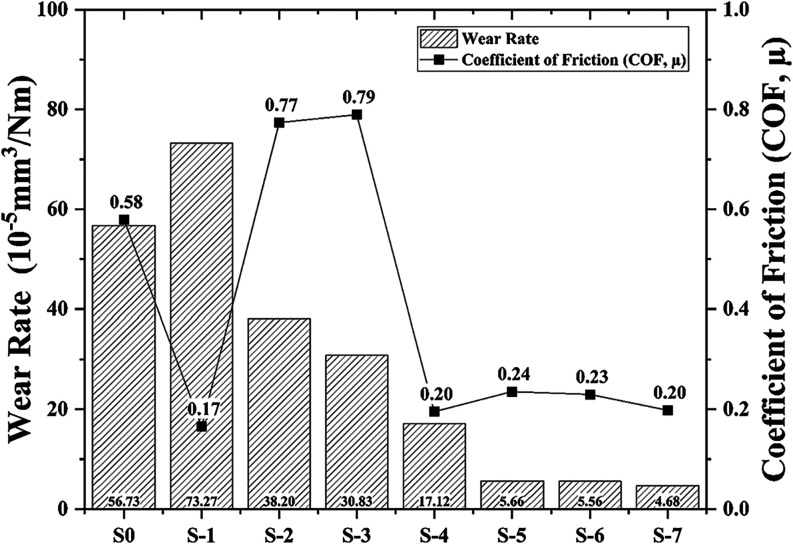

Figure 7

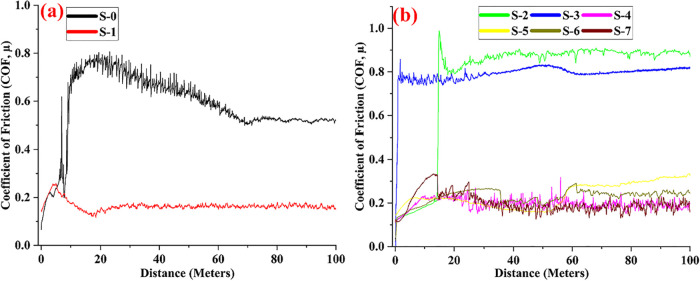

Figure 8

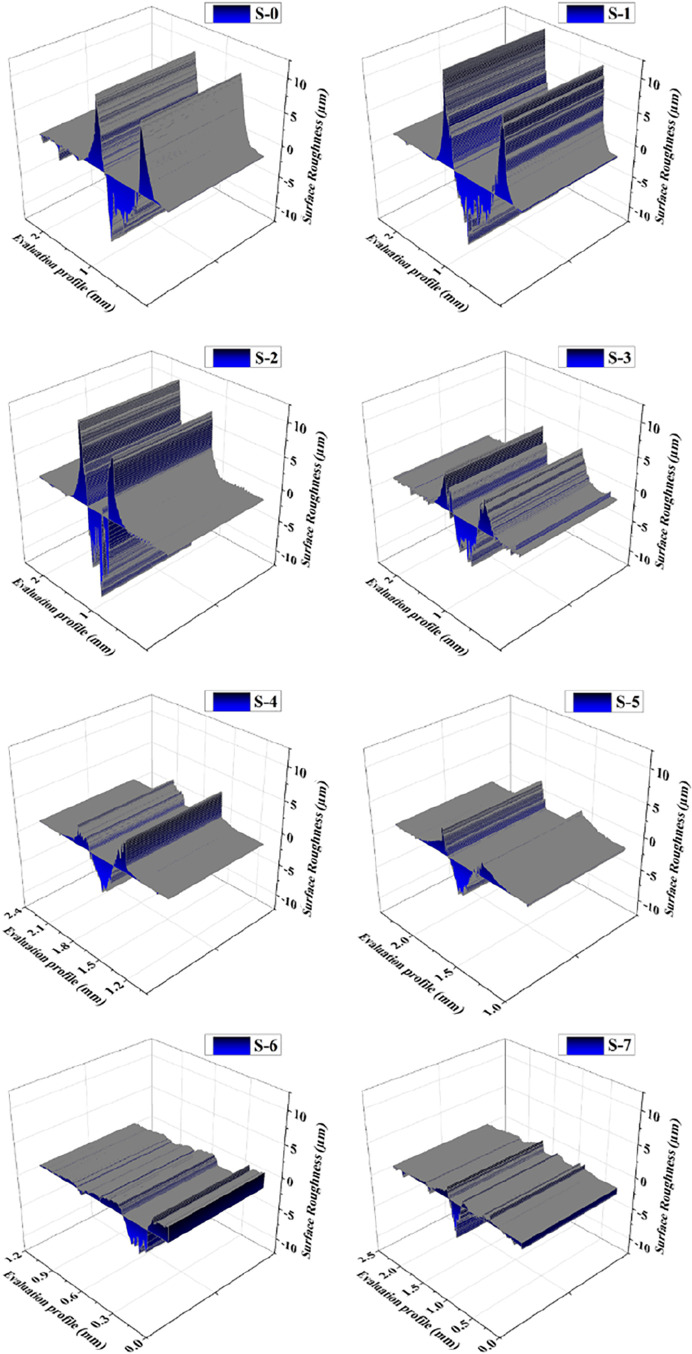

Figure 9

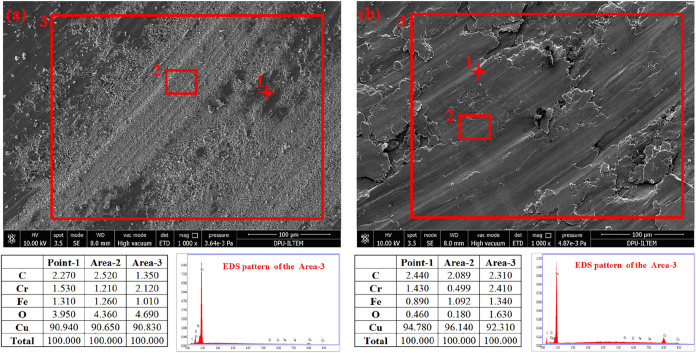

Figure 10

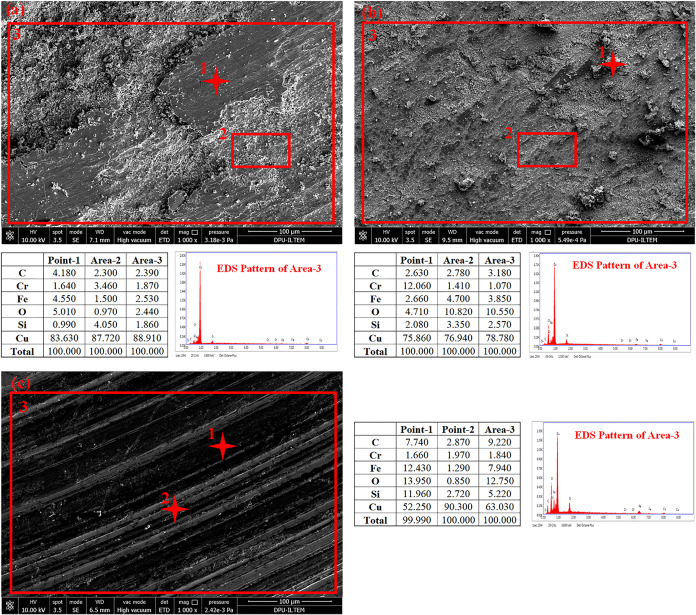

Figure 11

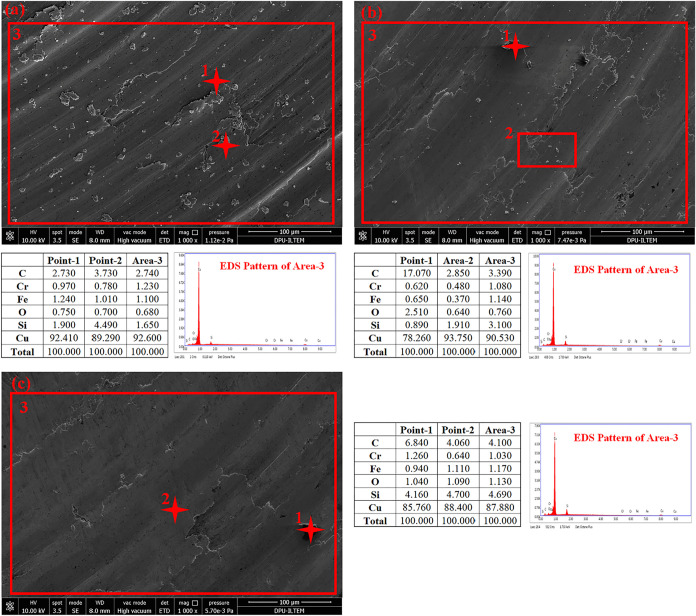

Figure 12

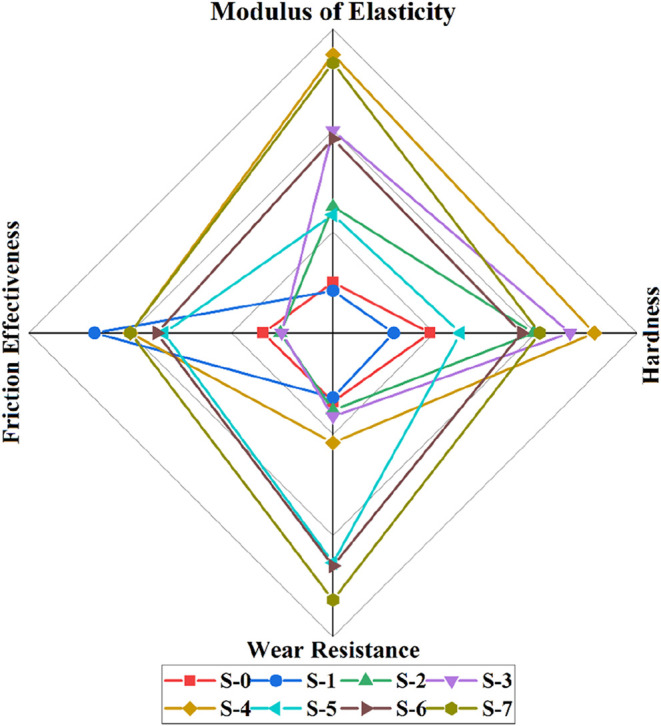

Figure 13

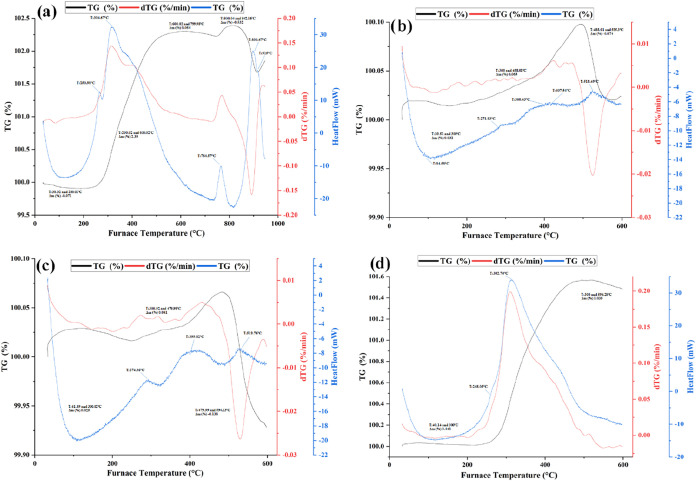

Figure 14

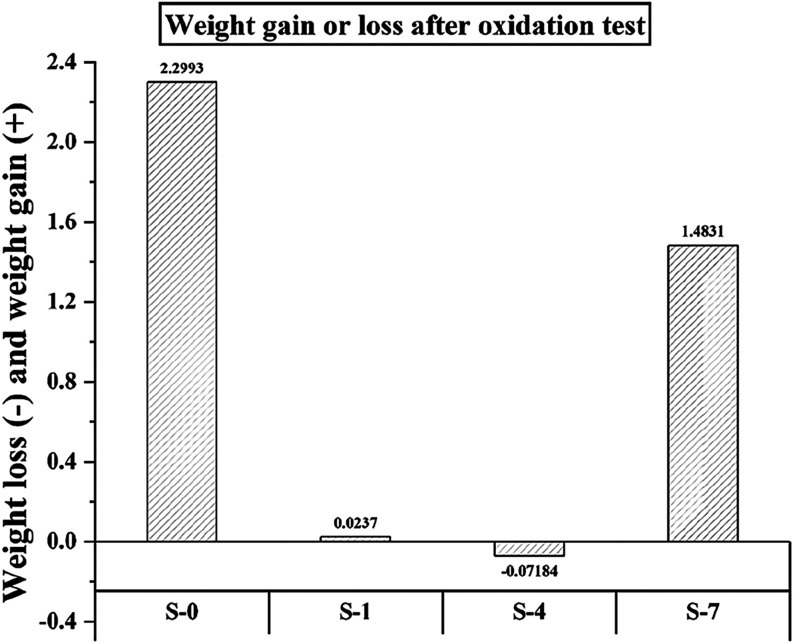

Figure 15

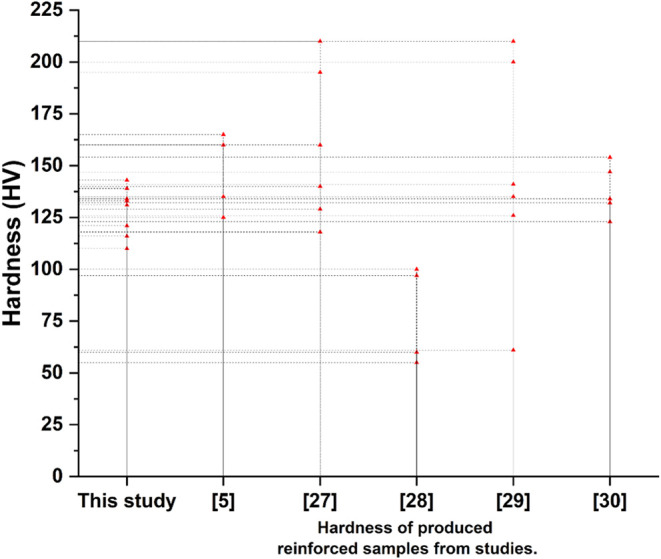

Figure 16
Figure 17
Figure 18
Figure 19
Figure 20Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAluminum Alloys Composites Properties · Material Properties and Applications · Additive Manufacturing and 3D Printing Technologies
