Control of wind speed and contact angle on submicron particulate matter sampling
Bokun Sun, Ziyang Wang, Jiayun Huang, Yumeng Li, James R. Cooper, Lei Han, Bailiang Li
TL;DR
This study shows how wind speed and contact angle affect submicron particle sampling accuracy, which is important for air quality monitoring.
Contribution
The study introduces new models for sampling efficiency based on wind speed and contact angle for submicron particles.
Findings
Wind-induced aerosol losses can reach up to 9% in submicron PM sampling.

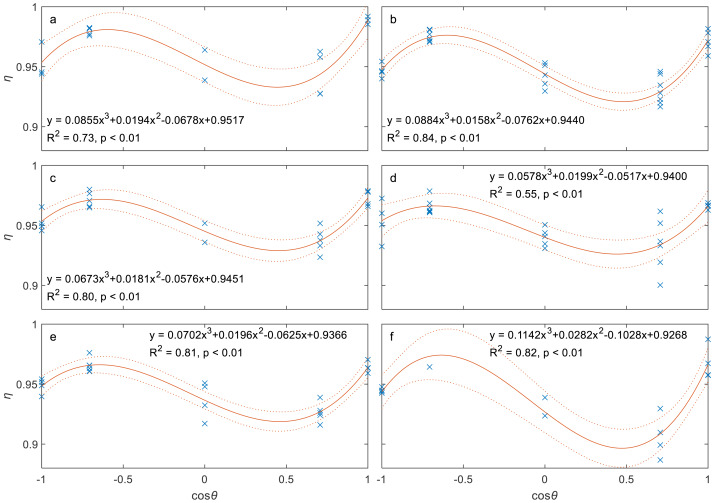

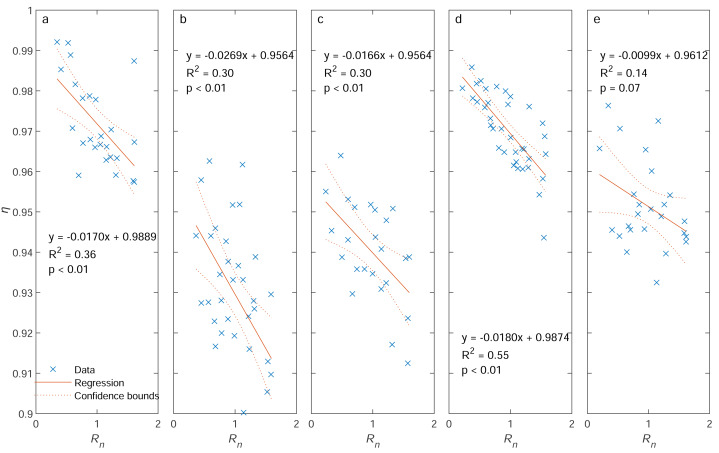

Sampling efficiency has a negative linear relationship with wind speed and a third-order polynomial relationship with contact angle.
Classic models are inaccurate for submicron aerosols, requiring new predictive approaches.
Abstract

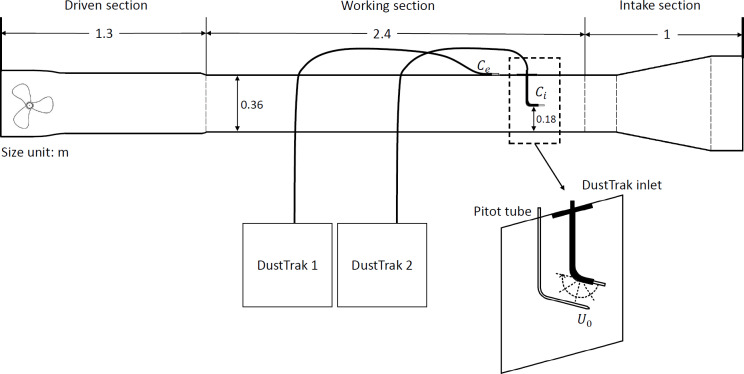

While particulate matter (PM) instruments are widely used for air quality monitoring and policy development, there is limited research on how wind speed (U0) and contact angle (θ) affect the measurement accuracy of submicron PM, or particles with their diameters ≤ one µm (PM1). This study addresses this gap by employing a wind tunnel experiment with a common sampling system featuring a customized thick-walled cylindrical metal inlet. The results reveal that wind-induced aerosol losses can reach up to 9%, and the sampling efficiency has a negative linear relationship with U0 and a third-order polynomial relationship with cos(θ). This model demonstrates a significant discrepancy with classic models in predicting sampling efficiency, which indicates the inapplicability of classic sampling efficiency models to submicron aerosols. The findings of this study can help correct wind-induced…
