Biosystematics of Angulitermes dehraensis in the Northwestern Indomalayan region by integrating morphometrics and distributional data with DNA barcoding

TL;DR

This study identifies and maps the termite species Angulitermes dehraensis in northwestern Pakistan using DNA barcoding and morphological analysis.

Contribution

The study provides a new locality record for Angulitermes dehraensis and submits a novel DNA sequence to GenBank.

Findings

Angulitermes dehraensis was confirmed in Khyber Pakhtunkhwa, Pakistan, as a new locality record.

A novel mitochondrial DNA sequence was submitted to GenBank with accession number PX423737.

The species is identified as a pest based on its feeding host substrate data.

Abstract

Termites are eusocial and economically important insects which are found in the world’s tropical regions as a harmful or beneficial organism. They play a dual role, both as pests damaging crops and urban structure and as an ecological engineer sustaining the ecosystem. Pakistan is part of the Indomalayan realm hosting diverse flora and fauna including termites; however, the status (diversity, distribution, feeding hosts, pest and non-pest) of the genus Angulitermes in the northwestern region (Khyber Pakhtunkhwa, Pakistan) has been largely neglected. Termite cultures were collected from diverse ecosystems, cleaned, and preserved in alcohol-filled vials for subsequent morphometric identification and DNA barcoding. Coordinates with relevant ecological data were also recorded. Soldiers were used for capturing refined images and morphometric identification through available literature, which resulted as an Angulitermes dehraensis and a new locality record. A revised and updated world’s species list for the genus was made along with the distribution map of this study via ArcGIS. The identified representative soldier’s leg was processed for mtDNA extraction followed by amplification and sequencing. The received sequence was subjected to BLASTn search, and only top 15 sequences via BLASTn search and then via manual search for taxon Angulitermes were retrieved from GenBank. Aligned and trimmed sequences were processed for phylogenetic tree (neighbor-joining and maximum-likelihood) construction and validation of understudy species sequence analogy. A novel sequence was submitted to GenBank for accession number (PX423737). Based on the available and recorded feeding host substrate data, it is a pest species which needs management.

Figures

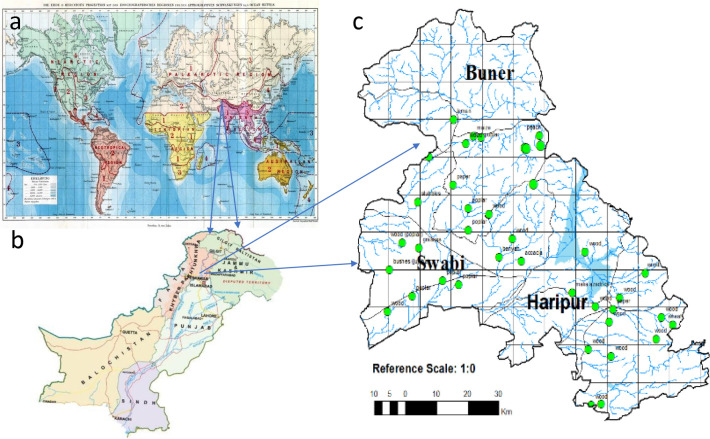

Genus Angulitermes sample’s collection from the selected study region of the Northwestern Indomalayan region (Pakistan; Khyber Pakhtunkhwa; Swabi, Buner and Haripur) (a) Wallace zoogeographical map; (b) map of Pakistan; (c) focused map of the study area.

Termite’s collection protocol from the selected study region of Northwestern Indomalaya (a) termite galleries on a stem; (b) inspecting mud chunk for termite presence; (c) breaking mud galleries on the trunk for on spot collection; (d) termites with dirt after breaking mud galleries.

(a–e) Different diagnostic characters of Angulitermes dehraensis soldiers (a) dorsal view of the soldier; (b) side view of the soldier; (c) head region (fontanelle) of the soldier; (d) dorsal view of the head; (e) ventral view of the head (arrow = postmentum).

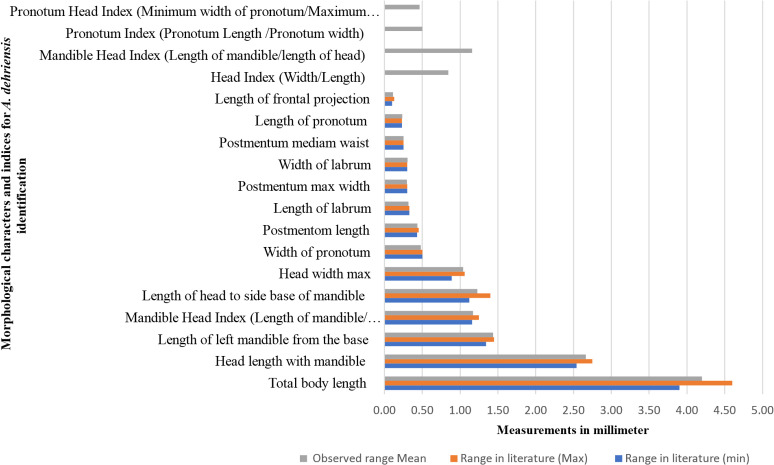

Morphometrics comparison of Angulitermes dehraensis with the measurement ranges available in the literature for species confirmation.

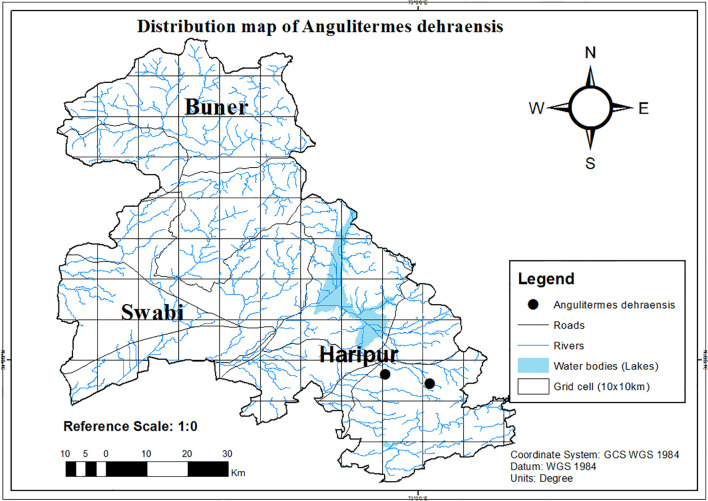

Distribution map of Angulitermes dehraensis in the selected study region of Khyber Pakhtunkhwa-Pakistan, a part of the Northwestern Indomalayan region.

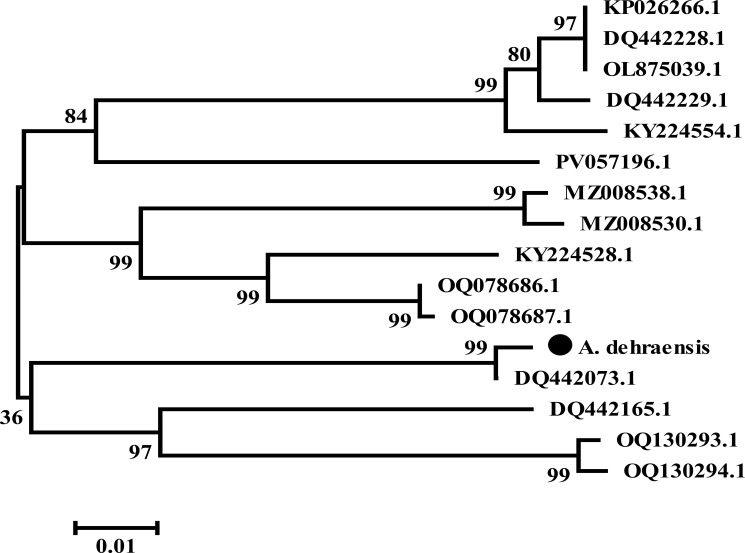

Unrooted neighbor-joining tree of Angulitermes dehraensis collected from the selected studied area of Khyber-Pakhtunkhwa, Pakistan, a part of the northwestern Indomalaya region. (● = under study sequence).

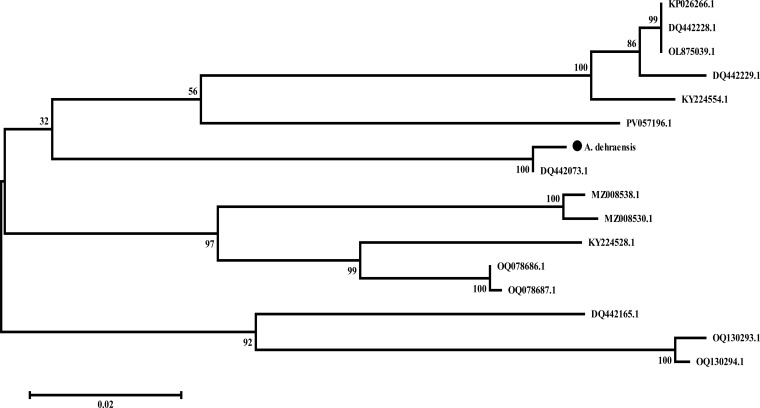

Unrooted maximum-likelihood tree of Angulitermes dehraensis collected from the selected studied area of Khyber-Pakhtunkhwa-Pakistan, a part of the Northwestern Indomalayan region. (● = under study sequence).

Tables

Table 1. Species composition of genus Angulitermes (30) (Termitidae: Promirotermitinae) from three major zoogeographic regions.

Species composition of genus Angulitermes (30)
S. no	Species	Country	Zoogeographic region	Reference
1	Angulitermes dehraensis	Pakistan; India; Afghanistan	Indomalayan;Palearctic
2	Angulitermes hussaini	Pakistan	Indomalayan	http://www.termitologia.net/catalog/gen.php?gen=Angulitermes&filtro=atual Retrieved on 20-08-2025
3	Angulitermes punjabensis	Pakistan	Indomalayan
4	Angulitermes acutus	India	Indomalayan
5	Angulitermes akhorisainensis	India	Indomalayan
6	Angulitermes bhagsunagensis	India	Indomalayan
7	Angulitermes obtusus	India	Indomalayan
8	Angulitermes fletcheri	India	Indomalayan
9	Angulitermes jodhpurensis	India	Indomalayan
10	Angulitermes kashmirensis	India	Indomalayan
11	Angulitermes keralai	India	Indomalayan
12	Angulitermes longifrons	India	Indomalayan
13	Angulitermes mishrai	India	Indomalayan
14	Angulitermes tilaki	India	Indomalayan
15	Angulitermes ramanii	India	Indomalayan
16	Angulitermes rathorai	India	Indomalayan
17	Angulitermes resimus	Myanmar	Indomalayan
18	Angulitermes paanensis	Myanmar	Indomalayan
19	Angulitermes ceylonicus	Sri Lanka	Indomalayan
20	Angulitermes emersoni	Bangladesh	Indomalayan
21	Angulitermes nepalensis	Nepal	Indomalayan
22	Angulitermes arabiae	Saudi Arabia	Palearctic
23	Angulitermes asirensis	Saudi Arabia	Palearctic
24	Angulitermes braunsi	South Africa	Afrotropical
25	Angulitermes elsenburgi	South Africa	Afrotropical
26	Angulitermes frontalis	Botswana; South Africa	Afrotropical
27	Angulitermes nilensis	Eritrea; Ethiopia; Kenya; Senegal; Sudan; Tanzania	Afrotropical
28	Angulitermes quadriceps	Israel; Saudi Arabia; Yemen	Afrotropical; Palearctic
29	Angulitermes truncates	Ghana; Kenya; Nigeria; Saudi Arabia; Senegal; Tanzania; Uganda; Zambia	Afrotropical; Palearctic

Table 2. List of morphological characters and indices for the morphometric identification of Angulitermes species.

S. no.	Morphological characters/indices for genus Angulitermes identification
1	Length of frontal projection
2	Length of left mandible from the base
3	Length of head to side base of mandible
4	Head length with mandible
5	Head width max
6	Width of pronotum
7	Length of pronotum
8	Postmentum max width
9	Postmentum length
10	Postmentum medium waist
11	Width of labrum
12	Length of labrum
13	Total body length
14	Mandible head index (length of mandible/length of head)
15	Head index (width/length)
16	Mandible head index (length of mandible/length of head)
17	Pronotum index (pronotum length/pronotum width)
18	Pronotum head index (minimum width of pronotum/maximum width of head)

Table 3. List of the top 15 GenBank retrieved sequences for Angulitermes species analogy validation.

S. no.	Accession number	Species name	Genus	Reference
1	MZ008538.1	Amitermes sp.	Amitermes	https://blast.ncbi.nlm.nih.gov/Blast.cgi# Retrieved on 15-08-2025
2	MZ008530.1	Amitermes sp.
3	KY224528.1	Amitermes sp.
4	OQ078686.1	Amitermes unidentatus
5	OQ078687.1	Amitermes unidentatus
6	PV057196.1	Angulitermes sp.	Angulitermes
7	DQ442073.1	Angulitermes sp.
8	DQ442165.1	Microcerotermes dubius	Microcerotermes
9	OQ130293.1	Microcerotermes subtilis
10	OQ130294.1	Microcerotermes subtilis
11	DQ442228.1	Promirotermes cf. redundans	Promirotermes
12	KP026266.1	Promirotermes redundans
13	OL875039.1	Promirotermes redundans
14	DQ442229.1	Promirotermes redundans
15	KY224554.1	Promirotermes sp.

Full text

Introduction

1

Termites are eusocial insects which are known for causing serious damages (1, 2) around the world. They are divided into seven families, and ~3% of the known species are responsible for the damages in buildings and crops (3). They live in colonies which consist of workers, soldiers, and reproductive caste. Workers are in abundance and are the only damage-causing caste. Soldiers supply defense to the colony and are fed by workers through trophallaxis (1). They are also used for the identification of species (4) including this study. The reproductive caste (King; Queen aided by primary or secondary reproductive) maintain the colony population.

Naturally, termites are present in diverse terrestrial ecosystems of the tropical regions and playing an important role of being either harmful (pests) to buildings, forests, and agriculture (5) or beneficial (ecosystem engineers) to the ecosystem (6). They attack humans’ belongings in urban structures, trees, and saplings in forests whereas they attack crops in the agroecosystem. There are also some species of low ecological interest in the subtropical environment which are causing losses in the urban environment (1), agriculture, and forestry. Losses caused by termites vary by region, species, and available food sources, with reported figures including worldwide losses of $40 billion, and regional losses such as$11 billion in the USA, $10–12 billion in Malaysia,$1.5 billion in Australia, $1 billion in China,$1 billion in Indonesia, $0.8–1 billion in Japan,$0.5 billion in France, $0.5 billion in Thailand,$100s of millions in the Philippines, $35.12 billion in India,$4 billion in Taiwan, $1 billion in China, and$0.5 billion in Fiji Islands (7). Despite of the damages caused, termites are also the ecological engineers and help in the decomposition of wood and animal dung, recycling of nutrients, improvement of soil’s stability, water-holding and absorbing capacity, vegetation and tree diversity, etc. They are also a source of food for the wildlife and help in pollination although rarely (8). The presence of termites in each habitat defines their ecological role; while they are considered pests in urban areas due to structural damage, they play a beneficial role in natural habitats by decomposing wood, dung, and other organic matter.

Termites are generally controlled by insecticide (dusts or solutions) application (2), but often management fails and damages are caused. Failure of control strategies may also include incorrect identification of the present harmful species leading to the application of hazardous insecticides. Correct identification is important for understanding the role of termites (economic and ecological) (9), but it always requires experts. Taxa having similar phenotypic traits (10, 11) and poor records (12) make identification more challenging. Addition of universally accepted molecular studies (13, 14) including DNA barcoding has revolutionized the insect’s systematics (15, 16) by providing a quick way of identification as compared with traditional taxonomy (17).

The Indomalayan/Oriental region sprawls to the south of Himalayas in Southeast Asia, as shown in Figure 1a (18), having hot and humid climatic conditions. Pakistan (excluding Baluchistan) is part of the Indomalayan region with rich flora and fauna including termites, which is further divided into 10 agroecological zones by the Pakistan Agriculture Research Council (PARC) (19). According to Iqbal and Saeed (20), 11 out of 54 species (21) are economically important and belong to genera Heterotermes, Coptotermes (Rhinotermitidae), Odontotermes, and Microtermes (Termitidae) in Pakistan. Termites of Pakistan have been studied by Desneux (22, 23), Holmgren and Holmgren (24), Ahmad (25), Akhtar (26), Chaudry and Ahmad (27), and Nasir (28), excluding the northern Malakand (Buner), lower Hazara (Haripur), and eastern Mardan (Swabi) regions. This area belongs to three different agro-zones of Khyber Pakhtunkhwa (29), which was previously ignored for the termite’s faunal studies. No information was available on the species occurrence, distribution, and status (as a pest or non-pest) of termites from the genus Angulitermes, which could be utilized for designing any management or conservation strategy. Genus Angulitermes composed of 29 recorded species till date in which more than 70% species belong to the Indomalaya region (India, Myanmar, Pakistan, and Bangladesh) (Table 1). Therefore, the present study was conducted for studying the morphometrics, mapping, and distributional and feeding host substrate data with DNA barcoding of the termites from the genus Angulitermes in the northern Malakand (Buner), lower Hazara (Haripur), and eastern Mardan (Swabi) of Khyber Pakhtunkhwa-Pakistan, a part of the Northwestern Indomalaya region.

Genus Angulitermes sample’s collection from the selected study region of the Northwestern Indomalayan region (Pakistan; Khyber Pakhtunkhwa; Swabi, Buner and Haripur) (a) Wallace zoogeographical map; (b) map of Pakistan; (c) focused map of the study area.

Materials and methods

2

Study area and survey for culture collection

2.1

An intensive termite's culture collection survey was conducted for 3 years (in the summer season) in the Northwestern Indomalayan region (districts Swabi, Buner, and Haripur) (Figures 1a–c, Supplementary Figure S1) by following the modified method of Kaakeh (31) and Saha et al. (32). Visible mud galleries on the tree trunks (in forests/orchards) and walls (in buildings) were broken just above the ground, and termites running in the broken galleries were collected in a paper funnel with a gentle swipe of a camel brush (Figures 2a–c). The funnel was attached to either a collecting vial (containing alcohol 75% or 99%) or a wet blotting paper in case of any attached dirt. The termites became stuck to the wet blotting paper, and dirt was removed (Figure 2d) by a gentle tap. Cleaned and sorted specimens were stored in the tagged vials for morphometric identification and DNA barcoding. Sampling point coordinates (via GPS device eTrex 10), feeding host substrate, and other relevant ecological data (habitat type, elevation, canopy covered) were also recorded.

Termite’s collection protocol from the selected study region of Northwestern Indomalaya (a) termite galleries on a stem; (b) inspecting mud chunk for termite presence; (c) breaking mud galleries on the trunk for on spot collection; (d) termites with dirt after breaking mud galleries.

Termite’s morphometric identification

2.2

Randomly selected soldiers were used for the identification of 13 morphological characters and five indices (Table 2) by following Chaudry and Ahmad (27) and Chhotani (33). All measurements were taken (in millimeters) under a trinocular stereo-zoom microscope (Nikon 745T) with a mounted Nikon FSi2 digital camera for capturing pictures. The captured pictures were stacked by Helicon Focus 6.0 (Helicon Soft Ltd, Ukraine, 2000-2022) and further refined by Adobe Photoshop (Version CS6 13.1.2 San Jose, CA, USA, 2017). Means for all characters and indices were calculated in Microsoft Excel 365 (34).

Distributional data

2.3

The sampling site’s (via GPS device eTrex 10) coordinates were recorded during surveys, which were then used for the construction of maps in ArcGIS 10.0 (35).

Molecular analysis

2.4

An identified representative soldier was washed with distilled water and allowed to air-dry. Then, the broken hind leg was ground with the pipette tip for DNA extraction followed by amplification (36) (Supplementary Table S1). For sequencing, 15µl of the extracted DNA was added to washed and sterile tubes having 2µl reverse and 2µl forward primers. The prepared samples were sent for Sanger sequencing (to Eurofins, Denmark; https://www.eurofins.com/).

For validating sequence analogy, received sequences were processed in BLASTn (NCBI) search for retrieving correct matches (37). Based on percent query covered, percent identity, bit cover, and relevant taxon match, only top-matched BLASTn (NCBI) sequences were retrieved for phylogenetic tree construction (Supplementary Table S4). Reference sequences were also searched manually for taxon “Angulitermes” (38). Then, all retrieved sequences were aligned in MEGA 6.0 by using ClustalW (39) and both ends were trimmed for removing any ambiguities. Neighbor-joining and maximum likelihood methods were employed for phylogenetic tree construction in MEGA 6.0 (40). Resulted novel sequences were submitted to GenBank for accession number.

Results and discussion

3

Termites from genus Angulitermes (30) are distinct and easily identified by the soldier’s frontal projection as compared with other termites. It is recorded from the Indomalayan, Afrotropical, and Palearctic zoogeographic regions with 29 known species in which 21 species are reported for the Indomalayan region (India, Nepal, Myanmar, Pakistan, and Bangladesh), making it a diverse region for this genus (Table 1). There are only three species, namely, Angulitermes dehraensis (Gardner) (41), A. hussaini (Ahmad), and A. punjabensis (Akhtar) reported from Pakistan (27) with unknown status (pest or non pest). In this study, A. dehraensis is recorded as a new locality record from a sub-hilly terrain (Supplementary Table S3).

Angulitermes dehraensis

3.1

Diagnostic characters of soldier caste

3.1.1

Head’s capsule, antenna, legs, body, and mandibles are of yellowish, fawn, straw yellow, and reddish-brown in color, respectively. Relatively the head is less hairy as compared with the body and frontal projection which are hairier. Antennae are of 14 segments in which segment 3 is longer than segment 2 whereas segment 4 is the shortest (Figures 3a–e). Other measurements include the following:

(a–e) Different diagnostic characters of Angulitermes dehraensis soldiers (a) dorsal view of the soldier; (b) side view of the soldier; (c) head region (fontanelle) of the soldier; (d) dorsal view of the head; (e) ventral view of the head (arrow = postmentum).

Mandibles = 1.34-1.45

Total body length= 3.90-4.60

Labrum; length= 0.33, width= 0.30

Pronotum; length = 0.23, width = 0.50

Length of frontal projection= 0.10-0.13

Postmentum; length= 0.43-0.40, max. width = 0.30, width at waist = 0.25

Index: Left mandible-length/head-length to base of mandibles= 1.16-1.25

All measurements are in millimeters. Details on characters are also available at Chhotani (33).

Morphometrics

3.1.1.1

Measurements for the 13 characters and five indices were recorded and then compared with the ranges in literature (33) for the confirmation of understudy species morphometrics (Figure 4). Top four indices are adopted from other species and reported for the first time for A. dehraensis with no available measurement ranges in the literature (Supplementary Table S2). All the observed measurements are falling within the available morphometric ranges, which confirms that the specimens are of A. dehraensis, a species of genus Angulitermes (Figure 4).

Morphometrics comparison of Angulitermes dehraensis with the measurement ranges available in the literature for species confirmation.

Distribution and habitat preference

3.2

Chhotani (33) Rathore and Bhattacharyya (42); and Krishna et al. (43) reported A. dehraensis from India (Indomalayan region) and Afghanistan (Palearctic region) whereas Chaudry and Ahmad (27) and Ahmad and Akhtar (44) reported it from Pirwala forest, Chattarbagh, Chinari, Hangu, Parachinar, and Bara in Pakistan (Indomalayan region).

During this study, culture collection was done from agroecosystem, forest, and urban ecosystem. However, A. dehraensis was only reported from guava orchard (agricultural ecosystem) as a new locality record for Haripur (Figure 5, Supplementary Table S3) and was found absent in structures/buildings and forests. This is a rare species which is found in the hilly areas of Pakistan.

Distribution map of Angulitermes dehraensis in the selected study region of Khyber Pakhtunkhwa-Pakistan, a part of the Northwestern Indomalayan region.

Feeding host substrate

3.3

A. dehraensis was found feeding on the twigs, stumps, stem, date tree, and cow dung (27, 42, 44). However, in this study, it was feeding on the humus inside a hollow guava tree, making the tree survival at risk. Keeping this in view, this is a pest species of trees (dead/alive) which needs management.

DNA barcoding

3.4

For phylogenetic analysis, only top 15 sequences based on percent query covered, percent identity, bit cover, and relevant taxon match from GenBank were selected (Table 3). Then, GenBank was manually searched for the taxon/species name “Angulitermes dehraensis” and reference sequence, resulting DQ442073.1 as a relevant sequence with no reference sequence. Taxonomically, all the matched-up sequences were from four genera of family Termitidae. In the absence of a reference sequence, DQ442073.1 was used as a standard for analogy validation (Supplementary Figure S2) showing 99.02% homology with the understudy sequence.

Neighbor-joining (N-J) tree

3.4.1

An N-J tree was constructed in MEGA (45) via the neighbor-joining method (46) and resulted into an unrooted tree consisting of two main branches. Branch 1 consists of 11 sequences, which is further branched for the sister species of the genera Angulitermes, Promirotermes, and Amitermes, whereas branch 2 consists of five sequences for the remaining sister species of the genera Angulitermes and Microcerotermes, which is further branched. Subbranch 1 shows the understudy sequence denoted by “●” with DQ442073.1, whereas subbranch 2 shows the remaining three sequences as shown in Figure 6 (details on analysis are available at supplementary data N-J tree).

Unrooted neighbor-joining tree of Angulitermes dehraensis collected from the selected studied area of Khyber-Pakhtunkhwa, Pakistan, a part of the northwestern Indomalaya region. (● = under study sequence).

Maximum likelihood (M-L) tree

3.4.2

An M-L tree was constructed in MEGA (45) via the Tamura-Nei model (47) and resulted into an unrooted tree consisting of two main branches. Main branch 1 consists of 13 sequences of genera Angulitermes, Promirotermes, and Amitermes with two subbranches. Subbranch 1 is further divided into two more smaller branches; one contains eight accessions of the sister species along with the understudy sequence denoted by “●” with DQ442073.1, whereas the other contains the remaining five accessions. Main branch 2 represents the three sequences of genera Microcerotermes as shown in the Figure 7 (details on analysis are available at supplementary data M-L tree).

Unrooted maximum-likelihood tree of Angulitermes dehraensis collected from the selected studied area of Khyber-Pakhtunkhwa-Pakistan, a part of the Northwestern Indomalayan region. (● = under study sequence).

Hebert et al. (48), Austen et al. (49), Firouzabadi et al. (50), and Adetitun (51) stated that there could be genetic diversity of 0.0%–0.51% among intraspecies whereas 97% among interspecies. In this study, the understudy sequence matched 99.02% (Supplementary Figure S2) with sequence DQ442073.1 (Angulitermes sp.), which is an incomplete taxon. Divergence of 0.98% with the understudy sequence is greater than the range 0.0%–0.51%, which indicates the novelty of understudy sequence, also supported by N-J and M-L tree analyses as shown in Figures 6, 7. The reference sequence curated by NCBI is absent for the genus Angulitermes, making it a poorly recorded taxon. Clustering of sequence PV057196.1 (Angulitermes sp.) with other sister species and homology of 88% (Supplementary Figure S3) with the understudy sequence reveals wrong taxon naming.

Remark on specie status

4

A. dehraensis is a valid species and reported by several researchers including Chaudry and Ahmad (27), and Ahmad and Akhtar (44) for Indomalaya and Palearctic regions. It is a rare species which was collected from two localities of a sub-hilly terrain in a 3-year study. In this study, it was found feeding on the humus in a hollow guava tree trunk sharing the living space with the Odontotermes obesus species (33, 36). Based on the available and collected data of various feeding host substrate in horticultural ecosystems of the Indomalayan region, it is declared as a pest species of termites (43, Vol. 1, p. 145), which needs management.

Genus Angulitermes is poorly recorded in GenBank with no COII sequence data for A. dehraensis or any other species of the genus. Thus, a novel COII sequence of A. dehraensis is submitted to GenBank for accession number. It will provide a baseline for molecular studies on this genus. Integrated Termite Management (7) practices are recommended for the control of this pest species in the orchards.

Data availability and specimen deposition

4.1

In response to submitted sequence of A. dehraensis, accession number PX423737 was received from the GenBank and specimens are submitted to Insect’s Museum at the Department of Entomology, The University of Agriculture, Peshawar, Pakistan.
