Nanochemical Cell-Surface Evaluation in Photothermal Spectroscopic Imaging of Antimicrobial Interactions in the Model System Bacillus subtilis and Vancomycin

TL;DR

Researchers used a high-resolution imaging technique to study how vancomycin interacts with the cell walls of Bacillus subtilis bacteria.

Contribution

The study introduces a novel method using photothermal spectroscopic imaging to visualize antibiotic interactions on bacterial surfaces with nanometer resolution.

Findings

Chemical details of cell wall destruction in Bacillus subtilis after vancomycin treatment were observed with ∼5 nm resolution.

Spectral shifts indicating hydrogen bond formation between vancomycin and peptidoglycan were detected in PiF-IR spectra.

Vancomycin interaction signatures were localized in the septum region of B. subtilis with ∼10 nm resolution.

Abstract

The power of photothermal spectroscopic imaging to visualize
antimicrobial
interactions on the surfaces of individual bacteria cells has been
demonstrated on the model system Bacillus subtilis and vanco­mycin using mid-infrared photoinduced force microscopy
(PiF-IR, also mid-IR PiFM). High-resolution PiF contrasts obtained
by merging subsequent PiF-IR scans at two different illumination frequencies
revealed chemical details of cell wall destruction after 30 and 60
min incubation with vanco­mycin with a spatial resolution of
∼5 nm. This approach compensates for local intensity variations
induced by near-field coupling of the illuminating electric field
with nanostructured surfaces, which appear in single-frequency contrasts
in photothermal imaging methods, as shown by Anindo et al. [J. Phys. Chem. C
2025, 129, 4517. DOI: 10.1021/acs.jpcc.4c08305]. Known spectral shifts associated with hydrogen bond formation
between vanco­mycin and the N-acyl-d-Ala4-d-Ala5 termini in the peptido­glycan cell
wall have been observed in chemometrics of PiF-IR spectra from treated
and untreated B. subtilis harvested after 30 min
from the same experiment. Spectral signatures of the vancomyin interaction
have been located in the piecrust of a progressing septum with ∼10
nm resolution using PiF contrasts of three selected bands of a PiF-IR
hyperspectral scan of an individual B. subtilis cell
harvested after 30 min incubation. Our results are complemented by
a discussion of imaging artifacts and the influence of parameter settings
supporting further development toward standardization in the application
of PiF-IR for visualizing the chemical interaction of antibiotics
on the surface of microbes with few nanometer resolution.

Figures

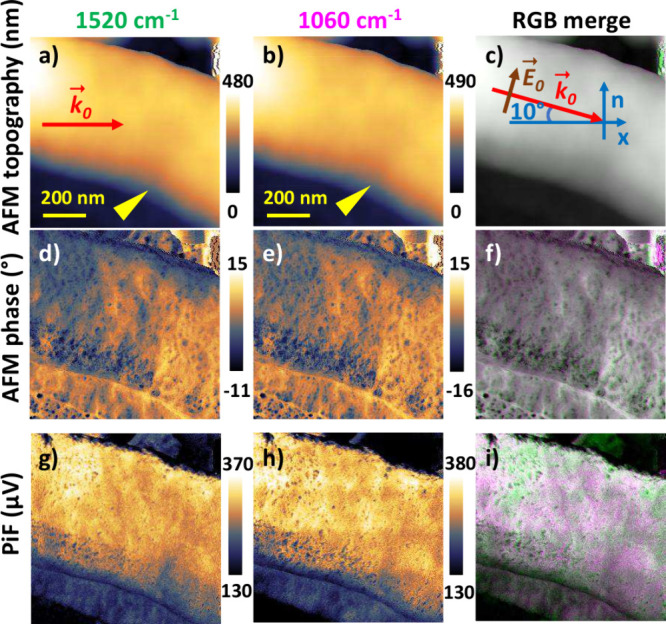

Single illumination frequency PiF contrasts of treated B. subtilis harvested after 15 min: (a-c) topography, (d-f) AFM phase and (g-i) PiF. Left: ν = 1520 cm–1, middle: ν = 1060 cm–1, right: RGB with “G” set to ν = 1520 cm–1 and “R+B” set to ν = 1060 cm–1. Schematics in (a) indicate the light propagation projected onto the sample plane and in (c) the illumination geometry including the electric field oscillation in the plane of incidence normal to the sample plane. The yellow arrows in (a,b) mark a line that is lower in height than the neighboring cell material.

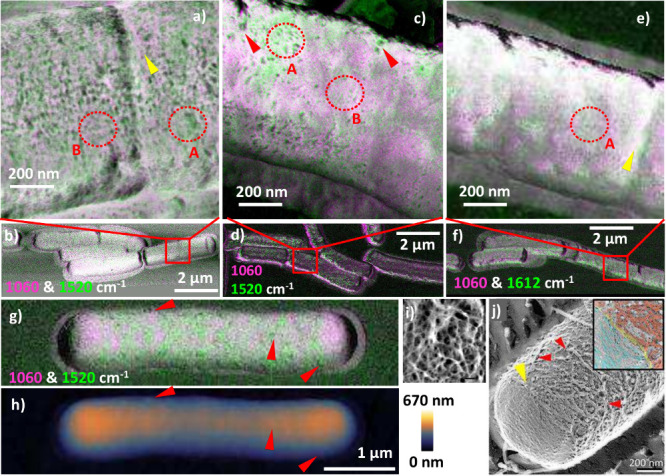

High-resolution chemical imaging of treated and untreated B. subtilis using PiF-IR. (a–g) Merged subsequent PiF-IR scan images showing contrasts in glycan (pink) at 1060 cm–1 and peptide (green) at 1520 cm–1 or at 1612 cm–1 as indicated: (a–f) B. subtilis incubated with vanco­mycin for 15 min; yellow arrows in (a,e) mark piecrusts forming at septa; red arrows in (c) mark possibly developing septa or depressions; red dotted areas A and B mark loosely and densely organized fibrils, respectively. Scans presented in (a,c,e) were acquired with increased pixel resolution in the marked areas in the respective overview scans (b,d,f) using the same IR frequencies. The PiF in (a,b,g) was recorded at fixed f 1, while in (c–f) f 1 was adjusted in each pixel of the scan. Systems: (a–d) treated and (e,f) untreated B. subtilis (control), (g) B. subtilis incubated with vanco­mycin for 60 min and (h) simultaneously acquired topography (at f 2); red arrows mark protrusions. Scan resolutions: overviews (b,d,f,g), 0.02 μm/pixel; zoomed areas, (a,c) 4 nm/pixel and (e) 8 nm/pixel. (i) High-resolution AFM topography image of the cell wall of a hydrated S. aureus cell (bar: 50 nm). [Panel (i) reproduced with permission from ref . Copyright 2004, American Society for Microbiology.] (j) Surface structures of a B. subtilis 168 CA cell visualized by quick-freeze, deep-etch EM: red arrows mark filaments, and the yellow arrow marks the boundary between cylindrical and pole parts (bar: 200 nm). Inset: area at the yellow arrow showing cylindrical part (red), pole (blue) and piecrust (yellow). [Panel (j) reproduced with permission from ref . Copyright 2019, Oxford University Press.]

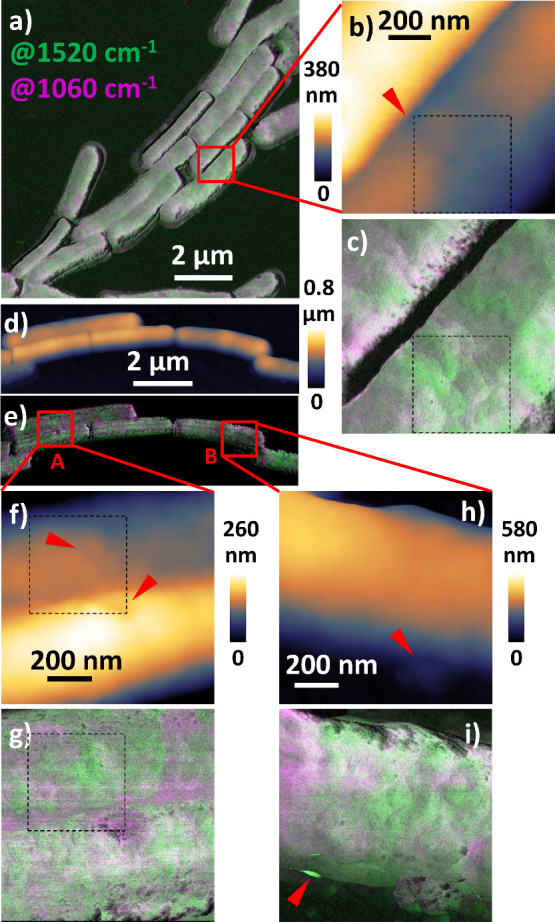

PiF contrasts of treated B. subtilis harvested after 30 and 60 min from the same experiment. (a) Overview PiF contrast of B. subtilis cells incubated with vanco­mycin for 30 min with (b) AFM height image in the area marked by the red square in (a), and (c) corresponding high-resolution PiF contrast. (d–i) B. subtilis cells incubated with vanco­mycin for 60 min with (d) overview AFM height image, (e) corresponding PiF contrast, (f,g) AFM height images in areas A and B marked by red squares in (e) and (h,i) corresponding high-resolution PiF contrasts. Merged subsequent PiF-IR scan images (a,c,e,g,i) showing contrasts in glycan (pink) at 1060 cm–1 and peptide (green) at 1520 cm–1 absorption bands. Red arrows in AFM height images mark interesting areas. Red arrow in (i) marks an artifact. Dashed black boxes mark positions of hyperscans.

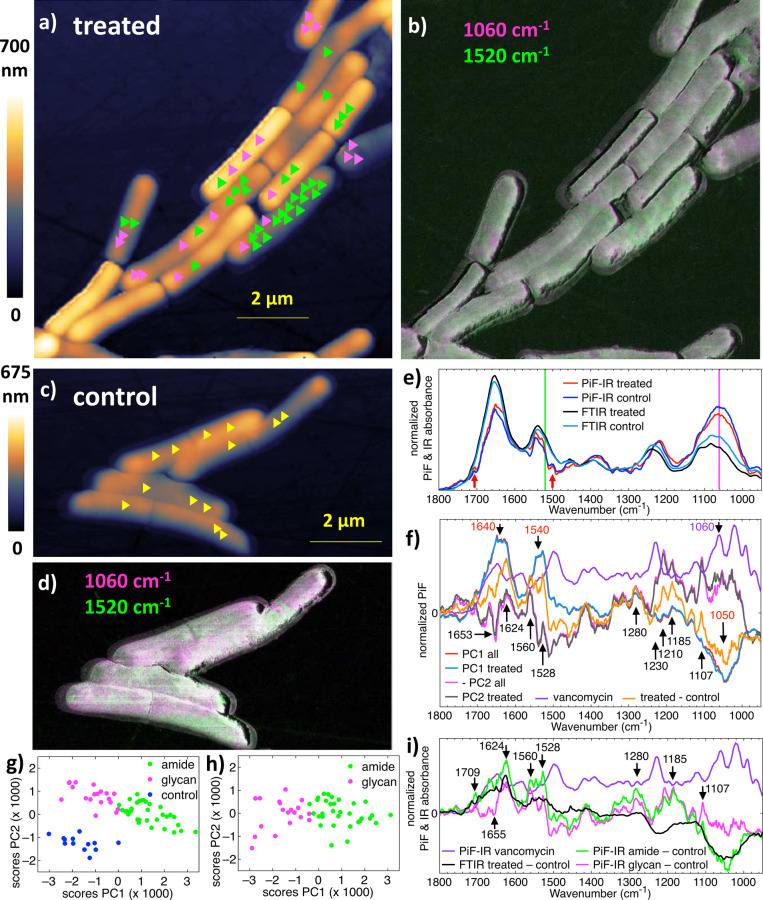

PiF-IR spectra and chemometrics of B. subtilis cells harvested after 30 min. (a–d) Scan images: AFM topography of (a) treated cells and (c) control sample; positions of point spectra acquisition are marked by triangles following the color code of the “glycan” and “amide” subgroups found by chemometrics; (b,d) PiF contrasts from pairs of subsequent scans acquired at 1520 cm–1 (green) and at 1060 cm–1 (pink). (e) Mean spectra of PiF-IR spectra acquired on treated (a,b) and control samples (c,d) and corresponding FTIR spectra, where the red arrows mark shoulder peaks in the PiF-IR spectra. (f–i) Difference spectra and chemometrics: (f) first and second loadings of PCA applied to all PiF-IR spectra and of PCA applied to spectra from treated cells only; PiF-IR spectrum of vanco­mycin and difference spectrum of the mean PiF-IR spectra presented in (e). (g,h) Score maps of PC1 and PC2 obtained from the PCA on all PiF-IR spectra and on spectra of treated cells, respectively. Spectra of treated cells were sorted into “glycan” (pink) and “amide” (green) according to positive and negative scores in the PC1 from analysis of all PiF-IR spectra. (i) Difference spectra of subsets.

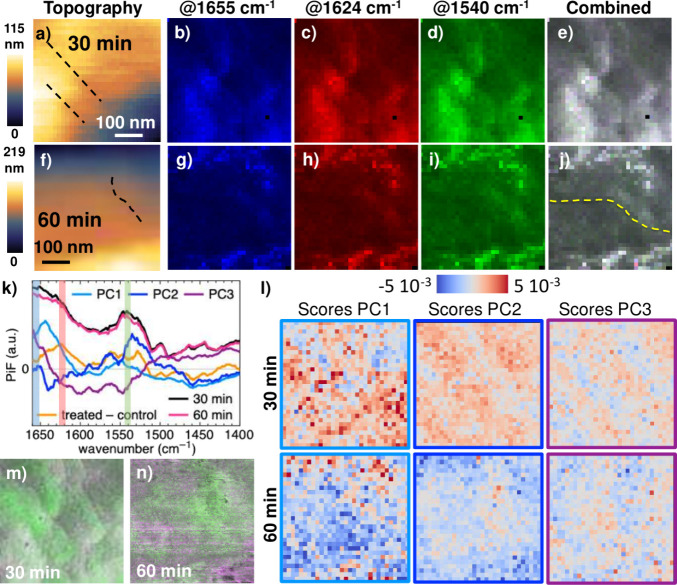

PiF-IR hyperspectra of treated B. subtilis harvested after (a–e) 30 min and (f–j) 60 min from the same experiment: (a,f) AFM topography; dashed black lines in (a) mark depression lines. (b–d) and (g–i) RGB channels showing PiF intensities at selected frequencies: 1655 ± 2 cm–1 (blue), 1624 ± 2 cm–1 (red) and 1540 ± 2 cm–1 (green); the bands are marked in corresponding colors in the plotted spectra in (k). (e,j) Combined RGB images, where artifacts from scanning appear below the yellow line in (j). (k,l) Combined PCA of the two PiF-IR hyperspectra: (k) PC loadings together with mean spectra and the difference spectrum from single spectra (Figure f) and (l) PC scores maps. (m,n) High-resolution PiF contrasts of the positions of the hyperspectra cut from the dashed boxes in Figures c and g, respectively.

Full text

Introduction

The global rise of antimicrobial resistance (AMR) poses an increasing live threat all over the world.? Efforts to develop new drugs and therapies will ultimately benefit from the ability to achieve chemical information at the subcellular and single-molecule levels. Recently, a number of photothermal spectroscopic imaging methods have been developed which overcome the spatial limitation of conventional IR spectroscopy and complement insights from electron microscopy (EM), Raman spectroscopic imaging, and fluorescence microscopy at the nanoscale by combining powerful IR illumination with the integration of other detection schemes, ?−? ? ? ? ? ? ? ? ? ? ? for example, the use of visual probe wavelengths or scanning (atomic) force microscopy (AFM). Among the latter, nano-FTIR and IR scattering scanning near-field optical microscopy (IR-SNOM) employ optical detection of the near-field absorption in the sample mediated by an AFM tip. ?−? ? ? In contrast, the so-called AFM-IR techniques combine IR illumination with mechanical detection. ?,?,? AFM-IR was initially coined for the oldest of these techniques, photothermal induced resonance (PTIR). Among the various AFM-IR techniques, PTIR, ?,?,?,? mid-IR peak force microscopy (PFIR) ?,?,? and tapping AFM-IR ?,?,? probe the thermal expansion upon IR absorption in the sample, whereas mid-IR photoinduced force microscopy (PiF-IR or mid-IR-PiFM) ?,?,?,?−? ? ? probes the induced change in the electromagnetic near-field. ?−? ? ? Having been developed for applications in material sciences, meanwhile an increasing number of applications of photothermal imaging in the life sciences have been reported. ?−? ?,?−? ? ? ? ? ? ? ? ?,?−? ?,?−? ? Among those methods, PiF-IR stands out with its unprecedented spatial resolution of ∼5 nm, which is combined with a high spectral resolution of 1 cm^–1^. ?−? ? ?,?,?,?,? The exceptional lateral spatial resolution and surface sensitivity of PiF-IR are achieved by combining noncontact AFM mode with electronic filtering using a heterodyne scheme for detection of the force gradient between a sharp metallic AFM tip and the sample. ?,?,?,? In a recent study, we applied PiF-IR to polymerized Actin, a major structural protein in eukaryotic cells, demonstrating ∼5 nm spatial and submolecular spectral resolution in hyperspectral PiF-IR images.?

Several studies have been published applying photothermal imaging methods to the investigation of microbes. Kochan et al. used PTIR to study single cells of Gram-positive Staphylococcus aureus, demonstrating subcellular details with 20–100 nm resolution.? The cell wall of Gram-positive bacteria consists of a thick layer of the polymer peptido­glycan, which is made up of glycan strands that are cross-linked by peptide side chains;? however, slight differences in the organization of the glycan strands between different species of Gram-positive bacteria have been reported in studies using electron microcopy ?,? or high-resolution AFM. ?,? Applying quick-freeze, deep-etch EM, Tulum et al. found that thinner filaments (width ≈ 7 nm) arranged concentrically around the poles, while thicker filaments (width ≈ 9 nm) were aligned in a partially circumferential manner on the cylindrical part of the Bacillus subtilis cells,? in agreement with other studies on B. subtilis.? In contrast, in the cell wall of S. aureus, peptido­glycan strands have been observed to form a loosely arranged fiber network with a large number of empty spaces between them. ?,? In their study, Kochan et al. demonstrated the chemical variation between a PTIR spectrum obtained on a septum preceding cell division of a S. aureus cell and another PTIR spectrum recorded from cell area, but individual glycan strands were not resolved.? In an earlier study, Kochan et al. had applied PTIR to characterize molecular changes in strains of S. aureus associated with resistance toward either vanco­mycin, a glycopeptide antibiotic, or dapto­mycin, a lipopeptide antibiotic.? By comparing parent to resistant strains of paired clinical isolates on a single-cell level combined with chemometrics in data analysis, they reported an increase in the amount of intracellular carbohydrates for the strain showing intermediate resistance to vanco­mycin. An increase in intensity was found in the spectral region between 1200 and 1000 cm^–1^ (phosphodiester stretching vibrations and several carbohydrate modes, both present in glycans) relative to the amide I band (1600–1690 cm^–1^) for resistant strains compared to parent strains (susceptible), which the authors interpreted as being attributable to thicker peptido­glycan layers of resistant strains.? Cells of the strain showing resistance to dapto­mycin additionally showed an increase in the lipid content.? These molecular changes could not be observed from investigation of the same strains using attenuated total reflectance (ATR) infrared spectroscopy, which is not sensitive to the investigation of single bacteria cells, requiring larger sample volumes.? Davies-Jones et al. applied PiF-IR to single cells of E. coli, S. aureus and the yeast Candida albicans, revealing nanoscale chemical contrasts of cell walls and across sectioned cells together with a considerably higher spectral resolution compared to that of obtained FTIR spectra of the three microbes.? Hondl et al. used tapping AFM-IR to study extracellular vesicles (EVs) extracted from human milk, providing chemical contrasts at a spatial resolution of ∼20 nm.? EVs play a key role in intercellular communication between various cell types, including also microbes such as B. subtilis. ?−? ?

However, in several studies using various photothermal imaging methods, anisotropic intensity distributions have been reported from the investigation of nanostructured surfaces, including the study of EVs by Hondl et al. ?,?,? In a recent study, Anindo et al. combined theoretical modeling with experimental investigation using PiF-IR to demonstrate coupling effects of the illuminating electric field with nanostructured dielectric materials absorbing at mid-IR frequencies.? extending an earlier work by Xie et al.? Such near-field coupling results in spatial anisotropies in photothermal imaging. ?,?,? Anindo et al. investigated the appearance of these effects for illumination frequencies within a broad spectral range covering several absorption bands of the sample material as well as non-absorbing spectral regions. At sufficiently low illumination power, the observed spatial anisotropies did not show an effect on the spectral shapes of the PiF-IR spectra acquired from a PMMA nanosphere with 100 nm diameter, allowing for a qualitative interpretation of the photothermal images.?

In this work, we present the application of PiF-IR to a well-known model system for antibiotic interaction: Gram-positive B. subtilis, ?,?,?,? treated with vanco­mycin.? Vanco­mycin is a β-lactam antibiotic that affects cell wall growth ?−? ? by forming five hydrogen bonds with the dipeptide d-alanyl-d-alanine (d-Ala-d-Ala) in the peptido­glycan layer of the cell wall. ?,?−? ? ? Assmann et al. reported an antibiotic interaction of vanco­mycin with Gram-positive Enterococcus faecalis after 30 min incubation time using Raman spectroscopy.? To cover the onset of this interaction, we present subcellular, high-resolution chemical contrasts obtained from single-frequency illumination PiF-IR scans of B. subtilis cells harvested after 15, 30, and 60 min incubation with vanco­mycin. Following the findings of Anindo et al. on field coupling effects in photothermal imaging of nanostructured surfaces,? we used merges of PiF contrast images from successive scans of the same sample position at two different illumination frequencies for our qualitative discussion, including the evaluation of scanning artifacts visible in high-resolution scans and the influence of parameter settings on PiF contrasts. The obtained high-resolution PiF contrasts are compared with recently published results from quick-freeze, deep-etch EM of individual B. subtilis cells.?

Furthermore, we compare PiF-IR spectra acquired from different positions on the surface of treated and untreated B. subtilis cells harvested after 30 min with FTIR spectra of these samples to demonstrate the surface sensitivity and the spectral sensitivity of PiF-IR. We use difference spectra and a chemometrics analysis of the PiF-IR spectra and discuss the results in the context of the known interaction in our model system to evaluate the potential of PiF-IR for studying chemical variations related to antibiotic interactions on bacteria surfaces. Additional information on local chemical variations on the surface of treated bacterial cells is obtained by a joint chemometrics analysis of hyperspectral PiF-IR scans in two of the regions presented.

Materials and Methods

Sample Preparation

A plain vancomycin sample for IR spectroscopy was prepared from a solution of 1 mg of vanco­mycin hydrochlorate powder (Sigma-Aldrich) in 1 mL of H_2_O. 5 μL of this aqueous solution was dripped onto a fresh CaF_2_ slide and air-dried.

B. subtilis subsp. spizizenii (ATCCTM 6633) samples were cultivated in CASO broth (ROTH GmbH, Germany) overnight at 37 °C while being shaken at 160 rpm. The overnight culture was used to inoculate a starter culture (60 mL) with an optical density (OD) of 0.1 at λ = 600 nm.? Afterward, the sample was divided into two 30 mL flasks and shaken for 1 h at 30 °C, and then 10 μg/mL vanco­mycin was added to one of the flasks. The resulting concentration is the lower range of a typical trough serum concentration recommended for most patients during appropriate vanco­mycin therapy. ?,? 1 mL each of treated and untreated B. subtilis was harvested at 15, 30, and 60 min from each flask. The bacteria samples were then pelleted by centrifugation at 13000g, washed twice in water, and resuspended in 250 μL of water. 5 μL of each sample was carefully placed on a CaF_2_ slide and air-dried for 30 min at 50 °C. The samples were stored at 4 °C for up to 1 week prior to measurement. Pairs of treated and control samples were prepared in three independent experiments and investigated within 1 week after preparation.

FTIR

FTIR spectra were acquired using a Varian 620-IR microscope with a liquid-nitrogen-cooled mercury cadmium telluride (MCT) detector at 80 K at a resolution of 2 cm^–1^ and in a spectral range of 900–4000 cm^–1^. First, 32 scans of the absorption spectrum of a sample of B. subtilis were acquired at a maximum aperture in transmission mode. The presented spectra were then averaged from regions with accumulated bacteria and baseline-corrected. The spectra used for the comparison of the methods were vector-normalized (L2 norm).

PiF-IR Data Acquisition and Analysis

PiF-IR measurements were performed using a VistaScope (Molecular Vista Inc., US) microscope equipped with a pulsed quantum cascade laser (QCL) containing 4 QCL chips (Block Engineering, US), which is tunable in the spectral range of 770–1890 cm^–1^ at 1 cm^–1^ spectral bandwidth and illuminates the tip–sample region at a high angle of incidence (∼80°). Ultrasharp, high-frequency, noncontact PtIr-coated PointProbe Plus (ppp) cantilevers (Nanosensors, CH) with a force constant of 42 N m^–1^ and a resonance frequency of 330 kHz were used. The photoinduced force (PiF) was acquired in heterodyne detection mode (sideband), measuring the PiF in the first harmonics of the system f 1 ∼ 300 kHz, while the cantilever was driven at its second harmonics f 2 ∼ 1650 kHz. The QCL was pulsed at the frequency f _ m _ = f 2 – f 1 to enhance the detected signal. ?,? The system was operated in noncontact mode by choosing a small amplitude of ∼2 nm for the driven oscillation and a set point of 85%, which results in probing mainly the attractive regime of the tip–sample interaction force. ?,? The channel used for driving the oscillation (at f 2) provides amplitude feedback and is used to generate topographic (height) images.

Compensation for Anisotropic Intensity Distribution in Photothermal

Imaging of Nanostructured Materials

Photothermal imaging of nanostructured materials commonly suffers from an anisotropic intensity distribution of the measured signals with respect to the geometry of the nanostructures. ?,? This effect is caused by the geometry of the near-field coupling of the illuminating electric field with the nanostructured materials.? The effect is demonstrated in Figure, where the two single illumination frequency PiF contrasts obtained in two subsequent scans at ν = 1520 cm^–1^ (Figureg) and ν = 1060 cm^–1^ (Figureh) show less intensity on the side of the bacteria cell facing the illumination than on the back side (the propagation vector k 0 of the illumination is depicted in the AFM topography, Figurea). An additional inhomogeneity is introduced by the inclination angle of the AFM tip scanning the sample, as seen in the topography images (Figurea-c) showing a soft slope in the front and a steep slope in the back of the B. subtilis cell. The yellow arrow marks a line lower than the neighboring cell material, which appears bright in the AFM phase images (Figured-f) and dark in the PiF contrasts (Figureg-i). Consequently, the interpretation of the detected absorption in single-frequency photothermal images is not straightforward and requires a detailed understanding of the illumination geometry in the AFM setup and the related electric field coupling with the nanostructured topography, as well as the impact of the convolution with the shape of the AFM tip? on the recorded photothermal signal. As demonstrated by Anindo et al., in the case of sufficiently low illumination intensities, these effects do not depend on the choice of the illumination frequency.? Following these findings, we compare the relative PiF intensities obtained in two or three different frequency bands at the same sample position. For this, subsequent scans were cropped using SurfaceWorks and used as color channels in RGB merges of PiF contrasts in these bands for our qualitative analysis of local absorption intensities on the surface of B. subtilis cells. As demonstrated in Figurei, the relative absorption in the two bands and thus the information on the chemical composition are visible independent of the absolute intensity of the recorded PiF.

Single illumination frequency PiF contrasts of treated B. subtilis harvested after 15 min: (a-c) topography, (d-f) AFM phase and (g-i) PiF. Left: ν = 1520 cm–1, middle: ν = 1060 cm–1, right: RGB with “G” set to ν = 1520 cm–1 and “R+B” set to ν = 1060 cm–1. Schematics in (a) indicate the light propagation projected onto the sample plane and in (c) the illumination geometry including the electric field oscillation in the plane of incidence normal to the sample plane. The yellow arrows in (a,b) mark a line that is lower in height than the neighboring cell material.

Control of Mechanical Detection Frequency in PiF-IR

The mechanical resonance frequencies of the cantilever shift in the force field of the interaction with a sample with respect to the resonance without any sample. ?,? Consequently, the resonance frequency will also vary with varying properties of the sample, such as material stiffness, which contribute to the tip–sample interaction force and therefore lead to shifts in f 1 in the range of tens of kHz. The PIF is evaluated from the measured amplitude at the detection frequency. Thus, a correct evaluation requires the adjustment of the detection frequency. Newer versions of VistaScan software provide the possibility of adjusting it to the actual resonance frequency f 1 at each data point prior to data acquisition. For further discussion, we refer to the corresponding section on the effect of varying mechanical resonance frequency in the Supporting Information. In our first two scan series, the PiF was recorded at fixed values of the detection frequency, which had been evaluated prior to acquisition at an arbitrary data point. In our series 3, the detection frequency was adjusted at each data point before acquisition. The effect of these settings is discussed in the Results and Discussion.

PiF-IR Imaging and Spectral Acquisition

PiF contrast images at single illumination frequencies were acquired with an optimized illumination power in the range of a few 100 μW, resulting in peak intensities between 300 and 600 μV, ensuring sufficient contrasts while avoiding substantial heating of the tip, which could result in damage to the sample or the tip coating. The data obtained were inspected for scan artifacts. In some cases, artifacts occurred due to intensity modulations caused by feedback from the instrument’s cooling system during the measurements. Due to the high sensitivity of the method to even small amounts of materials coating the sample or the tip,? also contamination during scanning has to be evaluated and controlled. The dynamic noncontact AFM mode used in PiF-IR strongly reduces such contamination. The main cause of this is insufficient height control during fast scanning. Therefore, using a slow scanning speed even for overview scans is strongly recommended, which, on the other hand, poses a challenge for finding interesting areas in the samples. In general, we carefully examined the artifacts with the eye for mutable impacts on the report of the chemical structure in the scan. Data showing conflicts of scan artifacts with the sample structure were excluded from the analysis, except for two examples, which are discussed accordingly. The scan data for the treated B. subtilis in series 2 harvested after 15 min (Figurea) were accepted for analysis after a line-by-line correction of intensity variations in the slow scan direction in SurfaceWorks, which improved the quality of the PiF contrast while not interfering with the structure of the sample. Details of this procedure are given together with examples of scan artifacts in the Supporting Information.

High-resolution chemical imaging of treated and untreated B. subtilis using PiF-IR. (a–g) Merged subsequent PiF-IR scan images showing contrasts in glycan (pink) at 1060 cm–1 and peptide (green) at 1520 cm–1 or at 1612 cm–1 as indicated: (a–f) B. subtilis incubated with vanco­mycin for 15 min; yellow arrows in (a,e) mark piecrusts forming at septa; red arrows in (c) mark possibly developing septa or depressions; red dotted areas A and B mark loosely and densely organized fibrils, respectively. Scans presented in (a,c,e) were acquired with increased pixel resolution in the marked areas in the respective overview scans (b,d,f) using the same IR frequencies. The PiF in (a,b,g) was recorded at fixed f 1, while in (c–f) f 1 was adjusted in each pixel of the scan. Systems: (a–d) treated and (e,f) untreated B. subtilis (control), (g) B. subtilis incubated with vanco­mycin for 60 min and (h) simultaneously acquired topography (at f 2); red arrows mark protrusions. Scan resolutions: overviews (b,d,f,g), 0.02 μm/pixel; zoomed areas, (a,c) 4 nm/pixel and (e) 8 nm/pixel. (i) High-resolution AFM topography image of the cell wall of a hydrated S. aureus cell (bar: 50 nm). [Panel (i) reproduced with permission from ref . Copyright 2004, American Society for Microbiology.] (j) Surface structures of a B. subtilis 168 CA cell visualized by quick-freeze, deep-etch EM: red arrows mark filaments, and the yellow arrow marks the boundary between cylindrical and pole parts (bar: 200 nm). Inset: area at the yellow arrow showing cylindrical part (red), pole (blue) and piecrust (yellow). [Panel (j) reproduced with permission from ref . Copyright 2019, Oxford University Press.]

For the acquisition of high-resolution scans, we used a slow scan speed of 0.2 line/s (0.2 μm/s). Cells of treated B. subtilis were scanned at a chosen resolution of 4 nm/pixel, which makes use of the available spatial resolution of PiF-IR in the range of 5 nm ?,?,? but resulted in ∼1 h per single image (2 h for a single position). The untreated control experiments were scanned using a scan resolution of 8 nm/pixel, which still provides good insight into chemical modifications of the cell surface and reduces the required acquisition time by a factor of 2. The positions of the high-resolution scans were selected from previously acquired larger area overview scans using a scan resolution of 0.02 μm/pixel and scanning at a speed of 2 μm/s.

For each PiF-IR scan, height images (AFM topography) were acquired simultaneously using the instrument feedback at the driving frequency, which matches the second mechanical resonance frequency of the system f 2. For the cantilevers used here, the quality factor is typically higher at the first mechanical resonance frequency f 1, which is reserved for the detection of PiF (including also the AFM phase images). As a result, the topography images show less detail than the PiF-IR contrasts and the AFM phase images recorded at f 1 (see Figure) and cannot be compared to AFM topography measurements optimized for good spatial resolution. Furthermore, equipped AFM probes had to match the requirements for sideband detection, involving restrictions in the modulation frequencies of the pulsed QCL, which does not allow the use of instrument parameters tailored for high-resolution AFM topography, for example, the AFM topography of the cell wall of a hydrated S. aureus cell presented by Touhami et al.? All acquired scan images were processed using SurfaceWorks 3.0 Release 32 (Molecular Vista Inc., US).

The PiF-IR spectra and hyperspectra were acquired using a homogenized illumination power of about 100 μW by clipping the previously recorded power spectrum at 5% of its peak intensity and with a focal spot diameter in the range of twice the illumination wavelength (2λ). Residual variations in illumination power were removed by calibrating the sample spectra with spectra acquired on non-absorbing CaF_2_ substrates. An acquisition time of 70 s was used for single spectra and each pixel in a hyperspectrum. For hyperspectra of 32×32 pixels, this accumulates to ∼20 h, which is feasible due to the high mechanical stability of the microscope. The scan resolution for the hyperspectra was set to 13 nm/pixel as a compromise between a suitable acquisition time and still high spatial resolution while covering a spectral range of 250 cm^–1^ at 1 cm^–1^ resolution. Due to stability restrictions of the illuminating QCL light source,? we had to restrict the spectral range of the hyperspectra to that available in one QCL chip only. The presented PiF-IR spectra, hyperspectra, and spectral components were smoothed by a Savitzky-Golay filter 2-11-11. PiF-IR spectra used for method comparison were vector normalized (L2 norm) after removal of constant background noise. A chemometric data analysis of PiF-IR spectra and hyperspectra was performed using and extending our home-built software hyPiRana. ?,?

Results and Discussion

Visualization of Fibrillar Organization on the Surface of Cells

In the high-resolution PiF-IR contrasts of single B. subtilis cells the organization of peptido­glycan strands on the cell surfaces becomes visible; see Figuresa and c, which show PiF contrasts of B. subtilis cells obtained as RGB merges from two subsequent PiF-IR scans at scan resolutions of 4 nm/pixel at ν = 1060 cm^–1^ (pink) and ν = 1520 cm^–1^ (green). The observations of these irregular structures on the surface of the bacteria agree with the observations of irregular fibrillar structures on the surface of Gram-positive bacteria obtained by applying high-resolution AFM to S. aureus by Touhami et al.? (Figurei) and quick-freeze deep-etch EM to B. subtilis by Tulum et al.? (Figurej). According to Tulum et al., the thickness of individual filaments in the peptido­glycan layer ranges from 6 to 9 nm,? which lies within the spatial resolution of ∼5 nm of PiF-IR.? When the scan resolution is reduced by a factor of 2, the contrast in the surface structure is reduced but not completely lost; see Figuree. The most pronounced structural contrast is visible in the image of the bacteria cell belonging to series 2 (Figurea), which was recorded at a fixed detection frequency resulting in a contribution of optomechanical properties to the PiF contrast (see the Methods section). The other cells (Figuresc and e) were recorded by using a pixel-by-pixel adjustment of the detection frequency. In this case, the chemical variation on the surface of the bacteria cell dominates the contrast, which is the desired information obtained from the investigation using PiF-IR and which we will discuss in the following sections.

Subcellular Chemical Contrasts of B. subtilis Cell Surface

The formation of the five hydrogen bonds between vanco­mycin and the N-acyl-d-Ala_4_-d-Ala_5_ termini of peptido­glycan takes place in a local chemical environment which contains several peptides and other macromolecular structures, which poses a challenge for the discrimination of the bonds. In a first step, we therefore focus on general chemical variations that appear in the surface layer of the B. subtilis cells by comparing PiF contrasts related to glycan absorption with those related to absorption in the amide I and II bands. For this, we used RGB merge images of PiF intensities acquired in two subsequent scans of the same position on the sample obtained at an absorption frequency of glycans (ν_1_ = 1060 cm^–1^, pink, combining red and blue channels) and at an absorption frequency of amides (either ν_2_ = 1520 cm^–1^ or ν_2_ = 1612 cm^–1^, presented as a green channel). In the resulting high-resolution PiF contrasts of two treated B. subtilis cells (Figuresa,c) and an untreated cell (Figuree) harvested after 15 min, the fibrous surfaces of the peptido­glycan layer are visible, as can be seen by comparing these PiF contrasts with the surface structure of a B. subtilis cell visualized using quick-freeze, deep-etch EM,? which for convenience is reproduced in Figurej. The positions of these scans had been selected from overview scans containing several untreated bacteria (Figuresb,d,f). The high PiF intensities appearing at the edge of bacteria cells in two of the overview scans (Figuresd,f) are overshooting artifacts caused by the fast scanning speed.? Individual bacteria cells were found to be surrounded by flat material that might contain debris from cell walls destroyed during sample preparation that had accumulated around intact cells. As described in the Methods section, the pronounced structural difference in the high-resolution PiF contrasts of the two treated cells (Figuresa,c) is related to the different method settings used during data acquisition.

Cells presented in Figuresc,d (treated) and e,f (control) were harvested from the same experiment after 15 min. Their high-resolution PiF contrasts show local variations in relative intensity in the glycan and amide bands on a scale of 50–100 nm (Figuresc,e). Similar scale variations also appear on top of the fibrous structure in the treated cell of series 2 (Figurea). This seems to point to a general variation in the surface chemistry of the peptido­glycan layer on the scale of 50–100 nm. Possible causes could be effects from drying during sample preparation or slight chemical variations during cell growth. The glycan strands appear to be more loosely arranged in some areas, showing a higher PiF in the amide bands (red dotted areas A), while more densely organized glycan strands are visible in some areas absorbing in the glycan band (red dotted areas B). However, the available data sets in our current PiF-IR study do not allow for a clear distinction about whether this is a general observation. This would require optimization of the method parameters together with quantitative analysis of a larger set of samples. The surface structure of the B. subtilis cell investigated using EM reveals an irregular structure of thicker glycan filaments (red arrows in Figurej) with larger gaps between them, while other areas show smaller filaments that are more densely organized, which agrees with the interpretation that variations in the density of the glycan filaments are a general observation of B. subtilis cells and not specific for the antibiotic interaction with vanco­mycin. In two of the cells, a progressing septum can be seen (Figuresa,e). The piecrusts (yellow arrows) that form at the edge of the septa show a higher intensity in the glycan band (ν_1_ = 1060 cm^–1^, pink) than in the amide bands (ν_2_ = 1520 cm^–1^ or ν_2_ = 1612 cm^–1^, green). This agrees with the observation of thicker glycan strands in piecrusts reported in studies using other methods.? In the septa, we find a generally lower intensity of the glycan band apart from some fibrous structures extending into the septum from the piecrust. This points to a higher protein content in the reactive material of the progressing septum, which in transition electron micrographs was found to be distinct from the usual cell wall fabric.? Some 10–20 nm wide features appearing in the amide II band in the treated cell from series 3 (red arrows in Figurec) might show the onset of septal formation or cell wall damage; however, the structures are still too small to be clearly discriminated. In general, the peptido­glycan layer seems to be rather intact in untreated and treated cells harvested after 15 min.

As expected from the study by Assmann et al.,? B. subtilis cells harvested after longer incubation with vanco­mycin show alterations in the surface of the peptido­glycan layer, which can be clearly associated with cell wall damage. A very pronounced example is seen in the B. subtilis cell incubated with vanco­mycin for 60 min, presented in Figuresg and h. In this particular cell, several protrusions visible in the simultaneously acquired topography image in Figuref correspond to areas showing a higher PiF intensity in the amide II band than in the glycan band; examples are marked by red arrows. Their sizes are in the range of 100–200 nm, which could point to the formation and release of B. subtilis EVs. ?−? ?

B. subtilis EVs are known to form from the bacterial membrane underneath the peptido­glycan layer, which is consistent with the observation of an enhanced PiF intensity at 1520 cm^–1^ (green) of these protrusions in the PiF contrast in Figuree. Various alterations in the cell surface, which can be associated with cell wall damage, are already visible in the PiF contrasts of several treated B. subtilis cells harvested after 30 min of incubation with vanco­mycin presented in Figurea (this image is reproduced in Figurea together with the corresponding AFM height image in Figureb, which includes markups for positions of acquisitions of PiF-IR spectra). We conducted high-resolution scans on a cell showing pronounced variations in PiF contrast in the position marked by a red square in the overview image in Figurea. The AFM height image (Figureb) of this marked position shows a depression on the surface of this cell that indicates damage to the cell wall (red arrow). In the corresponding area, the PiF contrast image (Figurec) shows a higher intensity in the amide II band (1520 cm^–1^, green) than that in the glycan band (1060 cm^–1^, pink). This observation could be related to the inhibition of peptido­glycan synthesis by the presence of vanco­mycin in the position of a starting cell division, which prevents the formation of a piecrust and exposes the underlying cell membrane. However, the PiF contrast of this cell reveals several areas with high absorption in the amide II band, which are not all indications of a progressing cell division but would also agree with an interpretation as an early stage of cell wall destruction leading to the release of EVs.

PiF contrasts of treated B. subtilis harvested after 30 and 60 min from the same experiment. (a) Overview PiF contrast of B. subtilis cells incubated with vanco­mycin for 30 min with (b) AFM height image in the area marked by the red square in (a), and (c) corresponding high-resolution PiF contrast. (d–i) B. subtilis cells incubated with vanco­mycin for 60 min with (d) overview AFM height image, (e) corresponding PiF contrast, (f,g) AFM height images in areas A and B marked by red squares in (e) and (h,i) corresponding high-resolution PiF contrasts. Merged subsequent PiF-IR scan images (a,c,e,g,i) showing contrasts in glycan (pink) at 1060 cm–1 and peptide (green) at 1520 cm–1 absorption bands. Red arrows in AFM height images mark interesting areas. Red arrow in (i) marks an artifact. Dashed black boxes mark positions of hyperscans.

Our investigation of B. subtilis harvested after 60 min confirmed several features of progressing cell death. An example showing protrusions in one B. subtilis cell is presented in Figureg,h, as discussed above. In another experiment, we performed high-resolution PiF-IR scans in two areas (A and B) that showed variations in cell height in the AFM height overview image (Figured); see the red squares marking the positions in the corresponding PiF contrast image (Figuree). A depression line in position A (red arrow in the upper part of Figuref) corresponds to an area in the PiF contrast (Figureg) showing a higher absorption in the amide II band (520 cm^–1^, green) than in the glycan band (1060 cm^–1^, pink). In contrast, the round depression seen on the surface of the neighboring cell predominantly absorbs in the glycan band (pink). Unfortunately, an artifact appears as horizontal lines that absorb predominantly in the glycan band in the PiF contrast images of these positions. Particularly strong lines appear in the middle of Figureg. Their equidistant spacing in the slow scan direction (vertical in the view) can be explained by the material being moved by the AFM tip over the cell surface during the previous faster overview scans of these positions. The lines become weaker in the lower part of the scan after scanning the round depression. Thus, a great deal of the moved material seems to have accumulated in that depression, probably also causing the highly absorbing spot at its center. Within our qualitative analysis of cell wall features from several treated cells, we did not find a similar structure showing high absorption in the glycan band. The observed depressions in the cell wall appear to be correlated rather with a higher absorption in the amide bands, which underlines the caution required to interpret this singular observation. The cell in position B is thicker (higher) in the left part of the scan (Figureh), which corresponds to higher absorption in the glycan band compared to the remaining cell surface (Figurei) and agrees with a higher protein content in regions where the underlying cell membrane is exposed due to damage to the cell wall. The protrusion in the lower part of the scan (red arrow in Figureh) predominately absorbs in the amide II band. Dark spots on the surface correspond to height modulations. At the steep edge of the bacteria cell, the appearance of convolution effects of the AFM tip with the sample topography as well as artifacts due to instabilities in tip oscillations must be considered. The latter is likely the cause of the two spots showing very high intensity in the amide II band in the lower left of the cell (red arrow). The above findings of variations in the cell wall of B. subtilis will be used to guide the evaluation of spectral variations obtained by chemometrics of PiF-IR spectra of cells incubated with vanco­mycin for 30 min in the following section.

Chemometrics of PiF-IR Spectra from Treated and Untreated B. subtilis Cells Harvested after 30 min

We acquired PiF-IR spectra in the indicated positions in two sample areas containing several cells harvested after 30 min from the same experiment (Figuresa–d). Both samples show variations in the PiF contrasts at the selected frequencies; see Figureb for the treated B. subtilis and Figured for the untreated control. Focusing on variations in treated cells, we acquired 51 and 13 individual PiF-IR spectra on manually selected positions on treated and untreated cells, respectively, which are marked by triangles in the simultaneously acquired AFM topography images, Figuresa and c. The color code for the spectra of treated cells follows the assignment into the “amide” (green) and “glycan” (pink) subsets resulting from our chemometric analysis of all PiF-IR spectra; see the discussion below.

PiF-IR spectra and chemometrics of B. subtilis cells harvested after 30 min. (a–d) Scan images: AFM topography of (a) treated cells and (c) control sample; positions of point spectra acquisition are marked by triangles following the color code of the “glycan” and “amide” subgroups found by chemometrics; (b,d) PiF contrasts from pairs of subsequent scans acquired at 1520 cm–1 (green) and at 1060 cm–1 (pink). (e) Mean spectra of PiF-IR spectra acquired on treated (a,b) and control samples (c,d) and corresponding FTIR spectra, where the red arrows mark shoulder peaks in the PiF-IR spectra. (f–i) Difference spectra and chemometrics: (f) first and second loadings of PCA applied to all PiF-IR spectra and of PCA applied to spectra from treated cells only; PiF-IR spectrum of vanco­mycin and difference spectrum of the mean PiF-IR spectra presented in (e). (g,h) Score maps of PC1 and PC2 obtained from the PCA on all PiF-IR spectra and on spectra of treated cells, respectively. Spectra of treated cells were sorted into “glycan” (pink) and “amide” (green) according to positive and negative scores in the PC1 from analysis of all PiF-IR spectra. (i) Difference spectra of subsets.

Unfortunately, the PiF contrasts of the control were affected by artifacts resulting from tip contamination during scanning; for details, see Figure S2 and the related discussion in the Supporting Information. PiF-IR spectra were acquired in less contaminated areas. Our selection is approved by comparison of normalized mean PiF-IR spectra with normalized FTIR spectra obtained from the same B. subtilis strains (Figuree), which confirms the expected difference upon treatment with vanco­mycin: in the spectra obtained in both methods, a slightly increased intensity is seen for the treated B. subtilis cells with respect to the untreated cells (Figuree) in the amide I band at about 1650 cm^–1^ and the amide II band at about 1540 cm^–1^ as well as a decrease in the broad absorption band at about 1060 cm^–1^ corresponding to carbohydrates and phosphodiesters. This finding agrees with a reduced contribution from peptido­glycan as a result of damage to the cell walls in treated cells. From this, we conclude that important spectral variations caused by vanco­mycin treatment can nonetheless be obtained from the analysis of these PiF-IR spectra in spite of the contamination appearing in the scans of the control sample. The spectral resolution of the average PiF-IR spectra is higher than that of the FTIR spectra. For example, the red arrows in Figuree mark shoulder peaks in the amide I and II regions, which are not resolved in the broad peaks in the FTIR spectra. Due to the high spatial resolution of PiF-IR, the probed sample volume is several orders of magnitude smaller than that used for FTIR, resulting in less averaging of chemically heterogeneous samples.? Additionally, the band positions in the PiF-IR spectra are slightly red-shifted to frequencies smaller than those in the FTIR spectra. Such shifts are commonly observed as a result of differing illumination geometries in infrared spectroscopy methods. In the instruments used here, the variation is between the normal incidence in FTIR and an ∼80° oblique incidence in PiF-IR. Details on the influence of this effect require geometric modeling of the electromagnetic near-field, including the plasmonic enhancement of the metallic tip used in PiF-IR, which so far has been investigated only in general, ?,?,? but not for such spectroscopic details.

A further, quite prominent feature in this comparison of normalized spectra is the comparably enhanced intensity in the amide bands of the FTIR spectra compared to that of the PiF-IR spectra, which can be explained by the differing probe volumes used in the different methods. Because of its high spatial sensitivity, the PiF-IR signal is restricted to the surface of the bacteria, which is dominated by carbohydrates and phospho­diesters of the peptido­glycan layer. FTIR probes complete bacteria cells, including the lipoproteins in the cell membrane and proteins in the cytoplasm,? resulting in a higher concentration of amides in the probed volume compared to that probed in PiF-IR. Additional effects contributing to the differences between the FTIR and PiF-IR spectra may be caused by the high sensitivity of tip-enhanced methods to molecular alignment ?,?,? and band orientation. ?,?,?

In the next part, we present the evaluation of spectral variations in these data sets using the difference spectra of the spectra of treated and untreated B. subtilis discussed above and complement them by an unguided chemometrics of the PiF-IR spectra data sets. The results are discussed in the context of literature reports on the spectral signature of a known interaction. In the difference spectrum of the average PiF-IR spectra (yellow line in Figuref), a strong peak appears at 1624 cm^–1^ in the amide I spectral region, which is also visible in the FTIR difference spectrum (black line in Figurei) on top of a broader peak. According to Barth et al., hydrogen bonding lowers the frequency of the amide I peak by ∼20 cm^–1^,? which supports the assignment of this band to the known interaction of vanco­mycin with the peptido­glycan. In addition to this strong peak, the PiF-IR difference spectrum shows a fine structure which is hardly visible in the FTIR difference spectrum and results from highly localized sampling in PiF-IR.? These spectral details were reproduced in our chemometrics analysis and will be discussed in the following, including both approaches.

We conducted two principal component analyses (PCAs), one on all PiF-IR spectra and the other one on those of treated cells only; for the scores, see Figuresg and h, respectively. In both data sets, the loading of the first component (PC1, red and light blue lines in Figuref) shows a pronounced anticorrelated variation of the amide bands and the broad absorption band at 1050 cm^–1^ (see Figuref), which matches the variation reported by the PiF-IR and FTIR difference spectra; see the yellow line in Figuref and the black line in Figurei, respectively. The control sample shows negative PC1 scores (Figureg), in accordance with the expected higher content of glycan components on the surface of untreated cells. In contrast, the cluster of spectra from the treated cells covers a wide range of negative and positive PC1 scores. This finding agrees with the pronounced local chemical variations of the surfaces of individual bacteria cells in the corresponding PiF contrast image (Figureb). Several cells show considerable damage to their peptido­glycan layer, exposing the protein­aceous underlying cell membrane, resulting in a higher PiF intensity in the amide II band than in the glycan spectral region. From this we conclude that the first PC presents the chemical difference between the peptido­glycan layer and the underlying cell membrane and thus reveals the extent of cell wall damage in the positions of the corresponding spectra in the sample. Following this observation, we divided the treated spectra into an “amide” group (green dots) and a “glycan” subgroup (pink dots in Figureg), exhibiting positive and negative PC1 scores, respectively. The cluster split according to this assignment was reproduced in the PCA of treated cells only, confirming the dominant effect of cell wall damage on the chemical variation in these spectra. A comparison of the corresponding color code of the marked positions of the acquired spectra in the topography image (Figurea) with the PiF contrast in those positions (Figureb) shows good agreement of most assignments with the PiF contrast in the two illumination frequencies. The variation of PC1 scores in the control sample (blue dots in Figureg) may be explained by a general chemical heterogeneity of the peptido­glycan layer surface, as discussed with regard to the samples harvested after 15 min incubation. Additional variations could stem from damage to the cell wall resulting from sample preparation (due to pelleting and drying) and possibly may also contain some contribution of the smeared material during scanning.

Having assigned PC1 to the major chemical variation between damaged and intact cell wall regions, we now discuss the second pronounced chemical variation in the data set reported by the second principal component (PC2) and in the PiF-IR difference spectra. The clear distinction between treated and untreated cells in PC2 (see the scores map in Figureg) indicates the assignment of the spectral variation in PC2 to vanco­mycin interaction. Indeed, the PC2 loadings (Figuref) show several matching bands, as will be discussed in the following. Vanco­mycin is known to form five hydrogen bonds with the N-acyl-d-Ala_4_-d-Ala_5_ termini in the peptido­glycan cell wall.? Three of these are formed with the carboxylate group of the tripeptide and two between the amide groups of both vanco­mycin and the tripeptide. ?,? The absorption of α-helices typically appears around 1650–1665 cm^–1^ in the amide I band. ?,?,?,? According to Barth et al., the formation of hydrogen bonds causes a red-shift of ∼20 cm^–1^ of this absorption.? This agrees with the observation of a sharp dip at 1653 cm^–1^ next to a broader peak at 1624 cm^–1^ in the PC2 loadings as well as in the difference spectrum (Figuref). The formation of hydrogen bonds with β sheets also contributes to the peak at 1624 cm^–1^.? Comparison of the PiF-IR difference spectra of either the amide or the glycan subgroup and the control (green and pink lines in Figuref, respectively) confirms the assignment of this new absorption to the formation of hydrogen bonds with the peptido­glycan, as the new band appears not only on top of the amide I absorption in the amide subgroup but also very prominently in the glycan subgroup, in which the broad absorption of glycans at 1050 cm^–1^ is almost not altered with respect to the control.

In the amide II band, a blue-shift of about 10 cm^–1^ is expected upon the formation of hydrogen bonds between the amide groups in vanco­mycin and N-acyl-d-Ala_4_-d-Ala_5_.? This agrees with the observation of two sharp peaks at 1560 and 1528 cm^–1^ accompanied by two sharp dips at 1540 and 1510 cm^–1^ in the PC2 loadings (Figuref), which again are more prominent in the glycan subgroup (Figurei). The corresponding alterations are seen as a weak substructure on top of the amide II peak in the FTIR spectrum (Figurei).

Due to the overlap of the combined NH bending and CN stretching vibration with the CO in plane bending and the CC stretching vibration in the amide III spectral region (1400–1200 cm^–1^),? a detailed discussion of the various peaks and dips that appear in this region is not feasible. The bands appearing at ν > 1700 cm^–1^ (lipid carbonyl stretch) and at 1107 and ∼1220 cm^–1^ (PO_2_ stretching) in the PC2 loadings and in the PiF-IR difference spectra might be related to phospho­lipids in the cytosol membrane,? which is exposed upon destruction of the peptido­glycan cell wall. We will use the above findings on the vanco­mycin interaction signature in PiF-IR spectra for our analysis of the PiF-IR hyperspectra of two treated B. subtilis cells presented in the following.

Localizing Vancomycin Interaction in Hyperspectra of Treated B. subtilis

To localize the vanco­mycin interaction on the surface of treated B. subtilis cells, we acquired hyperscans covering the spectral range of 1400–1660 cm^–1^ in positions showing cell wall destruction in high-resolution PiF contrast images of B. subtilis cells treated for 30 and 60 min (marked by dashed black boxes in Figures c and g, respectively). In accordance with the single spectra chemometric results, we selected the band at 1624 cm^–1^ to visualize the formation of hydrogen bonds between vanco­mycin and N-acyl-d-Ala_4_-d-Ala_5_; see PC2 loadings and PiF-IR difference spectra in Figuresf,i. As mentioned above, there is an influence of the nanostructured topography on the PiF intensity,? and the untreated B. subtilis cells also show some absorption at 1624 cm^–1^, as can be seen in the FTIR and mean PiF-IR spectra of treated and control samples in Figuree. Thus, it is not feasible to discern locations of vanco­mycin interaction from positions showing an enhanced PiF signal at 1624 cm^–1^ alone. However, we can locate vanco­mycin interaction positions using PiF contrasts with two other bands at 1655 and 1540 cm^–1^, which present amide absorption in the absence of hydrogen bonding with vanco­mycin, resulting in local dips in the difference spectra in Figuresf,i. Therefore, we selected three spectral bands at 1655 ± 2, 1624 ± 2 and 1540 ± 2 cm^–1^ in each hyperspectrum and set them as the blue, red and green channels of an RGB image, respectively; see Figures b-d and g-i.

PiF-IR hyperspectra of treated B. subtilis harvested after (a–e) 30 min and (f–j) 60 min from the same experiment: (a,f) AFM topography; dashed black lines in (a) mark depression lines. (b–d) and (g–i) RGB channels showing PiF intensities at selected frequencies: 1655 ± 2 cm–1 (blue), 1624 ± 2 cm–1 (red) and 1540 ± 2 cm–1 (green); the bands are marked in corresponding colors in the plotted spectra in (k). (e,j) Combined RGB images, where artifacts from scanning appear below the yellow line in (j). (k,l) Combined PCA of the two PiF-IR hyperspectra: (k) PC loadings together with mean spectra and the difference spectrum from single spectra (Figure f) and (l) PC scores maps. (m,n) High-resolution PiF contrasts of the positions of the hyperspectra cut from the dashed boxes in Figures c and g, respectively.

The three channels of each position show rather similar contrasts, resulting in overall grayscale RGB images with structures showing slightly higher absorption in each of the channels appearing in both combined images (Figurese,j). As expected, the spatial variation of the PiF intensity in the three channels and the combined image is related to structures in the topography. For example, depression lines marked by dashed black lines in the AFM topography images (Figuresa and f; for higher resolutions scans of these positions, see Figuresb and f) appear dark in all three PiF contrasts and the combined images (Figuresb-e and g-j). Because of the choice of the bands, variations in the overall content of amides will show up simultaneously in all three channels. These variations are also reported by PC1 of the combined PCA of the two hyperscans: The low scores seen in blue in the scores maps (left column in Figurel) appear dark in the PiF contrasts of all channels and in the combined images. The PC1 loading contains two broad bands at ∼1550 and ∼1640 cm^–1^ (light blue line in Figurek) which overlap with the bands in the PC1 of the single spectra (Figuref), and which cover the spectral ranges of the three selected channels (marked by vertical lines in corresponding colors in Figurek). In the PiF contrasts of the cell treated for 60 min (Figuresg-j), a dark area appears in the bottom left, which correlates with low scores in the corresponding PC1 scores map (Figurel, bottom left). This area is part of the position where pronounced contamination from scanning has been observed (marked by the dashed yellow line in the combined RGB image Figurej.) As discussed above, in this area scan lines absorbing at 1060 cm^–1^ appeared in the PiF contrasts in Figurese and g, which result from material smeared by the tip over the sample during scanning. For convenience, a cut of the high-resolution PiF contrast (dashed black box in Figureg), which matches the area of the hyperscan, is presented in Figuren. The lower absorption of amides in this region of the quite coarse hyperscan (32 × 32 pixels) is likely to be related to contamination of the surface of the bacteria cell by some material absorbing in the glycan band (1060 cm^–1^); therefore, this area will not be considered for further discussion.

We expect to localize vancomycin interactions in positions showing an enhanced intensity at 1624 cm^–1^ (red channels, Figuresc,h) and thus appearing in a reddish color in the combined RGB images (Figurese,j). In the PiF-IR hyperscan of the B. subtilis harvested after 30 min of incubation with vanco­mycin, an increased intensity in the red channel (1624 cm^–1^) is visible in the combined image (Figuree) above and below the two depression lines marked by dashed black lines in the simultaneously acquired topography image (Figurea) and also in the high-resolution PiF contrast of this position; see Figurec and the cut of the corresponding area presented in Figurem. As discussed above, this area might show a distorted septum that suffers from inhibited peptido­glycan synthesis caused by the interaction with vanco­mycin. The formation of a piecrust at the edges of the septum has been stopped by the hydrogen bonds between vanco­mycin and N-acyl-d-Ala_4_-d-Ala_5_, which agrees with the observed enhanced absorption at 1624 cm^–1^ in this region. The area between the two depression lines shows an increased intensity in the green channel (1540 cm^–1^), which is mainly related to the N–H bending vibrations of the amide groups ?,?,? in the absence of hydrogen bond formation between the amide groups in vanco­mycin and N-acyl-d-Ala_4_-d-Ala_5_, which would cause a blue-shift of about 10 cm^–1^.? This area also shows an enhanced intensity at 1520 cm^–1^ with respect to that at 1060 cm^–1^ in the high-resolution PiF contrast of this position (Figurem). In treated and untreated B. subtilis cells harvested after 15 min, we had observed an enhanced PiF intensity at 1520 cm^–1^ with respect to that at 1060 cm^–1^ inside forming septa (in Figuresa and e), which supports the interpretation that the hyperscan of this position shows the distorting effect of vanco­mycin on a forming septum. Similarly, the depression line on the surface of the cell harvested after 60 min and the surrounding area show a higher intensity in the green channel (at 1540 ± 2 cm^–1^), and also an enhanced intensity at 1520 cm^–1^ in the high-resolution PIF contrast (Figuren) is seen. There are also pixels with higher absorption in the red channel (at 1624 ± 2 cm^–1^) in this area and adjacent to it, but the structure appears to be less organized than that in the area surrounding the depression lines in the cell harvested after 30 min. This may be related to a higher degree of disintegration of the cell wall of the cell incubated with vanco­mycin for 60 min.

In addition to the higher absorption in the green channel observed between the two depression lines in the cell treated for 30 min, the lower left and upper right of this hyperscan also show enhanced absorption in this band (Figuree). All three regions have high scores of PC2 appearing in red in the corresponding scores map (Figurel, upper middle). The PC2 loading and the difference spectrum of the treated and control single spectra (dark blue and yellow lines in Figurek, respectively) appear to be anticorrelated in the three selected spectral bands (marked by lines of the corresponding colors). However, their shape agrees in other spectral regions, for example in the peak at ∼1560 cm^–1^, and in decreased intensities between 1430 and 1470 cm^–1^. From this we conclude that positive scores in PC2 do not simply mark areas of chemical composition similar to the control sample but also indicate materials that were not present on the surface of untreated B. subtilis cells and that are not affected by hydrogen bonds between vanco­mycin and N-acyl-d-Ala_4_-d-Ala_5_. Further chemical variations also appear inside these areas, as can be seen in the score maps of the third component of the PCA (Figurel, right column), which reveal additional spatial variation compared to that of the PC2 (Figurel, middle column). However, a detailed discussion of these chemical variations requires further investigation of the cytosol membrane material underneath the peptido­glycan layer, which is beyond the scope of this work.

Conclusions

In this work we demonstrated the power of using contrasts obtained in two different spectral bands for a qualitative analysis of the local chemical composition in photothermal imaging of microbes based on recent findings from modeling and experimentation on nanostructured materials by Anindo et al.? Quantitative evaluation of photothermal images is still not straightforward and requires further work on standardization, including the evaluation of artifacts which, for example, result from contamination of the sample position due to tip–sample contact in contact and intermittent AFM-IR, and even in true noncontact AFM-IR in cases of overshooting in fast-scanning.

The application of PiF-IR to the well-known model system B. subtilis and vanco­mycin for antibiotics acting on cell wall synthesis demonstrates the potential of PiF-IR to complement the high structural information from EM and high-resolution AFM, as well as the chemical information from conventional IR spectroscopy, by providing unprecedented spatial information on the chemical composition of microbe surfaces. The qualitative evaluation of PiF contrasts from untreated and treated B. subtilis cells confirms the presence of cell wall destruction in treated cells after 30 min incubation with vanco­mycin, in agreement with the observation reported by Assmann et al. in their study using Raman spectroscopy.? The high spatial resolution provided using PiF-IR enables the chemical characterization of particular types of destruction, including observation of the underlying cytosol membrane in damaged regions and also the appearance of protrusions that could present the release of EVs from a B. subtilis cell harvested after 60 min of treatment with vancomycin.

The comparison of average PiF-IR spectra with FTIR spectra obtained from treated and untreated B. subtilis cells harvested after 30 min from the same experiment shows agreement in the band positions and in the effect of vanco­mycin treatment while demonstrating the higher spectral sensitivity and surface sensitivity of PiF-IR, resulting from the several orders of magnitude smaller probe volume in PiF-IR, which reduces the probed volume to the cell surface. Small shifts of the peak positions between FTIR and PiF-IR spectra can be understood as an effect of the different illumination geometry on band positions, which is familiar from comparisons of IR spectra obtained by using FTIR with normal incidence and ATR with oblique incidence of the IR illumination. The chemometrics analysis of the PiF-IR spectra of these cells revealed spectral variations in several bands that can be assigned to the formation of hydrogen bonds between vanco­mycin and its target N-acyl-d-Ala_4_-d-Ala_5_ in the peptido­glycan layer of the cell wall.

The power of PiF-IR to localize the interaction with vanco­mycin on the surface of treated B. subtilis cells and its effect on the progress of cell division is demonstrated exemplarily in a cell harvested after 30 min of incubation, which shows a distorted septum in high-resolution PiF contrasts. Using PiF contrasts in three selected spectral bands in a hyperspectrum of this region, the formation of hydrogen bonds with vanco­mycin becomes visible in the distorted piecrusts enveloping a pair of depression lines visible in the topography of the cell. The material between the lines shows an absorption similar to that found for the material inside the septa observed in treated and untreated B. subtilis cells harvested after 15 min from two different experiments.

The drawback of the very long acquisition time of almost 1 day in hyperspectral images in PiF-IR might be reduced in further studies of known materials by restricting the spectral range to selected bands only.
