FleXo: a flexible passive exoskeleton optimized for reducing lower back strain in manual handling tasks

TL;DR

FleXo is a lightweight, flexible exoskeleton designed to reduce lower back strain during manual tasks, improving worker comfort and safety.

Contribution

FleXo introduces a novel passive exoskeleton optimized for comfort and functionality in repetitive lifting tasks.

Findings

FleXo reduces perceived physical effort during lifting tasks.

User feedback shows improved satisfaction and wellbeing with FleXo.

The exoskeleton promotes workplace safety and reduces injury-related costs.

Abstract

Musculoskeletal disorders, particularly low back pain, are some of the most common occupational health issues globally, causing significant personal suffering and economic burdens. Workers performing repetitive manual material handling tasks are especially at risk. FleXo, a lightweight (1.35 kg), flexible, ergonomic, and passive back-support exoskeleton is intended to reduce lower back strain during lifting tasks while allowing full freedom of movement for activities like walking, sitting, or side bending. FleXo’s design results from an advanced multi-objective design optimization approach that balances functionality and user comfort. In this work, validated through user feedback in a series of relevant repetitive tasks, it is demonstrated that FleXo can reduce the perceived physical effort during lifting tasks, enhance user satisfaction, improve employee wellbeing, promote workplace safety, decrease injuries, and lower the costs (both to society and companies) associated with lower back pain and injury.

Figures

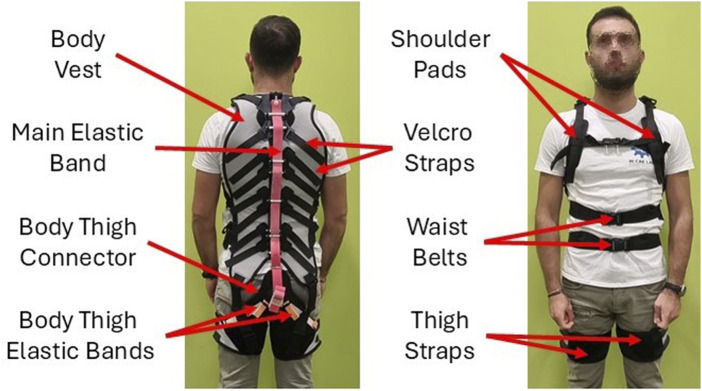

FleXo.

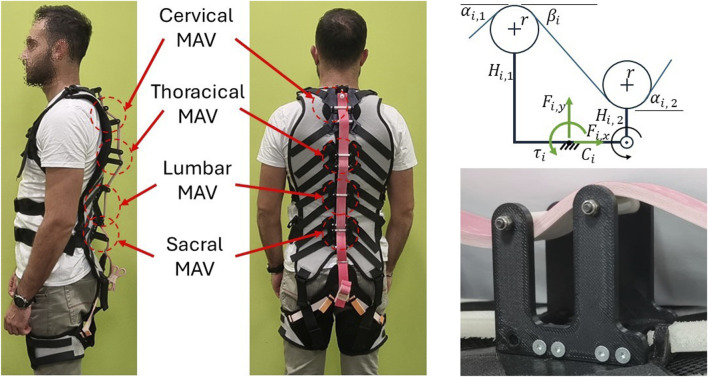

FleXo with 4 MAV modules (left). Schematic structure of a single MAV (right-top) and its physical realization (right-bottom).

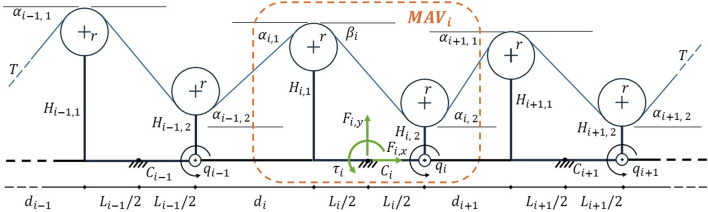

Schematic model of 3 MAV modules of FleXo (not to scale).

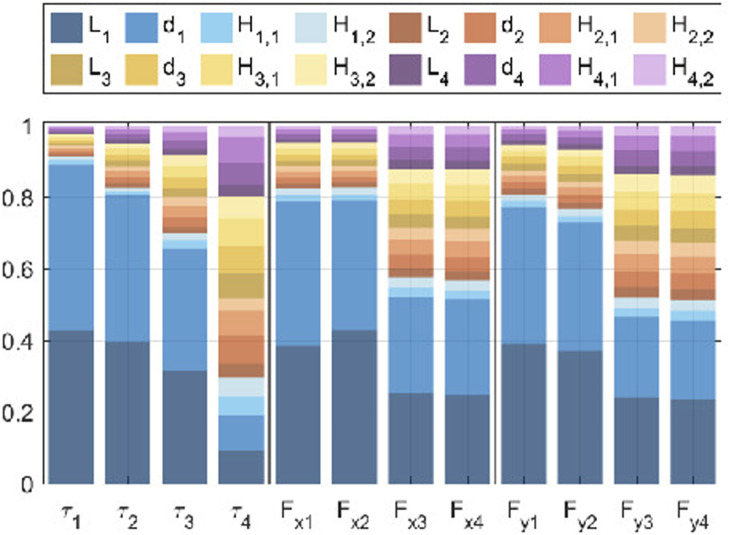

Colour scales refer to different MAVs: blue refers to the Sacral MAV, orange to the Lumbar MAV, yellow to the Thoracic MAV, and Purple to the Cervical MAV.

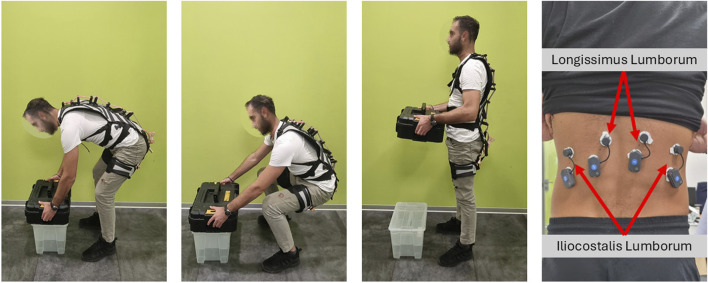

From left to right: stoop, squat, standing, and muscles instrumentally measured during a lift.

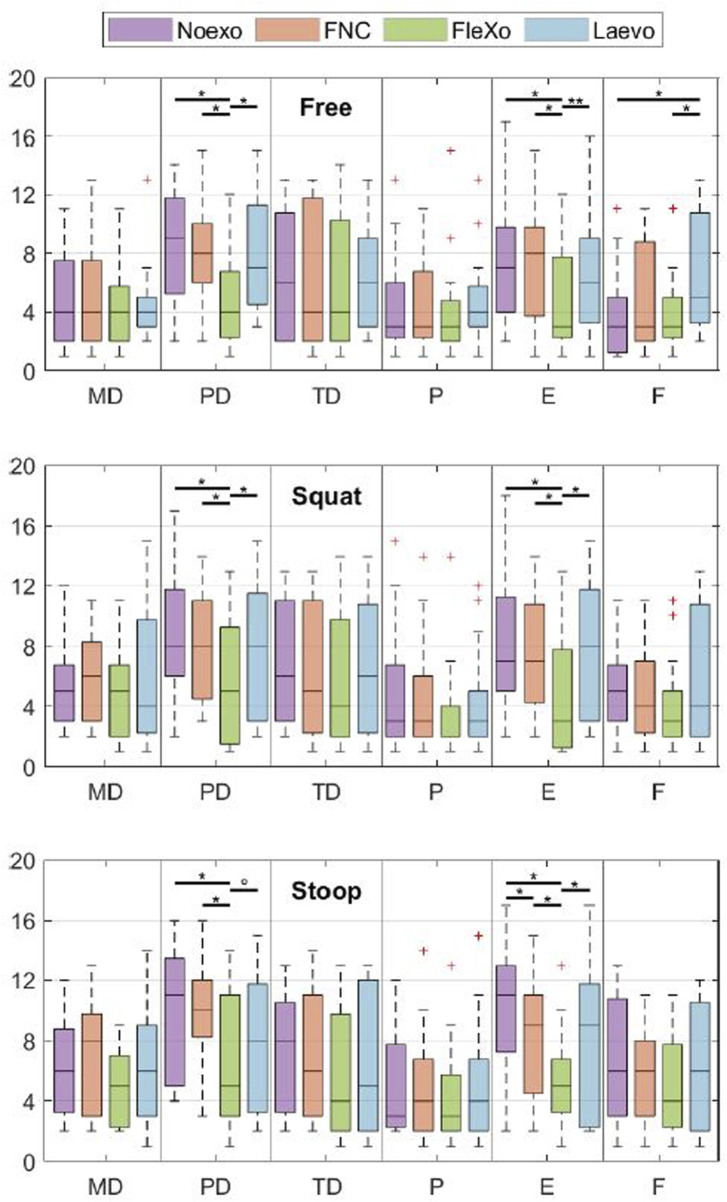

NASA-TLX questionnaire results expressed in a unitless 20-point range. MD is the Mental Demand, PD is the Physical Demand, TD is the Temporal Demand, P is the Performance, E is the Effort, and F is the Frustration. The median is shown as the central line, the box edges mark the 25th and 75th percentiles, and the whiskers represent non-outlier minima and maxima, with outliers as red crosses. Horizontal lines indicate the level of statistical significance where present.

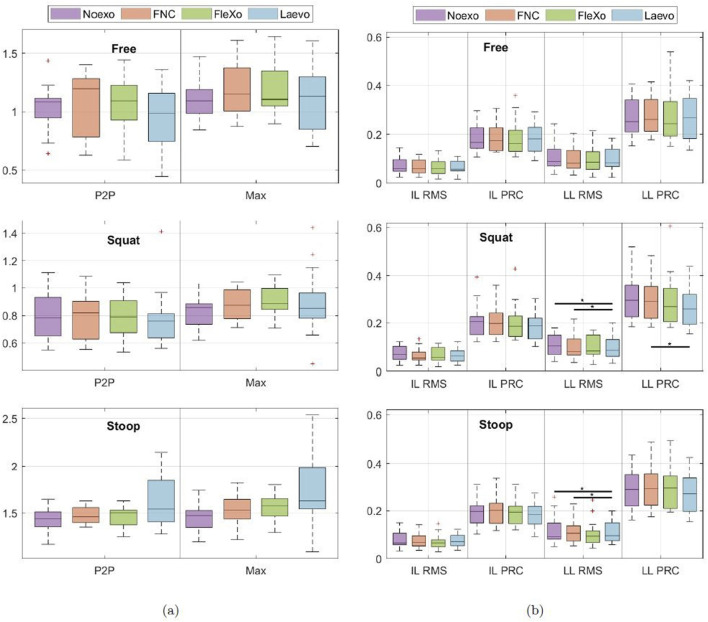

(a) Torso bending angle during a lift expressed in radians. P2P is the peak-to-peak torso bend angle (maximum bending minus vertical position), while Max is the maximum bending angle during a lift; values are in rad. No statistical significance is present. (b) Average value of the Root Mean Square (RMS) and 90th percentile (PRC) of the Ileocostalis Lumborum (IL) and Longissimus Lumborum (LL) activity during the three central lifts, normalized with the MVC,expressed as the percentage of the MVC. Horizontal lines indicate the level of statistical significance where present (p-value < 0.05).

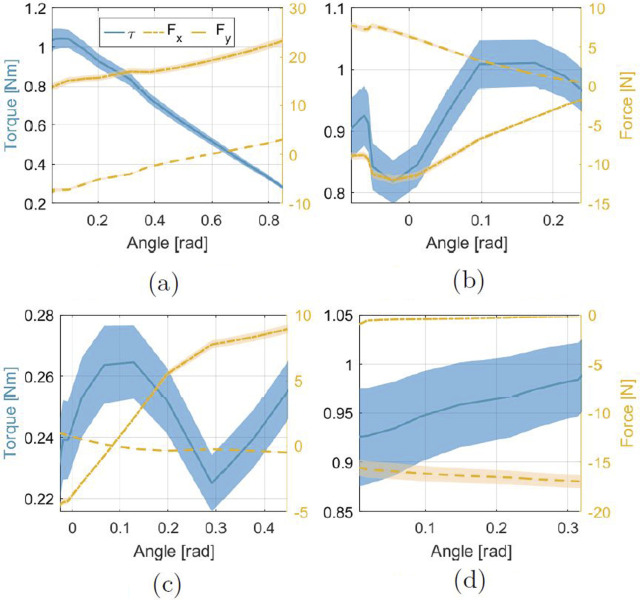

Estimated force and torque measurements of FleXo at each MAV for a Stoop bending, starting from a vertical position and going down to a maximum flexion. The angles represent the relative motion between two consecutive MAVs, while in the Sacral plot, the angle is defined between the Triangle and the Sacral MAV. (a) Sacral MAV. (b) Lumbar MAV. (c) Thoracic MAV. (d) Cervical MAV.

Tables

TABLE 1. Optimization variables (Var) and the experiments’ lower (LB) and upper (UB) bounds.

MAV	Var	LB	UB	Optimal value
Cervical	L4	20	100	51.0
	H4,1	15	60	52.2
	H4,2	15	60	25.1
	d4	20	100	94.8
Thoracic	L3	20	100	34.7
	H3,1	15	60	56.7
	H3,2	15	60	50.1
	d3	20	100	96.1
Lumbar	L2	20	100	98.5
	H2,1	15	60	56.6
	H2,2	15	60	31.4
	d2	20	100	31.2
Sacral	L1	20	100	45.3
	H1,1	15	60	54.9
	H1,2	15	60	24.5
	d1	20	100	42.1

TABLE 2. Results of the QUEAD questionnaire.

Perceived usefulness (PU)
FleXo is useful	5.8 ± 0.7 [5, 7]
FleXo enhances my working performance	5.7 ± 0.9 [4, 7]
I accomplished the given task rapidly	5.7 ± 1.0 [4, 7]
I could efficiently complete the tasks using FleXo	6.3 ± 0.8 [5, 7]
I was able to perform precise motions with FleXo	6.1 ± 0.6 [5, 7]
I could effectively complete the tasks using FleXo	6.4 ± 0.6 [5, 7]
Perceived ease of use (PEU)
FleXo is easy to use	6.4 ± 0.8 [4, 7]
It is easy to get the desired result with FleXo	5.9 ± 0.7 [5, 7]
FleXo is rigid and inflexible	2.2 ± 1.1 [1, 5]
FleXo feels cumbersome	1.9 ± 1.1 [1, 5]
I did not need concentration to use FleXo	4.8 ± 1.7 [2, 7]
I did not need physical strength to operate in FleXo	3.9 ± 1.5 [2, 6]
Using FleXo was intuitive	6.3 ± 0.6 [5, 7]
It was easy to learn to use FleXo	6.6 ± 0.5 [6, 7]
FleXo would be helpful to me	5.4 ± 1.2 [3, 7]
Emotions (E)
I like using FleXo	5.2 ± 1.0 [3, 7]
I feel comfortable using FleXo	5.5 ± 0.8 [4, 7]
I feel unsettled by FleXo	2.1 ± 1.1 [1, 4]
I feel intimidated by FleXo	1.5 ± 0.7 [1, 3]
I feel anxious using FleXo	1.4 ± 0.7 [1, 3]
Attitude (A)
I think that using FleXo is a good idea	5.6 ± 0.6 [5, 7]
I like collaborating in FleXo	5.8 ± 0.8 [5, 7]
I think I would use FleXo in future tasks	5.1 ± 1.1 [3, 7]
Comfort (C)
I feel physically uncomfortable in using FleXo	3.2 ± 1.5 [1, 6]
I feel tense in using FleXo	2.7 ± 1.6 [1, 6]
I feel pain in using FleXo	1.2 ± 0.6 [1, 3]
