Effect of silver and graphene nanoparticles on the thermophysical performance of ethylene glycol-glycerol hybrid nanofluids

TL;DR

This study explores how adding silver and graphene nanoparticles improves the thermal performance of a hybrid nanofluid.

Contribution

The study reports the highest thermal conductivity improvement in EG–GLY nanofluids at ultra-low nanoparticle concentrations.

Findings

Thermal conductivity increased by 102.85% at 0.1 vol.% nanoparticle concentration.

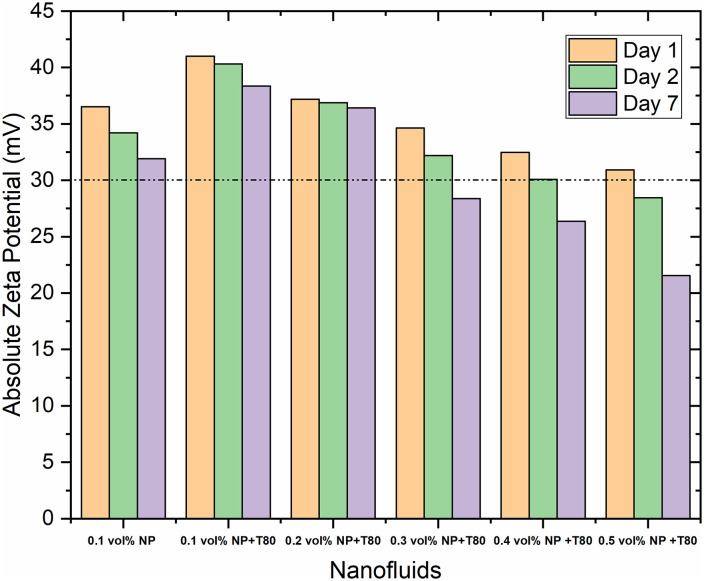

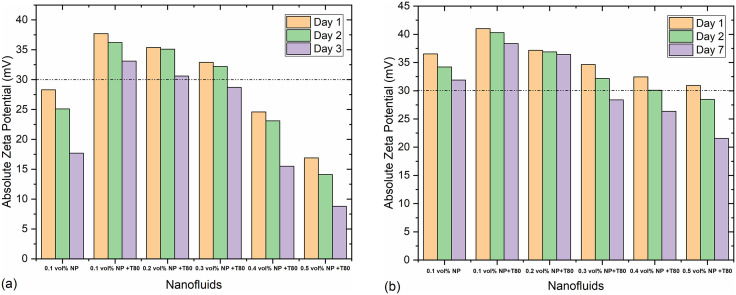

Surfactant use improved colloidal stability, raising zeta potential from 15.7 mV to 35.2 mV.

Higher nanoparticle concentrations improved conductivity but reduced stability and increased viscosity.

Abstract

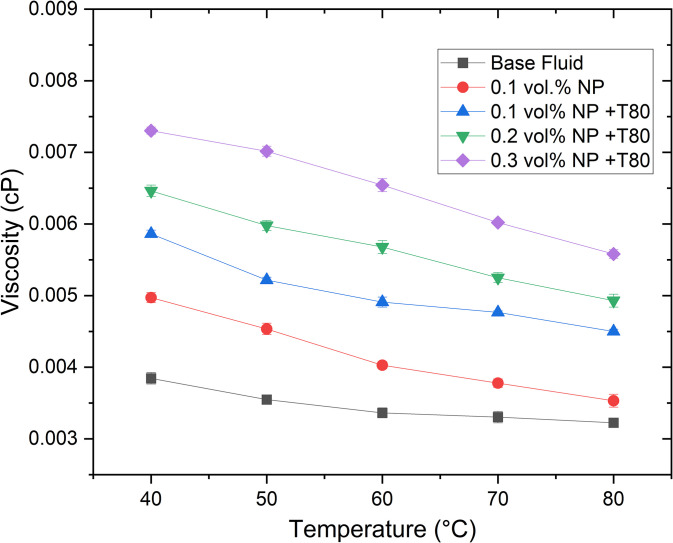

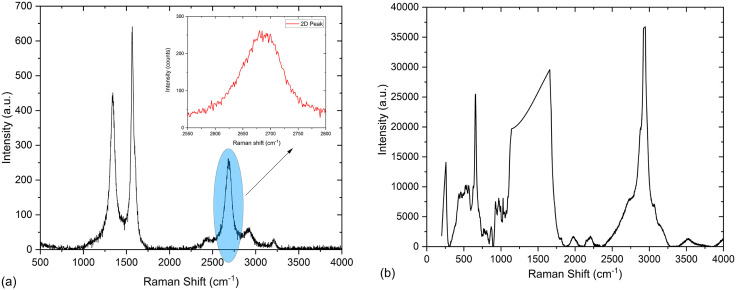

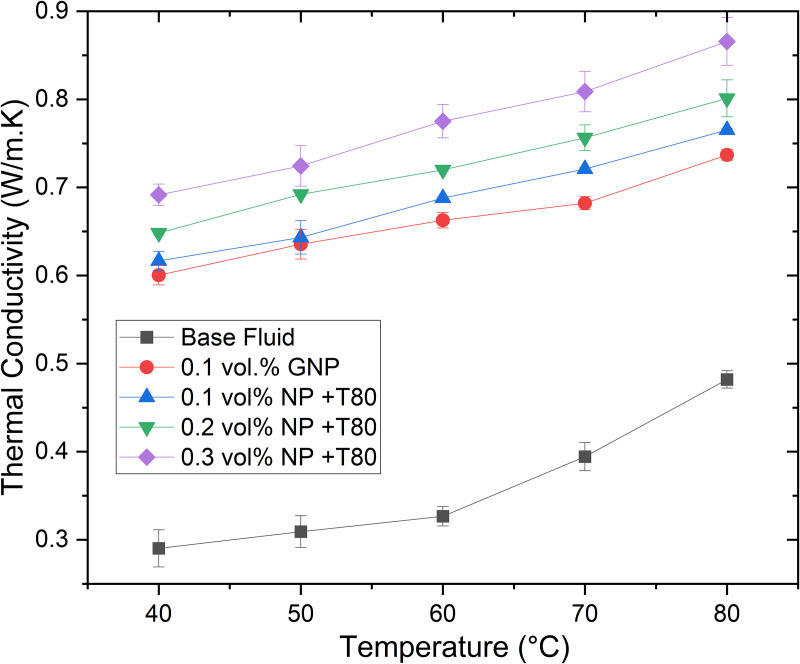

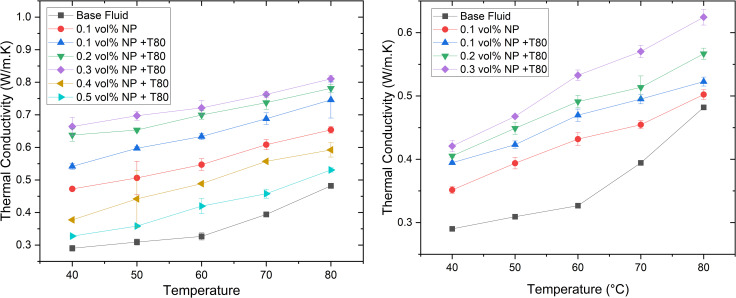

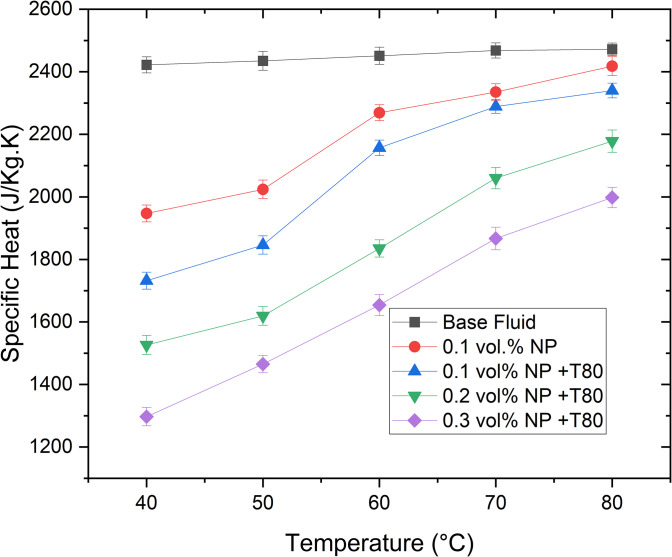

This study examines the thermophysical properties of ethylene glycol–glycerol (60:40 v/v) hybrid nanofluids containing graphene nanoplatelets (GNPs) and silver nanoparticles (Ag) at concentrations of 0.1–0.5 vol.%. The nanofluids were synthesized using a two-step method with Tween-80 surfactant to enhance dispersion stability. High-resolution transmission electron microscopy (TEM) and Raman spectroscopy confirmed the morphology, lateral size, few-layer structure of GNPs, and the attachment of Ag nanoparticles. The addition of surfactant increased the zeta potential from 15.7 mV to 35.2 mV for the 0.1 vol.% GNPs/Ag formulation, indicating a marked improvement in colloidal stability. Thermal conductivity enhancement reached 102.85% at 0.1 vol.% with only a 19.84% viscosity increase. Higher nanoparticle loadings improved conductivity further but caused significant viscosity increases and reduced stability. Specific heat capacity decreased by up to 46.45%, potentially benefiting rapid thermal response applications but limiting heat storage capacity. Comparison with recent literature showed that the present formulation outperforms several similar Ag- and GNP-based nanofluids in thermal conductivity enhancement while maintaining manageable viscosity. This study is the first to report such high conductivity improvement in an EG–GLY-based hybrid nanofluid at ultra-low loading, achieved through optimized surfactant use, validated structural characterization, and benchmarking against literature. Low-concentration GNPs/Ag hybrid nanofluids, particularly at 0.1 vol.%, offer strong potential for thermal management applications where high heat transfer performance and acceptable pumping requirements are critical. However, stability limitations at higher concentrations and viscosity–conductivity trade-offs highlight the need for further optimization before large-scale deployment.
