Drop Friction on Textured Lubricant-Coated Surfaces
Xiaoyu Chen, Biruk Teka Gidreta, Tanner Gaw, Michal Remer, Dan Daniel, Xiaoguang Wang, Solomon Adera
TL;DR
This study explores how liquid droplets interact with textured lubricant-coated surfaces, revealing how pillar height and density affect drop friction.
Contribution
The study provides new insights into the presence of a lubricant film on tall dense pillars, contradicting previous findings.
Findings
Drop friction on tall dense pillars is comparable to short pillars due to a lubricant film.
The critical pillar density for the friction transition is approximately 50%.
Friction on microholes and micropillars is similar when solid fraction is the same.
Abstract
Understanding drop friction on textured surfaces has implications in microfluidics and lab-on-a-chip devices. In this work, we investigated the drop friction on lubricant-coated pillars by systematically varying pillar height and density. First, we measured the friction force on a moving drop using a cantilever force sensor that has ±0.1 μN sensitivity. This measurement shows that drop friction on tall dense pillars is comparable to drop friction on short pillars, a significant result that suggests the presence of a Landau–Levich–Derjaguin (LLD) film underneath the moving drop. Second, we validated the force measurement by estimating the lubricant layer thickness by using white-light interferometry. Third, we visualized the lubricant film underneath the moving drop using reflection interference contrast microscopy. The three independent diagnostic tools and measurement techniques…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

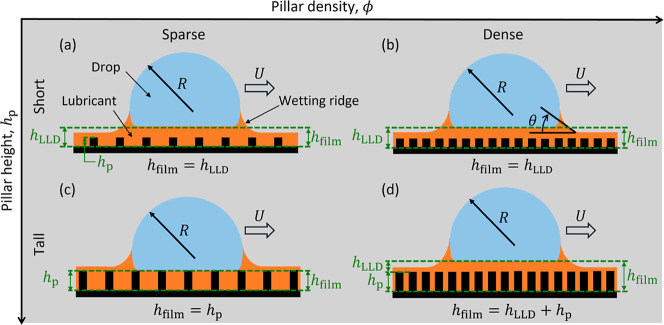

Figure 1

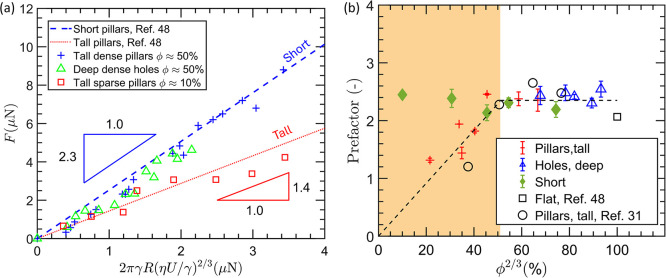

Figure 2

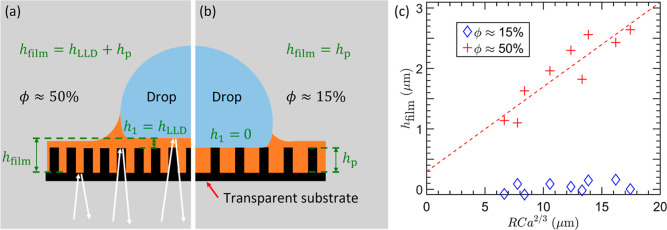

Figure 3

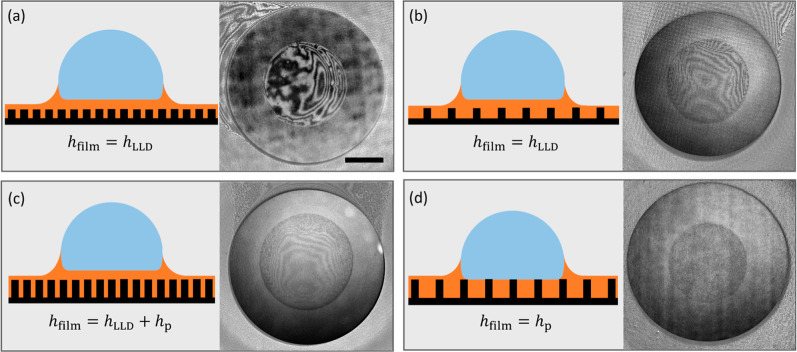

Figure 4

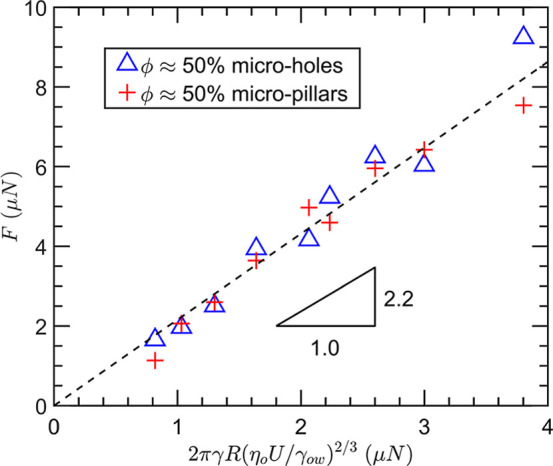

Figure 5
Figure 6

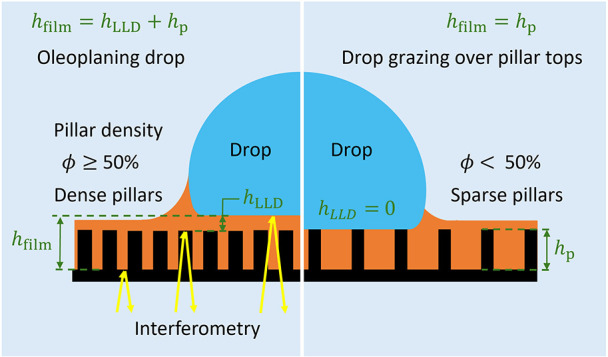

Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSurface Modification and Superhydrophobicity · Adhesion, Friction, and Surface Interactions · Tribology and Lubrication Engineering
