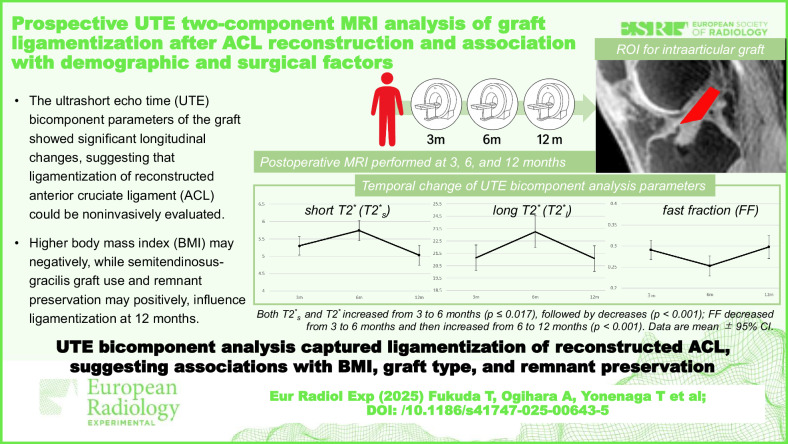

Prospective UTE two-component MRI analysis of graft ligamentization after ACL reconstruction and association with demographic and surgical factors
Takeshi Fukuda, Akira Ogihara, Takenori Yonenaga, Daisuke Kubota, Hiroteru Hayashi, Ryuichi Itou, Hisashi Kitagawa, Katsutosi Murata, Stefan Sommer
TL;DR
UTE MRI tracks ACL graft changes over time, showing BMI and graft type affect recovery.
Contribution
UTE two-component MRI is introduced as a noninvasive biomarker for ACL graft ligamentization.
Findings
UTE two-component analysis captures collagen regeneration in ACL grafts.
Higher BMI is linked to impaired ligamentization, while STG grafts and remnant preservation promote maturation.
UTE parameters show significant changes from 3 to 12 months post-surgery.
Abstract
We aimed to evaluate longitudinal changes in ultrashort echo time (UTE) two-component biomarkers reflecting graft ligamentization after anterior cruciate ligament (ACL) reconstruction and to identify associated clinical factors. Patients who underwent ACL reconstruction were prospectively included to perform 3-T three-dimensional double-echo UTE sequence at 3, 6, and 12 months postoperatively. Mean values of short T2* (T2*s), long T2* (T2*l), and fast fraction (FF), i.e., the signal proportion attributed to the T2*s component, were calculated by fitting a biexponential model. Changes were analyzed using repeated measures analysis of variance−ANOVA. Multiple linear regression was used to assess associations between clinical factors and UTE parameters at 12 months. Forty-two patients (20 males), aged 32.7 ± 15.0 years (mean ± standard deviation), were enrolled. T2*s and T2*l increased…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsKnee injuries and reconstruction techniques · Lower Extremity Biomechanics and Pathologies · Shoulder Injury and Treatment
Background
After anterior cruciate ligament (ACL) reconstruction, the graft undergoes a tissue transformation process called ligamentization, which involves both biological and mechanical changes. This process begins with acellular necrosis and inflammatory cell infiltration, followed by neovascularization and fibroblast proliferation [1, 2]. Over time, the graft remodels into a tissue composed of uniformly distributed, small-diameter collagen fibers. Assessing ligamentization is crucial for evaluating graft maturation and predicting long-term outcomes, including readiness to return to sports. While histological studies have provided valuable insights, human data are limited and show considerable inter-individual variability, differing from findings in animal models [2, 3]. As such, magnetic resonance imaging (MRI) has gained attention as a noninvasive tool to assess graft maturation on an individual basis.
In addition to the simple calculation of signal-to-noise ratio, several MRI techniques have been reported to assess graft maturation, including T2 mapping, diffusion tensor imaging, contrast enhancement, and ultrashort echo time (UTE) imaging [4–14]. UTE studies include two distinct analytical approaches. These are single-component analysis, which calculates a single T2* value from relatively fewer echo time (TE) images, and two-component analysis, which calculates two separate T2* components—short T2* (T2s) and long T2 (T2l). In addition, this analysis provides the fast fraction (FF), defined as the proportion of the T2s component relative to the total signal. Most studies have utilized single-component analysis, providing only a single T2value, which incorporates various overlapping tissue changes. In ligament and tendon tissues, water exists in two main forms: bound water, which is tightly associated with collagen and proteoglycans, and free water, which is more mobile within the extracellular matrix. In UTE two-component analysis, T2s is thought to primarily reflect bound water and thus collagen organization, whereas T2l is more influenced by free water and is associated with tissue degeneration, necrosis, or increased vascularity. FF, which is the proportion of the T2s component, indirectly reflects the relative amount of bound water [15]. Recently, it has been demonstrated that the T2s do not correlate with T2 values obtained using the single component analysis, suggesting that T2*s provides unique information about the structural quality of the grafts [16]. Furthermore, in studies on normal ACL, two-component analysis demonstrated superior fitting accuracy with lower root mean square error compared to single-component analysis [17]. Therefore, two-component analysis may be considered a more precise method for evaluating ligamentization.
Generally, elevated T2s values are considered indicative of deviation from normal collagen composition [18, 19], while lower FF indicates reduced bound water content and collagen disorganization. Therefore, if T2s values remain high at a stage where ligamentization has progressed to some extent, it may be considered an unfavorable condition. However, patient characteristics associated with elevated graft T2*s values remain unclear.
We hypothesized that UTE two-component analysis parameters would show dynamic changes during the first postoperative year, reflecting the process of graft ligamentization. The novelty of this study lies in being the largest prospective cohort to date evaluating longitudinal changes with UTE two-component analysis up to 12 months after ACL reconstruction, and in examining their associations with clinical factors.
Materials and methods
Study population
This prospective study received our institutional review board approval (No. 32-312 10394), and written informed consent was obtained from all participants.
Patients who underwent ACL reconstruction between October 2021 and February 2024 were enrolled. Inclusion criteria were completion of research MRI sequences at 3, 6, and 12 months postoperatively. Exclusion criteria included missing MRI at any follow-up time point and severe image degradation due to motion or metallic artifact.
In addition to demographic data, the type of graft, the presence of meniscal injury, and whether the remnant was preserved during reconstruction were determined by reviewing intraoperative photographs and surgical records.
MRI protocol
All MRI examinations were performed using a 3-T scanner (MAGNETOM Skyra, Siemens Healthineers). Clinical sequences included proton density-weighted imaging with Dixon technique, including in-phase, opposed-phase, water, and fat images, along sagittal and coronal planes. In addition, a three-dimensional double-echo UTE sequence was acquired with the following parameters: repetition time 70 ms; echo times (TEs) 0.04, 0.23, 0.47, 0.77, 1.18, 1.80, 2.88, 4.73, 7.07, 9.61, 12.26, and 15.0 ms; flip angle 16°; field of view 129 × 129 mm²; bandwidth 827 Hz/pixel; number of spokes 10,000; matrix size 128 × 128; slice thickness 1.2 mm with isotropic voxel; fat saturation applied; and total scan duration 23:40 min:s.
To minimize contamination of T2* measurements by the magic angle effect, all examinations were performed by trained technologists using a standardized protocol. A dedicated knee coil was used, and a positioning cushion was placed behind the knee to maintain a consistent degree of flexion and stabilize the limb during acquisition. For follow-up scans, the technologist reviewed the previous images of the same patient to reproduce the graft orientation relative to the B_0_ field as closely as possible.
Image analysis

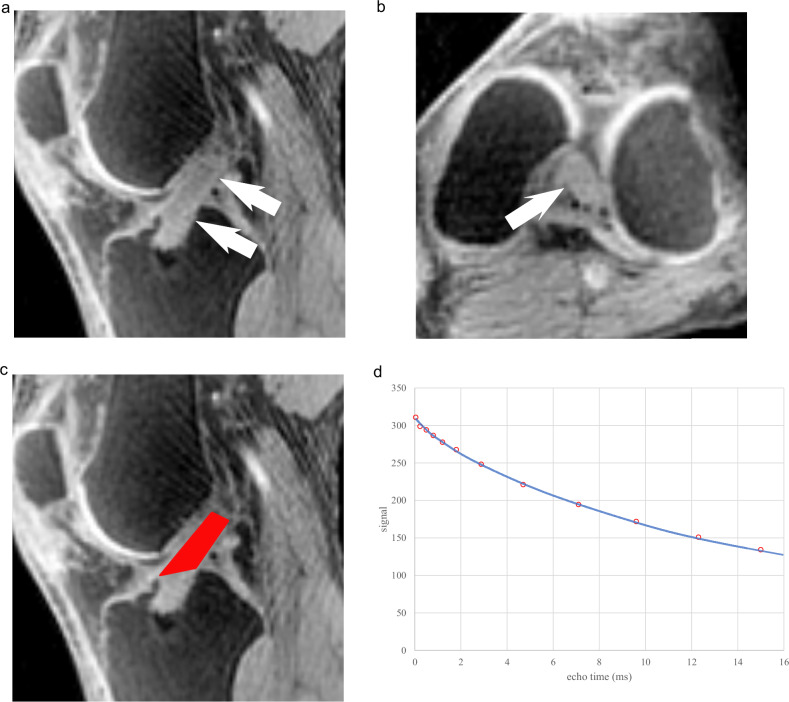

MRI images were processed using MRIcron software (Rorden & Brett, 2000; https://www.nitrc.org/projects/mricron) and MATLAB (R2021a, MathWorks Inc.). Regions of interest (ROI) encompassing the intra-articular portion of the reconstructed ACL were manually defined by a musculoskeletal radiologist with 10 years of experience on the first-echo image (Fig. 1). The ROI was segmented as a three-dimensional volume encompassing the entire intra-articular portion of the graft, defined as the continuous high-signal structure extending from the tibial tunnel aperture to the femoral tunnel aperture. Segmentation was performed while viewing the sagittal, coronal, and axial planes simultaneously to ensure complete coverage of the graft and exclusion of adjacent structures. When necessary, clinical sequences such as proton density-weighted and fat-suppressed proton density-weighted images were referenced to aid in graft delineation. The ROI was delineated on the first-echo image (TE = 0.04 ms) to maximize SNR and conspicuity of the short T2 component, and verified on an intermediate echo (7th TE, 2.88 ms) where the short component had largely decayed, to avoid inclusion of synovial fluid and other adjacent structures to be excluded. To apply this ROI to all other TE images, all images from subsequent echoes were spatially registered with MATLAB to the first-echo images which the ROI was drawn. Inter-rater reproducibility was assessed by having a second radiologist, who is also a musculoskeletal radiologist with 16 years of experience, independently repeat ROI placement on a randomly selected subset of 20 patients. Both radiologists were blinded to all clinical information and to the ROI placement performed by the other reader during the analysis.Fig. 1. Representative ROI placement and signal fitting curve. a Sagittal first-echo ultrashort echo time (UTE) image (TE = 0.04 ms) showing the reconstructed anterior cruciate ligament (arrows) as a high-signal structure continuous from the tibial tunnel aperture. b Axial image showed the corresponding structure (arrow). c Final region of interest (ROI) displayed in red, encompassing the entire intra-articular portion of the graft between the tibial and femoral tunnel apertures, as defined in three dimensions using multiple imaging planes. d Biexponential fitting curve derived from signal decay within the ROI
For two-component analysis, mean signal intensity within the ROI was analyzed using a biexponential model with Rician noise correction and nonlinear least-squares fitting:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\rm{S}}\left({\rm{TE}}\right)={\rm{FF}}* \exp \left(-\frac{{\rm{TE}}}{{T2}_{S}^{* }}\right)+\left(1-{\rm{FF}}\right)* \exp \left(-\frac{{\rm{TE}}}{{T2}_{l}^{* }}\right)$$\end{document}Where S is the signal; T2s is short T2; T2l is long T2; FF is the fast fraction, which is the fraction of the bound water.
Statistical analysis
Normality of data distributions was evaluated using the Shapiro–Wilk test. Repeated measures analysis of variance (ANOVA) with Bonferroni post hoc correction was employed to compare temporal changes in calculated values (T2s, T2l, and FF) across follow-up periods (3, 6, and 12 months). Additionally, associations between these values at 12 months and clinical characteristics (age, sex, presence of meniscal injury, graft type, body mass index (BMI), and presence of remnant at the operation) were analyzed by multiple linear regression analysis. Inter-rater agreement of ROI placement was quantified using the Dice similarity coefficient. Statistical analyses were conducted using SPSS software (version 28.0, IBM Corp.), with statistical significance set at p < 0.05.
Results
Patients characteristics
Initially, 78 patients met the inclusion criteria, but 36 were excluded for the following reasons: 33 patients did not have imaging available at one or more time points, and 3 patients were deemed unevaluable due to artifacts. Ultimately, 42 patients were finally included: 20 males and 22 females, aged 32.7 ± 15.0 years (mean ± standard deviation), with a BMI of 22.8 ± 3.2 kg/m² (mean ± standard deviation). Meniscal injuries were present in 32 participants: medial meniscus (n = 19), lateral meniscus (n = 6), both menisci (n = 7). The graft types used were semitendinosus-gracilis (STG, n = 9), bone-tendon-bone (BTB, n = 18), and quadriceps tendon-patellar bone (QTB, n = 15).
Temporal change of UTE biomarkers

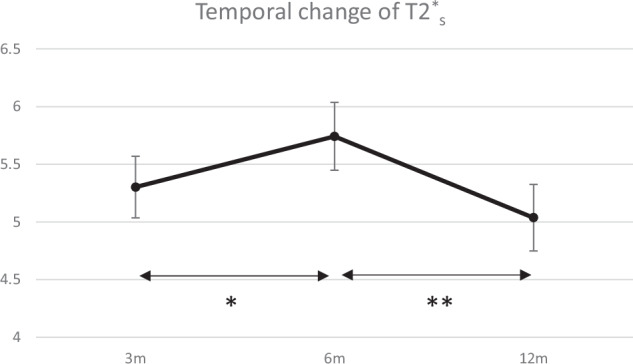

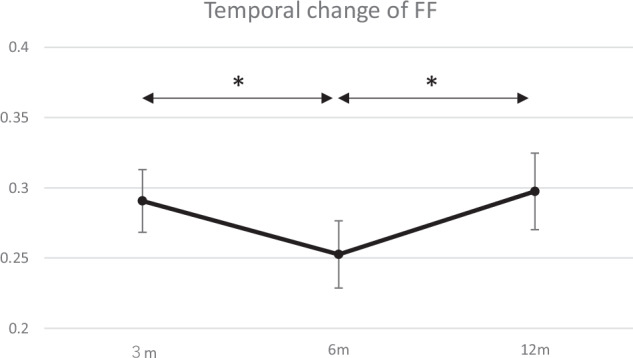

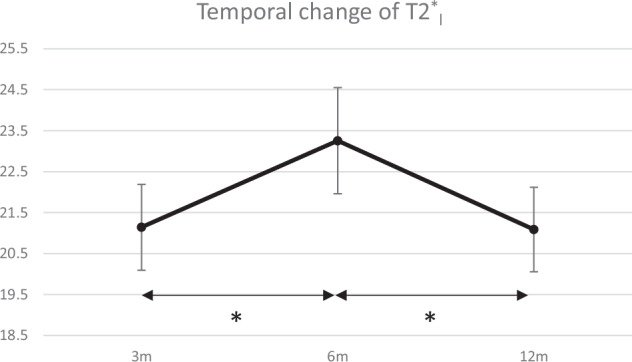

The mean T2s of the intra-articular graft at 3, 6, and 12 months postoperatively were 5.3 ± 1.1 ms, 5.7 ± 1.2 ms, and 5.0 ± 1.2 ms, respectively. There was a statistically significant increase from 3 to 6 months (p = 0.017), followed by a significant decrease from 6 to 12 months (p < 0.001) (Fig. 2). Similarly, the T2l exhibited the same pattern as the mean values of 21.1 ± 0.68 ms at 3 months, 23.3 ± 0.84 ms at 6 months, and 21.1 ± 0.67 ms at 12 months. There was a statistically significant increase from 3 to 6 months (p < 0.001), followed by a significant decrease from 6 to 12 months (p < 0.001) (Fig. 3). In contrast, the FF exhibited the opposite trend; at 3, 6, and 12 months, it was 0.29 ± 0.01, 0.25 ± 0.02, and 0.30 ± 0.02, respectively. It significantly decreased from 3 to 6 months (p < 0.001), followed by a significant increase from 6 to 12 months (p < 0.001) (Fig. 4).Fig. 2. Temporal change of short T2* (T2s). Data are presented as mean ± 95% confidence interval. * indicates a statistically significant increase from 3 to 6 months (p = 0.017). ** indicates a statistically significant decrease from 6 to 12 months (p < 0.001)Fig. 3. Temporal change of long T2 (T2*l). Data are presented as mean ± 95% confidence interval. * indicates a statistically significant increase from 3 to 6 months and a decrease from 6 to 12 months (p < 0.001)Fig. 4. Temporal change of fast fraction (FF). Data are presented as mean ± 95% confidence interval. * indicates a statistically significant decrease from 3 to 6 months and an increase from 6 to 12 months (p < 0.001)
