Reliable biomarkers for diabetic nephropathy using machine learning-assisted contrast-enhanced ultrasonography and clinical characteristics
Lin Lin, Lin Yan, Nan Li, Yiru Wang, Yukun Luo
TL;DR
This study uses machine learning with ultrasound and clinical data to reliably distinguish diabetic nephropathy from other kidney diseases.
Contribution
A machine learning model combining CEUS and clinical features improves DN diagnosis accuracy and reliability.
Findings
The random forest model achieved 87.6% accuracy in classifying kidney injury types.
The model's ROC curve showed an AUC of 0.918, indicating strong diagnostic performance.
CEUS parameters and clinical features serve as noninvasive biomarkers for DN screening.
Abstract
To utilize machine learning techniques to screen contrast-enhanced ultrasound (CEUS) parameters and clinical characteristics, aiming to differentiate diabetic nephropathy (DN) from non-diabetic renal disease (NDRD) in patients with diabetic kidney injury. Data from 120 diabetic patients (240 kidneys) with chronic kidney disease (CKD) were analyzed. The data included basic clinical features for each kidney and renal vascular data obtained through CEUS. Statistical analysis, tenfold cross-validation and random forest method were used for data processing. Receiver operating characteristic (ROC) curves were employed to depict the diagnostic performance of the indicators. The random forest model integrating CEUS parameters and clinical characteristics achieved an average classification accuracy of 87.6% in differentiating kidney injury types. ROC curve analysis showed an AUC of 0.918.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Beijing Natural Science Fund of China
- —National Natural Science Fund of China
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsChronic Kidney Disease and Diabetes · Acute Kidney Injury Research · Renal and Vascular Pathologies
Introduction
Chronic kidney disease (CKD) defined as proteinuria (urinary albumin to creatinine ratio [UACR] ≥ 30 mg /g/d) or glomerular filtration rate (GFR) less than 60 ml /min/1.73 m2 for at least 3 months [1]. By 2027, the global incidence of CKD is expected to rise to 436.60 million cases, an increase of 5.8% from 2022, and most CKD cases (about 80%) are still undiagnosed [2]. Moreover, the proportion of diabetic nephropathy (DN) in CKD is constantly increasing, and it is an important cause of end-stage renal disease, bringing a heavy disease burden to patients [3]. As a common microvascular complication in diabetic patients, diabetic nephropathy progresses rapidly and has a poor prognosis [4]. Its pathological mechanisms include the formation of advanced glycosylation end products (AGEs), activation of polyol pathway, release of inflammatory factors, increase of glomerular hemodynamic pressure, expansion of mesangial stroma and interstitial fibrosis, which gradually lead to glomerular sclerosis, especially the Kimmelstiel-Wilson nodule formed by severe hyperplasia of glomerular mesangial stroma [5–7]. These lesions cause changes in the microvessels of patients with diabetic nephropathy, leading to various cellular dysfunctions of the kidneys, ultimately leading to progressive renal failure [8]. Evaluation and monitoring of renal blood perfusion are of great significance for the auxiliary diagnosis and detection of diabetic nephropathy. The application of ultrasonomics for the noninvasive, real-time assessment of kidney parameters, in conjunction with artificial intelligence (AI) for the advanced analysis of both 2D ultrasound and contrast-enhanced ultrasound data, holds significant promise for the auxiliary diagnosis, detection and evaluation of diabetic nephropathy (DN).
In addition, clinically, the differential diagnosis of DN and non-diabetic nephropathy (NDRD) in diabetic patients is very important due to the completely different treatment and prognosis [4]. Therefore, whether a reliable biomarker can be found to identify DN is of great significance for patients with CKD, especially those with diabetic kidney injury.
Materials and methods
Patients

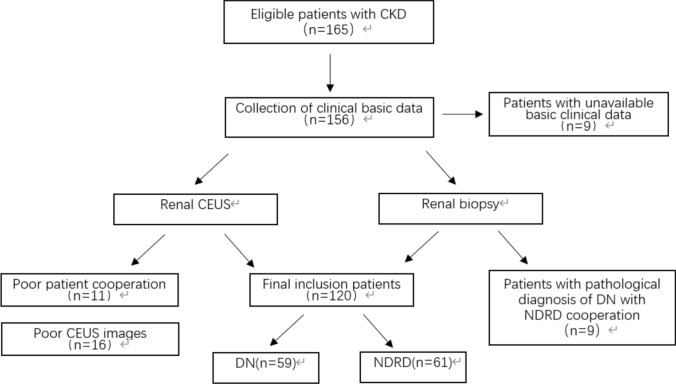

The study included a total of 120 patients with type 2 diabetes with CKD who were treated at the Chinese PLA General Hospital between May 2017 and January 2020. This study has been approved by the hospital ethics committee (approval number S2017-152-02). All participants signed a CEUS informed consent form prior to the examination. The basic clinical characteristics of all patients were recorded (Table 1). According to pathological results, 120 subjects were divided into two groups: DN group and NDRD group (Figure 1).Table 1. Baseline characteristicsVariableDNNDRDχ^2^/* t* TestN (subjects/kidneys)59/11861/122Gender (male/female)43/1639/22χ^2^=1.109Age (years)51.71±10.6548.15±13.64t=2.536BMI (kg/m^2^)26.73±3.6026.25±3.82t=0.497Serum Creatinine(umol/L)162.77±83.71108.49±58.48t=5.840eGFR–EPI (mL/ (min·1.73 m^2^))42.87 ± 24.7767.96 ± 31.63t=-6.832Blood glucose(mmol/L)5.45±1.955.43±1.40t=0.122HbA1c0.07±0.010.06±0.01t=5.109Urine protein concentration(g/L)1.23±1.040.92±0.99t=2.318Figure 1Enrollment process.
The study population consisted of patients scheduled for diagnostic renal puncture. All the enrolled patients fulfilled these inclusion criteria: (1) adult patients older than 18 years of age; (2) patients with CKD; (3) clinical diagnosis of type 2 diabetes mellitus; (4) a definite pathological diagnosis of renal puncture; (5) the patient underwent CEUS examination before the renal puncture; exclusion criteria were: (1) pathological diagnosis of DN with NDRD; (2) the basic clinical characteristics were incomplete; (3) CEUS image quality was substandard, or image analysis consistency was poor; (4) hypersensitivity to ultrasound contrast agent (UCA) or contraindications to contrast agent instructions; (5) patients with malignant nodules, huge cysts, serious cardiovascular and cerebrovascular diseases, serious lung diseases.
CEUS assessment
In order to rule out the effect of blood pressure on renal blood vessels, the blood pressure of the subjects should be controlled below 140/90mmHg and above 100/60 mmHg before CEUS examination. An ultrasound instrument (Siemens, S2000, Germany) with a probe-selective convex multi-frequency transducer (4–6 MHz) was used to perform CEUS on the patient. Both kidneys of each patient were examined by an experienced physician with more than 10 years of experience in US and CEUS. The ultrasonic contrast agent was selected with sulfur hexafluoride (SonoVue, Braco, Italy) at a dose of 0.5 ml and dissolved in 5 mL 0.9% sodium chloride solution. The kidney signal changes were observed for 180 seconds. Meanwhile, the images were saved.

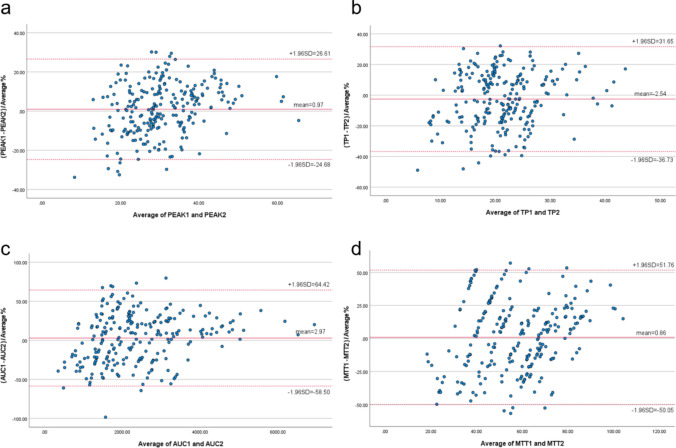

The software analysis of the saved CEUS images existed a certain degree of subjectivity because the region of interest (ROI) was manually selected in the analysis process. Therefore, image analysis was conducted separately by two experienced physicians and consistency analysis was performed.
Data acquisition and machine learning
Four parameters were obtained through the built-in quantitative analysis software of CEUS. Peak intensity (PEAK; defined as the maximum signal strength achieved by contrast agent enhancement in the region of interest during CEUS), time-to-peak (TP; defined as the time required from the beginning of the injection of contrast agent to the peak intensity of contrast enhancement within the area of interest), area under the curve (AUC; defined as the area under the CEUS time–intensity curve). Mean transit time (MTT; defined as the average residence time of contrast agent microbubbles in the region of interest). Cases with poor image quality were excluded, and a consistent analysis of the CEUS results obtained by two experienced physicians (Table 2) was also performed, which showed good consistency (Table 3 and Figure 2). The final CEUS parameter result was determined by using the mean.Table 2CEUS parameters obtained by physician 1 and 2Physician 1Physician 2DNNDRDDNNDRDPEAK(%)27.45±8.6225.95±7.0527.28±7.7426.31±5.99TP(s)22.87±7.5920.80±6.8022.90±6.7821.62±6.61AUC(%s)2359.21±1310.871960.88±919.022289.34±1154.961933.45±786.90MTT(s)61.12±21.3555.33±16.2859.61±15.8057.13±16.60Table 3The ICCs, 95% CIs and Bland–Altman plot analysis obtained by physician 1 and 2ICC95% CIsMean ± SD (%)95% LOA (%)PEAK0.9560.943–0.9660.97±13.08 −24.6826.61TP0.9170.893–0.936 −2.54±17.45 −36.7331.65AUC0.8970.867–0.9202.97±31.36 −58.50~ 64.43MTT0.8240.773–0.8630.86±25.97 −50.05~51.76Figure 2Bland–Altman plots of the differences between the right contrast-enhanced ultrasound parameters obtained by physician 1 and 2 (y- axis) and the mean of the parameters (x- axis). a. PEAK; b. TP; c. AUC; d. MTT. The red solid line indicates the mean value of all measurements (n = 40), and 95% LOA (mean ± 1.96 SDs). AUC, area under the curve; CEUS, contrast-enhanced ultrasound; LOA, limits-of-agreement; MTT, mean transit time; PEAK, peak intensity; TP, parenchyma time.
The machine learning method was adopted to standardize CEUS and clinical basic data, and the selection of the first 8 variables was based on the results of a single-factor logistic regression analysis, which evaluated the association between each individual predictor and the binary outcome (DN/NDRD). Regarding tenfold cross-validation, it is mainly used to evaluate the stability and generalization ability of the final model. And then the data were randomly divided into 10 groups with the same number of each group to form a training set and a test set. The training set was divided into 10 groups for cross-validation, each containing 90% of the training data and 10% of the validation data. The training set data are then fitted into a random forest model, which is used to classify the data from the test set [9, 10]. Based on the trained model, DN was identified in CKD patients and the classification accuracy was calculated.
The statistical analyses were conducted using SPSS v27.0 and R language (version 4.4.2). Continuous variables were presented as mean ± standard deviation, and differences between groups were assessed using the independent samples t-test; categorical variables were summarized as counts (percentages), and the χ^2^ test was applied to evaluate differences in distribution between groups. A two-tailed p-value < 0.05 was considered statistically significant for all tests. Consistency analysis was evaluated using the intraclass correlation coefficient (ICC), and a B-A diagram was generated to visually assess the consistency. Univariate logistic regression was performed in R (version 4.4.2) to identify the most significant indicators associated with the outcome, with significance determined using the Wald test (p < 0.05 as the cutoff).
In addition, SPSS v27.0 software was used for data description statistics, consistency analysis, single-factor analysis, etc., and B-A chart was drawn.
Results
Data from 120 CKD patients with type 2 diabetes (240 kidneys) were included in this study, including 82 men and 38 women. All patients underwent renal puncture after CEUS and obtained renal pathology results. All renal biopsy procedures and pathological assessments were conducted in strict accordance with standardized protocols, with diagnoses of diabetic nephropathy (DN) and non-diabetic renal disease (NDRD) rigorously validated against the Renal Pathology Society (RPS) 2010 classification system, thereby ensuring the highest standards of precision and rigor in characterizing the pathological features of each case [11, 12].

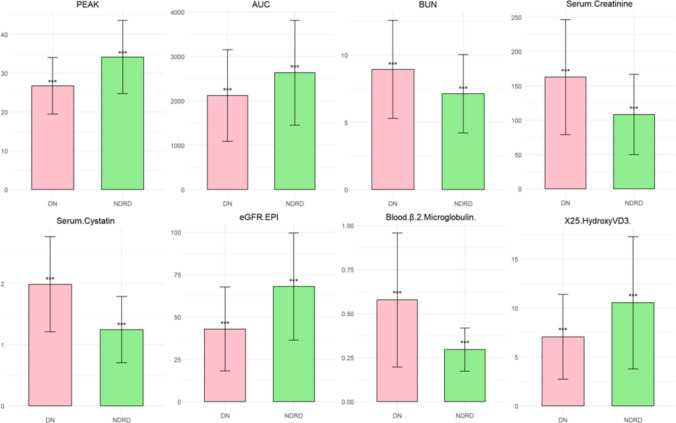

A machine learning approach was used to standardize the data, assess the importance of explanatory variables through tenold cross-validation and ultimately identified the eight most relevant variables out of 21 (Figure 3). Z-score standardization was applied to the dataset to ensure comparability across features when evaluating their importance. Z-score standardization preserves the original distribution of each feature, merely shifting and scaling it. This was particularly important given the non-uniform distribution of some variables, as it allowed us to retain the inherent variability while enabling fair comparisons of feature importance. The data were then further processed using tenfold cross-validation and random forest models to screen DN and NDRD. As shown in Table 4, the classification accuracy of the tenfold cross-validation method and the average classification accuracy of the random forest method were presented. In the 240 kidneys with CKD, the average classification accuracy was calculated to be 87.6%. Other indicators for evaluating the performance of the comprehensive assessment classification model are listed in Table 5.Figure 3. Using the R programming language, eight most significant variables were selected.Table 4. Classification accuracy of DN patients from the T2DM patients based on random forest method (tenfold cross-validation).Random ForestT2DM patients (%)FOLD0184.4FOLD0294.1FOLD0388.2FOLD0488.2FOLD0594.4FOLD0688.2FOLD0784.4FOLD0890.6FOLD0982.4FOLD1080.6Average87.6Table 5The comprehensive evaluation indicators of this classification modelPerformance MetricsValueKappa Coefficient0.718Sensitivity0.829Specificity0.889Positive Predictive Value0.879Negative Predictive Value0.842ROC0.918
