A core-shell multifunctional microneedle patch accelerates infected diabetic wound healing
Kang Wei, Lu He, Yiran Shi, Wen Zhang, Meng Wu, Shengdan Zhang, Haijie Wang, Huanhuan Xu, Liangcong Hu, Wei Li, Liang Guo
TL;DR
A new microneedle patch helps heal infected diabetic wounds by fighting bacteria, reducing inflammation, and promoting tissue repair.
Contribution
A core-shell microneedle patch is developed to simultaneously combat bacterial infection, inflammation, and impaired angiogenesis in diabetic wounds.
Findings
The patch effectively eradicates bacteria and biofilms in diabetic wounds.
It reduces chronic inflammation via NF-κB and MAPK pathways.
The patch promotes wound healing and angiogenesis in a diabetic rat model.
Abstract
Diabetic wounds exhibit impaired angiogenesis, drug-resistant bacterial infections, and oxidative damage to the microenvironment, presenting ongoing clinical challenges. In this research, we designed a core-shell structured multifunctional microneedle (MN) array patch (CS-SDFP/HA-Ag@MOF-PAL) to expedite the healing of infected diabetic wounds. The core consists of 10,000 MV hyaluronic acid (HA) and sucrose, integrated with Ag@MOF loaded with Palmatine (Ag@MOF-PAL). The shell, composed of chitosan (CS), encapsulates SDFP (CS-SDFP). Upon application to an infected diabetic wound, the shell swells, releasing the HA core, which dissolves to release Ag@MOF-PAL. The Ag@MOF targets and eradicates bacteria and eliminates biofilms of bacteria in the wound area, such as Staphylococcus aureus, Escherichia coli, and Pseudomonas aeruginosa, while PAL mitigates chronic inflammation in wound…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —the Postdoctoral Fellowship Program of China Postdoctoral Science Foundation
- —Department of Science and Technology of Hubei Province
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsWound Healing and Treatments · Advancements in Transdermal Drug Delivery · Pressure Ulcer Prevention and Management
Introduction
Diabetic complications represent a significant threat to patient health, leading to decreased quality of life, increased healthcare costs, and elevated mortality rates [1, 2]. The global prevalence of adult diabetes is projected to rise to 7.7% by 2030 [3]. Diabetic foot ulcers (DFUs), which are the most prevalent complication of diabetes, encompass suboptimal glycaemic control, peripheral neuropathy, peripheral vascular disease, and immunosuppression [4, 5], affecting 15–25% of individuals with diabetes mellitus [6]. It is estimated that approximately 60% of amputations are associated with DFU [7]. Standard DFU treatment involves debridement, anti-infective therapies, and wound dressing [8]. However, the effectiveness of these approaches is often suboptimal. The excessive use of antibiotics represents a primary contributor to the continuous increase of antibiotic resistance in bacteria [9]. Moreover, the need for frequent dressing replacements results in pain and additional trauma to the wound, markedly diminishing patient adherence [10]. Consequently, innovative and efficient approaches for accelerating wound recovery have become increasingly imperative.
Microneedle (MN), consisting of an array of needles mounted on a base, offer a promising solution by bypassing physical barriers to directly deliver therapeutic agents to deeper tissues, thus improving drug stability and delivery efficacy [11, 12]. MN represent a minimally invasive and highly effective transdermal drug delivery platform, frequently applied to promote wound healing [13]. The ability of MN tips to penetrate biofilms aids in the dispersion of antimicrobial agents into infected tissues, thereby enhancing their antimicrobial activity [14]. However, the degradation of bacteria and necrotic cells in the wound releases pathogenic nucleic acid fragments, triggering inflammatory responses that contribute to excessive cytokine secretion and sustained immune activation [15].
Nanoparticles can be delivered through MN to accelerate normal and diabetic wound healing [16–19]. The metal-organic frameworks (MOFs) is a unique class of nanoporous materials formed from metal ions interconnected by organic ligands via coordinate covalent bonds. Given their remarkable structural attributes, MOFs are emerging as prospective nanoplatforms for precise drug delivery [20, 21]. By harnessing the distinct properties of different MOFs materials, biomaterials functionalized with integrated MOFs can attain improved bone regeneration, antibacterial, anti-inflammatory, and anti-tumor capabilities [22]. Unlike natural bactericides, MOFs present multiple advantages, such as broad-spectrum antibacterial activity, high efficacy, extended duration of action, structural tunability, and thermal resilience [23]. Ag-MOFs (Ag@MOF), such as [Ag_5_(PYDC)2(OH)], have demonstrated potential as antimicrobial agents against bacteria, yeasts, and molds [24]. The Ag@MOF exhibits distinct rod-shaped structures, which facilitate the uniform distribution of metal within the polymer matrix while promoting the sustained release of Ag^+^ ions to prevent aggregation. Palmatine (PAL), an isoquinoline alkaloid classified under the protoberberine group, has demonstrated a range of properties, encompassing anti-inflammatory, antioxidant, neuroprotective, antibacterial, antiviral, and anticancer effects [25]. Stromal-derived factor-1α (SDF1α), a chemokine, plays a pivotal role in stem cell migration for tissue regeneration [26]. Nonetheless, the therapeutic use of SDF1α is hindered by issues related to its high production cost, storage instability, and transport limitations [27]. The SDF1α polypeptide (SDFP), a cost-effective alternative, shares the same receptor activation domain as the full-length protein and similarly promotes stem cell migration [28].
This study presents a core-shell structured MN patch designed to accelerate the healing of infected diabetic wounds (Fig. 1). The core comprises 10,000 MV hyaluronic acid (HA), sucrose, and Ag@MOF loaded with PAL (Ag@MOF-PAL), while the shell is composed of chitosan (CS), encapsulating SDFP (CS-SDFP). In the process of wound healing, CS assumes a pivotal role. It offers a matrix that facilitates three-dimensional tissue growth, stimulates tissue organization, and promotes cell proliferation. Moreover, CS can activate macrophages and boost their tumoricidal activity [29]. To achieve rapid healing of diabetic infected wounds, we designed a core-shell MN patch (CS-SDFP/HA-Ag@MOF-PAL MN patch). This core-shell MN patch is engineered to modulate bacterial infection, chronic inflammation, and stem cell migration. Upon application to the infected diabetic wound, the swelling shell adheres to the wound site, while the core gradually dissolves and releases Ag@MOF-PAL. First, Ag@MOF exhibits strong antibacterial activity at the wound site. PAL then effectively mitigates the chronic inflammatory response. Finally, once the wound microenvironment stabilizes, the swelling CS releases SDFP, which recruits stem cells from healthy tissue to promote wound healing. This innovative design accelerates the healing process of infected diabetic wounds in diabetic mouse models.

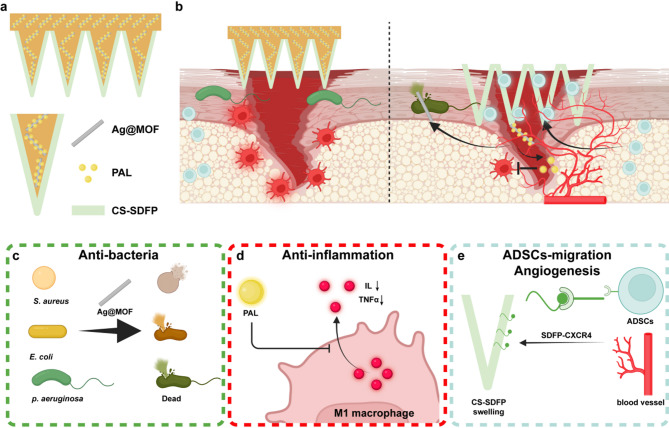

Fig. 1. The mechanism diagram of CS-SDFP/HA-Ag@MOF-PAL MN patches promoting infected diabetic wound healing. a Schematic illustration of CS-SDFP/HA-Ag@MOF-PAL Core-Shell MN patches. b Working mechanism of CS-SDFP/HA-Ag@MOF-PAL MN patches. c The anti-bacteria function of Ag@MOF. d The anti-inflammation function of PAL. e The ADSCs-migration and angiogenesis function of SDFP
Results
Characterization and cytotoxicity of CS-SDFP/HA-Ag@MOF-PAL MN patches
The flowchart elucidates the composition process of Ag@MOF (Fig. 2a). The Scanning electron microscopy (SEM) images depicted the structure of synthesized Ag@MOF (Fig. 2b). Elemental mapping analysis confirms that the Ag@MOF is rich in Ag content (Fig. 2c). After synthesizing Ag@MOF with PAL to form Ag@MOF/PAL, the Ag@MOF/PAL mixture was combined with 16% HA and 16% sucrose to produce HA-Ag@MOF-PAL (Fig. 2d). Figure 2e displays images of Ag@MOF and Ag@MOF-PAL. The ultraviolet-visible spectra exhibited different synthetic samples (Fig. 2f).

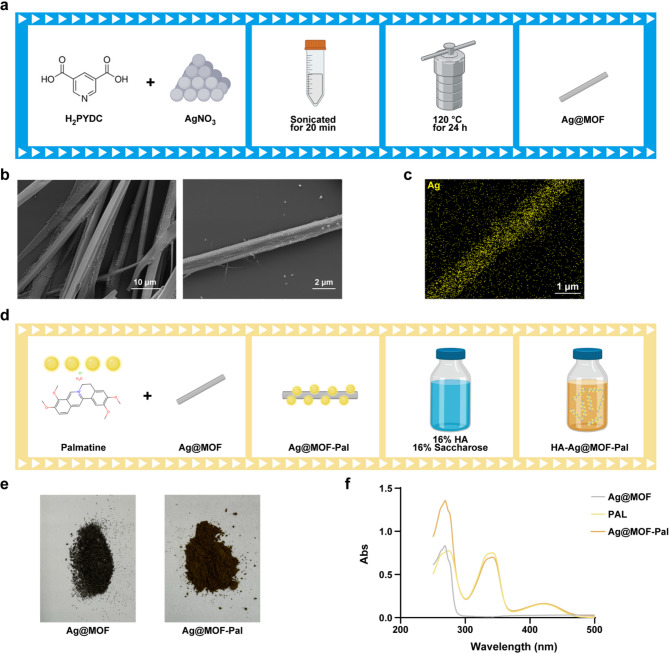

Fig. 2. Ag@MOF-PAL synthesis. a Schematic illustration of Ag@MOF synthesis. b FESEM image of Ag@MOF. c The EDS elemental mapping analyses of Ag@MOF. d Schematic illustration of Ag@MOF-PAL synthesis. eThe images of Ag@MOF and Ag@MOF-PAL. f UV-vis spectrum of Ag@MOF, PAL and Ag@MOF-PAL
Following the preparation of the SDFP and CS mixture, 100 µL of CS-SDFP was placed on the PMDS mold. After 30 min of vacuum-assisted micromolding, 100 µL of HA-Ag@MOF-PAL was added. After drying, CS-SDFP/HA-Ag@MOF-PAL MN patches were obtained (Fig. 3a). The FESEM showed that the CS-SDFP/HA-Ag@MOF-PAL MNs exhibited a conical morphology (Fig. 3b). To further illustrate the core-shell structure of the CS-SDFP/HA-Ag@MOF-PAL MN patches, the CS-SDFP was labeled with the fluorescent dye Rhodamine B, and the HA-Ag@MOF-PAL was labeled with FITC. The MNs were uniformly arranged along the substrate layer (Fig. 3c), and the core-shell structure was confirmed by cross-sectional imaging of the MN (Fig. 3d). The core-shell MN patch consisted of conical microneedles. Each microneedle had a base radius of 200 μm, a height of 850 μm, and a tip radius of approximately 10 μm. These microneedles were arrayed in a 10 × 10 pattern within an area measuring 7 mm × 7 mm. Force-displacement curves of the CS-SDFP/HA-Ag@MOF-PAL MN patches was shown in Fig. S1a. Additionally, incubation of red blood cells with the MN patch displayed no significant hemolysis (Fig. 3e). Furthermore, MN extract did not affect HUVECs activity, as demonstrated in the CCK8 cell viability assay (Fig. 3f). These results confirm that the CS-SDFP/HA-Ag@MOF-PAL MN patches possess satisfactory biosafety.

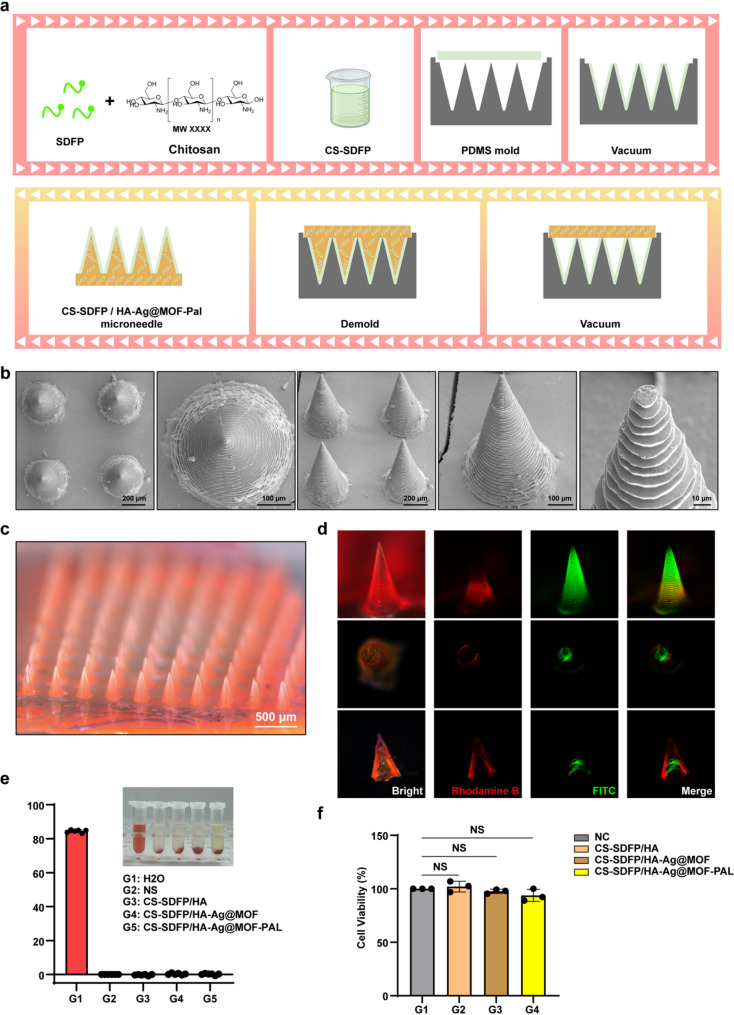

Fig. 3. The fabrication and characterization of CS-SDFP/HA-Ag@MOF-PAL MN patches. a Schematic illustration of CS-SDFP/HA-Ag@MOF-PAL MN patches. b FESEM image of CS-SDFP/HA-Ag@MOF-PAL MN patches. c Representative bright-field microscopy images of CS-SDFP/HA-Ag@MOF-PAL MN patches. d Fluorescence image of core-shell structure of CS-SDFP/HA-Ag@MOF-PAL MN patches. e The hemolysis rate of red blood cells following a 6 h incubation with various MN patches at 37 °C. f Cell viability of HUVECs treated with different MN patches
The anti-bacterial effects of CS-SDFP/HA-Ag@MOF-PAL MN patches in vitro
Prevalent bacteria that cause wound infections include Staphylococcus aureus (S. aureus), Escherichia coli (E. coli), and Pseudomonas aeruginosa (P. aeruginosa) [30]. P. aeruginosa is the most common pathogen responsible for healthcare-associated infections [31, 32]. To evaluate the antibacterial properties of the CS-SDFP/HA-Ag@MOF-PAL MN patches, a bacterial viability staining assay utilizing the SYTO-9/PI method was conducted on S. aureus, E. coli, and P. aeruginosa following exposure to the MN patches for 24 h. The results showed that the viability of all three bacterial strains was significantly reduced after treatment with the MN patches (Fig. 4a, b). Further investigation of the bacterial cell membrane morphology was carried out using field emission SEM (FESEM) following the application of MN patches. In the negative control (NC) and CS-SDFP/HA MN patch groups, S. aureus, E. coli, and P. aeruginosa exhibited relatively smooth, spherical morphologies with intact cell membranes. In contrast, diminished membrane integrity was noted in the groups administered MN patches comprising Ag@MOF (Fig. 4c). Additionally, upon application of MN patches to cultures of S. aureus, E. coli, or P. aeruginosa, the CS-SDFP/HA-Ag@MOF MN patches produced inhibition zones comparable to those of the CS-SDFP/HA-Ag@MOF-PAL MN patches (Fig. 4d). The diameters of the antibacterial zone were measured as 28.77 ± 0.77 mm for S. aureus, 24.66 ± 0.12 mm for E. coli, and 22.41 ± 1.06 mm for P. aeruginosa (Fig. 4e). Moreover, the MN patch containing Ag@MOF was effective in eradicating biofilms of S. aureus, E. coli, and P. aeruginosa in vitro. These biofilms are known to contribute significantly to the development of drug resistance in pathogenic bacteria, as demonstrated by crystal violet staining (Fig. 4f-g). Therefore, the antibacterial activity of the MN patches was primarily attributed to the Ag@MOF component.

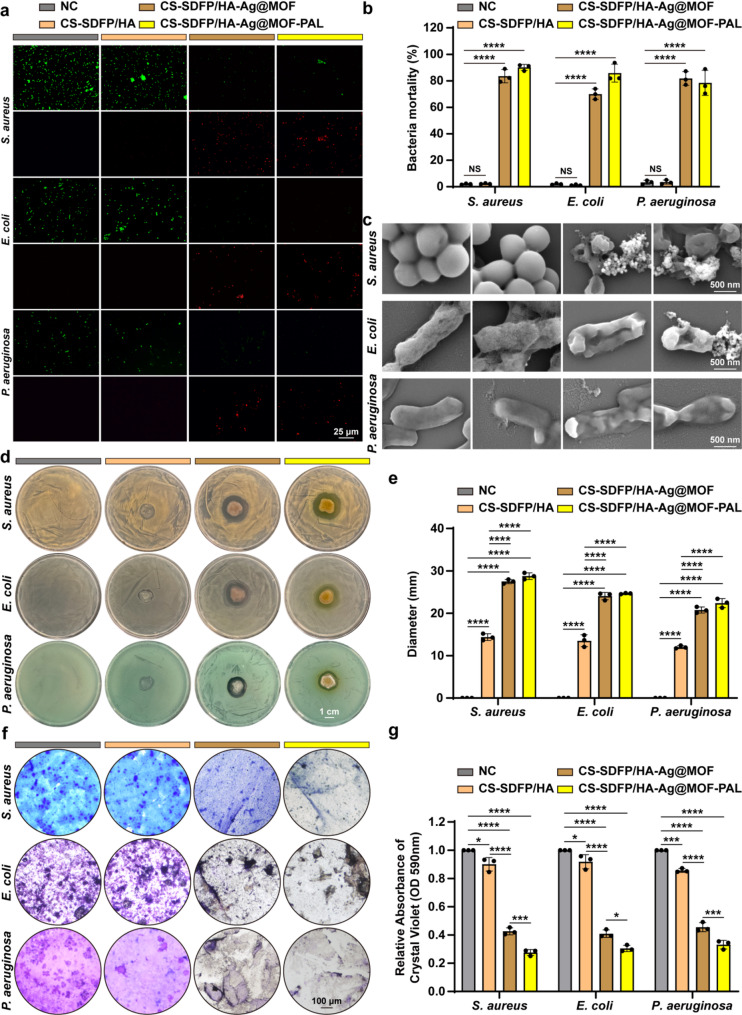

Fig. 4. The anti-bacterial effects of CS-SDFP/HA-Ag@MOF-PAL MN patches in vitro. a Live/dead assay of S. aureus, E. coli, and P. aeruginosa after incubation with different MN patches. Scale bar = 25 μm. b Bacteria mortality of S. aureus, E. coli, and P. aeruginosa after being treated with different MN patches. c FESEM image of S. aureus, E. coli, and P. aeruginosa after being treated with different MN patches. Scale bar = 500 nm. d Representative bright-field images of inhibition zones against S. aureus, E. coli, and P. aeruginosa with different MN treatments for 12 h. Scale bar = 1 cm. e Diameter of the inhibition zones against S. aureus, E. coli, and P. aeruginosa. f Biofilms image of S. aureus, E. coli, and P. aeruginosa stained with crystal violet after being treated with different MNs. Scale bar = 100 μm. g Relative Absorbance of Crystal Violet (OD 590 nm) of S. aureus, E. coli, and P. aeruginosa biological film after being treated with different MNs in (f). Data are represented as mean +/− SD (n = 3). *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. The NS indicates no significance
CS-SDFP/HA-Ag@MOF-PAL MN patches accelerated infected diabetic wound healing in vivo
A full-thickness skin excision model in rodents, encompassing mice, is widely acknowledged as a clinically pertinent method for assessing wound healing [33, 34]. In the present study, a full-thickness skin wound (diameter: 1.5 cm) infected with P. aeruginosa was created on the backs of diabetic Sprague Dawley rats. Following 2 days of P. aeruginosa infection, the wound was treated with MN patches (Fig. 5a). Following intraperitoneal injection of streptozotocin (STZ), the rats showed an increase in blood glucose levels (Fig. S1b). On days 0, 3, 7, 10, 14, and 18, wound images were captured for each group (Fig. 5b), and changes in wound size over time were evaluated utilizing a simulation method (Fig. 5c). Analysis of the wound healing rate demonstrated that treatment with CS-SDFP/HA-Ag@MOF-PAL MN patches significantly accelerated the healing of infected wounds in diabetic rats (Fig. 5d). No substantial toxicity was observed in the major organs of the rats (Fig. S1c). To assess the antibacterial effectiveness of CS-SDFP/HA-Ag@MOF-PAL MN patches, P. aeruginosa was procured from the wounds on days 0, 3, 7, 10, 14, and 18 and cultured on LB agar plates (Fig. 5e). The optical density at OD 600 nm was measured after culturing P. aeruginosa isolated from the wounds in LB liquid medium for 24 h (Fig. 5f), indicated near-total eradication of viable bacteria following treatment with CS-SDFP/HA-Ag@MOF-PAL MN patches. In comparison to other groups, no viable P. aeruginosa was detected in wounds treated with CS-SDFP/HA-Ag@MOF-PAL, highlighting the superior antimicrobial efficacy of the MN patches in vivo.

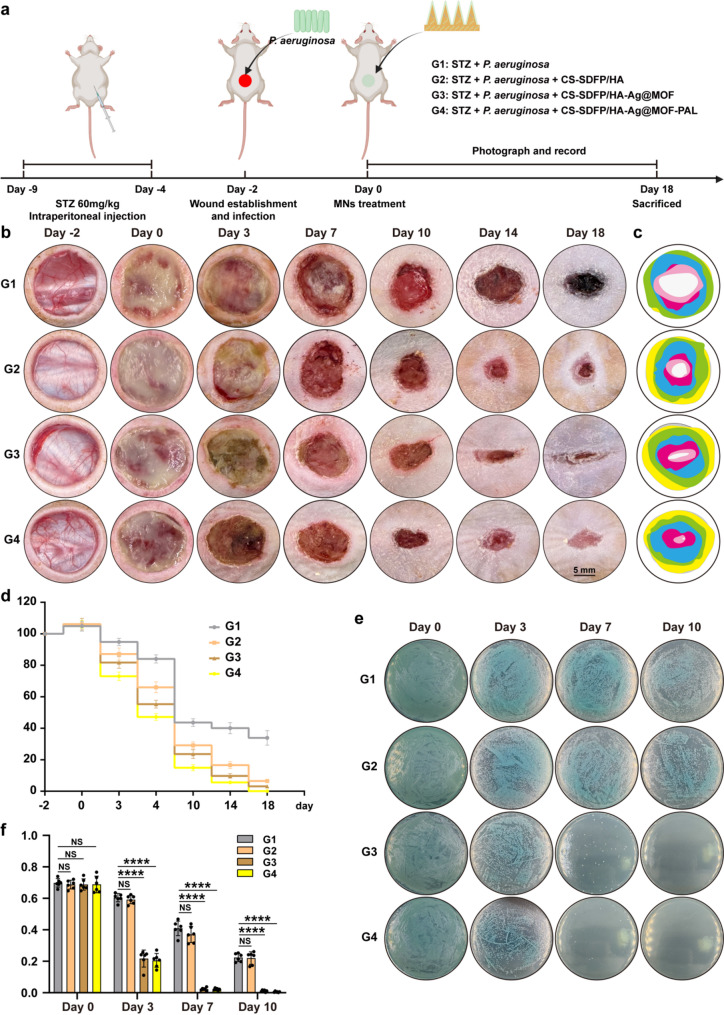

Fig. 5CS-SDFP/HA-Ag@MOF-PAL MN Patches Accelerated Infected Diabetic Wound Healing in vivo. a Time scheme of the experiment in vivo. b Representative pictures of the rat skin wounds on days − 2, 0, 3, 7, 10, 14, and 18 after receiving different treatments. Scale bar = 5 mm (c) Schematic diagram of wound morphological changes in different groups within 18 days. d Wound remaining ratio of the rat skin wounds with different treatments. e Representative image of P. aeruginosa that were separated from rat wound on 0, 3, 7, and 10 days in different groups. f The OD600 values of P. aeruginosa isolated from the wound in LB liquid medium for 24 h on 0, 3, 7, and 10 days in different groups. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. The NS indicates no significance
CS-SDFP/HA-Ag@MOF-PAL MN patches promoted skin repair
To further validate the wound healing potential of CS-SDFP/HA-Ag@MOF-PAL MN patches, tissue regeneration at the wound area was evaluated following application of the MN patches. Hematoxylin and eosin (H&E) staining displayed near-complete wound closure in rats treated with CS-SDFP/HA-Ag@MOF-PAL MN patches on day 18 (Fig. 6a**)**. Compared with other groups, granulation tissue length was significantly shortened in the CS-SDFP/HA-Ag@MOF-PAL treated group (Fig. 6b). Collagen, a critical component of the skin and vital for wound healing and tissue remodeling [35], was assessed using Masson’s staining. On day 18, wounds exposed to CS-SDFP/HA-Ag@MOF-PAL MN patches exhibited enhanced collagen deposition (Fig. 6c), with a collagen volume fraction (CVF) reaching 70.18% ± 6.264%, which was markedly greater than that in the other groups (G1: 34.79% ± 3.558%; G2: 36.59% ± 3.197%; G3: 51.83% ± 2.497%) (Fig. 6d). Furthermore, immunofluorescence images revealed increased expression of COL1α protein following treatment with CS-SDFP/HA-Ag@MOF-PAL MN patches (Fig. 6e-f). These findings suggest that CS-SDFP/HA-Ag@MOF-PAL MN patches promote angiogenesis at the wound site. Consequently, CS-SDFP/HA-Ag@MOF-PAL MN patches effectively accelerated the healing of infected wounds in diabetic SD rats.

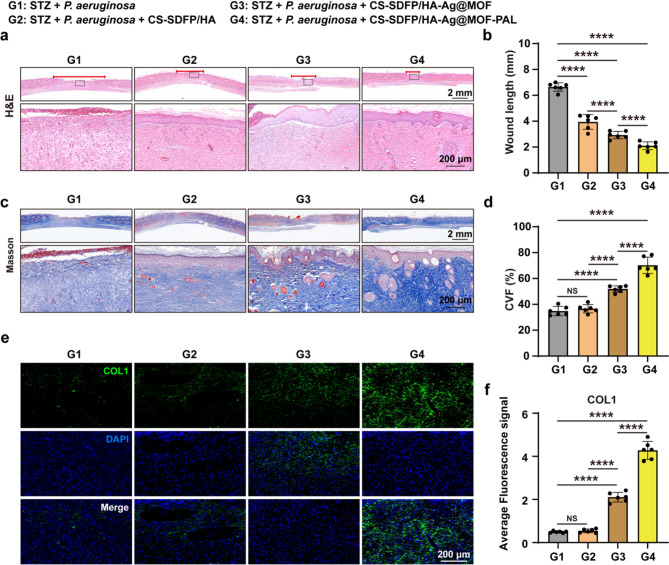

Fig. 6CS-SDFP/HA-Ag@MOF-PAL MN patches promoted skin repair. a Representative images of H&E staining. Scale bar = 2 mm and 200 μm. b Analysis of wound length. c Representative images of Masson trichrome staining. d The collagen volume fraction (CVF) for different treatments on day 18. e Representative immunofluorescence images of COL1α. Scale bar = 200 μm. and f its quantitative analysis. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001
The anti-inflammatory effects of CS-SDFP/HA-Ag@MOF-PAL MN patches
The CCK8 assay demonstrated that PAL exhibited no toxicity to HUVECs (Fig. S2a). After LPS (100 ng/ml) stimulation, significant upregulation was observed in the expression of Il1b, Il6, Tnfa, and Inos, but these changes were notably reversed following PAL administration (Fig. S2b). The MN patches were added into 5 ml DMEM/HG completed medium to make extracts of MN patches. To further assess the anti-inflammatory effects of the MN patches, extracts from CS-SDFP/HA-Ag@MOF-PAL MN patches were used to treat RAW 264.7 cells (Fig. 7a). Following treatment with MN extracts, LPS-induced hyperexpression of inflammatory markers such as Il1b, Il6, Tnfa, and Nos2 was significantly inhibited (Fig. 7b). The nuclear factor kappa-B (NF-κB) and mitogen-activated protein kinase (MAPK) signaling cascades are both implicated in numerous chronic inflammatory disorders [36–38]. To investigate whether CS-SDFP/HA-Ag@MOF-PAL MN patches affected these pathways, Western blot analysis was performed. Administration of CS-SDFP/HA-Ag@MOF-PAL MN patches significantly decreased the phosphorylation levels of NF-κB (IKKα/β, P65, and IKBα) and MAPK (JNK, ERK, and P38) pathways, which were activated by LPS treatment (Fig. 7c–f). Immunohistochemical staining for IL-6 revealed that CS-SDFP/HA-Ag@MOF-PAL treatment resulted in a significant reduction of inflammation at the wound site, with a notable decrease in IL-6 secretion compared to the other groups (Fig. 7g, h). This finding underscores the potent anti-inflammatory effect of CS-SDFP/HA-Ag@MOF-PAL.

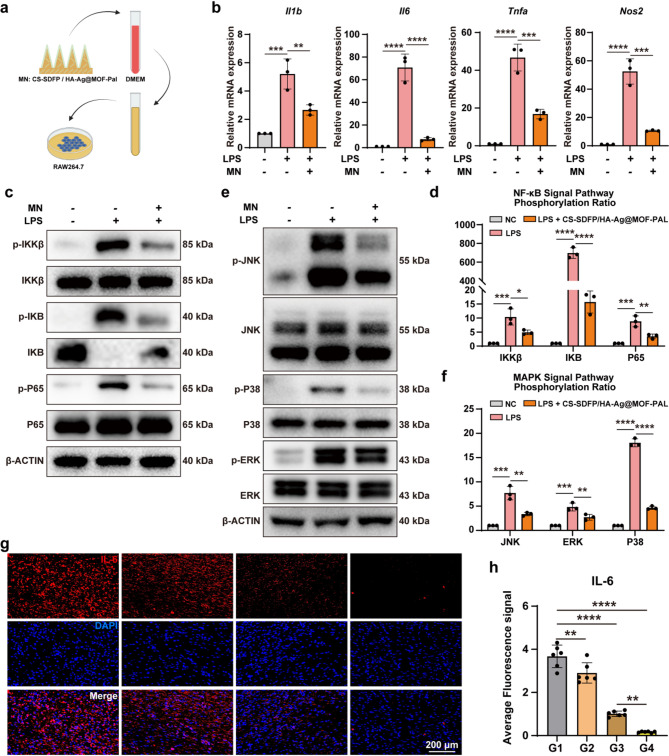

Fig. 7. The anti-inflammatory effects of CS-SDFP/HA-Ag@MOF-PAL MN patches. a Scheme of the experiment in vivro. b Relative mRNA expression of inflammatory index in RAW264.7 after treatment with LPS (100 ng/ml) and CS-SDFP/HA-Ag@MOF-PAL MN patches. c Representative western blot of NF-κB signaling pathways in RAW264.7 after treatment with with LPS (100 ng/ml) and CS-SDFP/HA-Ag@MOF-PAL MN patches for 6 h. d The phosphorylation ratio of NF-κB signaling pathways. e Representative western blot of MAPK signaling pathways in RAW264.7 after treatment with with LPS (100 ng/ml) and CS-SDFP/HA-Ag@MOF-PAL MN patches for 6 h. f The phosphorylation ratio of MAPK signaling pathways. g Representative immunofluorescence images of IL-6. Scale bar = 200 μm. and h its quantitative analysis. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001
CS-SDFP/HA-Ag@MOF-PAL recruit stem cells and promote angiogenesis
Adipose-derived stem cells (ADSCs), widely found in adipose tissue, are integral to a variety of therapeutic effects via paracrine mechanisms, including promoting angiogenesis, inhibiting apoptosis, and regulating immune responses [39]. The CCK8 assay demonstrated that SDFP had no toxicity to HUVECs (Fig. S3a) or ADSCs (Fig. S3b). Transwell assays (Fig. S3c-d) confirmed that SDFP concentrations accelerated ADSCs migration in vitro. The ADSCs underwent co-cultivation in RAW 264.7 cell-derived conditioned medium obtained from various stimulation conditions (Fig. 8a**)**. In the inflammatory environment, ADSC migration was inhibited. However, CS-SDFP/HA-Ag@MOF-PAL treatment significantly accelerated ADSC migration in vitro (Fig. 8b–e). C-X-C chemokine receptor type 4 (CXCR4), a receptor for SDF-1α, was highly expressed in ADSCs [40]. Immunofluorescent staining for CXCR4 revealed that among all the experimental groups, G4 had the highest proportion of ADSCs (8.35% ± 0.636%) (Fig. 8f, g). Scratch assays demonstrated that HUVECs migration was impaired in an inflammatory environment. However, CS-SDFP/HA-Ag@MOF-PAL therapy accelerated HUVECs migration in vitro (Fig. 8h-i). Immunofluorescent staining for CD31 indicated a significantly higher microvessel density (6.89% ± 0.6%) at the wound site in the CS-SDFP/HA-Ag@MOF-PAL group (Fig. 8j, k). These results suggest that CS-SDFP/HA-Ag@MOF-PAL MN patches effectively recruit stem cells and promote angiogenesis.

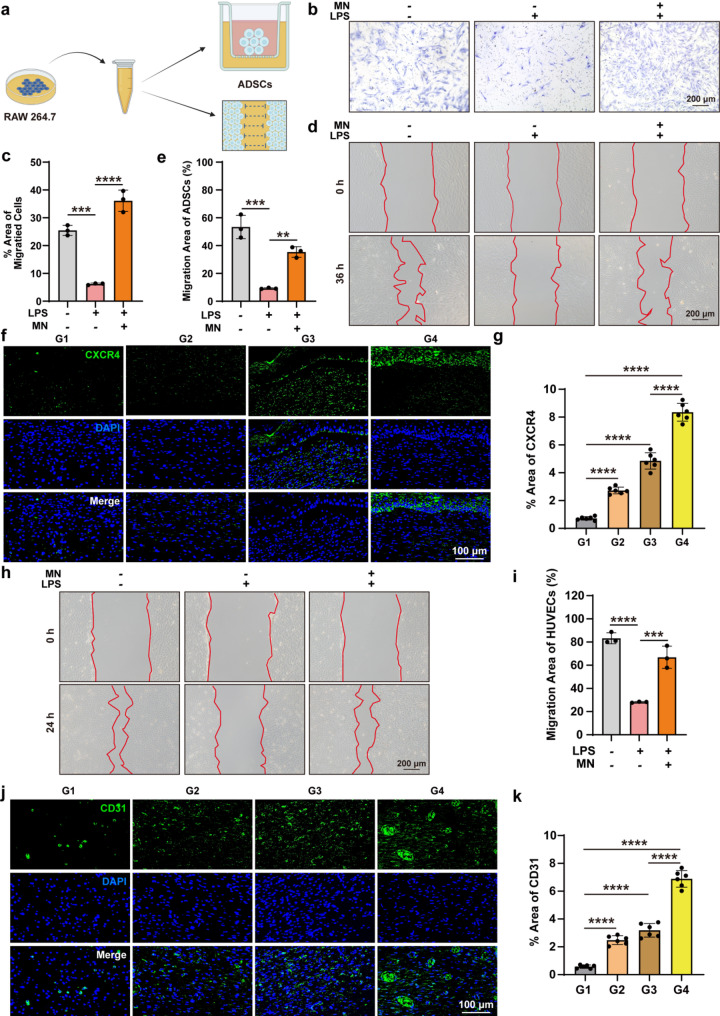

Fig. 8CS-SDFP/HA-Ag@MOF-PAL recruit stem cells and promote angiogenesis. a Scheme of the ADSCs treatment. b Bright-field images of migrated ADSCs after incubation with conditioned medium of RAW 264.7 cells and CS-SDFP/HA-Ag@MOF-PAL MN patches. Scale bar = 200 μm. c The quantification of (b). d Wound healing assay of the ADSCs after incubation with conditioned medium of RAW 264.7 cells and CS-SDFP/HA-Ag@MOF-PAL MN patches. Scale bar = 200 μm. e Quantitative analysis of the rate of wound closure at 36 h. f Representative immunofluorescence images of CXCR4. Scale bar = 100 μm. and (g) its quantitative analysis. h Wound healing assay of the HUVECs after incubation with conditioned medium of RAW 264.7 cells and CS-SDFP/HA-Ag@MOF-PAL MN patches. Scale bar = 200 μm. i Quantitative analysis of the rate of wound closure at 24 h. j Representative immunofluorescence images of CXCR4. Scale bar = 100 μm. and k its quantitative analysis
