“Bonnet bypass” using a radial artery interposition graft—how I do it

TL;DR

A new surgical technique called the 'Bonnet bypass' is described to restore blood flow in cases where a standard bypass is not possible.

Contribution

The novel use of a radial artery interposition graft in a 'Bonnet bypass' for revascularization when the superficial temporal artery is unavailable.

Findings

The 'Bonnet bypass' uses a radial artery graft from the contralateral superficial temporal artery to the middle cerebral artery.

A skullcap groove is drilled to position the graft and prevent mobilization or compression.

This technique is suitable when the ipsilateral superficial temporal artery cannot be used as a donor vessel.

Abstract

Common carotid artery (CCA) occlusion frequently results in compromised hemodynamics of the ipsilateral hemisphere with risk of infarction but also a lack of blood flow in the ipsilateral superficial temporal artery (STA), requiring a more complex revascularization strategy than a standard extracranial-intracranial (EC-IC) bypass when indicated.

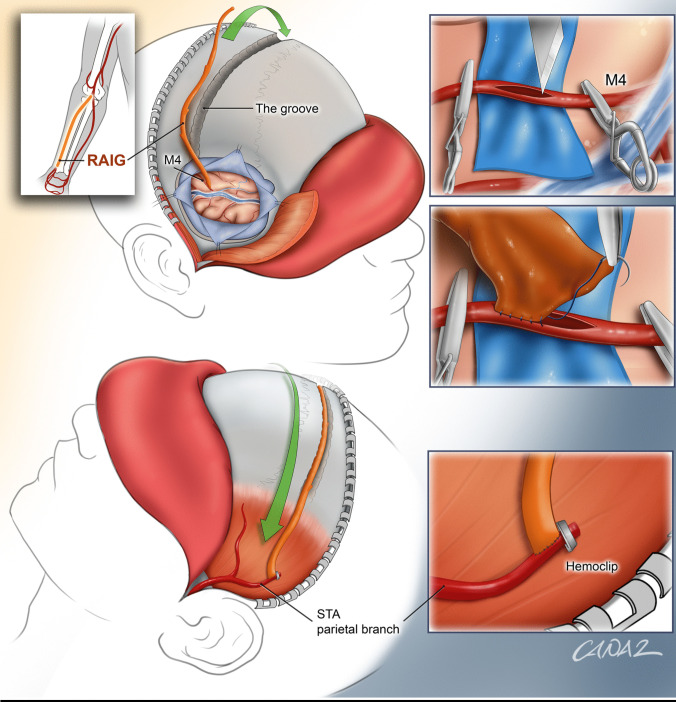

We describe the performance of a “Bonnet bypass” using a radial artery interposition graft (RAIG) from the contralateral STA to the ipsilateral middle cerebral artery (MCA). A groove is drilled in the skullcap to position the RAIG and reduce risk of mobilization and compression.

The “Bonnet bypass” enables a revascularization procedure when the ipsilateral STA is not available as donor vessel.

The online version contains supplementary material available at 10.1007/s00701-025-06700-7.

Figures
