Acoustic-based detection of debonding in thin-layer semi-rigid base asphalt pavements using a-weighted sound pressure levels
Changfeng Hao, Min Ye, Qing Zhang, Zhongyu Li, Xianbao Zuo, Zhen Sun
TL;DR
This paper introduces a new acoustic method to detect small-scale debonding in asphalt pavements, which is more sensitive than traditional techniques like ground-penetrating radar.
Contribution
The novel use of A-weighted sound pressure levels and a DEVD Maxwell model for detecting thin-layer debonding in pavements.
Findings
A-weighted acoustic metrics strongly correlate with the debonding area in pavements.
The method detects thin debonding layers that ground-penetrating radar cannot.
The approach shows high sensitivity for early pavement damage detection.
Abstract
Thin-layer interlayer debonding in semi-rigid base asphalt pavements is difficult to detect with conventional techniques due to their limited sensitivity. This study proposes a novel acoustic-based detection approach that utilizes a distributed elastic variable damping (DEVD) Maxwell model and introduces an A-weighted sound pressure level (SPL) index to enhance detection of small-scale debonding. Comprehensive numerical simulations were integrated with full-scale experiments to analyze acoustic signals under different excitation modes and debonding scenarios. The results show a strong correlation between the A-weighted acoustic metrics and debonding area, and the proposed method reliably distinguishes thin debonding layers that ground-penetrating radar (GPR) could not detect. Our acoustic method demonstrated superior sensitivity to thin-layer debonding, highlighting its potential as a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34
Figure 35
Figure 36
Figure 37
Figure 38
Figure 39
Figure 40
Figure 41
Figure 42
Figure 43
Figure 44

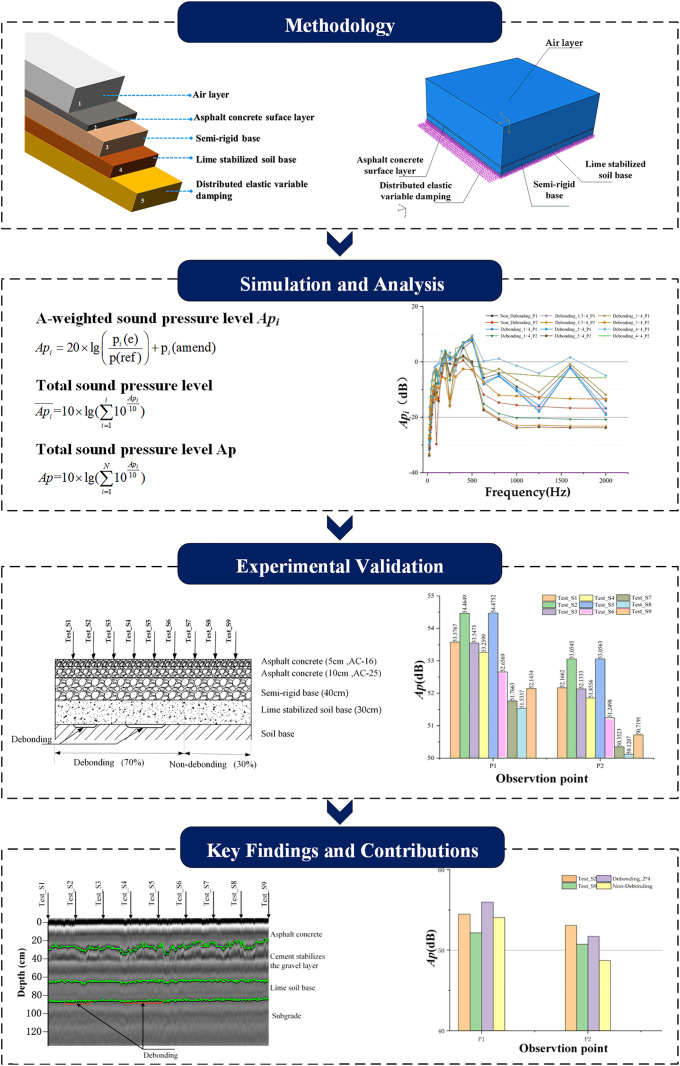

Figure 45
Figure 46
Figure 47
Figure 48
Figure 49

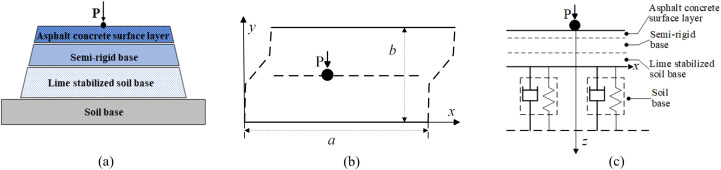

Figure 50Peer Reviews
