FucR Functions as a Transcriptional Regulator for L-Fucose Utilization in Campylobacter jejuni

TL;DR

This study identifies FucR as a regulator that controls L-fucose utilization in the gut pathogen Campylobacter jejuni.

Contribution

The study reveals that FucR is a transcriptional repressor that directly regulates fucose utilization genes in C. jejuni.

Findings

FucR is a repressor that regulates the fucose utilization operon in C. jejuni.

FucR binds directly to the promoter region of the fucose utilization operon.

Fucose induces gene expression in wild-type C. jejuni but not in the FucR mutant.

Abstract

Campylobacter jejuni is an enteric pathogen and a major cause of foodborne illness worldwide. It has been shown that C. jejuni primarily utilizes amino acids as its preferred energy source, but its ability to utilize L-fucose can grant a competitive advantage during intestinal colonization. In C. jejuni, fucose utilization is encoded by a variable region named plasticity region 2 (PR2); however, the regulatory mechanism for the region remains unknown and is investigated in this study. Genomic sequence analysis revealed that immediately upstream of the fucose utilization operon is a putative IclR-type transcriptional regulator, cj0480c (named fucR here). To determine whether fucR regulates the expression of the fucose utilization operon, we generated a knock-out mutant of fucR. RT-PCR and microarray analysis found that all the genes in the operon were polycistronic and significantly upregulated in the fucR mutant compared with their expression in the wild-type strain. In the presence of fucose, expression of the fucose utilization genes was induced in the wild-type strain but no longer inducible in the fucR mutant, suggesting that FucR functions as a repressor for the fucose utilization operon. To determine whether FucR directly or indirectly regulates the fucose utilization operon, a 6xHis-tagged full-length FucR was produced in Escherichia coli, and the purified recombinant FucR was used in electrophoretic mobility shift assay, which demonstrated that FucR bound specifically to the promoter region of the fucose utilization operon. Together, these results indicate that the L-fucose utilization operon in C. jejuni is directly regulated by FucR, which functions as a transcriptional repressor and modulates the expression of the operon in response to fucose.

Figures

Full text

1. Introduction

Campylobacter jejuni is among the leading causes of bacterial food-borne illness worldwide, resulting in significant morbidity and economic loss due to health care costs and reduced worker productivity [1]. In addition to the acute symptoms of campylobacteriosis, which include fever, cramping, and diarrhea, severe sequelae such as paralytic disorders Guillain–Barré and Miller Fisher syndromes are also associated with C. jejuni infection [2,3]. Human exposure to C. jejuni occurs mainly through consumption of contaminated food, primarily poultry, milk or water [4]. As a foodborne pathogen, Campylobacter has acquired the ability to survive and thrive in both food-producing animals and the human host [5]. Understanding the pathogen’s adaptive response to nutrient availability in various environments may offer insights into ameliorating the public health burden of C. jejuni infection.

Campylobacter is unable to catabolize glucose for energy generation due to lacking the 6-phosphofructokinase required for the irreversible phosphorylation of fructose-6-phosphate to fructose-1,6-diphosphate during glycolysis [6,7]. Strain-specific utilization of L-fucose by C. jejuni has been reported, highlighting the metabolic diversity of this important pathogen [8,9]. Fucose is a prominent carbohydrate component of eukaryotic glycoproteins, comprising 4–14% of mucin’s total oligosaccharide content [10]. Given that C. jejuni is an enteric pathogen, utilization of this substrate provides an advantage for intestinal colonization. Across strains isolated from various host species, approximately 45.5% of C. jejuni isolates have the genetic capacity for growth on fucose [9,11]. This phenotype has been linked to a plasticity region of the chromosome (PR2), and gene expression of fucP (fucose permease) is induced by fucose in a dose-dependent manner [9]. A recent study conducted Netherlands revealed that PR2 was significantly associated with C. jejuni isolates from the human host [11]. Strains containing fucP were also linked to livestock isolates and secondarily associated with less severe campylobacteriosis [12]. Conversely, a separate investigation into the interplay between fucose metabolism in Campylobacter and the fucosidase activity of Bacteroides fragilis indicated that C. jejuni was dependent on this enzymatic activity to utilize fucose, leading to an increase in invasiveness with intestinal cells [13]. Another study also linked PR2 with higher invasion and fibronectin binding efficacy of Campylobacter [14].

The ability to sense and transcriptionally respond to fucose is likely an adaptive mechanism for nutrient utilization in the environment, such as niches encountered within the host. Indeed, the intestinal mucus is rich in fucosylated glycans, and mucin has a significant impact on C. jejuni physiology [13,15]. Genes in the PR2 have been studied and identified as genes required for the utilization of fucose [9]. Recent investigations into this metabolic pathway indicate that C. jejuni utilizes a non-phosphorylative pathway for fucose utilization, as opposed to the phosphoralative pathway used in other bacteria such as E. coli [16]. This metabolic pathway is hypothesized to rely on the genes cj0482-cj0483, which code for an altronate hydrolase for conversion from L-fuconate to L-2-keto-3-deoxyfuconate [16]. Gene cj0485, termed FucX, was shown to function as a fucose dehydrogenase able to reduce both L-fucose and D-arabinose and confer chemotaxis [17,18]. It was also demonstrated that Campylobacter prioritized the utilization of amino acids over fucose or arabinose, further highlighting the hierarchy of metabolic regulation [17].

Several regulatory proteins have been characterized that allow C. jejuni to sense and respond to external stimuli, including iron, phosphate, aspartate, temperature, and nitrosative, aerobic, osmotic, antibiotic and oxidative stresses [19,20,21,22,23,24,25,26]. Transitory gene expression in different environments may afford the organism an adaptive mechanism to cope with stresses and nutrient availability. Another example of regulated gene expression contributing to the adaptive process of C. jejuni is the expression of the CmeABC efflux pump. Bile salts induce this RND-type efflux pump by interfering with the function of the CmeR repressor protein [27], leading to overexpression of cmeABC and bile resistance required for the colonization of chicken intestines [28]. In other bacteria, the genes involved in fucose catabolism are inducible and under the control of the transcriptional regulator, termed FucR. In E. coli, FucR is a member of the DeoR family of regulators, and functions as an activator for the divergently transcribed fucPIKU and fucAO operons [29]. Fuculose-1-phosphate, a metabolite of FucK, is the inducer of the FucR regulon [30]. In contrast, FucR in Bacteroides thetaiotaomicron functions as a repressor for the fucRIAK operon [31]. Direct binding of fucose to FucR in B. thetaiotaomicron inhibits DNA binding, allowing for increased gene expression. The C. jejuni NCTC 11168 genome does not possess a homolog of the DeoR family regulator, yet fucP is induced by fucose in a dose-dependent manner [9]. Instead, an IclR-type transcriptional regulator is predicted to be encoded by the PR2 locus, suggestive of a fucose regulatory mechanism that differs from other bacteria.

IclR-type transcriptional regulators are known to be involved in several metabolic processes and are capable of interacting with transcriptional effector molecules through DNA binding [32]. A prominent feature of this family of regulators is a sequence-specific profile that is not associated with the helix–turn–helix DNA binding motif of the N-terminus [33]. The ligand binding domain is located at the C-terminus, and conformational changes in this region alter DNA binding. Members of the IclR family of regulators can function as both transcriptional activators and repressors within the cell, allowing for coordinated gene expression through a single protein. In this report, we describe the inducible expression and regulation of the fucose regulon in C. jejuni NCTC 11168 through an IclR-type transcriptional repressor, named FucR in this study

2. Materials and Methods

2.1. Bacterial Strains and Growth Conditions

The bacterial strains and plasmids used in this study are listed in Table 1. Escherichia coli DH5α was routinely cultured in lysogeny broth or on lysogeny agar at 37 °C. C. jejuni strains were cultured on Mueller Hinton (MH) broth or agar at 37 °C microaerobically (85% N_2_, 10% CO_2_, 5% O_2_) in a Model 3130 gas incubator (Forma Scientific, Pittsburgh, PA, USA) or AnaeroPack jar (Thermo Fisher Scientific, Waltham, MA, USA).

2.2. Construction and Complementation of Mutants

Isogenic mutants were constructed in the NCTC 11168 background using the inverse PCR strategy described previously [36]. Briefly, cj0480c was PCR-amplified from NCTC 11168 using primers cj0480c_L and cj0480c_R, an annealing temperature of 52 °C, and an extension time of 2 min for 35 cycles. The PCR product was cloned into pGEM-T to produce plasmid pcj0480c and introduced into chemically competent E. coli DH5α. The recombinant plasmid was isolated and used as a template for inverse PCR with primers icj0480c_L and icj0480c_R, deleting an internal fragment of 458 nucleotides of cj0480c. The cat cassette was PCR-amplified with primers cat_L and cat_R from pUOA18 [35]. The inverse PCR products and cat amplicons were purified by ethanol precipitation and digested with BamHI and BglII (New England BioLabs, Ipswich, MA, USA), respectively. The digested products were ligated together and used to transform chemically competent E. coli DH5α. The resulting recombinant plasmid (pWM15) was purified and used to transform C. jejuni NCTC 11168 to produce the mutant strain CjWM116a (Table 1) as described previously [9]. Complementation of strain CjWM116a was accomplished as previously described [37]. Briefly, the complementing ORF was amplified from C. jejuni NCTC 11168 using primers KIcj0480c_L and KIcj0480c_R with annealing at 50 °C and an extension time of 2 min. The ethanol-purified amplicon was digested with AvrII and ligated to pRRK, which was digested with XbaI to produce pRRKWM14. This plasmid transcribes the cj0480c ORF in the same transcriptional direction as the ribosomal genes. The transformation of the strain CjWM116a with pRRKWM14 produced the complemented strain CjWM233b (Table 1).

2.3. Confirmation of Polycistronic Transcript

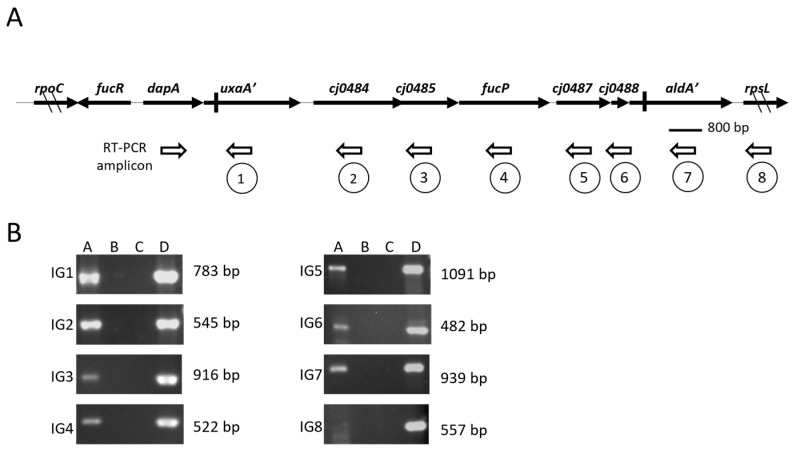

RT-PCR was performed on total RNA extracted from wild-type NCTC 11168 grown at 37 °C, under microaerophilic conditions, for 4h, and in the presence of fucose [9]. cDNA was synthesized by reverse transcription using the primers indicated in Table 2. The intergenic sequences (IG) indicated by the encircled numbers in Figure 1 were PCR-amplified using the corresponding primer pairs in Table 2.

2.4. Semi-Quantitative Reverse Transcription PCR

The relative fucP transcript abundance was measured for both the wild-type NCTC 11168 and mutant strains by SYBR green RT-PCR as described previously with the following modifications [9]. L-fucose (Sigma, St. Louis, MO, USA) was added from a 2.5 M frozen stock solution to fresh cultures to a final concentration of 25 mM. All cultures with or without added fucose were incubated at 37 °C under microaerobic conditions. At 0, 1, 2, 3, and 4 h of incubation, 1 mL aliquot was removed from each culture and the total RNA was extracted using the RNeasy Plus Mini kit (Qiagen, Hilden, Germany). The experiment was repeated independently four times. For statistical and graphical purposes, R values (ratio of fucP transcript abundance) were log_2_-transformed. Pair-wise comparisons of fold-differences were evaluated by two-sample t-tests. The Holm correction was applied to correct for family-wise error rate associated with multiple testing [38].

2.5. Transcriptomic Analysis of Fucose Induction in NCTC 11168 and Cj0480c Mutant

Global transcriptional profiling was performed by microarray analysis according to the manufacturer’s recommendations (JCVI v4.0, J. Craig Venter Institute, La Jolla, CA, USA) with modifications. Briefly, wild-type and Cj0480c mutant strains were grown in MH broth with or without fucose (25 mM final concentration) as described above for qRT-PCR analysis. After 4 hr of incubation, the entire 10 mL culture was harvested by centrifugation and RNA extracted using the RNeasy Plus Mini kit (Qiagen, Hilden, Germany). RNA was DNaseI-treated (DNA-free, Thermo Fisher Scientific, Waltham, MA, USA), and 5 μg of total RNA was labeled with either Cy3 (test condition) or Cy5 (reference condition) for 2 h (Amersham Biosciences, Piscataway, NJ, USA). The wild-type strain grown in the absence of fucose served as the reference condition, whereas the wild-type strain grown with fucose or the Cj0480c mutant strain served as the test conditions. The entire procedure was repeated a total of four times with a dye swap introduced in alternating experiments. Slides were scanned using ScanArray 5000 (Perkin Elmer, Boston, MA, USA), and fluorescence intensity values were acquired using ImaGene 7.0 software (BioDiscovery, El Segundo, CA, USA). Median background corrected fluorescence intensities were LOWESS-normalized and median-centered. Statistical significance was assessed for each probe by moderated t-test using the limma 2.0 package (R, The R project for Statistical Computing, Vienna, Austria). The false discovery rate for each probe was controlled for by applying the R package’s q-value [39]. The data discussed in this publication have been deposited in NCBI’s Gene Expression Omnibus [40] and are accessible through GEO Series accession number GSE46808 and GSE46752 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE46808 and http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE46752) (Last updated 2 January 2014, access date 9 October 2025).

2.6. Construction and Production of 6x His-Tagged Cj0480c

N-terminal 6xHis tagged cj0480c was constructed in plasmid pTrcHis (Thermo Fisher Scientific, Waltham, MA, USA). The cj0480c sequence was isolated from C. jejuni NCTC 11168 via genomic isolation kit (Promega, Madison, WI, USA) and then amplified by primers cj0480cBamHI and cj0480cEcoRI (Table 2). Both the cj0480c amplicon and pTrcHis plasmid were digested with BamHI and EcoRI. Ligation was carried out with T4 DNA ligase (New England Biolabs, Ipswich, MA, USA) and was subsequently transformed into E. coli DH5α competent cells per manufacture instruction (Sigma-Aldrich, Burlington, MA, USA). Transformants were grown in LB broth containing 100 µg/mL ampicillin, and then plasmids were extracted by utilizing the QIAprep Spin Miniprep kit (Qiagen, Hilden, Germany). The purified plasmid was analyzed via standard agarose gel electrophoresis and Sanger sequencing to confirm the cloned cj0480c sequence and then transformed into E. coli Origami B (DE3) cells (Sigma-Aldrich, Burlington, MA, USA). The Origami B transformants possessing pTrc-cj0480c were grown overnight at 37 °C and then inoculated into 500 mL of fresh Terrific Broth (containing 100 mg/mL ampicillin) at an OD_600_ of 0.01. The culture was incubated at 37 °C with shaking until reaching an OD_600_ of 0.8. IPTG was then added to a final concentration of 0.4 mM, and the induction of Cj0480c expression was allowed to occur overnight at room temperature with shaking. Protein purification was conducted using Ni-NTA (Qiagen, Hilden, Germany) resin according to the manufacturer’s instructions. Briefly, bacterial cells were pelleted and sonicated in lysis buffer containing 1 mM PMSF (Thermo Fisher Scientific, Waltham, MA, USA), 1 mg/mL of lysozyme (Thermo Fisher Scientific, Waltham, MA, USA), and 5 µg/mL of DNase1 (New England BioLabs, Ipswich, MA, USA). The sonicated sample was centrifuged at 16,773× g at 4 °C for 15 min. The resulting supernatant was combined with 2 mL of Ni-NTA resin and incubated for 4 h at 4 °C. The incubated resin was loaded onto a chromatography column (Thermo Fisher Scientific, Waltham, MA, USA), which was first washed with increasing amounts of imidazole (10 mM, 20 mM and 40 mM) in washing buffer and then eluted with the elution buffer containing 300 mM imidazole. Protein concentrations were determined using NanoDrop (Thermo Fisher Scientific, Waltham, MA, USA), and the purity of the protein preparation was analyzed by SDS-PAGE. Finally, Western blotting was performed by utilizing anti-6 x His monoclonal antibodies (Invitrogen, Waltham, MA, USA) and the SeraCare KPL 4 CN Peroxidase Substrate System (Milford, MA, USA). Gel images were captured by using a ChemiDoc (Bio-Rad, Hercules, CA, USA).

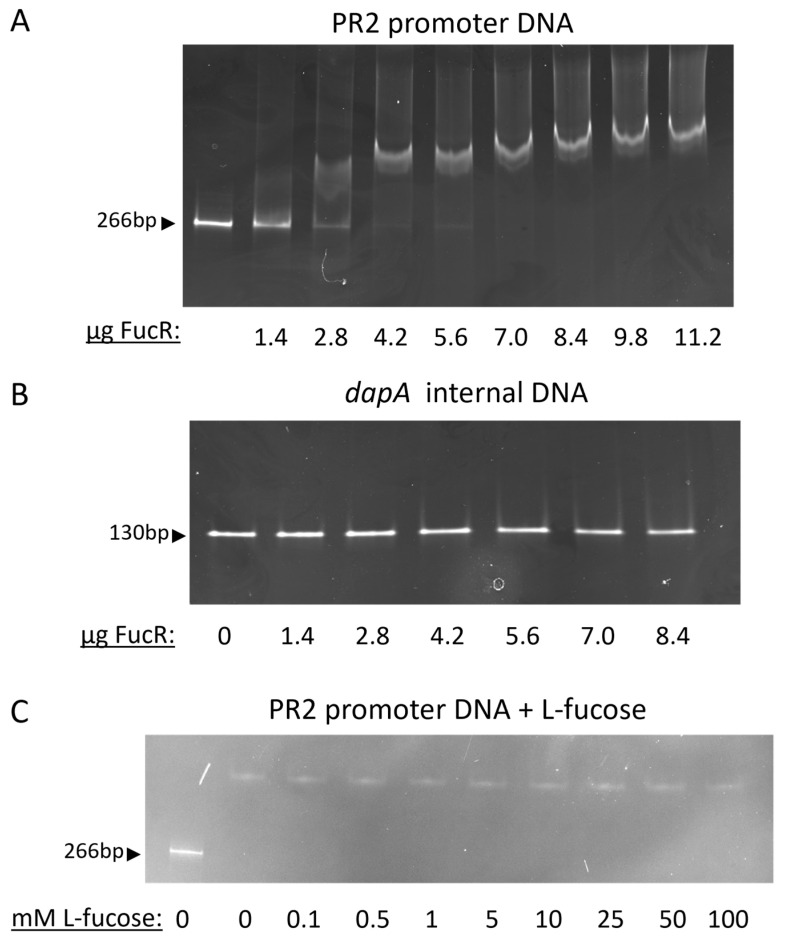

2.7. Electrophoretic Mobility Shift Assay (EMSA)

EMSA was performed as previously described with the following specifications [41]. Purified Cj0480c (named FucR here) was desalinated and exchanged into a binding buffer utilizing Bio-Spin p-6 gel columns (Bio-Rad, Hercules, CA, USA). The binding buffer consisted of 50 mM Tris-HCl, 150 mM KCl, and 10 mM MgCl_2_ at pH of 7.4. Final protein concentration was determined via Qubit (Thermo Fisher Scientific, Waltham, MA, USA). DNA fragments were generated by PCR utilizing the genomic DNA of C. jejuni NCTC 11168 as template and two separate primer pairs (Table 2): fucR_promoter_L and R to amplify the promoter region of fucR and dapA_internal_L and R to amplify an internal section of cj0481. In the reactions, 30 ng of each individual DNA fragment and increasing amounts of FucR, at intervals of 1.4 µg from 0 µg to 11.2 µg, were mixed and allowed to incubate at room temperature for one hour. EMSAs were carried out on 4–20% gradient PAGE gels (Bio-Rad, Hercules, CA, USA) and run for 90 min at a constant 90 V on a Bio-Rad PowerPack. Gels were stained with ethidium bromide (Sigma, St. Louis, MO, USA) for 15 min and then imaged on a ChemiDoc (Bio-Rad, Hercules, CA, USA). To determine whether L-fucose affected FucR binding, increasing concentrations of L-fucose from 0.1 mM to 100 mM were added to reactions consisting of 2 µg of FucR and 30 ng of DNA. Reactions were subsequently analyzed by EMSA.

3. Results

3.1. Genetic Organization and Co-Transcription of PR2

The genes associated with fucose utilization in C. jejuni have been linked to a cluster of ORFs located in a plasticity region of the chromosome (PR2) [9]. This 11 ORF cluster encodes the fucose permease (fucP), but homologous genes known to be involved in fucose metabolism in other bacteria are notably absent. cj0480c encodes a predicted transcriptional regulator and is transcribed divergently from the rest of the locus with a 229-base intergenic region (Figure 1A). ORFs cj0481-cj0490 are tightly clustered with predicted overlapping translational stop and start codons. Intergenic spaces, when present, ranged from 9 to 60 bases in length, suggesting ORFs cj0481-cj0490 are transcribed as a polycistronic message. RT-PCR amplification of the intergenic or overlapping regions supports this assumption (Figure 1B). Additionally, as discussed below, coordinated fucose-induced gene expression further corroborates co-transcription of cj0481-cj0490 as a polycistronic message.

3.2. PR2 Harbors a Transcriptional Regulator That Senses and Responds to Fucose

Fucose has been shown to significantly up-regulate fucP in a dose-dependent manner [9], suggestive of a transcriptional regulatory mechanism that senses and responds to this growth substrate. Annotation of the NCTC 11168 genome identified cj0480c as a putative IclR-type transcriptional regulator [34,42], which is named fucR in this study (Figure 1A). A fucR mutant was constructed in the NCTC 11168 background by disrupting the gene with a chloramphenicol resistance cassette. In contrast to the fucose-inducible gene expression of the wild-type strain, this mutant demonstrated constitutive, high levels of fucP and dapA expression (Figure 2A). Complementation of the mutant restored inducible gene expression to wild-type levels. A quantitative assessment of gene expression was performed using a SYBR green-based real-time RT-PCR assay, where R represents the log_2_ fucP transcript abundance of the mutant stain compared to the wild-type (Figure 2B).

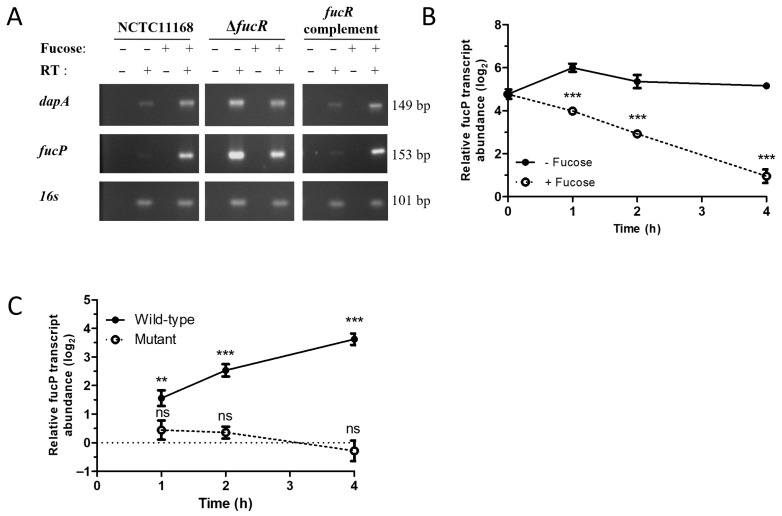

We observed that at the beginning of the experiment (time 0; Figure 2B), the mutant strain had significantly more fucP transcript than the wild-type (R = 4.77 ± 0.21; p = 0.0064). This relative abundance of fucP transcript was maintained throughout the four-hour experiment in cultures that lacked fucose. In contrast, cultures containing fucose resulted in declining R values in a log-linear, time-dependent manner (Figure 2B). This decrease in R values was due to increased transcription of fucP in the wild-type strain in the presence of fucose (Figure 2C). In contrast, transcription of fucP in the mutant was not significantly affected by the presence of fucose at any of the time points measured (Figure 2C). Together, the results indicated that FucR functions as a repressor of the PR2 genes and fucose abolishes this repression. To further elucidate the mechanism by which FucR represses the fucose utilization genes, EMSA was conducted to demonstrate the direct interaction between FucR and the putative promoter region situated immediately upstream of cj0481(dpaA). As demonstrated in Figure 3A, dose-dependent binding of FucR to the promoter DNA resulted in a size shift of the DNA-protein complex band on a polyacrylamide gel under non-denaturing conditions. This shift did not occur with an internal fragment of the dapA (cj0481) gene (Figure 3B), which was used as a negative control. This result demonstrates that FucR binds specifically to the promoter DNA. To examine whether fucose inhibits FucR binding, fucose was added to the EMSA reactions. However, no corresponding loss of shifted band occurred (Figure 3C), indicating that presence of fucose in the in vitro EMSA assay did not affect FucR binding to the target DNA.

3.3. Transcriptome Analysis of the FucR Mutant and Wild-Type Strain Grown with Fucose

Although the results above demonstrate that FucR regulates genes in the PR2 locus, it is unknown if it also modulates the expression of genes outside PR2. Thus, a competitive microarray analysis was conducted to determine the extent of transcriptional regulation by this protein. A comprehensive transcriptome analysis may also provide valuable insights into the mechanism of fucose utilization by analyzing genes that are differentially expressed during growth in the presence of fucose. cDNA from the wild-type strain grown without fucose (reference condition) was co-hybridized with cDNA from either the fucose-grown wild-type strain or the fucR mutant (test conditions).

Comparative hybridization between wild-type and the fucR mutant revealed a restricted number of differentially expressed genes (q-value ≤ 0.05). In all, 16 ORFs were differentially expressed: 2 ORFs were downregulated while 14 ORFs were upregulated (Table 3) in the fucR mutant. Of the 14 upregulated ORFs, 10 belonged to the PR2 locus. As expected, all probes associated with the structural genes of the PR2 locus were upregulated with large fold-change values, indicative of a common regulatory mechanism and consistent with a regulon structure. Non-PR2 ORFs identified as differentially expressed showed smaller fold-change values (log_2_ fold-change range −1.07 to 1.55).

Transcriptome analysis of the wild-type strain grown with fucose identified 31 ORFs as differentially expressed (q-value ≤ 0.05); 13 ORFs, in addition to all 10 PR2 structural genes, were upregulated, while 8 ORFs were downregulated (Table 3). Interestingly, although fucR is within the PR2 locus, it was not identified as differentially expressed by microarray (q-value = 0.70, log_2_ fold-change = −0.03) or qRT-PCR (log_2_ fold-change = 0.31), suggesting that transcription of the regulator is not responsive to growth with fucose. Similar to the fucR mutant transcriptome analysis, fold-change values were smaller for non-PR2 ORFs. Non-PR2 ORFs that were significantly upregulated were associated with protein synthesis and aspartate/glutamate and succinate metabolism, suggestive of carbon assimilation of fucose through the TCA or an amino acid pathway. cstA and cj1548c were confirmed by RT-PCR to be significantly down-regulated at −0.473 and −0.523, respectively. The cstA homolog in E. coli encodes a peptide transporter and is induced by carbon starvation through cAMP levels.

Three ORFs (porA, aspB and cj1064) were up-regulated under both the fucose-grown wild-type and the fucR mutant conditions, suggestive of a common regulatory and/or metabolic mechanism. porA encodes the major outer membrane protein (MOMP), a porin that facilitates the transfer of hydrophilic solutes into the cell [43]. aspB encodes an aspartate aminotransferase, the enzyme that catalyzes the transamination of glutamate and aspartate with its corresponding α-keto acid [44]. cj1064 encodes a possible NAD(P)H nitroreductase; however, the gene appears to have a single base deletion resulting in a frame shift mutation [34]. Investigations into cj1064 have shown that it maintains transcription, which could hint at its continued functionality and was upregulated in response to oxidative stress [45,46].

4. Discussion

The metabolic diversity among isolates of C. jejuni is evidenced by strain-specific growth on glutathione, glutamine, asparagine and fucose [8,9,47]. These strain-specific metabolic capabilities may allow for adaptation to niche specialization in particular environments. Isogenic mutants that are deficient in fucose utilization are at a competitive disadvantage to the wild-type during intestinal colonization in fucose-rich environments. Recent epidemiological studies examined the distribution, host association and relatedness of strains with different metabolic traits. The frequencies of strains that have the genetic capacity to metabolize fucose (fucP^+^) range from 30 to 65% depending on the study and source of isolates [48,49]. These strains appear to be phylogenetically related and demonstrate strong association with livestock species [9,12] and the MLST-21 clonal complex [49].

Fucose utilization by C. jejuni appears to be evolutionarily distinct from other bacteria, as this organism lacks the early genes known to be required for fucose dissimilation. Specifically, homologs necessary for growth on fucose, including the fucose isomerase, kinase, aldolase and 1,2-propanediol oxidoreductase, are not predicted to be encoded by the C. jejuni NCTC 11168 genome. Instead, C. jejuni growth on fucose requires the PR2 locus with fucP-cj0488 necessary for the phenotype [9]. In both pathogenic and commensal bacteria, genes associated with fucose utilization are inducible and under the control of a member of the DeoR family of transcriptional regulators [30,31]. The induction of the fuc regulon in other bacteria occurs either through activation or repression. For example, in E. coli, the FucR-fuculose-1-phosphate complex activates the fucPIKU and fucAO operons [29]. In contrast, FucR in B. thetaiotaomicron functions as a repressor for the fucRIAK regulon, and binding of fucose to FucR inhibits transcriptional repression [31]. Although no DeoR homolog of FucR is found in the C. jejuni NCTC 11168 genome, fucP is induced by fucose. In this study, we demonstrate that fucR (cj0480c), which is transcribed divergently from the structural genes in the PR2 locus (Figure 1A), functions as a repressor for the fucose-utilization genes. Interestingly, although fucR regulates the structural genes necessary for growth on fucose, it shares little amino acid sequence similarity to fucose regulators of other bacteria. Rather, the FucR of C. jejuni NCTC 11168 clusters closely with the IclR family of transcriptional regulators. Residues 7 to 89 of this protein are predicted to form a helix–turn–helix DNA binding motif, suggesting fucR regulates the expression of PR2 structural genes through DNA binding. Indeed, this was demonstrated via EMSA, highlighting the specific and direct interaction of FucR with the promoter DNA (Figure 3). However, the addition of L-fucose to the binding reaction did not result in the release of FucR from the promoter (Figure 3C). The result could be explained in several ways. The EMSA was conducted in a simple mixture of DNA and FucR in vitro, which may not represent the actual environment within bacterial cells, where binding of fucose to FucR might need another helper factor. Alternatively, fucose might not be the actual ligand of FucR. Instead, an intermediate metabolite of fucose could serve as the ligand that binds to FucR and hence releases its inhibition on the expression of the fucose utilization genes.

Under uninduced conditions, cj0481-cj0490 gene expression is significantly higher in the fucR mutant strain than in the wild-type strain, consistent with the notion that FucR functions as a transcriptional repressor in C. jejuni. This result corresponds with data indicating that the deletion of fucR leads to constitutive overexpression of the genes in the PR2 locus (Figure 2 and Table 3) and an increase in fucose uptake [17]. The FucR regulon is almost exclusively restricted to the PR2 locus of the NCTC 11168 genome as identified by microarray transcriptional profiling. Six non-PR2 ORFs were deemed differentially expressed by microarray; however, they could not be independently confirmed by qRT-PCR (Table 3), suggestive of false discovery in the microarray. Consistent with its proximity to the plasticity region, FucR appears to be a specific regulator for the PR2 locus and does not appear to play a role in regulating genes outside of this locus.

Previous investigation of C. jejuni gene expression identified more genes as differentially expressed compared to our current study [8]. This apparent discrepancy may be attributed to different experimental designs. The previous design addressed the question of gene expression when grown on different growth substrates, while our current design addressed gene expression under identical growth conditions with fucose supplementation as the only variable. Whereas the former design would identify differential gene expression due to growth on either pyruvate or fucose, the latter design could only identify genes that are differentially expressed due solely to fucose. Nevertheless, common themes emerged from both studies that may provide insights into the mechanism of fucose utilization in C. jejuni. Firstly, all structural PR2 genes were found to be significantly upregulated under the fucose-grown condition. Upregulation of PR2 was also shown by proteomic analysis [14], indicating the congruence between the gene transcriptional data and the protein production data. Secondly, aspA, aspB, sdhA and sdhB were all significantly upregulated, suggesting aspartate/glutamate and succinate metabolic pathways contribute to C. jejuni growth on fucose. A previous study investigating the metabolic effect of fucose on Campylobacter growth using HPLC analysis also demonstrated increased succinate production along with pyruvate [50]. AspB is involved in the transamination of oxaloacetate and glutamate to aspartate and 2-ketoglutarate. However, the role of aspartate/glutamate transamination in the fucose phenotype is unknown and a second transaminase homolog is also encoded in the C. jejuni genome (cj0150c) [44].

The gene porA was identified as significantly upregulated under both fucose-grown and fucR mutant conditions. PorA is the major outer membrane protein (MOMP) in C. jejuni and facilitates the import of hydrophilic solutes into the cell [43]. This porin is differentially regulated under various growth conditions, including temperature and pH [51]. Fucose potentially enters the cell through this porin; however, the essential function of this protein [52] hinders the creation of specific isogenic mutants needed to test this hypothesis. An alternative strategy to mutagenesis may be the gene-silencing approach used previously [53]. cstA transcriptional expression was confirmed to be downregulated by qRT-PCR (Table 3). In E. coli, CstA likely functions as a peptide transporter during carbon starvation and is transcriptionally activated by cAMP levels through catabolite repression [54,55]. C. jejuni does not possess an adenylyl cyclase homolog (cya) and therefore likely does not exhibit a form of catabolite repression that resembles E. coli. Despite this, C. jejuni may still prioritize utilization of growth substrates. Work by Garber et al. indicated L-serine, L-glutamic acid, and L-aspartic acid reduced L-fucose uptake, while fucP transcription levels were unchanged by the addition of L-serine to the growth medium [17]. This, combined with FucR’s DNA binding being insensitive to the addition of L-fucose, hints at a possibly more complex regulatory system than direct catabolite repression.

In summary, C. jejuni possesses a fucose utilization system under the repression of FucR. This regulation affects the expression of every gene within the PR2 locus and is responsive to the presence of fucose. FucR directly represses the fucose utilization system by binding to the promoter sequence immediately preceding the PR2 operon, and deletion of fucR allowed for constitutive expression of the PR2 genes. Although the expression of the PR2 genes is responsive to fucose, FucR’s DNA binding was not inhibited by fucose when tested via EMSA, suggesting that fucose might not directly interact with FucR. How fucose releases the repression of FucR remains to be determined in future studies.
