Integrated Transcriptome and Metabolome Analyses Reveal the Roles of MADS-Box Genes in Regulating Flower Development and Metabolite Accumulation in Osmanthus fragran

TL;DR

This study explores how MADS-box genes in Osmanthus fragrans influence flower development and the production of important metabolites.

Contribution

The study identifies MADS-box genes in Osmanthus fragrans and links them to flower development and metabolite accumulation through multi-omics analysis.

Findings

107 MADS-box genes were identified in the Osmanthus fragrans genome, classified into five subfamilies.

78 OfMADS genes showed differential expression across six floral developmental stages, with 16 being flower-specific.

Integrated metabolome analysis revealed strong correlations between OfMADS regulators and scent metabolites.

Abstract

The MADS-box transcription factors play essential roles in various processes of plant growth and development. Here, we identified 107 MADS-box genes in Osmanthus fragrans Lour. genome (OfMADS), encoding proteins ranging from 61 to 608 amino acids. Phylogenetic analysis classified these genes into five subfamilies: MIKC*, MIKCC, Mα, Mβ, and Mγ, with conserved motif architectures within subfamilies. Tandem and whole-genome duplications were identified as key drivers of OfMADS expansion. Cis-regulatory element analysis revealed enrichment for hormone response and developmental regulatory motifs, implicating roles in growth and flowering processes. Transcriptome dynamics across six floral developmental stages (bolting to petal shedding) uncovered 78 differentially expressed OfMADS genes, including 16 exhibiting flower-specific expressions. Integrated metabolome profiling demonstrated robust correlations between critical OfMADS regulators and scent metabolites. This nexus suggests a potential role of these OfMADS in regulating specialized metabolite biosynthesis pathways. Our multi-omics study provides insights into the regulatory hierarchy of OfMADS in coordinating floral morphogenesis and the accumulation of economically significant metabolites in O. fragrans. These findings establish a foundation for subsequent functional validation and molecular breeding of horticultural traits.

Figures

Full text

1. Introduction

The MADS (Mcm1/Agamous/Deficiens/Srf)-box transcription factor gene family defined by the conserved 58–60 amino acids MADS domain (derived from initials of four transcription factors that were first discovered of this family: MINICHROMOSOME MAINTENANCE 1 (MCM1), AGAMOUS (AG), DEFICIENS (DEF), and SERUM RESPONSE FACTOR (SRF)), represents a pivotal class of transcription factors with ubiquitous distribution across eukaryotes, particularly in the processes of floral organ differentiation, regulation of flowering time, and fruit development and ripening in angiosperms [1,2,3,4,5,6,7,8,9,10,11].

Phylogenetic analyses categorize MADS-box genes into two primary types: type I (subdivided into Mα, Mβ, and Mγ subgroups) and type II (referred to as MIKC-type genes) [5]. MIKC genes are further categorized into MIKCC-type and MIKC* type genes, with the former being the most extensively studied due to their essential roles in plant growth and development [5,12,13,14,15,16,17,18]. Structurally, MIKCC-type genes form the backbone of the ABCDE model of floral organ identity, where combinatorial interactions of A-, B-, C-, D-, and E-class genes specify the development of sepals (A + E), petals (A + B + E), stamens (B + C + E), carpels (C + E), and ovules (C + D + E) [19,20,21,22,23,24,25,26,27]. Beyond floral organogenesis, MIKCC-type genes also regulate flowering time and root development, underscoring their functional diversity [20,28,29,30,31,32,33]. In Arabidopsis thaliana, this model includes several well-characterized genes: APETALA1 (AP1), an A-class gene, is expressed in sepals and petals [29]; PISTILLATA (PI) and APETALA3 (AP3), classified as B-class genes, are expressed in petals and stamens [30]; the C-class gene AGAMOUS (AG) is expressed in stamens and carpels [31]; the D-class gene AGAMOUS-LIKE 11 (AGL11), also known as SEEDSTICK (STK), is expressed in ovules [32]; and E-class genes, including SEPALLATA1 (SEP1), SEP2, SEP3, and SEP4, are expressed across all four floral whorls [32,33].

O. fragrans, a renowned ornamental and aromatic woody plant, holds significant horticultural value due to its fragrant flowers and diverse floral traits [34,35,36]. In recent years, studies on O. fragrans MADS-box genes have uncovered species-specific regulatory mechanisms that extend beyond conserved models [37,38,39,40]. For example, Li et al. (2023) identified a novel flowering regulation strategy involving transcript isoform competition: key flowering genes OfAPETALA1 (OfAP1) and OfTERMINAL FLOWER 1 (OfTFL1) produce alternative isoforms that compete for binding partners to either promote or delay flowering [36]. Wang et al. (2022, 2024) demonstrated that OfBFT (BROTHER OF FT AND TFL1)-a and OfBFT-b are essential for flower formation in O. fragrans [37,38]. Additionally, Zeng et al. (2021) cloned and functionally validated PISTILLATA/GLOBOSA-like1 (OfGLO1) could reduce stamen length, and lower seed set, confirming its conserved role in specifying stamen and petal identities [39].

The identification and characterization of MADS-box genes are of great significance for investigating flowering time regulation and flower organ development in plant species; yet, current research on MADS-box genes in O. fragrans is largely confined to the functional analysis of a limited number of key members [40,41,42,43]. We conducted a comprehensive genome-wide analysis of the MADS-box gene family in O. fragrans ‘Liuye Jingui’, a widely cultivated genotype valued for its intense fragrance and ornamental flowers [35]. The findings will advance our understanding of MADS-box gene evolution and function in woody plants and lay a critical foundation for molecular breeding of O. fragrans traits with horticultural and economic significance.

2. Materials and Methods

2.1. Data Sources and Identification of MADS-Box Genes in Osmanthus fragrans

The genome data of Osmanthus fragrans were obtained from the Osmanthus fragrans database (https://yanglab.hzau.edu.cn/OfIR/download/, accessed on 19 May 2025) [35]. Protein sequence of Arabidopsis thaliana (L.) Heynh., Oryza sativa L., Malus domestica Borkh., and Vitis vinifera L. were downloaded from TAIR, RGAP and Phytozome, respectively [44,45,46]. The hidden Markov Model (HMM) file of PF00319 was acquired from InterPro database [47]. Subsequently, HMMER 3.0 was used to identify potential MADS-domain proteins in above file species (E-value ≤ 1 × 10^−5^, similarity > 50%). To enhance search proteins, a novel HMM was constructed using the hmmbuild program [48]. Concurrently, BLASTP was conducted using AtMADS and OsMADS protein sequences as references (E-value ≤ 1 × 10^−5^, similarity > 50%) [49]. Candidate MADS proteins were further validated for the presence of conserved domains were using Pfam-scan (v30.0) software. Finally, the R package SeqFinder (v0.1) (https://github.com/yueliu1115/seqfinder, accessed on 19 May 2025) was used to select and retain the longest transcript isoform.

2.2. Phylogenetic Analysis of OfMADS Genes

Muscle (v3.8.1551) software was used to perform multiple sequence alignment of the OfMADS, AtMADS, OsMADS, MdMADS, and VvMADS proteins [50]. Subsequently, we constructed a phylogenetic tree using IQ-TREE (v2.0.3) employing the maximum likelihood (ML) method with bootstrap values derived from 1000 replicates, and visualized the tree using the R package ggtree (v3.10.0) [51,52].

2.3. Domain, Gene Structures, Conserved Motifs Analysis of OfMADS Genes

Domain and positional information were determined utilizing the Pfam-Scan software with Pfam database [53]. Conserved motifs were analyzed by MEME (v5.1.1) software with the maximum number of 15 and optimum widths of 30–100 amino acids, with subsequent extraction performed by Python (v3.13.3) scripts [54]. The exon and intron locations of OfMADS genes were derived from GFF3 annotation files. Visualization of domains, conserved motifs and gene structures were accomplished using the R package ggtree (v3.10.0) and gggenes (v0.5.2) (https://github.com/wilkox/gggenes, accessed on 19 May 2025).

2.4. Analysis of Chromosome Distribution, Gene Duplication Events, and Selection Pressure

The chromosomal distribution of OfMADS genes was determined using the GFF3 annotation file. Gene duplication and collinearity analyses were conducted with the MCScanX (v.transposed) software, which identified the duplication types, including tandem duplications (TD) and whole genome duplications (WGD) [55]. For the analysis and visualization of inter-species collinearity, the JCVI (v1.5.4) software was employed. The alignment of protein sequences and coding sequences (CDS) of MADS genes with gene duplication wes performed using ClustalW (v2.1) software [56]. Furthermore, the KaKs_Calculator (v2.0) software was utilized to compute the synonymous substitution rate (Ks), nonsynonymous substitution rate (Ka), and the evolutionary ratio (Ka/Ks) between duplicate gene pairs of MADS-box genes [57].

2.5. Analysis of Cis-Elements in the Promoter of OfMADS Genes

The 2 kb promoter region sequences located upstream of the OfMADS gene were extracted using a Python program and subsequently submitted to the PlantCare database (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 19 May 2025) for prediction of cis-regulatory elements [58]. The results were comprehensively visualized using the R packages ggtree and gggenes (https://github.com/wilkox/gggenes, accessed on 19 May 2025).

2.6. OfMADS Protein Interaction Network Analysis

The protein–protein interaction (PPI) network of OfMADS proteins was predicted utilizing the AraNet2 (https://www.inetbio.org/aranet/, accessed on 19 May 2025) database, with the analysis restricted to interactions exhibiting weight scores > 4. Functional annotation of all proteins within the PPI network was performed using the EggNOGmapper (http://eggnog-mapper.embl.de/, accessed on 19 May 2025) database [49,59]. The network visualization was conducted employing the R package ggraph (v2.2.1) (https://github.com/thomasp85/ggraph, accessed on 19 May 2025).

2.7. Total RNA Extraction and RNA-Seq

Roots, stems, leaves, and flowers of O. fragrans ‘Liuye Jingui’ were collected from the Huazhong Agricultural University campus (30°29′ N, 114°21′ W). For flowering stage-specific samples, tissues were harvested at six distinct phases: bolting stalk stage, early flowering stage, pre-flowering stage, full flowering stage, post-flowering stage, and shedding stage, with three biological replicates per stage [35]. All samples were immediately frozen in liquid nitrogen after collection and stored at −80 °C until RNA extraction. Total RNA was isolated using the RNAprep Pure Plant Kit (Tiangen, Beijing, China) following the manufacturer’s protocol. RNA quality and integrity were assessed using a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) and agarose gel electrophoresis, with only RNA samples exhibiting an RNA Integrity Number (RIN) ≥ 8.0 used for subsequent analysis. cDNA libraries were constructed using the TruSeq Stranded Total RNA Library Prep Kit (Illumina, San Diego, CA, USA) and sequenced on the Illumina NovaSeq 6000 platform (Illumina, San Diego, CA, USA). Clean reads were aligned to the O. fragrans reference genome using Hisat2 (v2.2.0), and transcript assembly was performed with StringTie (v2.1.5). Gene expression levels were quantified as Fragments Per Kilobase of transcript per Million mapped reads (FPKM) using FeatureCounts (v1.6.4).

2.8. Metabolomics and Data Analysis

Widely targeted metabolomics analysis was performed on three independent biological replicates of O. fragrans samples collected at six flowering stages: bolting stalk stage, early flowering stage, pre-flowering stage, full flowering stage, post-flowering stage, and shedding stage. All samples were immediately frozen in liquid nitrogen after collection, followed by freeze-drying using a vacuum freeze-dryer. The freeze-dried samples were ground into powder using a tissuelyser (64L, Jingxin, Shanghai, China) with zirconia beads at 50 Hz for 1 min. Metabolite extraction was carried out by weighing 100 mg of powder into 1.2 mL of 70% aqueous methanol. The mixture was vortexed for 30 s every 30 min, totaling 6 times, and then stored in a 4 °C refrigerator overnight. After centrifugation at 12,000 rpm for 10 min, the supernatants were filtered through a 0.22 μm pore size filter prior to UPLC-MS/MS analysis. The UPLC separation was performed on an Agilent SB-C18 column (1.8 μm, 2.1 mm × 100 mm, Santa Clara, CA, USA) with an injection volume of 2 μL, a flow rate of 0.4 mL/min, and a column temperature of 40 °C. The mobile phases consisted of water containing 0.04% acetic acid (phase A) and acetonitrile containing 0.04% acetic acid (phase B), with a gradient elution program: 5% B to 95% B over 11 min, maintaining 95% B from 11 to 12 min, decreasing to 5% B from 12 to 12.1 min, and holding 5% B from 12.1 to 14 min. Mass spectrometry detection was conducted using a system equipped with linear ion trap (LIT) and triple quadrupole (QQQ) scans. The ion spray voltages were set to 5500 V (positive ion mode) and 4500 V (negative ion mode). Other MS parameters were as follows: gas source I (GSI) = 50 psi, gas source II (GSII) = 60 psi, curtain gas (CUR) = 25 psi, and source temperature = 550 °C. Qualitative analysis of metabolites was performed by matching primary and secondary mass spectral data against the self-built MetWare (https://cloud.metware.cn/, accessed on 19 May 2025) database and public metabolite databases. Quantitative analysis was carried out using multiple reaction monitoring (MRM) mode.

2.9. Correlation Analysis

To quantify the relationships between OfMADS gene expression (transcriptome data) and metabolite accumulation (metabolome data), Pearson correlation analysis was performed using the R package ‘corrplot’ (v0.92). The correlation coefficient (r) and statistical significance (p-value) were calculated for each gene-metabolite pair. Pairs with |r| > 0.8 and p < 0.05 were defined as “strongly correlated” and retained for subsequent analysis.

3. Results

3.1. Genome-Wide Identification of the OfMADS Genes

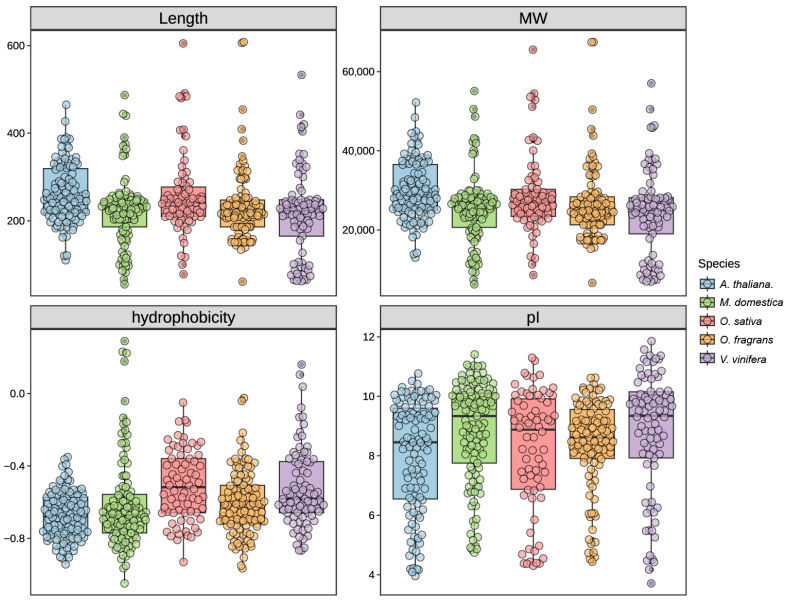

In this study, a comprehensive analysis of five plant genomes revealed a total of 478 MADS-domain genes, with each genome containing between 70 and 113 genes. Specifically, 107 in A. thaliana, 113 in M. domestica, 70 in O. sativa, 107 genes were identified in O. fragrans, and 81 in V. vinifera, utilizing both HMMER (v3.2.1) and BLAST (v2.9.0+) software. Following the identification of these gene members, we conducted a detailed characterization of each candidate’s sequence attributes, including sequence length, molecular weight, theoretical isoelectric point (pI), and hydrophobicity (Figure 1, Supplementary Data S1). The predicted MADS proteins exhibited a range of 55 to 608 amino acids, molecular weights spanning 6.2 to 67.4 kDa, and theoretical pI values between 3.71 and 11.86. Additionally, the mean hydrophobicity indices of these proteins varied from −1.05 to 0.29. These results indicate that MADS-box genes perform various important functions in different plants.

3.2. Phylogenetic Analysis of the OfMADS

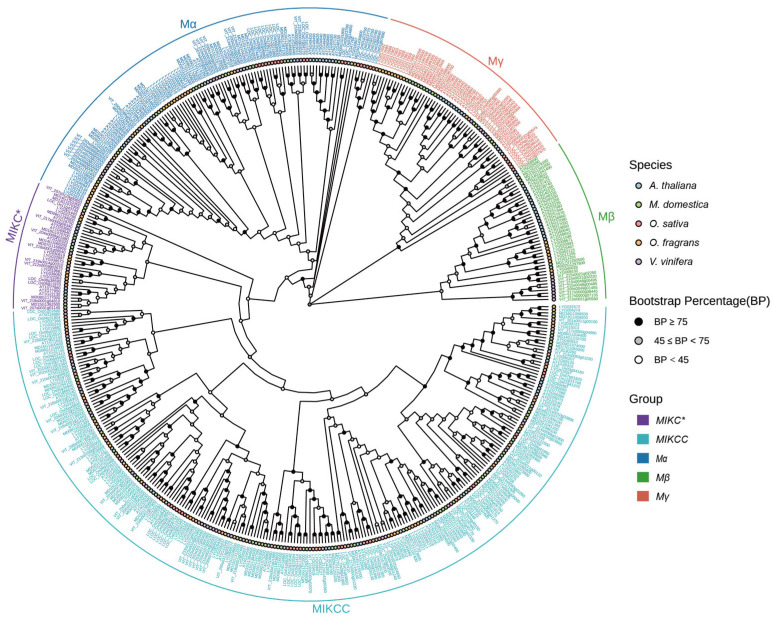

To elucidate the phylogenetic relationships of OfMADS proteins, a comprehensive phylogenetic tree was constructed utilizing 478 MADS-domain sequences. The analysis delineated five distinct subgroups: MIKC* (23 members), MIKCC (238 members), Mα (108 members), Mβ (43 members), and Mγ (55 members), with MIKCC emerging as the most expansive lineage (Figure 2), indicative of its evolutionary proliferation. Notably, with the exception of O. sativa, the member counts within the MIKC*, Mβ, and Mγ subgroups remained relatively stable across the other four species, underscoring significant divergence between dicots and monocots and suggesting that these subgroups may have evolved distinct functional roles during dicot flower development. Conversely, the MIKCC subgroup demonstrated only minor variations in member counts across all five species, suggesting a conserved functional role for this lineage. To substantiate the multi-species phylogeny, a phylogenetic tree was reconstructed solely utilizing OfMADS protein sequences. The topology and subgrouping observed in the Osmanthus fragrans-specific tree were entirely consistent with those obtained from the multi-species analysis, thereby corroborating the precision of our phylogenetic inference (Supplement Figure S1).

3.3. Conserved Motifs, Conserved Domain and Gene Structure of the OfMADS

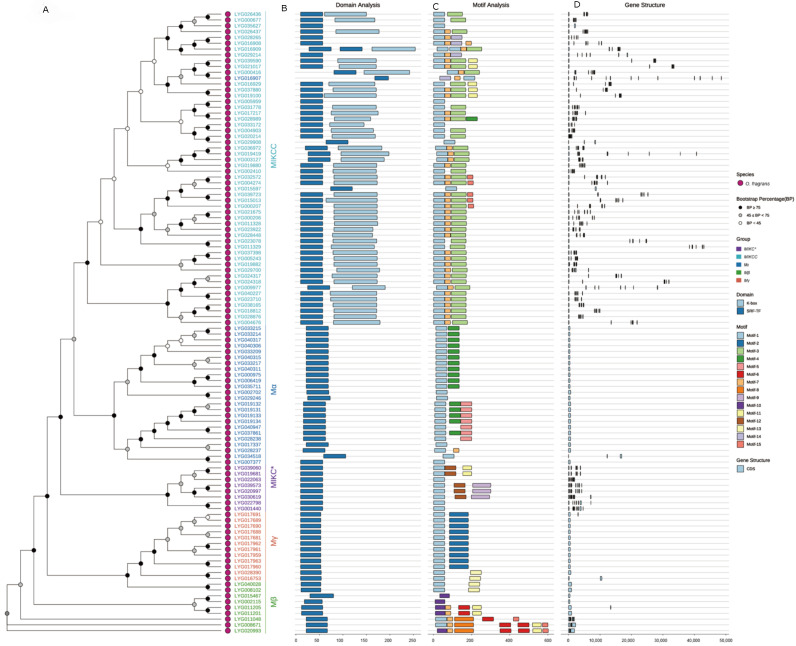

The diversity of protein and gene architectures offers crucial insights into the evolutionary pathways of gene families. In line with this, a systematic analysis was conducted on the conserved domains, protein motifs, and gene structures of the OfMADS members (Figure 3A). Domain annotation revealed that all OfMADS proteins possess at least one K-box domain, whereas the SRF-TF domain is restricted to the MIKCC subgroup, suggesting an expanded functional repertoire. Conversely, the Mα, Mβ, Mγ, and MIKC* subfamilies each contain only the K-box domain, indicating a closer evolutionary relationship among these four lineages (Figure 3B).

Conserved motifs play a crucial role in protein functionality. Through the application of the MEME suite, we identified 297 motif occurrences within 107 OfMADS proteins, which were consolidated into 15 consensus types (Motif-1–15). Notably, Motif 1 is present in nearly all OfMADS proteins, serving as a defining characteristic of the family. Additionally, certain motifs are confined to specific subgroups: Motif-3 in MIKCC, Motif-4 in Mα, Motif-5 in a subset of Mα, Motif-12 in MIKC*, Motif-6 in Mβ, and Motif-2 in Mγ. This specificity highlights both their high degree of conservation and their utility in delineating subgroup boundaries (Figure 3C). These subgroup-specific motifs likely contribute to the distinct biological functions of each lineage.

Gene structure analysis revealed that OfMADS genes contain between one and fourteen exons, with LYG016907 has the maximum of 14 exons, while members of the Mα subfamily predominantly exhibit a single-exon architecture, whereas the MIKCC and MIKC* subfamilies generally display more complex exon-intron organizations. Even among genes with the same number of exons, there is considerable variation in exon lengths and arrangements. Furthermore, genes that are phylogenetically clustered tend to have more similar gene structures and overall lengths (Figure 3D).

3.4. Gene Location and Gene Duplication Events Analysis of OfMADS Genes

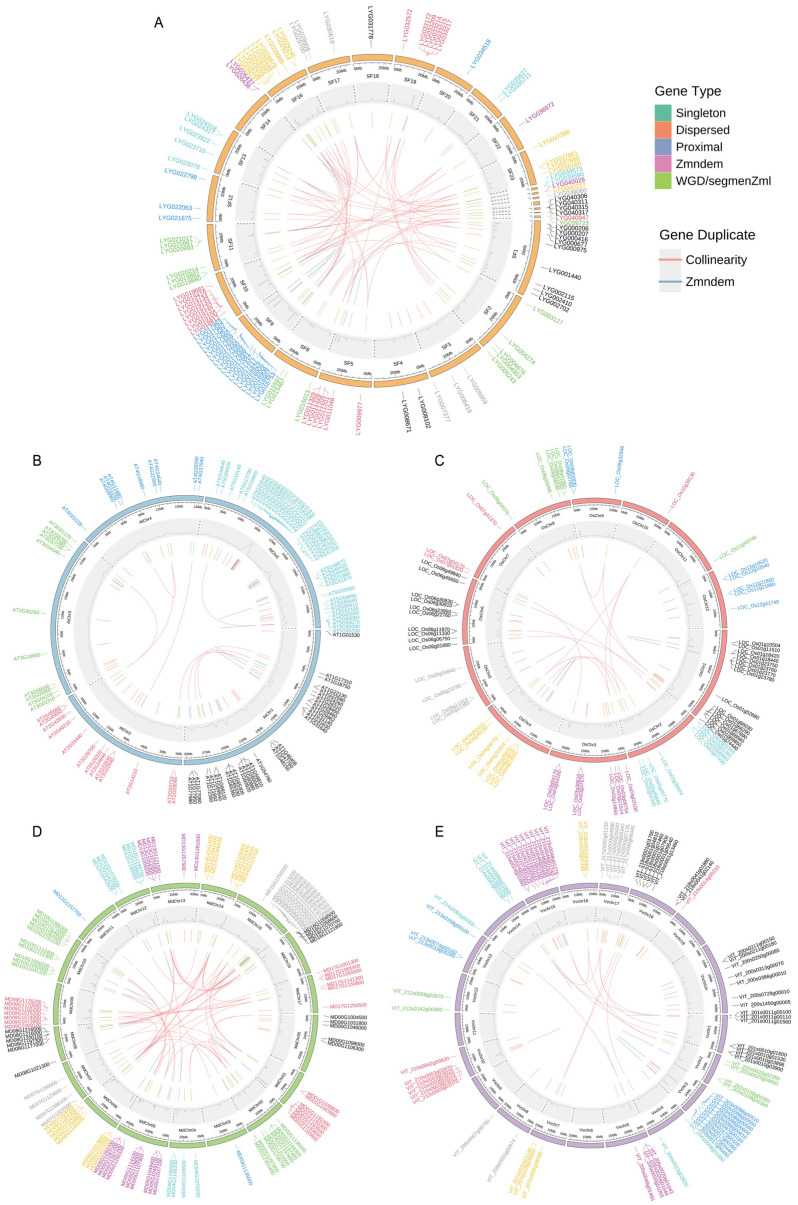

To determine the chromosomal distribution of OfMADS genes, we extracted their physical locations from the GFF annotation file. A total of 96 OfMADS genes were allocated to scaffolds 1–17, while 11 genes (LYG039573–LYG040947) were mapped to unanchored fragments (Figure 4). Although each primary scaffold of O. fragrans contains OfMADS loci, their distribution is notably uneven: Superscaffold 9 contains the largest number of genes (59 genes), followed by superscaffold 1 (52 genes), whereas superscaffolds 3, 20, and 21 each harbor only three genes (Figure 4). Tandem duplication (TD) and whole-genome duplication (WGD) are the primary mechanisms driving gene-family expansion. In O. fragrans, A. thaliana, O. sativa, M. domestica, and V. vinifera, we identified 19, 4, 5, 13, and 8 TD events, respectively, along with 60, 9, 15, 66, and 13 WGD events. These duplicated genes constitute 86.9%, 22.4%, 42.9%, 82.3%, and 40.7% of the total MADS-box repertoire in the five species (Figure 4A–E). Collectively, these findings suggest that WGD has been the predominant driver of MADS-box gene family expansion, with TD also playing a significant role in the evolutionary process of these species.

Additionally, the Ka, Ks, and Ka/Ks ratios for all duplicated MADS-box gene pairs were calculated using the KaKs_Calculator to evaluate the selective pressures experienced during gene duplication events (Supplement Figure S2). In O. fragrans, the gene pairs LYG017689–LYG017688 and LYG030632–LYG021017 exhibited Ka/Ks ratios greater than 1; similarly, in O. sativa, the pair LOC_Os01g23770–LOC_Os01g23760, and in Malus domestica, the pair MD08G1197300–MD08G1197200 also surpassed this threshold (Ka/Ks = 1). All other duplicated gene pairs demonstrated Ka/Ks ratios less than 1, suggesting that purifying selection has been the predominant force acting on the MADS-box gene family. The four gene pairs with Ka/Ks ratios exceeding 1 are likely subject to positive selection, highlighting their potential importance in the evolutionary processes of these species.

3.5. Duplicated Gene Analysis

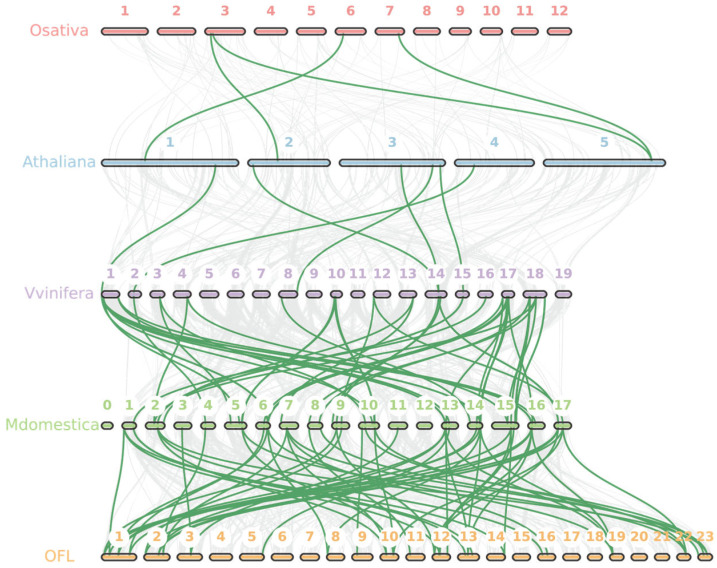

To elucidate the evolutionary dynamics of the MADS-box gene family across the five species under investigation, we conducted an interspecific synteny analysis. The syntenic blocks were predominantly located on scaffolds 1, 2, 10, 12, 13, and 23 of O. fragrans (Figure 5). Our analysis identified six syntenic MADS-box gene pairs between A. thaliana and V. vinifera, 59 pairs between M. domestica and O. fragrans, 52 pairs between V. vinifera and M. domestica, and only 4 pairs between O. sativa and A. thaliana (Figure 5). These conserved loci likely originate from a common ancestor. Notably, the dicot species—M. domestica, O. fragrans, and V. vinifera—exhibit extensive synteny, with more than 50 gene pairs, whereas the monocot O. sativa and the dicot A. thaliana share very few syntenic pairs (four pairs). This pattern highlights a closer evolutionary relationship and conserved functional roles of MADS-box genes among dicots, particularly in relation to floral development and flowering processes.

3.6. Analysis of Promoter Elements

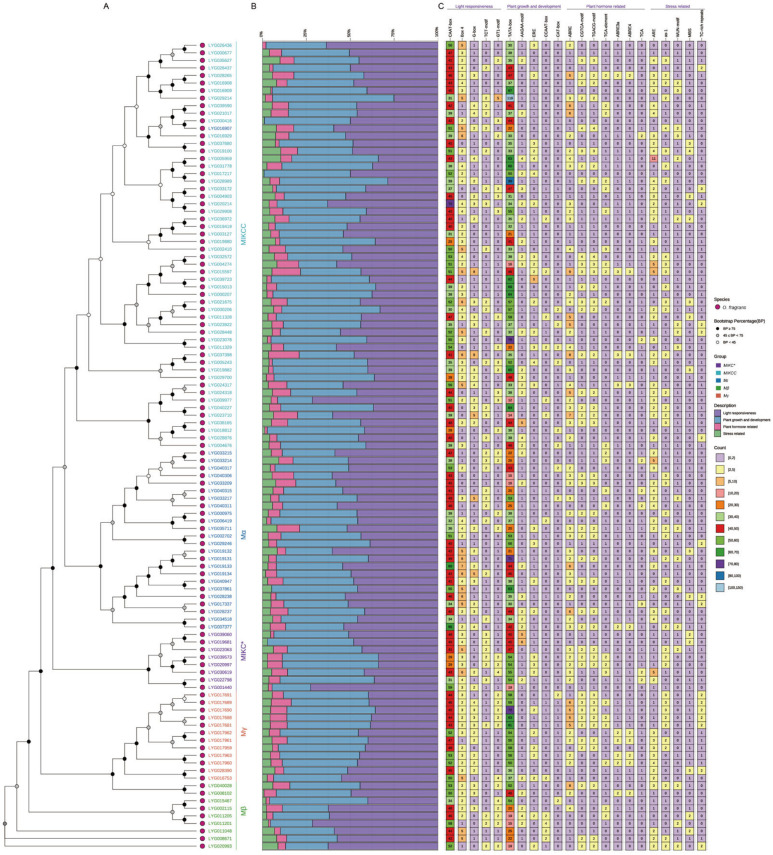

Gene transcription is modulated through the interaction between cis-acting elements and transcription factors. In order to investigate the potential roles of OfMADS family members in the growth, development, and responses of O. fragrans to hormonal, biotic, and abiotic stimuli, we employed the PlantCARE online tool to predict cis-acting elements within the 2.0 kb promoter region upstream of each MADS-box gene. Our analysis identified a total of 22 distinct types of elements (Figure 6A), categorized as follows: five light-responsive elements, including the CAAT-box, Box-4, G-box, TCT-motif, and GT1-motif; five growth- and development-related elements, namely the TATA-box, AAGAA-motif, ERE, CCAAT-box, and CAT-box; seven hormone-responsive elements, which are ABRE, CGTCA-motif, TGACG-motif, TCA-element, ABRE3a, ABRE4, and TCA; and five stress-responsive elements, including ARE, as-1, WUN-motif, MBS, and TC-rich repeats.

Quantitative analysis revealed that light- and development-related elements are the most prevalent in OfMADS promoters, followed by hormone-responsive elements, with stress-responsive elements being the least common (Figure 6B). Within the light-responsive elements, the CAAT-box was the most frequently occurring, followed by Box-4. In terms of development-related elements, the TATA-box was the most prevalent, followed by the AAGAA-motif. This distribution pattern was consistently observed across all members of the MADS-box family (Figure 6C). These findings suggest that OfMADS promoters are evolutionarily enriched with elements that regulate light and growth/development, indicating a significant role for MADS proteins in facilitating light-dependent regulation during the growth and development of O. fragrans.

3.7. Interaction Network of MADS-Box Proteins

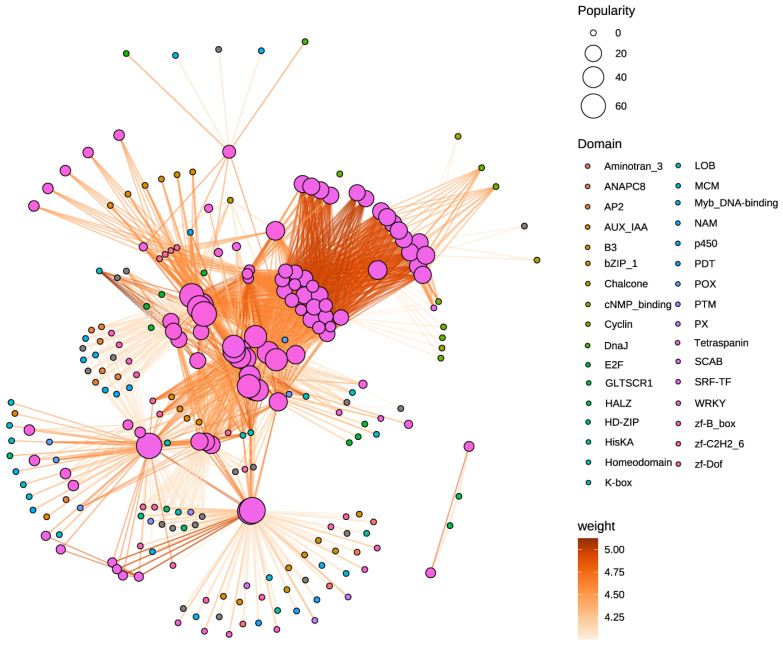

To further elucidate the functions and regulatory network of the MADS-box gene family in O. fragrans, we conducted a prediction and construction of its protein–protein interaction (PPI) network (Figure 7). This PPI network included 245 proteins. Network analysis revealed extensive intrafamily interactions among MADS proteins, indicating functional synergy and providing new insights into their specificity and redundancy within particular biological pathways or cellular processes.

Furthermore, MADS-box proteins were found to interact with several transcription factors, including B3, SCAB, WRKY, and MYB. Previous studies have demonstrated that the WRKY and MYB families play pivotal roles in plant growth, development, and floral organogenesis, suggesting that MADS-box, WRKY, and MYB may cooperatively regulate flower development in O. fragrans. These findings lay a robust foundation for subsequent functional validation and mechanistic investigation, highlighting their significant research value.

3.8. GO and KEGG Enrichment Analysis of the OfMADS Genes

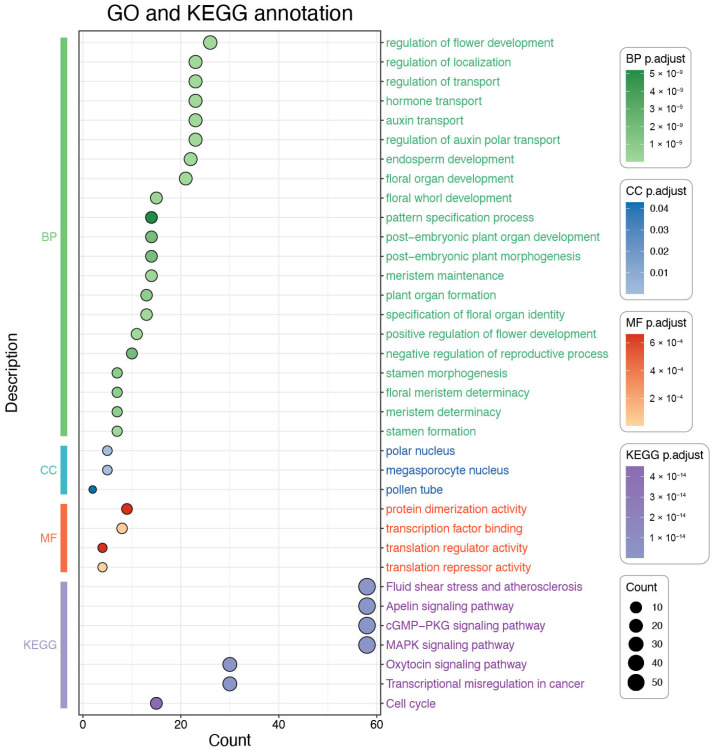

To further investigate the biological functions associated with OfMADS genes, we conducted Gene Ontology (GO) and KEGG pathway enrichment analyses on a set of 107 OfMADS genes (Figure 8). The GO terms were categorized into three distinct groups: biological processes (BP), cellular components (CC), and molecular functions (MF). Within the BP category, OfMADS genes exhibited significant enrichment in processes such as the regulation of flower development, regulation of localization, hormone transport, auxin transport, and floral organ development. In the CC category, notable enrichment was observed in the polar nucleus, megasporocyte nucleus, and pollen tube. For the MF category, the enriched functions included protein dimerization activity, transcription factor binding, translation regulator activity, and translation repressor activity. The KEGG pathway analysis identified significant enrichment in pathways related to fluid shear stress and atherosclerosis, the MAPK signaling pathway, the Apelin signaling pathway, and the cell cycle. Collectively, these findings suggest that OfMADS genes are predominantly involved in flower development, hormone transport, and signal transduction, indicating their potential critical roles in the developmental processes of O. fragrans.

3.9. Transcriptome Data Analysis of Different Tissues

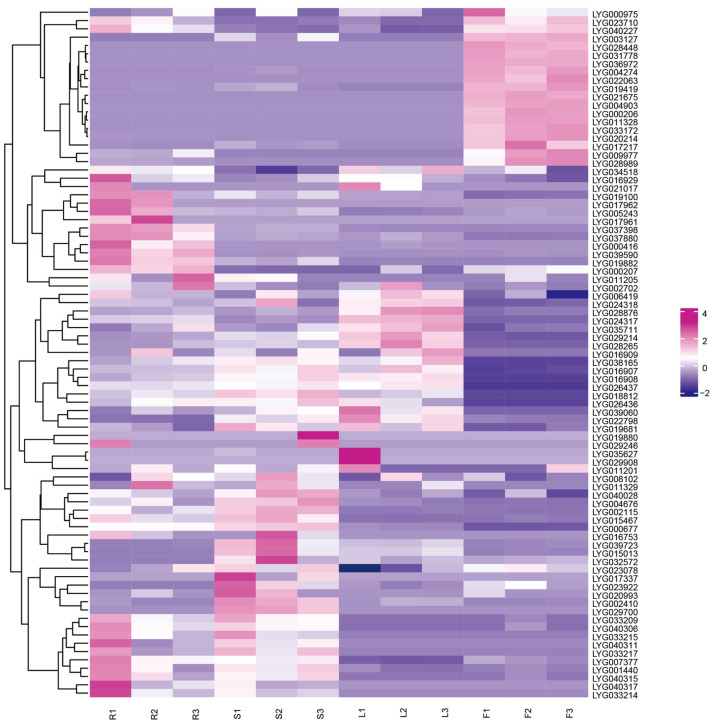

To investigate the roles of MADS-box genes in different tissues, the transcriptional levels of 83 MADS-box genes in roots, stems, leaves, and flowers were visualized via a heatmap. The results revealed that 19 genes were highly expressed in flowers, among which 16 genes (i.e., LYG000206, LYG003127, LYG004274, LYG004903, LYG009977, LYG011328, LYG017217, LYG019419, LYG020214, LYG021675, LYG022063, LYG028448, LYG028989, LYG031778, LYG033172, and LYG036972) exhibited specific high expression exclusively in flowers (Figure 9). Additionally, all these genes are enriched with CAAT-box and TATA-box, suggesting that they may be involved in the flowering process or reproductive processes of flowers (Figure 6).

3.10. Transcriptome Analysis of Different Flowering Stages

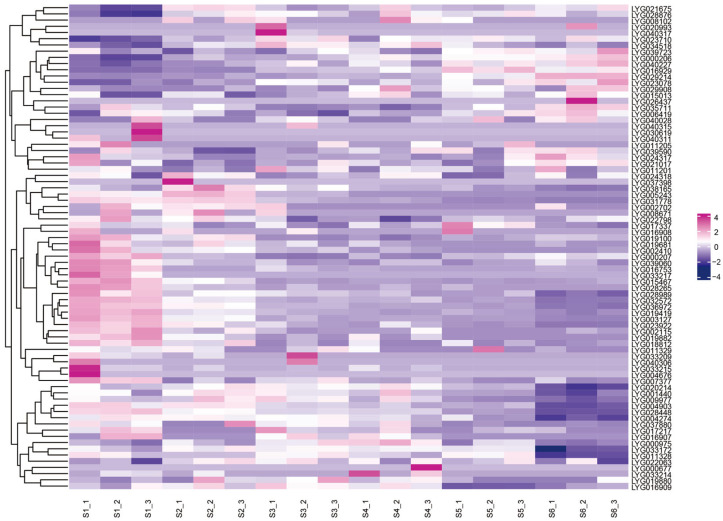

To further identify genes associated with the flowering process, we analyzed the transcriptome profiles of O. fragrans across six flowering stages, namely the bolting stalk stage, early flowering stage, pre-flowering stage, full flowering stage, post-flowering stage, and shedding stage (Figure 10). A total of 78 genes showed differential expression across different flowering stages (Figure 10).

These 78 genes could be roughly classified into four groups: the first group exhibited a continuously upregulated trend throughout the entire flowering process; the second group showed a trend of first decreasing and then increasing during flowering; the third group displayed a continuously downregulated trend over the whole flowering period; and the fourth group presented a trend of first increasing and then decreasing during flowering (Figure S3; Table S2). Among them, 16 flower-specific highly expressed genes showed differential changes across the six flowering stages: LYG000206 presented a continuous upward trend; LYG003127, LYG004903, LYG019419, LYG028448, LYG028989 and LYG004274 showed a continuous downward trend; LYG022063, LYG020214, LYG009977, and LYG004903 exhibited a trend of first increasing and then decreasing; LYG017217 and LYG011328 displayed a trend of first decreasing, then increasing, and then decreasing again (Figure 10).

This indicates that different MADS-box genes play distinct roles in the flowering process, and, in particular, the genes that first increase and then decrease during flowering may be closely related to floral scent, flower color, and other traits.

3.11. Integrated Transcriptome and Metabolome Analysis of Different Flowering Stages

To further investigate the physiological mechanisms underlying different flowering stages of O. fragrans, we also performed metabolite detection on samples across six flowering stages, with a total of 531 metabolites detected (Figure S3). Subsequently, we calculated the correlations between MADS-box genes and 531 metabolites, screening for metabolites with a correlation coefficient greater than 0.8, which ultimately yielded 1749 strongly correlated metabolite-gene pairs (Table S3). Among these, 49 MADX-BOX showed strong correlations with metabolites and 262 metabolites showed strong correlations with MADX-BOX genes, LYG003127 with 106 metabolites, LYG028448 with 102 metabolites, LYG019419 with 99 metabolites, LYG004903 with 53 metabolites, LYG009977 with 8 metabolites and LYG020214 with 22 metabolites.

Notably, these genes contain multiple CAAT-box and TATA-box binding domains, are specifically highly expressed in flowers, and are correlated with multiple metabolites such as diosmetin and jasmonic acid which generate volatile aldehydes/ketones and regulates terpene biosynthesis in O. fragrans.

4. Discussion

MADS-box transcription factors are significant regulatory elements that are ubiquitously present and highly conserved across eukaryotic organisms, and they have been demonstrated to play a pivotal role in plant growth and development [60,61,62,63,64]. In recent years, the biological functions of MADS-box genes in floral development have garnered increasing attention from plant biologists [65,66,67,68]. As a pivotal class of transcription factors, MADS-box genes are integral to the regulation of floral organ differentiation, flowering time, and reproductive development [69,70,71]. Prior research has demonstrated considerable variation in the number of MADS genes among plant species, likely attributable to factors such as genome size, polyploidy events, and species-specific developmental requirements [5,17,34,60]. Notably, 107 MADS-box genes have been identified in O. fragrans with an uneven chromosomal distribution, with some gene clusters localized to specific chromosomal regions, suggesting that gene duplication events may have contributed to their expansion. In comparison to model organisms such as A. thaliana and O. sativa, the MADS-box gene families are typically more abundant in dicotyledonous species than in monocotyledonous species. For example, both A. thaliana and M. domestica possess a greater number of MADS-box genes than O. sativa, suggesting that this gene family has experienced more extensive expansion in dicots [33,72]. This expansion may be attributed to the more intricate floral structures and varied reproductive strategies observed in dicots [73].

This study identified multiple OfMADS genes closely associated with floral development, and their functions exhibit both conservation and divergence compared to previously characterized floral development-related MADS-box genes in O. fragrans and other species. On the one hand, several OfMADS genes share conserved roles with known floral regulators: for example, the flower-specific highly expressed genes LYG003127, LYG028448, and LYG019419—enriched with CAAT-box and TATA-box elements—show expression patterns and cis-regulatory features consistent with the B-class gene OfGLO1 identified by Zeng et al. (2021) [39]. Both OfGLO1 and these newly identified OfMADS genes are highly expressed in floral organs and implicated in floral organ identity, reflecting conservation of B-class gene functions in specifying stamen and petal development. Similarly, LYG004903 and LYG022063, which exhibit a “first increasing then decreasing” expression trend across flowering stages, share functional similarity with OfAP1-a, a gene that modulates floral transition and petal number in O. fragrans ‘Sijigui’—as both are involved in coordinating floral maturation processes [40].

The pronounced disparities in MADS-box gene copy numbers between monocots and dicots imply divergent evolutionary pathways and functional adaptations of this gene family within these two groups. Moreover, a comparative analysis of the ancient tetraploid Vitis vinifera and other dicotyledonous species, such as O. fragrans, A. thaliana, and M. domestica, demonstrated that these latter species possess a greater number of MADS-box genes than grapevine. This observation suggests that the MADS-box gene family has undergone further expansion throughout the evolution of dicots [74,75,76]. Collectively, these findings not only emphasize the pivotal role of MADS-box genes in influencing plant morphology but also highlight their functional adaptability in enabling plants to thrive in diverse ecological environments and reproductive contexts.

The cis-acting element analysis of the promoter regions of Osmanthus fragrans MADS-box genes demonstrated a significant enrichment of CAAT-box elements, which are associated with light responsiveness, and TATA-box elements, which are involved in fundamental transcriptional activity and plant growth and development. These results imply that the expression of O. fragrans MADS-box genes may be modulated by light signals and could play a role in the precise regulation of developmental processes at the transcriptional level. Further predictions regarding protein–protein interactions indicated that Osmanthus fragrans MADS-box proteins have the potential to interact with various key regulatory proteins, particularly transcription factors such as WRKY and MYB-known regulators of floral organogenesis and secondary metabolism [60,77,78], implying complex regulatory modules that coordinate flower development with scent biosynthesis, a key horticultural trait of O. fragrans.

Gene duplication events have been pivotal in driving the functional diversification of the MADS-box gene family in plants [74,75,76]. For example, the duplicated gene pair LYG011328 and LYG011329 demonstrated distinct tissue-specific expression patterns, with one gene being upregulated in flowers and the other in leaves. This observation underscores functional divergence following gene duplication. Consequently, such duplication events have not only expanded the number of MADS-box family members but have also facilitated their functional specialization and diversification [73]. These observations align with findings in other species, including A. thaliana and M. domestica, where MADS-box genes demonstrate significant evolutionary conservation and are integral to growth and development [79]. Moreover, gene duplication events are widely acknowledged as crucial mechanisms for expanding and refining the functional repertoire of the MADS family across species [55]. Collectively, this study establishes a theoretical framework for comprehending the structural characteristics, expression patterns, and evolutionary dynamics of the MADS-box gene family in O. fragrans, while also providing valuable insights into the functional evolution of MADS-box genes throughout the plant kingdom.

Transcriptome profiling across six flowering stages (from bolting to shedding) revealed 78 differentially expressed OfMADS genes, with distinct expression patterns. Notably, genes showing a “first increasing then decreasing” trend (e.g., LYG022063, LYG004903) may regulate peak floral traits, such as scent emission or pigment accumulation, which are most prominent during the full flowering stage. This aligns with GO enrichment results linking OfMADS genes to “floral organ development”, suggesting that these OfMADS genes may bridge transcriptional regulation of flowering with secondary metabolism-critical for pollinator attraction and ornamental value.

The findings of this study provide practical strategies for regulating O. fragrans flowering time in horticultural production, enabling both flowering time advancement andflowering duration extension. For advancing flowering, we can target OfMADS genes with repressive roles in floral transition, drawing on the conserved function of Dormancy associated MADS-box (DAM) genes (flowering repressors) in Malus pumila Mill. (apple) [80]. For instance, LYG003127—highly expressed in early flowering stages and negatively correlated with floral maturation—exhibits functional similarity to peach DAM genes (whose deletion reduces chilling requirements [81]). Using CRISPR-Cas9 to knock out LYG003127 could reduce its repressive effect on downstream floral promoters, potentially advancing blooming. Alternatively, for non-transgenic approaches, since CAAT-box elements in OfMADS promoters mediate light responsiveness, extending short-day treatments during the bolting stage can activate LYG000206 expression, accelerating floral transition.

To extend flowering duration, we can leverage OfMADS genes involved in floral senescence regulation. For example, LYG022063—whose expression peaks at full bloom and declines during petal shedding. Modulating LYG022063 expression via promoter editing might could delay its downregulation: low auxin concentrations has been shown to inhibit floral senescence in O. fragrans [82], and introducing auxin responsiveness to LYG022063 might could prolong its role in maintaining floral organ integrity. For further enhancing the efficacy of these strategies, combining OfMADS modulation with WRKY transcription factor co-expression can strengthen the regulatory network coordinating flowering and senescence, as WRKY-MADS interactions have been shown to enhance secondary metabolism and stress tolerance [60], which indirectly supports longer floral longevity.

These strategies integrate the conserved MADS-box regulatory mechanisms derived from model plant species with the species-specific genetic characteristics of O. fragrans, thereby enhancing the efficiency of practical breeding programs while safeguarding the key ornamental traits of this species [82,83]. By prioritizing OfMADS genes with well-characterized functions in floral transition and senescence, horticultural researchers and practitioners can precisely modulate the flowering phenology of O. fragrans to align with market demands—for instance, advancing the blooming period to coincide with early spring festivals or prolonging the flowering duration to augment its landscape application value.

5. Conclusions

In summary, our study identified 107 OfMADS genes in O. fragrans, with protein lengths ranging from 61 to 608 amino acids. These genes were phylogeneticlly classified into five subgroups: MIKC*, MIKCC, Mα, Mβ, and Mγ, within conserved motifs within each subgroup but notable differences among subfamilies. Tandem and whole-genome duplications likely contributed to the expansion of MADS-box gene family in O. fragrans. Cis-element analysis suggested the involvement of these genes in hormone signaling pathways and plant growth and development. The presence of light- and growth-related promoter elements, along with their interactions with WRKY/MYB factors, highlighted their integration into developmental and metabolic regulatory networks. Transcriptome data revealed 16 flower-specific OfMADS genes, with 78 showing stage-specific expression across six flowering phases, some of which exhibited a “first increasing then decreasing” patterns associated with peak floral traits. Integrated metabolomics further demonstrated strong associations between OfMADS genes and metabolites, hinting at their potential role in scent-related terpene biosynthesis. These findings significantly enhance our understanding of the MADS-box gene family in O. fragrans, providing a valuable foundation for further in-depth functional characterization of these genes. In the future, this knowledge can be applied to genetically manipulate the flowering time and floral traits of O. fragrans, potentially improving its ornamental value in horticultural and landscape settings.
