Comparing the Developmental Biology and Brood Size of Four Sclerodermus Species (Hymenoptera: Bethylidae)

TL;DR

This study compares the development and reproduction of four wasp species used to control forest pests in China.

Contribution

The study reveals specific biological differences in developmental stages and offspring numbers among four Sclerodermus species.

Findings

Sclerodermus alternatusi has fewer female offspring and more winged females compared to other species.

Sclerodermus guani has the largest brood size and highest number of female offspring.

All species showed similar survival rates after 120 days at 12°C.

Abstract

Four species of Sclerodermus, which are important parasitoids of long-horned beetles in China, have been widely used to control forest trunk-boring pests for over 40 years. However, little is known about their developmental differences. This study aims to help determine the biological differences between the four wasp species and to improve the effectiveness of mass-rearing them for the biological control of forest pests. Sclerodermus alternatusi has a significantly larger number of F2 male offspring than the other three wasps and has a larger percentage of winged females. The brood size of Sclerodermus guani is largest.

Sclerodermus guani Xiao et Wu, Sclerodermus sichuanensis Xiao, Sclerodermus pupariae Yang et Yao, and Sclerodermus alternatusi Yang are four species of Sclerodermus that have been found in China on longhorn or buprestid beetle hosts. These parasitoids are of great importance to forest management because they control certain forest pests. Knowledge of their developmental differences is important for maximizing their use in bio-control programs, yet little about them is known. This study compared their number of offspring and developmental biology. There were significant differences in the four parasitoids’ egg, larval, pupal, and total developmental stages. The F2 male offspring of each parasitoid emerged approximately one day ahead of the female. Additionally, there were differences in the number of F2 male and female offspring, as well as in the sex percentage, among the four parasitoids. Compared to the other three wasps, S. alternatusi had a significantly lower F2 female percentage of 67.07%, which was notably less than that of the other wasps (over 90%). The total F2 offspring number and F2 female offspring number of S. guani were the greatest. Sclerodermus alteratusi produced a larger percentage of winged females (5.66%) compared to S. pupariae (3.98%), and no winged females developed from S. guani or S. sichuanensis. Almost all individuals survived the 30-day experiment, the survival rate decreased to about half after 120 days at 12 °C, and there was no difference between the species. The biological differences between the four wasp species analyzed in this study will help improve the effectiveness of mass-rearing them for the biological control of forest pests.

Figures

Full text

1. Introduction

Global climate change has profoundly altered the population dynamics of agricultural and forestry pests [1]. Wood-boring beetles, such as the longhorn beetles Monochamus alternatus, Anoplophora glabripennis and Massicus raddei, along with buprestid beetles such as Agrilus planipennis and Agrilus mali, have experienced large-scale outbreaks in Northeast Asia and worldwide, resulting in severe economic losses and ecological damage [2]. Biological control using natural enemy insects offers a pesticide-free and sustainable approach to managing these pests [2]. Among them, parasitoid wasps of the genus Sclerodermus, exemplified by Sclerodermus guani, are one of the most extensively utilized natural enemies in China [3,4,5]. To date, five new Sclerodermus species have been discovered and described in China: S. guani, Sclerodermus pupariae, Sclerodermus alternatusi, Sclerodermus sichuanensis, and Sclerodermus hainanica [6,7,8,9]. The first four species have been successfully mass-reared and widely implemented in biological control programs. The fifth species, however, was only recorded at the time of its description and has not been collected again [2,6].

Sclerodermus guani was discovered in the 1970s in China’s Shandong and Guangdong Provinces by two separate forestry science research institutes [3]. Initially, its hosts were Semanotus sinoauster and Semanotus bifasciatus. Later, the gregarious idiobiont ectoparasitoid was found to be parasitic on over forty longhorn, buprestid, bark, and weevil beetles [5]. S. guani was one of the most often utilized natural enemies of small- to medium-sized wood borer beetle larvae or pupae in China [10]. Stromatium longicorne was the host of S. hainanica, which was discovered in 1989 in Hainan, China [7]. S. sichuanensis was discovered in 1994 in Sichuan, China, and the host was S. sinoauster [7,11]. This parasitoid was also commonly used to suppress some species of wood borer beetles [11]. S. pupariae was found to parasitize the emerald ash borer beetle, Agrilus planipennis in Tianjin, China, in 2003 [8,12,13]. This buprestid beetle has caused significant environmental and economic harm in northern China, 15 states of the United States, and 2 provinces of Canada [13,14]. S. alternatusi was discovered in Yunnan in 2011 [9,15]. Its host, Monochamus alternatus, which carried Bursaphelenchus xylophilus Steiner et Buhrer (the pine wilt nematode) throughout East Asia, resulted in the death of many pine trees [2,12].

China has accumulated more than four decades of experience in employing Sclerodermus parasitoid wasps for the control of wood-boring forest pests [2,12]. For instance, S. guani has been utilized against Semanotus bifasciatus, Apriona germari, and Monochamus alternatus [4,5,10]; S. sichuanensis against M. alternatus [11]; S. pupariae against Anoplophora glabripennis and Agrilus mali [12,13]; and S. alternatusi against M. alternatus and A. glabripennis [12,16]. Despite these applications, the effectiveness of Sclerodermus wasps has been inconsistent, owing primarily to two factors. First, as polyphagous parasitoids, these wasps often attack non-target insects once released in the field, thereby diminishing their efficacy against the intended pest species [17]. This characteristic also poses ecological risks when introducing them into non-native regions. Although polyphagous parasitoids are generally less efficient than specialist species in the short term, they are more likely to establish stable populations in forest ecosystems, enabling sustained pest suppression [18]. Second, the timing of parasitoid release is critical [16]. For medium- to large-bodied longhorn beetles such as A. chinensis, M. alternatus, and M. raddei, releases are most effective during the early larval stages (instars 1–3), whereas releases at other stages result in limited control [12,16]. In practical applications, an insufficient understanding of the life cycle of target pests often leads to optimal release periods being missed, thereby reducing the efficiency of control. The effective application of Sclerodermus parasitoids in the management of wood-boring pests necessitates comprehensive knowledge of both the biological traits and the developmental dynamics of the target pests and their parasitoids.

Some aspects of the biology of the four species have been studied: the larval stage, morphology [4], biology and host selection of S. guani [5]; the life history, biology and developmental periods of S. sichuanensis [11]; the biology, mass rearing, development threshold temperature, life history, developmental time, and effective accumulating temperatures of S. pupariae [13]; and the biology and development of S. alternatusi [19,20,21,22]. Parasitoids’ developmental period and number of offspring are influenced by the parasitized host species [23], ambient temperature [24,25,26], lighting conditions [27,28], and sex percentage [19].

These parasitoids are important because they control certain forest pests, but little is known about their developmental differences even though such knowledge is fundamental to maximizing their use in bio-control programs. In this study, we reared the four species of Sclerodermus parasitoids under the same environmental conditions and used Thyestilla gebleri Fairmaire larvae as the host for all. We investigated the developmental biology and the number of offspring of each species to compare the differences and determine the best species to use in biological control programs for wood-boring beetles in China.

2. Materials and Methods

2.1. Insects

In this study, four Sclerodermus parasitoid species that have been applied in China were selected as focal taxa, and source populations were collected from the field. In the late autumn of 2019, we collected Sclerodermus pupariae larvae from Agrilus planipennis (Coleoptera: Buprestidae) at Guangang Forest Park, Dagang District (38.942° N, 117.529° E) in Tianjin, China; in the same year, we collected larvae of S. alternatusi from Monochamus alternatusi (Coleoptera: Cerambycidae) at Southwest Forestry University (25.073° N, 102.775° E) in Kunming, Yunnan, China. Our laboratory population of S. guani was established from Semanotus bifasciatus (Coleoptera: Cerambycidae) larvae in 2018 at Beijing Xishan Forest Park (40.063° N, 116.209° E) and S. sichuanensis was obtained in 2020 from Lu County, Sichuan, China (29.141° N, 105.392° E). The four collected Sclerodermus species were identified using the diagnostic keys and illustrative figures provided in the appendices of Yang Zhongqi’s publications from 2012 [8], 2014 [6], and 2024 [9].

To avoid experimental variability due to host species, we reared 30–50 generations of each parasitoid species on Thyestilla gebleri (Coleoptera: Cerambycidae) larvae collected from the roots of Abutilon theophrasti from Dagang District (38°56′ N, 117°29′ E) [26]. The parasitoids were maintained in the laboratory under L:D 10:14 h at 27 ± 1 °C and 60–70% RH. Host larvae weighing 200.0–240.0 mg were selected for the experiments; a total of 80 last-instar larvae were used (20 replicates for each species).

2.2. Inoculation of Host Larvae with Parasitoids

For each replicate, we chose a healthy, 1-week-old mated female parasitoid at random. Each parasitoid was placed in a vial (5 × 1 cm) containing one Thyestilla gebleri larva and each vial was closed with a cotton plug. Vials were kept under the same conditions as the reared parasitoids.

2.3. Examining the Behavior of Female Parasitoids

The adaption time was defined as the time between the wasps being imported and the first observed wasp sting (to a host). The paralysis time was the interval between the wasp sting and the beginning of paralysis in the host larvae. The host and parasitoid in each vial were checked every 20 min. We defined the pre-oviposition period as the interval between host paralysis and the first egg laid since the four parasitoids are synovigenic parasitoids, meaning that oogenesis occurs after females are feeding on the host’s hemolymph [29].

The egg duration is the interval from the laying of the first egg to the hatching of the first larva. The larval duration is the interval from the hatching of the first larva to the appearance of the first cocoon. The pupal duration is the interval from the appearance of the first cocoon to the emergence of the first adult wasp. Finally, the egg-to-adult duration is the time from the laying of the first egg to the emergence of the first adult wasp. Duration was measured in days. Each parasitized host is examined under a Motic microscope (Motic, Hong Kong, China) twice a day.

2.4. Brood Size and Female Percentage of Parasitoid F2 Offspring

The total number of F2 male and female parasitoid offspring was counted. The percentage of F2 female offspring (the number of F2 females: the total number of F2 offspring) and the winged female rate was counted.

2.5. Body Size and Longevity of F2 Female Offspring

Forty F2 female offspring were chosen at random from each treatment group (species of parasitoid). Then, the wasps were on a CO_2_ anesthesia plate for anesthesia, and the body length was measured under a Motic microscope with a micrometer.

All F2 female parasitoid offspring were kept in storage at 12 °C [30] and 27 °C [26], and not fed. The survival rate of parasitoids in each vial was observed every 30 d for 180 d.

2.6. Statistical Analyses

For the time to first sting, the paralysis time, pre-oviposition time, developmental duration, brood size, female body length, and the percentage survival of F2 female offspring data were first assessed for normality using the Shapiro–Wilk test and for homogeneity of variance using Levene’s test. Female percentage data were arcsine-transformed to meet these assumptions. One-way ANOVA was then performed to test for significant differences among treatments, and we compared parameters between species for the adaption time, host paralysis time, pre-oviposition period, developmental period, F2 female offspring number and F2 total offspring number, followed by Fisher’s least significant difference (LSD) test for multiple comparisons. All statistical analyses were performed using SPSS 22.0.

3. Results

3.1. The Adaption Time, Host Paralysis Time and Pre-Oviposition Period

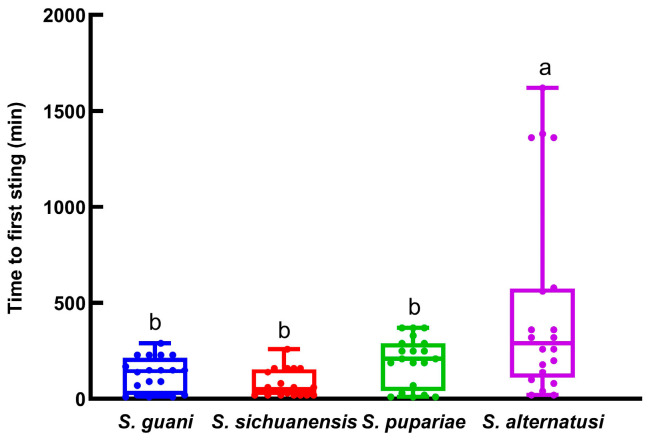

The four parasitoids had significantly different times to first sting (F = 8.643, df = 3, 79, p = 0.0001; Figure 1). The average time to first sting by S. alternatusi was 476 min, significantly larger than the 123 min for S. guani, 77.5 min for S. sichuanensis, and 195.5 min for S. pupariae.

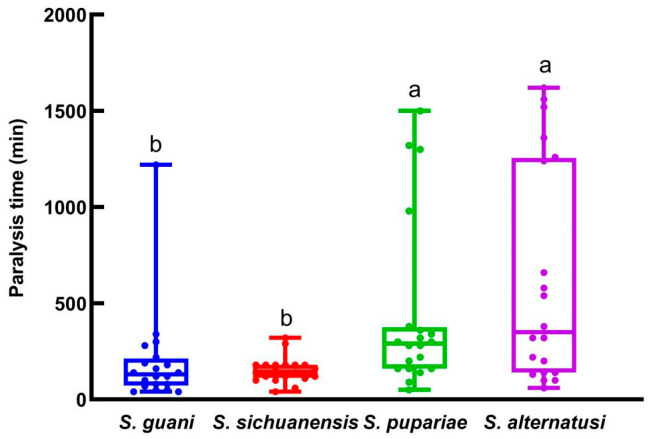

The four parasitoids’ host paralysis times varied significantly (F = 6.538, df = 3, 79, p = 0.0005; Figure 2). Sclerodermus alternatusi (622 min) and S. pupariae (442 min) had significantly longer host paralysis times than S. guani (196 min) and S. sichuanensis (152 min), which did not differ significantly.

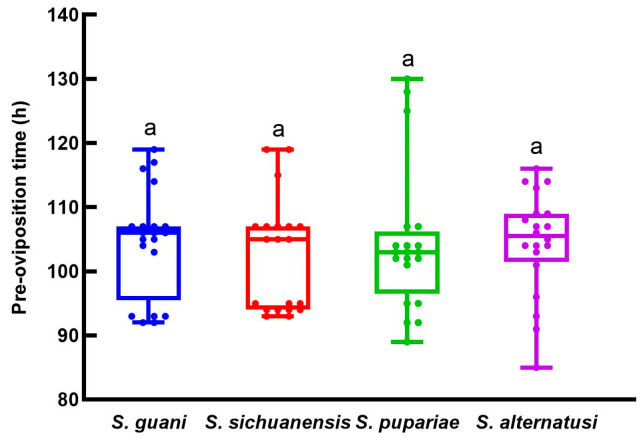

The four parasitoids’ average pre-oviposition times did not differ significantly (F = 6.538, df = 3, 79, p = 0.0005; Figure 3): S. guani, 104.6 h; S. sichuanensis, 102.5 h; S. pupariae, 104.4 h and S. alternatusi 104.5 h.

3.2. The Egg, Larval and Pupal Stages of the Four Sclerodermus Parasitoids

The four Sclerodermus parasitoids effectively parasitized T. gebleri larvae, and there were no differences in the rates of parasitism or parasitoid emergence between the species. There were significant differences in the egg stage (F = 6.693, df = 3, 79, p = 0.0005), larval stage (F = 65.474, df = 3, 79, p < 0.0001), pupal stage (male: F = 9.601, df = 3, 79, p < 0.0001; female: F = 9.749, df = 3, 79, p < 0.0001), and developmental period (male: F = 19.072, df = 3, 79, p < 0.0001; female: F = 19.573, df = 3, 79, p < 0.0001) of the four parasitoids (Table 1).

We observed that S. alternatusi has longer egg and larval stages than the other three species, and that the male and female wasps’ developmental periods are longer than those of the other parasitoids. Sclerodermus pupariae had a longer pupal stage than the other species. Males emerged approximately one day before the female for all species, refer to Table 1 somewhere in this paragraph.

3.3. Brood Size of the Four Sclerodermus Parasitoids

The four Sclerodermus parasitoids had significantly different numbers of F2 male offspring (F = 36.949, df = 3, 79, p < 0.0001), F2 female offspring (F = 20.781, df = 3, 79, p < 0.0001), and total F2 offspring (F = 7.736, df = 3, 79, p < 0.0001), and a different percentage of F2 females (F = 53.388, df = 3, 79, p < 0.0001) (Table 2). Compared to the other three wasps, S. alternatusi had the largest number of F2 male offspring, and the least number of F2 female offspring overall. The number of F2 female offspring and total number of offspring of S. guani were the largest. S. alternatusi had a F2 female percentage of 67.07%, which was significantly less than that of other wasps, which reached more than 90%.

3.4. Body Length of F2 Female Offspring

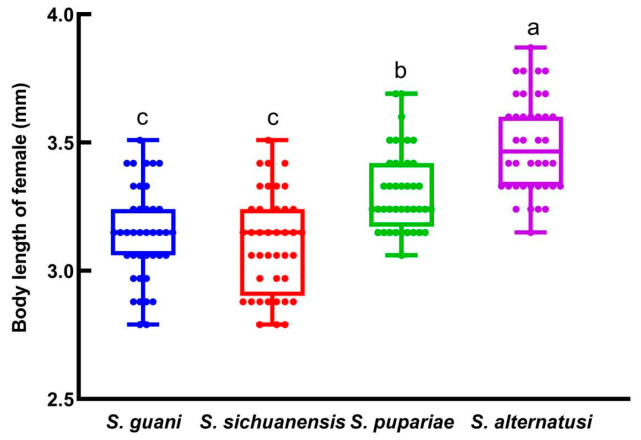

The F2 female offspring of the four species had significantly different female body lengths (F = 37.433, df = 3, 159, p = 0.0001; Figure 4). The average lengths were as follows: S. alternatusi, 3.49 mm; S. pupariae, 3.31 mm; S. sichuanensis, 3.11 mm; S. guani, 3.14 mm.

3.5. Proportion of Winged Females in F2 Offspring

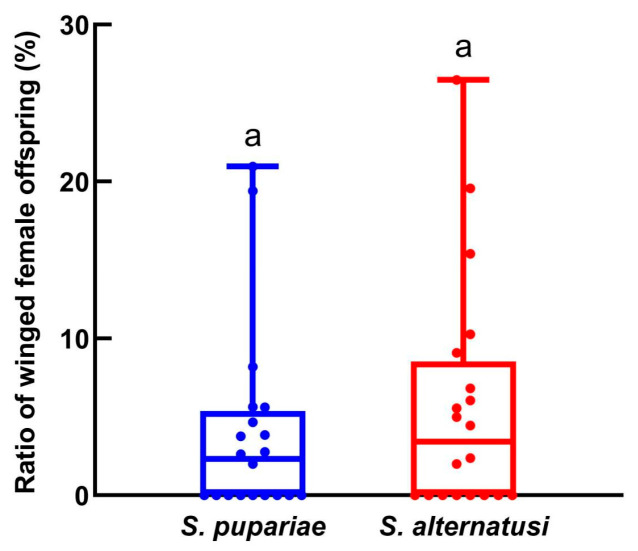

No winged females of S. guani or S. sichuanensis emerged during the experiment. There was no significant difference in the percentage of F2 winged female offspring between S. alternatusi (5.65%) and S. pupariae (3.98%) (F = 0.615, df = 1, 39, p = 0.4379; Figure 5).

3.6. Survival of F2 Parasitoid Offspring

Almost all individuals survived the 30-day experiment, the survival rate decreased to about half after 120 days at 12 °C, and there was no difference between the species (Table 3). When maintained at 27 °C, the survival rate of female wasps across all four species of Sclerodermus was approximately 70% after 30 days, with minimal divergence among them. By 60 days, only about 20% of individuals remained alive, and all had died by 90 days.

4. Discussion

Studies have shown that wasps of the genus Sclerodermus are typical ectoparasitoids [6]. Before ovipositing on a host, the wasp must inject venom to paralyze it, rendering the host inactive and halting its development [11,12,13]. Our research has found significant differences in the time required for the four Sclerodermus species to completely paralyze a host after location. Sclerodermus sichuanensis was the fastest, averaging about 2.5 h. Sclerodermus guani took slightly longer. Sclerodermus pupariae required an average of over 7 h, while S. alternatusi took the longest, with an average of about 10 h. Furthermore, S. alternatusi also required the longest time to accept a host, averaging about 8 h, whereas the other three species all found hosts within 4 h. These findings suggest that S. alternatusi may be less efficient in host location and paralysis compared to the other three species.

Anatomical studies of S. sichuanensis have shown that the ovaries of newly eclosed female wasps are almost completely undeveloped, and that their oocytes are immature [11]. They must supplement their nutrition by feeding on the host’s hemolymph to complete ovarian and oocyte development [11]. Our findings demonstrate that S. guani, S. pupariae, and S. alternatusi all undergo this process, confirming that all four species examined in this study are synovigenic parasitoids. Furthermore, the duration of supplementary feeding exhibited no significant interspecific differences. The studies had shown that some Sclerodermus species may cause host mortality during this nutritional supplementation, especially with smaller hosts [16,31]. For instance, the reported that a single female S. alternatusi could kill an average of 3.75 third-instar larvae of Monochamus alternatus during feeding [16]. Similarly, S. pupariae also causes significant mortality in early-instar larvae of Massicus raddei during parasitism [31]. In the present study, no host mortality caused by the wasps was observed, indicating that the selected alternative host not only met the supplementary nutritional needs of the female wasps but also fulfilled the developmental requirements of their offspring. Nevertheless, the prolonged rearing of Sclerodermus on non-target hosts may result in reduced parasitism efficiency. Accordingly, in mass-rearing programs for these natural enemies, periodic rejuvenation with target hosts should be incorporated to maintain or enhance the effectiveness of parasitism.

Many factors can influence the development of parasitoid wasps. In addition to abiotic factors such as temperature, humidity, and light conditions, biotic factors such as the type and size of the intrinsic host also play a role [11,13,19,20,21,22,32,33]. This study found that there were also certain differences among species. Under identical environmental and host conditions, S. alternatusi required the longest development time, taking an average of about 22.5 days to develop from egg to adult, whereas S. guani and S. sichuanensis needed an average of 20.8 and 20.9 days, respectively. This may be related to the body size of the parasitoid. Studies have shown that female S. alternatusi are generally larger than those of S. guani and S. sichuanensis [6]. Consequently, their larvae require more nutrition, which may result in a smaller number of offspring when there is no difference in host size. We observed that the total number of offspring for S. alternatusi was 53.7 individuals per tube, which was about 10 fewer per tube than for S. guani. Sclerodermus parasitoids are gregarious species, but superparasitism may also occur, with the number of females significantly influencing offspring development [19,32]. In natural forest habitats, Sclerodermus species exhibit quasi-social behavior: females tend to care for their offspring until the emergence of adults, after which they disperse [11,13]. Once a host has been located, females rarely abandon it. Long-lived females typically depart after the emergence of their offspring and subsequently search for new hosts.

For animals that can regulate their sex ratio, sex allocation behavior is the result of a maternal reproductive trade-off between producing males and females, and it forms the basis for determining the sex structure of a population. For randomly mating parasitoids, Fisher [34] first proposed that an equal sex ratio is an Evolutionarily Stable Strategy (ESS). In reality, however, the female-to-male ratio in most parasitoid wasps is not equal. A female-biased sex ratio is a more common biological characteristic, especially for gregarious parasitic wasps [35,36,37]. The four Sclerodermus species in this study are all non-random mating parasitoids, and their offspring sex ratios are also significantly female-biased. The proportion of females for S. guani, S. sichuanensis, and S. pupariae was over 90%, and the female ratio for S. alternatusi was 67%. For parasitoids with haplodiploid sex determination, the parent can regulate the offspring sex ratio by controlling whether an egg is fertilized. Adjusting the sex ratio is a reproductive strategy used by the parent to maximize its fitness and reflects the outcome of trade-offs in its survival environment. Additionally, in mass-rearing programs for parasitoids, researchers often aim to produce more females, which perform the pest control function. Therefore, the sex ratio is also a critical criterion for evaluating the rearing efficiency [38].

It is a common belief that wing formation in insects represents a trade-off strategy between flight and reproduction [39]. Individuals with the ability to fly have an inherent advantage in the exploitation of habitat and host resources. However, individuals without the ability to fly often have larger fecundity compared to flight-capable individuals because they do not develop wings, which uses more metabolic energy [40]. In this study, winged females were observed in both S. alternatusi and S. pupariae, but the proportions were only 5.65% and 3.98%, respectively. In contrast, no winged individuals were found in S. guani and S. sichuanensis. Interestingly, the original literature describing these two species recorded the existence of winged females [3,7]. During long-term laboratory rearing, the winged individuals gradually disappeared. In the earliest report on the biology of S. pupariae, the proportion of winged females in the F1 generation was 56.6%, which decreased to 14.7% in the F2 generation and dropped to 0% from the F3 to F5 generations [13]. The factors causing wing polymorphism in Sclerodermus are numerous and complex [23]. Studies have shown that increasing the rearing temperature (30 °C), shortening the photoperiod (L:D = 8:16 h), and reducing the light intensity can all increase the proportion of winged females [23,24,41]. However, the molecular mechanisms by which these environmental or host conditions induce the production of winged female individuals in Sclerodermus remain unclear. Xu et al. [42] found that two insulin receptor genes (InR1 and InR2) control the development of the brown planthopper, Nilaparvata lugens, into long-winged and short-winged individuals by inhibiting and activating FoxO activity, respectively. After the insulin signaling pathway was found to be associated with the polymorphism of insect wings, it was confirmed to be a key molecular regulatory pathway via which insects respond to nutritional and environmental stress, thereby forming different environmentally adapted phenotypes [42]. This provides a direction for our research into the mechanisms of wing polymorphism in Sclerodermus.

5. Conclusions

There were significant differences in the four parasitoids’ developmental stages and the number of F2 male and female offspring. The total number of F2 offspring and F2 female offspring for Sclerodermus guani was the largest. Thus, considering both its efficiency in searching for hosts and paralyzing them, as well as its production of offspring, S. guani was given the highest priority for mass rearing and application in pest control.
