Duplex EIS Sensor for Salmonella Typhi and Aflatoxin B1 Detection in Soil Runoff

TL;DR

A portable sensor detects Salmonella and Aflatoxin in soil runoff, enabling rapid on-site environmental and food safety monitoring.

Contribution

A portable, label-free duplex sensor for simultaneous detection of Salmonella Typhi and Aflatoxin B1 in soil runoff with high precision.

Findings

The sensor achieves a detection limit of 1 CFU/mL for Salmonella Typhi and 0.001 ng/mL for Aflatoxin B1.

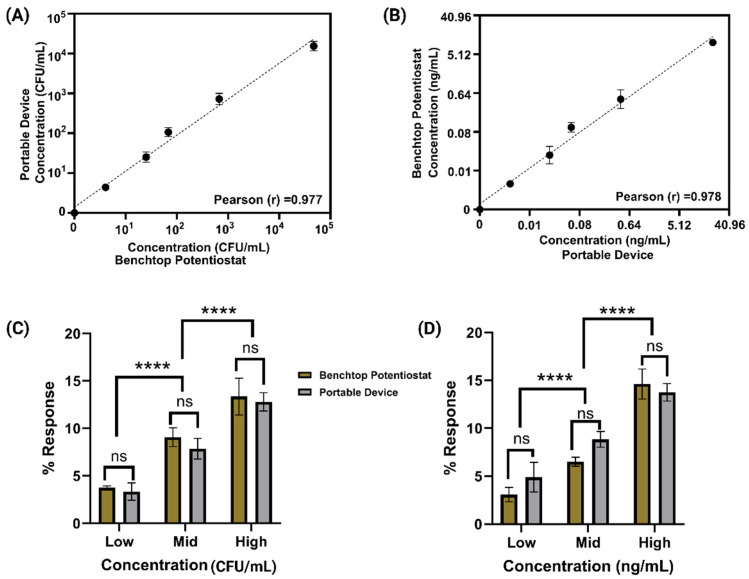

Impedance measurements from the handheld device strongly correlate with benchtop results (R2 > 0.95).

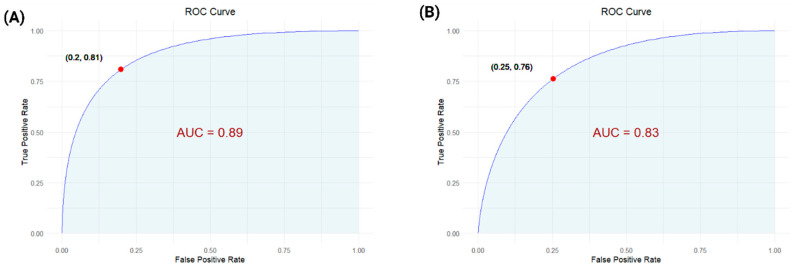

Machine learning classification of contaminated samples yields an ROC-AUC > 0.8.

Abstract

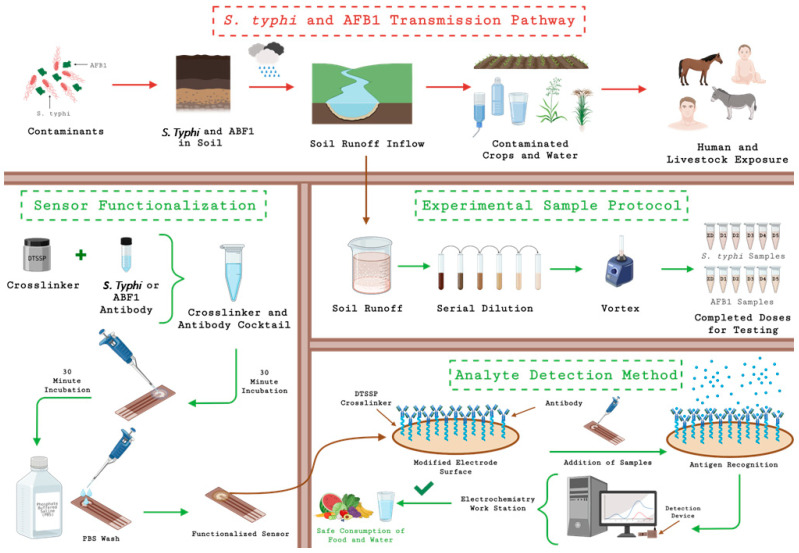

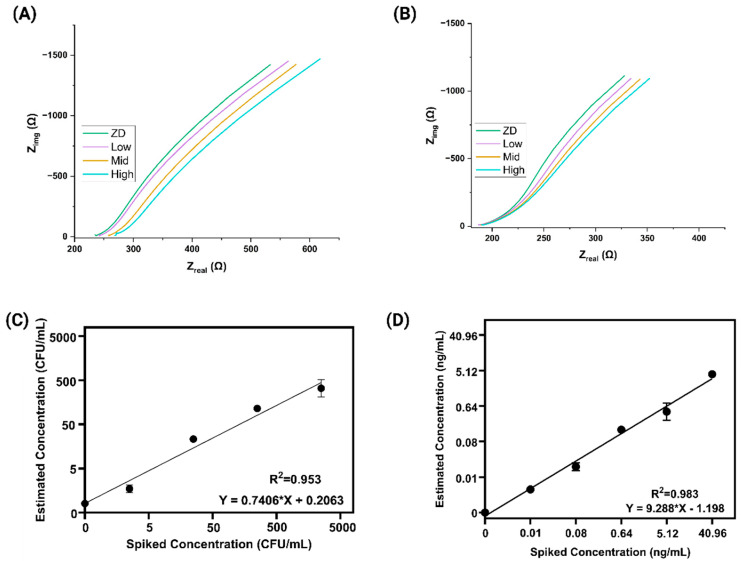

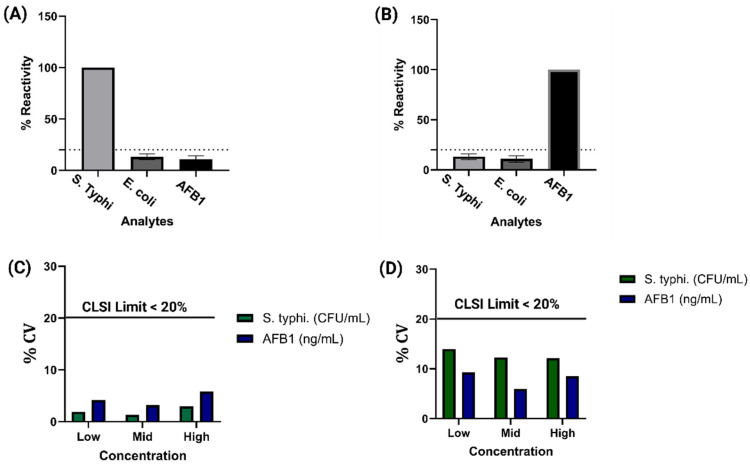

Monitoring contamination in soil and food systems remains vital for ensuring environmental and public health, particularly in agriculture-intensive regions. Existing laboratory-based techniques are often time-consuming, equipment-dependent, and impractical for rapid on-site screening. In this study, we present a portable, non-faradaic electrochemical impedance-based sensing platform capable of simultaneously detecting Salmonella Typhimurium (S. Typhi) and Aflatoxin B1 in spiked soil run-off samples. The system employs ZnO-coated electrodes functionalized with crosslinker for covalent antibody immobilization, facilitating selective, label-free detection using just 5 µL of sample. The platform achieves a detection limit of 1 CFU/mL for S. Typhi over a linear range of 10–105 CFU/mL and 0.001 ng/mL for Aflatoxin B1 across a dynamic range of 0.01–40.96 ng/mL. Impedance measurements captured with a handheld potentiostat were strongly correlated with benchtop results (R2 > 0.95), validating its reliability in field settings. The duplex sensor demonstrates high precision with recovery rates above 80% and coefficient of variation below 15% in spiked samples. Furthermore, machine learning classification of safe versus contaminated samples yielded an ROC-AUC > 0.8, enhancing its decision-making capability. This duplex sensing platform offers a robust, user-friendly solution for real-time environmental and food safety surveillance.

Figures
