Shear Stress Targeted Delivery of Nitroglycerin to Brain Collaterals Improves Ischaemic Stroke Outcome
Magdalena Litman, Sara Azarpeykan, Rebecca J Hood, Kristy Martin, Debbie Pepperall, Daniel Omileke, Fern Williams, Oktay Uzun, Deen Bhatta, Yuen K Yong, Alex Chan, Nicholas Hough, Sarah Johnson, Pablo Garcia Bermejo, Ferdinand Miteff, Carlos Garcia Esperon, Yvonne Couch
TL;DR
A new method uses shear-activated nanoparticles to deliver nitroglycerin to brain collateral vessels during stroke, improving blood flow and outcomes without side effects.
Contribution
A novel shear-activated nanoparticle system for targeted nitroglycerin delivery to high-shear collateral vessels in ischaemic stroke.
Findings
NG-NPAs increased penumbral perfusion and reduced infarct volume in rat stroke models.
NG-NPAs avoided systemic hypotension and other side effects of conventional nitrate administration.
Free NG at higher doses failed to enhance collateral flow and caused blood pressure drops.
Abstract
In patients with ischaemic stroke, retrograde perfusion of the penumbra by leptomeningeal collateral vessels (LMCs) strongly predicts clinical outcome, suggesting that enhancing LMC flow can offer a novel therapeutic approach. Using in vivo measurements and computational modelling it is shown that LMCs experience elevated fluid shear stress that is significantly higher than that in other blood vessels during ischaemic stroke in rats and humans. We exploit this to selectively enhance flow in LMCs using shear‐activated nanoparticle aggregates carrying the vasodilator nitroglycerin (NG‐NPAs) that specifically release drug in regions of vessels with high wall shear stress (≥100 dyne cm−2). NG‐NPAs significantly increased LMC‐mediated penumbral perfusion, decreased infarct volume, and reduced neurological deficit without altering systemic blood pressure in a rat ischaemic stroke model.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| NG‐NPAs | Blank‐NPAs | |||
|---|---|---|---|---|
| Pre‐infusion | During infusion | Pre‐infusion | During infusion | |
| MAP (mmHg) | 158.7 ± 10.56 | 155 ± 10.27 | 158.8 ± 8.18 | 171.7 ± 7.36 |
| RR (BMP) | 52.14 ± 2.77 | 53.10 ± 2.68 | 45.21 ± 2.09 | 44.88 ± 2.87 |
| HR (BPM) | 398.4 ± 12.28 | 407.3 ± 14.86 | 393.6 ± 11.91 | 417.3 ± 12.86 |
| SPO2 (%) | 95.89 ± 1.03 | 97.11 ± 1.06 | 95.74 ± 0.72 | 96.5 ± 0.54 |
| paO2 (mmHg) | 97.25 ± 8.11 | 99.50 ± 5.87 | 114.5 ± 6.84 | 112.5 ± 9.18 |
| paCO2 (mmHg) | 43.40 ± 0.26 | 41.45 ± 0.71 | 41.03 ± 1.53 | 39.65 ± 1.14 |
| pH | 7.387 ± 0.0056 | 7.399 ± 0.007 | 7.414 ± 0.01 | 7.39 ± 0.009 |
- —Oxford University Medical Sciences Internal Fund
- —Hansjörg Wyss Institute for Biologically Inspired Engineering, Harvard University10.13039/100016528
- —National Health and Medical Research Council10.13039/501100000925
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAcute Ischemic Stroke Management · Intracranial Aneurysms: Treatment and Complications · Traumatic Brain Injury and Neurovascular Disturbances
Introduction
1
Stroke, resulting in disruption of blood flow to the brain, is the third leading cause of death and a major cause of long‐term disability worldwide.^[^ 1 ^]^ Ischaemic stroke, which accounts for 71% of all strokes globally, is caused by cerebral arterial occlusion.^[^ 2 ^]^ The goal of acute ischaemic stroke therapies is to salvage the ischaemic penumbra, which is the region of brain tissue beyond the occlusion that is functionally compromised but remains potentially salvageable. The penumbra receives retrograde blood flow via cerebral collateral vessels in the brain's leptomeningeal collateral (LMC) circulation that are formed through end‐to‐end anastomoses of distal branches of adjacent arterial territories.^[^ 3 ^]^ The LMCs provide residual retrograde cerebral blood flow when conventional routes of arterial supply are compromised.^[^ 4 ^]^
Importantly, advanced clinical imaging over the past decade has led to recognition of the key importance of LMCs in ischaemic stroke outcome.^[^ 5 ^]^ The presence of good LMC perfusion is associated with a larger penumbra, better rates of reperfusion, and improved functional outcomes following both thrombolysis and thrombectomy.^[^ 6, 7, 8 ^]^ This is most likely because patients with better collaterals have a large volume of penumbra when they arrive at the hospital.^[^ 9, 10 ^]^ LMCs have such a large influence on response to reperfusion therapies and stroke outcome that LMC status and penumbral volume are now used to select patients most likely to benefit from reperfusion therapies.^[^ 11, 12 ^]^ However, a large portion of stroke patients have co‐morbidities such as hypertension (in ≈55% of stroke patients), which is associated with poor LMC status. These patients may therefore benefit greatly from therapeutic interventions that enhance LMC blood flow.^[^ 13 ^]^ While the potential benefits of therapeutic approaches that enhance collateral flow and thereby improve stroke outcome are widely recognised, finding an effective method to enhance collateral flow has proved to be very challenging.^[^ 14 ^]^
One of the greatest obstacles to developing collateral therapies is the inability to selectively vasodilate LMCs without causing systemic vasodilation and hypotension.^[^ 15 ^]^ Healthy cerebral vasculature can autoregulate (vasodilate) in response to low blood pressure and maintain normal perfusion.^[^ 16 ^]^ However, arterioles in the ischaemic penumbra may have already reached their limits of autoregulation, and so blood flow becomes entirely dependent on cerebral perfusion pressure.^[^ 17 ^]^ Thus, systemic vasodilators that lower blood pressure may have a “reverse Robin Hood” effect – redirecting or stealing blood flow away from the ischaemic brain territory.^[^ 18 ^]^ Further, systemic vasodilators have a higher affinity for cerebral veins, leading to venodilation and increased intracranial pressure (ICP, which further reduces cerebral perfusion pressure.^[^ 15 ^]^ As a result, clinical trials of systemic vasodilators in stroke showed no change in penumbral blood flow^[^ 19 ^]^ and no improvement in patient outcome.^[^ 20 ^]^ Based on this evidence, the American Heart Association Guidelines advise against the use of systemic vasodilatory agents for ischaemic stroke treatment.^[^ 21 ^]^
This present study is based on the hypothesis that selective dilation of LMCs may be achieved by targeting vasodilators to these vessels, based on work which has revealed that LMCs have unique blood flow haemodynamics that are potentially exploitable therapeutically.^[^ 22 ^]^ More specifically, when the middle cerebral artery (MCA) is occluded in rats, the large pressure differential between the occluded and patent vascular territories causes a 10‐fold increase in blood flow velocity through LMCs and an associated increase in wall shear stress (WSS) (>100 dyne cm^−2^) selectively within these vessels.^[^ 23, 24 ^]^ Importantly, this level of shear stress is significantly higher than that in other vascular beds in the body.^[^ 25, 26 ^]^ Shear stress may aid in the vasodilation of LMCs to promote perfusion to the penumbra;^[^ 27 ^]^ however, hypertensive animals exhibit both poorer baseline LMC blood flow and impaired flow‐mediated vasodilation,^[^ 24, 28 ^]^ ultimately leading to poor penumbral perfusion. These observations raise the possibility that if one could selectively target a vasodilator to LMCs that experience high shear stress, this could provide a way to enhance LMC flow and thereby reduce stroke morbidity and mortality.
To approach this challenge, we leveraged a previously described drug delivery platform composed of spray‐dried, drug‐loadable, polymeric nanoparticles (≈180 nm diameter) that are formed into platelet sized (≈3 µm diameter) nanoparticle aggregates (NPAs). Importantly, these NPAs selectively release the nanoparticles and their contents where they experience pathological fluid shear stress (>100 dyne cm^−2^) when injected systemically into the circulation.^[^ 29 ^]^ When these shear‐activated NPAs were loaded with tissue plasminogen activator (tPA) and injected intravenously, they dissolved pulmonary emboli using one hundredth the dose of soluble tPA required to accomplish the same response in a mouse model.^[^ 29 ^]^ These tPA‐loaded NPAs also enhanced the removal of blood clots in large brain arteries through enzymatic dissolution.^[^ 30 ^]^ In the present study, we loaded these shear‐activated NPAs with nitroglycerin (NG‐NPAs) to explore whether we could selectively target this potent vasodilator to the smaller LMCs surrounding the penumbra in the context of ischaemic stroke. Our results show that NG‐NPAs can significantly enhance LMC blood flow, improve perfusion of the penumbra during stroke, decrease infarct volume, and reduce neurological deficit without causing systemic side effects that limit the use of free nitroglycerin for this life‐threatening condition.
Results
2
Increased WSS in LMCs in Rats and Humans
2.1
To determine the translational potential of our shear targeted drug delivery concept, we quantified fluid WSS levels in LMCs of both healthy normotensive Wistar rats and spontaneously hypertensive rats (SHRs). We included hypertensive rats because high blood pressure is one of the most common co‐morbidities and the leading modifiable risk factor for stroke, and it is associated with poor LMC blood flow.^[^ 31, 32 ^]^ We found that before the stroke, LMC blood flow was bi‐directional and very slow. However, upon induction of stroke by blocking the proximal segment of the MCA, flow became unidirectional. The blood flowed from the anterior cerebral artery (ACA) toward the MCA and the velocity increased dramatically while vessel diameter only increased slightly. When we quantified WSS in LMC following experimental stroke, we detected a 5‐ to 6‐fold increases in both normotensive Wistar rats (Baseline: 13.69 ± 1.89 dynes cm^−2^ vs Post‐Stroke: 73.73 ± 23.67 dynes cm^−2^, p = 0.4 and SHRs (Baseline: 43.8 ± 11.6 dynes cm^−2^ vs Post‐Stroke: 252.2 ± 100.4 dynes cm^−2^, p = 0.02. There were no significant differences between baseline LMC WSS between Wistar and SHR (p = 0.76). SHRs had significantly higher LMC WSS post‐stroke, compared to Wistars (p = 0.03) (Figure 1a).

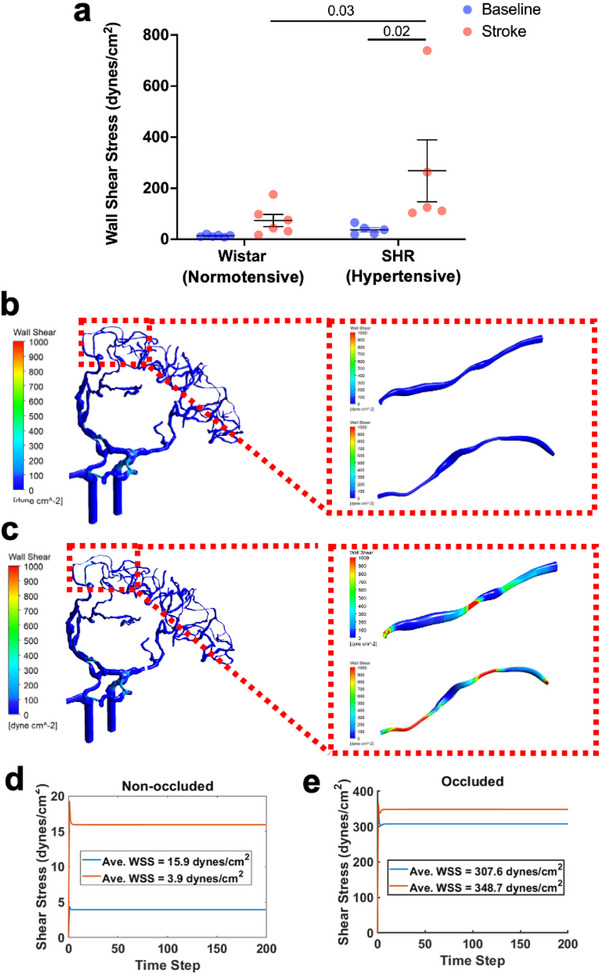

Wall shear stress (WSS) is significantly increased in LMC during stroke. a) Average WSS in collateral vessels in Wistar rats and spontaneous hypertensive rats. We conducted a repeated measure 2‐Way ANOVA to assess the effect of Strain (Wistar vs SHR) and Stroke on WSS. F (1,9) = 3.645, p = 0.09 for strain, F(1,9) = 6.852, p = 0.03 for stroke, F (1,9) = 2.361, p = 0.16. Uncorected Fisher's LSD test was used to compare the difference between baseline and stroke within and between Wistars and SHRs (p values on graph in italics, p < 0.05 between baseline and stroke in SHRs and stroke between Wistars and SHRs). b) Computational Fluid Dynamics (CFD) modelling of WSS in human cerebral vessels without occlusion of the proximal MCA (unoccluded model), with more detailed WSS analysis in individual collateral vessels (inset). c) Similar CFD modelling with occlusion of the proximal MCA (occluded stroke model). d) Quantified average WSS over time in individual collateral vessels (the WSS in each collateral is represented by a red and blue line) from the unoccluded model. e) Quantified average WSS over time in individual collateral vessels (the WSS in each collateral is represented by a red and blue line) from the occluded model. The WSS is color coded to represent dyne cm−2 as per the scale. Presented values represent mean ± SEM.
Computational Fluid Dynamics Analysis of Blood Flow in Human LMCs
2.2
To explore the potential clinical relevance of this observation, we carried out computational fluid dynamics (CFD) simulations of the LMCs following a simulated ischaemic stroke in a human. CTA images of a patient who had an ischaemic stroke with proximal MCA occlusion were segmented to produce a 3D model of the ACA, MCA, and LMCs that link them before (Figure 1b) and after (Figure 1c occlusion. When we simulated WSS in two LMCs (the WSS in each collateral is represented by a red and blue line in Figure 1d,e) under non‐occluded (Figure 1d) and occluded (Figure 1e) (ischaemic stroke following MCA occlusion) conditions, we found that there were 30‐ to 90‐fold increases in shear stress following occlusion of the LMCs.
Shear‐Activated Delivery of Nitroglycerin Selectively Increases LMC Perfusion
2.3
As hypertensive patients are the most difficult to treat, and we observed the greatest level of shear stress in SHRs, all further experiments were conducted using the hypertensive animals. MCA occlusion was induced for 70 min in male SHRs, and laser speckle contrast imaging was used to measure tissue perfusion in the LMCs (Figure 2a). Animals were randomised to receive intravenous infusion of NPAs without drug (Blank‐NPAs) or NG‐NPAs (4 µg NG kg^−1^ min^−1^) commencing 25 min after the MCA was blocked, and infarct volume was measured at 24 h (Figure 2a). These studies revealed that infusion of NG‐NPAs increased LMC perfusion by almost 45% between 12 and 40 min compared to pre‐infusion baseline, while there was no significant change in LMC perfusion compared to pre‐infusion baseline when the same dose of Blank‐NPAs was administered (Figure 2b). The mean perfusion within the LMC region was calculated for each animal over the entire infusion period and found to be significantly higher in the NG‐NPAs compared the Blank‐NPAs group (Figure 2c).

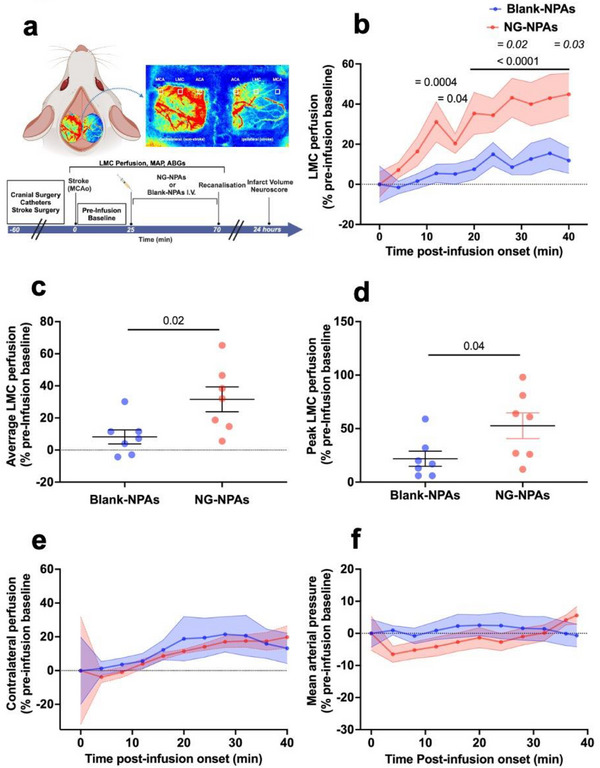

NG‐NPA infusion significantly increases LMC perfusion without causing changes in contralateral collateral perfusion or a drop in mean arterial pressure in spontaneously hypertensive rats. a) Diagram demonstrating perfusion regions analysed using laser speckle contrast imaging during experimental stroke and experimental timeline. b) LMC perfusion in the stroke region in NG‐NPA (red) treated versus Blank‐NPA (blue) treated SHRs, calculated as a % change from pre‐drug infusion baseline. We conducted a repeated measure 2‐Way ANOVA to assess the effect of NG‐NPA versus Blank‐NPA treatment over time. F (1, 12) = 6.936, p = 0.02 for treatment, F (10, 120) = 8.035, p < 0.0001 for time, F (10, 120) = 2.1, p = 0.03 for interaction. Sidak's post‐test was used to compare NG‐NPA versus Blank‐NPAs at different time‐points (p values on graph in italics, p < 0.05 at 30 and 40 min). Dunnett's post‐test was used to compare each time‐point back to pre‐infusion baseline in NG‐NPA and Blank NPA groups (p values on graph in normal text, NG‐NPA: p < 0.05 at 16 min; p < 0.001 at 12 min; p < 0.0001 between 20 and 40 min). c) Average perfusion within the LMC region over time, for each animal. We used an un‐paired t‐test to assess differences between NG‐NPAs (red dots) versus Blank‐NPAs (blue dots). T (12) = 2.63, p = 0.02 versus Blank‐NPAs. d) Peak perfusion within the LMC region for each animal. We used an un‐paired t‐test to differences between NG‐NPAs (red dots) versus Blank‐NPAs (blue dots). T (12) = 2.212, p = 0.04 versus Blank‐NPAs. e) LMC perfusion in the contralateral (control) hemisphere in NG‐NPA (red) treated versus Blank‐NPA (blue) treated SHRs. We conducted a repeated measure 2‐Way ANOVA to assess the effect of NG‐NPA versus Blank‐NPA treatment over time. F (1,12) = 0.156, p = 0.69 for treatment, F (10, 120) = 1.35, p = 0.21 for time, F (10, 120) = 0.08, p > 0.99 for interaction. f) Mean Arterial Pressure in NG‐NPA (red) treated versus Blank‐NPA (blue) treated. We conducted a repeated measure 2‐Way ANOVA to assess the effect of NG‐NPA versus Blank‐NPA treatment over time. F (1,12) = 0.49, p = 0.5 for treatment, F (10, 120) = 1.02, p = 0.42 for time, F (10, 120) = 1.49, p = 0.15 for interaction. Values represent mean ± SEM.
We also identified the highest‐level perfusion in the LMC region at any time‐point throughout infusion in each animal (peak). This was also found to be significantly higher in NG‐NPAs versus Blank‐NPAs (Figure 2d).
In contrast, systemic administration of the shear targeted NG‐NPAs did not significantly alter perfusion in the LMC region in the contralateral (non‐stroke/control) hemisphere compared to pre‐infusion baseline or relative to Blank‐NPAs (Figure 2e). Importantly, infusion of the NG‐NPAs also did not reduce systemic blood pressure relative to pre‐infusion baseline or Blank‐NPAs (Figure 2f). All other physiological variables were within physiological range and were not significantly different between treatment groups (Table 1). Thus, the shear‐activated NG‐NPAs appeared to selectively produce vasodilation and enhanced perfusion precisely where our rat experiments and human models predicted fluid shear stress to be preferentially elevated.
Shear‐Targeted Delivery of Nitroglycerin Improves Stroke Outcomes
2.4
At 24 h after stroke onset, animals underwent assessment of neurological deficits, and they were then euthanised, perfusion fixed, and brains were collected for coronal sectioning and histological evaluation of infarct size using haematoxylin and eosin staining. Quantification of infarct size revealed that NG‐NPAs significantly reduced final infarct volume by over 35% compared to Blank‐NPAs (Figure 3a). Infarct probability maps also indicated that a reduction in the frequency of infarcts in the cortex located downstream of the LMC (i.e., in the penumbral region) is likely responsible for the reduction in overall infarct volume in the NG‐NPA group (Figure 3b). There was a very large and significant inverse correlation between the average level of LMC perfusion and infarct volume (spearman's r = ‐0.69, p = 0.01; Figure 3c). The neurological deficit scores also were significantly lower in animals receiving NG‐NPAs (median score = 2; range 1–4) versus Blank‐NPAs (median = 4; range 3–5) (Figure 3d).

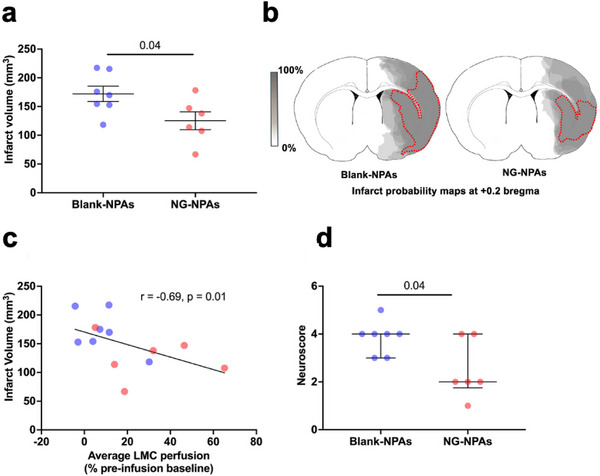

NG‐NPAs significantly reduced infarct volume and improved neurological function 24 h post stroke in SHRs. a) Infarct volume was assessed histologically at 24 h after stroke onset. We used an un‐paired t‐test to differences between NG‐NPAs (red dots) versus Blank‐NPAs (blue dots). T (11) = 2.29, p = 0.04 versus Blank‐NPAs. b) Infarct probability maps were generated from infarct areas taken from the brain region in the central region supplied by the middle cerebral artery (+0.2 bregma brain slice). Darker grey regions represent areas with a higher probability of infarction. c) Spearman's correlation between infarct volume and average LMC perfusion. d) Neurological score assessing forelimb flexion, lateral push, and torso twisting (0 = normal, 6 = maximal deficit). We used a Mann‐Whitney U test to to assess differences between NG‐NPAs (red dots) versus Blank‐NPAs (blue dots). U = 9, p = 0.03. Values represent mean ± SEM.
Shear‐Targeted Delivery Did Not Cause Detectable Adverse Effects
2.5
NG administration as a free drug has previously been shown to have adverse effects due to dilation of cerebral veins, which increases intracranial pressure.^[^ 15 ^]^ Importantly, when we infused the NG‐NPAs, we did not detect any change in cortical vein diameter compared to pre‐infusion baseline or relative to administration of Blank‐NPAs (Figure 4a). The NG‐NPA treatment also did not change ICP compared to pre‐infusion baseline (Figure 4b), and it was significantly lower in the NG‐NPA group compared to Blank‐NPAs at all time‐points, including pre‐infusion baseline (Figure 4b).

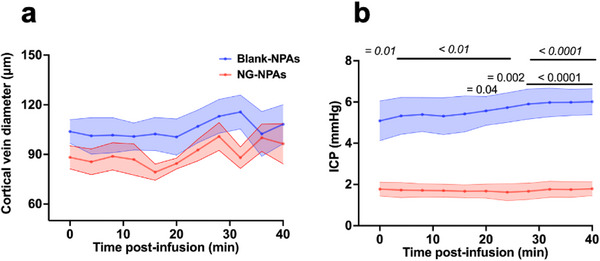

NG‐NPAs did not cause changes in cortical vein diameter or ICP in SHRs. a) Cerebral vein diameter following NG‐NPA (red dots) or Blank‐NPA (blue dots) administration. We conducted a Mixed‐Effects Model to assess the effect of NG‐NPA versus Blank‐NPA treatment over time. p = 0.2 for treatment, p = 0.002 for time, p = 0.4 for interaction. b) ICP following NG‐NPA (red dots) or Blank‐NPA (blue dots) administration. We conducted a repeated measure 2‐Way ANOVA to assess the effect of NG‐NPA versus Blank‐NPA over time. F (1, 5) = 16.38, p = 0.001 for treatment, F (10, 50) = 3.7, p < 0.0009 for time, F (10, 50) = 3.428, p = 0.002 for interaction. Sidak's post‐test was used to compare NG‐NPA versus Blank‐NPAs at different time‐points (p values on graph in italics, p = 0.01 at 0 min; p < 0.01 between 4 and 24 min, and p < 0.0001 between 28 and 40 min). Dunnett's post‐test was used to compare each time‐point back to pre‐infusion baseline in NG‐NPA and Blank NPA groups (p values on graph in normal text, Blank‐NPAs: p = 0.04 at 20‐min; p = 0.002 at 24 min, and p < 0.0001 between 28 and 40 min). Values represent mean ± SEM.
Administration of Free NG is Ineffective
2.6
We next wanted to confirm that the LMC perfusion‐increasing effects of the shear‐targeted NG‐NPAs we observed could not be obtained using a similar dose of free NG (4 µg kg min^−1^). Infusion of the same dose of free NG did not significantly change LMC perfusion relative to pre‐infusion baseline or to saline controls in the region of the stroke (Figure 5a) or in the LMCs within the contralateral (non‐stroke/control) hemisphere (Figure 5c). Even when we administered 10 times the dose of free NG (40 µg kg min^−1^), we could not detect a significant change in perfusion in LMCs in the stroke area (Figure 5b) or in the LMCs in the contralateral hemisphere (Figure 5d).

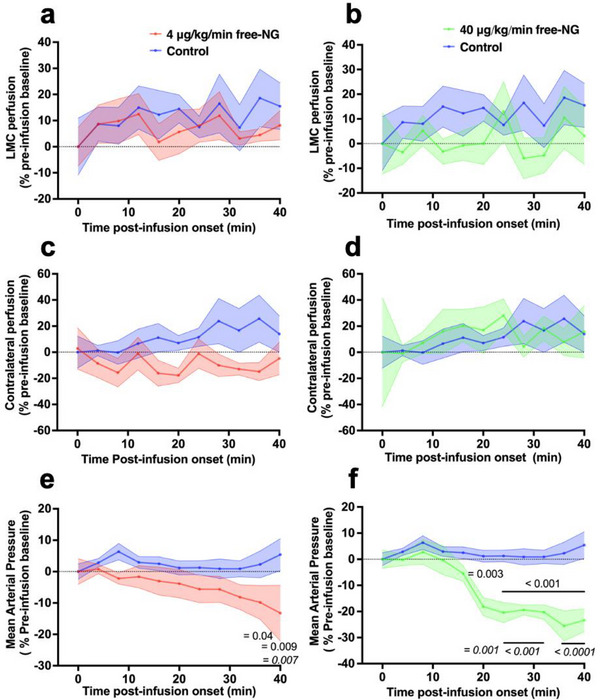

Administration of free‐NG did not improve LMC perfusion but caused a drop in mean arterial pressure. a) The effect of 4 µg kg min−1 free‐NG on ipsilateral LMC perfusion. We conducted a Mixed‐Effects Model to assess the effect of 4 µg kg min−1 free‐NG versus saline control over time. p = 0.69 for treatment, p = 0.52 for time, p = 0.98 for interaction. b) The effect of a 10 times higher dose (40 µg kg min−1) of free‐NG on ipsilateral LMC perfusion. We conducted a Mixed‐Effects Model to assess the effect of 40 µg kg min−1 free‐NG versus saline control over time. p = 0.22 for treatment, p = 0.8 for time, p = 0.85 for interaction. c) The effect of 4 µg kg min−1 free‐NG on contralateral perfusion. We conducted a Mixed‐Effects Model to assess the effect of 4 µg kg min−1 free‐NG versus saline control over time. p = 0.09 for treatment, p = 0.96 for time, p = 0.66 for interaction. d) The effect of high dose (40 µg kg min−1) free‐NG on contralateral perfusion. We conducted a Mixed‐Effects Model to assess the effect of 40 µg kg min−1 free‐NG versus saline control over time. p = 0.82 for treatment, p = 0.83 for time, p = 0.96 for interaction. e) The effect of 4 µg kg min−1 free‐NG on mean arterial pressure. We conducted a Mixed‐Effects Model to assess the effect of 4 µg kg min−1 free‐NG versus saline control over time. p = 0.07 for treatment, p = 0.89 for time, p = 0.04 for interaction. Sidak's post‐test was used to compare 4 µg kg min−1 free‐NG versus saline control at different time‐points (p values on graph in italics, p = 0.007 at 40 min). Dunnett's post‐test was used to compare each time‐point back to pre‐infusion baseline in 4 µg kg min−1 free‐NG and saline control groups (p values on graph in normal text, 4 µg kg min free‐NG: p = 0.04 at 36 min; p = 0.009 at 40 min). f) The effect of 40 µg kg min−1 free‐NG on mean arterial pressure. We conducted a repeated measure 2‐Way ANOVA to assess the effect of 40 µg kg min−1 free‐NG versus saline control over time. p = 0.002 for treatment, p < 0.0001 for time, p < 0.0001 for interaction. Sidak's post‐test was used to compare 40 µg kg min−1 free‐NG versus saline control at different time‐points (p values on graph in italics, p = 0.001 at 20 min; p < 0.001 between 24 and 32 min; p < 0.0001 between 36 and 40 min). Dunnett's post‐test was used to compare each time‐point back to pre‐infusion baseline in 40 µg kg min−1 free‐NG and saline control groups (p values on graph in normal text, 40 µg kg min−1 free‐NG: p = 0.0003 at 20 min; p < 0.0001 between 24 and 40 min). Values represent mean ± SEM.
