Dual-resonance optical fiber lossy mode resonance refractive index sensor
Xupeng Wu, Xiaoshuang Dai, Jian Wang, Haipeng Ren, Xu Wang
TL;DR
This paper introduces a new optical fiber sensor that can detect refractive index changes using two independent channels, useful for biochemical sensing.
Contribution
The novelty lies in achieving dual independent lossy mode resonance (LMR) on a single optical fiber for dual-channel sensing.
Findings
Dual-channel refractive index sensing was achieved using TiO2 and SnO2 nanofilms on an optical fiber.
The sensor demonstrated refractive index sensitivities of 538.422 nm/RIU and 615.647 nm/RIU.
The design is promising for simultaneous detection of multiple biochemical species.
Abstract

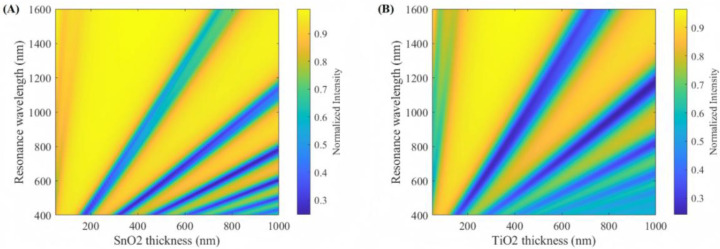

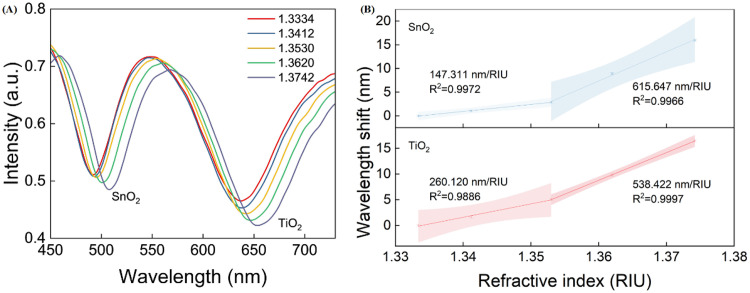

In this paper, we propose a dual-channel surface refractive index sensor based on optical fiber lossy mode resonance (LMR). A multilayer transmission matrix model is constructed to simulate and analyze the optical fiber LMR effect based on two semiconductor oxides, SnO2 and TiO2. Through the rational design of structural parameters, we successfully realize the coexistence of mutually independent LMRs on a single fiber, thereby enabling dual-channel sensing. The dual-channel optical fiber LMR sensor was prepared by electrostatically assembling TiO2 nanofilms and SnO2 nanofilms on the sidewall of the optical fiber. The refractive index sensitivity of the dual-channel optical fiber LMR was evaluated via wavelength interrogation, achieving dual-channel refractive index sensing. The refractive index sensitivities are 538.422 nm/RIU and 615.647 nm/RIU in the range of 1.3350 ~ 1.3742. The…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25

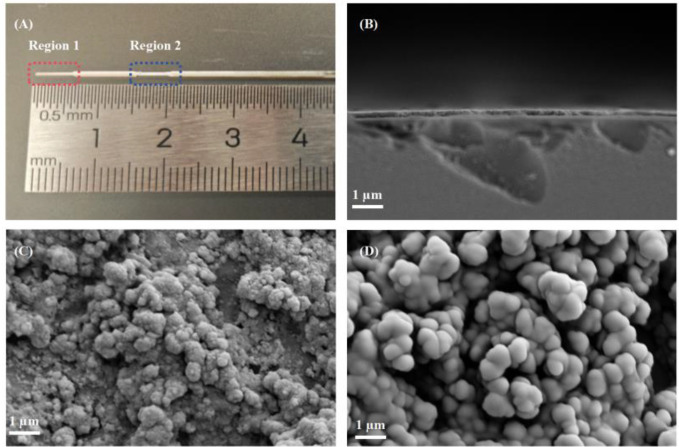

Figure 26
Figure 27
Figure 28
Figure 29

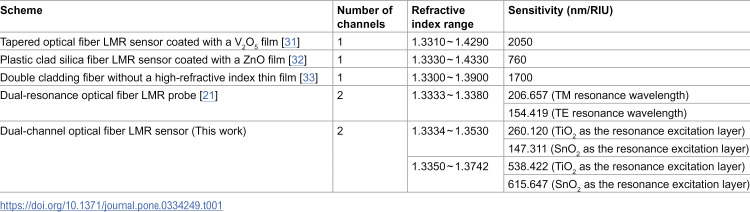

Figure 30Peer Reviews
